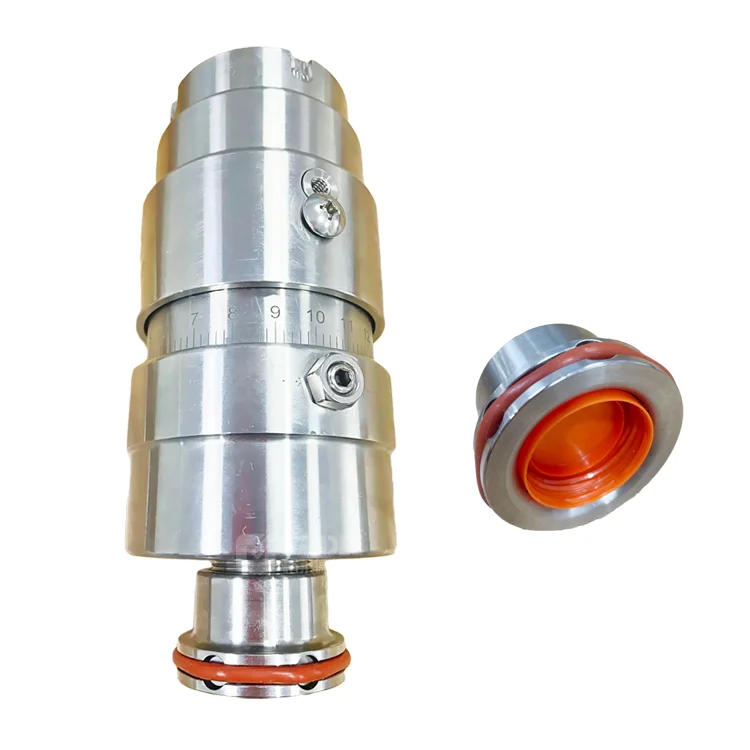

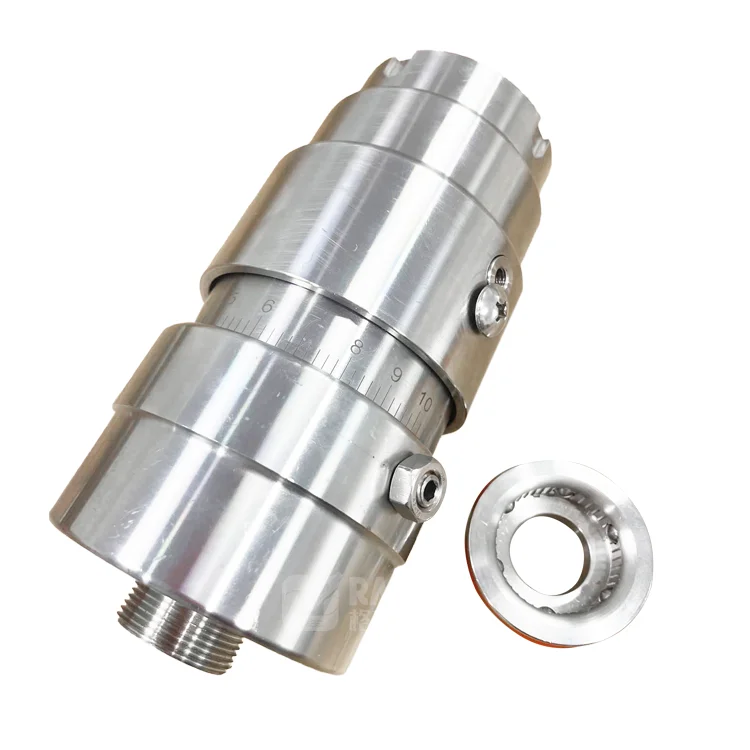

Cheap price magnetic capping head for bottle water filling machine spare parts
- Category: >>>
- Supplier: Zhangjiagang Grandee Machinery Co. Ltd.
Share on (1600464633340):
Product Overview
Description
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description

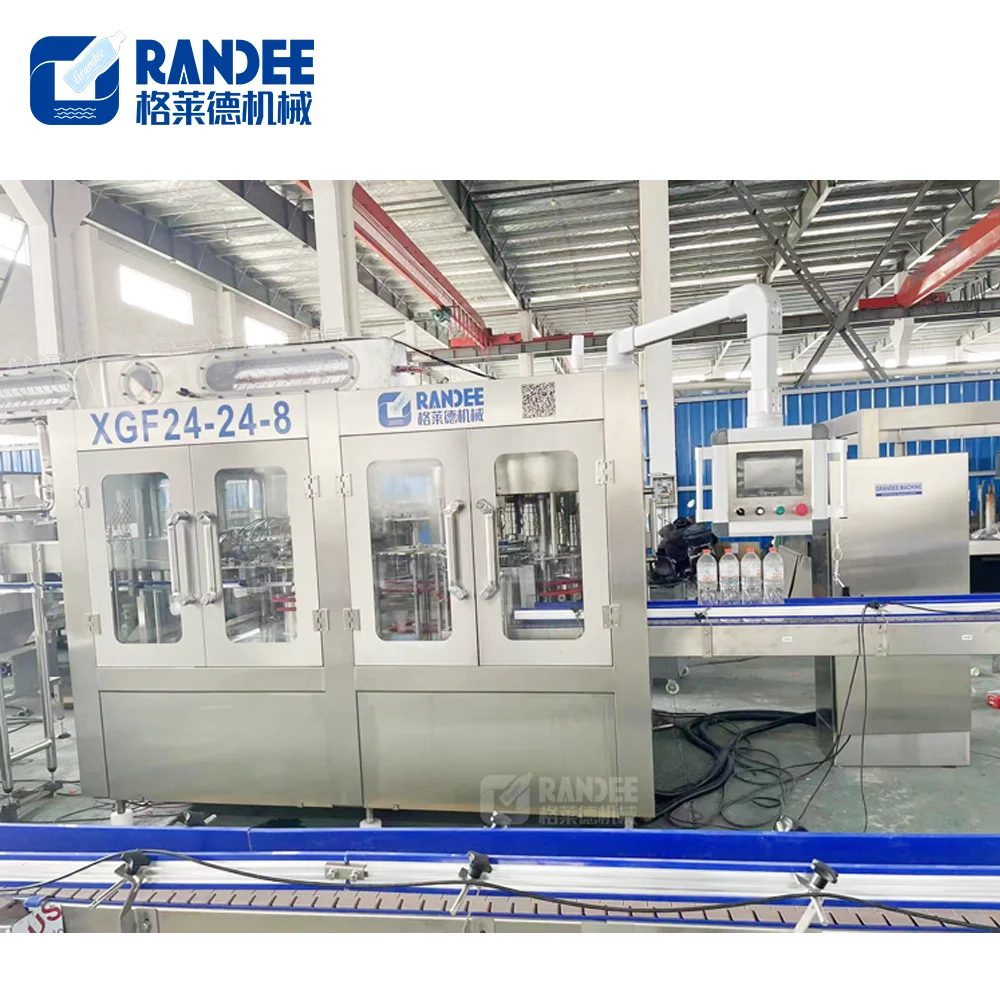

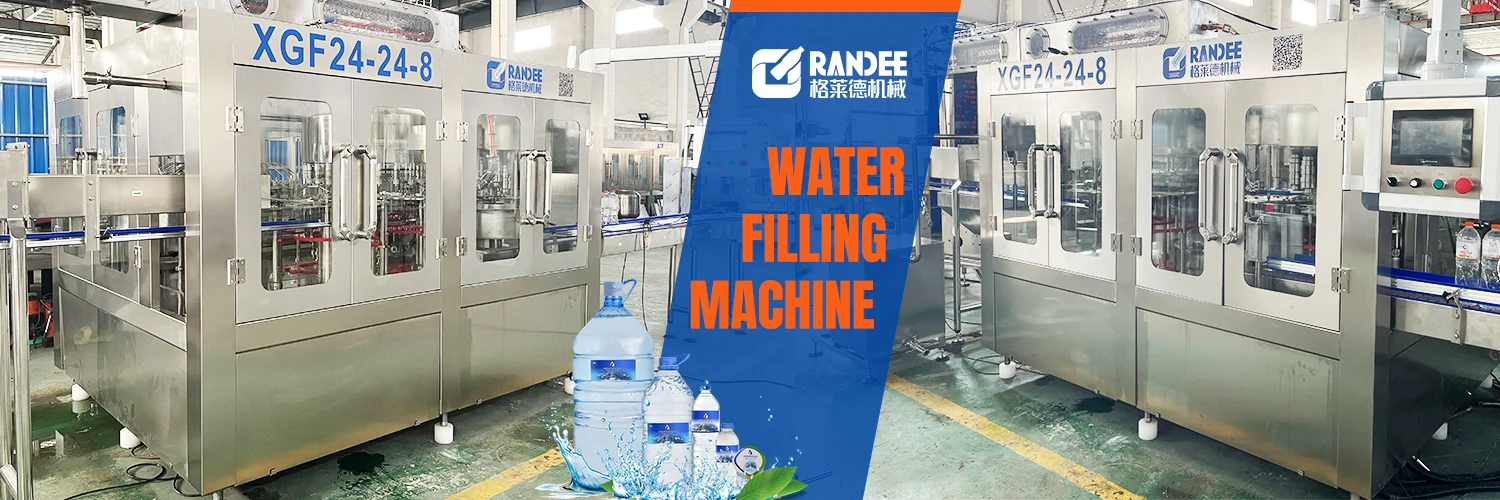

Mineral Pure Water Filling Production Machine
(1)water filling line/liquid filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking
machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.
(2)The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
(3)The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
(4)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
(5)The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.
machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.
(2)The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
(3)The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
(4)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
(5)The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

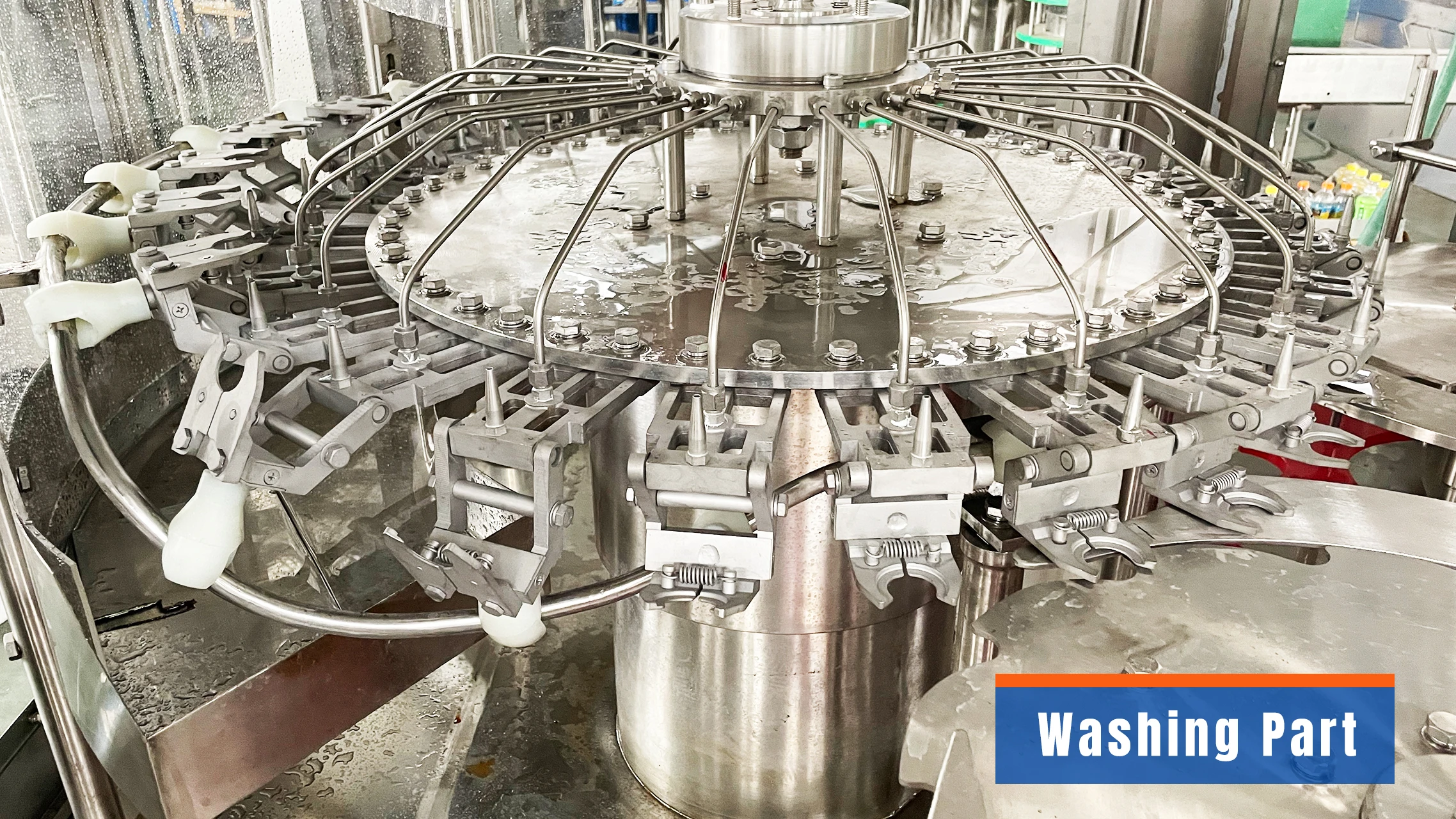

Washing part
The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe
grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again
grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again

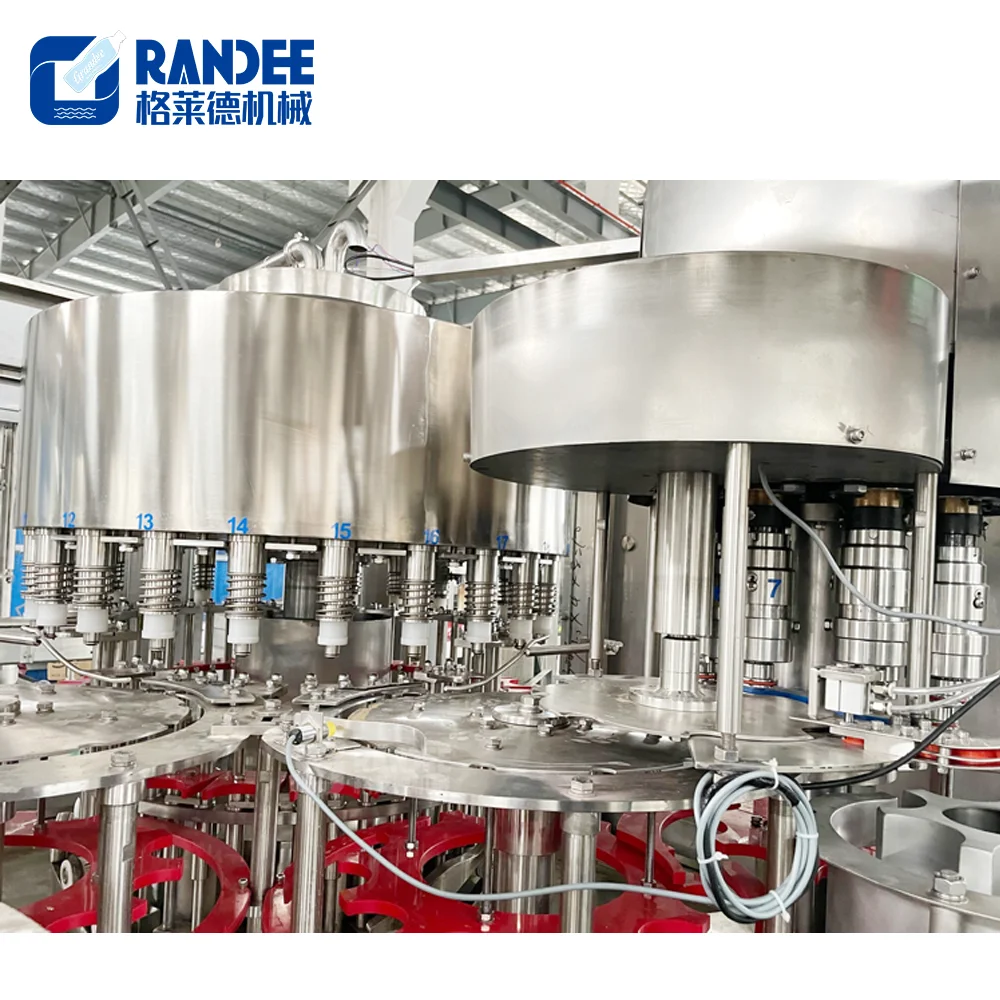

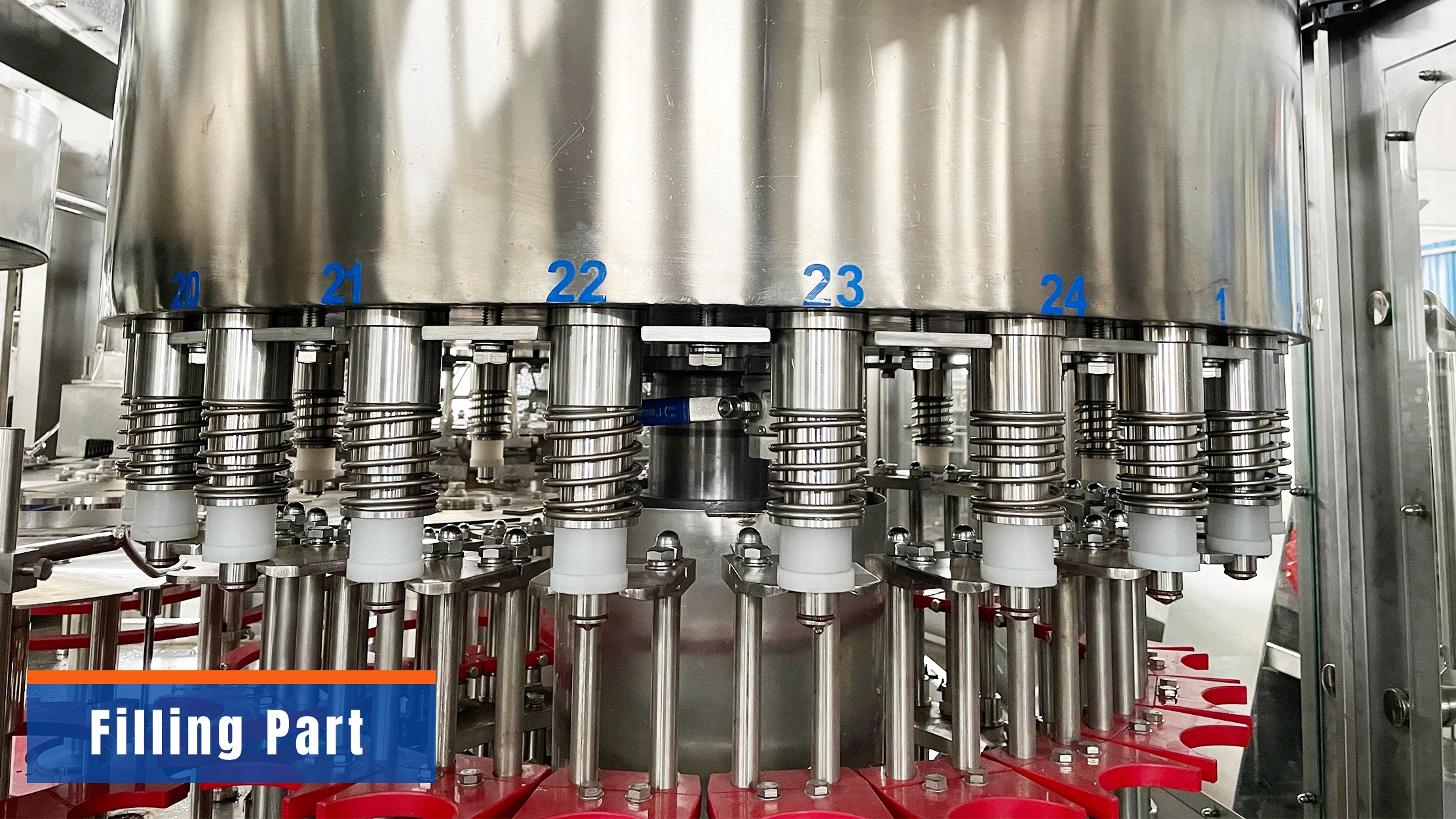

Filling part
Long tube filling type with 2 times filling process to make sure perfect filling level
Liquid tank, filling valves, controlling rings, upgrading cylinder.
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made
Liquid tank, filling valves, controlling rings, upgrading cylinder.
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made
of excellent stainless steel or food grade engineering plastic.

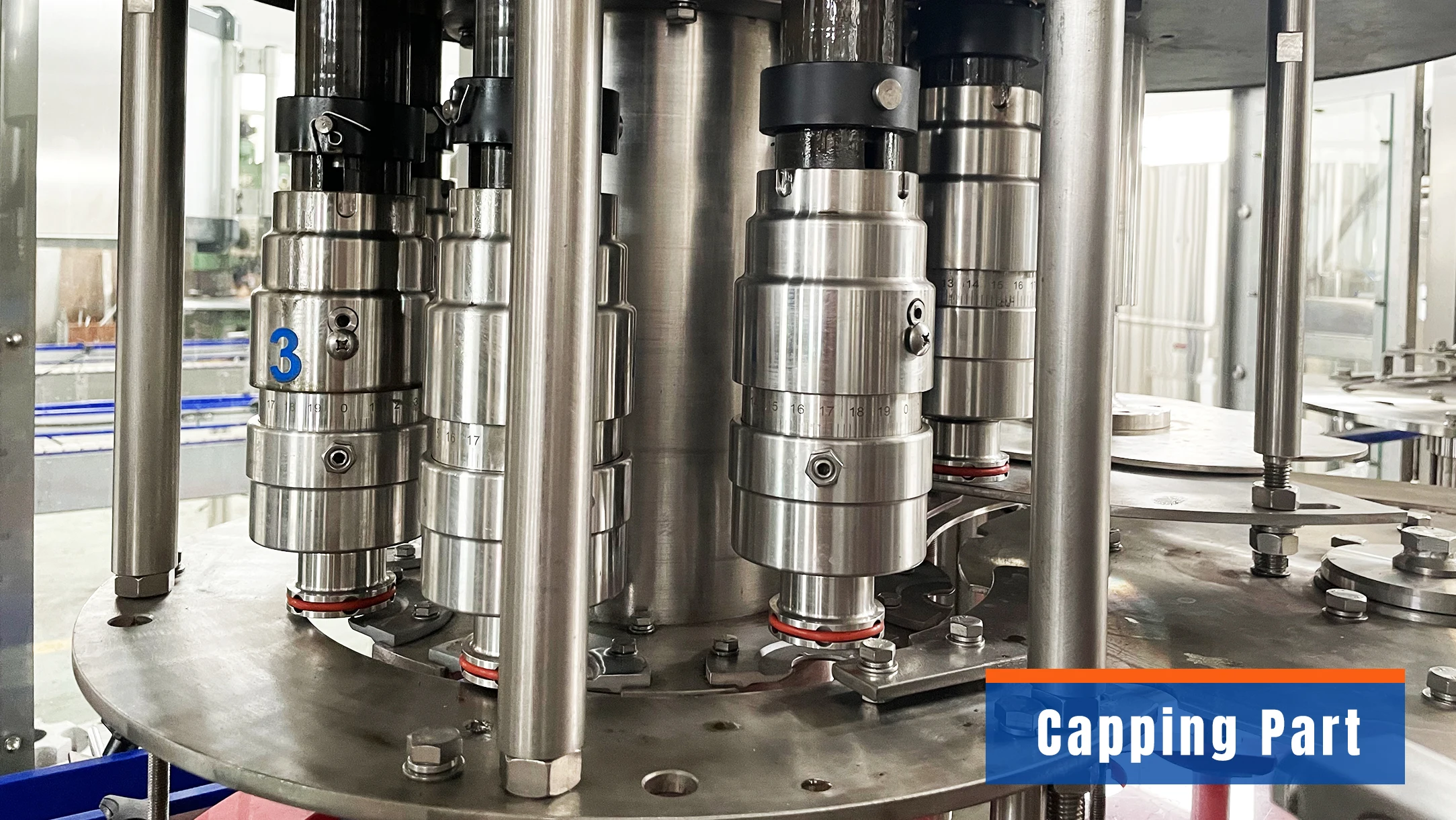

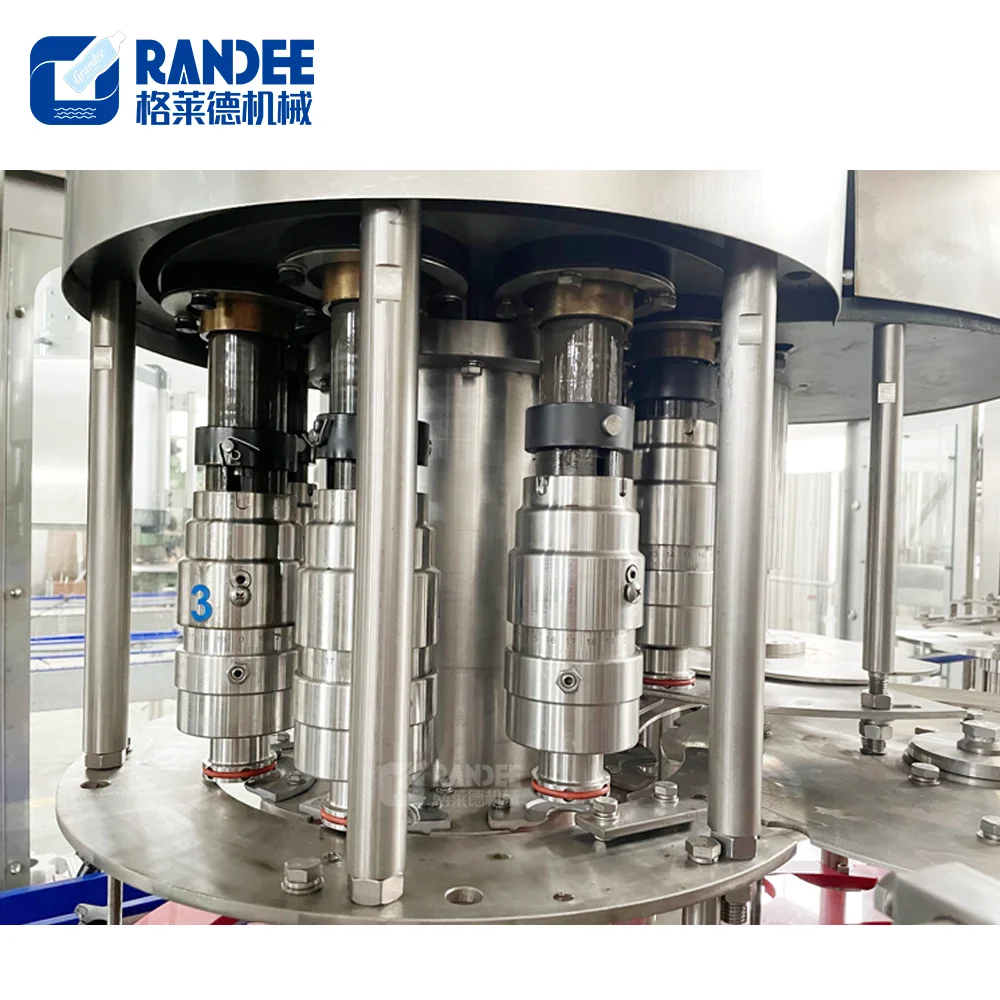

Capping part
Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
Main technical parameter
Model | XGF 8-8-3 | XGF 14-12-5 | XGF 16-16-6 | XGF 18-18-6 | XGF 24-24-8 | XGF 32-32-10 | XGF 40-40-12 | ||||||
Capacity(500ml/BPH) | 2000 | 3000 | 4000 | 8000 | 12000 | 14000 | 16000 | ||||||
Suitable bottle shape and size | Both round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mm | ||||||||||||
Compressed air pressure | 0.3-0.7MPa | ||||||||||||
Bottle washing medium | Sterile water | ||||||||||||
Washing pressure | 0.25MPa | ||||||||||||
Main motor | 1.5 | 2.2 | 2.2 | 2.2 | 4.5 | 5.5 | 7.5 | ||||||
Dimension(mm) | 2000*1600*2300 | 2200*1800*2300 | 2400*1900*2300 | 2500*2000*2300 | 2700*2100*2300 | 2970*2260*2700 | 3780*2800*2700 | ||||||
Weight(KG) | 2000 | 2500 | 3000 | 3500 | 4500 | 6500 | 8500 | ||||||
NAME | BRAND | AREA |
PLC | Siemens | Germany |
INVERTER | Siemens | Germany |
CONTACTOR | Siemens | Germany |
TOUCH SCREEN | Siemens | Germany |
INVERTER | Siemens | Germany |
MOTOR | ABB | SWISS |
PNEUMATIC PARTS | FESTO | GERMANY |
ELECTRICAL PARTS | SCHNEIDER | FRANCE |
For more information, please feel free to contact us to send an inquiry!
Turnkey Solution
1.RO system
This RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
2.Automatic blow molding machine for PET bottle:
Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity, etc from 2500BPH to 12000BPH for 500ml bottle.
Automatic PVC sleeve shrink labeling machine:
Capacity: 100-350bottles/min can be chosen Label material: PVC PET OPS, etc
Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
High speed automatic PE film shrink packing machine:
Film material: PE Shrink membrane thickness: 70~100um
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000～1100mm
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000～1100mm
Recommend Products
Turkey Project - Carbonated Drink/Water/Juice Production Line
High Speed PE Film Shrink Packing Machine
Packing speed: 22-28bags/min
Automatic Sleeve Shrink Labeling Machine
1. signle head or double heads available
2. Output: 150-350bottles/min
2. Output: 150-350bottles/min
Automatic PE Film Shrink Packing Machine
Speed: 8-10bags/min
Company Profile
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line , can filling and sealing line, complete blowing labeling and packaging system.
We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line , can filling and sealing line, complete blowing labeling and packaging system.
We have a professional pre-sales support and good after-sales service team. They are good at communicating, expressing, and understanding customer’s needs. The average working experience is more than 10 years. They have rich experience for installation and debugging, and provide thoughtful services and solutions.
We have laser cutting, CNC machining centers, and other various processing equipment to provide customers with precise and reliable products. The ERP system provides an important resource integration path for production management and ensures production and delivery cycles.
