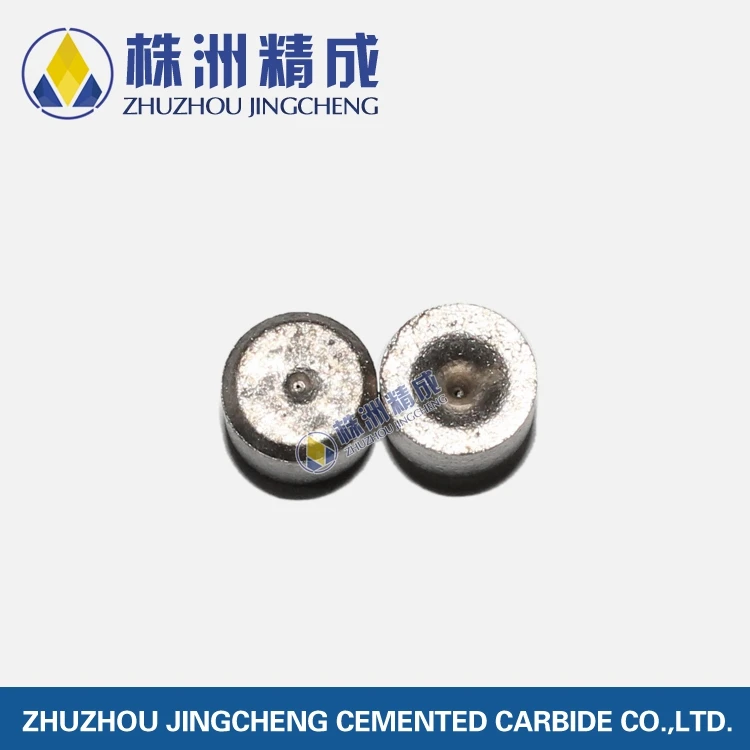

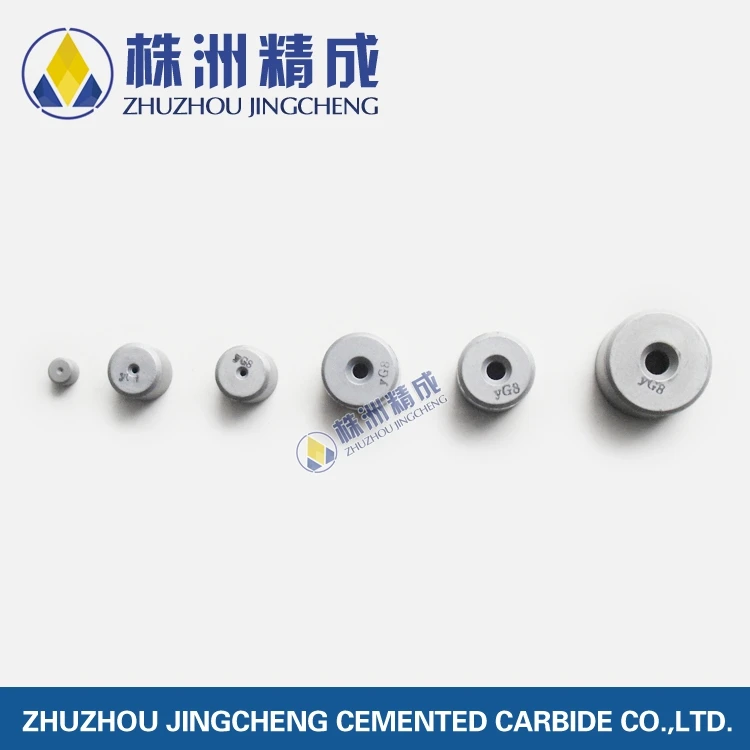

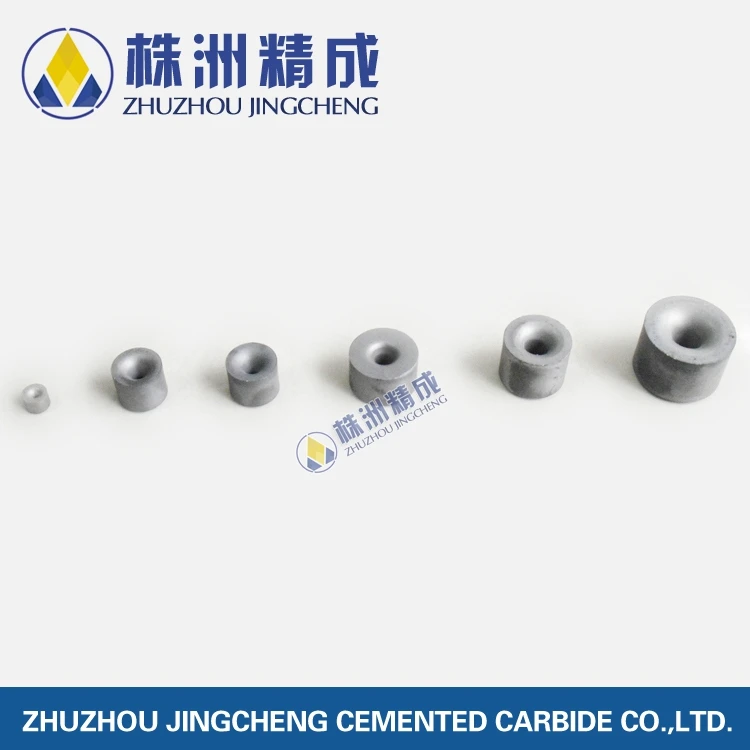

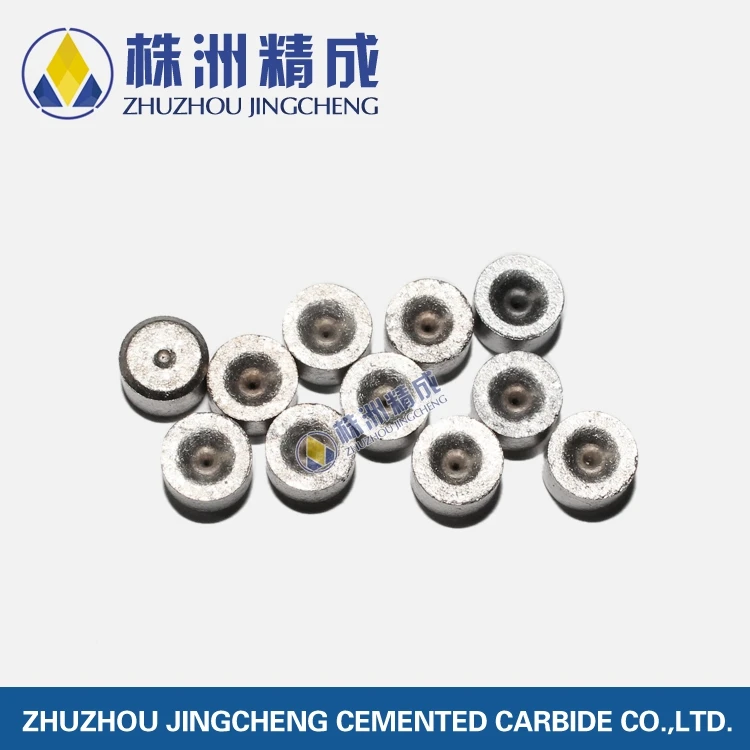

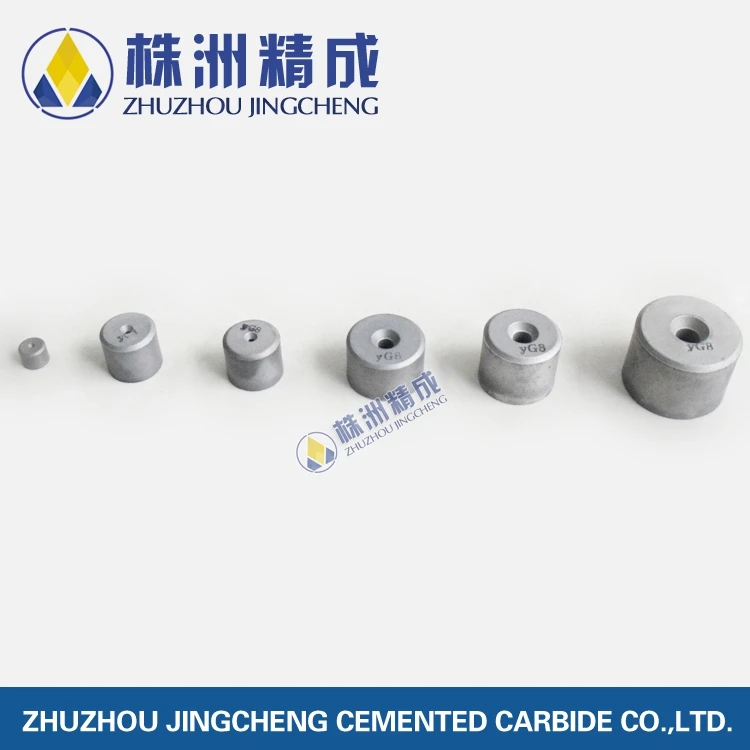

High quality raw material Tungsten Carbide Blank Wire Drawing Dies

Grade

Density

g/cm³

Hardness

HRA

TRS

N/mm²

Applications recommended

YG6X

14.8-15.1

≥91

≥1420

For drawing steel and nonferrous wires or bars of less thanφ6.00mm under not so much stress

YG6

14.7-15.1

≥89.5

≥1520

For drawing steel, nonferrous alloy bars of less than φ20.00mm under more stuess and also for drawing tubes of less than φ10.00mm.

YG8

14.6-14.9

≥89

≥1470

For drawing steel and nonferrous alloy bars and tubes, Also for manufacturing mechanical parts, tools and wear parts

YG8.2

14.4-15.0

≥88

≥1450

YG8L

14.6-15.0

≥89

≥1450

YG15

13.9-14.2

≥86.5

≥2060

For drawing steel bars and tubes with a high reduction rate and for manufacturing anvil, drilling and punching and impacting dies.

HK12

14.2-14.7

≥87.5

≥2100

Hy10

14.1-14.5

≥87.5

≥2060

YG20

13.4-13.8

≥83.5

≥2480

For making punching and impacting dies for watch parts and musical instruments springs, batteries shells and tooth paste shells, etc, Also for making punching and impacting dies for steel balls of small diameters, screws and nuts, etc.

JL50

13.8-14.2

≥85

≥2300

TL40.5

13.0-13.6

≥81

≥2480

For making cold heading and cold punching and impacting dies for standardized parts, bearings, bullet head and shell, etc.

YG20C

13.4-13.8

≥82

≥2480

YG20D

13.4-13.8

≥82

≥2300

YSN30

13.9-14.9

≥87

≥1900

It is a demagnetized cemented carbide suitable for manufacturing forming tools in industries of magnetism.
