Durable Multi Function Handheld Portable Cable Locator Underground Pipe Detector
- Category: >>>
- Supplier: Zibo Wit Electric Co. Ltd.
Share on (1600464641607):
Product Overview
Description
Products Description
Active frequency | 640Hz,1280Hz,10kHz,33kHz,82kHz,197kHz |
Compass display | display pipe position directly |
Output power | -max. 10W, 10 levels adjustable, auto impedance matching |
Direct connection voltage | -max. 150Vpp |
Radiation frequency passive frequency: | center frequency 10kHz, 33kHz, 82kHz |
main functions:
* Cable identification
* Path tracing
* Depth detecting
* A frame grounding fault locating
* Both live and dead cable detection
FUNCTION FEATHER:* Cable identification
* Path tracing
* Depth detecting
* A frame grounding fault locating
* Both live and dead cable detection

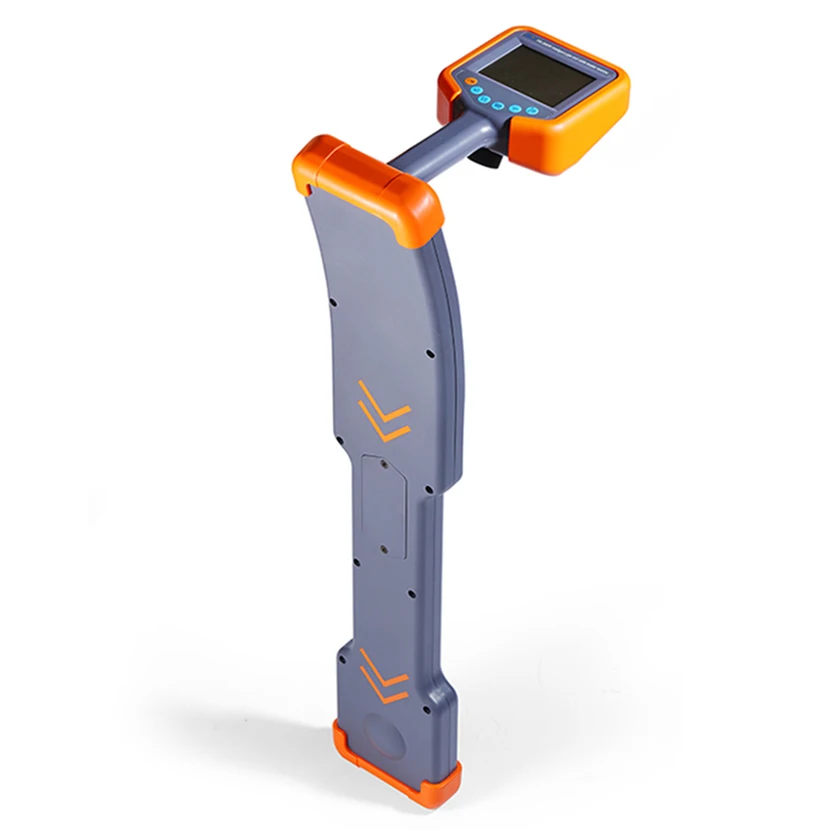

* Compass display: to display pipe position and left-right direction directly.
* Right/wrong indication: measure the pipe current direction to indicate tracing result correct or wrong and avoid the nearby
lines interference under certain frequencies
* Depth measurement and current measurement and display the signal strength history cursor.
* All digital high accuracy sampling which is stable and reliable with ultra high sensitivity and narrow receiving transmission
band to greatly enhance the capacity of resisting disturbance and fully inhibit the power interference and harmonic
interference from the nearby running cable and pipe.

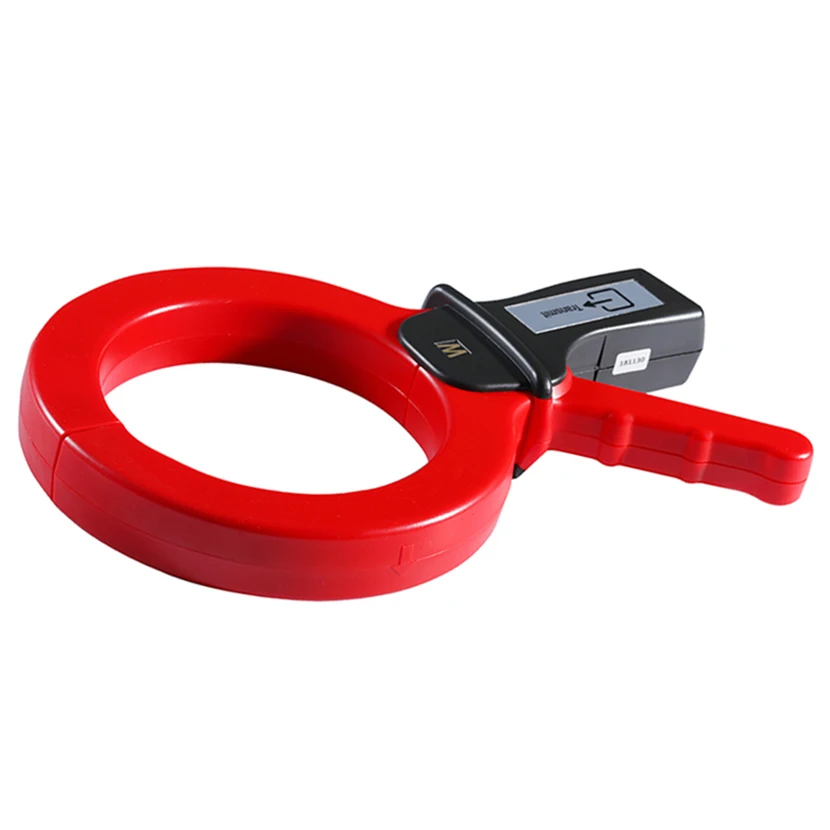

* Cable/pipe identification:flexiable Clamp (optional) identification and sensor identification. Clamp identification can
precisely gives accurate result. sensor (optional) identification could be used when the Clamp identification is not applicable
.
* Grounding fault location: Use the booster (optional ) could rise output voltage to max.1000V,and use the A frame (optional) to
pinpoint the pipe insulation damaged points against the ground. No need to do zero set and the arrow will point to the fault
point direction.
* Multiple locating frequencies support both active detection an passive detection.
* Multiple signal output mode: Direct connection output, Clamp Coupling, Radiation method.

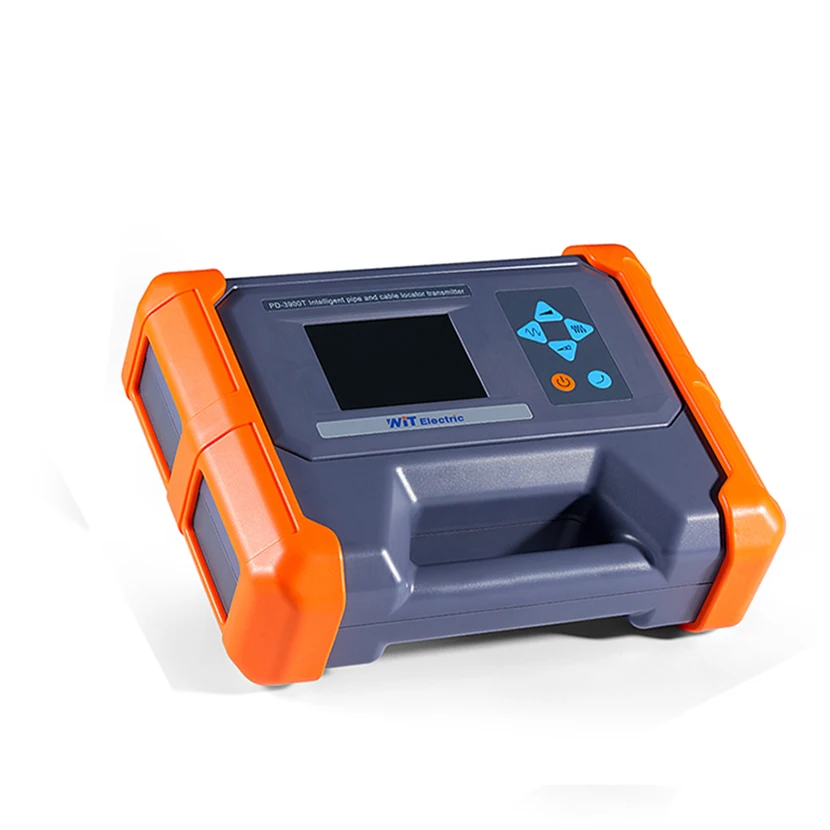

* Large power output of transmitter digital amplifier with auto impedance matching and auto protection.
* Built-in big capacity Li-on batteries series,support auto power off when low battery or long time no operation
* Solid case and light weight easy to carry
