Precision Small Multi function Lathe Combined Mini Metal Lathe Machine
- Category: >>>
- Supplier: Tengzhou Datong Machine Tool Co. Ltd.
Share on (1600464664368):
Product Overview
Description
1 DTMC
Product Description
Machine Features
1.Small volume, light sound, stepless variable speed, imported SKF bearing,automatic feed, spindle shield with power off function.
2.Schools, science innovation centers and scientific research units teaching demonstration use, suitable for home DIY, Processing of aircraft model parts and watch parts. 3.It can process various non-ferrous metals such as titanium, stainless steel, 45 steel, iron, aluminum, copper, etc.And various soft materials such as wood,nylon and resin.
Maximum turning diameter bed | 210mm |
Maximum turning diameter of middle carriage | 125mm |
Two top distance | 400mm |
Spindle speed range/Grade | 50-2500rpm/variable |
Taper of spindle bore | MT3 |
Spindle bore | 21mm |
Tailstock quill travel | 65mm |
Taper of tailstock quill | MT2 |
Cross slide travel | 75mm |
Top slide travel | 55mm |
Range of metric threads | 0.25-3mm |
Range of inch threads | 8-44T.P.I |
Cutting feeds | 0.1/0.2mm/U |
Noise | <75dB |
Motor | 220v/600w 50HZ |
N.W./G.W. | 65/85KG |
Machine size | 930×430×360mm |
Packing size | 930×470×500mm |

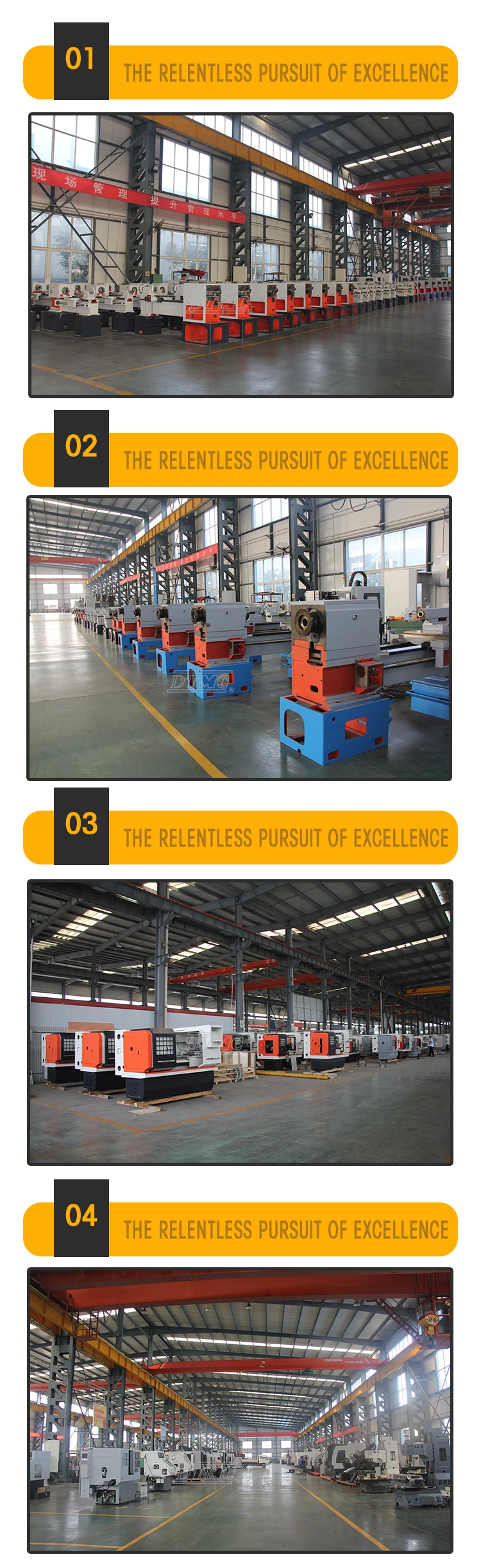

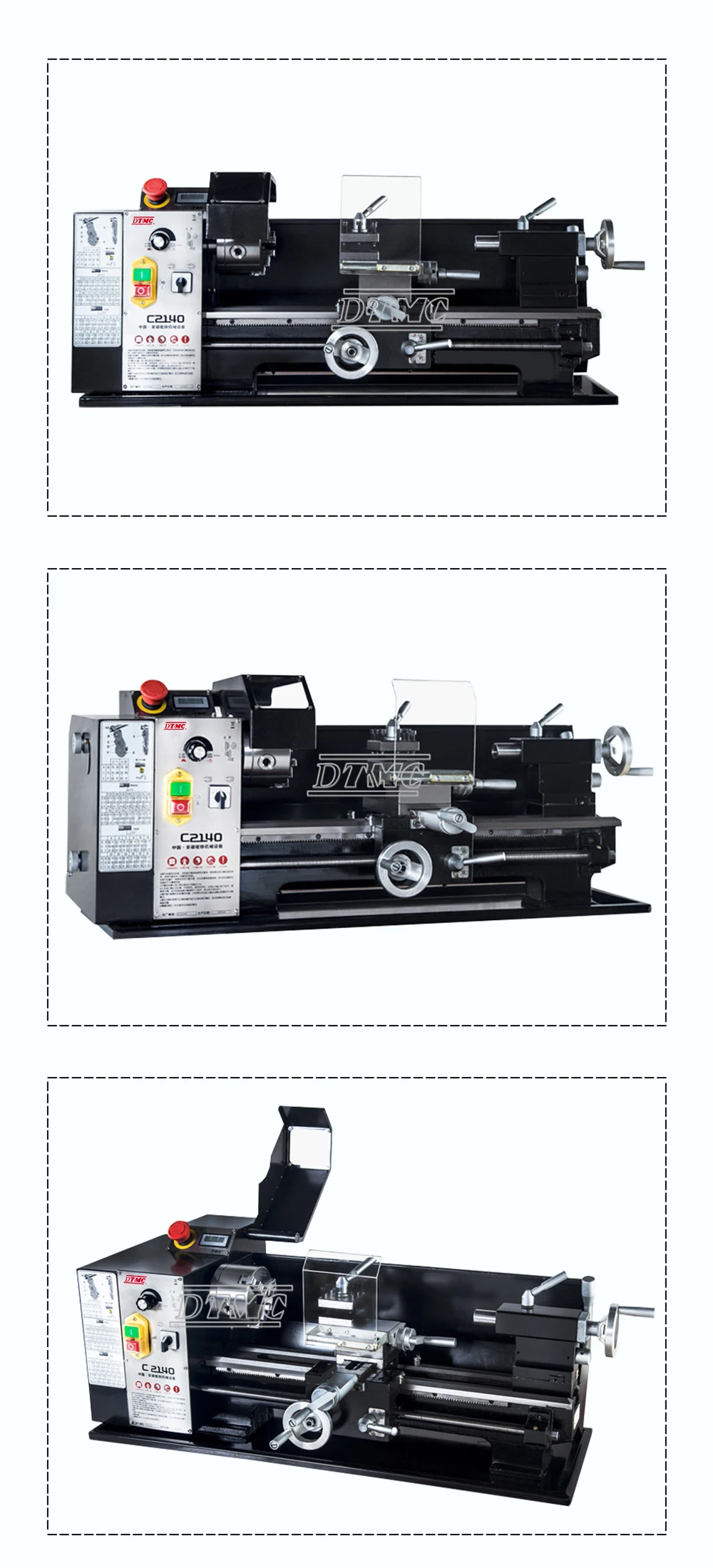

4 product display
10 our advantages
11 FAQ
