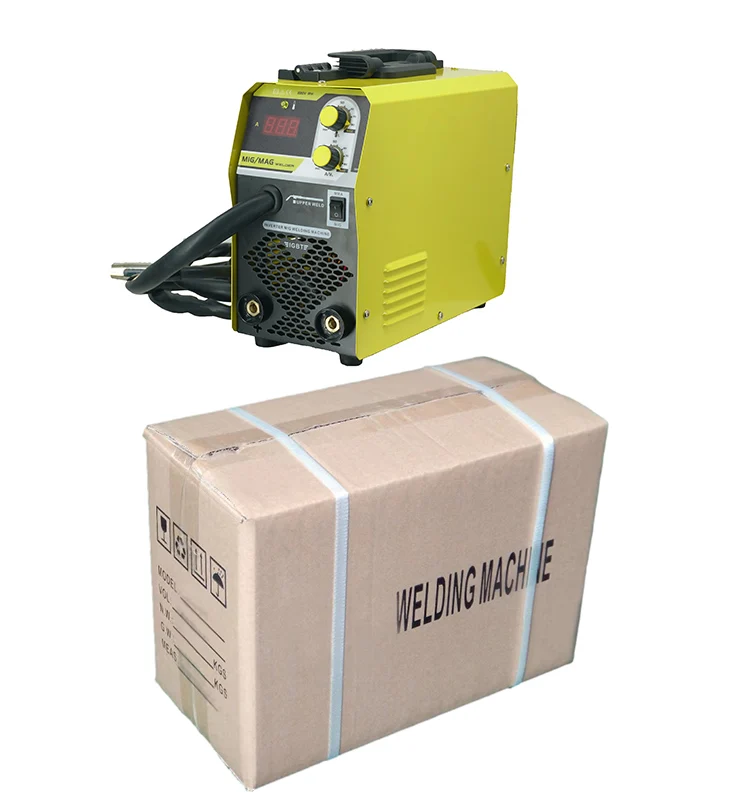

RHKTECH March Expo Stable Welding Process Digital Display MIG 230C MMA Welding MIG Machine Inverter Without Gas
- Category: >>>
- Supplier: RHK TECH Welding Machinery Co. Ltd.
Share on (1600464675733):
Product Overview
Description
Product Description
Features
Advanced lGBT technology, energy-saving, and low noise.
Digital display, precisely controlled welding current, stable welding process, and excellent welding characteristics.
Effective spatter control, improved penetration and better welding effect. Circuit protection against over current, over voltage and over heat.

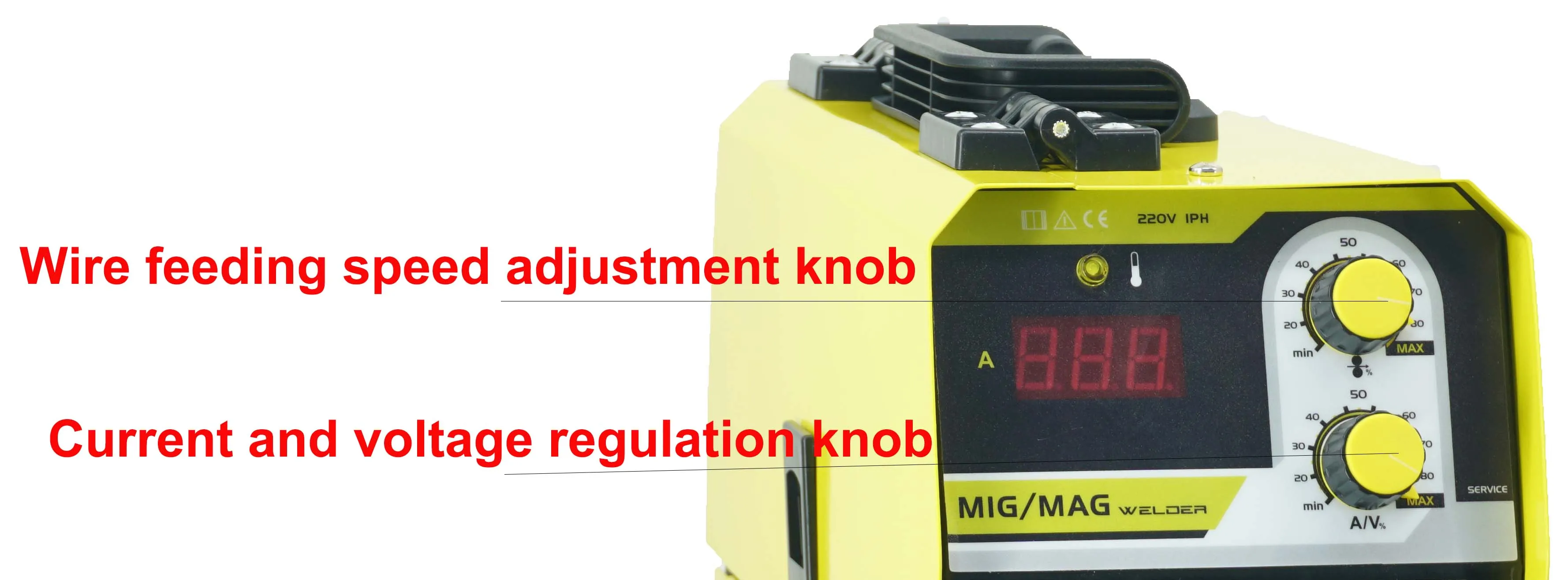

Built-in wire feeder and adjustable wire feeding speed.
Gas/gasless usage optional.
Integrated welding torch, for 1kg wire reel, electrode diameter 1.6-3.2mm, welding wire diameter 0.6/0.8mm, quick connector size 10-25mm.
Mainly welded thick plate, ferrous metal. CE certificate.
Digital display, precisely controlled welding current, stable welding process, and excellent welding characteristics.
Effective spatter control, improved penetration and better welding effect. Circuit protection against over current, over voltage and over heat.
Built-in wire feeder and adjustable wire feeding speed.
Gas/gasless usage optional.
Integrated welding torch, for 1kg wire reel, electrode diameter 1.6-3.2mm, welding wire diameter 0.6/0.8mm, quick connector size 10-25mm.
Mainly welded thick plate, ferrous metal. CE certificate.
Standard Parts
-15AK MIG Torch
-Mask & Brush
-Electrode Holder
-Earth Clamp
-15AK MIG Torch
-Mask & Brush
-Electrode Holder
-Earth Clamp
Specification
item | value |
Material / Metal Processed | Carbon Steel |
Rated Input Voltage | 220V |
Wire Melting Type | Spray Transfer |
Max. Load Power Capacity | 5.7KVA |
Rated Output Current (MIG) | 160 A |
Rated Output Voltage (MIG) | 220V |
Welding Current/Voltage Range | 20-160A |
Rated Duty Cycle @40°C (MIG) | 60% |
Wire Feeding Speed | 15m/min |
Condition | New |
Place of Origin | China |
Jiangsu | |
Brand Name | RHKTECH/Oem |
Dimensions | 390*230*360mm |
Usage | Welding |
Weight (KG) | 8KG |
Year | 2021 |
Warranty | 2 years |
Key Selling Points | Multifunctional |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Feature | PORTABLE |
Product Name | Welding Torch Integrated Welding Machine |
Recommended more models | ||||
Item | MIG-140TY | MIG-160TY | ||
Input Power Voltage | AC230V | AC230V | ||
Input Power Frequency | 50/60HZ | 50/60HZ | ||
Rated Input Capacity | 3.8KVA | 4.5KVA | ||
Output Current Range (MIG) | 40-140A | 40-160A | ||
Output Current Range (MMA) | 20-120A | 20-140A | ||
Load Voltage | 16-21V | 16-22V | ||
Rated Duty Cycle | 60% | 60% | ||
Wire Feed Speed | 3-15m/min | 3-15m/min | ||
Gas Flow | 15-20L/min | 15-20L/min | ||
Dimensions | 340*140*275mm | 340*140*275mm | ||
Weight | 6.8kg | 7 kg | ||
Specification Packaging | 390*230*360mm | |||
MOQ | 100 sets | |||
Delivery Date | 35-45 days | |||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Information
RHK TECH Welding Machinery Co., Ltd.
Our company was established in 2011 as a professional manufacturer of welding torches, material
and welding safety products. With 52,000 Sq.M, 250 employees, 10 Senior Engineers and 15 Q.C.staff.
We offer to our customers:
- complete offer of welding, abrasive and personal safety products
- qualified staff with easy communication in English
- modern information systems implemented
- developed and efficient logistics organization
We created a complete range of welding products and accessories, which helps our partners to
find "cost alternative" and high quality goods as the alternative to international well-known manufacturers.
We offer to our customers:
- complete offer of welding, abrasive and personal safety products
- qualified staff with easy communication in English
- modern information systems implemented
- developed and efficient logistics organization
We created a complete range of welding products and accessories, which helps our partners to
find "cost alternative" and high quality goods as the alternative to international well-known manufacturers.
Exhibition & Team
FAQ
Q1: Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.
Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.
Q3: What are the benefits of being a distributor ?
A:Special discount for Market Protection.
Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems,
any issues that may arise during the quoting or installation process, as well as aftermarket support.
Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
Q6: Can I have a visit to your factory before the order?
A: Sure. Welcome to visit our factory.Our address is in Changzhou City, Jiangsu Province, China.
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.
Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.
Q3: What are the benefits of being a distributor ?
A:Special discount for Market Protection.
Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems,
any issues that may arise during the quoting or installation process, as well as aftermarket support.
Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.
Q6: Can I have a visit to your factory before the order?
A: Sure. Welcome to visit our factory.Our address is in Changzhou City, Jiangsu Province, China.
