Installation of suction line filter driers protect their cooling equipment from contaminants left in the system after a burnout
- Category: >>>
- Supplier: Shanghai Bowa International Trading Co. Ltd.
Share on (1600464681559):
Product Overview
Description
Product Overview
Standard suction line filter drier is used for clean-up after a burnout or when major work has been performed in refrigeration
Suction line filter-driers incorporate a protective filter, plus desiccant blended for maximum moisture and acid removal. Compressor manufacturers recommend the installation of suction line filter driers to protect their equipment from contaminants left in the system after a burnout. These suction line filter-driers include protection from moisture and organic or inorganic acids, resulting from burnouts, or chemical changes in the system refrigerant or oil. They are specially suited for system clean-up after a burnout, or when major work has been performed on the system
FEATURES AT A GLANCE
* Uniform porosity throughout the entire core guarantees particulate filtration and retention.
* The most effective desiccant for moisture removal.
* A secondary line of defence that provides thorough low micron filtration of particles from the system.
* Easier to install, provides longer service life.
5. Suitable for harsh environments.
6. Suited for R410A.
* The most effective desiccant for moisture removal.
* A secondary line of defence that provides thorough low micron filtration of particles from the system.
* Easier to install, provides longer service life.
5. Suitable for harsh environments.
6. Suited for R410A.

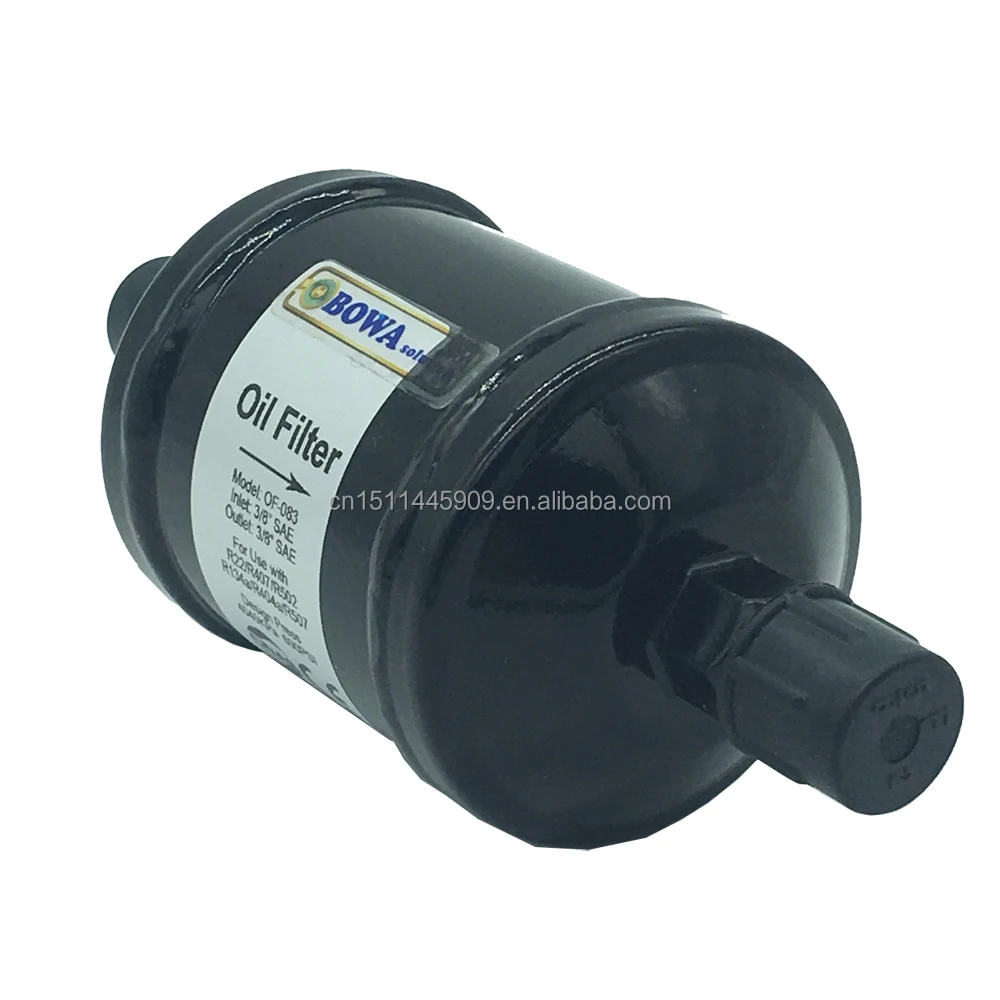

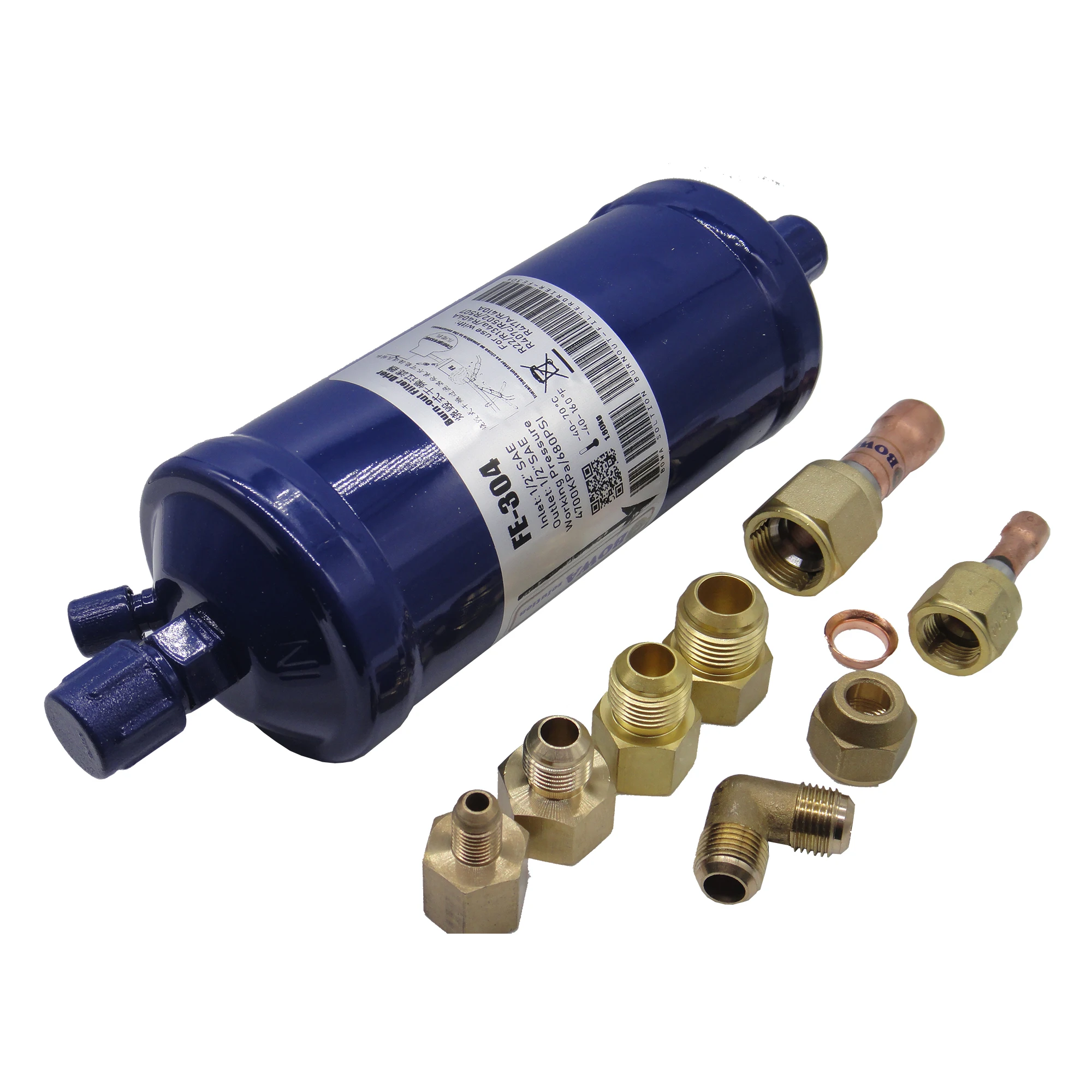

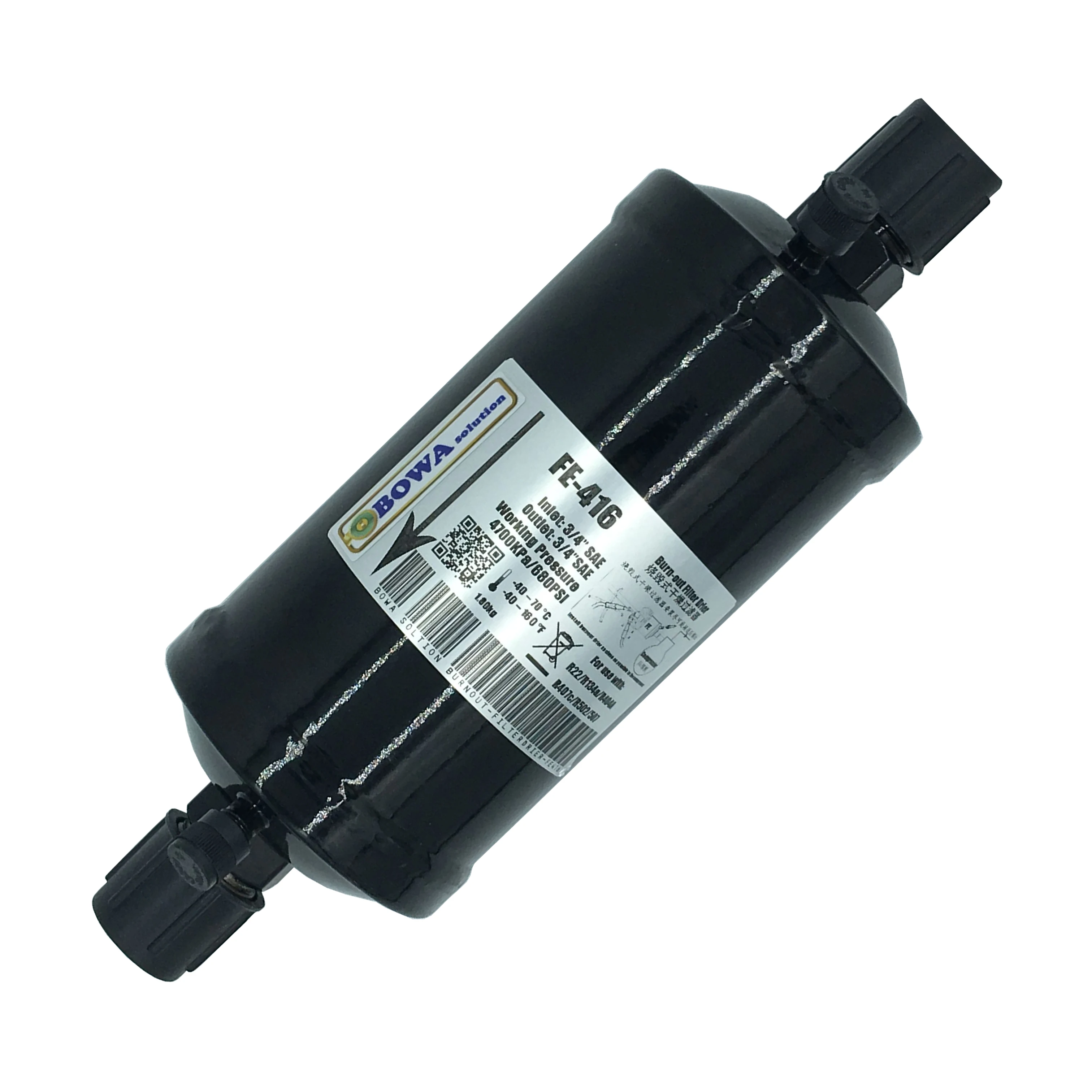

Real product

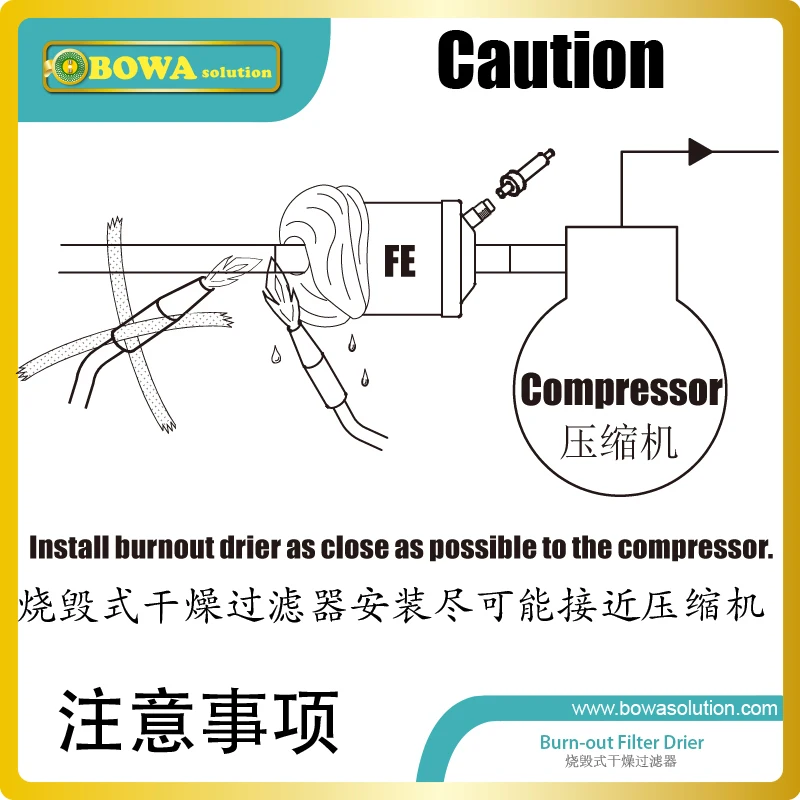

Installation guide

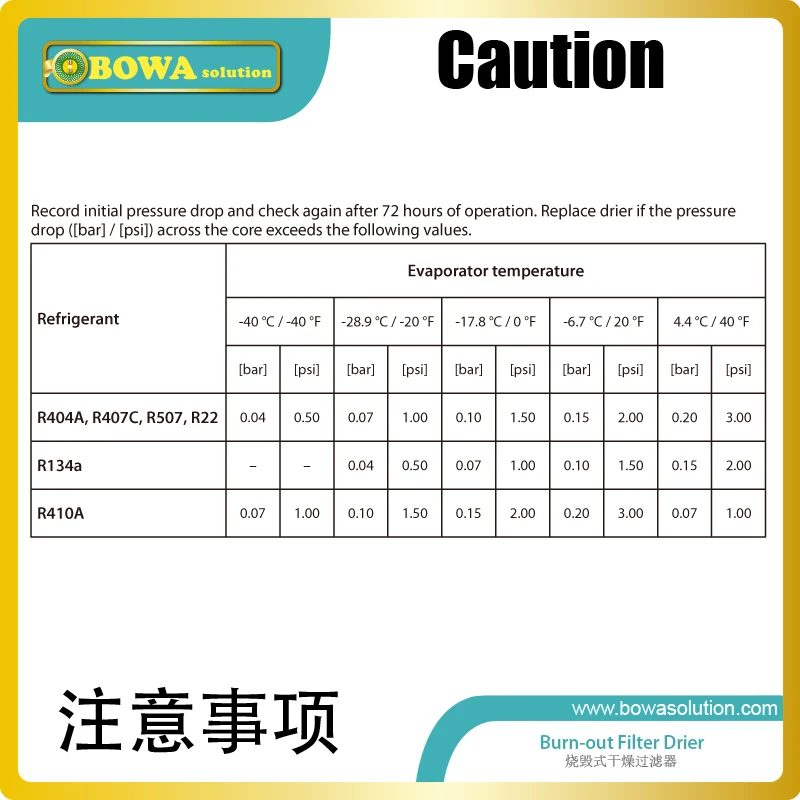

Pressure drop
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
Water Chiller
Blast freezer
In heat pump
SIMILAR PRODUCTS
FAQ
Q1: how to select filter driers
A1：Firstly we should get correct hydraulic daimeter which means correct flow rate and cooling capacity at smaller pressure drop. Secondly, we need get know drying and filter capacity of filter driers. Thirdly, we get know which connection type and size is suitable for the system.
