16 Wires Drawing Production Line Machine
- Category: >>>
- Supplier: Jiangsu Brainpower Intelligent Technology Co. Ltd.
Share on (1600464685704):
Product Overview
Description
PRODUCT OVERVIEW

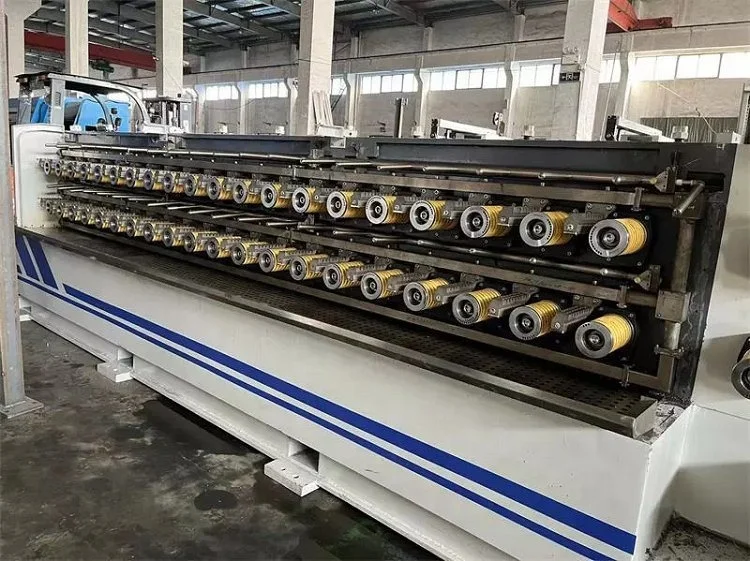

16 Wires Drawing Production Line Machine is mainly used for drawing copper wire to 0.16-0.40 mm wire.
Dies quick change system can realize high efficiency once produce lots of different diameters.
Dies quick change system can realize high efficiency once produce lots of different diameters.
FEATURE

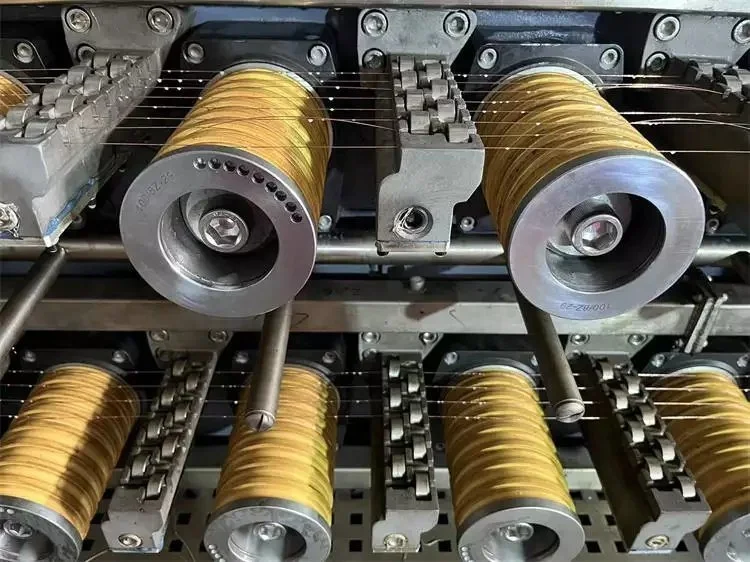

(1) Capstan Diameter: 100 mm
(2) Max.Dies Quantity: 24
(3) Wires quantity: 16 wires
(4) Max.Speed : 30 m/s
(5) Quick Dies Change system available
(2) Max.Dies Quantity: 24
(3) Wires quantity: 16 wires
(4) Max.Speed : 30 m/s
(5) Quick Dies Change system available
MAIN SPECIFICATION
Machine Type | DT24/100.16 |
Drawing Wire No. | 16 Wires |
Max. Die No. | 24 |
Max.Inlet Dia.(mm) | 2.6 |
Outlet Dia.(mm) | 0.16 ~ 0.40 |
Drawing Capstan Dia. (mm) | 100 |
Max.Drawing Speed.(m/s) | 30 |
ADVANTAGES
(1) More stability, high production efficiency, low noise and easy to operation.
(2) Space saving around 50%
(3) Electricity Saving around 10%; Labor Saving 50%
(4) High efficiency for next pay-off progress.
(5)Quick die change system for dies quantity saving 30%.
(6)Two clutches for faster speed.
(2) Space saving around 50%
(3) Electricity Saving around 10%; Labor Saving 50%
(4) High efficiency for next pay-off progress.
(5)Quick die change system for dies quantity saving 30%.
(6)Two clutches for faster speed.
SIMILAR PRODUCTS
ABOUT US

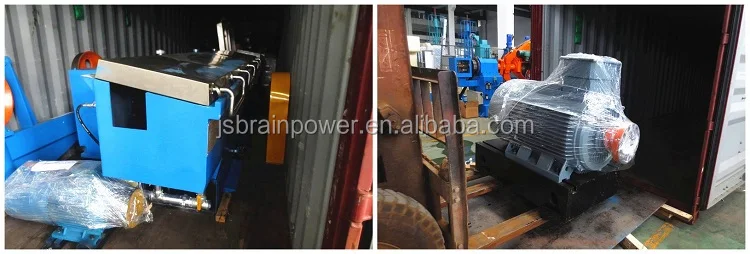

PACKAGING & SHIPPING
FAQ
Q1: What’s the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
