Product Overview
Description
Product Description
1. Product introduction
The equipment is based on the Volkswagen Jetta 1.6L automotive manual air conditioning system, which fully demonstrates the composition and working process of the automotive manual air conditioning system. It is suitable for the teaching needs of middle and higher vocational and technical colleges, general education colleges and training institutions for the theory and maintenance training of automobile manual air conditioning systems.
2. Features
1. A real and operational car manual air conditioning system, fully demonstrating the composition and working process of the car manual air conditioning system.
2. The three-phase motor is used as the power source to drive the air-conditioning compressor to work. Operate the air conditioning control panel to demonstrate the working process and working principle of the manual air conditioning system of the car.
3. The panel of the training table is made of high-grade aluminum-plastic panel with a thickness of 4mm, which is corrosion-resistant, shock-resistant, pollution-resistant, fire-resistant and moisture-proof. , the surface is sprayed with varnish; the students can intuitively compare the circuit diagram and the real object, understand and analyze the working principle of the automobile manual air conditioning system.
4. There are detection terminals installed on the panel of the training platform, which can directly detect the electrical signals of each circuit element of the air-conditioning system, such as resistance, voltage, current, frequency signals, etc. on the panel.
5. High and low pressure gauges and air inlet and outlet temperature gauges are installed on the training platform panel, which can display the parameter changes of air conditioning pipeline pressure and air inlet and outlet temperature in real time.
6. The training platform provides a practical working platform for trainees to practice filling refrigerant and leak detection.
7. The base of the training platform is welded by steel structure, and the surface is treated by spraying process.
8. Equipped with intelligent fault setting and assessment system:
★Fault setting and assessment system composition:
1. Two-dimensional code panel for informatization teaching: There are detection terminal jacks for sensors and actuators on the panel, and at the same time match the two-dimensional code information course learning information identification corresponding to the individual module. Scan the code to display the current component principle and technical information.
2. In the actual teaching environment, teachers guide students to install and log in the integrated micro-course teaching APP on the mobile device, and scan the QR code of the device to enter the system course for autonomous learning. The learning content needs to exactly match the integrated QR code work page course.
3. The training platform is equipped with a simulated fault setting and teaching assessment device. The 7-inch touch screen can set one or more common faults to meet the requirements of vocational skills teaching. The fault contents include: open circuit, virtual connection, and occasional. The number of failures: single point 8 or 16. Teachers can set faults in a variety of ways, such as single-point fault setting, combined fault setting, and assessment setting, which is also convenient for students to practice in the classroom and exercise their practical ability.
4. The teacher can remotely send fault-setting instructions to the training equipment through the wifi connection of the teaching software. Assessment: Teachers use the method of assessing faults to set faults in the comprehensive fault setting. Students conduct remote fault diagnosis and troubleshooting in the virtual diagnosis by observing the current fault phenomenon of the training platform, and fill in the diagnosis results in the training assessment. The system determines Diagnosis results and automatic scoring of this assessment.
3. Technical parameters
1. Dimensions: 1000×1000×1800mm (length×width×height)
2. Power supply: AC 380V±10% (three-phase four-wire) 50Hz
3. External power supply: AC 220V±10% 50Hz
4. Working voltage: DC 12V
5. Refrigerant: R134a
6. Working temperature: -40℃～+50℃
7. High pressure gauge: 0～3.5MPa
8. Low pressure gauge: 0～1.5MPa
9. Three-phase asynchronous motor
Model: YT 100L1-4
Voltage: AC 220V/380V
Power: 2.2KW
Speed: 1420r/min
10. Vacuum pump
Model: RS-1A
Voltage: AC 220V 50Hz
Power: 120W
Pumping rate: 25L/min
Ultimate pressure: 10~30Pa
Speed: 1000r/min
Inlet diameter: Ø6
Oil consumption: 0.25L
Noise: ≤65
The equipment is based on the Volkswagen Jetta 1.6L automotive manual air conditioning system, which fully demonstrates the composition and working process of the automotive manual air conditioning system. It is suitable for the teaching needs of middle and higher vocational and technical colleges, general education colleges and training institutions for the theory and maintenance training of automobile manual air conditioning systems.
2. Features
1. A real and operational car manual air conditioning system, fully demonstrating the composition and working process of the car manual air conditioning system.
2. The three-phase motor is used as the power source to drive the air-conditioning compressor to work. Operate the air conditioning control panel to demonstrate the working process and working principle of the manual air conditioning system of the car.
3. The panel of the training table is made of high-grade aluminum-plastic panel with a thickness of 4mm, which is corrosion-resistant, shock-resistant, pollution-resistant, fire-resistant and moisture-proof. , the surface is sprayed with varnish; the students can intuitively compare the circuit diagram and the real object, understand and analyze the working principle of the automobile manual air conditioning system.
4. There are detection terminals installed on the panel of the training platform, which can directly detect the electrical signals of each circuit element of the air-conditioning system, such as resistance, voltage, current, frequency signals, etc. on the panel.
5. High and low pressure gauges and air inlet and outlet temperature gauges are installed on the training platform panel, which can display the parameter changes of air conditioning pipeline pressure and air inlet and outlet temperature in real time.
6. The training platform provides a practical working platform for trainees to practice filling refrigerant and leak detection.
7. The base of the training platform is welded by steel structure, and the surface is treated by spraying process.
8. Equipped with intelligent fault setting and assessment system:
★Fault setting and assessment system composition:
1. Two-dimensional code panel for informatization teaching: There are detection terminal jacks for sensors and actuators on the panel, and at the same time match the two-dimensional code information course learning information identification corresponding to the individual module. Scan the code to display the current component principle and technical information.
2. In the actual teaching environment, teachers guide students to install and log in the integrated micro-course teaching APP on the mobile device, and scan the QR code of the device to enter the system course for autonomous learning. The learning content needs to exactly match the integrated QR code work page course.
3. The training platform is equipped with a simulated fault setting and teaching assessment device. The 7-inch touch screen can set one or more common faults to meet the requirements of vocational skills teaching. The fault contents include: open circuit, virtual connection, and occasional. The number of failures: single point 8 or 16. Teachers can set faults in a variety of ways, such as single-point fault setting, combined fault setting, and assessment setting, which is also convenient for students to practice in the classroom and exercise their practical ability.
4. The teacher can remotely send fault-setting instructions to the training equipment through the wifi connection of the teaching software. Assessment: Teachers use the method of assessing faults to set faults in the comprehensive fault setting. Students conduct remote fault diagnosis and troubleshooting in the virtual diagnosis by observing the current fault phenomenon of the training platform, and fill in the diagnosis results in the training assessment. The system determines Diagnosis results and automatic scoring of this assessment.
3. Technical parameters
1. Dimensions: 1000×1000×1800mm (length×width×height)
2. Power supply: AC 380V±10% (three-phase four-wire) 50Hz
3. External power supply: AC 220V±10% 50Hz
4. Working voltage: DC 12V
5. Refrigerant: R134a
6. Working temperature: -40℃～+50℃
7. High pressure gauge: 0～3.5MPa
8. Low pressure gauge: 0～1.5MPa
9. Three-phase asynchronous motor
Model: YT 100L1-4
Voltage: AC 220V/380V
Power: 2.2KW
Speed: 1420r/min
10. Vacuum pump
Model: RS-1A
Voltage: AC 220V 50Hz
Power: 120W
Pumping rate: 25L/min
Ultimate pressure: 10~30Pa
Speed: 1000r/min
Inlet diameter: Ø6
Oil consumption: 0.25L
Noise: ≤65
Specification
item | Car training equipment |
Place of Origin | China |
Sichuan | |
Brand Name | Mayflower |
Model Number | MF-K001 |
Product name | School Teaching Equipment |
Material | Aluminum Plastic Stainless Steel Iron |
Package | Wooden Box |
Warranty | 1 Year |
Keywords | Auto Training Teaching Equipment |
Category | Automotive Trainer |
PAYMENT | T/T |
Packing & Delivery
wooden case
Company Profile
Our company is one of subsidiary corporations of Xiwang Industry Group, which was founded in 2010 and was located in South Avenue of Yanjiang District, Ziyang City, Sichuan Province. We have established a high-tech enterprise with Sichuan Auto Occupation College which has invested with capital RMB million, integrating R&D, production and studying.
Our company possesses technical force. We have more than 100 staff members including 5 senior engineers, 12 engineers and technicians.

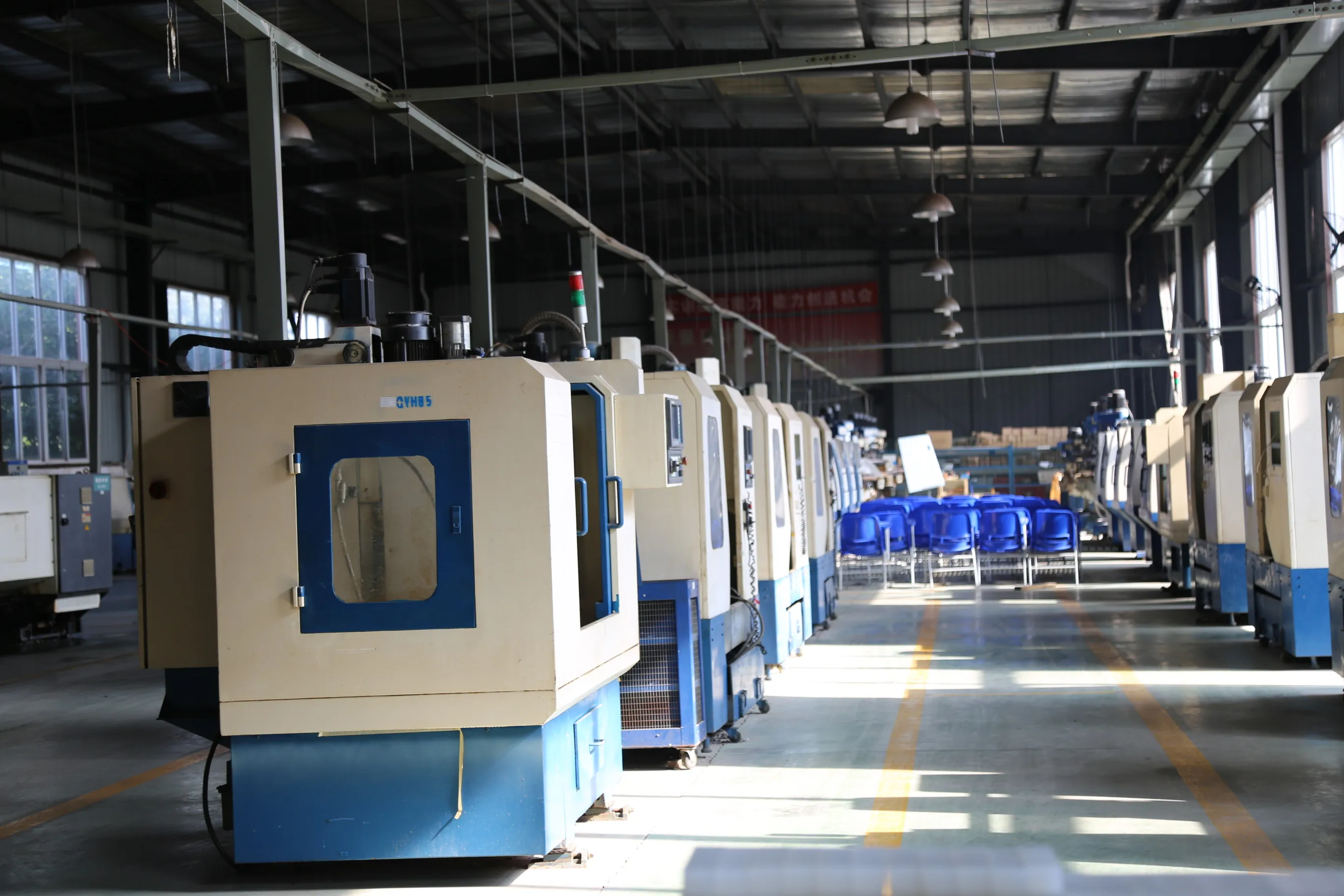

Advanced Equipment: Four-axis machines, three-coordinate measuring machines, CNC lathe, CNC milling machines, EDM shaping machines, we have more than 100 sets equipment. At the same time, we have engine test bench, auto electrical laboratory under Xiwang Industry Group. To respond to the country's energy consumption and environmental protection policy, our company focuses on the development of natural gas industry of automobile and we are engaged in auto gas equipment R&D and manufacturing. We cooperate with Combined Gas Equipment Company in New Zealand, and we have developed CNG, LNG gas equipment. Our relevant products are popular both at home and abroad, such as India, Vietnam, Canada and Iran.
