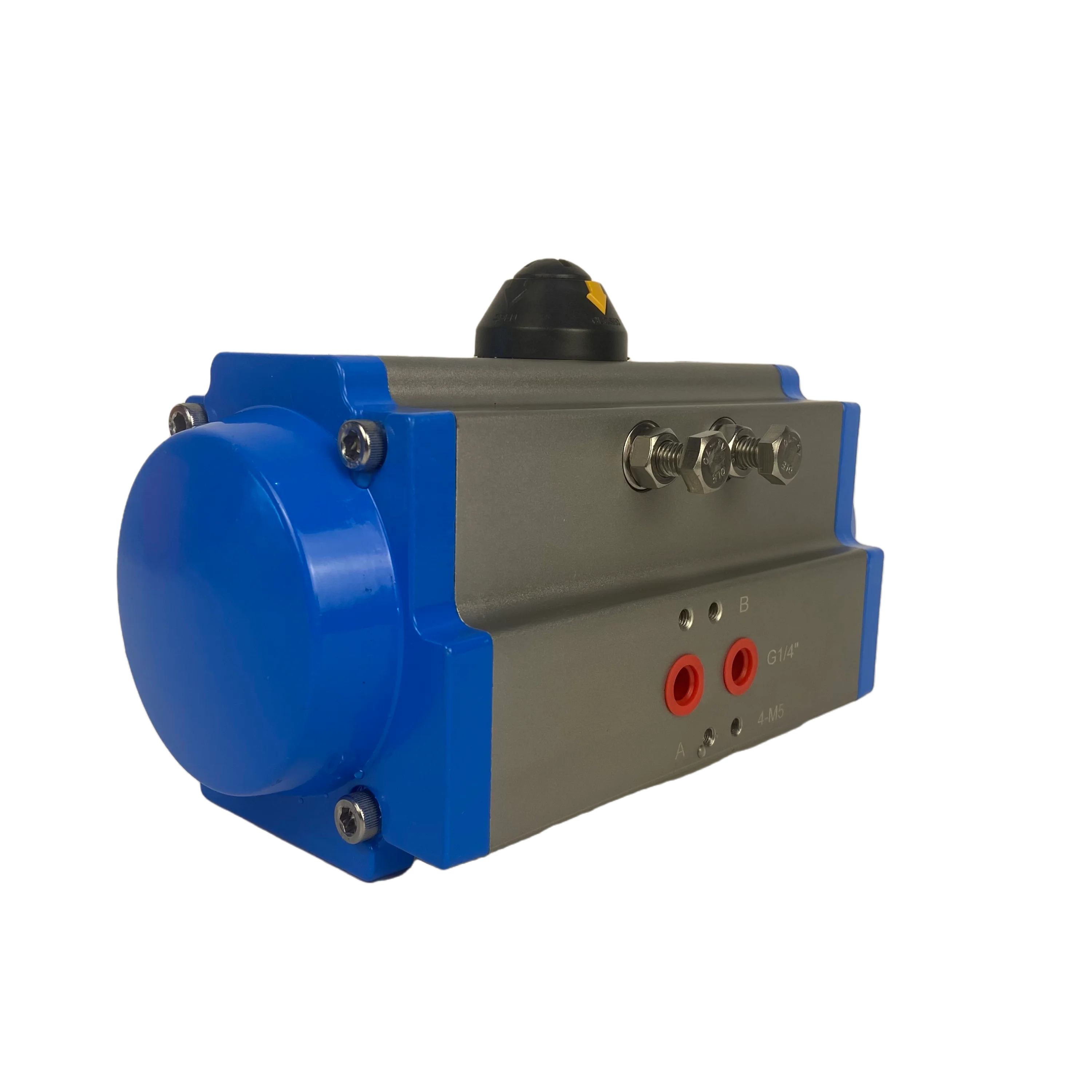

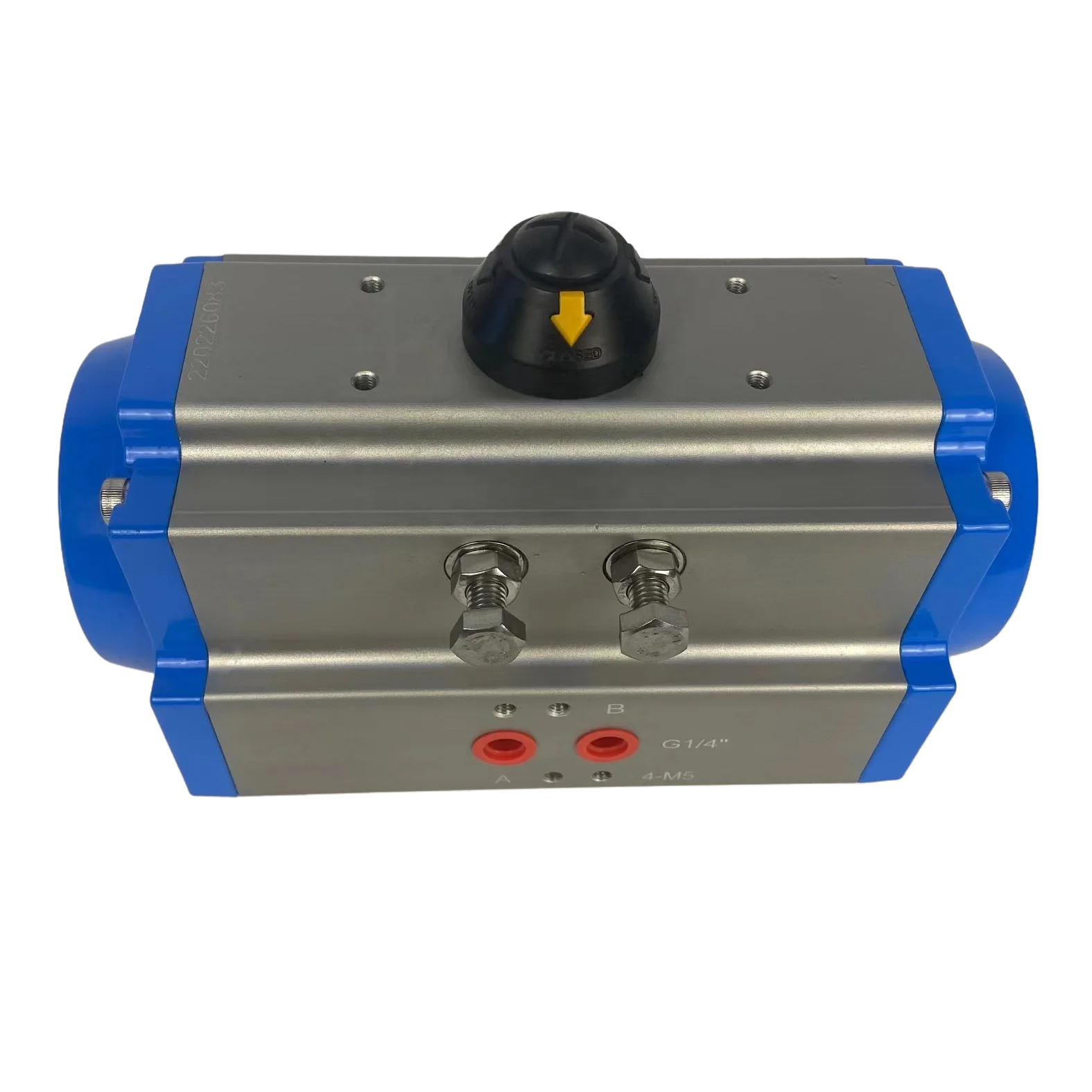

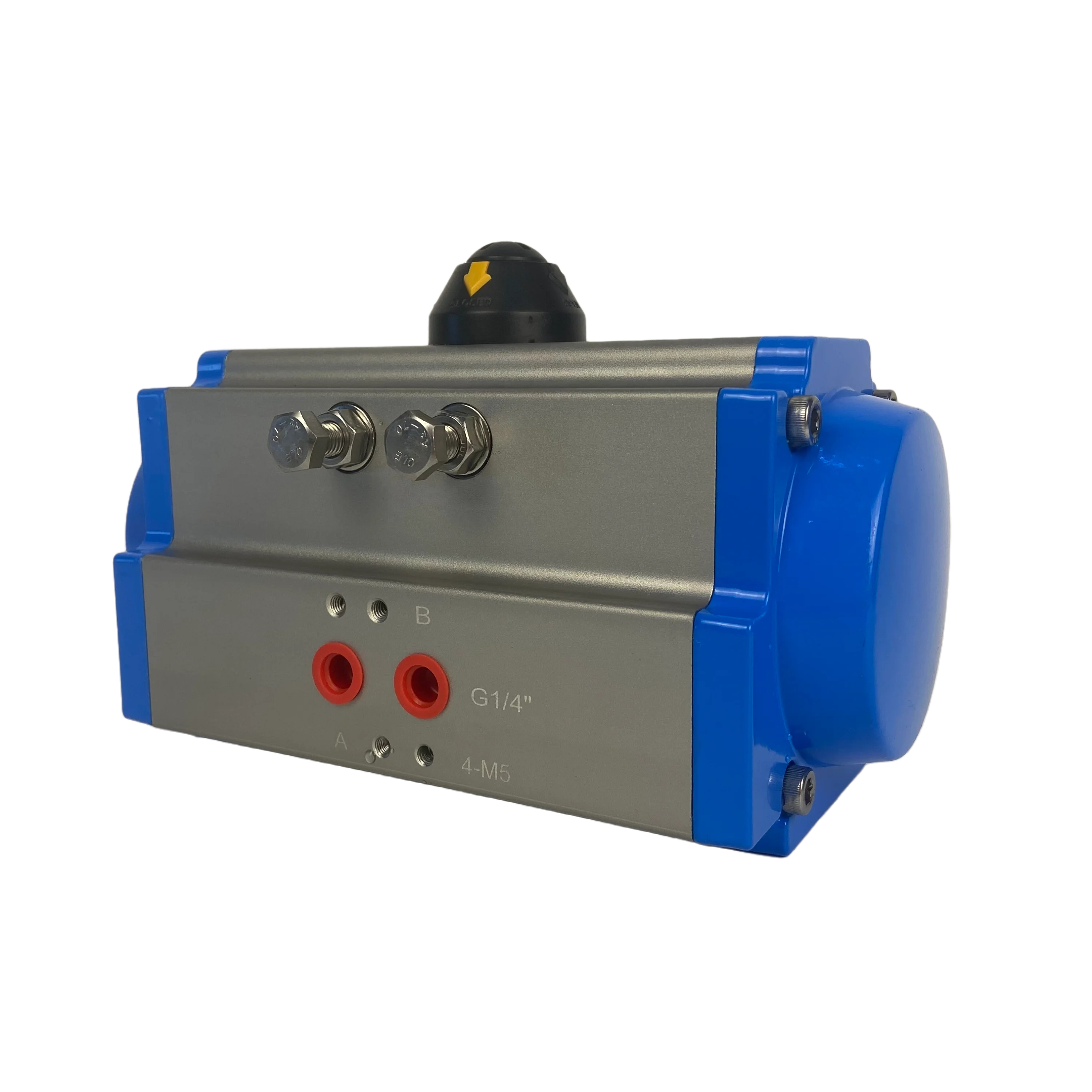

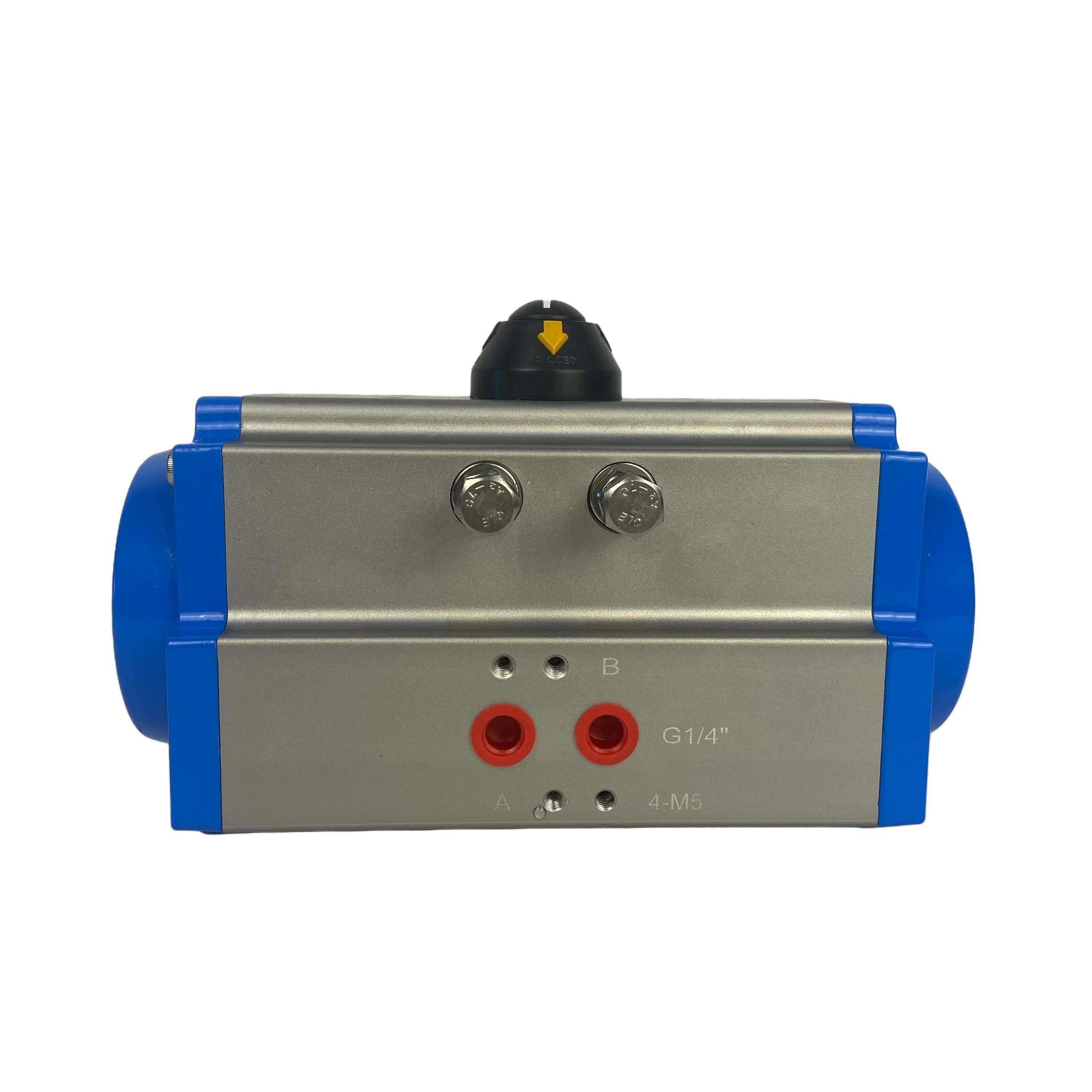

JIMAI Blue color customized hard oxidation pneumatic rotary actuator for butterfly valve

Product Overview

Description







JIMAI provides suitable pneumatic rotary actuator for any kind of quarter-turn valves, like ball valve, butterfly valves, and etc. JIMAI has the ability to delivery products quickly with quality guaranteed. There are several options of pneumatic rotary actuator, which are all ready to ship. Our actuators are made of high-hardness hard anodized aluminum alloys, and oxidized pistons are used inside to ensure maximum service life.



Model Name	Pneumatic rotary actuator
Size	JAT32- 400
Advantage	Low friction bearing, corrosion resistance,long lifespan
Cylinder Material	Aluminum
Shell treatment	Hard Anode Oxidation or Polish
Lubrication	Lubricants are applied to all moving parts to extend their service life.
Operating Media	Air, Water,Gas, Oil, Steam
Versions	DA: Double action SR: Spring return





Output Torque of Double-acting Actuator(Unit:Nm)

MODEL	Input Air Supply Pressure(Unit : Bar)
	2	3	4	5	6	7	8
JAT032DA	3.1	4.7	6.2	7.8	9.4	11	12.5
JAT052DA	8.5	12.7	17	21.2	25.5	29.7	34
JAT063DA	15	22.5	30	37.5	44.9	52.4	59.7
JAT075DA	21	31.8	42.4	53	63.6	74.2	84.8
JAT083DA	32.5	48.7	65	81.2	97.4	113.7	130
JAT092DA	46.5	69.8	93	116.3	140	162.9	186
JAT105DA	69.3	104	138.5	173.2	207.8	242.5	277
JAT125DA	108	162	216	270	324	378	432
JAT140DA	184.7	277	369.5	461.8	554	646.5	739
JAT160DA	281.5	422	563	704	844	985	1126
JAT190DA	453	680	907	1135	1361	1587	1814
JAT210DA	554	831	1108	1384	1662	1939	2216
JAT240DA	814	1221	1628	2035	2442	2849	3256
JAT270DA	1238	1854	2472	3090	3708	4326	4944





Specializing:

We are specializing in manufacturing pneumatic actuator, electric actuator, pneumatic actuated butterfly and ball valve, electric actuated butterfly and ball valve, Limited Switch box and other Accessories.........



Advantage:

1.Price:  As we are the professional manufacture in valve actuators and accessories, we ensure that the price offered must be very competitive compare with others.

2. Raw material inspection: All material test high quality, and keep in warehouse.

3. Workers: All workers training 3 monthes, skilled workers on production line.



Sample Order:

We will charge express fee only for old customers in generally, and for new customers we will charge 50% of the units cost and express fee mostly. (It can be discussed, we keep options always.)



Delivery Time:

We usually take 20days for official orders after received the prepayment, And Sample orders will be ready within 7days.



Quality Control:

 We got very strict and complete quality system to ensure that each product will meet quality requirements as per clients, incoming quality control, final quality control, out-going quality control. Meanwhile, all of the products will be strictly inspected before delivery.”’ Quality First, Service First’’ that we are pursuing All the time.



Warranty Period:

18 months from the date we signed the contract or PI. Technical support for the whole life.



Payment Terms And Conditions:

1. TT Terms: The payment will be 30% of prepayment by direct bank remittance (T/T),remaining 70% before Shipment or the copy of BL send by us Via Fax or Email.

2. L/C Terms: Payment by L/C at sight and Unrestricted. (L/C must allow 30days minimum from the shipment date of presentation of documents for negotiation, all the clauses within L/C must be clear, concise and acceptable. Do not allow special clauses, terms and conditions.)



Competitive Price:

We provide competitive price, good quality and best service to reach the win-win goal.



Customization:

custom-made is acceptable.
