Paper Pulp Molding Egg Carton Production Line Dry Pressed Molded Box Equipment Fully Automatic Pulp Molding Egg Carton Machine
Paper Pulp Molding Egg Carton Production Line Dry Pressed Molded Box Equipment Fully Automatic Pulp Molding Egg Carton Machine
Paper Pulp Molding Egg Carton Production Line Dry Pressed Molded Box Equipment Fully Automatic Pulp Molding Egg Carton Machine
Paper Pulp Molding Egg Carton Production Line Dry Pressed Molded Box Equipment Fully Automatic Pulp Molding Egg Carton Machine
Paper Pulp Molding Egg Carton Production Line Dry Pressed Molded Box Equipment Fully Automatic Pulp Molding Egg Carton Machine
Paper Pulp Molding Egg Carton Production Line Dry Pressed Molded Box Equipment Fully Automatic Pulp Molding Egg Carton Machine
Paper Pulp Molding Egg Carton Production Line Dry Pressed Molded Box Equipment Fully Automatic Pulp Molding Egg Carton Machine

Paper Pulp Molding Egg Carton Production Line Dry Pressed Molded Box Equipment Fully Automatic Pulp Molding Egg Carton Machine

Share on (1600464695870):


Price:$61,500.00

Quantity:


Product Overview

Description



Product Overview


Automatic In-Hot press Egg Carton Production Line

3500 ~ 7000 pcs/hour

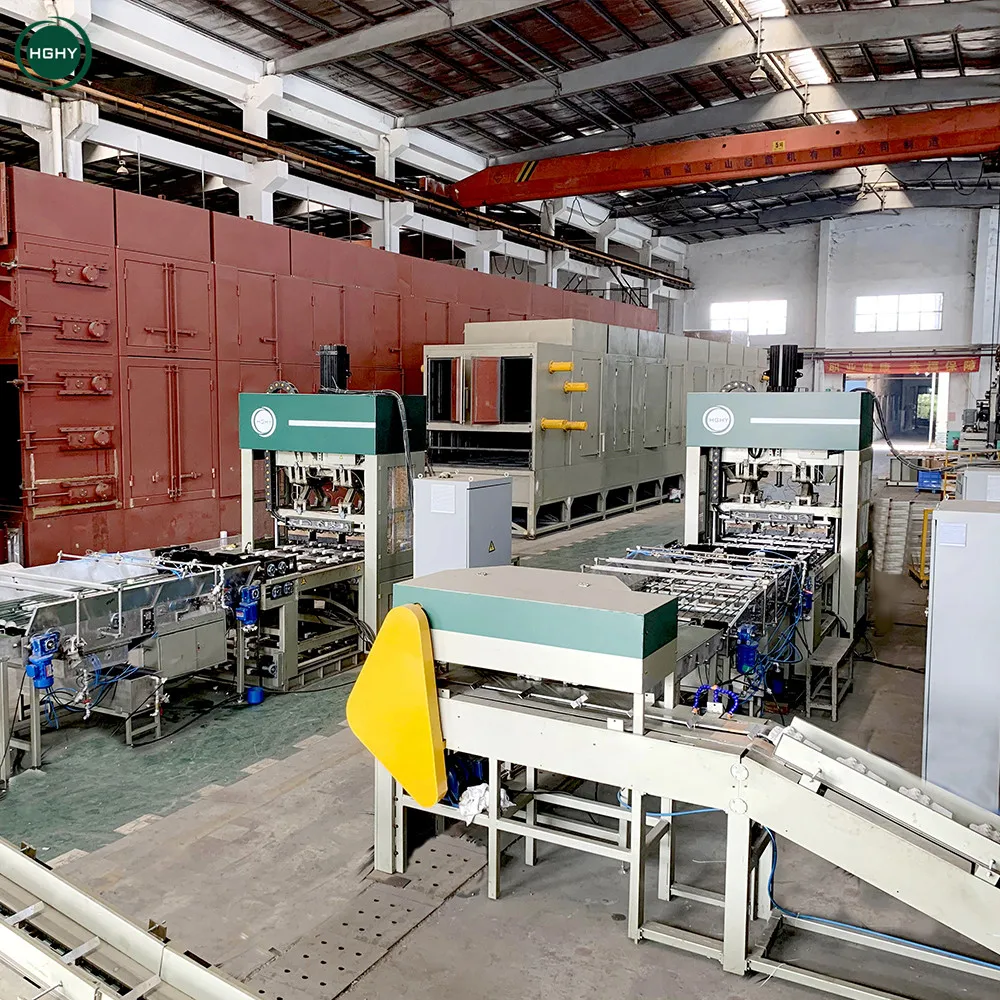

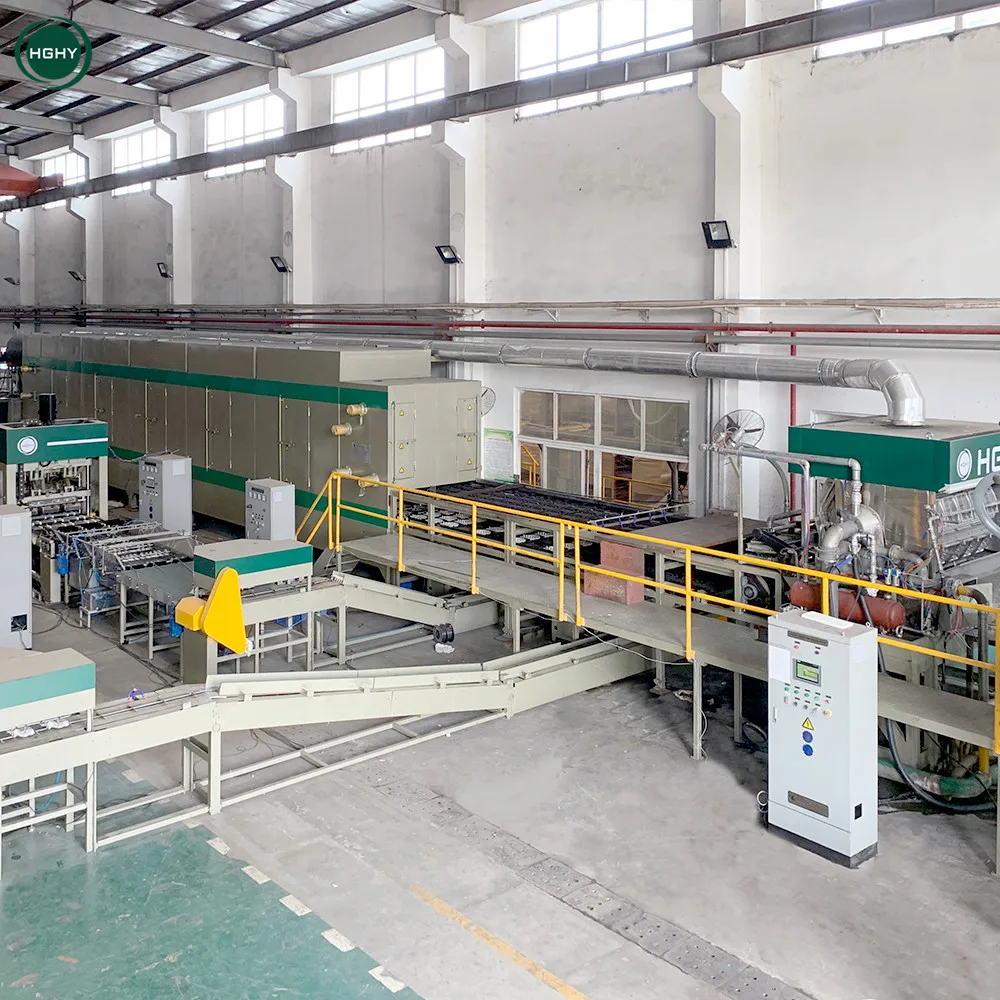

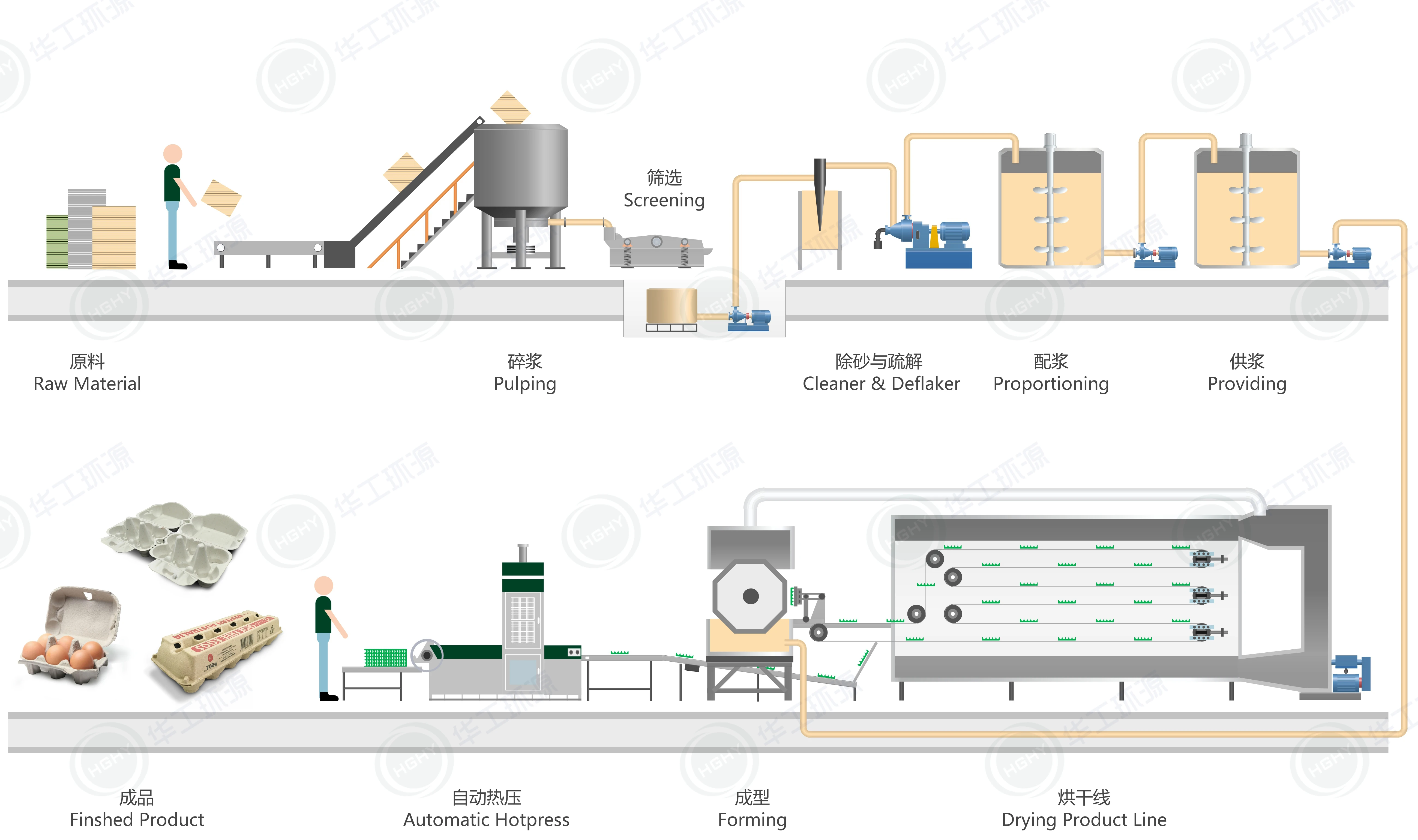

Pulp molded Egg Carton Production Line is consist of pulping system, froming system, drying system, conveying system, automatic hot press system and other auxiliary system,

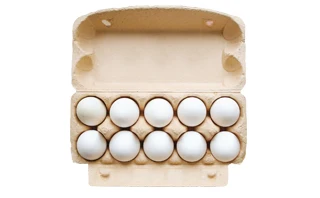

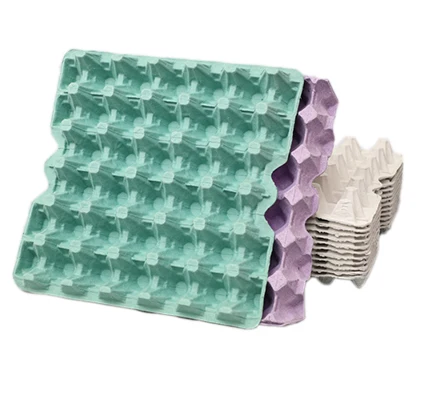

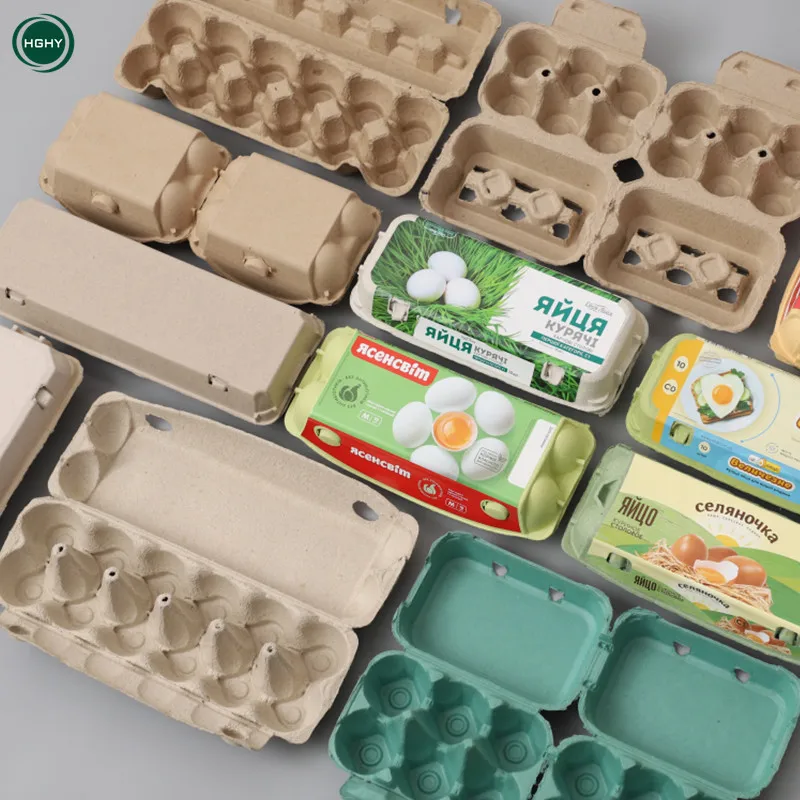

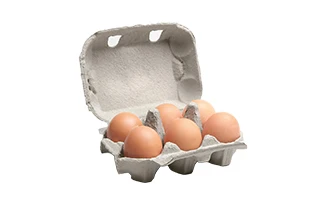

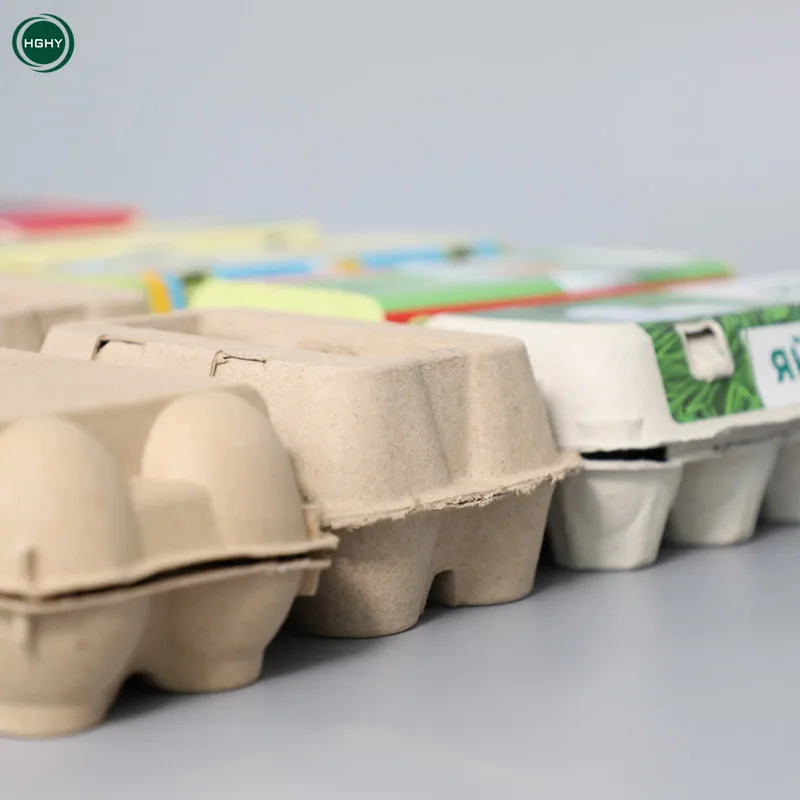

mainly applied for pulp molded egg carton, cup carrier, punnet bottle tray ,and other products that require hot pressing after drying.


FEATURES AT A GLANCE


Main features:

- High performance rotary forming technology;

- Customized high efficient multi-layer drying line for egg carton;

- Automatic conveying and automatic hot pressing system;

- Global original technology of rotating afterpress



Pulp Preparation

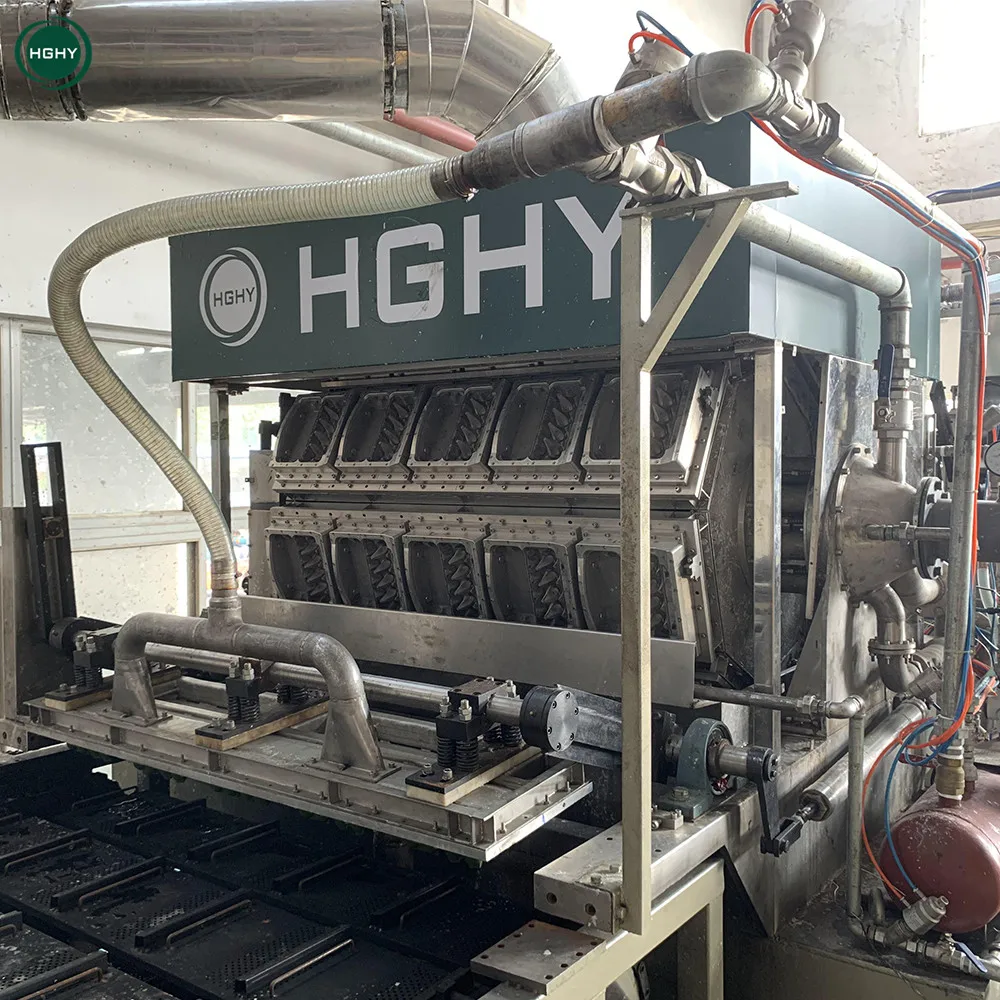

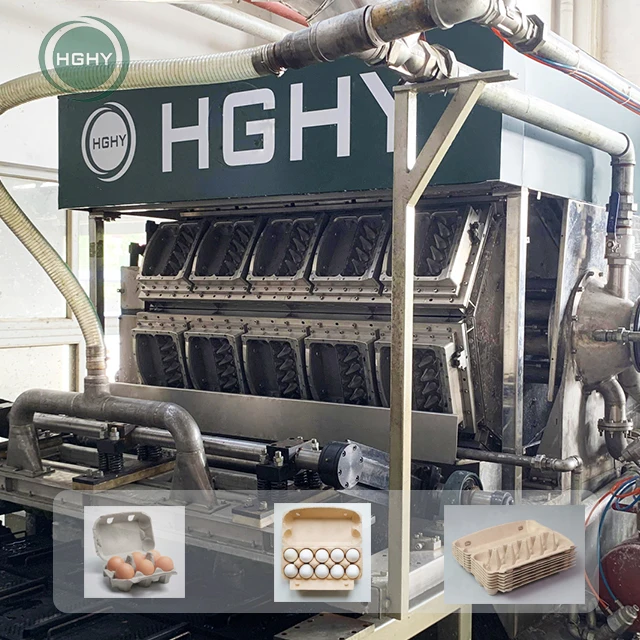

Forming
Transfer






PRODUCT SPECIFICATIONS


No
Model:
Optional different model
1
Machine structure
Automatic conveying system in different ways Fully automactic hotpresser ( reciprocating hotpress or ratating afterpress ) Auto
stacking and counting system
2
Platen size
700 x 400 / 1200 x 400 / 1600x400mm
3
Maximum pressure
20-50 Ton (Adopt with servo drive crank arm mechanism)
4
Cycle time
2.4 - 4 seconds
5
Mold quantity
Each Face 3pcs / 4pcs ( based on 12 cabinet egg carton )
6
Maximum product height
70 mm
7
Heating method
Heating by electricity
8
Control method
PLC + Touch screen




SALES AND SERVICE NETWORK




Successful Project




Recommend Products




Company Profile


HGHY
* The one and only company among pulp molding industry in China, who drew up several industrial standards;

* The one and only company among pulp molding industry in China, who first produced and installed high speed production line for
customer.



FAQ


Q1：What kind of company you are?
A1：We are a group company with 3 affiliate companies,locating in different areas.Just serves as group sales and service center,provides the best packaging solutions for our customers.

Q2：Can I have my own design?
A2：OEM&Customerization is acceptable,our expertise design team will provide you the best packaging solution.

Q3:What does biodegradable mean?
A3:Bagasse is the fibrous residue remaining after sugarcane or sorghum stalks are crushed to extract their juice and is currently used as a renewable resource in the manufacture of pulp and paper products and building materials.
