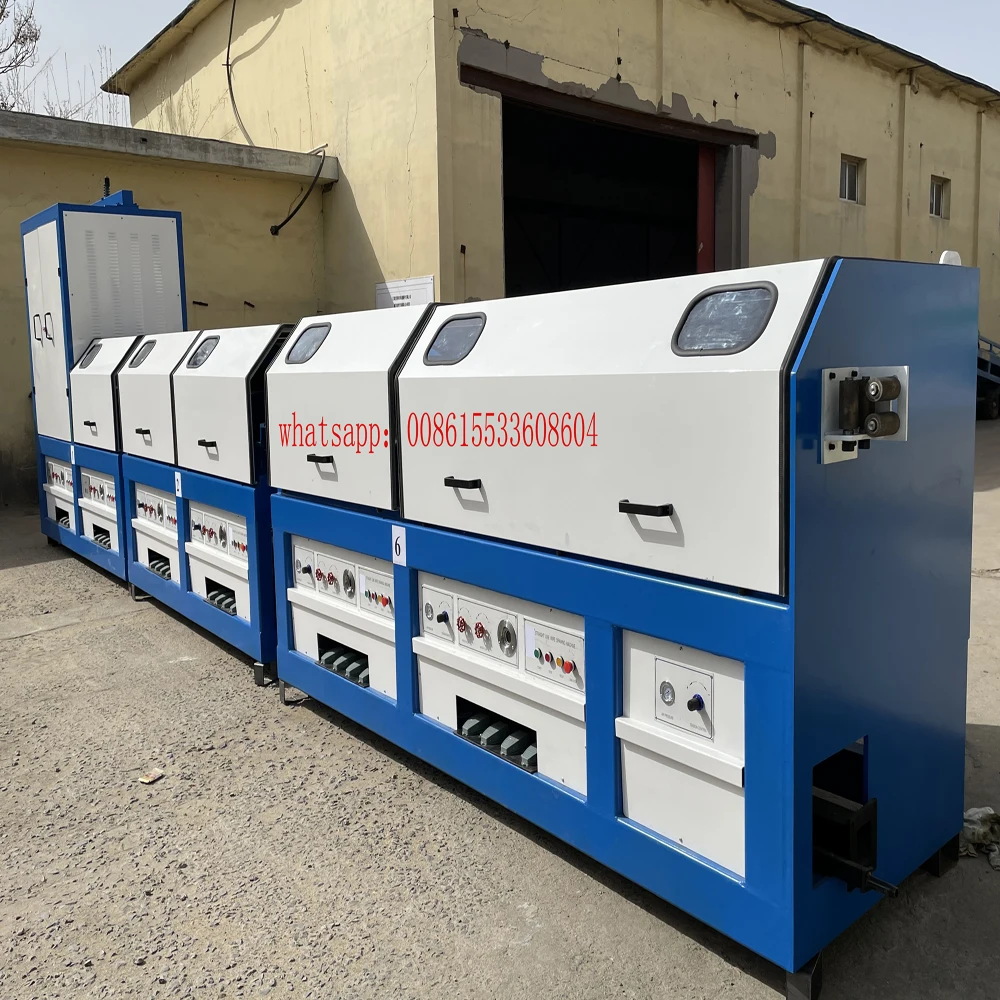

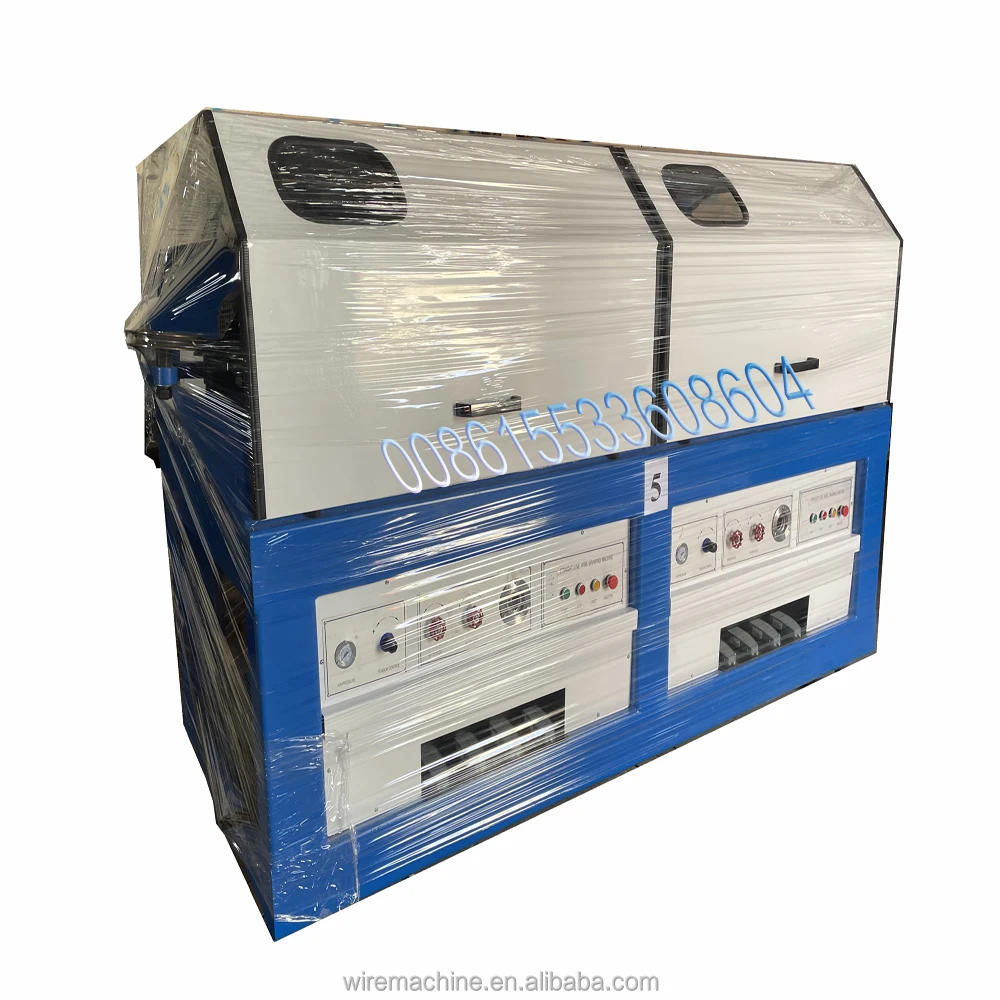

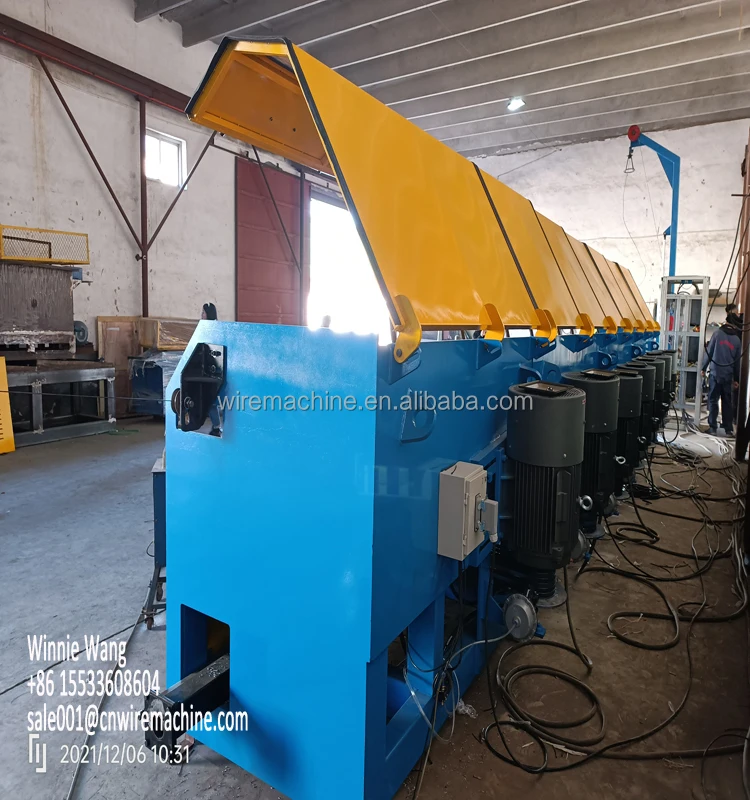

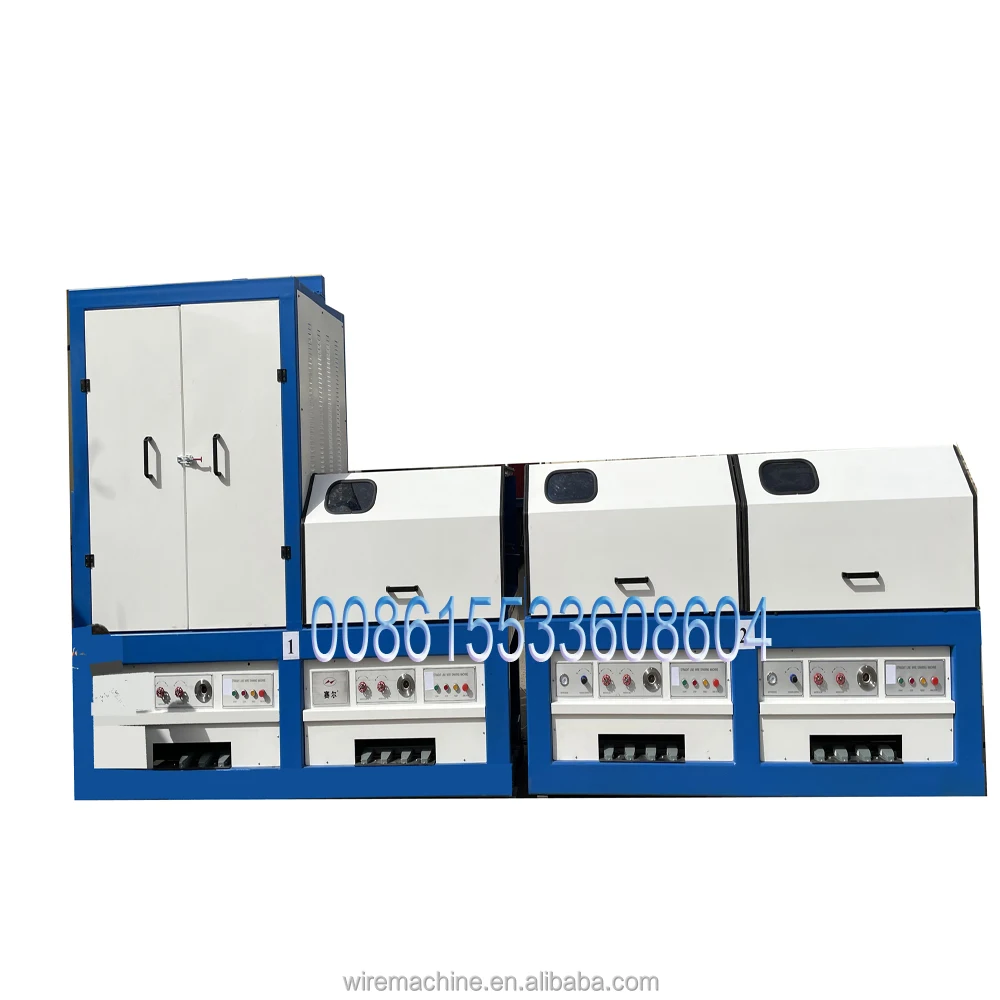

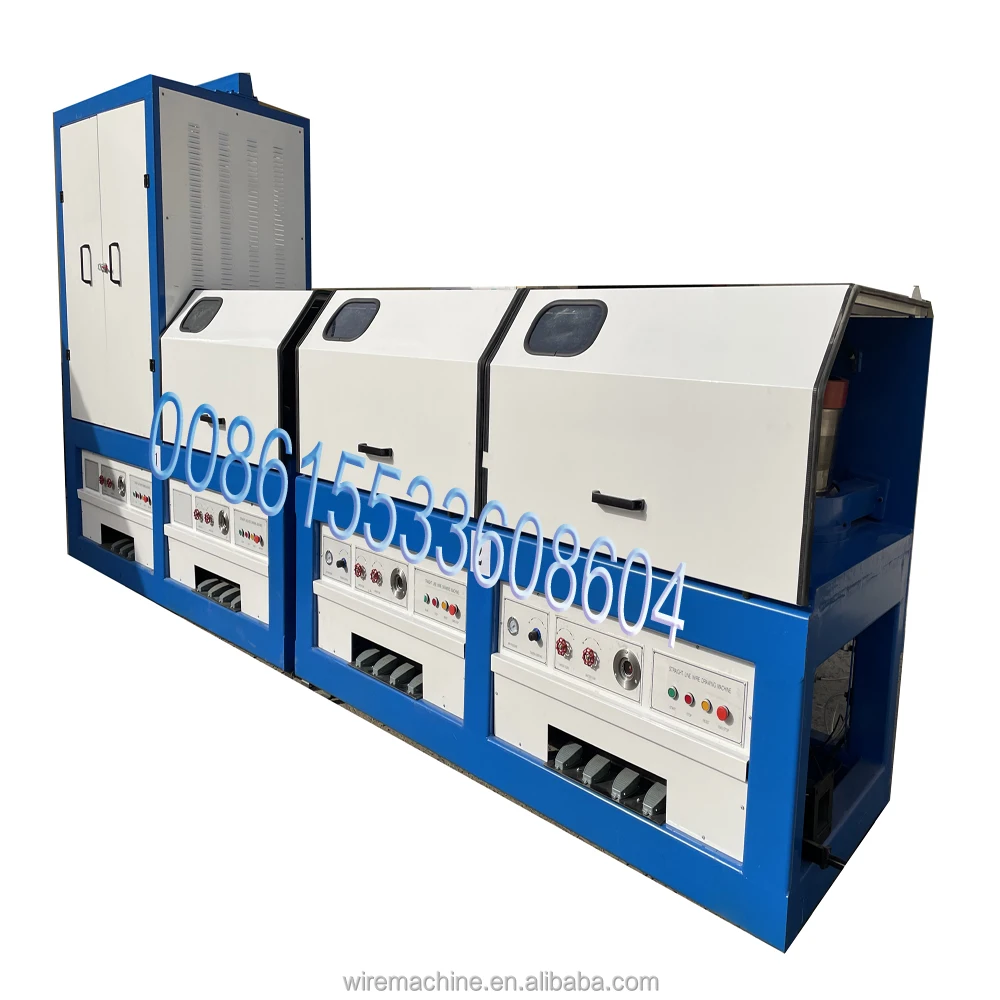

automatic mechanical wire drawing machine with gearbox for tin solder flux cored China factory price
automatic mechanical wire drawing machine with gearbox for tin solder flux cored China factory price
automatic mechanical wire drawing machine with gearbox for tin solder flux cored China factory price
automatic mechanical wire drawing machine with gearbox for tin solder flux cored China factory price
automatic mechanical wire drawing machine with gearbox for tin solder flux cored China factory price
automatic mechanical wire drawing machine with gearbox for tin solder flux cored China factory price

automatic mechanical wire drawing machine with gearbox for tin solder flux cored China factory price

Share on (1600464701606):


Price:$8,865.00 - $8,900.00

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Condition
New
Inlet Diameter
6.5mm
Outlet Diameter
2.0mm
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
Gearbox, Motor, PLC
Place of Origin
China
Hebei
Brand Name
SATLE
Voltage
220V/380V/415V/440V
Power
22KW/30KW
Dimension(L*W*H)
1.3m*1.8m*1.3m
Weight
1500
Warranty
1 Year
Key Selling Points
Easy to Operate
Applicable Industries
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Showroom Location
None
Product Name
Automatic Wire Drawing Machine
Application
Cable Making Industry
Function
Continuous Wire Drawing Machine
Wire material
Medium Carbon Steel
Keywords
Straight Steel Wire Drawing Machine
Drawing material
Stainless Steel Wire
Type
Horizontal Metal Drawing Machine
Suitable material
Medium High Carbon Steel Wire
Speed
15m/S
Spare parts
Wire Drawing Die


Detailed Images


Machine Parts

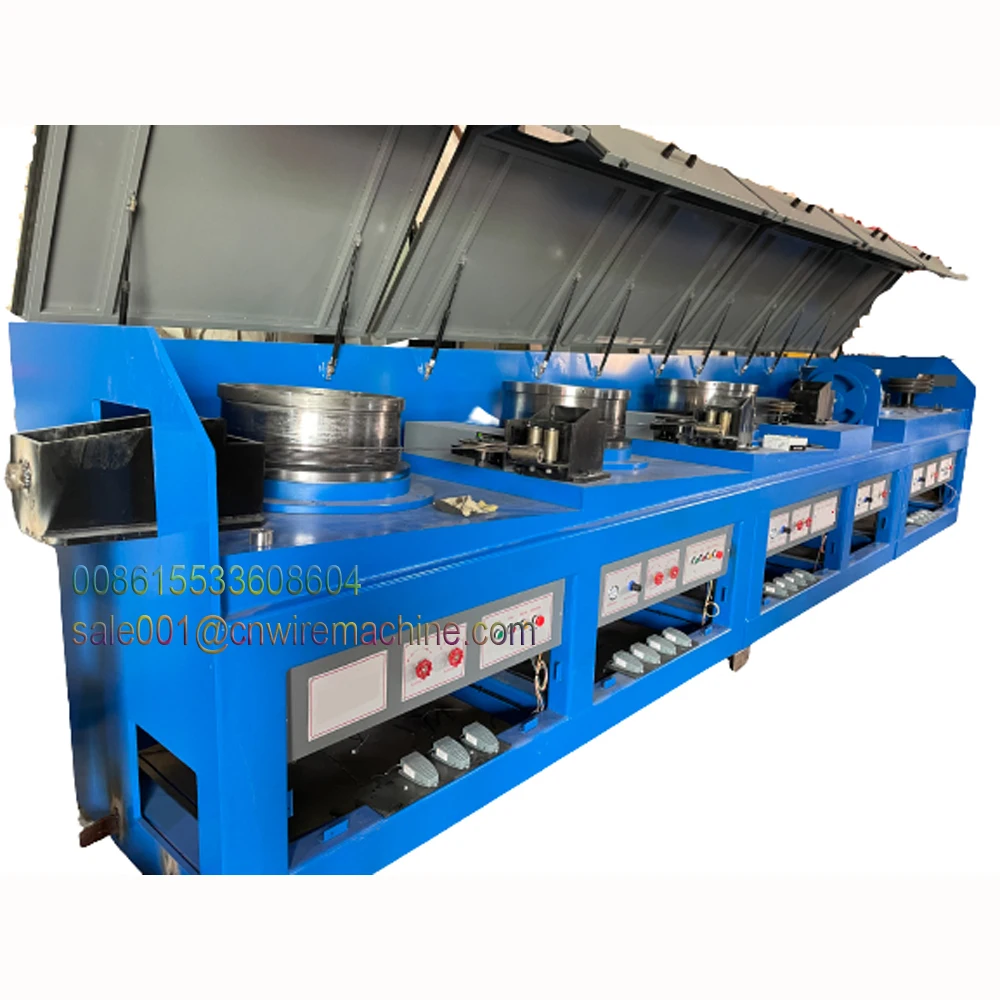

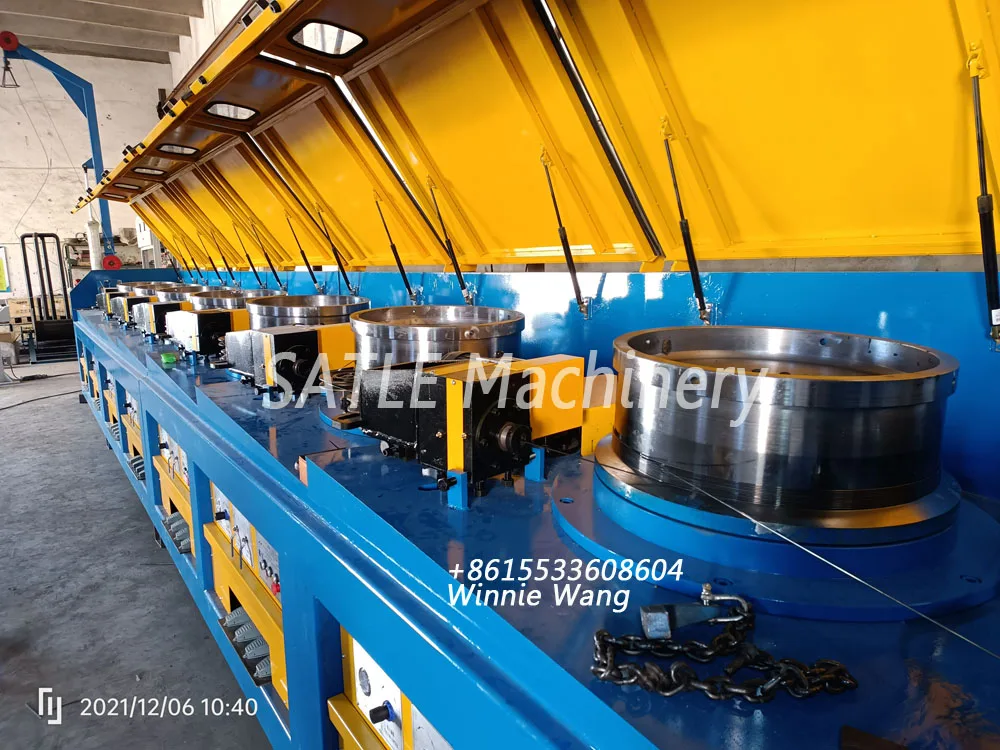

Name: Capstan/drum

Brand: SATLE

Original:China

Steel ZG45~55, hardness alloy tungsten carbide is spraying-painted on working surface, with HRC60, lifetime>=26000hours. The height of the capstan is 280mm. The height of spraying tungsten carbide is 80mm and the thickness is 2mm. The temperature of the capstan< 80℃. Roughness <0.8μmm. There are operation buttons in front of each capstan used to adjust the tension. Cooling type: narrow slit water cooling with water proof and anticorrosive treatment. Water volume ：6m3/h ,Water pressure ≥0.25MPa, Air volume：1.5m3/h ,Air pressure ≥0.6MPa.



Main Features

Name: Die box
Brand: SATLE
Original: China
Welding part is adopted for die box, the spraying-painted tungsten carbide is adopted for the surface of guide wheel and guide roller. The die box is divided into lub. powder cavity and water cooling cavity (water flowing automatically for cooling)



Machine Parts

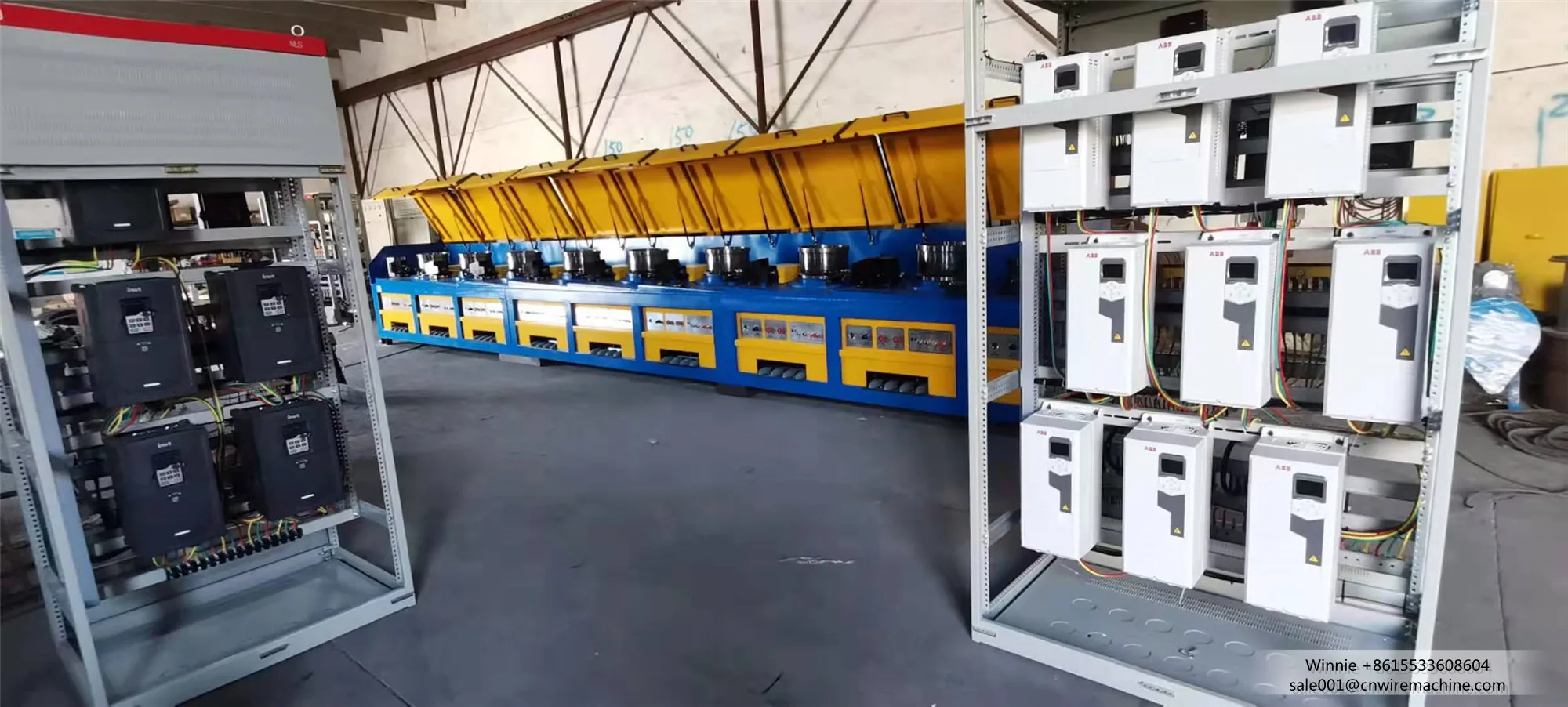

Name: Control system

Brand: Siemens
Original: Germany
PLC:Siemens/INVT

Inverter:INVT/Sinee

Low voltage appliance:Chint




Main Features

Name: Motor
Brand: Hebei/Siemens
Original: Germany
22kw,Inverted motor.There is a brake to stop the motor and avoid turning in the opposite direction.Brake material: Nodular cast iron.

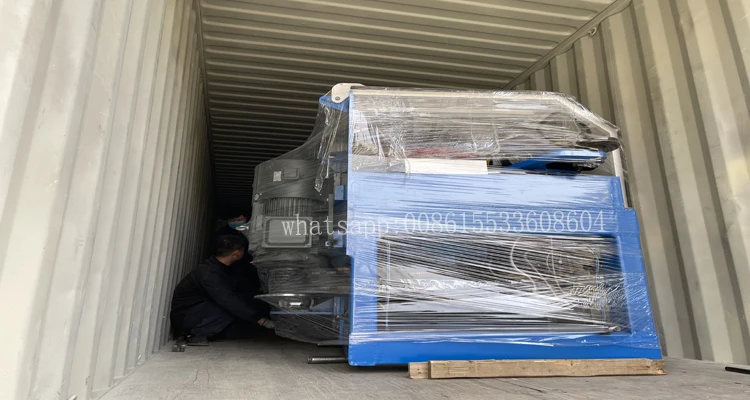

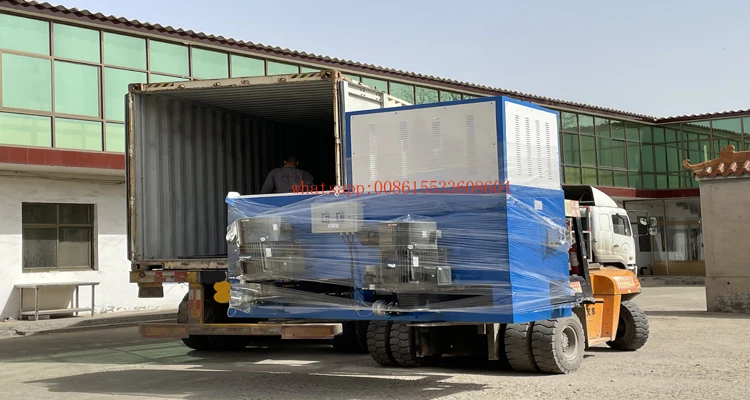

Packing & Delivery




Company Profile




Shijiazhuang Satle Machinery Manufacture Co.,Ltd. established in the year of 2001, is located in Shijiazhuang City, HeBei Province,China. The company, possessing a professional technical and production team. In 2019, We were rated as a High-tech enterprise by Ministry of Science and Technology. At present, it has owned a number of National patents and EU market CE certificate.We have our own brand trademark. We mainly specialized in developing and manufacturing the whole set of welding wire production line and whole set metal wire drawing machine, including straight line wire drawing machine, water tank wire drawing machine, pulley wire drawing machine, horizontal drawing machine,trunk type take up machine,spooler take up machine, payoff machine, layer winding machine,straightening cutting machine and so on. Most the machines are automatic, high speed and effective. Our machines have been exported to South Korea,Malaysia,Russia,Kazakhstan,Tajikistan,
Brazil,India,South Africa,Zimbabwe,Guatemala,Egypt,Romania etc.All the products have gained the customers' commend and approval in the world.


FAQ


1. who are we?
We are based in Hebei, China, start from 2016,sell to Domestic Market(30.00%),Southeast Asia(15.00%),Africa(15.00%),Mid East(13.00%),South America(10.00%),South Asia(5.00%),Eastern Asia(5.00%),North America(1.00%),Eastern Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Western Europe(1.00%),Oceania(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wire Drawing Machine,Take Up Machine,Pay Off Machine,Water Tank Wire Drawing Machine,Straight Line Wire Drawing Machine

4. why should you buy from us not from other suppliers?
Shijiazhuang Satle Machinery Co.,Ltd is located in Shijiazhuang City, Hebei Province, China. The Company, possessing a professional technical,manufacture and business team, is mainly specialized in developing and manufacturing kinds of wire machines.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese


Winnie Wang
We have great interest in developing business with you,should you have any inquiries or comments,we would be glad to talk in details .
