Product Overview
Description
Products Description

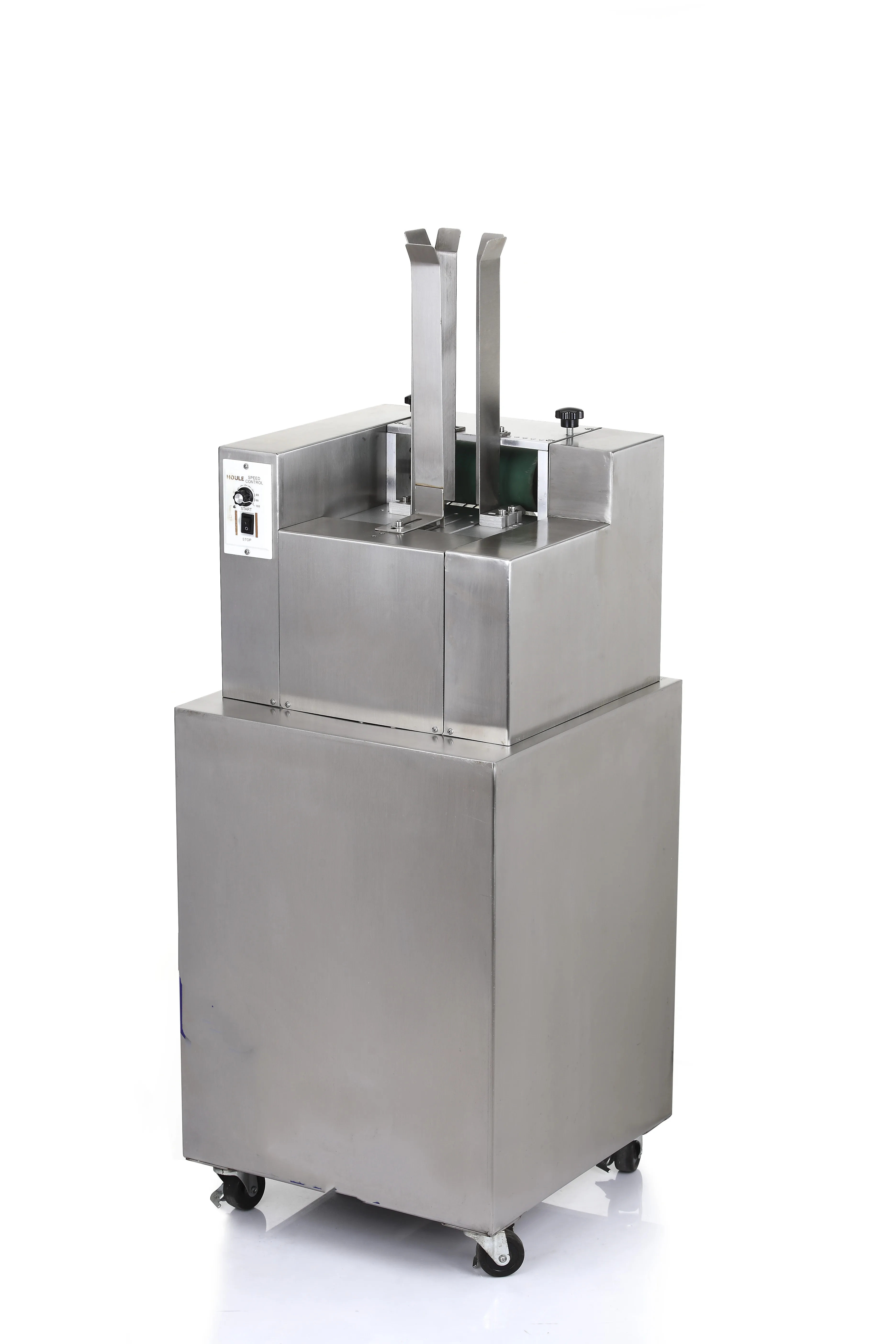

De-blister Machine

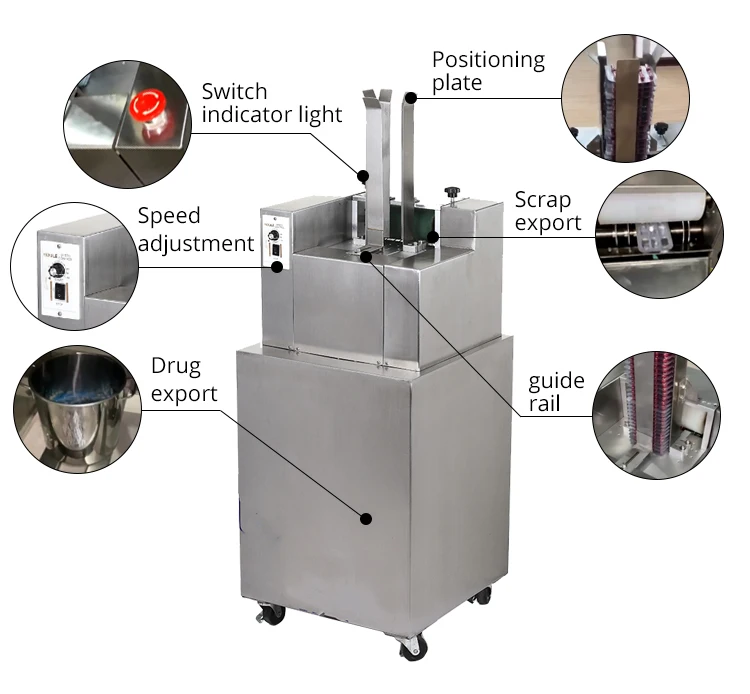

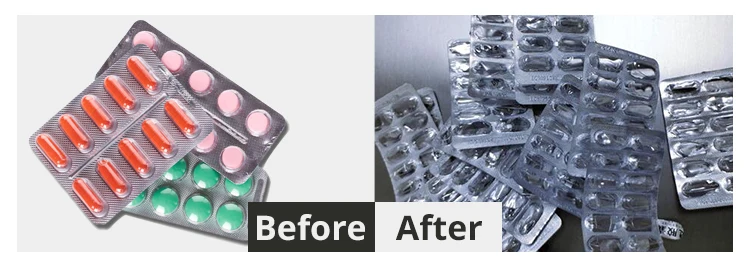

Aluminum plastic drug dispenser is an automatic tablet picking (stripping) machine for recovering drugs from the packaging board of aluminum plastic foam cover with defects. It is composed of 304 grade stainless steel shell, micro motor, primary reducer, roller combination, guide plate combination particle rubber plate sequential connection, equipped with electrical brake switch and lock switch. The micro motor and the primary reducer drive a set of rollers simulating the action of manual stripping tablets to peel off the aluminum plastic bubble cover plate of the whole plate from the defective packaging plate, and collect the particles and the packaging separately through the guide plate and the particle baffle plate.
Features:
1.It is good in appearance, simple and generous, not complicated, easy to clean, humanized in design, easy to use and safe.
2.The use of excellent material 304 stainless steel; the use of pure PU material roller, which is wear-resistant and will never be flaky so as to protect the drug from any secondary pollution.
3.The equipment has high precision and good effect. The capsules and tablets are extracted completely from the aluminum board, and the capsules and tablets will not be squeezed out. The equipment has a long service life.
4.Reasonable design, attention to details, the whole design process is based on the need of the actual users. It is safe to operate, easy to move, different in sizes, easy to adjust the arrangement of the medicine board, and there is no need to replace the mold. It is able to be meet the actual needs of the workshop to the largest extent.
5.The product is approved by the European and American customers, and has a good reputation among domestic users. It is small in size and flexible, convenient and practical, and enjoys a high performance-to-price ratio.
2.The use of excellent material 304 stainless steel; the use of pure PU material roller, which is wear-resistant and will never be flaky so as to protect the drug from any secondary pollution.
3.The equipment has high precision and good effect. The capsules and tablets are extracted completely from the aluminum board, and the capsules and tablets will not be squeezed out. The equipment has a long service life.
4.Reasonable design, attention to details, the whole design process is based on the need of the actual users. It is safe to operate, easy to move, different in sizes, easy to adjust the arrangement of the medicine board, and there is no need to replace the mold. It is able to be meet the actual needs of the workshop to the largest extent.
5.The product is approved by the European and American customers, and has a good reputation among domestic users. It is small in size and flexible, convenient and practical, and enjoys a high performance-to-price ratio.
Specification

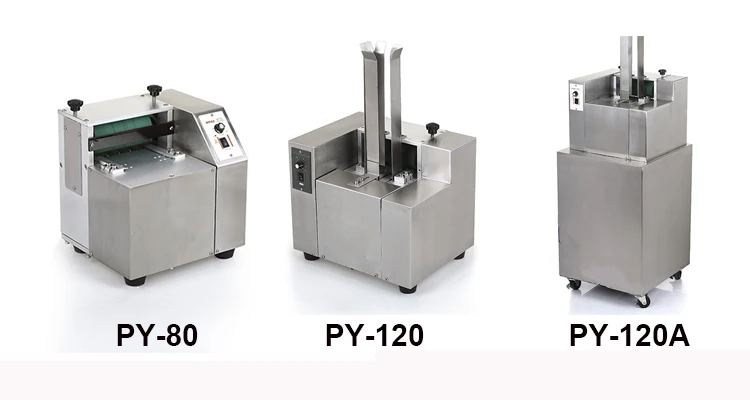

Model | PY-80 | PY-120 | PY-120A | ||
Work mode | Semi-Automation | Full-Automation | Full-Automation | ||
Counting mode | Manual | Manual | Manual | ||
Capacity | 25-35 plates/min | 50-65plate/min | 80-95plate/min | ||
Scope of application | Capsules, tablets, soft capsules, candy, etc. All aluminum plastic packaging, aluminum plastic aluminum packaging | 600-800particles/min | |||
Applicable medicine plate | The granules should be arranged horizontally and vertically. | 220V，50HZ,1A | |||
Power requirement | 220V AC:50-60HZ | 220V AC:50-60HZ | 220V AC:50-60HZ | ||
Power rating | 60W | 180W | 180W | ||
Weight of equipment | 18KG | 25KG | 35KG | ||
Outline dimension | 285*290*285mm | 350*380*510mm | 400*400*950mm | ||
Equipment material | SS304 | SS304 | SS304 | ||

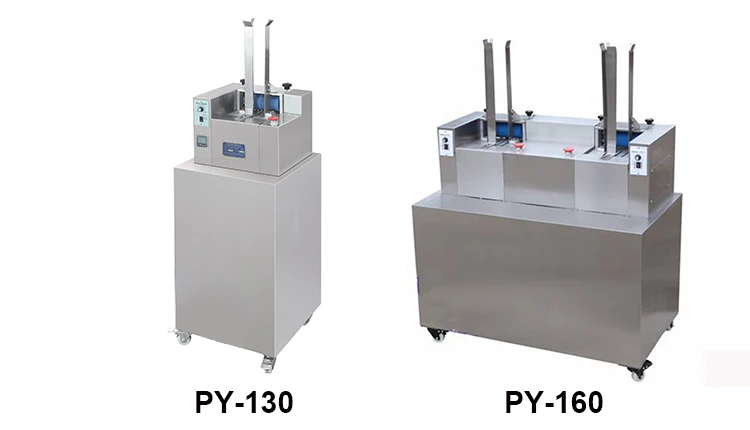

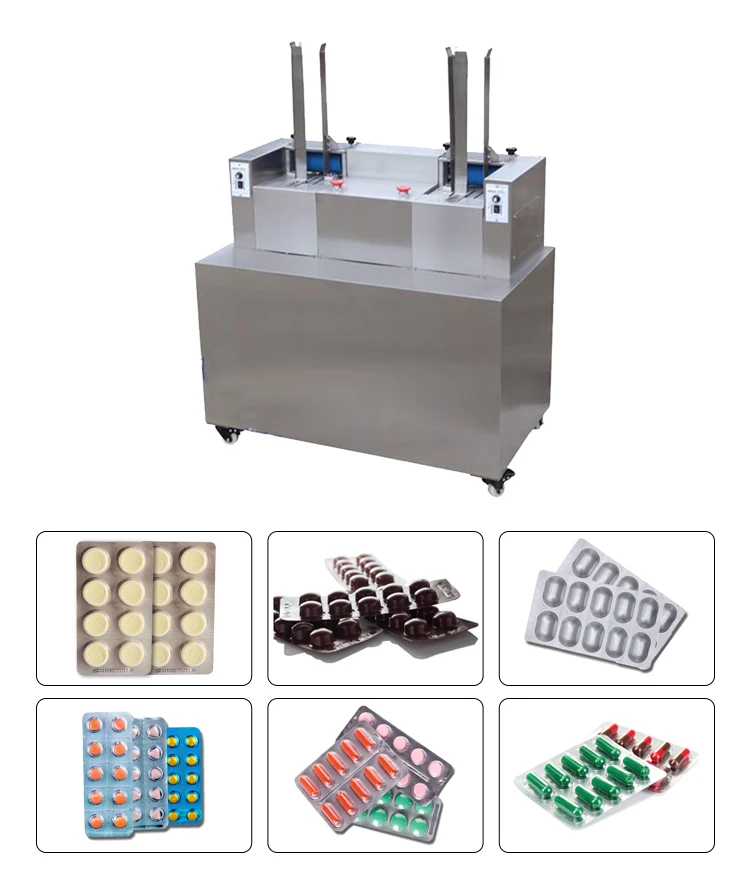

Model | PY-130 | PY-160 | |
Work mode | Full-Automation | Full-Automation | |
Counting mode | Automation | Automation | |
Capacity | 100-120plates/min | 220-280plate/min | |
Scope of application | Capsules, tablets, soft capsules, candy, etc. All aluminum plastic packaging, aluminum plastic aluminum packaging | ||
Applicable medicine plate | The granules should be arranged horizontally and vertically. | ||
Power requirement | 220V AC:50-60HZ | 220V AC:50-60HZ | |
Power rating | 180W | 360W | |
Weight of equipment | 38KG | 65KG | |
Outline dimension | 400*400*1100mm | 900*500*1200mm | |
Equipment material | SS304 | SS304 | |
