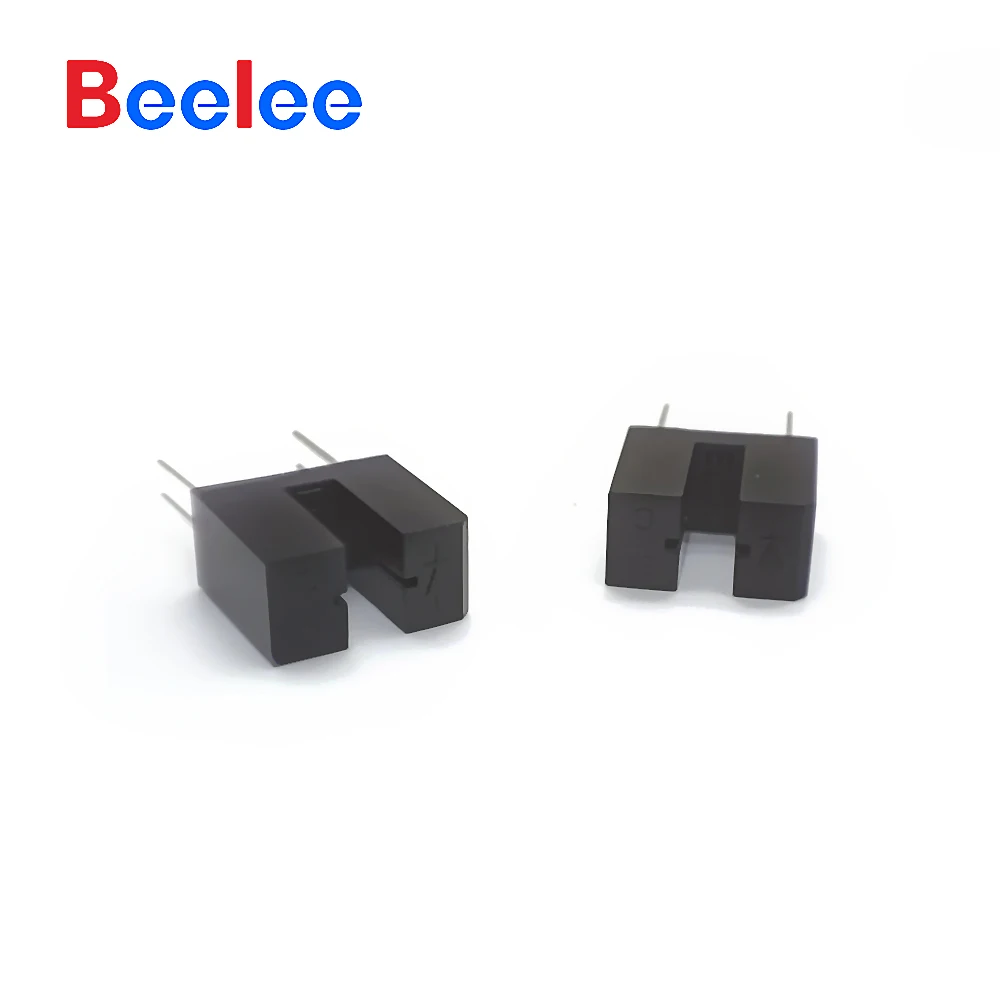

Beelee фото щелевые прерывателя BL GD EL130 4pin Оптопрерыватель
- Category: >>>
- Supplier: Dongguan Bailing Electronics Co. Ltd.
Share on (1600464716249):
Product Overview
Description

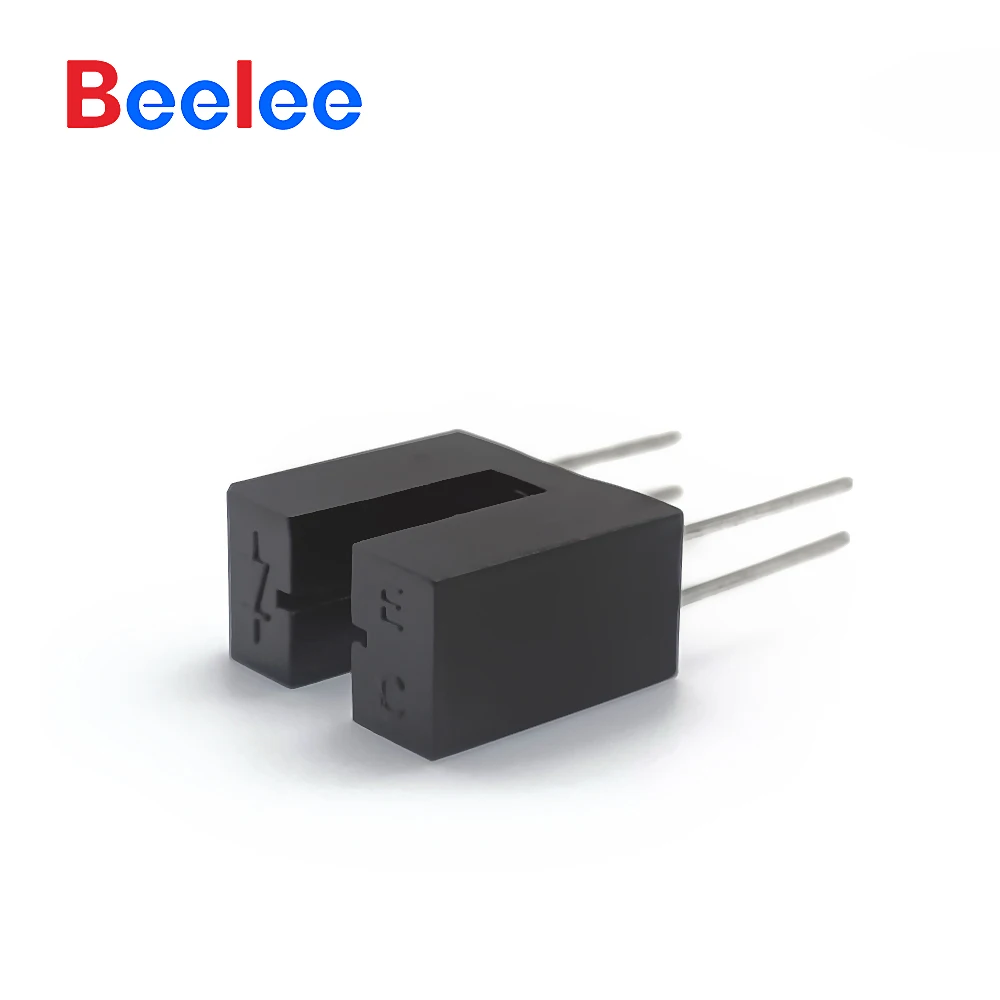

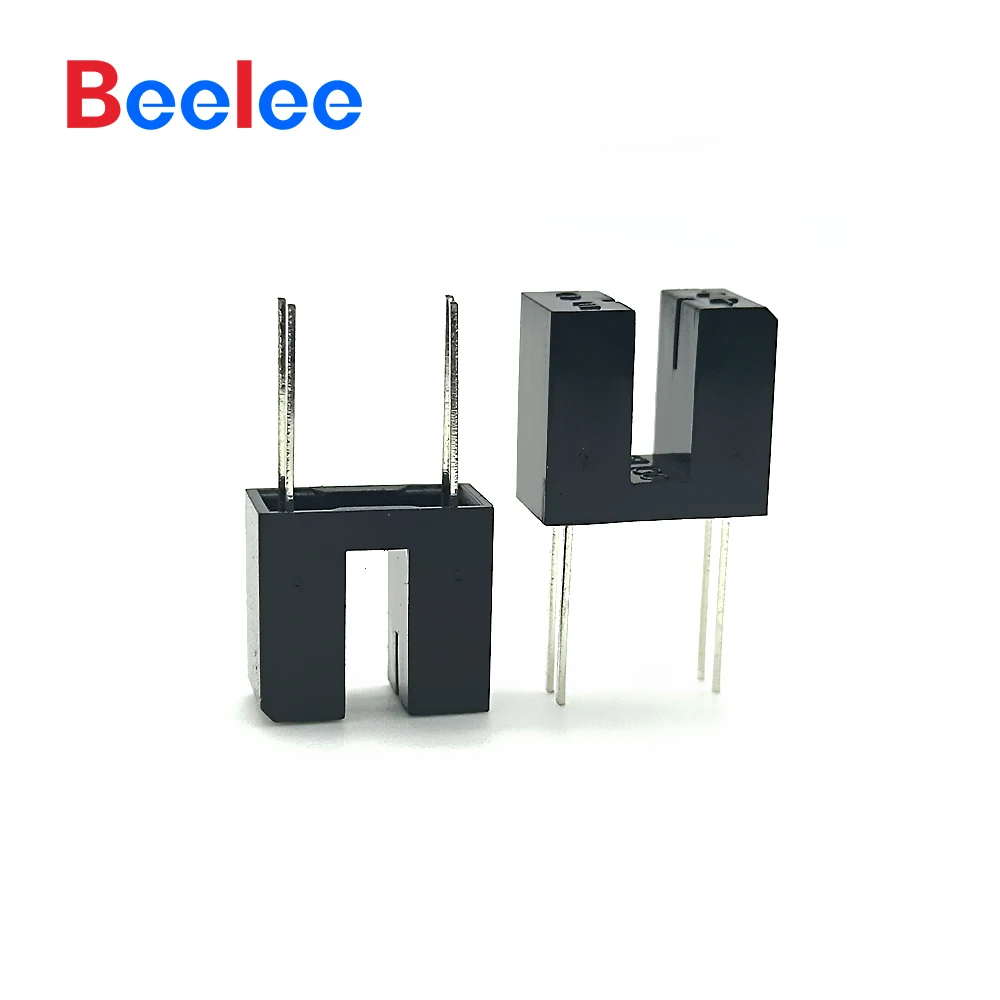

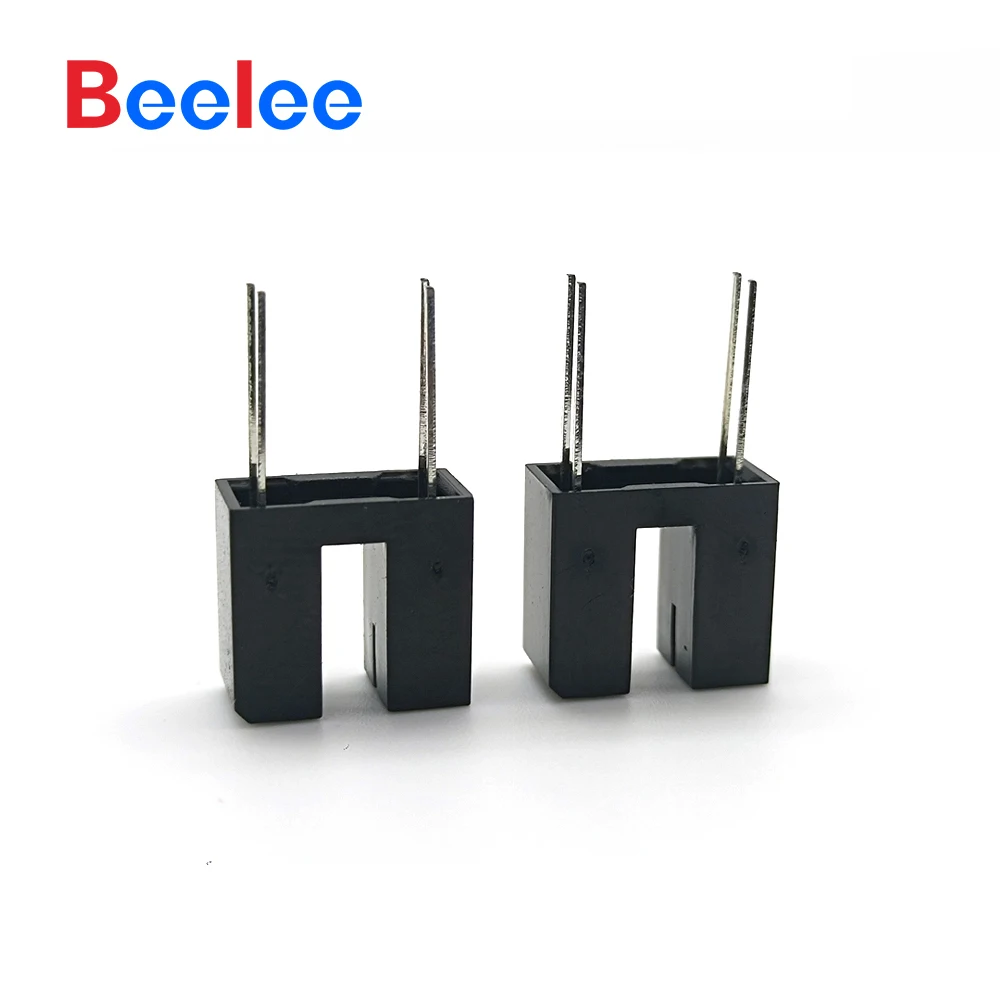

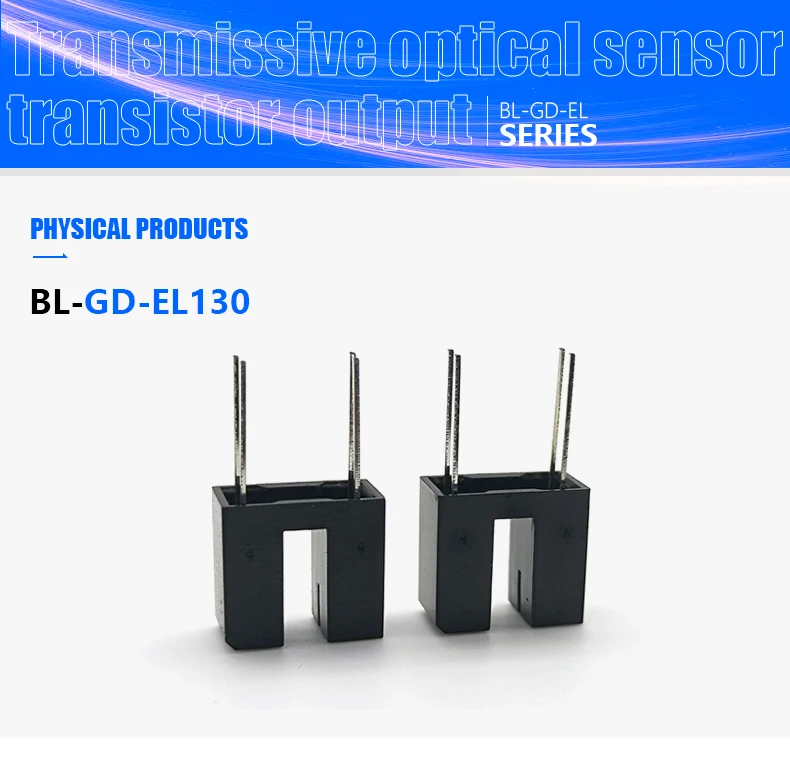

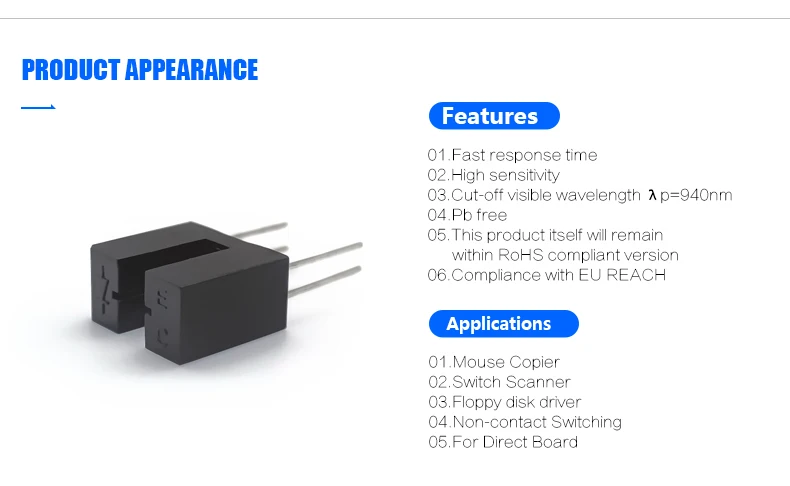

01.The BL-GD-EL130 (Slot Optical Switch) is a gallium arsenide infrared emitting diode which is
coupled with a silicon photo transistor in a plastic housing.
02.The packaging system is designed to optimize the mechanical resolution, coupling efficiency, and insulates ambient light.
03.The slot in the housing a provides a means of interrupting the signal with printer, scanner, copier, or other opaque material, switching the output from an “ON” to “OFF” state
| Parameter(Ta=25℃) | Symbo | Min. | Typ. | Max. | Unit | Conditions | |
| Input | Forward Voltage | VF | -- | 1.2 | 1.5 | V | IF =20mA |
| Reverse Current | IR | -- | -- | 10 | μA | VR =5V | |
| Peak Wavelength | λp | -- | 940 | -- | nm | IF =20mA | |
| Output | Dark Current | ICEO | -- | -- | 100 | nA | VCE =20V Ee=0mW/cm2 |
| C-ESaturation Voltage | VCE(sat) | -- | -- | 0.4 | V | IC =2mA Ee=1mW/cm2 | |
| Collect Current | IC(ON) | 0.5 | 10 | 5 | mA | VCE =5V IF =20mA | |
| Transfer Characteristics | Rise time | tr | -- | 15 | -- | μsec | VCE =5V IC =1mA RL =1KΩ |
| Fall time | tf | -- | 15 | -- | |||
