Automatic Transfer Switch 60 amp 220V ATS Solar Controller
- Category: >>>
- Supplier: Yueqing Nova Electronics Co. Ltd.
Share on (1600464743211):
Product Overview
Description
Automatic ATS Dual Power Transfer Switch Controller for Solar wind System DC 12V 24V 48V AC 110V 220V on/off grid NOVA MOES NV-ATS11KW
Product Paramenters
Product | Intelligent Dual Power Transfer Switch (ATS) |
Application | Way of connection 1: "Off-grid Solar/Wind ---- Grid Power" transfer Way of connection 2: Intelligent battery combiner |
Model | NV-ATS11KW |
Length/Weight | Product Size: 19*14.5*7cm 1.25KG Inner Box: 25.5*21.8*12cm Outer Carton: 52*45.5*37.5cm 12 pcs/ctn, 18.2KG/ct |
【Application】Off grid solar, wind or hydro generator system; or standby battery pack.

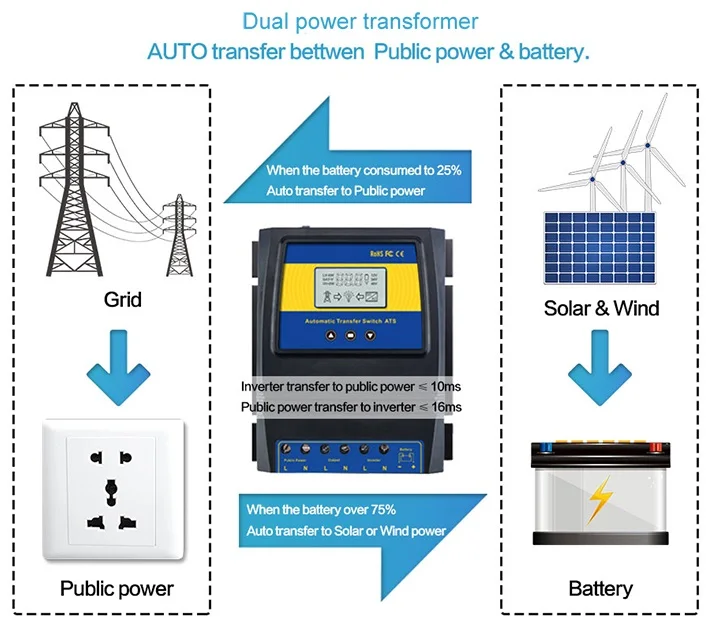

【Working Mechanism】
-- It connects "off grid solar/wind/hydro system" and "public power/generator" in the same circuit.
-- Works as Opposite UPS: battery power priority, public power second
-- ATS transfers according to battery voltage.
1. Priority Power source: Inverter AC <--- Battery <---- Solar/Wind.
2. Only when battery low, it auto transfers to Second Power source: Grid AC / Generator / Standby Battery-Inverter Pack.
3. When battery recovers, it auto transfers back to Priority Power source.
【Advantages】
1. In rainy, cloudy, windless days, the off grid solar/wind system can not generate enough electricty. ATS can solve electricty storage limitation problem of off-grid solar system, or when main battery pack of your RV or boat get problem. To keep your electricity 24-hour long.
2. Fast Change-over: Inverter transfer to public power ≤ 10ms, public power/generator transfer to inverter ≤ 16ms. No power "flickering", loads do not shut off, work all times as if no power changeover.
3. Prevent battery from over-discharging, extend batteries' life.
4. Save electricty bill by at lease 30%. Utilize solar power and rely less on the public power company.
5. No need spend huge money $34K for grid-tie system.
6. Easy Installation. DIY. No need to cut into public power, or any factory wiring that may void the manufacturer's warranty of your boat or vehicle.
【Working Mechanism】
-- It connects "off grid solar/wind/hydro system" and "public power/generator" in the same circuit.
-- Works as Opposite UPS: battery power priority, public power second
-- ATS transfers according to battery voltage.
1. Priority Power source: Inverter AC <--- Battery <---- Solar/Wind.
2. Only when battery low, it auto transfers to Second Power source: Grid AC / Generator / Standby Battery-Inverter Pack.
3. When battery recovers, it auto transfers back to Priority Power source.
【Advantages】
1. In rainy, cloudy, windless days, the off grid solar/wind system can not generate enough electricty. ATS can solve electricty storage limitation problem of off-grid solar system, or when main battery pack of your RV or boat get problem. To keep your electricity 24-hour long.
2. Fast Change-over: Inverter transfer to public power ≤ 10ms, public power/generator transfer to inverter ≤ 16ms. No power "flickering", loads do not shut off, work all times as if no power changeover.
3. Prevent battery from over-discharging, extend batteries' life.
4. Save electricty bill by at lease 30%. Utilize solar power and rely less on the public power company.
5. No need spend huge money $34K for grid-tie system.
6. Easy Installation. DIY. No need to cut into public power, or any factory wiring that may void the manufacturer's warranty of your boat or vehicle.
Details Images
Battery Input Voltage: 12 / 24 / 48 VDC Auto
AC Input Voltage: 110 / 220 VAC 50/60Hz Auto
Max Current: 50A
Max Power: 5.5KW (110VAC system) or 11KW (220VAC system)
Inverter transfer to public power: ≤ 10ms
Public power/generator transfer to inverter: ≤ 16ms
Default BAT. Low Cut-down: 11V / 22V / 44V (Adjustable according to different battery types)
Default BAT. Low Recovery: 13.5V / 27V / 54V (Adjustable according to different battery types)
LCD Display: Working status of Public Power, Inverter and Battery
Battery Type: Suits to any kind of battery whose voltage are within 9-17V (12VDC system), 18-30V (24VDC system), or 30-60V (48VDC system).

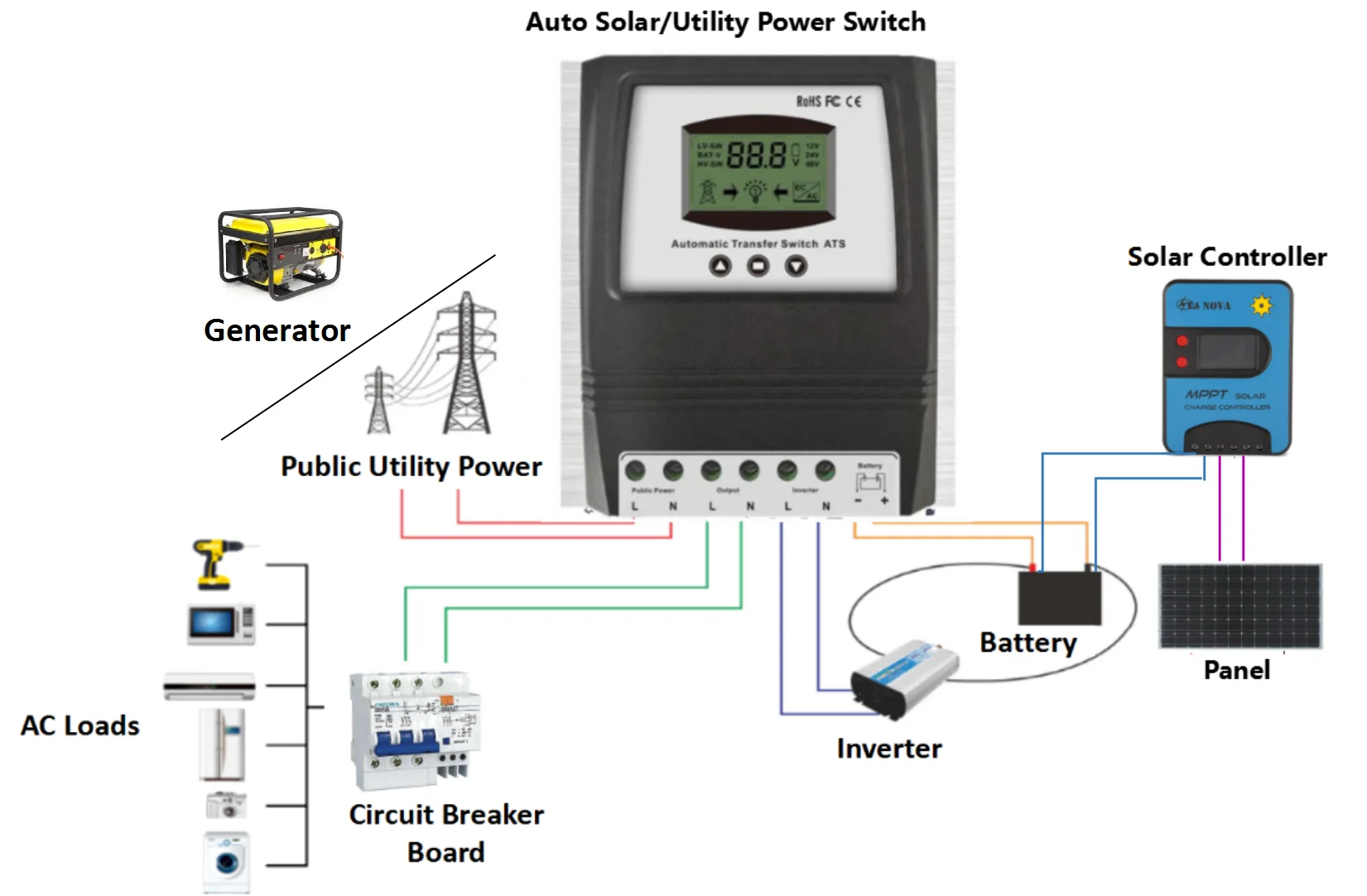

Way of connection 1: "Off-grid Solar/Wind ---- Grid Power" transfer
For where grid power or generator power is available, such as house, shop, office, cabin

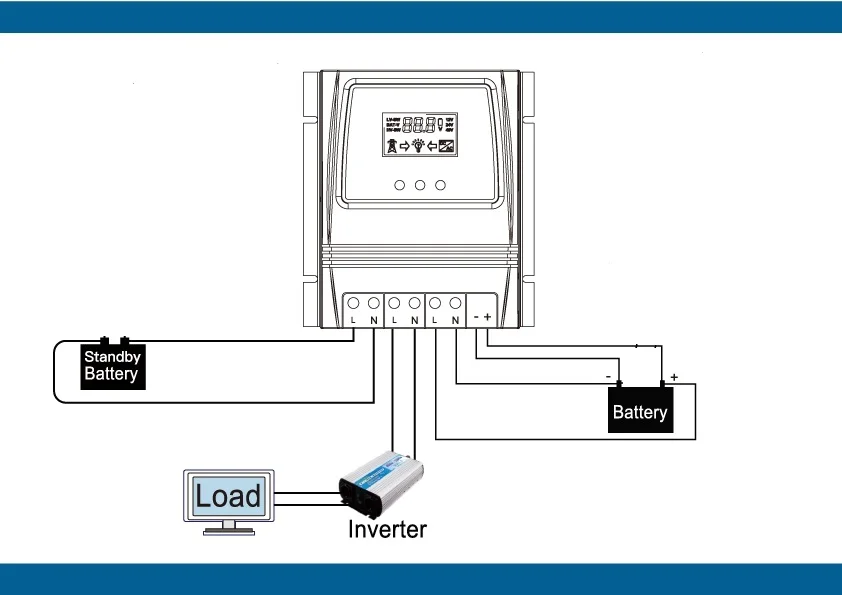

Way of connection 2: Intelligent battery combiner
For where grid power is unavailable, such as RV, Motor home, truck, camper, boat, etc
