Product Overview
Description
Product Overview

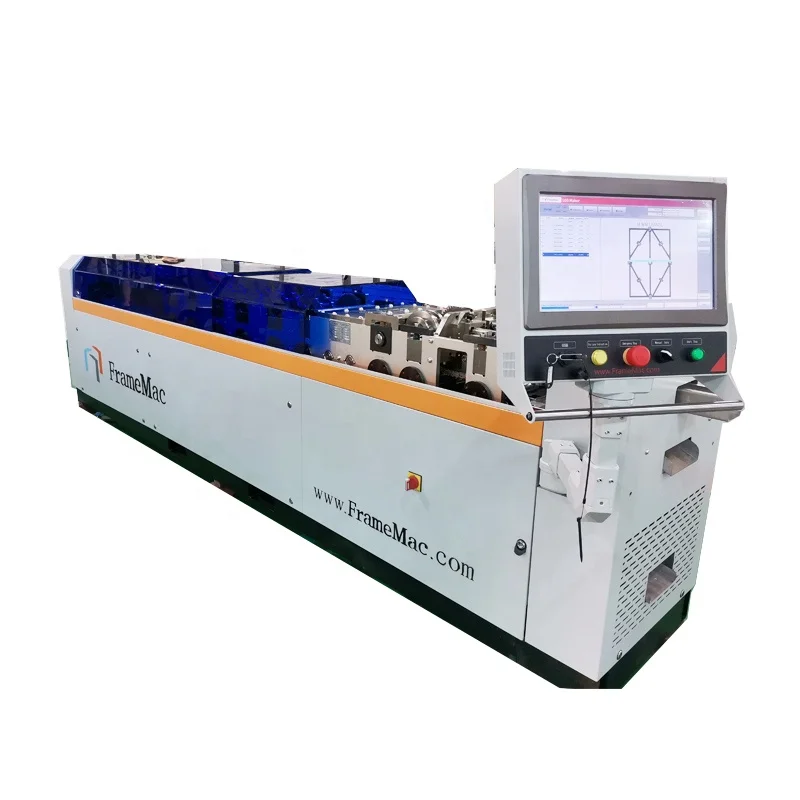

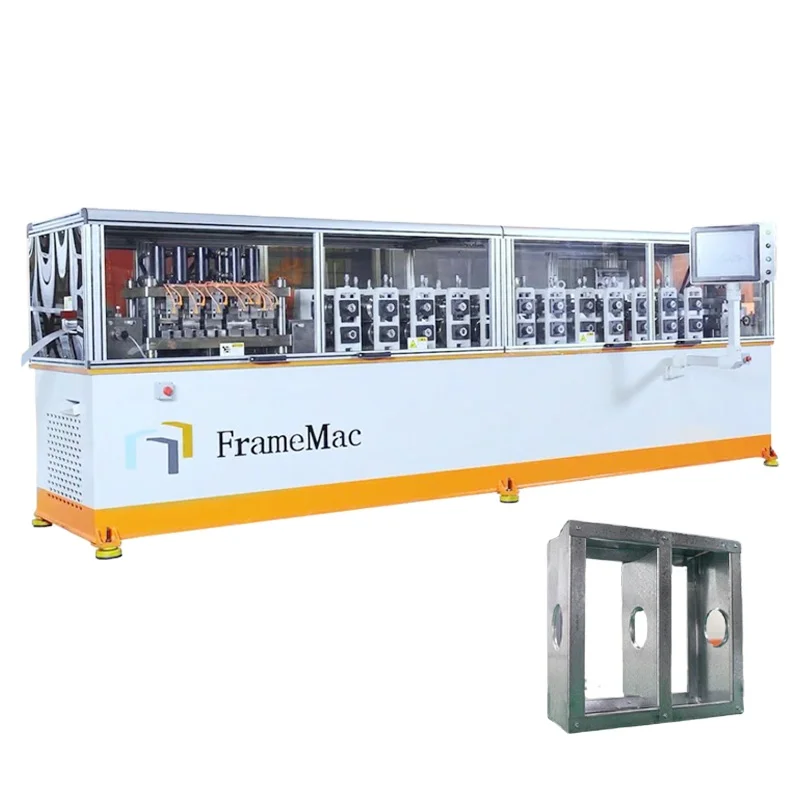

Steel framing machine
Steel framing machine produces c channel stud and tracks for light gauge steel framing building, by recognizing output files of BIM design software.
PRODUCT SPECIFICATIONS
No | Item | Data |
0 | Nc File | CSV/ XML or other |
1 | Web | 89mm |
2 | Thickness | 0.7-1.2mm |
3 | Production speed | 600m/s |
4 | Accuracy | 0.5mm |
5 | Total Power | 11.5kw |
6 | Inkjet printer | 2 sides |

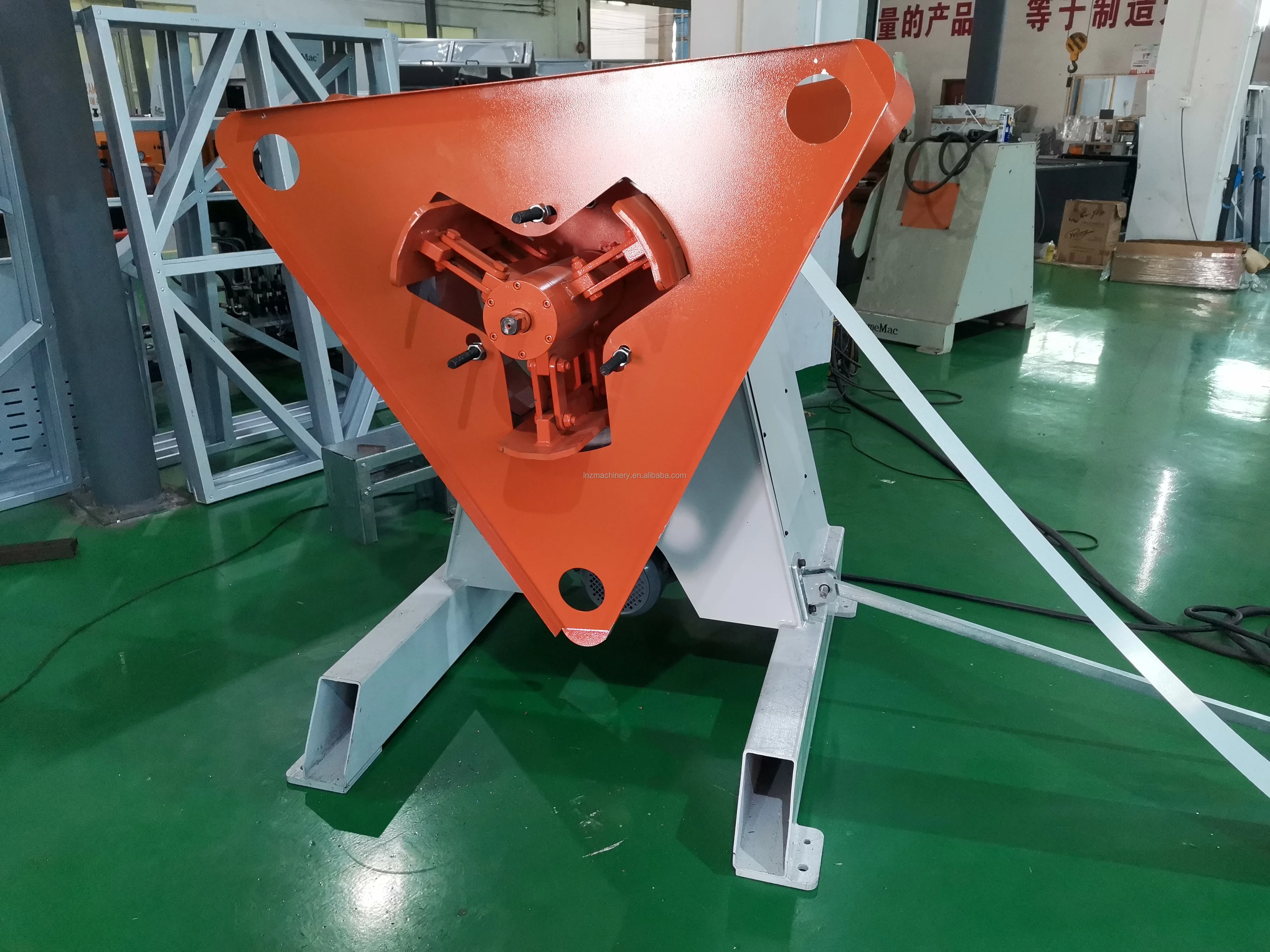

7 | Decoiler | 2 tons |
8 | Machine weight | 3800kg |

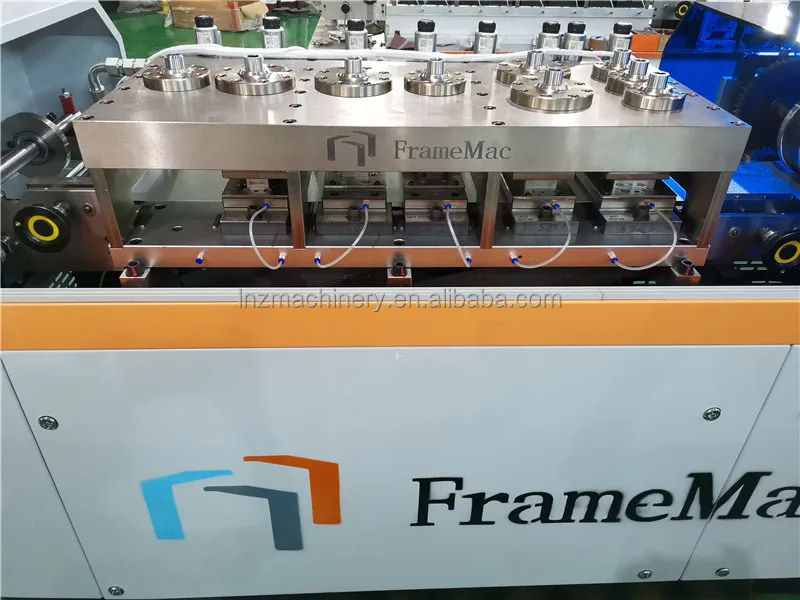

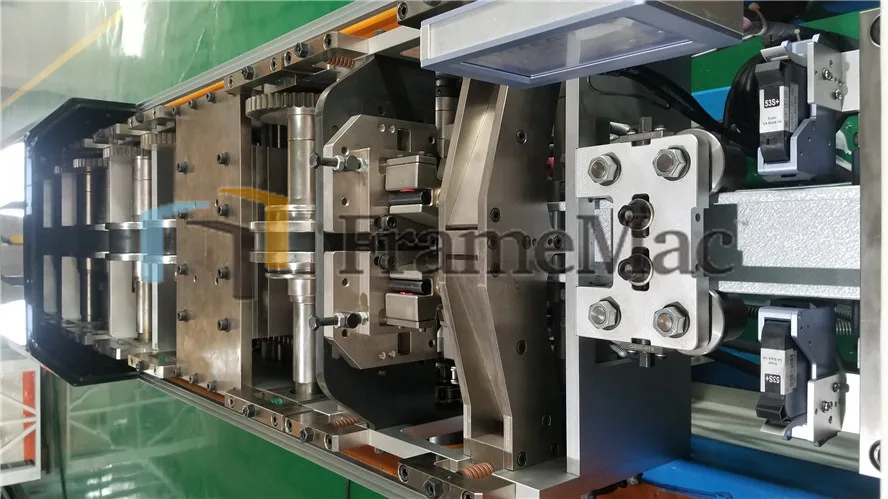

Punchouts
The punch toolings are composed of highly sensitive sensor, powerful hydraulic press force, strong die cut by slow-speed wire and
accompany lubrication route.
accompany lubrication route.

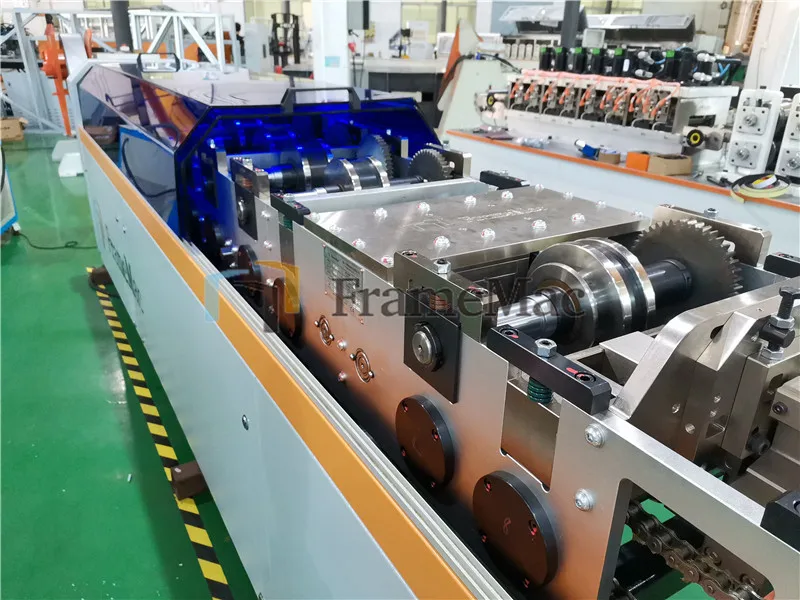

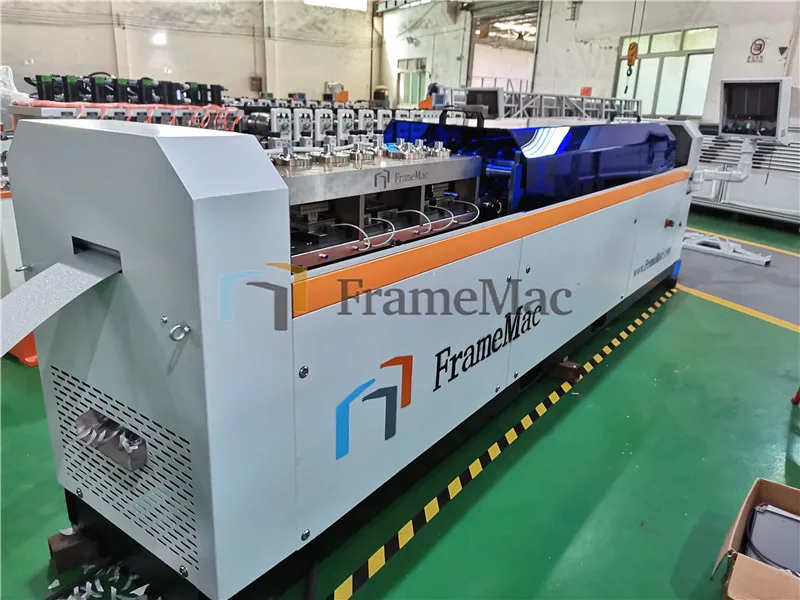

Roll forming part
The roller stations gap can be auto adjusted for steel strips in different thickness, precisely aligned on steady bench , safely shell shield.
Inkjet printer
The printer with a smart chip, automatically print the code on both side of steel frame ,same as detailing drawings, which should
be referred to installed. This shorten precious time of both production and installation offsite or onsite.
be referred to installed. This shorten precious time of both production and installation offsite or onsite.

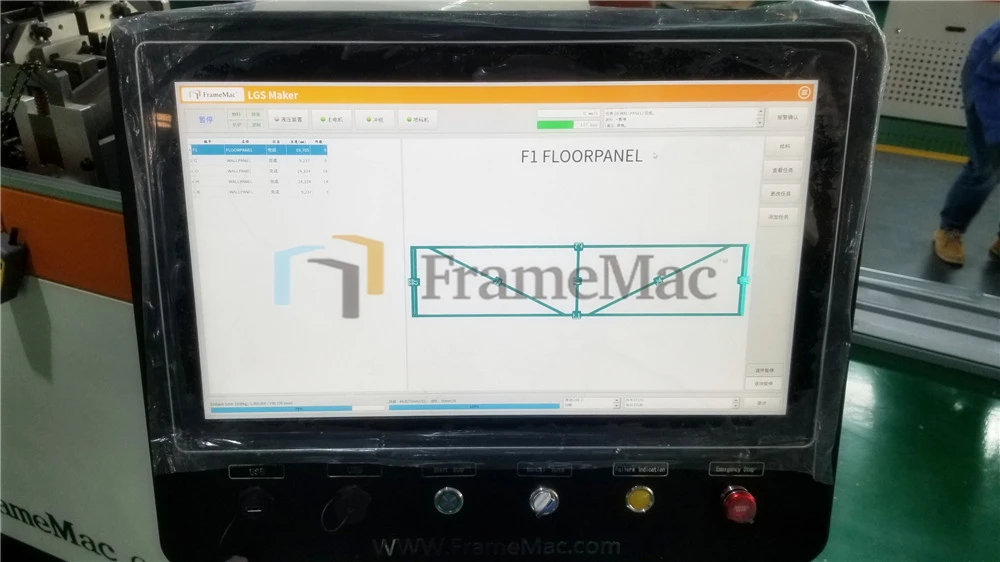

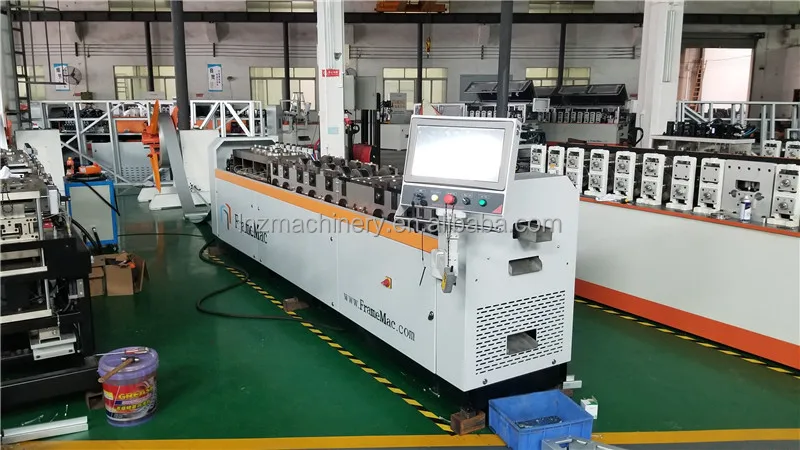

Industrial computer
This industrial computer is installed with Lilux system, which can prevent from Microsoft virus. Its communication type is
EtherCAT. The most core value is instantly step BIM file to manufacturing proceed.
EtherCAT. The most core value is instantly step BIM file to manufacturing proceed.
COMPACT DIMENSIONS
Occupying space of only 10m x 1.5m , this production line can complete uncoiling , hole punching , code printing, auto cutting-off with CNC control.

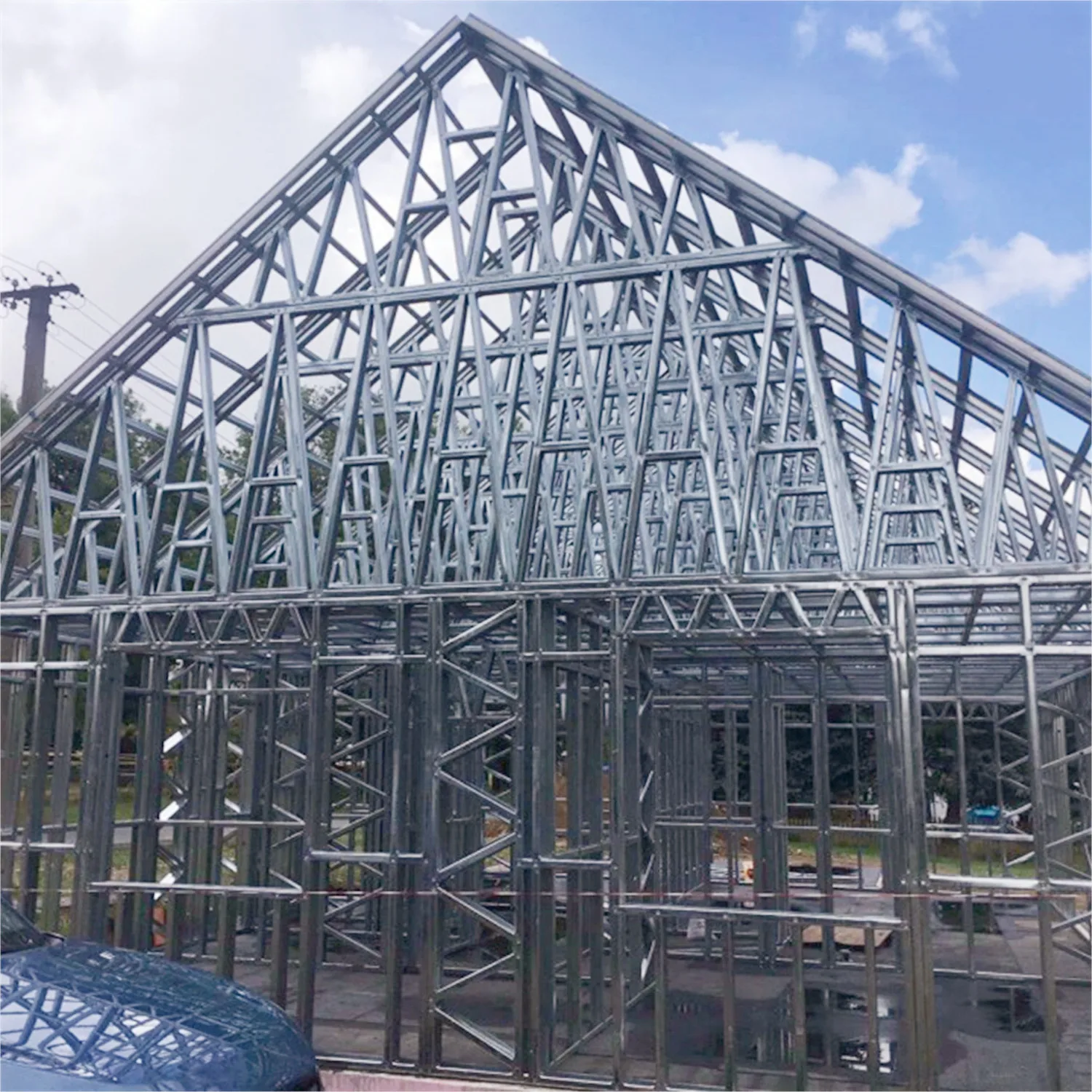

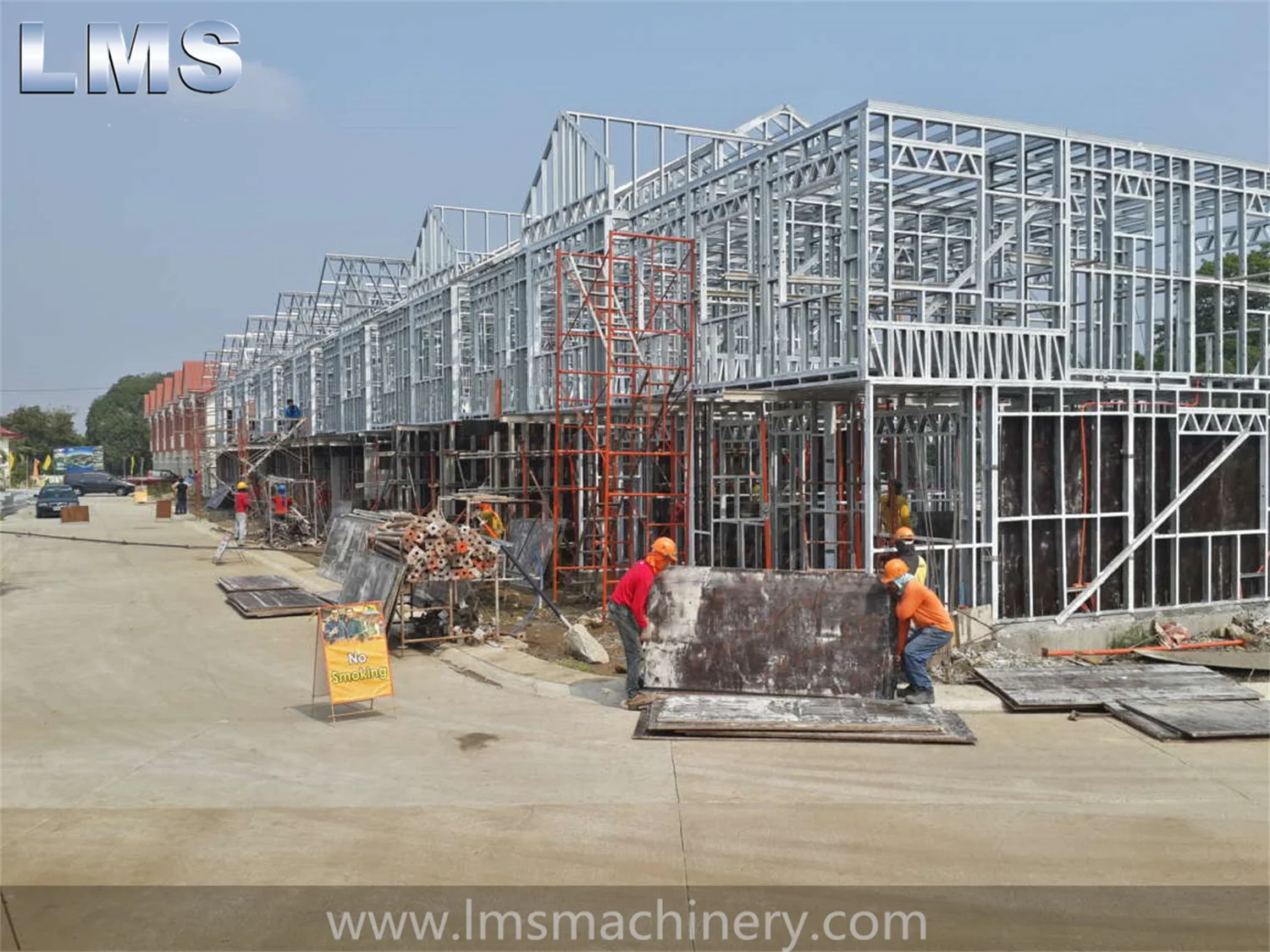

Successful Project
Wall panels
Steel house
Roofing truss
SIMILAR PRODUCTS
Product packaging
COMPANY PROFILE
About us
FrameMAC is a professional manufacturer of machine combining R&D and sales for light steel framing production equipment and solutions.
Taking "fast,accurate and stable" as our service tenet, insisting on high quality , support the target of providing long-term running facility to the global.
