Toothpaste Filling Machine double heads tube filling machine high speed automatic toothpaste production line
- Category: >>>
- Supplier: Shanghai Longteng Technology Co. Ltd.
Share on (1600464758837):
Product Overview
Description
Product Description

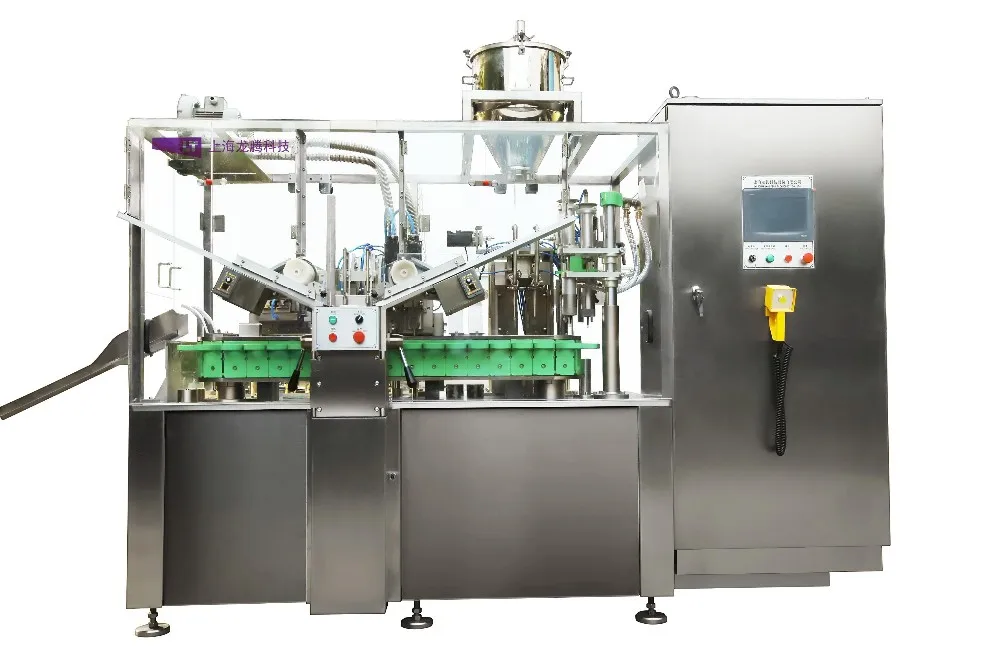

FM160 soft tube filling and sealing machine is a new filling equipment which is independently developed and designed and manufactured by our company, based on foreign advanced filling and sealing machine type and combined with the domestic actual circumstances of soft tube. The machine type is wholly closed in stainless steel, suitable to filling and sealing of various specifications plastics tube, max speed reaches160 tubes per minute, actual normal speed reaches 120 to 140 tubes per minute, and assuring more than 120 tubes per minute, variable speed via frequency converter. Filling precision is equal to or less than 1%. The sealing manner is metal folding for aluminum tubes, hot air sealing for plastic tubes.
Main Technical Parameters List
No.\tItems\tFeatures and data
1\tTube diameter(mm) \t13～50
2\tTube print orientation(mm)\t±1.5
3\tPour capacity (g)\t1.5～300
4\tPour precision（%）\t±0.5%
5\tClosure manner \tType A: Metal tube \tMetal folding on side or saddle shaped folding on both sides.
\t\tType B: Plastic tube ,laminated tube\tneedle hole type heat wind sealing.
6\tDesign speed (tube/minute)\t160
\tProduction speed (tube/minute)\t120～140
7\tTube material \tMetal tube ,plastic tube ,laminated tube
8\tAvailable ointment \tWater ointment , oil ointment
9\tPower（Kw）\tType A: Metal tube\t3
\t\tType B: Plastic tube,laminated tube\t10
10\tPower supply\t380V 50Hz
11\tAir pressure \t0.6Mpa
12\tAir consumption （m3/h）\tType A: Metal tube\t20
\t\tType B: Plastic tube, laminated tube\t60
13\tWater consumption（l/min）\tType B: Plastic tube, laminated tube\t6
14\tTransmission chain type\tSteel rib synchronous belt type imported from Italy
Items | Features and data |
Tube diameter(mm) | 13～50 |
Tube print orientation(mm) | ±1.5 |
Pour capacity (g) | 1.5～300 |
Pour precision（%） | ±0.5% |
Closure manner | Type A: Metal tube |
Type B: Plastic tube ,laminated tube | |
Design speed (tube/minute) | 160 |
Machine Details

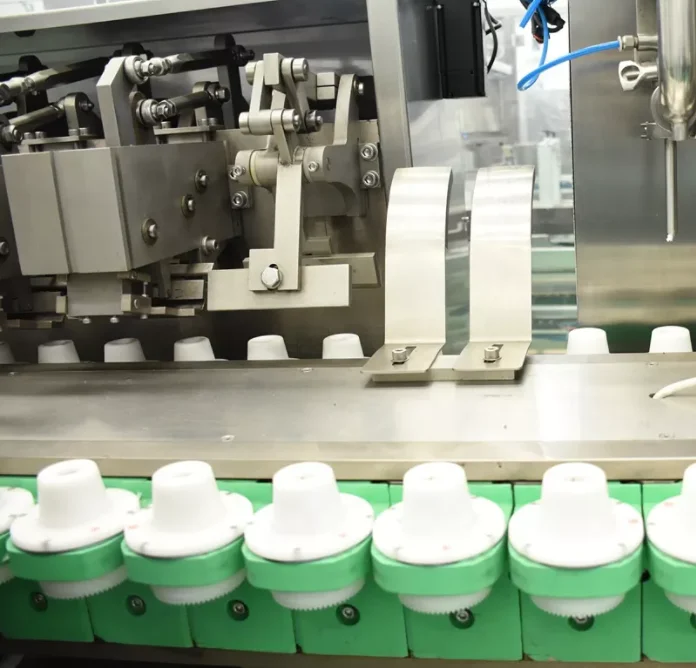

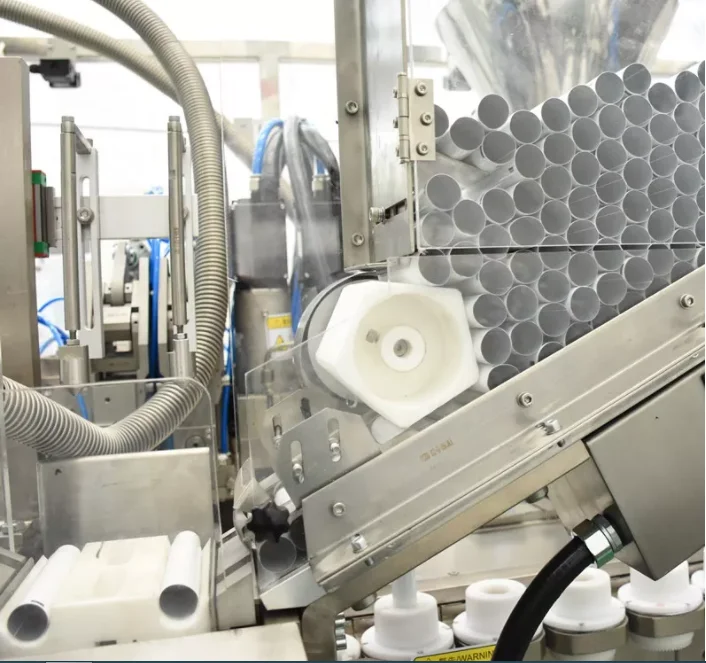

Tube Loading Device
It is semi-automatic loading of the tube box, and the tube is manually loaded by the whole box. The tube box is equipped with a
double door on the front, which is convenient and large in capacity. Taking a 20g tube as an example, it can accommodate more than
700 pieces; driven by a cam, the action is smooth and soft, a negative pressure hole is opened on the flip plate to suck the hose
firmly to ensure that it falls into the tube cup accurately;
double door on the front, which is convenient and large in capacity. Taking a 20g tube as an example, it can accommodate more than
700 pieces; driven by a cam, the action is smooth and soft, a negative pressure hole is opened on the flip plate to suck the hose
firmly to ensure that it falls into the tube cup accurately;

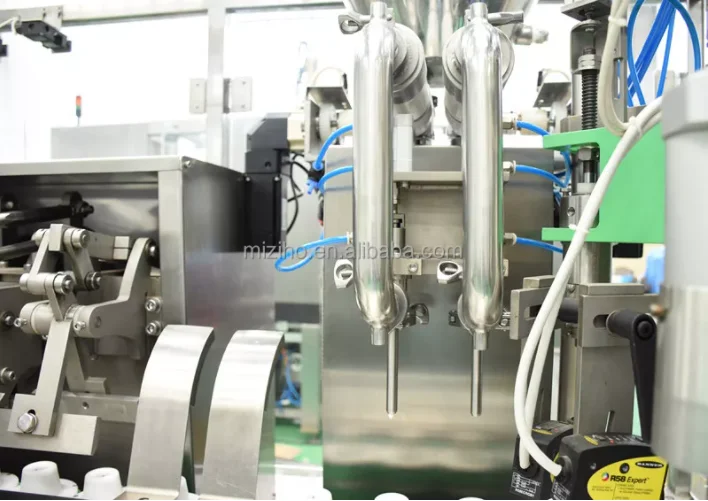

Double Heads Filling Device
We use two filling heads to enhance the high speed of the machine.

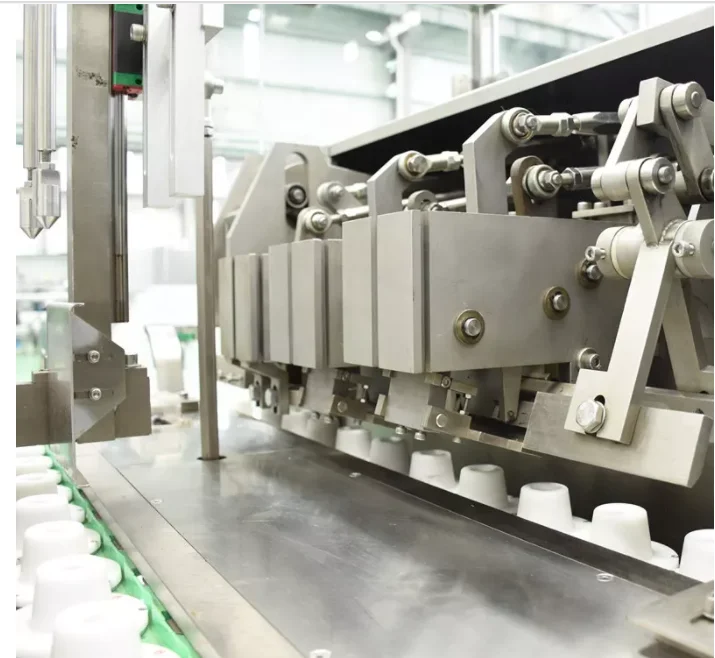

Tube Sealing and Coding device
Automatic tube sealing through mechanical cam linkage mechanism, there are Alu tubes that can realize two-folding,
three-folding, saddle-type folding and other sealing methods, and hot air sealing for plastic tubes and laminated tubes,ensure
that the sealing is tight and leak-free.
HIGH TECHNOLOGY TYPE
Combined with advanced technology and our inland requirements,it is high technical machine,equipped with famous brand spare parts,such as SIEMENS PLC,FESTO Penumatic parts.Size changeover is easy and operation convenient.
Our Service
Toothpaste industry
Suitable for toothpaste filling and sealing with big volume,running steadily and high speed.
Cosmetic industry
Suitable for cosmetic industry for cream,facial cleaner cream products etc.,with perfect hot sealing.
Pharmaceutical industry
High filling accuracy for ointment filling and sealing,high cleaness for eye ointment,widely used and good reputation in the related industry.
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing & Delivery
1.export wooden case
export wooden case
Professional and perfect after-sale service
Our Certifications
4. High Technology Products
Certificate
5. ISO certificate
6. CE certificate
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory,and the PROFESSIONAL&POPULAR tube filling and sealing machine manufacturer in China with more than 22 years experience.
Q: How long is your delivery time?
A: Generally it is 60-70 days after signed the contract.
Q: Does your machine use Alu tube and Plastic Tube?
A: Yes, we can use Alu tube and Plastic Tube,but usually we suggest for seprate machine for Aluminum tube and plastic tube,please contact with us for further details.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment,or 100% irrevocable L/C at sight.
