Product Overview

Description



Product Description

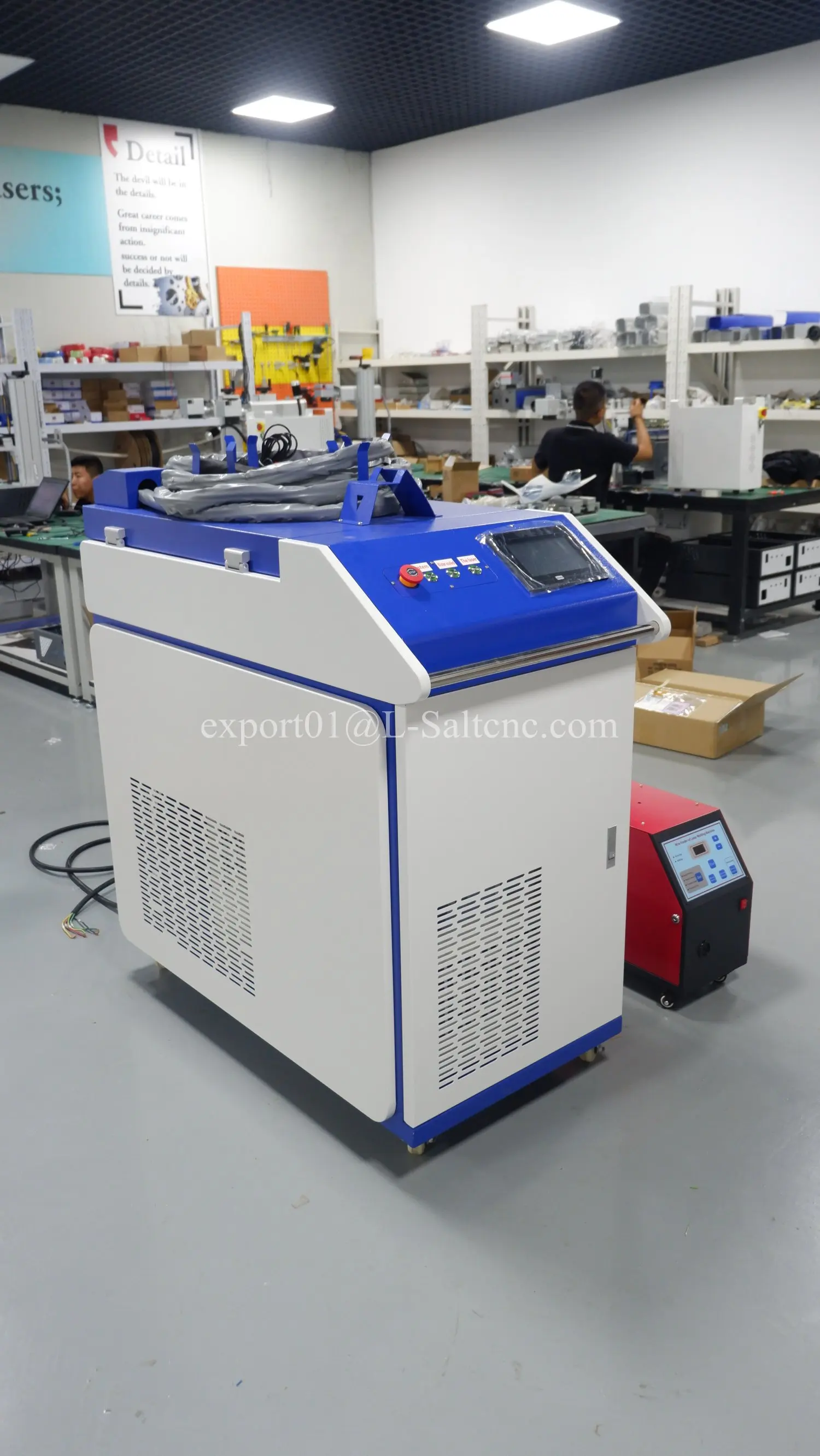

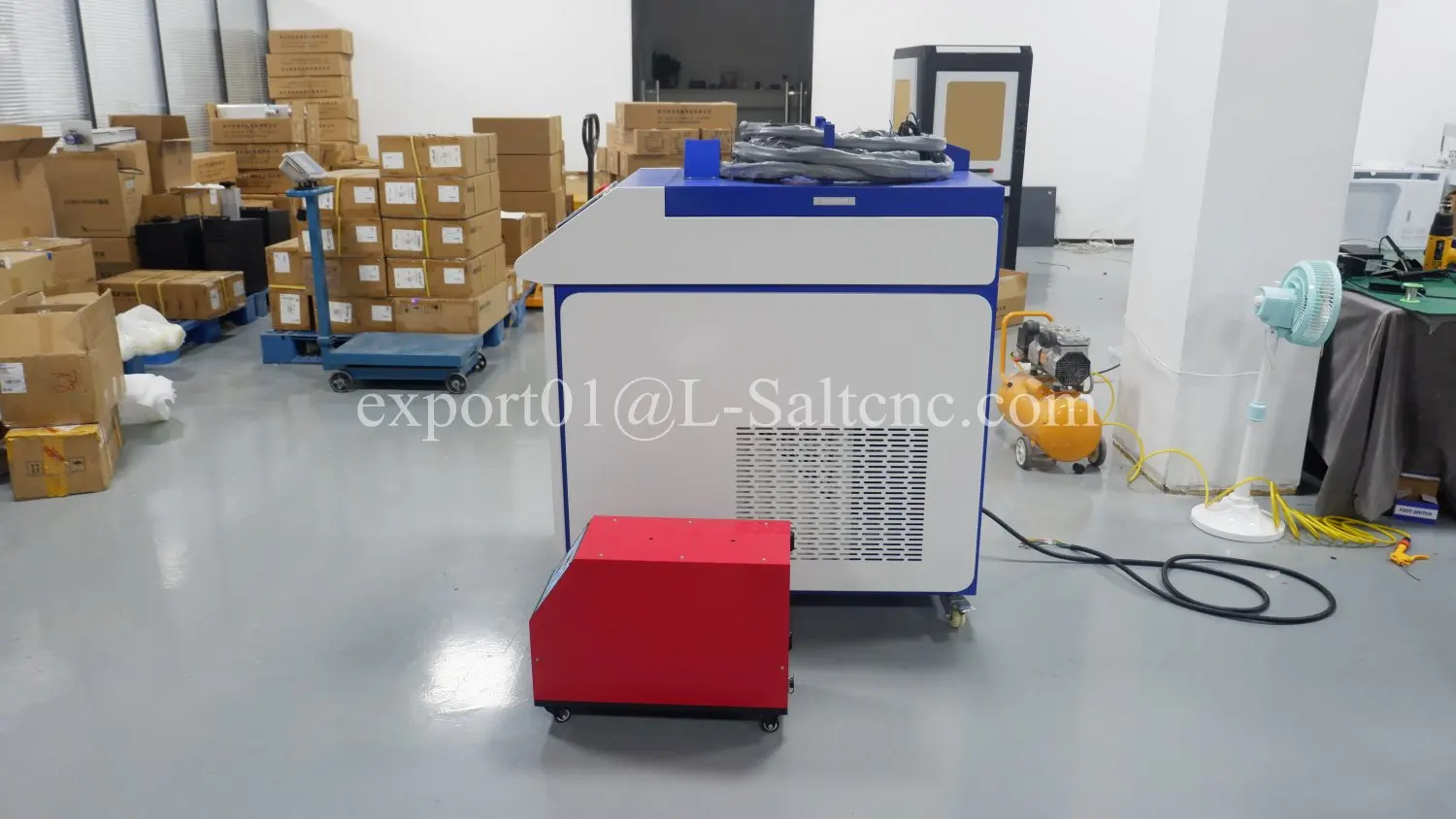

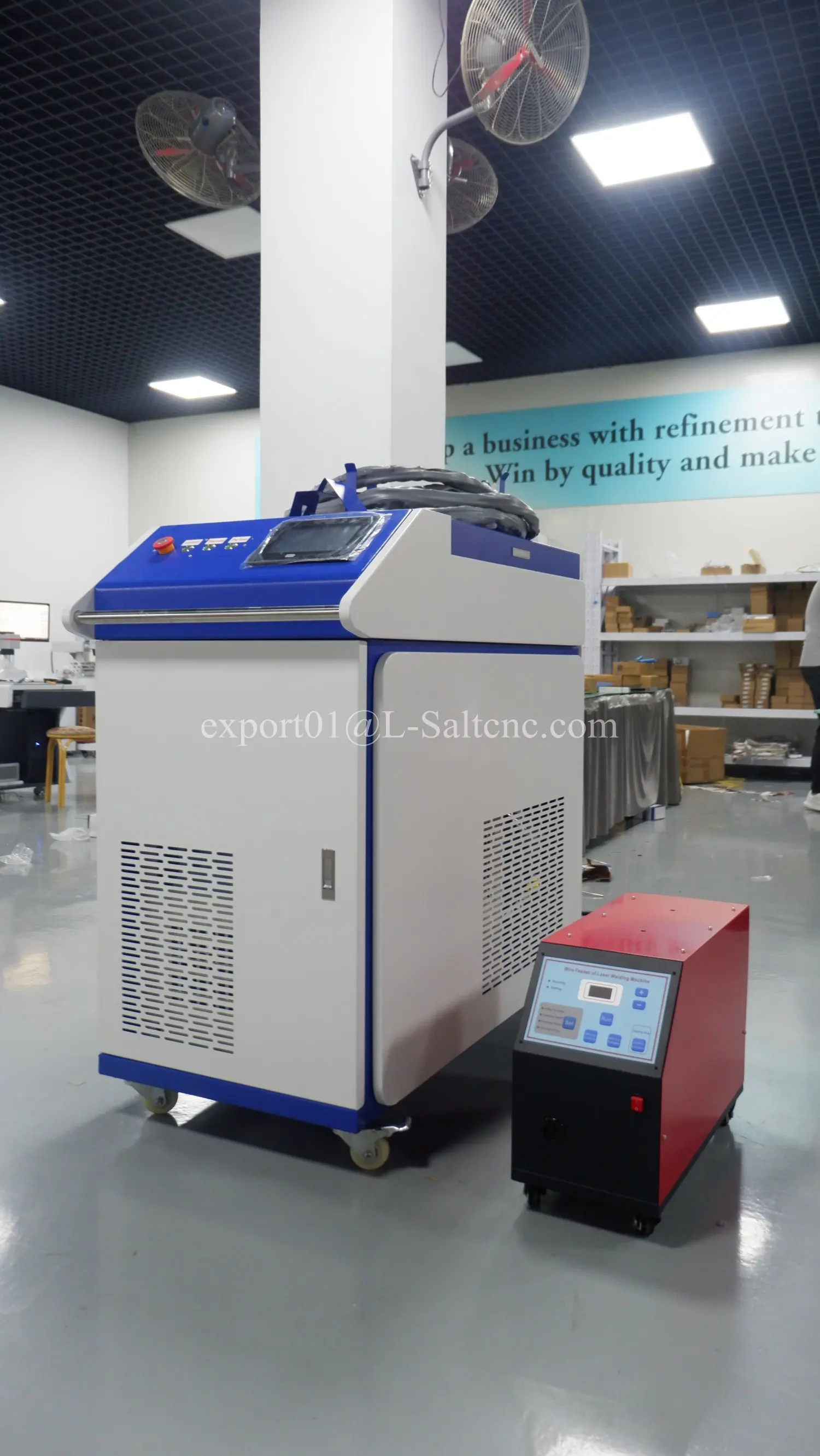

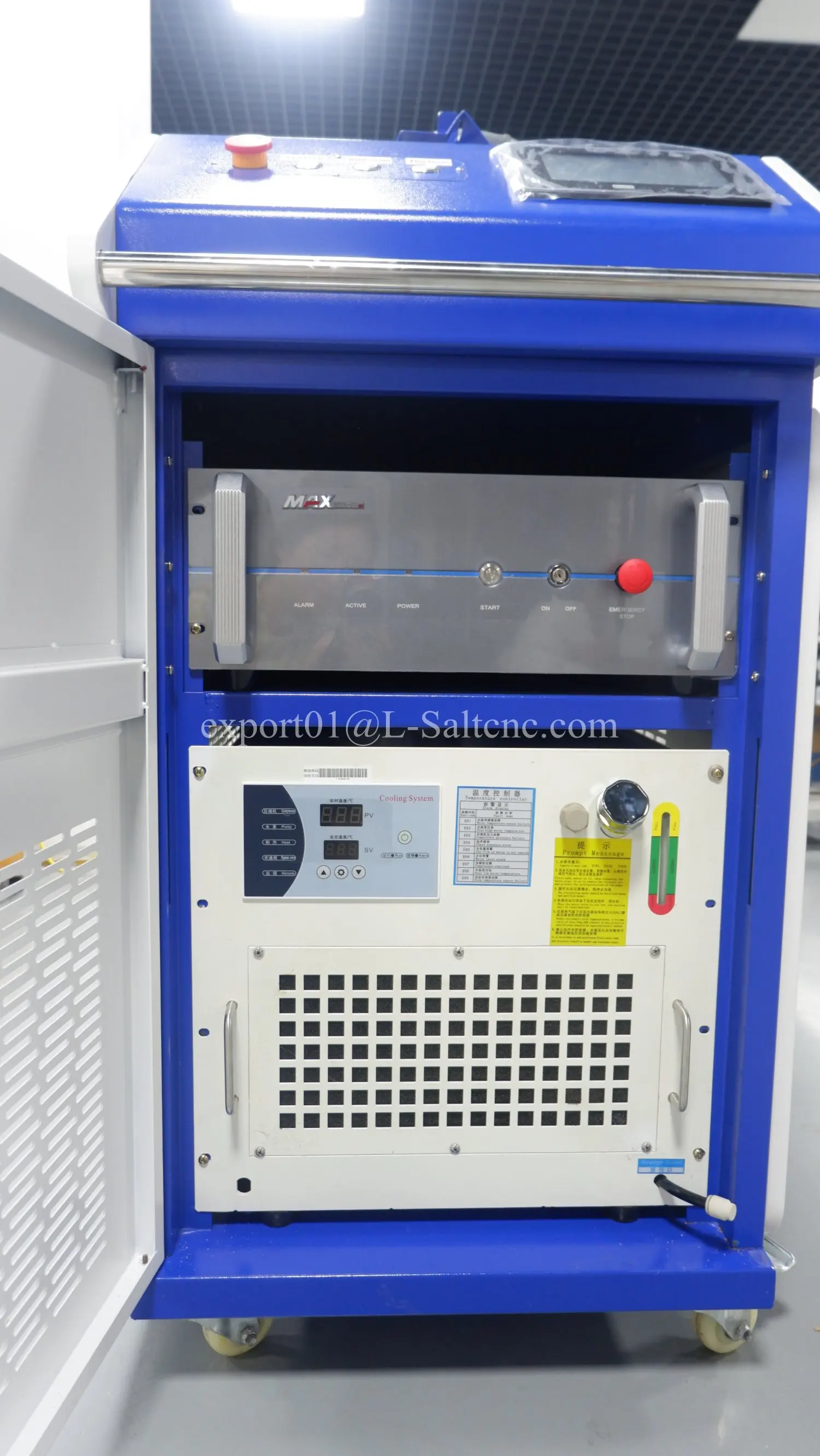

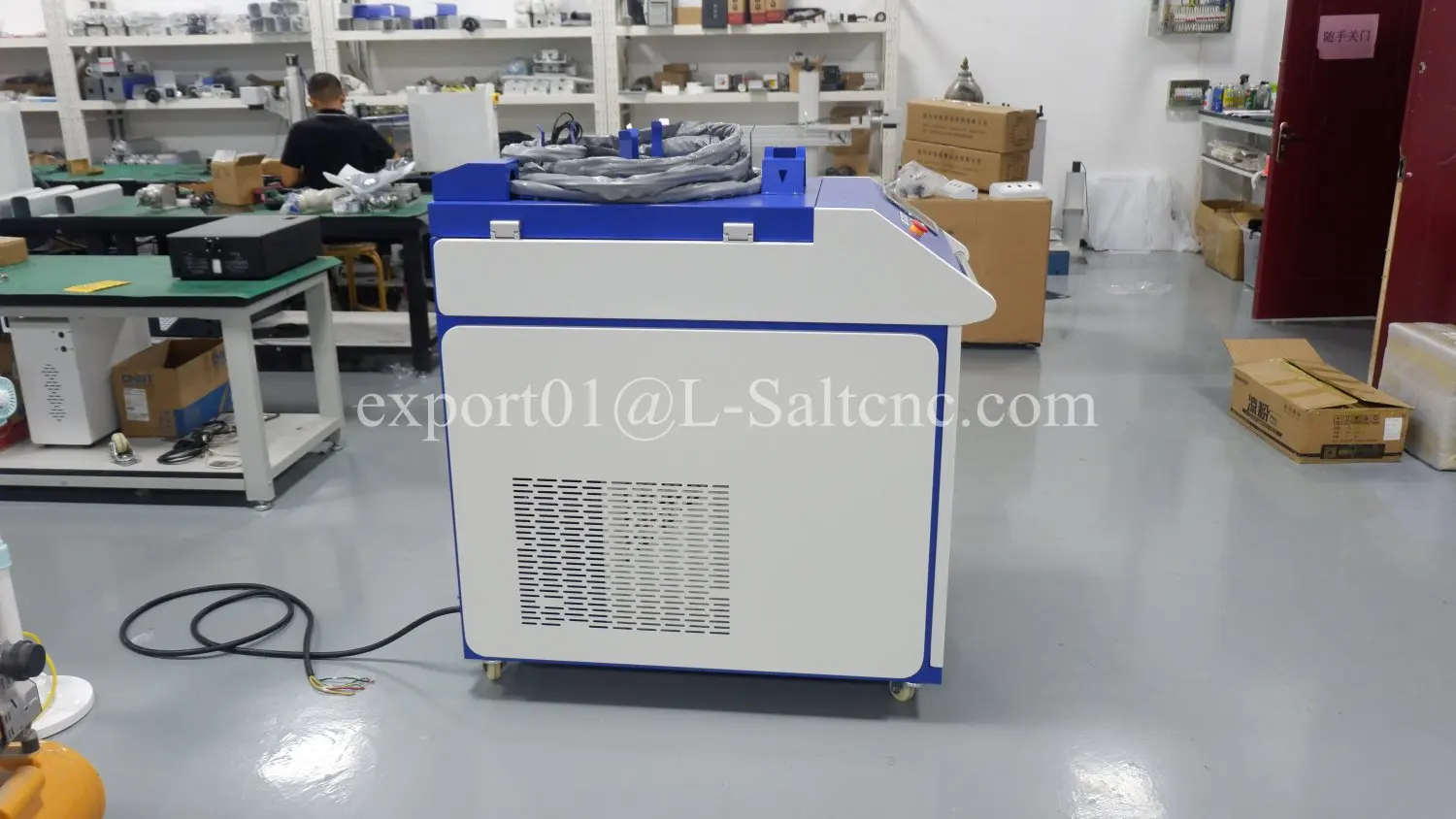

L-SALT hand-held laser welding machine adopts the latest generation of fiber laser and is equipped with a double-swing hand-held laser welding head. It has the advantages of simple operation, beautiful welding seam, fast welding speed and no consumables. Welding of metal materials can perfectly replace traditional argon arc welding and electric welding processes.






Product advantages:
The working mode of hand-held fiber laser welding machine, hand-held welding, flexible and convenient, longer welding distance. Replace the previously fixed light path with a hand-held welding gun. The hand-held fiber laser welding machine is mainly used for laser welding of long-distance and large workpieces. The heat-affected area is small during welding, which will not cause work deformation, blackening, and traces on the back. The welding depth is large, the welding is firm, and the melting is sufficient.


Specification


item
value
Laser power
1000W 1500W 2000W
wavelength
1070-1090NM
Cable length
10m
welding speed
400-500mm/s
Cooling
Industrial constant temperature water tank, with over temperature, flow, water level and other alarm functions
Welding thickness
0.3-5mm
welding gap
≤1.5mm
Voltage
220V/380V
Laser head weight
≤1.4kg
Laser source lifespan
100000 hours
Positioning
Red light pointer
Laser Source Brand
MAX
Laser Head Brand
Qilin
Spot size
0.2-5mm

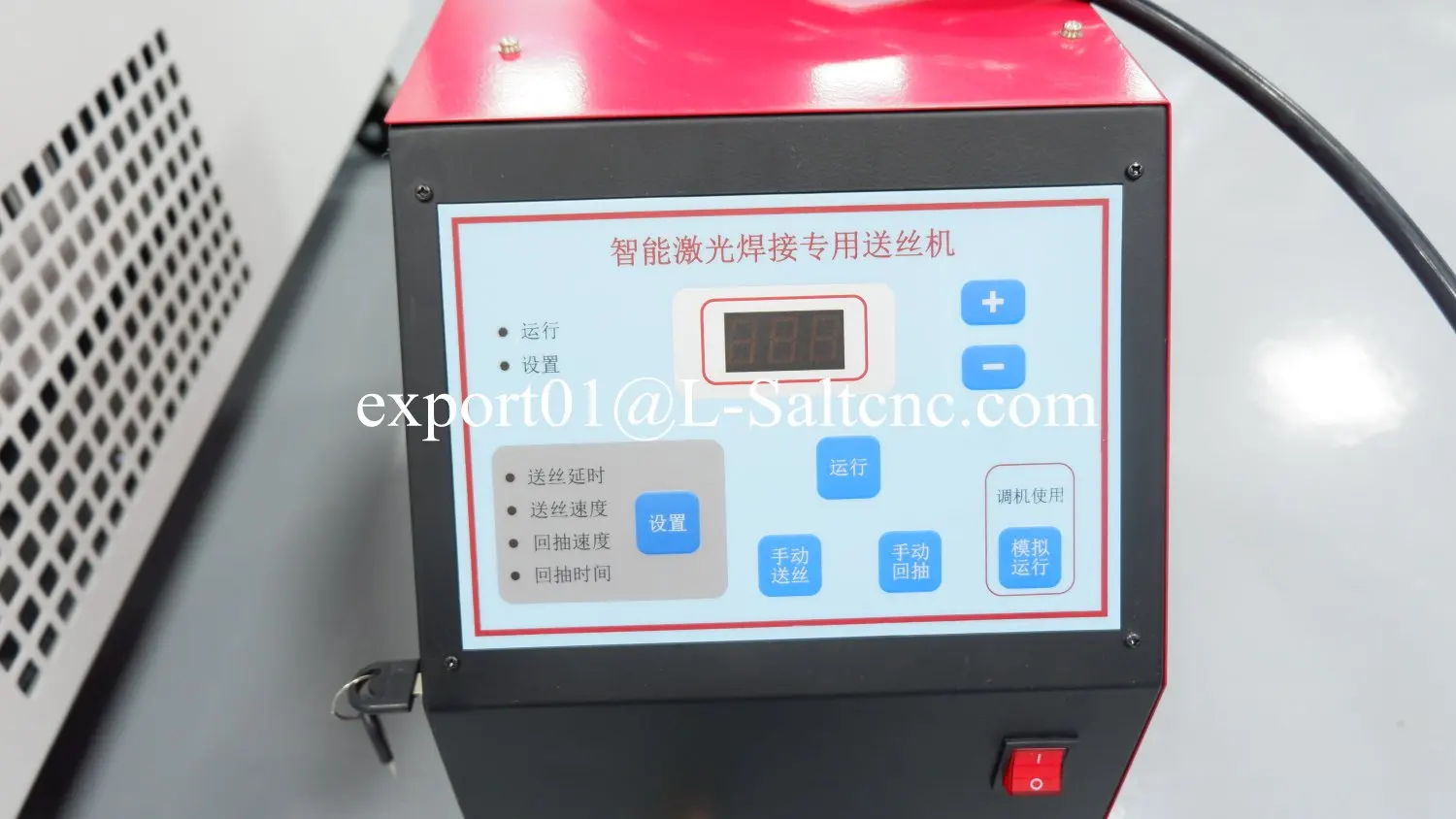

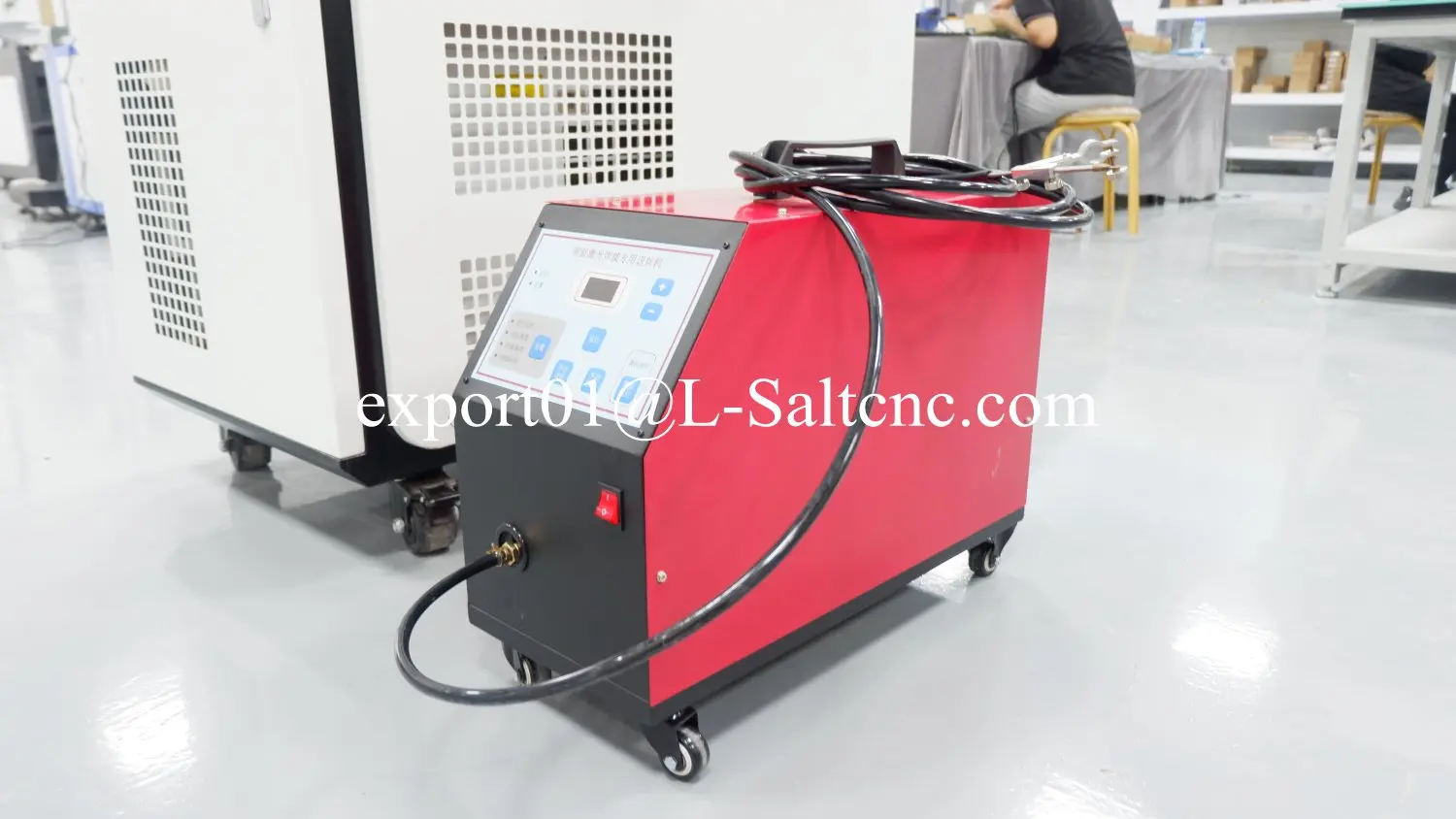

Auto wire feeding
optional (Wire feeding diameter specifications 0.8MM, 1.0MM, 1.2MM, 1.6MM)
Gas
Nitrogen, argon


►Fast welding speed, 2-10 times faster than traditional welding, one machine can save at least 2 welders a year.
►Easy to operate, you can work without an employment certificate, and you can weld beautiful products without
a master.

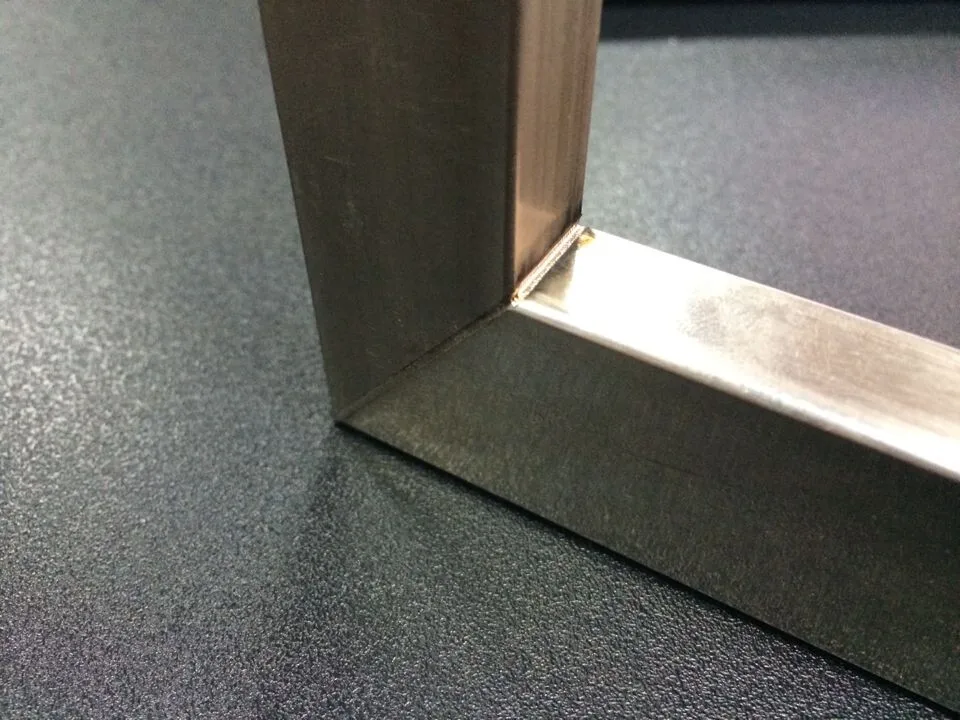

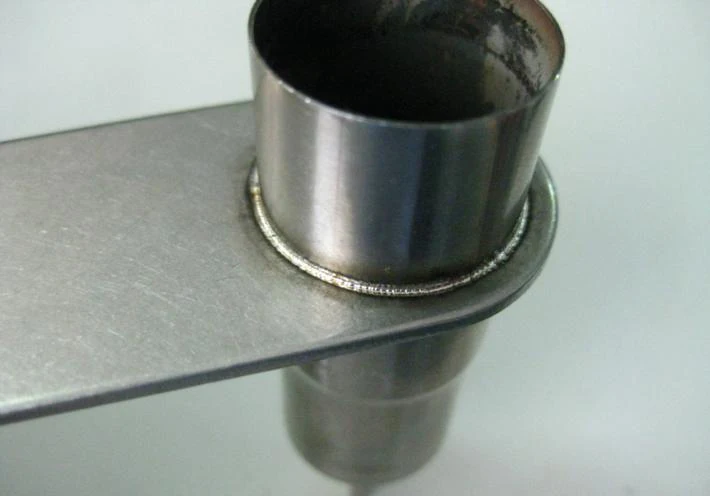

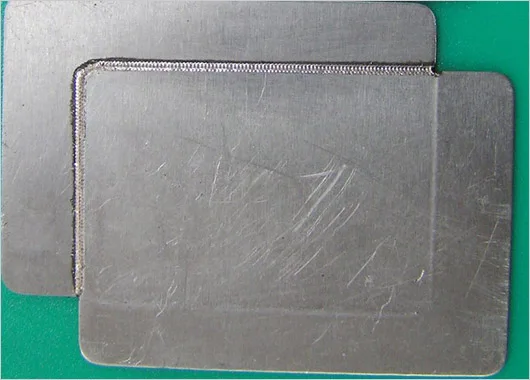

►The welding seam is smooth and beautiful, reducing the subsequent grinding process, saving time and cost.

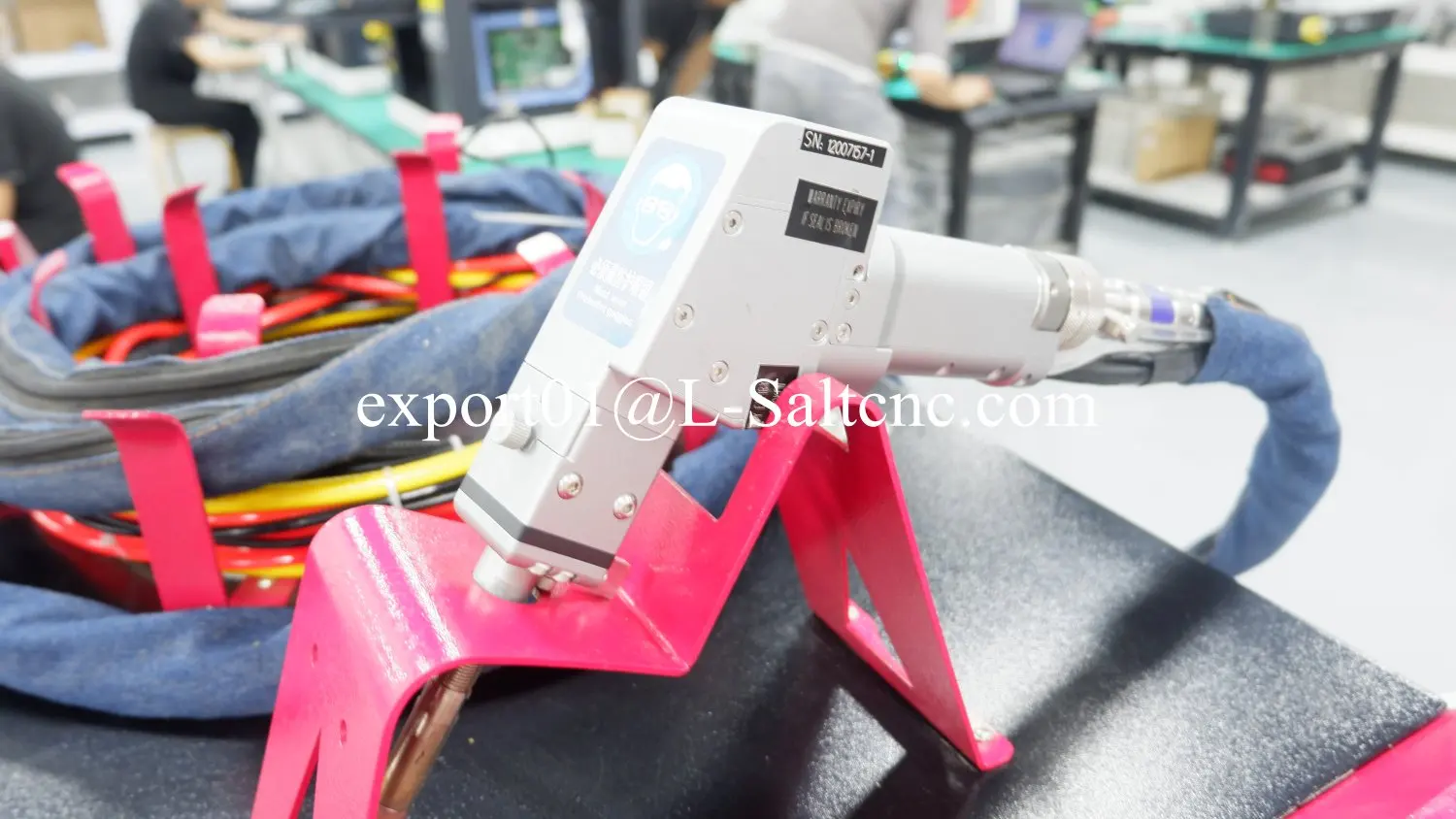

► Independent research and development of hand-held welding head makes up for the disadvantage of small
laser welding spot, expands the tolerance range of processed parts and weld width, and obtains better weld formation.

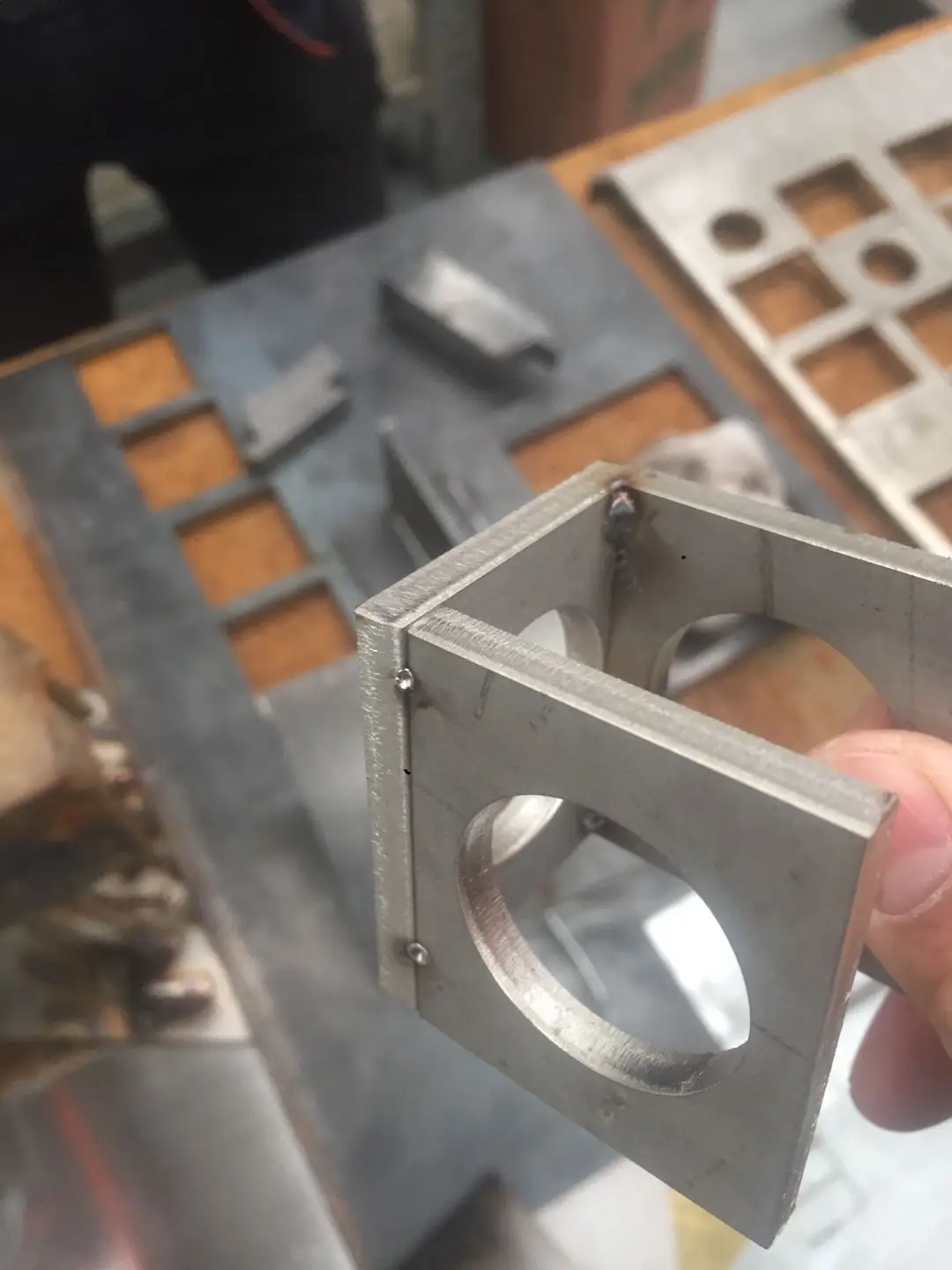

►The welding workpiece has no deformation, no welding scar, and the welding is firm.
►Few consumables for fiber laser welding and long service life.

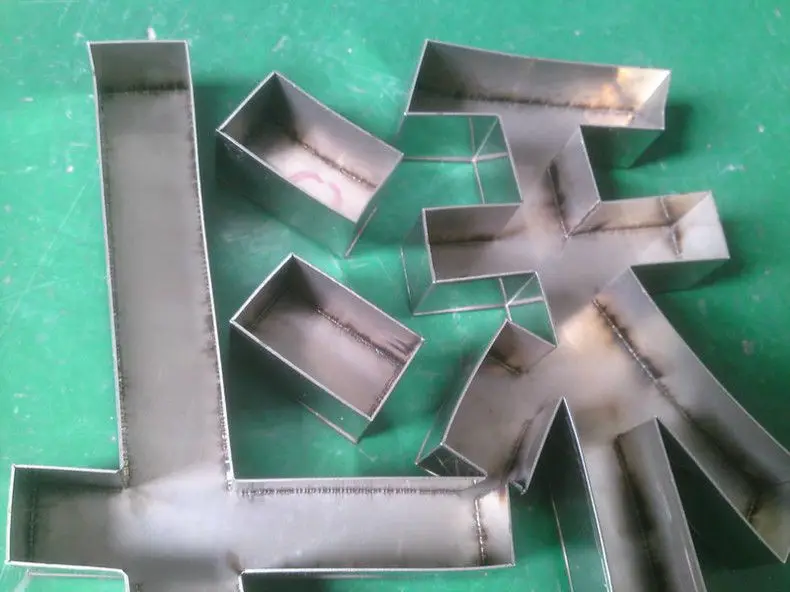

►Hand-held welding head is used for welding large metal advertisement characters to overcome the limitation
of workbench space
►Hand-held welding head is equipped with 10 meters of optical fiber, which is flexible and convenient, and can
realize outdoor welding

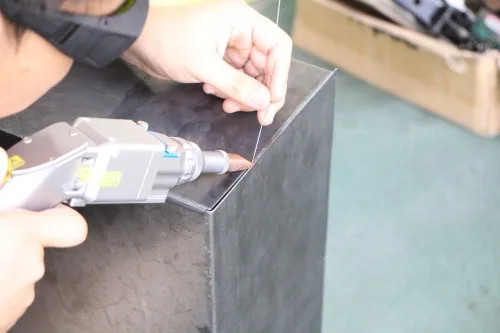

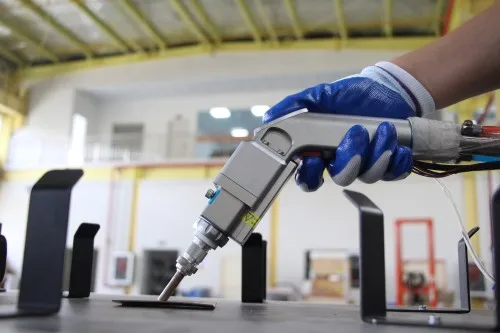

►The operation mode of the hand-held welding gun can realize welding of any part and any angle of the
workpiece
► Safer and more environmentally friendly.








APPLICATIONS


Widely used in lighting and mold industry, optoelectronic communication devices, medical treatment, electronics, copper parts, aluminum parts and small welding processing industries.
As well as complex and irregular welding processes in the kitchen and bathroom cabinets, staircase elevators, shelves, ovens, stainless steel door and window guardrails, power distribution boxes, stainless steel home furnishing and other industries.








Maximum welding depth on one side
Material
1000W
1500W
2000W
Stainless steel
4mm
5mm
5mm
Carbon steel
4mm
5mm
5mm
Aluminum
2mm
3mm
3mm




SERVICE


(1)Two year quality guaranty, the machine with main parts (excluding the consumables) shall be changed
free of charge when if any problem during the warranty period.
(2) Lifetime maintenance free of charge.
(3) Free training course at our plant.
(4) 18 hours on line service each day, free technical support.
(5) Machine has been adjusted before delivery. We will take machine photos and make machine working image
for you, after gettingyour agreement, then we will book a ship.
(6) Providing technical services to the door (We have professional engineers to offer machine installation commissioning andmaintenance).
(7) If you have any problem during your use.Our technicianwould help you to judge where the problem is and
help you to solve it. We can provide team viewer and skype with cam till all of your problems solved.




FAQ


How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

How can I get the sample to check you quality ?
If you want to welding sample to check the quality, we can help you do this. Just tell us your needs, when finished the testing,
we can send testing video to you, if you need, we also can send welding sample to you.

Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.
Tell us your needs, and we will customize your own solutions
