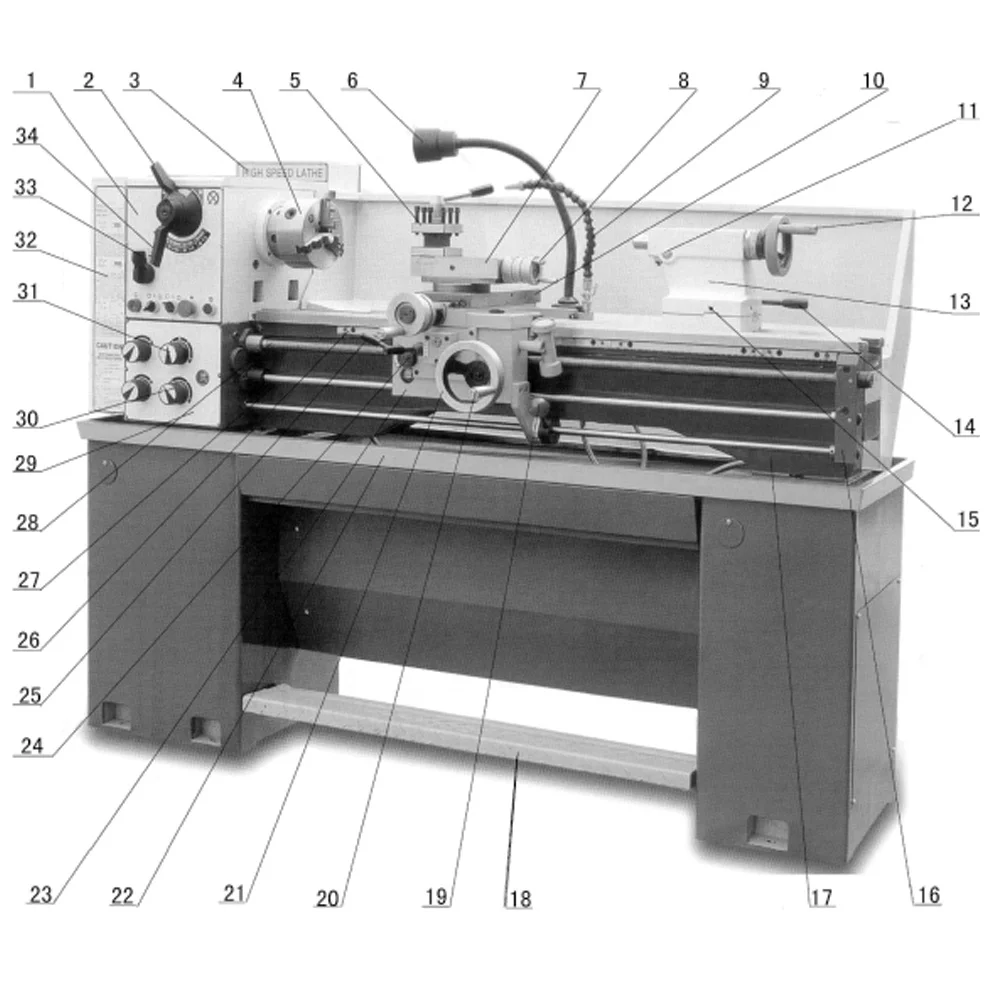

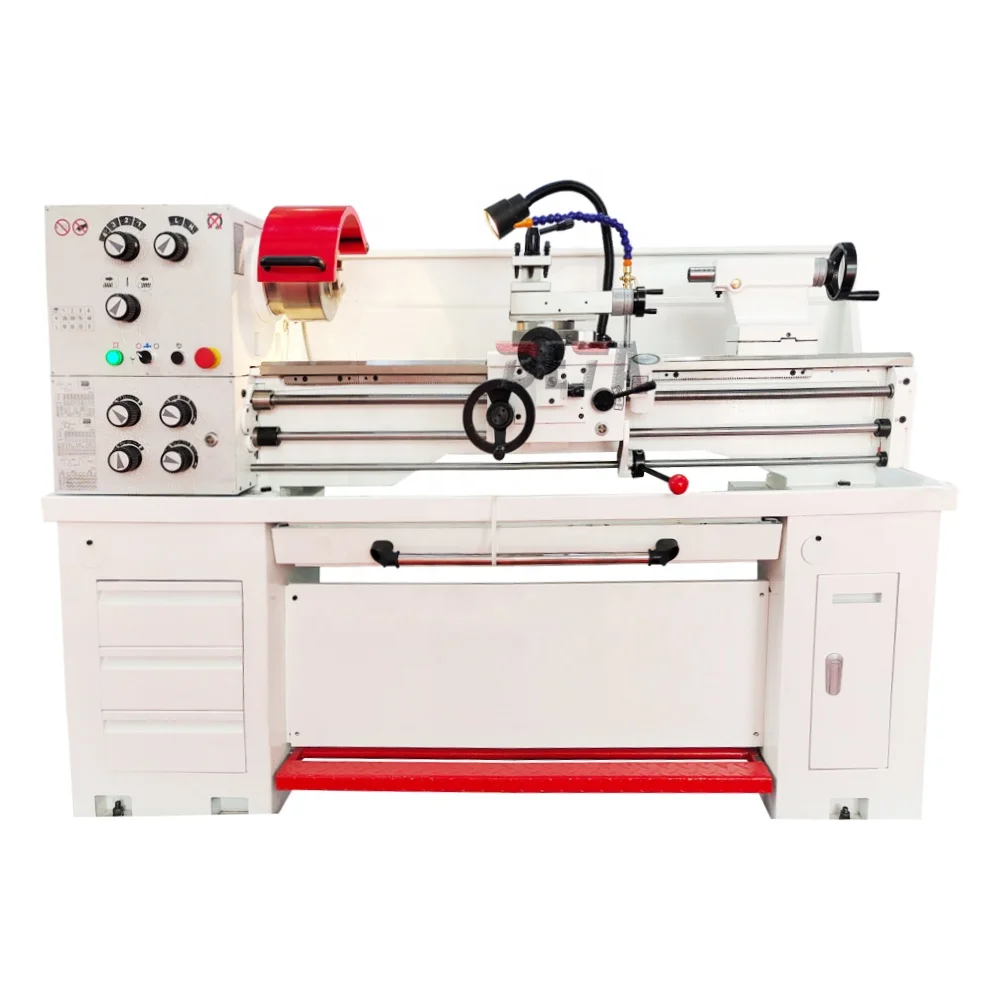

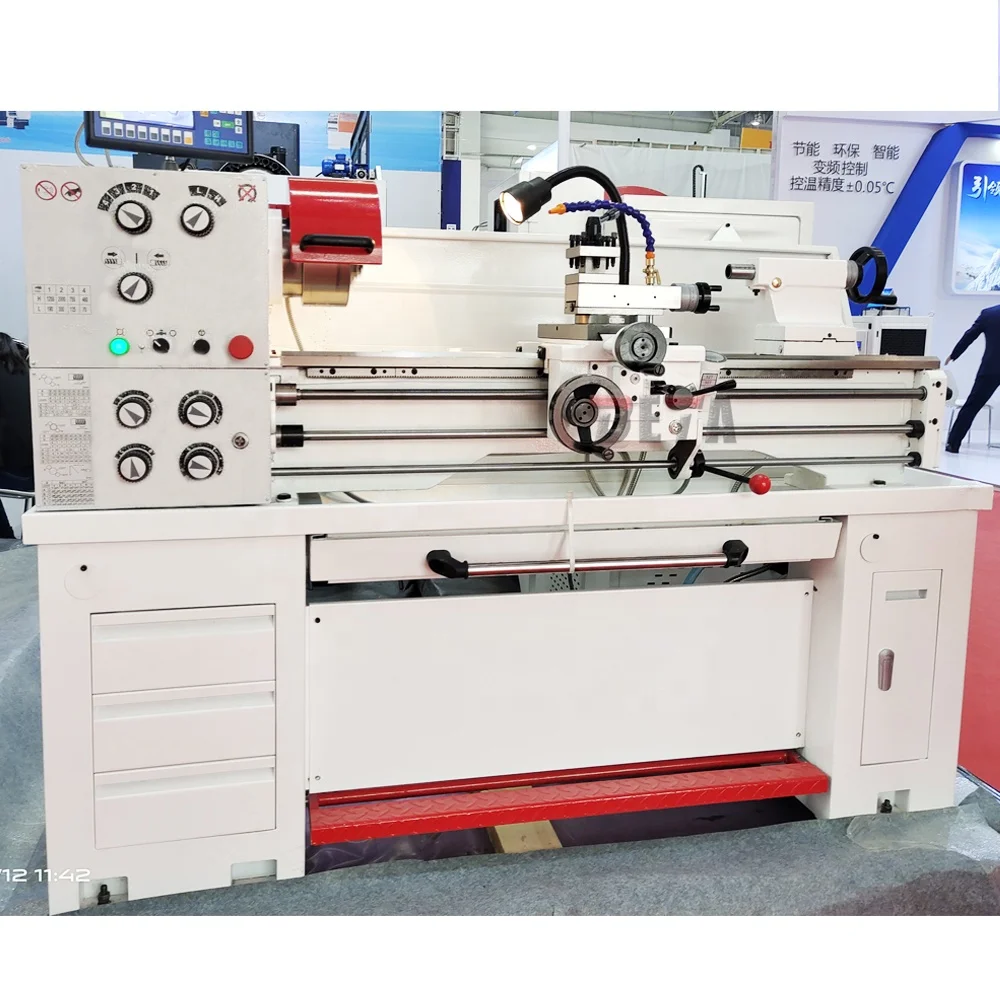

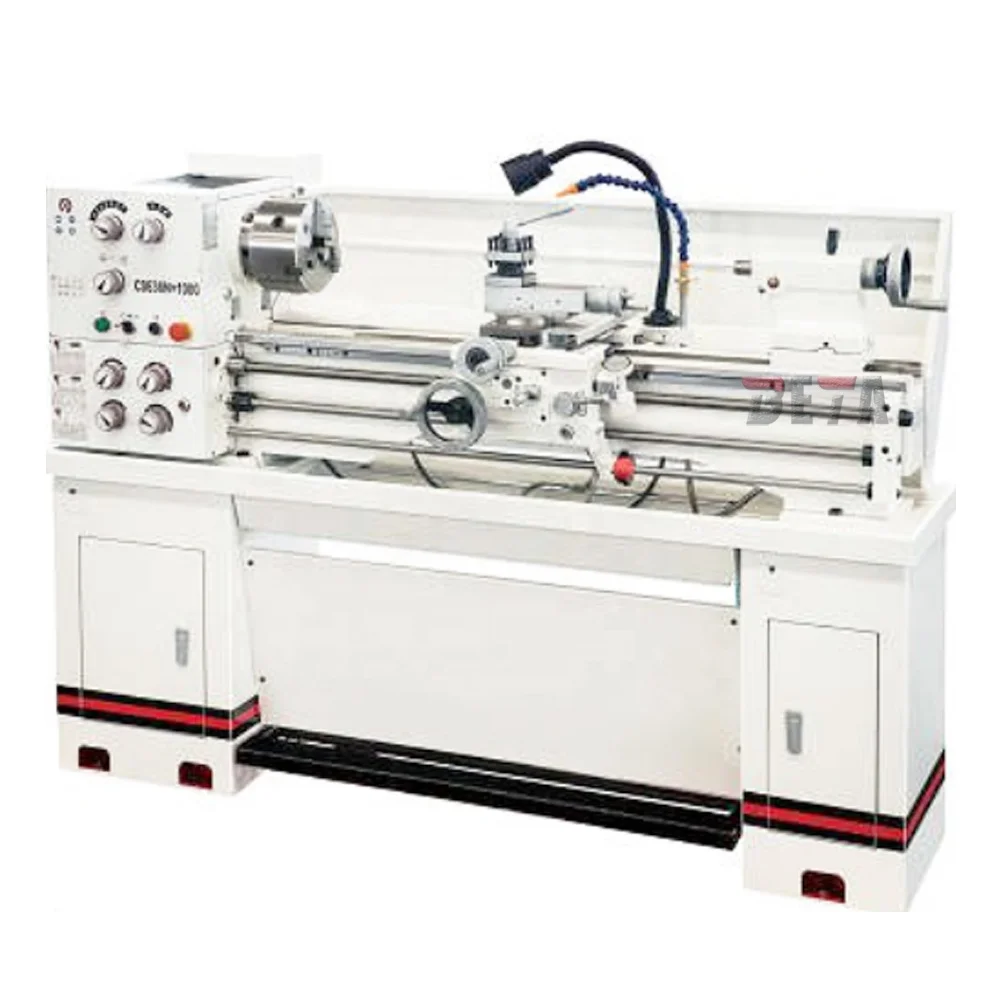

High quality manufacturing machine Easy operating gear lathe machine
- Category: >>>
- Supplier: Tengzhou Beta Co. Ltd.
Share on (1600464762089):
Product Overview
Description
Products Description
High quality manufacturing machine Easy operating gear lathe machine
Product Parameters
Model | C6236N | ||
Max. swing over bed | Φ360mm | ||
Max. swing over cross slide | Φ233mm | ||
Max. swing over gap | Φ502mm | ||
Center height | 179mm | ||
Distance between centers | 1000mm | ||
Width of bed | 187mm | ||
Max.section of tool | 16x16mm | ||
Max.travel of cross slide | 160mm | ||
Max.travel of compound rese | 95mm | ||
Spindle bore | Φ52mm | ||
Spindle nose | D1-5 | ||
Taper of spindle speed | MT6 | ||
Range of spindle speed | 8 steps 70-2000r/min | ||
Leadscrew diameter | 22mm | ||
Leadscrew thread | 4-56 T.P.I | ||
Range of metric longitudinal feeds range | 0.052-1.392mm/rev (32 kinds) | ||
Range of metric cross feeds | 0.014-0.38mm/rev (32 kinds) | ||
Range of metric threads | 0.4-7mm (26 kinds) | ||
Range of imperial threads | 4-56 T.P.I.（34 kinds） | ||
Dia. of tailstock sleeve | 32mm | ||
Travel of tailstock sleeve | 100mm | ||
Morse taper of tailstock sleeve | MT3 | ||
Power of main motor | 1.5kw | ||
Overall diamension(L*W*H) | 1930x760x1600mm | ||
N.W/G.W | 510/600kg | ||
Details Images
Standard accessories:
52mm spindle bore
3-jaw self centering chuck
4-jaw independent chuck
face plate
4-position electric toolpost
manual tailstock
change gears
steady rest & follow rest
monoblock cast iron base
work light
3-jaw self centering chuck
4-jaw independent chuck
face plate
4-position electric toolpost
manual tailstock
change gears
steady rest & follow rest
monoblock cast iron base
work light
coolant system
foot brake system
reduction sleeve, dead center
foot brake system
reduction sleeve, dead center
thread dial indicator
Optional accessories:
chuck cover
leadscrew cover
toolpost cover
digital readout 2 axis or 3 axis
quick change toolpost
taper turning attachment
live center
drill chuck
leadscrew cover
toolpost cover
digital readout 2 axis or 3 axis
quick change toolpost
taper turning attachment
live center
drill chuck
