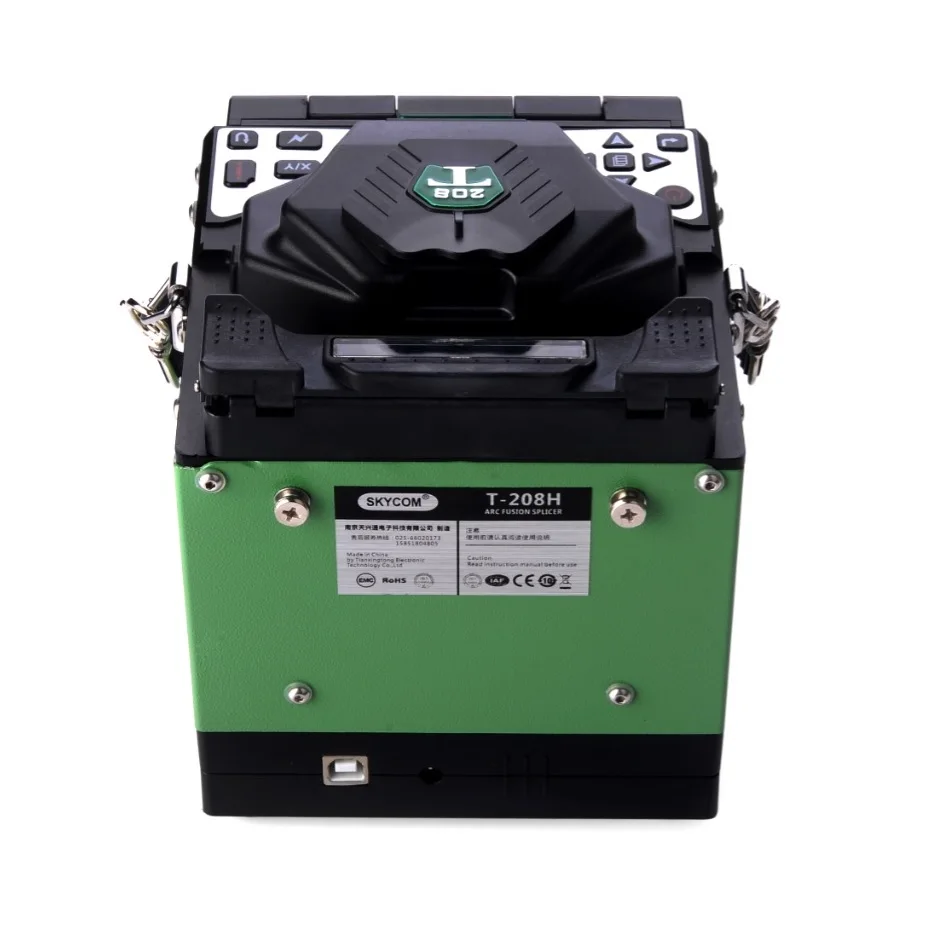

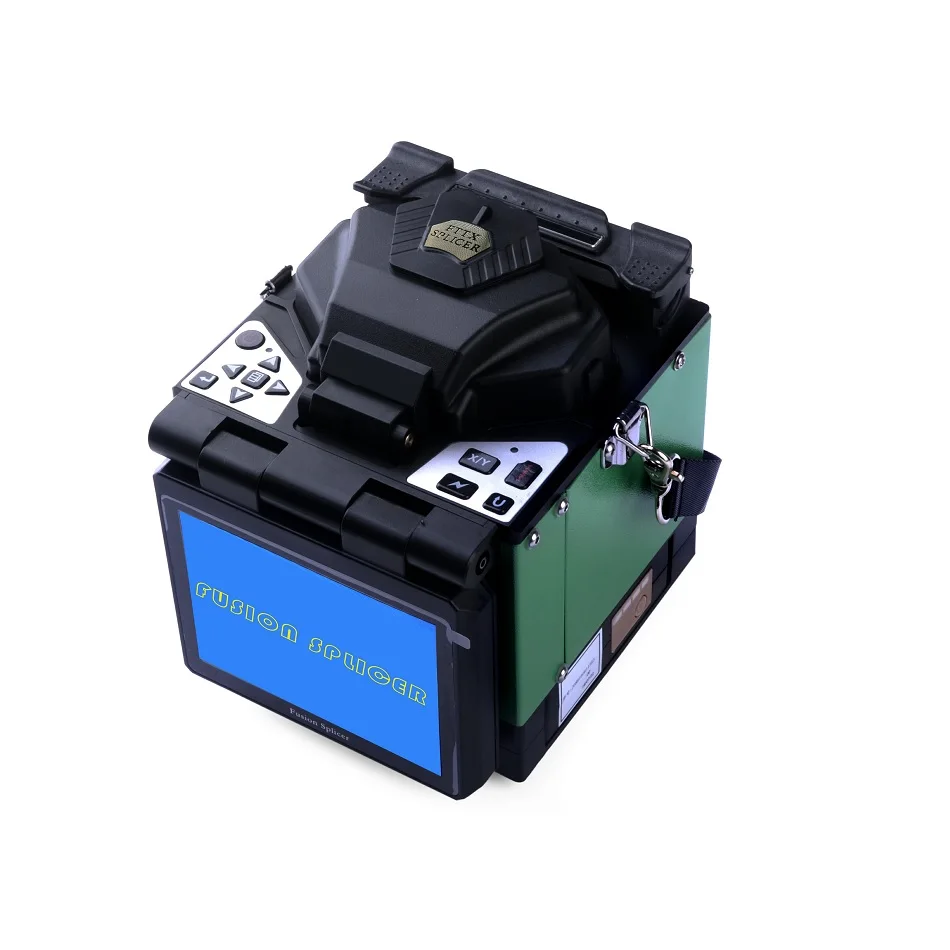

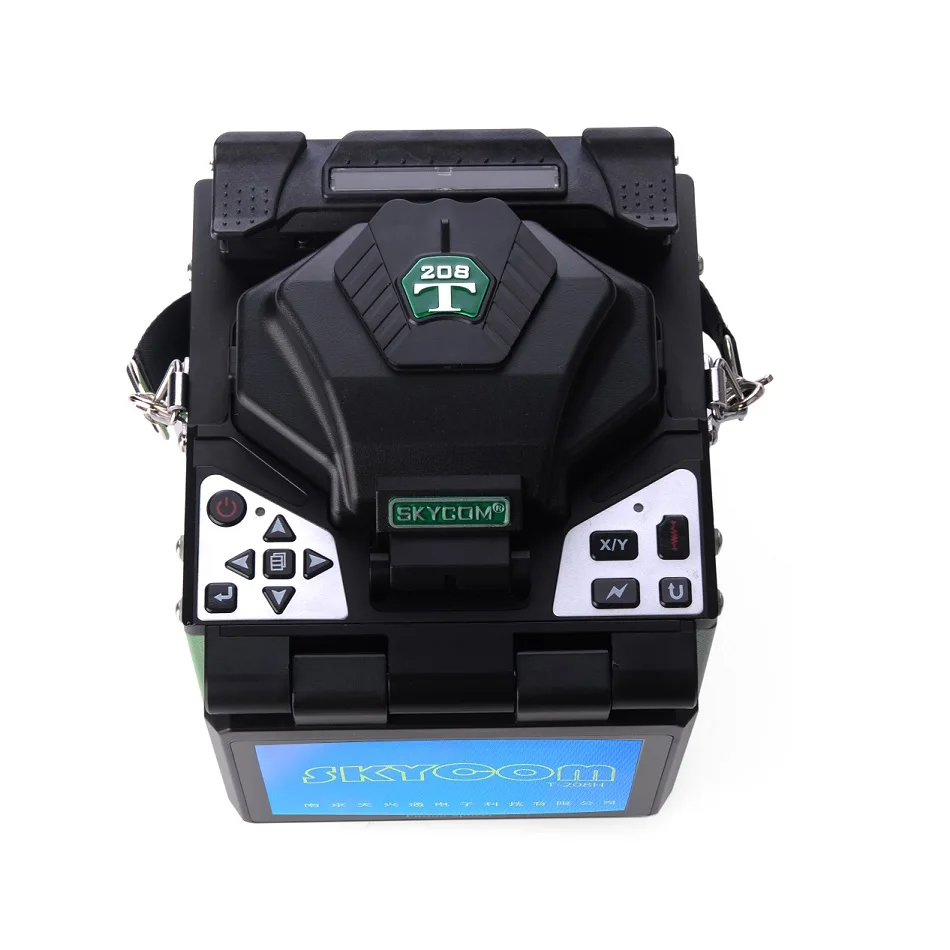

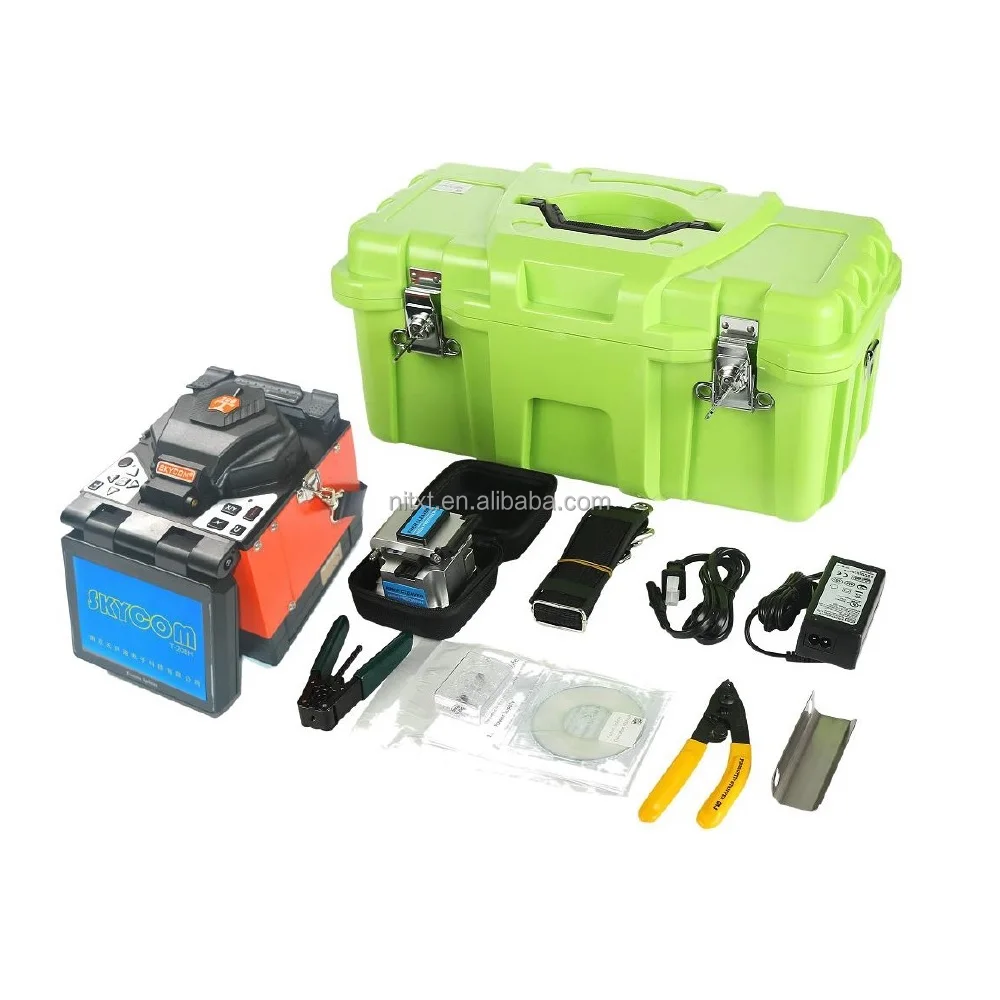

SKYCOM 208H mesdan splicer

Product Overview

Description

SKYCOM Hi-Precision Digital Fusion Splicer T-208H Specification

Applicable Fibers	SM(ITU-T G.652), MM(ITU-T G.651), NZ-DS(ITU-T G.653), NZDS(ITU-T G.655), EDF, Pigtail, Cable (rubber-insulated wire), others(including G.657 & G.651) SC/LC/FC connector (optional function)
Average Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss	≥60dB
Tension Test	2.0N(200gf)(Standard)
Typical splicing time	9 seconds
Typical heating time	25 seconds
Splicing Program	50 groups
Protection Sleeve Length	20mm, 40mm, 60mm
Operating Language	Chinese, English, French, Portuguese, Spanish, Italian, Russian
Operating Conditions	-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply	AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 11.1V, 5.2AH
Monitor	5 inches high resolution colorful LCD display
Fiber Image Magnification	X or Y axis Separately views 400 times magnification, or Simultaneously 220 times
Storage of Splice Result	6,000 groups of latest splice results
Splicing Model	Auto & Manual & Full Auto
Optical Fiber Fixture	3-in-1 cutting fixture; Multipurpose 1+N fixture (T-207HF, for SC/LC/FC connector)
Dimensions	130(W)*135(D)*130(H)mm;                 Package size: 53*32*30cm
Weight	1.75kg(without battery pack);               Package G.W.: 6.2kg
Anti-shock	Yes
Times of charging cycles	200















  Payment Terms



  Delivery & Shipping

(1) Leading Date: Within 3 to 5 working days for small orders after deposit received, kindly negotiation for bulk order.
(2)Shipment: by DHL, FedEx, TNT, EMS & UPS, directly delivery to your hands.





  Warranty & Service

(1)OEM/ODM service is available.

(2)Customized logo and trademark are warmly-welcomed.

(3)Good after-sale services offered.

(4)2 years warranty period, spare parts supply for free.
(5)100% QC inspection before shipment.

  Company information



SKYCOM Communications Ltd is a high-tech enterprise specialized in R&D, manufacture and sell optical fiber fusion splicer, OTDR, fiber cleaver, light source, power meter, visual fault locator, fiber identifier, variable attenuator, etc.

NANJING TIANXINGTONG has adopted ISO9001 modern management system and owns a workshop of 1200 square meter. Thanks to NANJING TIANXINGTONG experienced technologist, NANJING TIANXINGTONG self-developed fusion splicers have obtained CE, SGS certificates and 5 patents for their latest innovative technologies.
