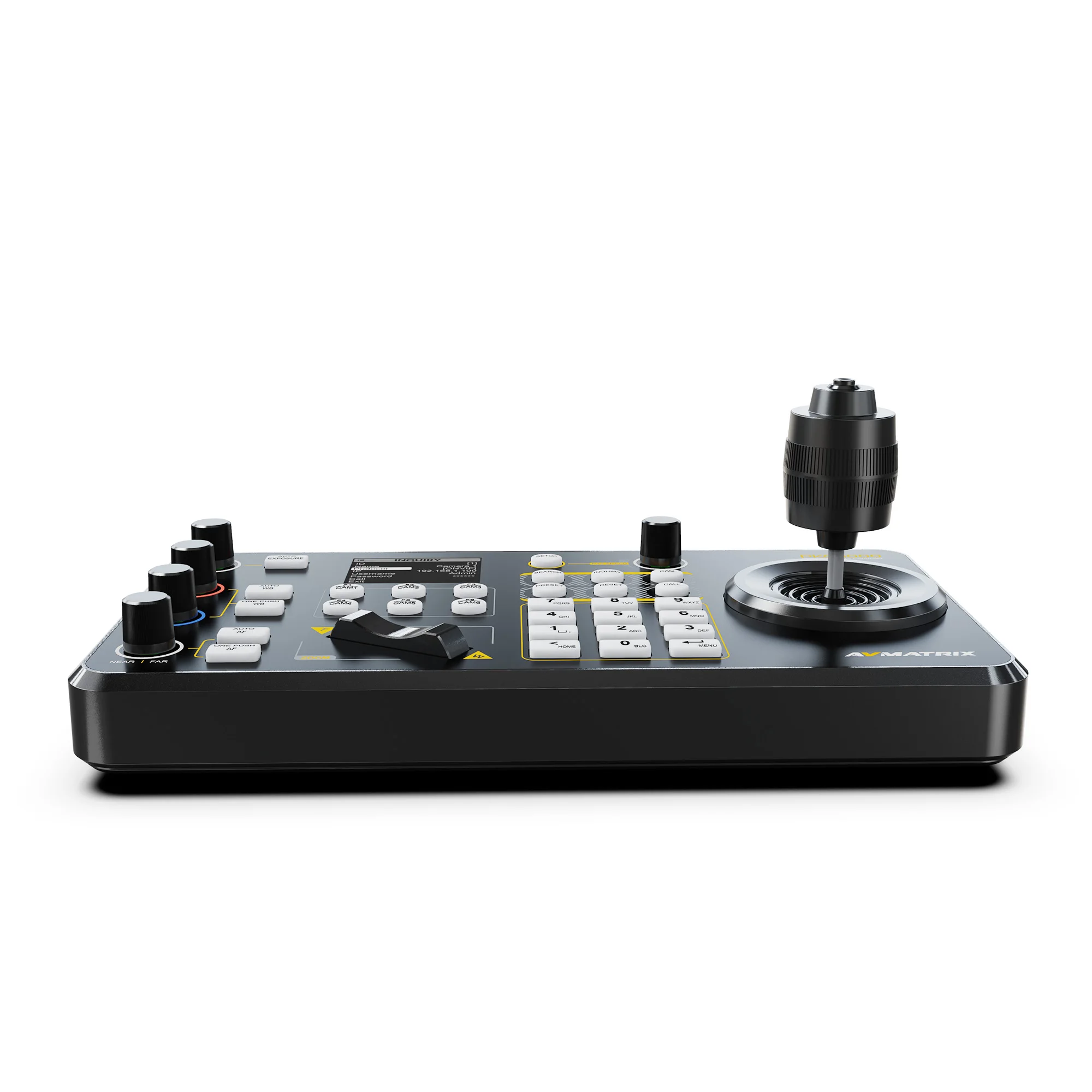

PKC3000 Professional IP & Serial PTZ Camera Joystick Controller
- Category: >>>
- Supplier: Zhangzhou Matrix Electronic Technology Co. Ltd.
Share on (1600464783586):
Product Overview
Description
Product Description
PKC3000

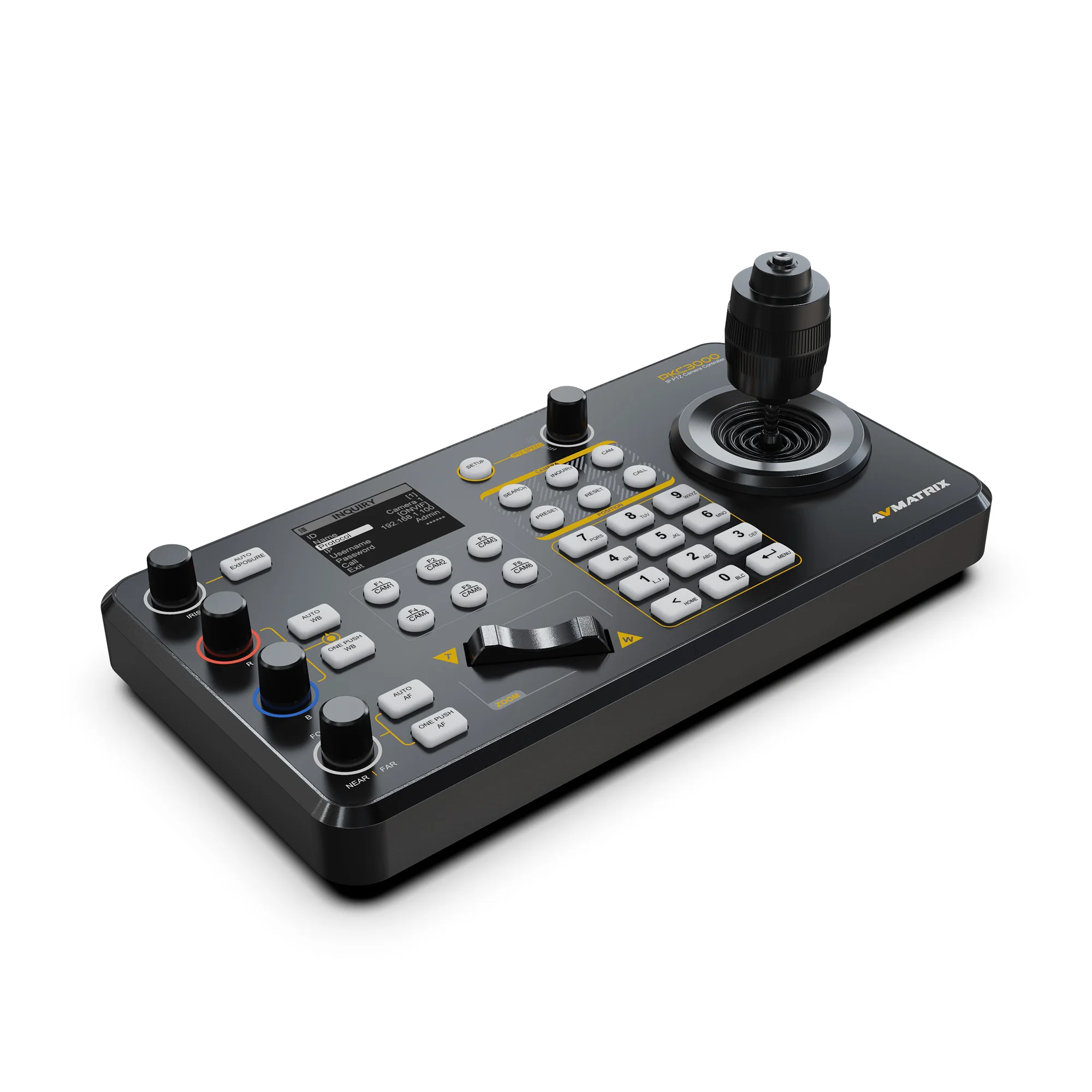

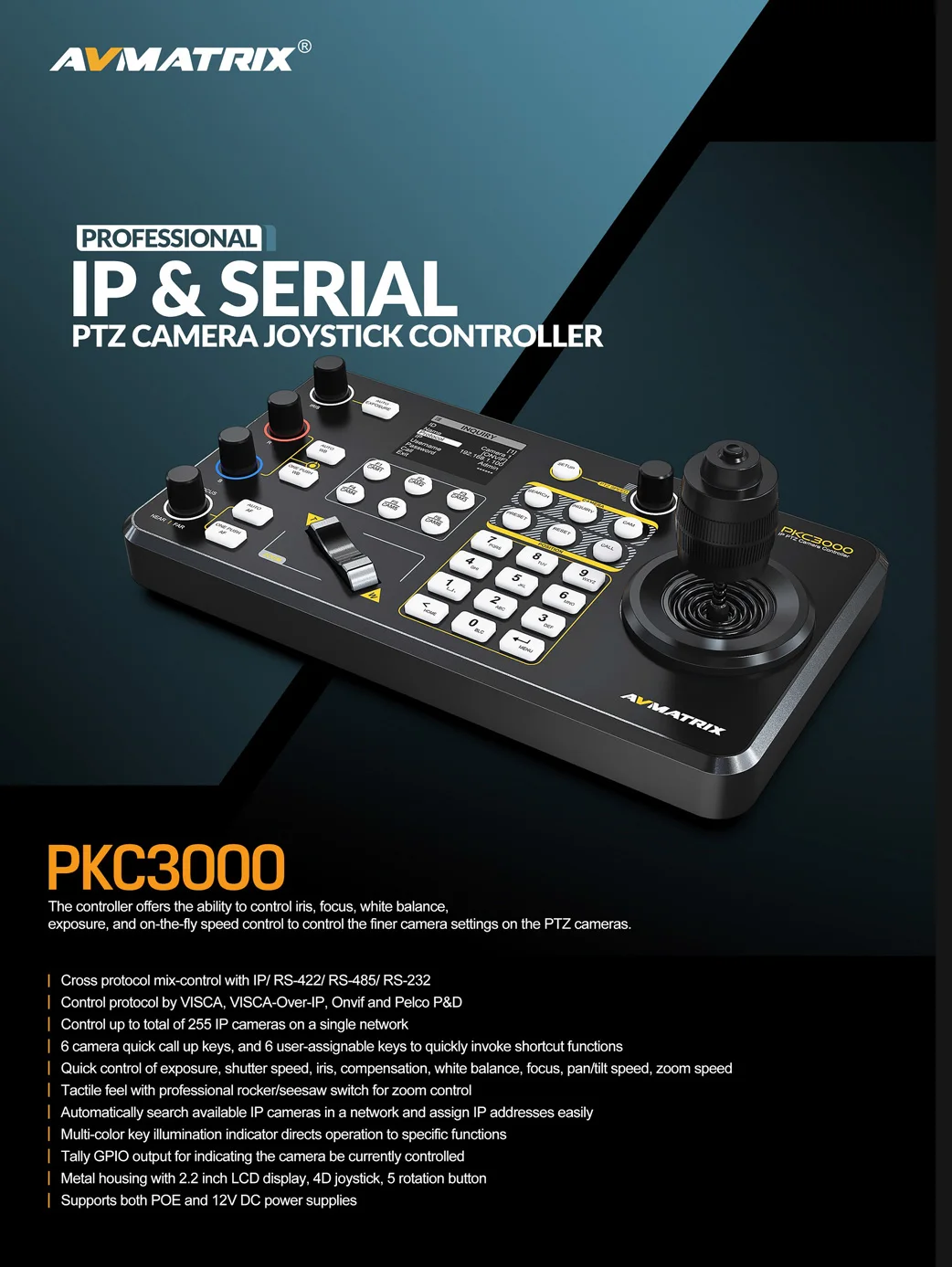

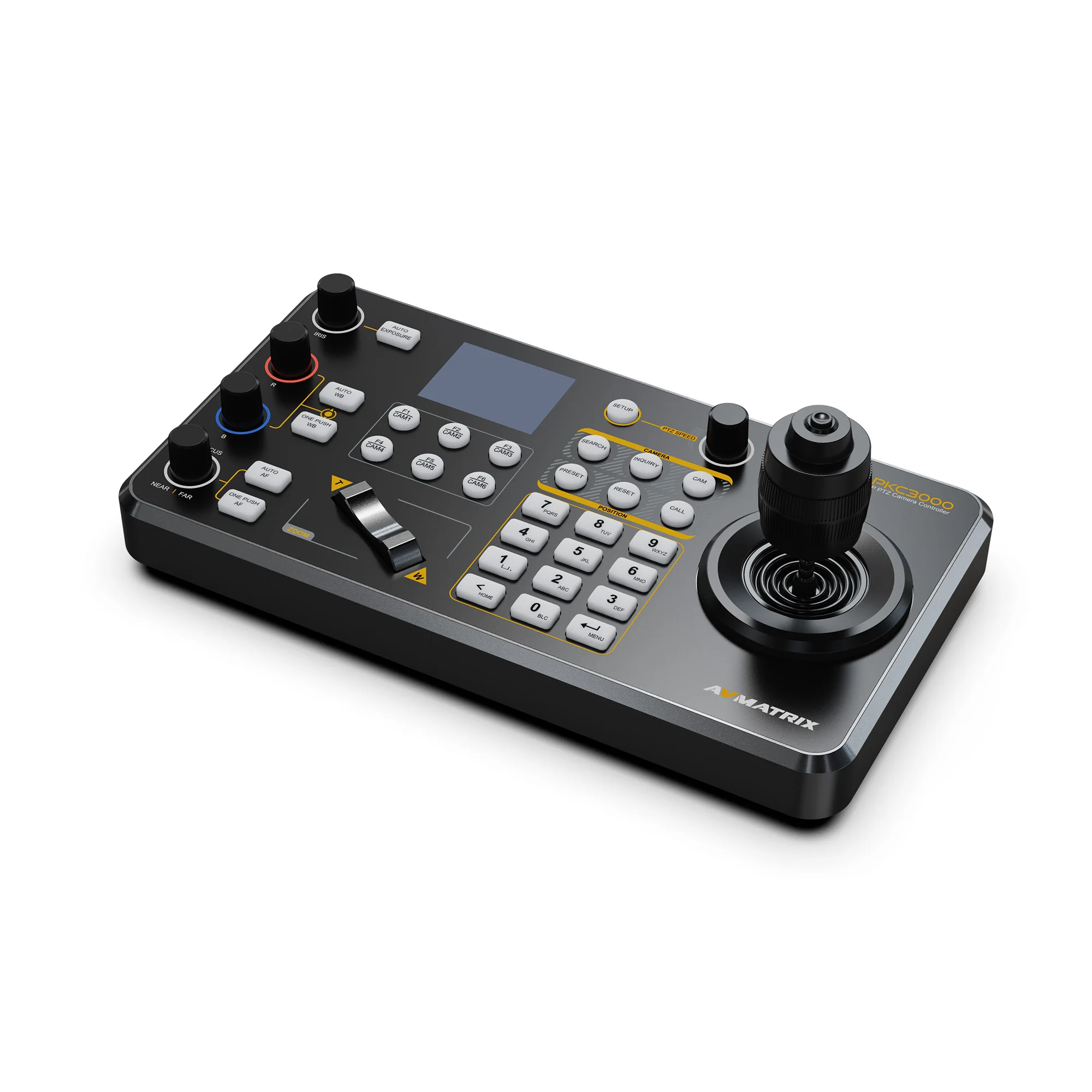

Professional IP & Serial PTZ Camera Joystick Controller

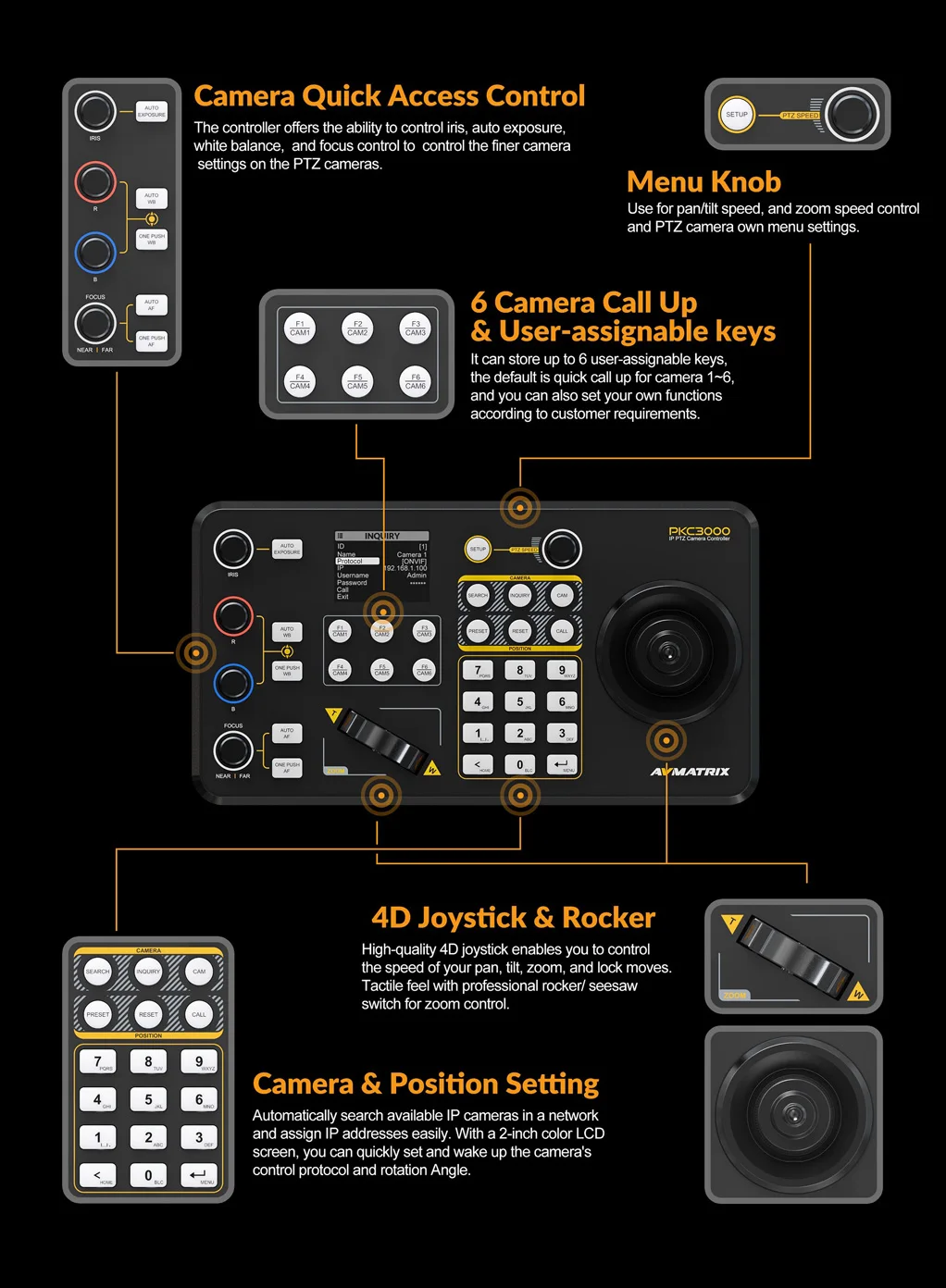

The controller offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras.

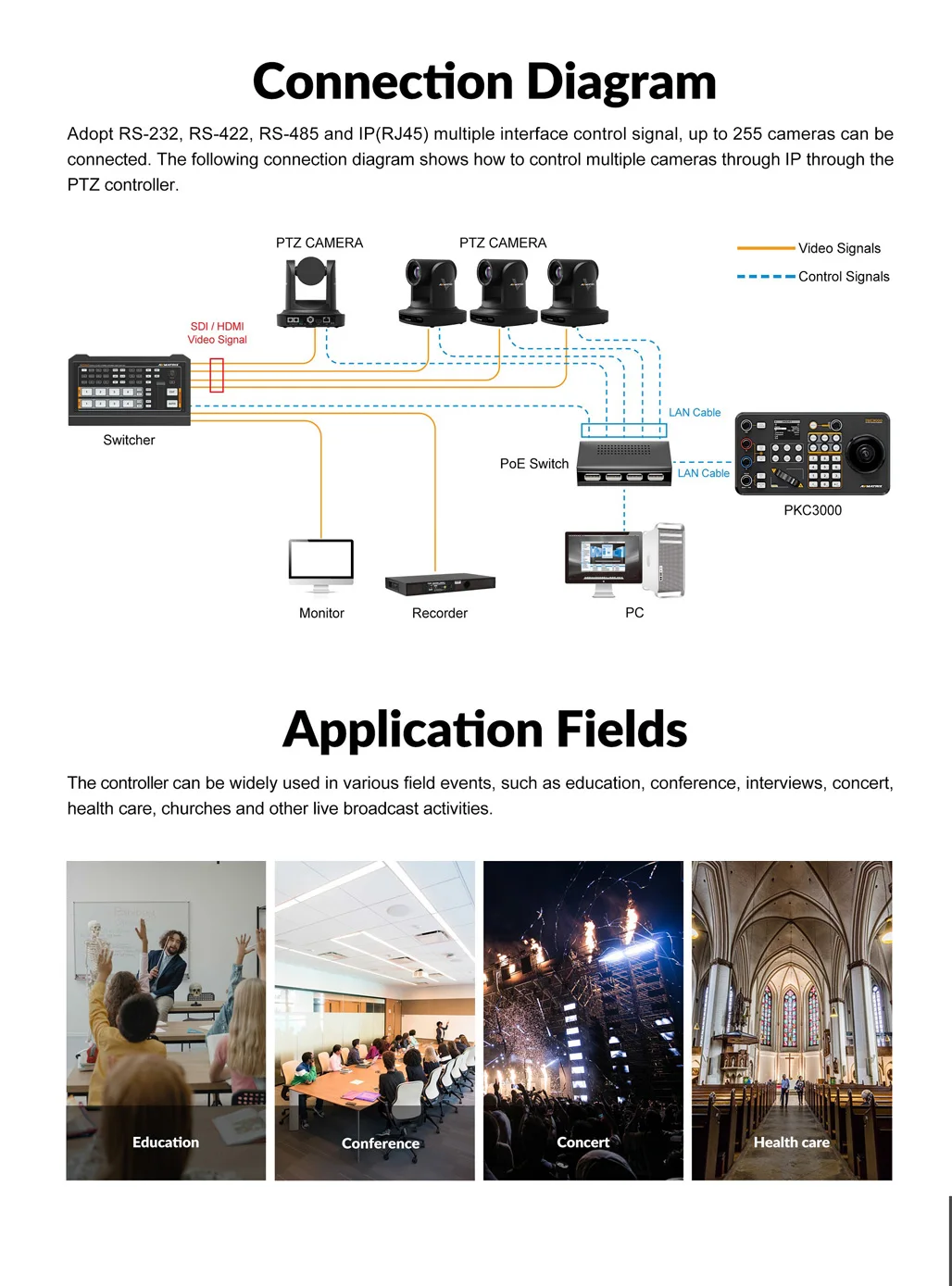

Connection Diagram
Adopt RS-232, RS-422, RS-485 and IP(RJ45) multiple interface control signal, up to 255 cameras can be connected. The following connection diagram shows how to control multiple cameras through IP through the PTZ controller.
.

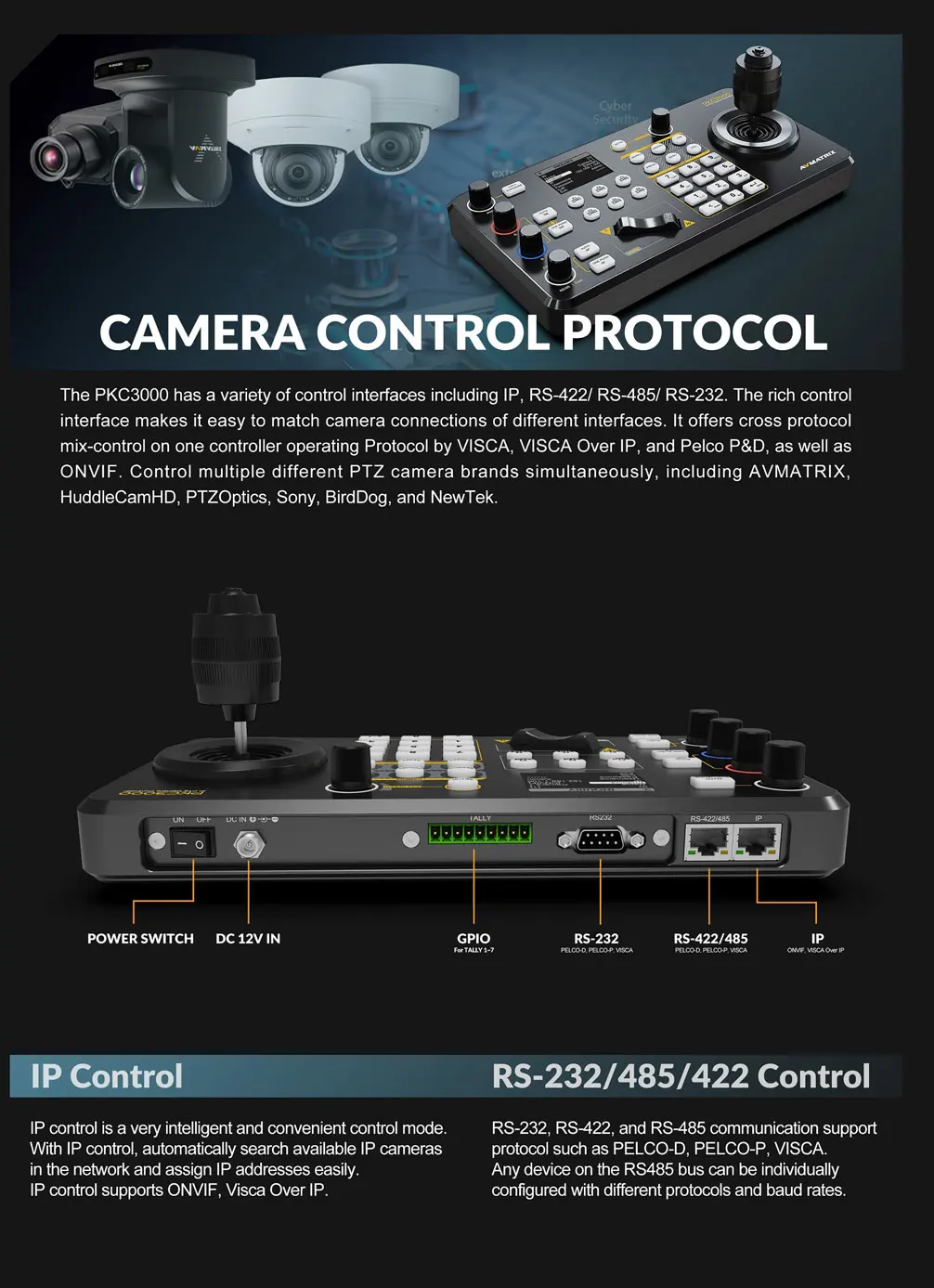

Camera control protocol
The PKC3000 has a variety of control interfaces including IP, RS-422/ RS-485/ RS-232. The rich control interface makes it easy to match camera connections of different interfaces. It offers cross protocol mix-control on one controller operating Protocol by VISCA, VISCA Over IP, and Pelco P&D, as well as ONVIF. Control multiple different PTZ camera brands simultaneously, including AVMATRIX, HuddleCamHD, PTZOptics, Sony, BirdDog, and NewTek.

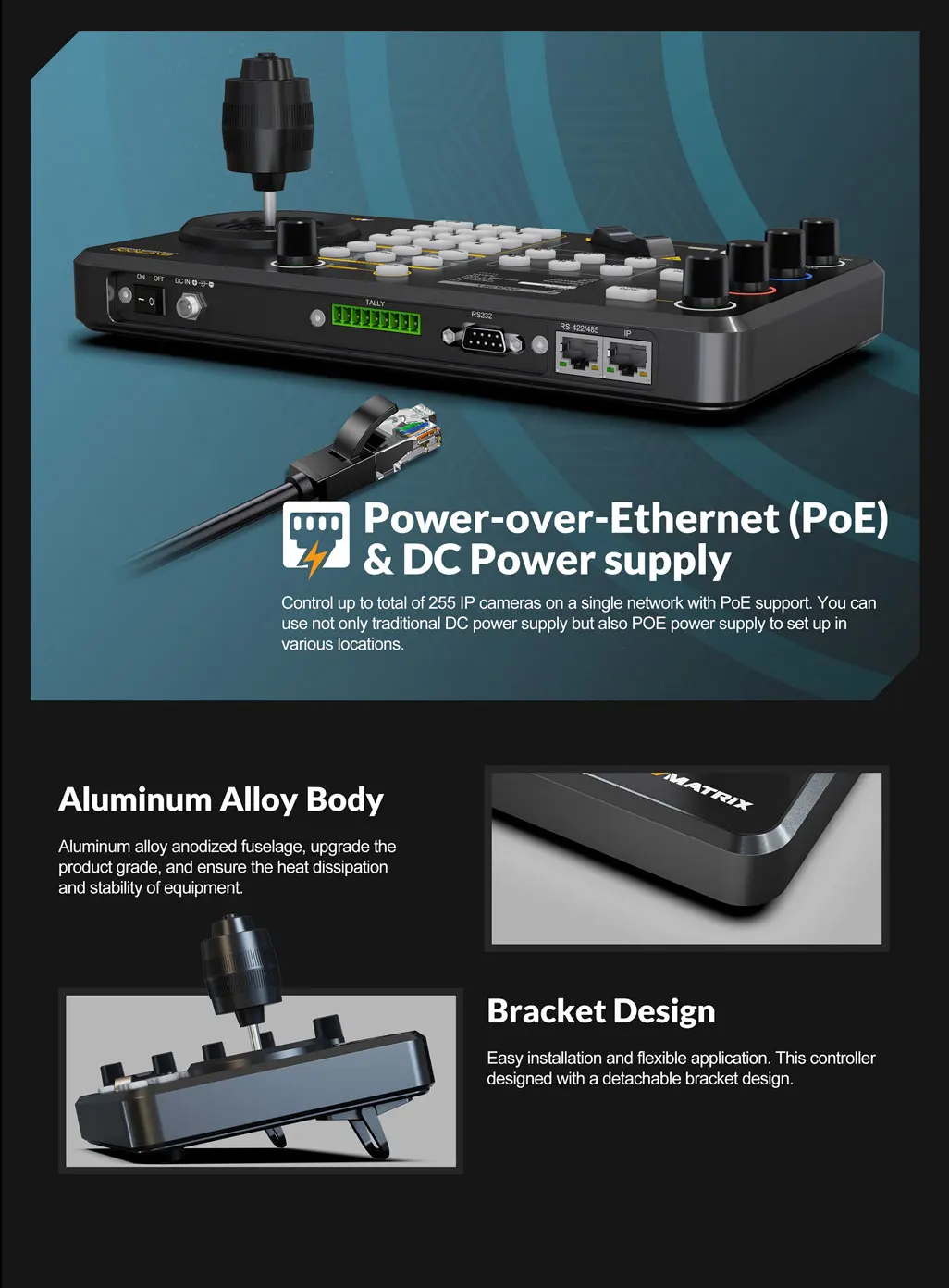

Power-over-Ethernet (PoE) & DC Power supply
Control up to total of 255 IP cameras on a single network with PoE support. You can use not only traditional DC power supply but also POE power supply to set up in various locations.
IP Control And RS-232/485/422 Control
IP Control
IP control is a very intelligent and convenient control mode.With IP control, automatically search available IP cameras in the network and assign IP addresses easily. IP control supports ONVIF, Visca Over IP.
RS-232/485/422 Control
RS-232, RS-422, and RS-485 communication support protocol such as PELCO-D, PELCO-P, VISCA. Any device on the RS485 bus can be individually configured with different protocols and baud rates.
IP control is a very intelligent and convenient control mode.With IP control, automatically search available IP cameras in the network and assign IP addresses easily. IP control supports ONVIF, Visca Over IP.
RS-232/485/422 Control
RS-232, RS-422, and RS-485 communication support protocol such as PELCO-D, PELCO-P, VISCA. Any device on the RS485 bus can be individually configured with different protocols and baud rates.
Application Fields
The controller can be widely used in various field events, such as education, conference, interviews, concert, health care, churches and other live broadcast activities.
