100V 277VAC to 12V60W Triac Phase cut Dimmable LED Driver 24V 36V 48V 0 10V PWM Resistance Dimming Power Supply
- Category: >>>
- Supplier: Shenzhenshi Zhenhuan Electronic Co. Ltd.
Share on (1600464787808):
Product Overview
Description
Products Description
100V-277VAC to 12V60W Triac Phase cut Dimmable LED Driver 24V 36V 48V 0-10V PWM Resistance Dimming Power Supply
The KSPOWER - LP series 5 in 1 dimmable 60W led driver is one constant voltage solution, single channel, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and higher PFC function. The class p dimming power supply use low profile metal aluminum case, dry and damp, makes the dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and IP67 waterproof environment protection rated for indoor or outdoor use, the 0/1-10V and triac dimmable drivers provide 5 years warranty and outstanding led dimming performance.
Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage | 100~277V AC 47~63Hz | ||||||
Power Factor | PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load | ||||||
NO. | KSLP-60W | ||||||
Output Voltage | 12V/ 24V/ 36V/ 48V | ||||||
Rated Current | 5A/2.5A/1.67A/1.25A | ||||||
Rated Power | 60W | ||||||
Ripple & Noise (max.) | 200mVp-p/ 250mVp-p | ||||||

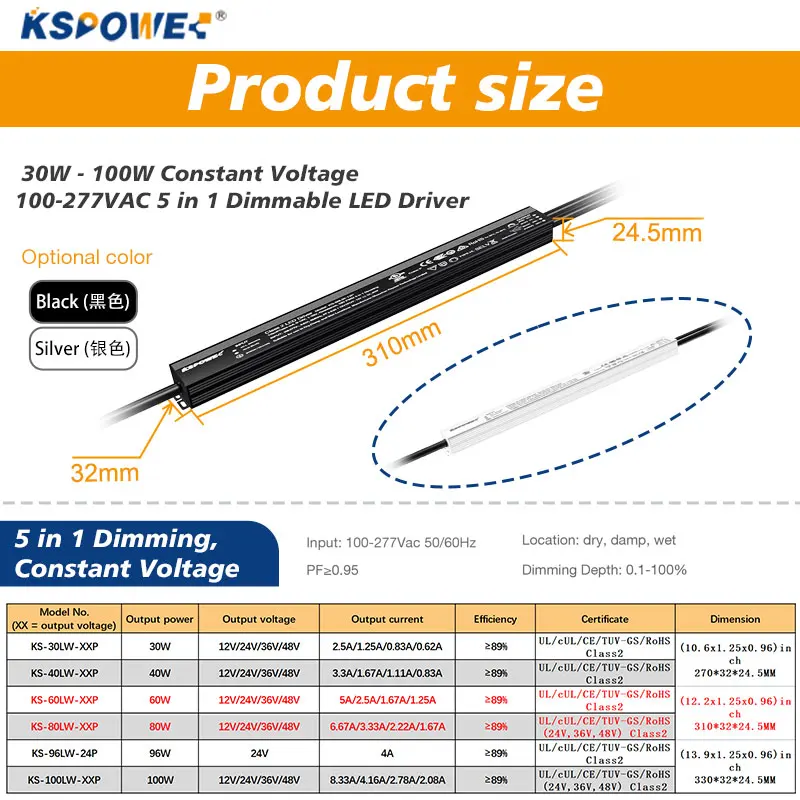

Dimension(L*W*H) | 310*32*24.5MM/ 12.2*1.25*0.96 inch | ||||||
Show Details
Applications
The ultra slim class 2 led driver use low profile metal aluminum case with junction box makes the led dimming driver power solutions for LED strips, LED sign and landscape lighting.
Company Profile
Working Room
Specification:
Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality
Exhibition
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package | Piece/Carton(pcs) | Piece Weight(KG) |
OEM package | 50 | 0.26 |
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) |
155*85*35 | 455*370*175 | 14 |
