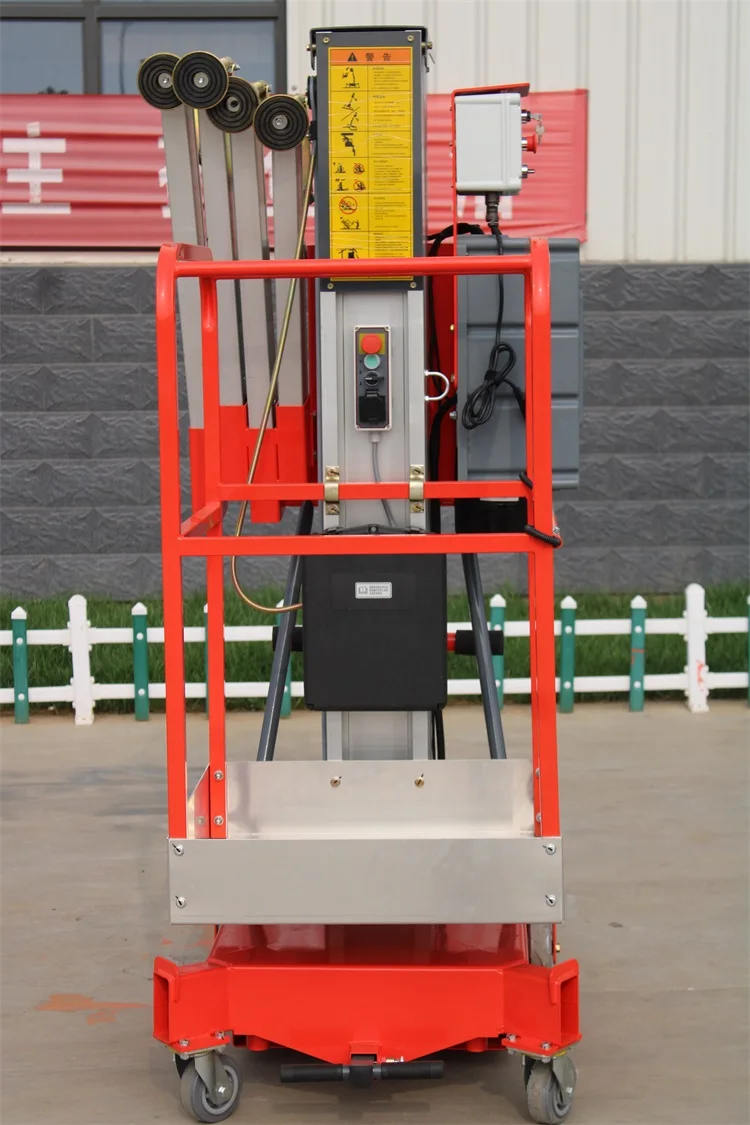

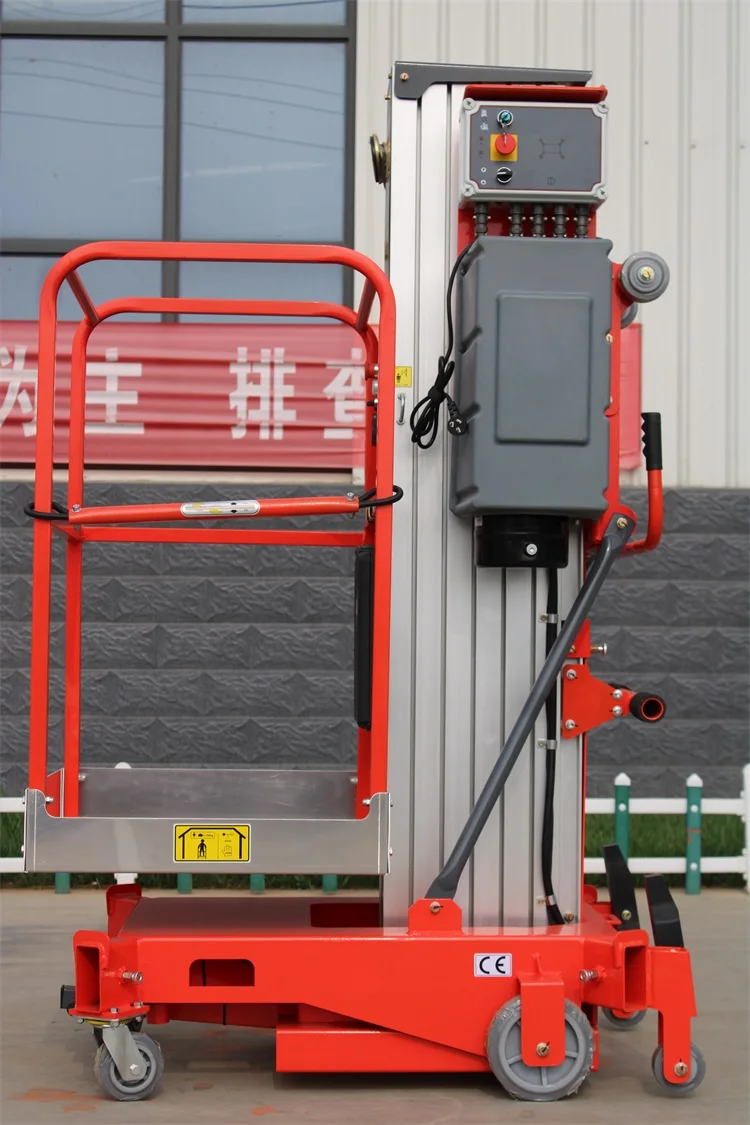

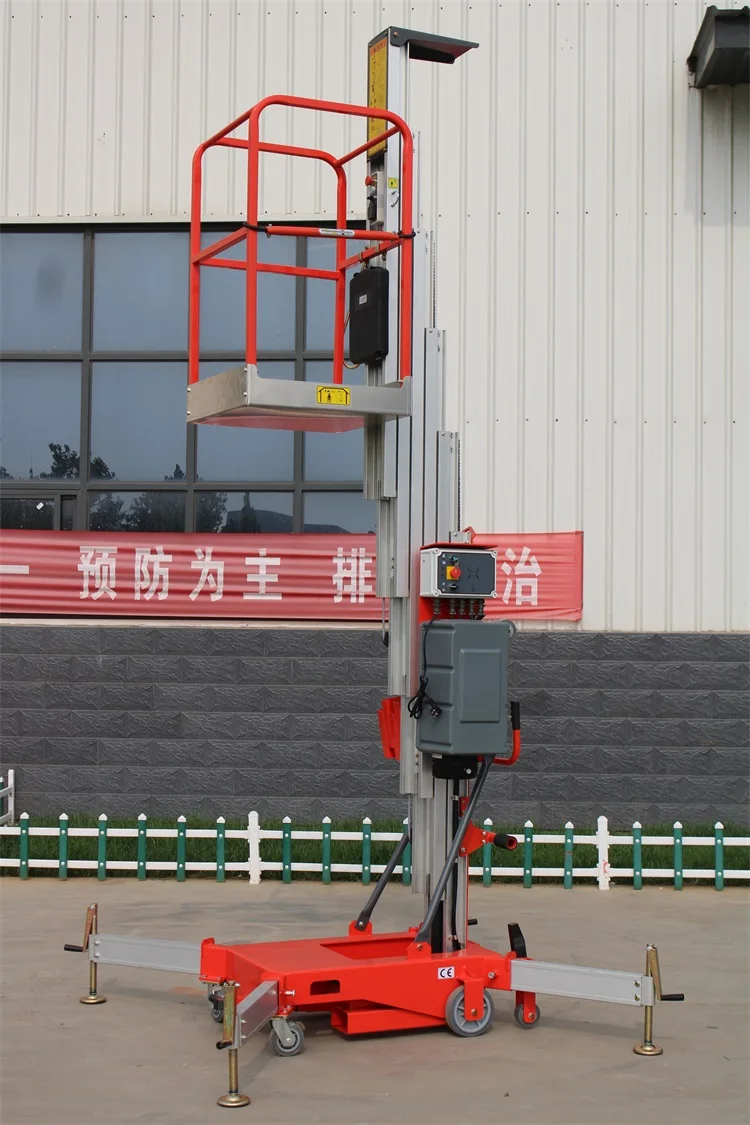

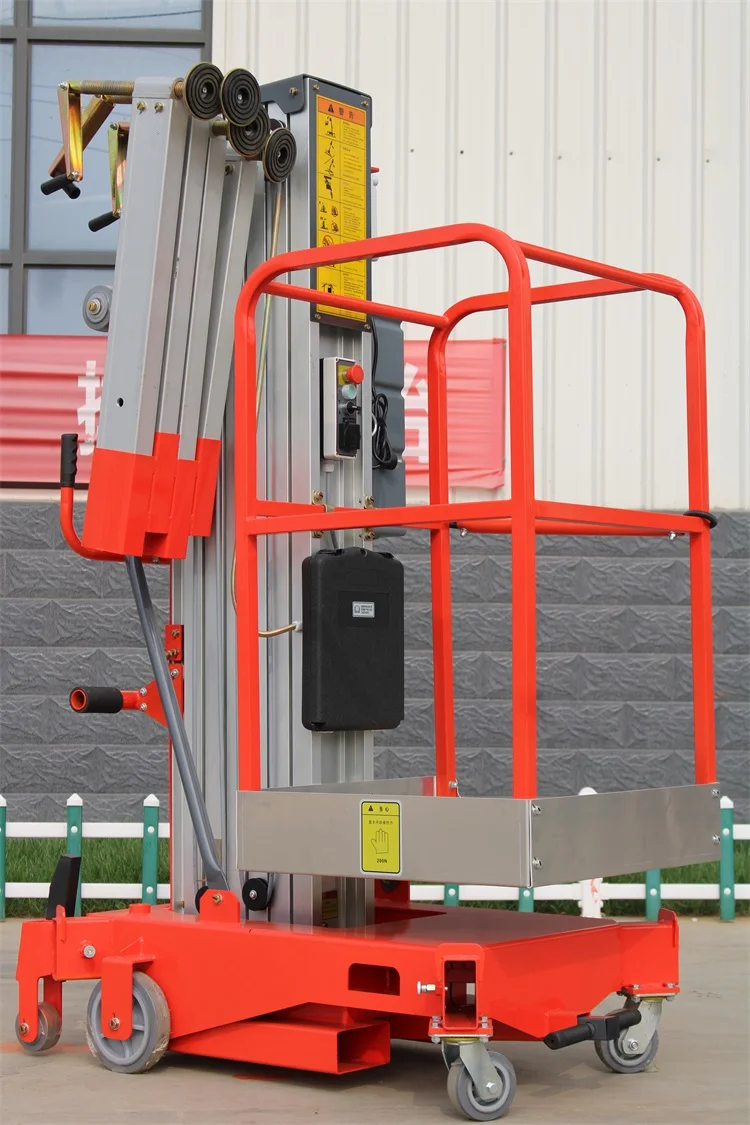

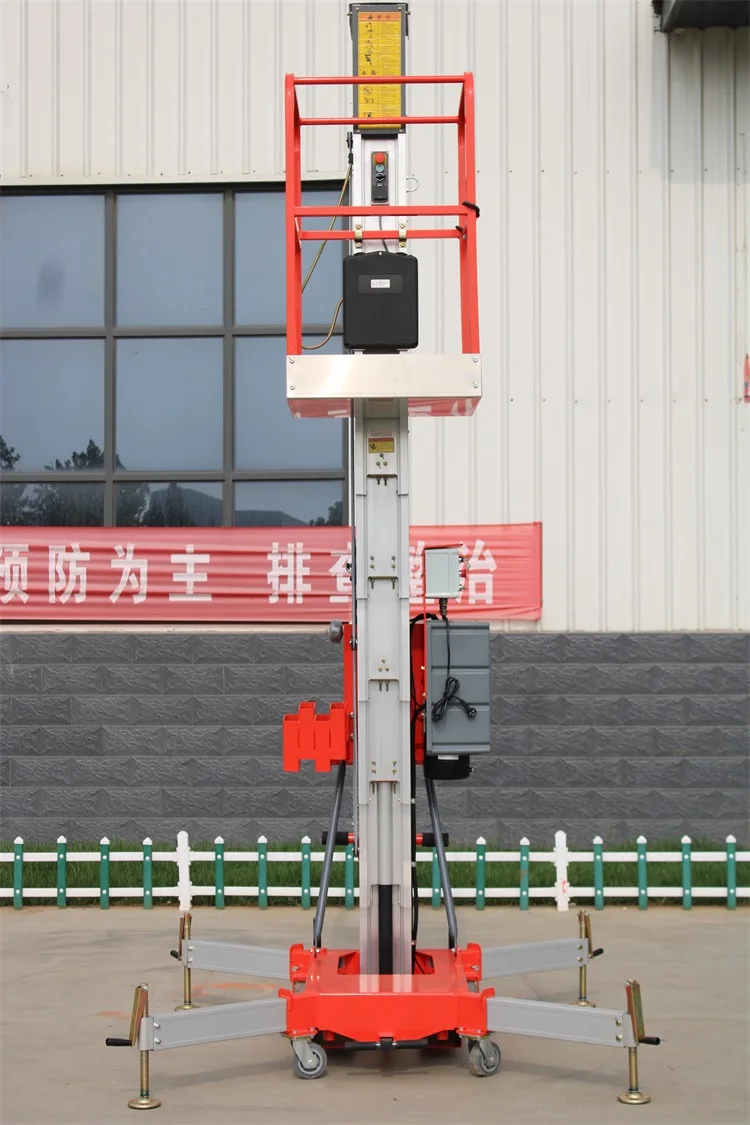

GTWY1 China Hydraulic Single Mast 4.7m 6.2m 7.8m 9.2m 10.4m 12m Aluminum Alloy Aerial Platform Vertical Lift
- Category: >>>
- Supplier: Xianheng International Science&Technology Co. Ltd.
Share on (1600464797685):
Product Overview
Description

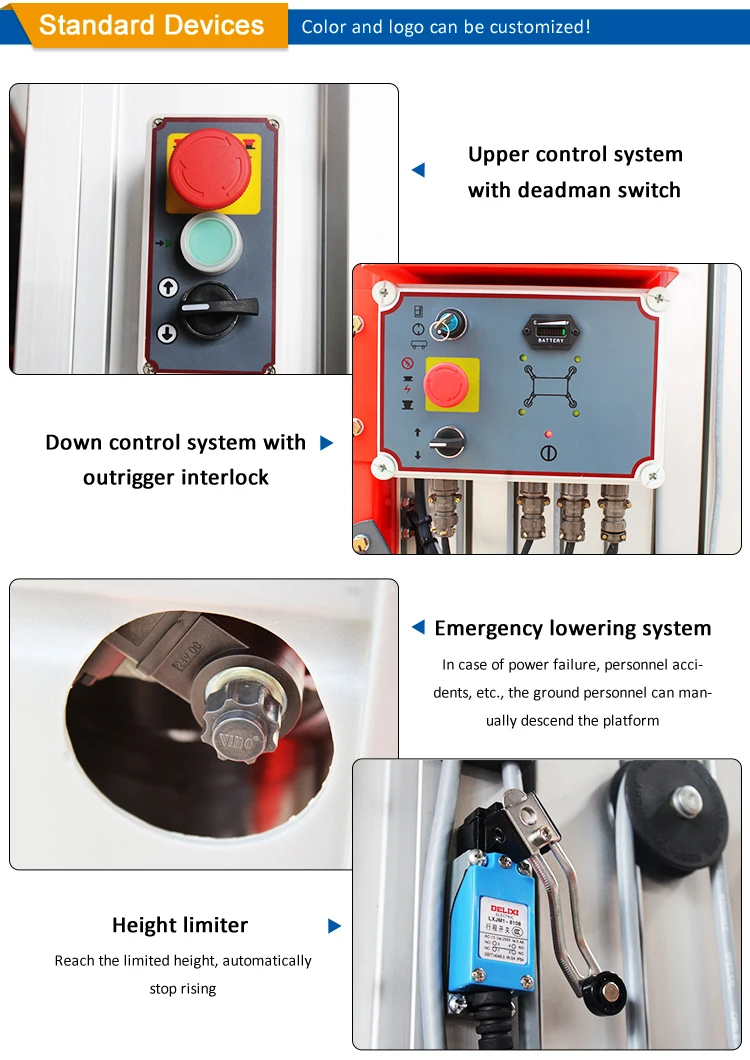

● Proportional controls ● Automatic pothole protection
● Drivable at full height ● Non-marking tyre
● Artomatic brake system ●Emergency lowering system
● Emergency stop button ● Cylinder holding valve
● Onboard diagnostic system
Single Mast Vertical Lift | ||||||||||||
Model | GTWY1-5 | GTWY1-6 | GTWY1-8 | GTWY1-9 | GTWY1-10 | GTWY1-12 | ||||||
Platform | ||||||||||||
Max. Working Height | 6.7m | 8.2m | 9.8m | 11.2m | 12.4m | 14m | ||||||
Max. Platform Height | 4.7m | 6.2m | 7.8m | 9.2m | 10.4m | 12m | ||||||
Loading Capacity | 150kg | 150kg | 150kg | 150kg | 136kg | 120kg | ||||||
Occupants | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
Platform Dimension | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m | 0.67m x 0.66m | ||||||
Overall Dimension | ||||||||||||
Overall Height | 1.99m | 1.99m | 1.99m | 1.99m | 1.99m | 2.68m | ||||||
Overall Width | 0.74m | 0.74m | 0.74m | 0.74m | 0.74m | 0.81m | ||||||
Overall Length | 1.24m | 1.24m | 1.36m | 1.4m | 1.42m | 1.46m | ||||||
Outrigger coverage | 1.7m x 1.7m | 1.7m x 1.7m | 1.6m x 1.6m | 1.7m x 1.7m | 1.9m x1.7m | 2.3mx1.9m | ||||||
Weight | ||||||||||||
AC | 300kg | 320kg | 345kg | 365kg | 385kg | 460kg | ||||||
DC | 335kg | 355kg | 380kg | 400kg | 420kg | 495kg | ||||||
Power | ||||||||||||
AC | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | ||||||
AC Motor | 0.75KW | 0.75KW | 0.75KW | 0.75KW | 0.75KW | 0.75KW | ||||||
DC | 12V | 12V | 12V | 12V | 12V | 12V | ||||||
DC motor | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | ||||||
Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A | ||||||
