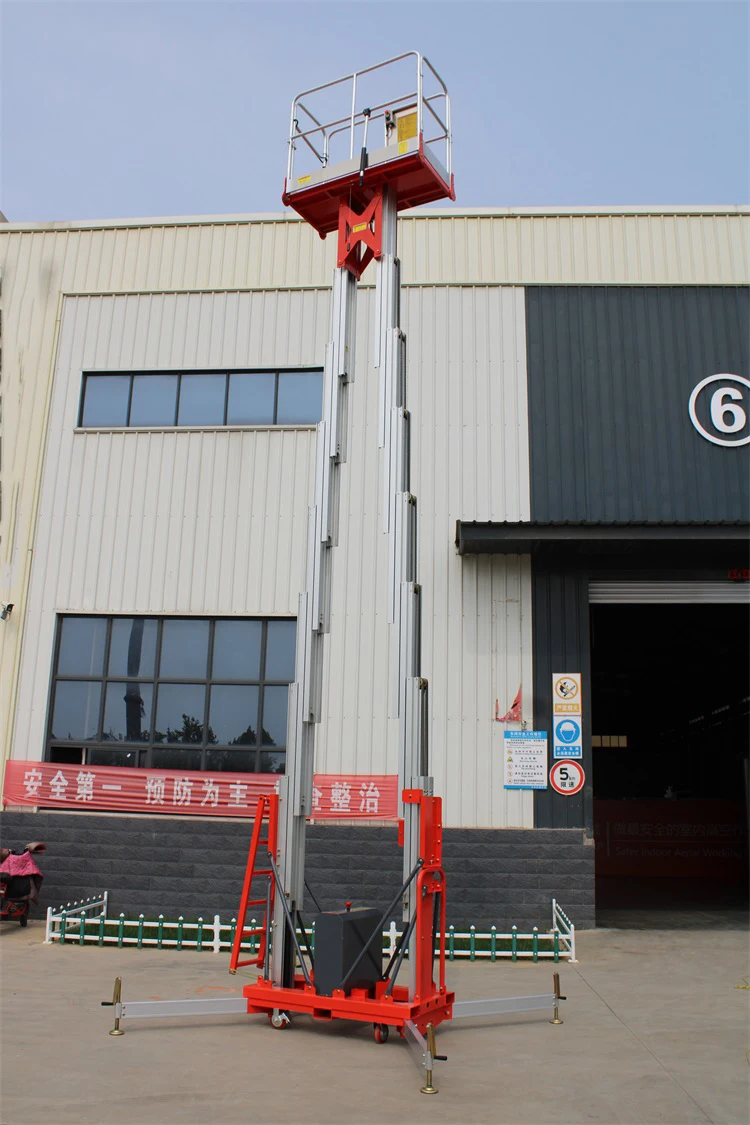

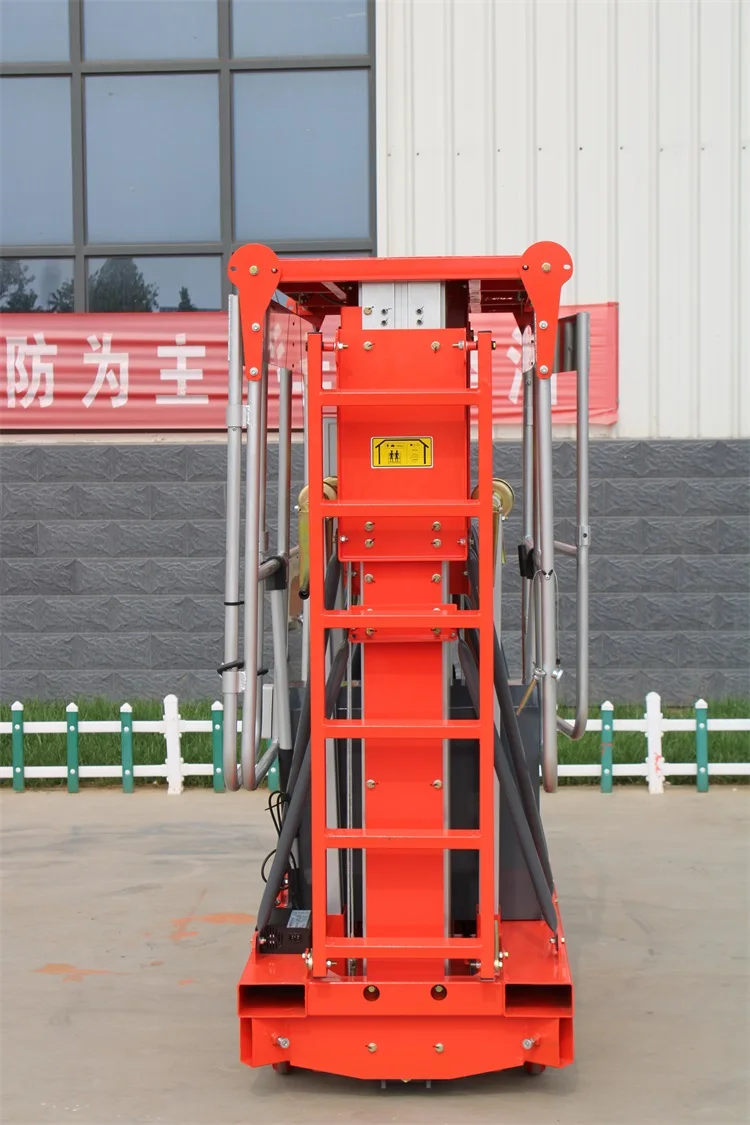

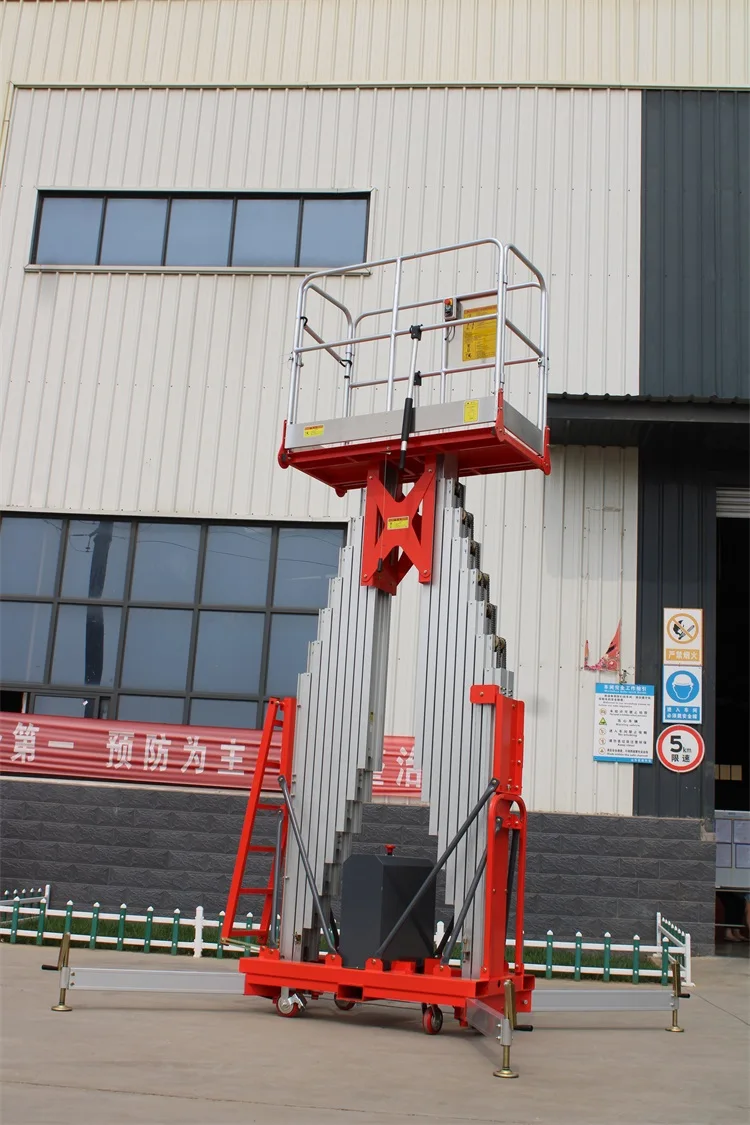

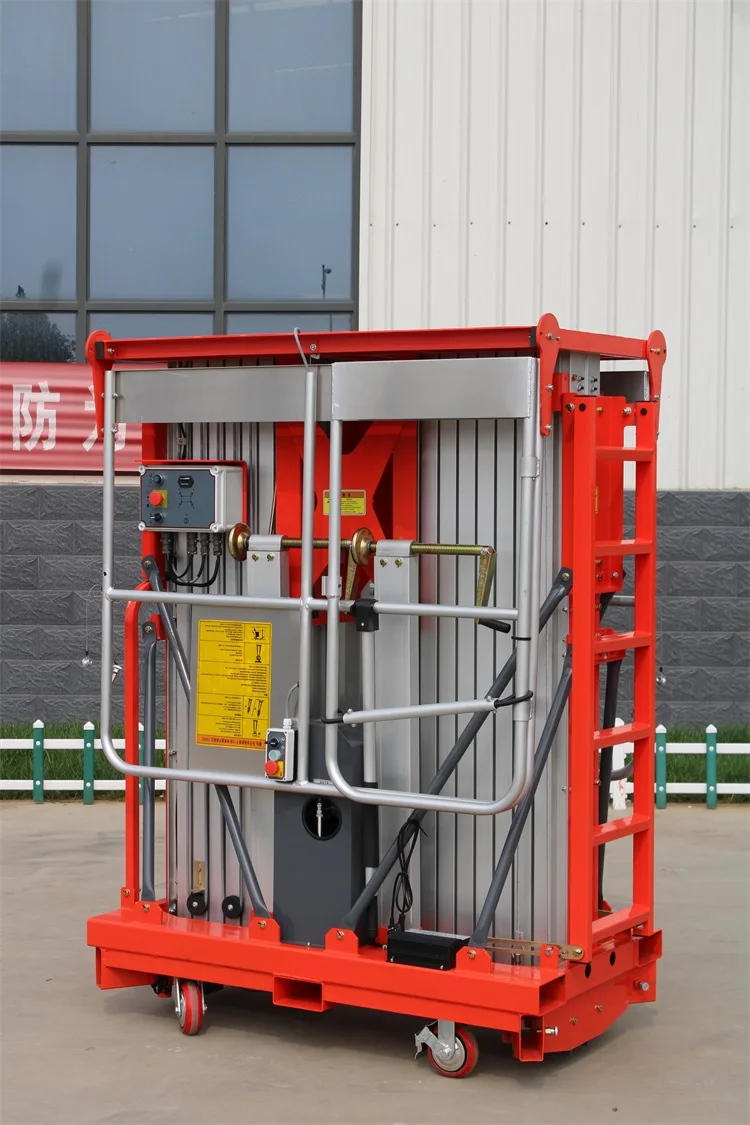

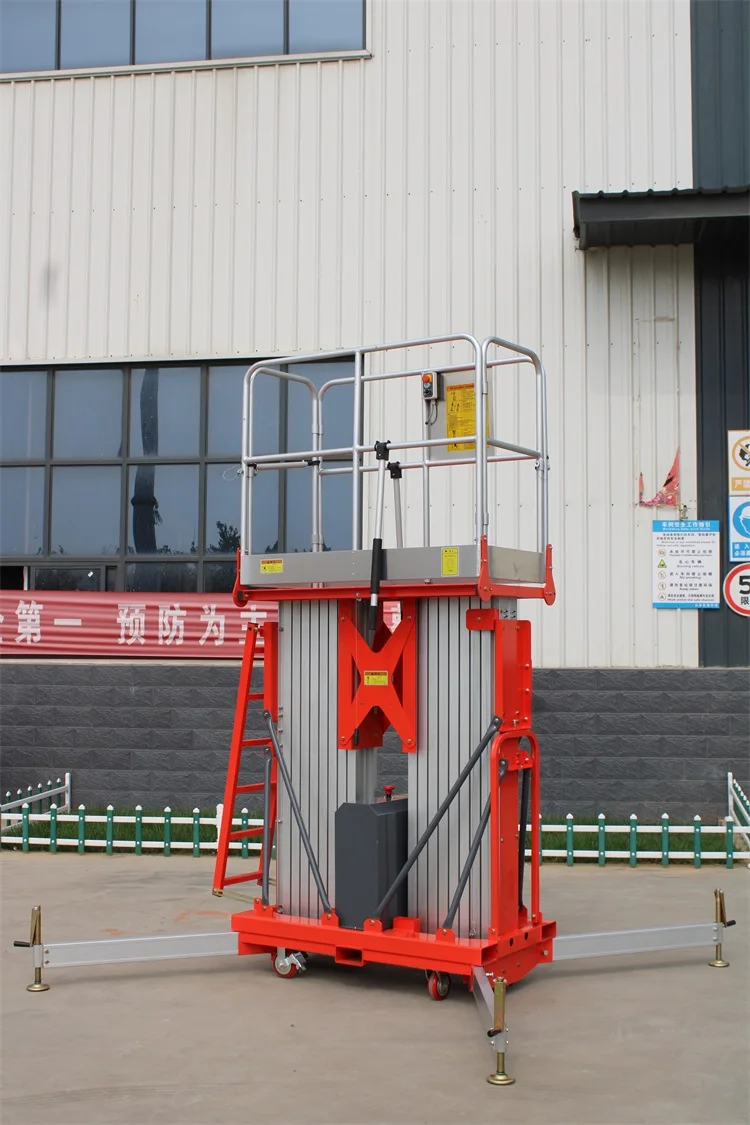

GTWY2 Professional Warehouse 8m 10.4m 12m 14m 16m Manual Hydraulic Double Masts Vertical Aerial Platform Lift
- Category: >>>
- Supplier: Xianheng International Science&Technology Co. Ltd.
Share on (1600464803566):
Product Overview
Description
● Proportional controls ● Automatic pothole protection
● Drivable at full height ● Non-marking tyre
● Artomatic brake system ●Emergency lowering system
● Emergency stop button ● Cylinder holding valve
● Onboard diagnostic system
Double Masts Vertical lift | |||||||||||
Model | GTWY2-8 | GTWY2-10 | GTWY2-12 | GTWY2-14 | GTWY2-16 | GTWY1-12 | |||||
Platform | |||||||||||
Max. Working Height | 10m | 12.4m | 14m | 16m | 18m | 14m | |||||
Max. Platform Height | 8m | 10.4m | 12m | 14m | 16m | 12m | |||||
Loading Capacity | 250kg | 250kg | 200kg | 200kg | 150kg | 120kg | |||||
Occupants | 2 | 2 | 2 | 2 | 1 | 1 | |||||
Platform Dimension | 1.45m x 0.7m | 1.45m x 0.7m | 1.45m x 0.7m | 1.8m x 0.7m | 1.8m x 0.7m | 0.67m x 0.66m | |||||
Overall Dimension | |||||||||||
Overall Height | 1.99m | 1.99m | 1.99m | 2.68m | 2.68m | 2.68m | |||||
Overall Width | 0.81m | 0.81m | 0.81m | 0.81m | 0.81m | 0.81m | |||||
Overall Length | 1.45m | 1.45m | 1.45m | 1.88m | 1.88m | 1.46m | |||||
Outrigger coverage | 2.45m x 1.75m | 2.45m x 2.1m | 2.45m x 2.1m | 2.7m x2.8m | 2.7m x2.8m | 2.3mx1.9m | |||||
Weight | |||||||||||
AC | 645kg | 715kg | 750kg | 892kg | 996kg | 460kg | |||||
DC | 695kg | 765kg | 800kg | 942kg | 1046kg | 495kg | |||||
Power | |||||||||||
AC | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | |||||
AC Motor | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 0.75KW | |||||
DC | 2x12V | 2x12V | 2x12V | 2x12V | 2x12V | 12V | |||||
DC motor | 2.2KW | 2.2KW | 2.2KW | 2.2KW | 2.2KW | 1.5KW | |||||
Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A | |||||
