GSK GS2000Y N/C series spindle servo unit servo drive
- Category: >>>
- Supplier: Shenzhen Denver Servo Technology Co. Ltd.
Share on (1600464808170):
Product Overview
Description

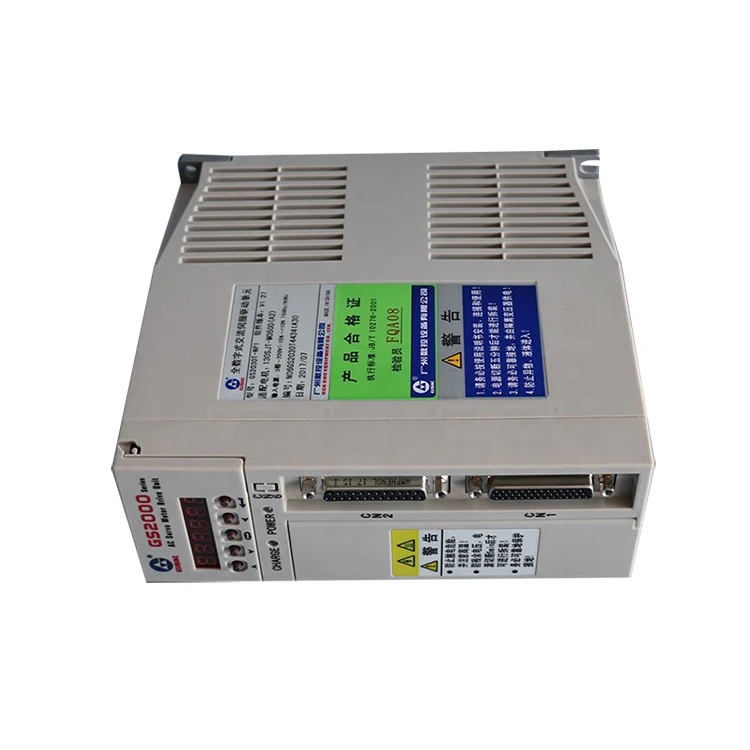

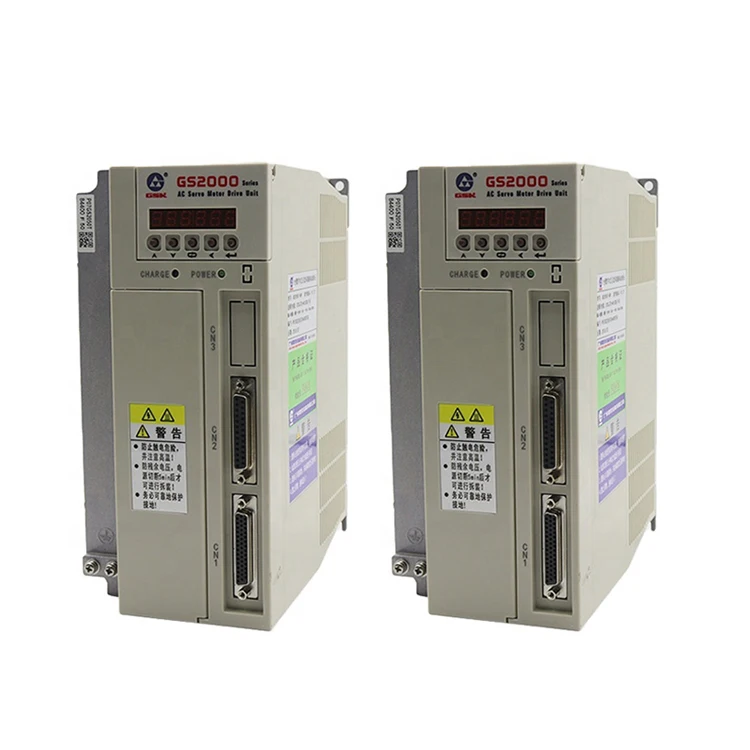

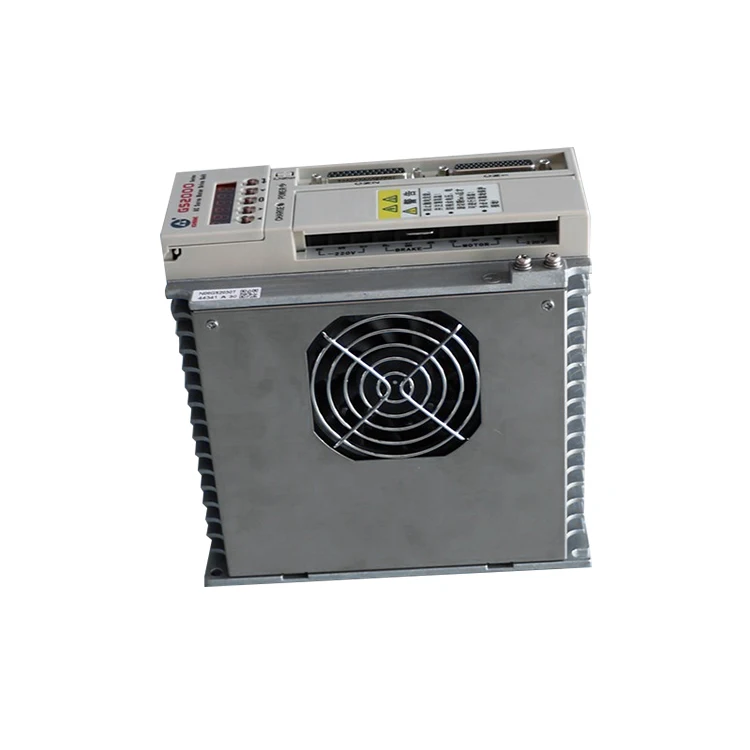

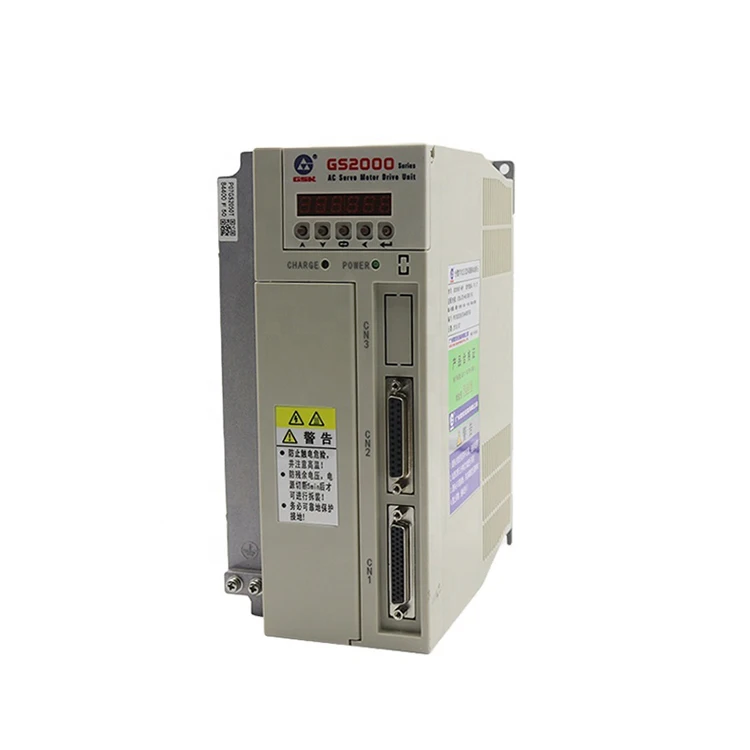

GS2000Y-N/C Series Spindle Servo Unit
(Contact customer service to customize product model and price)
Product Description
Guangzhou CNC relies on mature spindle servo technology, introduces industrial design concept, and uses three-dimensional digital simulation technology and thermal simulation technology to develop a series of servo drive units, which have significantly improved in driving capacity, heat dissipation capacity, product appearance and manufacturability. GS series spindle servo drive unit is divided into five structures according to different output power, which can be adapted to 1.5kw~22kw asynchronous spindle servo motor. It can not only realize constant power speed regulation, but also realize rotation axis orientation and CS axis position control, fully meeting the needs of CNC machine tools and automation equipment.
Product features
1 | Select the new industrial IPM module, strong overload drive ability. |
2 | Built-in high-power brake tube, external brake resistance, to adapt to frequent motor start and stop. |
3 | Using air cooling heat dissipation, radiator heat capacity and large surface area, with strong heat dissipation capacity. |
4 | Support speed/position control mode switch, can realize spindle speed control /Cs axis position control real-time switch. |
5 | With the second feedback interface, can achieve full closed-loop position control. |
6 | The new structure and appearance design, obtained the appearance patent, the product technology is good. |
7 | Gs2000y-n adopts D-SUB interface, suitable for 100~8000 line incremental encoder, GS□□□□Y-C adopts MDR interface, |

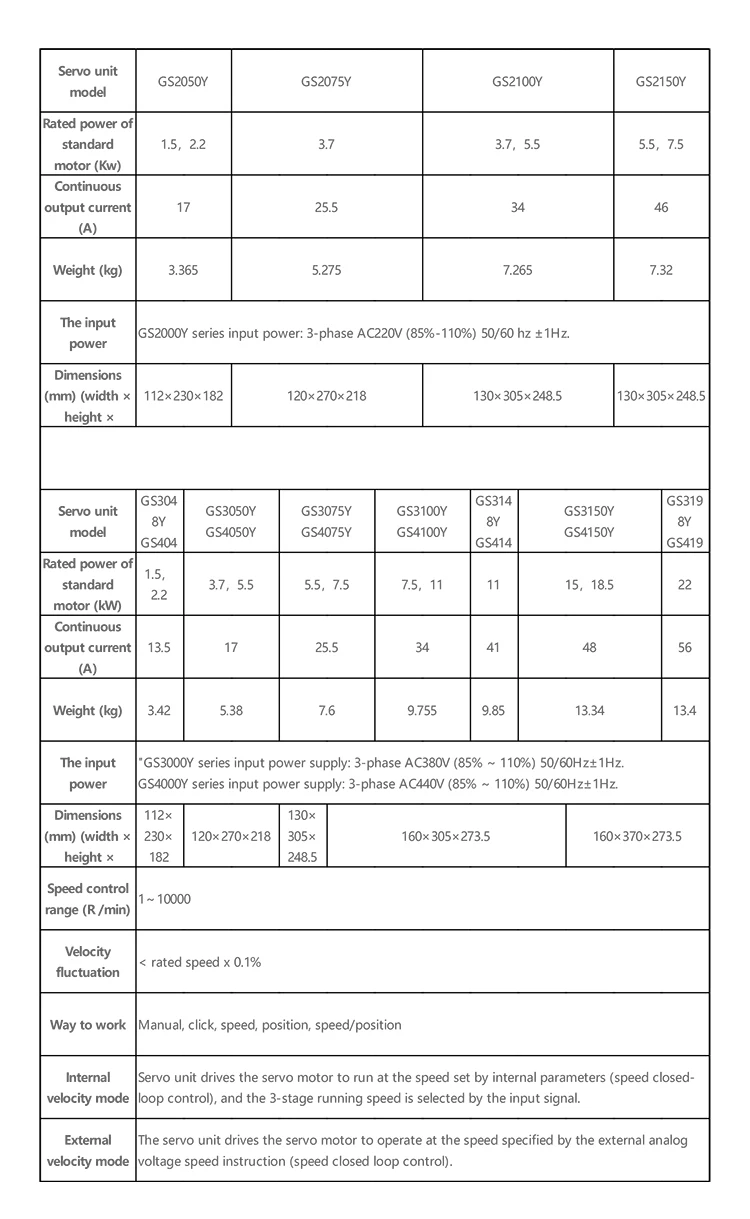

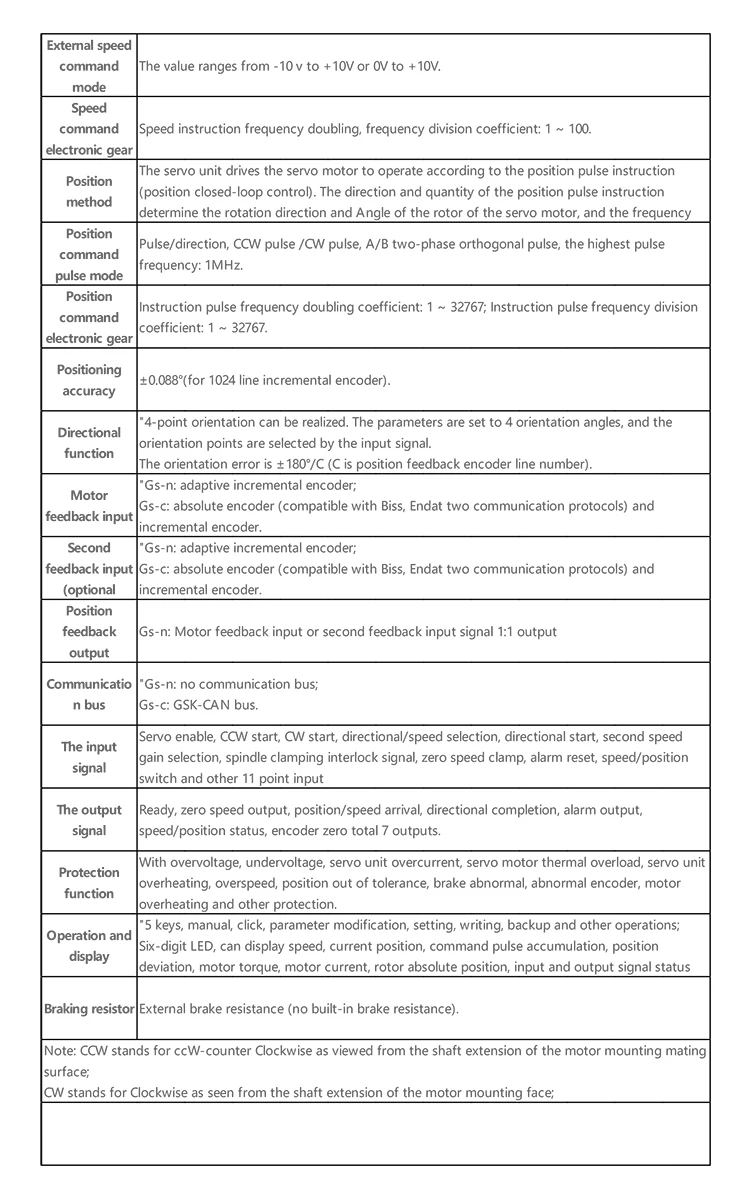

Technical parameters
① | "GS" series general servo drive unit, G: GSK; S: SERVO. |
② | Voltage class code, 2: 220V; 3: 380V; 4:440 v. |
③ | Nominal current of power element, 3-digit: 048, 050, 075, 100, 148, 150, 198 (unit A). |
④ | Type of adaptive motor, T: adaptive synchronous servo motor; Y: For asynchronous servo motors. |
⑤ | Type of adaptive motor, T: adaptive synchronous servo motor; Y: For asynchronous servo motors. |
⑥ | Feedback (encoder) interface type code, P: only for incremental encoder; A: Suitable for absolute encoder, no spare battery; B:Suitable for absolute encoder, equipped with backup battery (used to remember the number of turns of absolute encoder in case of power failure). |
⑦ | Feedback (encoder) interface configuration code, 1 digit represents, '1' means only motor feedback (first position feedback) input interface (CN2), '2' means there is motor feedback input (CN2) and second position feedback input interface (CN3). |
⑥ | ⑦ | Feedback (encoder) interface type, configuration description |
P | 1 | Only motor feedback input interface, no second position feedback input interface, suitable for incremental encoder. |
2 | With two position feedback input interface, suitable for incremental encoder. | |
A(B) | 1 | Only motor feedback input interface, no second position feedback input interface, can be adapted to incremental encoder and absolute encoder (compatible with Biss, tamochuan two communication protocols, automatic identification). |
2 | With two position feedback input interface, can be adapted to incremental encoder and absolute encoder (compatible with Biss,tamokawa two communication protocols, automatic identification). |
packing&Certificates
Company profile
Warranty and after-sales service
1.two years warranty for machine
2.We have a professional English after-sales engineer team,and supply online service 24 hours by Whatsapp,Skype, and so on. or by phone if urgently.
3.We will provide you with a detailed video tutorial to teach you how to use the machine .
4.lf you need installment support,we can arrange our engineer fly to your place to help
