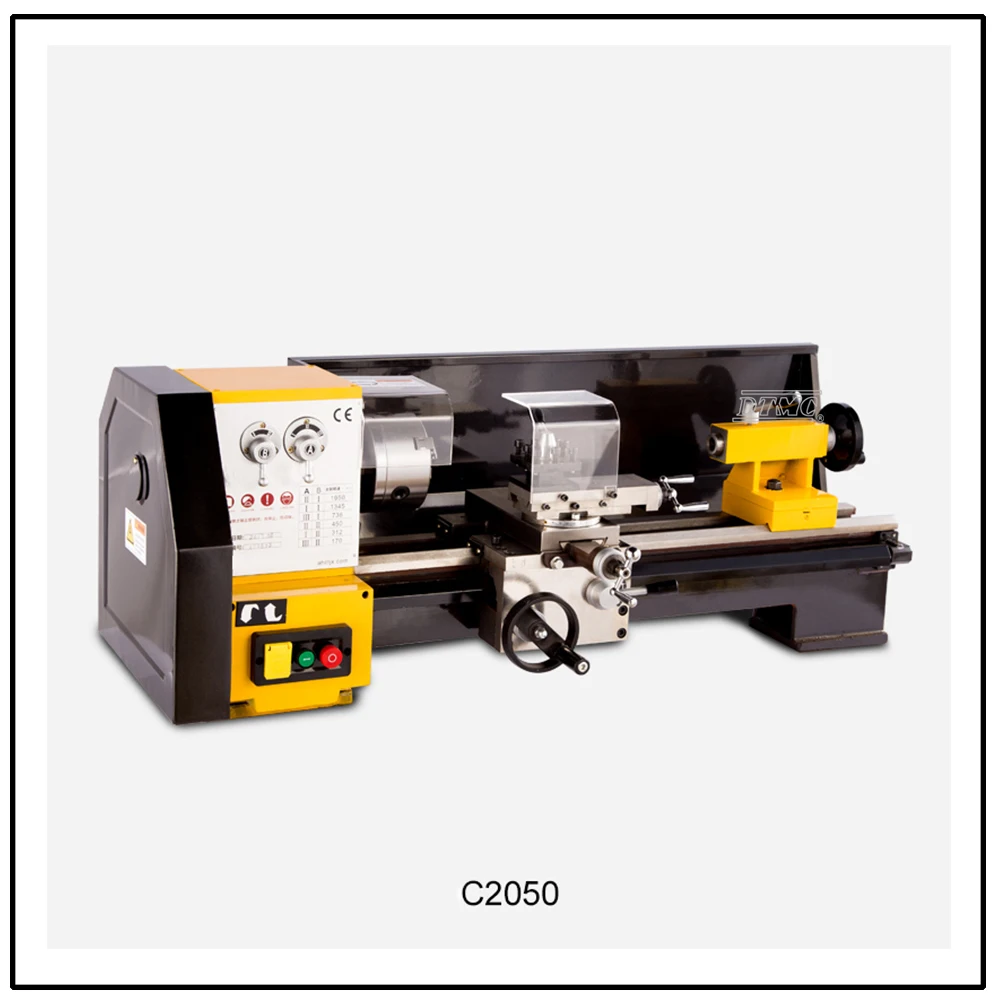

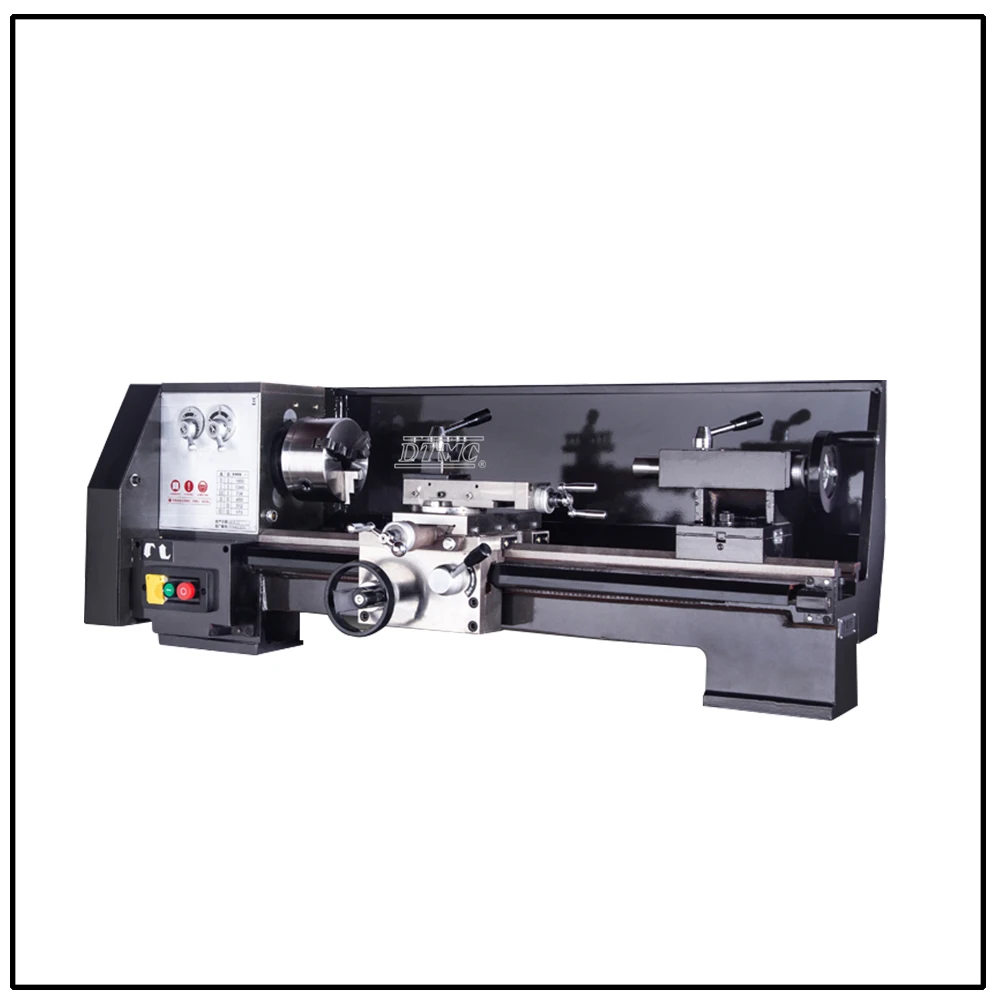

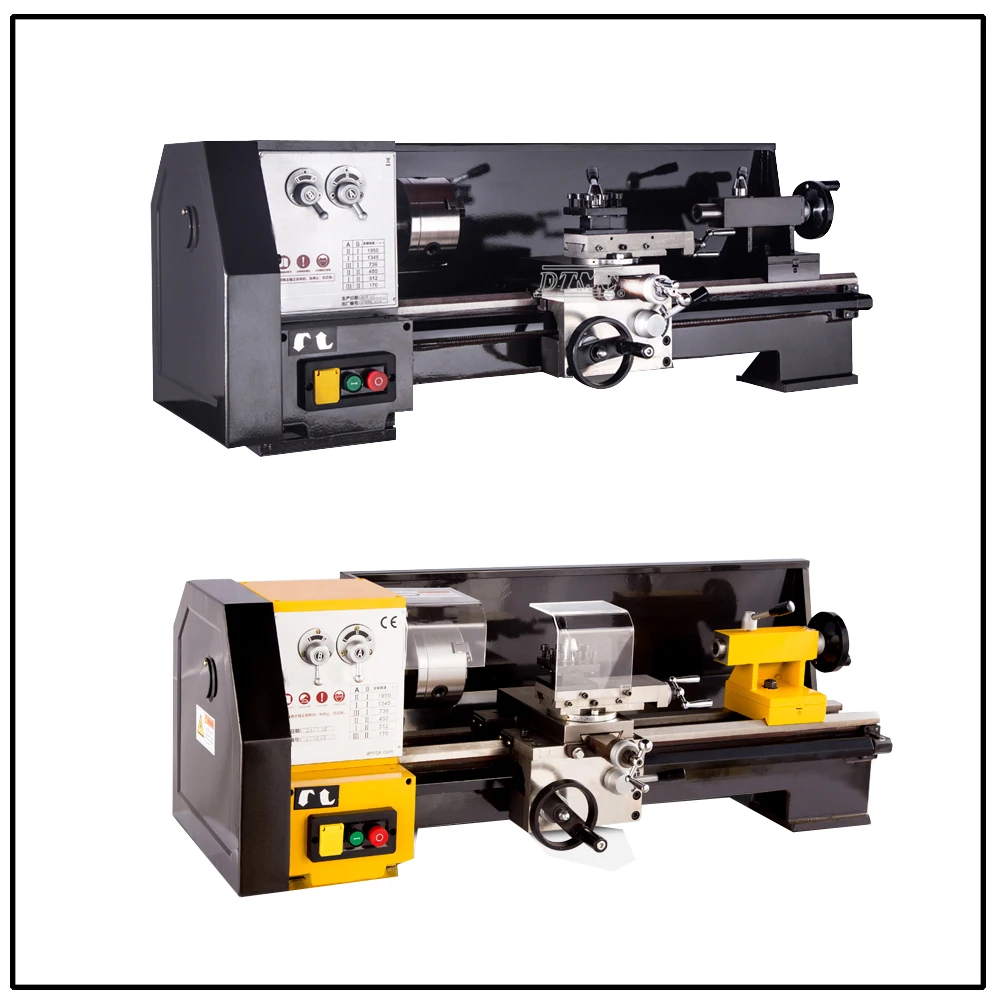

C2050 Industrial Grade Household Mini Lathe Metal Lathe Processing Bench Manual Lathe

Maximum turning diameter bed

220mm

Maximum turning diameter of middle carriage

115mm

Two top distance

550mm

Maximum processing length

520mm

Spindle speed range/Grade

170-1950rpm/6

Taper of spindle bore

MT3

Chuck specifications

125mm

Spindle bore

20mm

Tailstock quill travel

50mm

Taper of tailstock quill

MT2

Swing over cross slide

520mm

Cross slide travel

105mm

Top slide travel

70mm

Maximum rotation angle of small tool post

±45°

Range of metric threads/Grade

0.25-3mm/17kinds

Range of inch threads/Grade

8-48T.P.I/17kinds

Motor

220v/550w 50HZ

N.W./G.W.

130/150KG

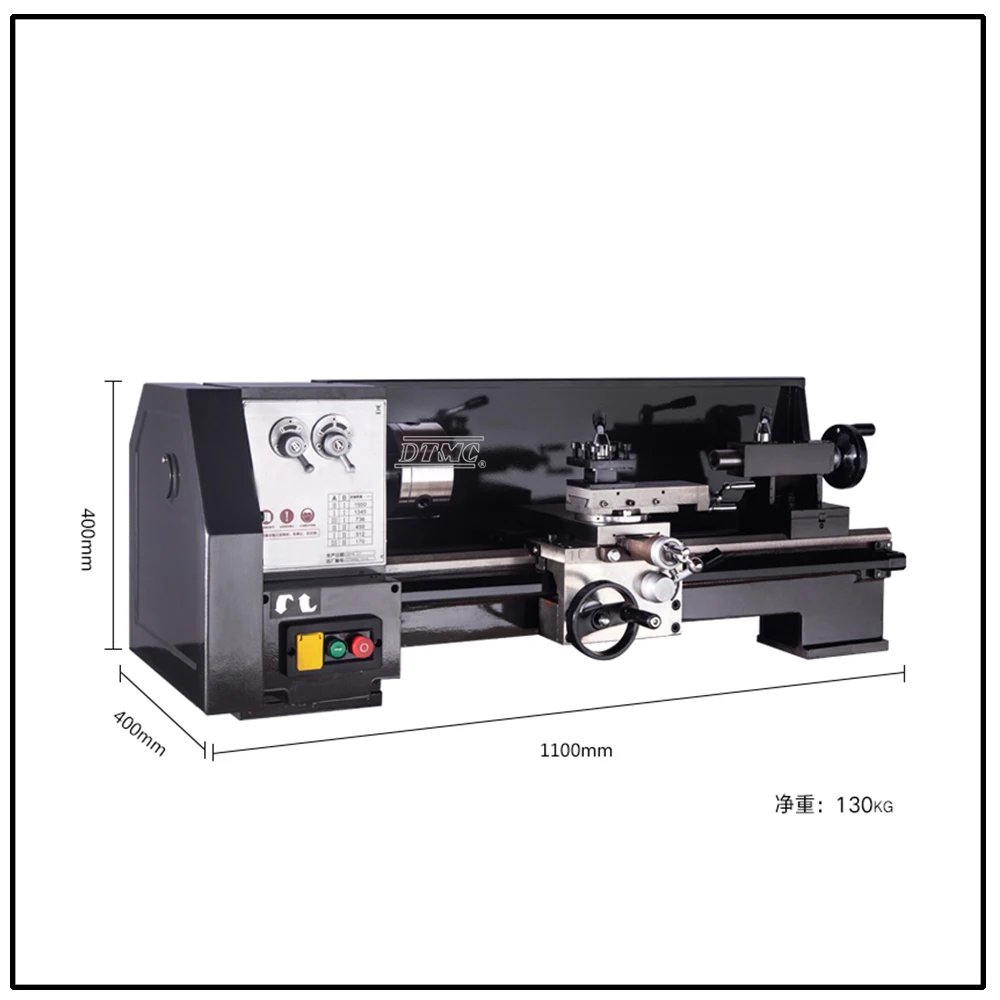

Machine size

1100×400×400mm
