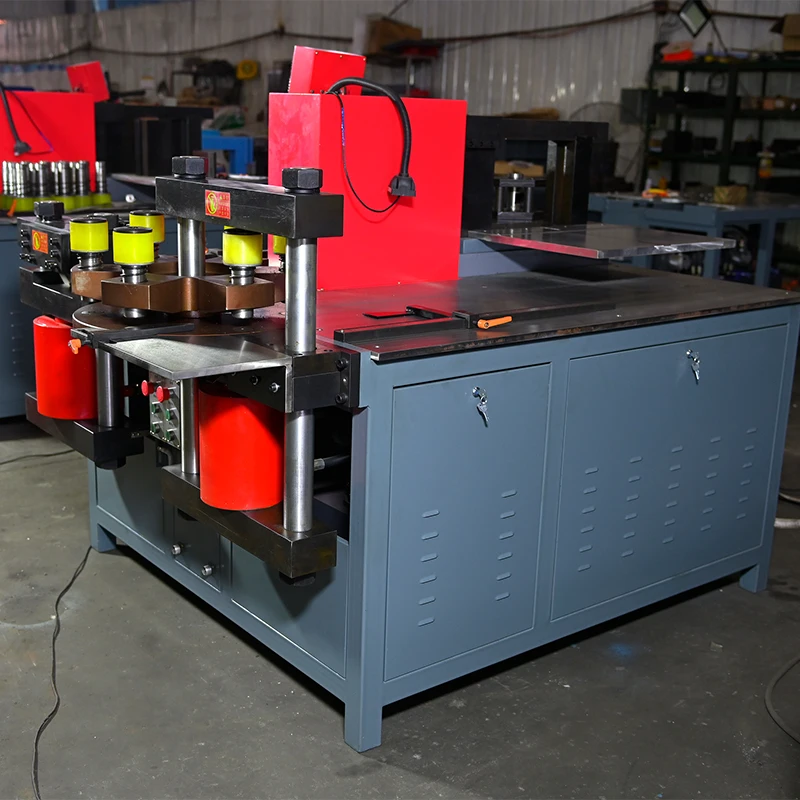

CNC Copper Busbar Cutting Punching Bending Machine for The railway
- Category: >>>
- Supplier: Jinan Deshang CNC Equipment Co. Ltd.
Share on (1600464813042):
Product Overview
Description
Product Description
Manufacturer 100% Quality Guarantee!
503SK_B
We can provide customized services according to customer requirements

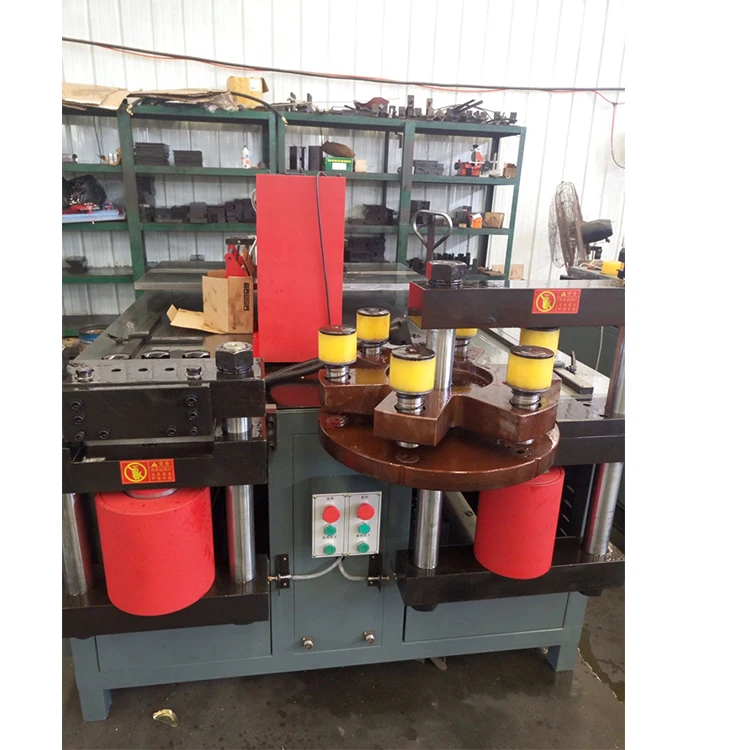

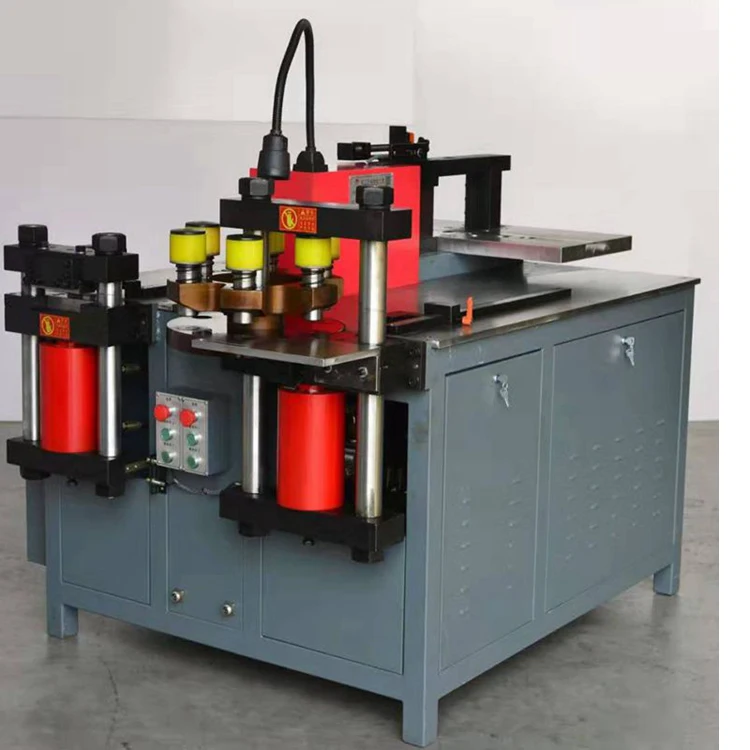

product description
The main function is to process various specifications of copper and aluminum busbars. The punching, cutting, bending，embossing and other functions of the busbar can be processed on the corresponding processing unit.
Max punching strength: 500 KN
Max. thickness: 16 mm
Max .width: 260mm
Voltage: 220/380V /400V, 415v
Max. thickness: 16 mm
Max .width: 260mm
Voltage: 220/380V /400V, 415v
Function 1
Punching

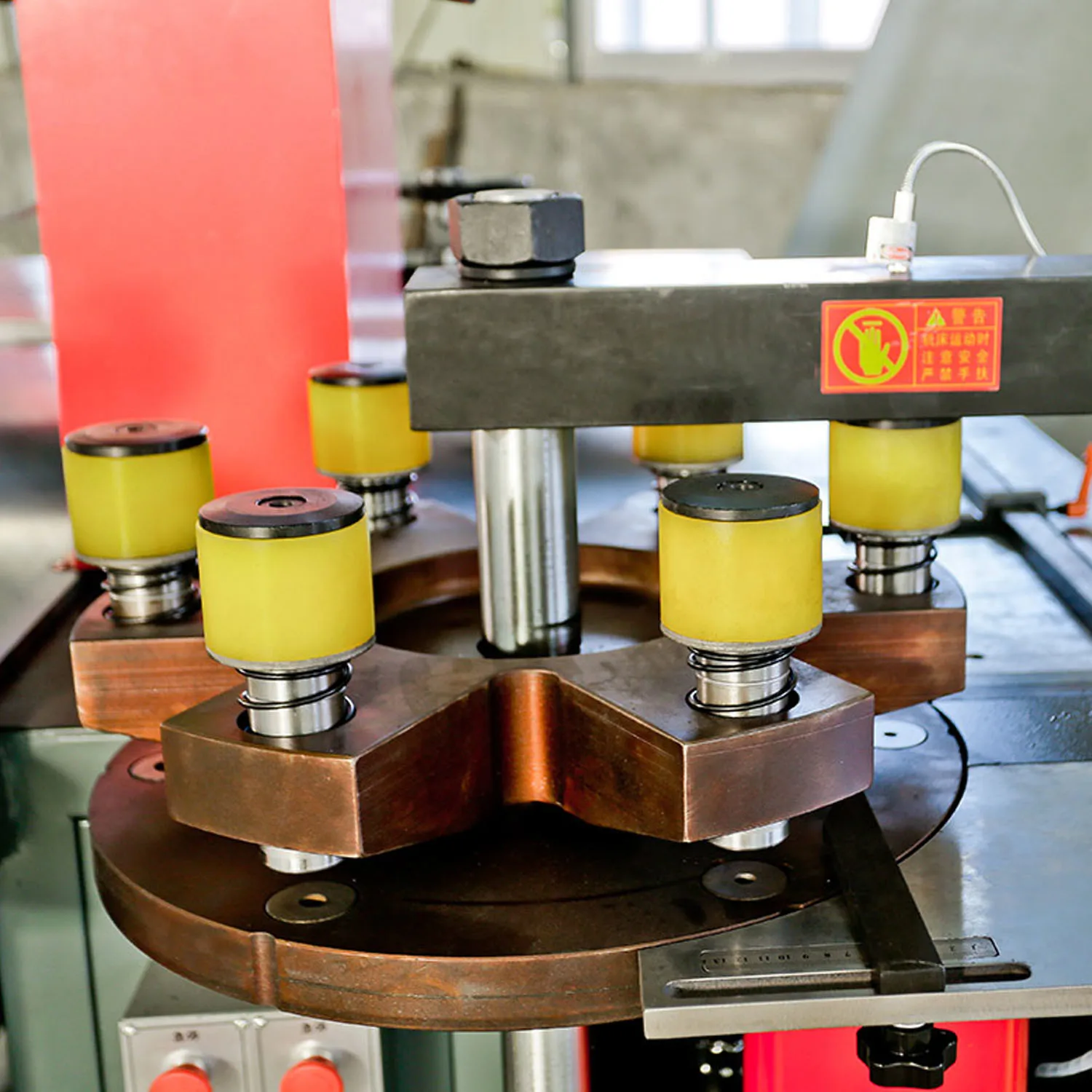

▶Six-dies turn-plate structure make sure the upper die and lower die are always in the center.
▶Six Punching dies can punch 6 different kinds of holes so you don’t have to replace the dies frequently.
▶It also can punch non-standard holes with special dies, such as square hole etc.
▶Our punching station also have mechanical two-way positioning rulers,laser light and position needles which can help you save
time and improve work efficiency.
▶Six Punching dies can punch 6 different kinds of holes so you don’t have to replace the dies frequently.
▶It also can punch non-standard holes with special dies, such as square hole etc.
▶Our punching station also have mechanical two-way positioning rulers,laser light and position needles which can help you save
time and improve work efficiency.
Function 2
Cutting

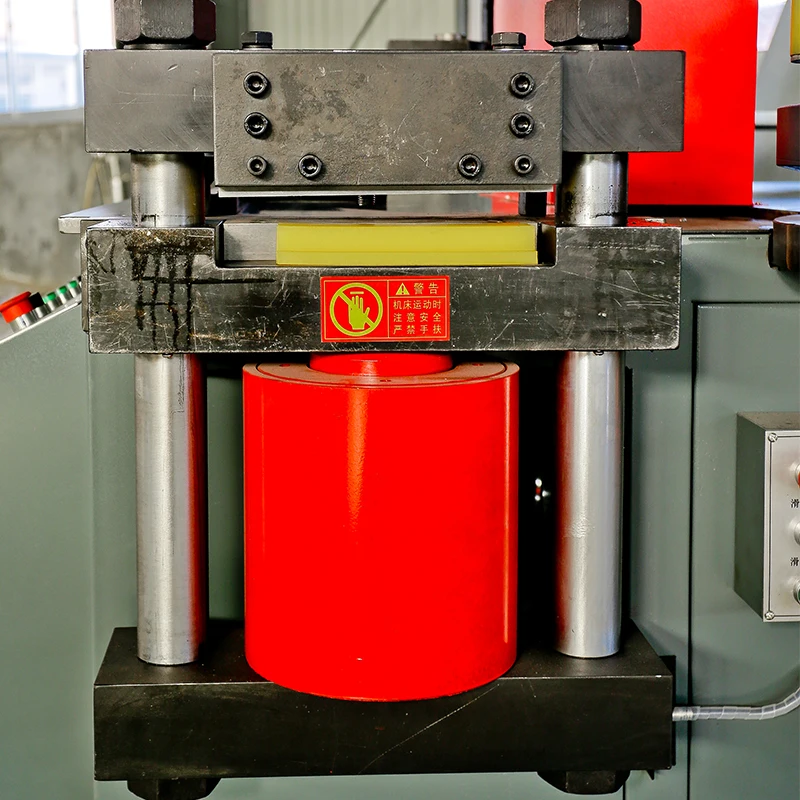

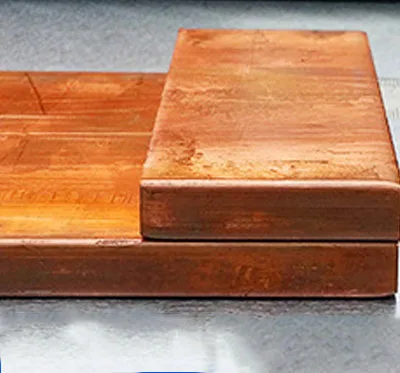

▶We use sharp shearing. So the interface is really flat without droops burrs or any waste.
▶Two different pressure type to make sure no apex angle.
▶Foot switch and press button.
▶Two different pressure type to make sure no apex angle.
▶Foot switch and press button.
Function 3

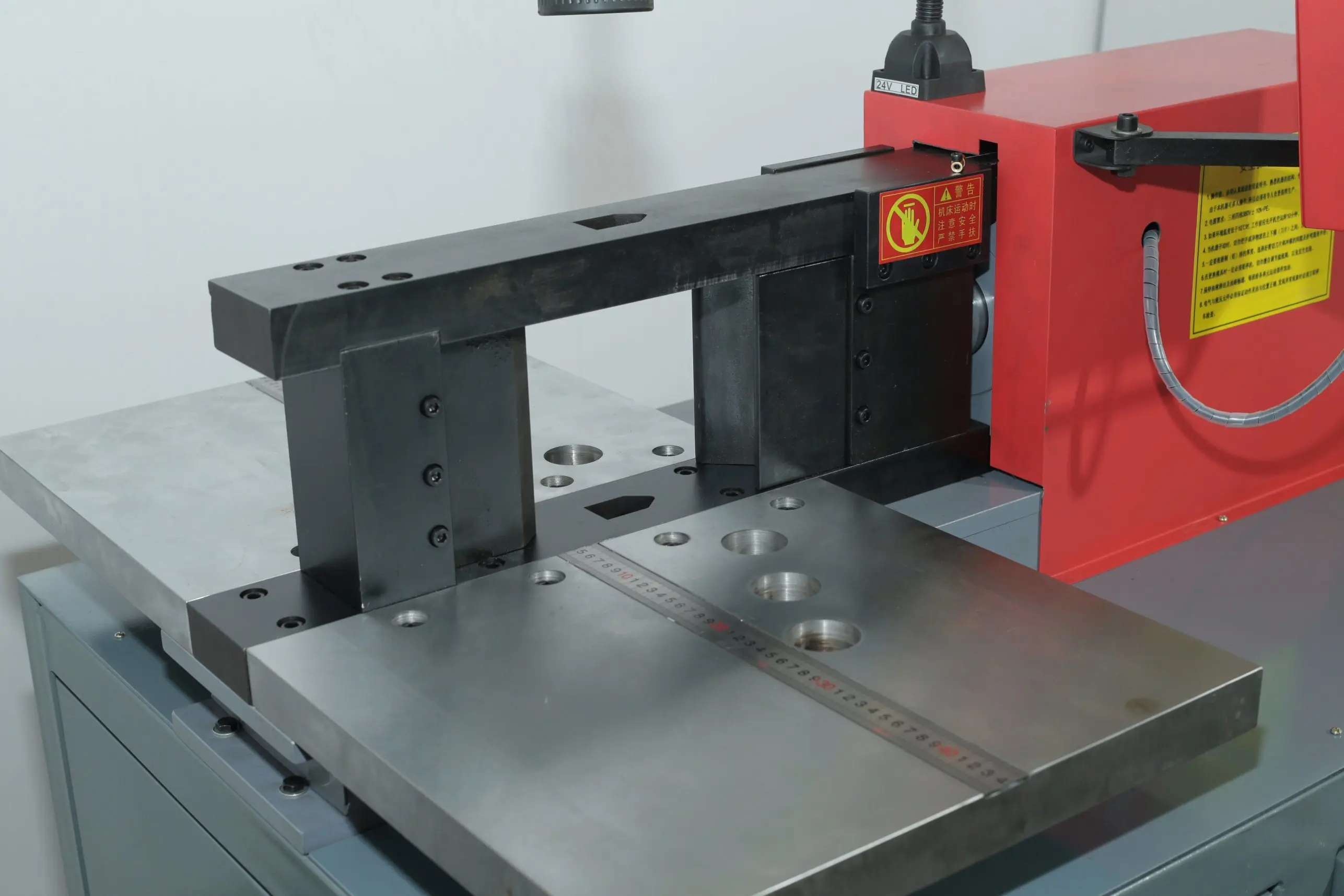

Bending
Our bending angle of bending station is controlled by cooperation of PLC and displacement sensor. It also has the function of memory and error compensation which ensure the accuracy and angle consistency of bending.

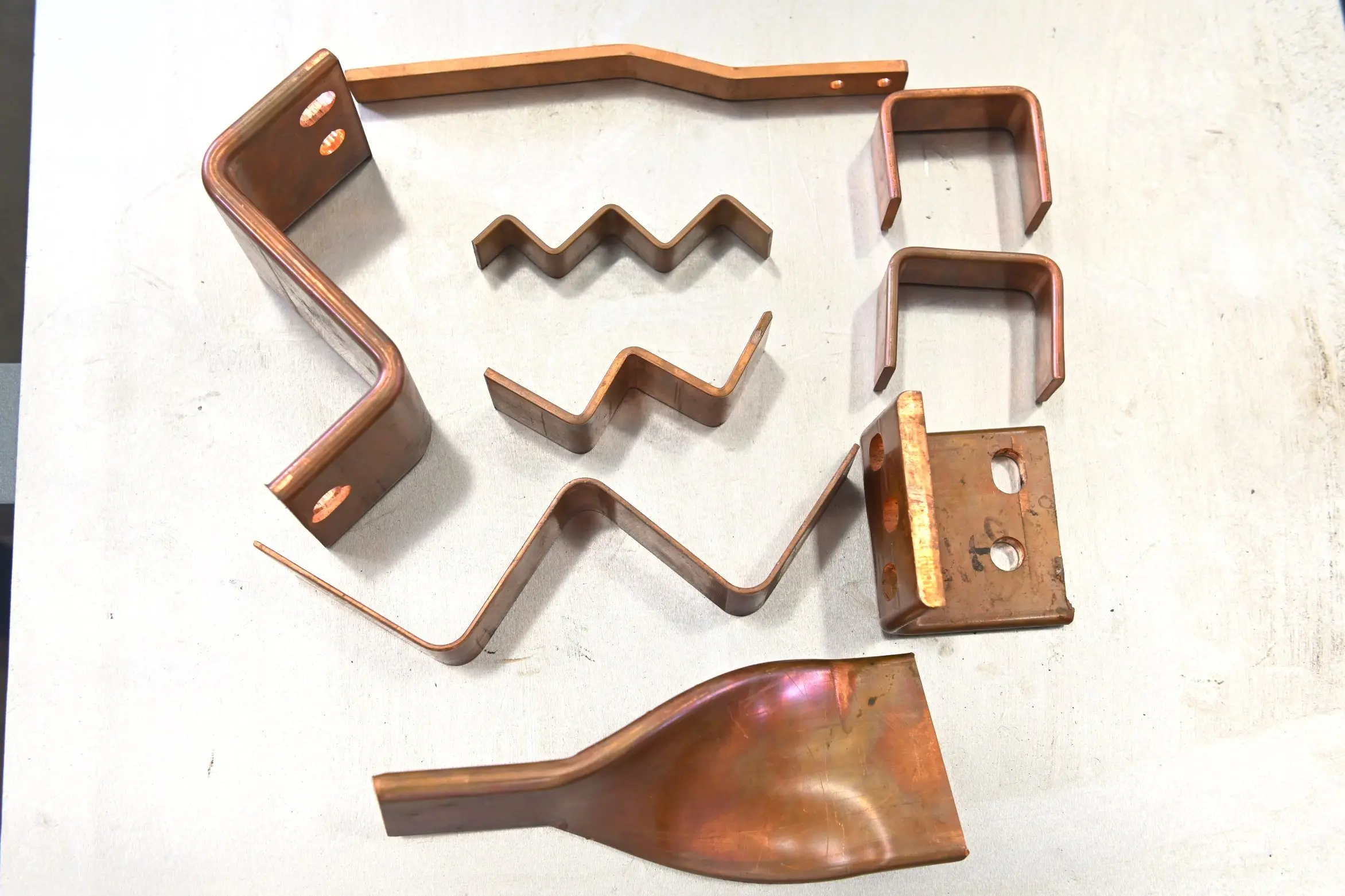

This machine is equipped with three processing stations of punching, cutting, and bending. It is controlled by PLC. The main function is to process copper and aluminum bus bars of different specifications. When working, you only need to select the corresponding processing station to cut and punch copper and aluminum bars conveniently and quickly (round hole, long round hole, chamfered R angle, chamfered right angle, chamfered 45 degree angle, square hole) , Horizontal bending, vertical bending, U-typed bending, embossing, twisting and other different processing.
Product Advantage

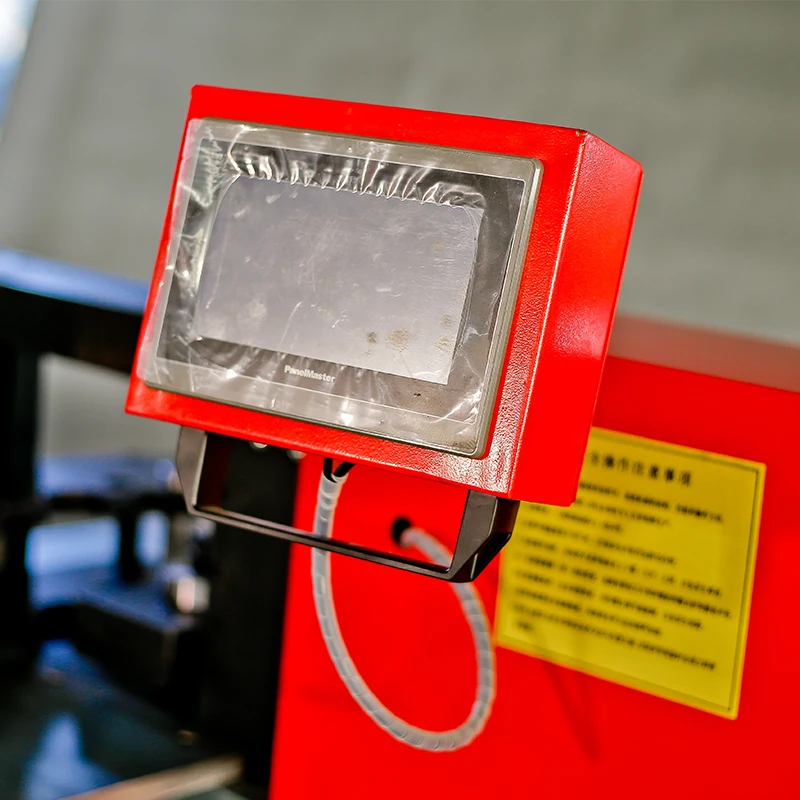

1.The S7-200 PLC produced by SIEMENS in Germany is matched with the Taiwan Touch Screen touch screen. Each parameter has a memory function, which can be adjusted to ensure that the angle of the workpiece after processing is more accurate. The system also sets
the parameter settings of customer-specific bending molds to meet the various needs of customers.
2.The whole machine adopts Schneider Electric, one of the world's top 500 companies, whether it is PC material or the wiring posts
inside, it uses the best materials to make the whole machine safer and more secure.
inside, it uses the best materials to make the whole machine safer and more secure.
3.Button and foot pedal two control methods, the operation is more convenient and quick. When the angle is bent, select manual
bending, lightly step on the foot switch or forward button to complete.
bending, lightly step on the foot switch or forward button to complete.
Specification
Voltage | 380V/220V/415V/50HZ/60HZ or Customed |
Dimension(L*W*H) | 1925*1470*1550 |
Punching Force | 500KN |
Punching Diameter Range | 4.3~36MM |
Max.Punching Thickness | 16MM |
Max. Punching Width | 260MM |
Bending Force | 500KN |
Max.Bending Thickness | 16MM |
Max. Bending Width | 260MM |
Cutting Force | 800KN |
Max.Cutting Thickness | 16MM |
Max. Cutting Width | 260MM |
Power | 3×5.5KW |
About CNC

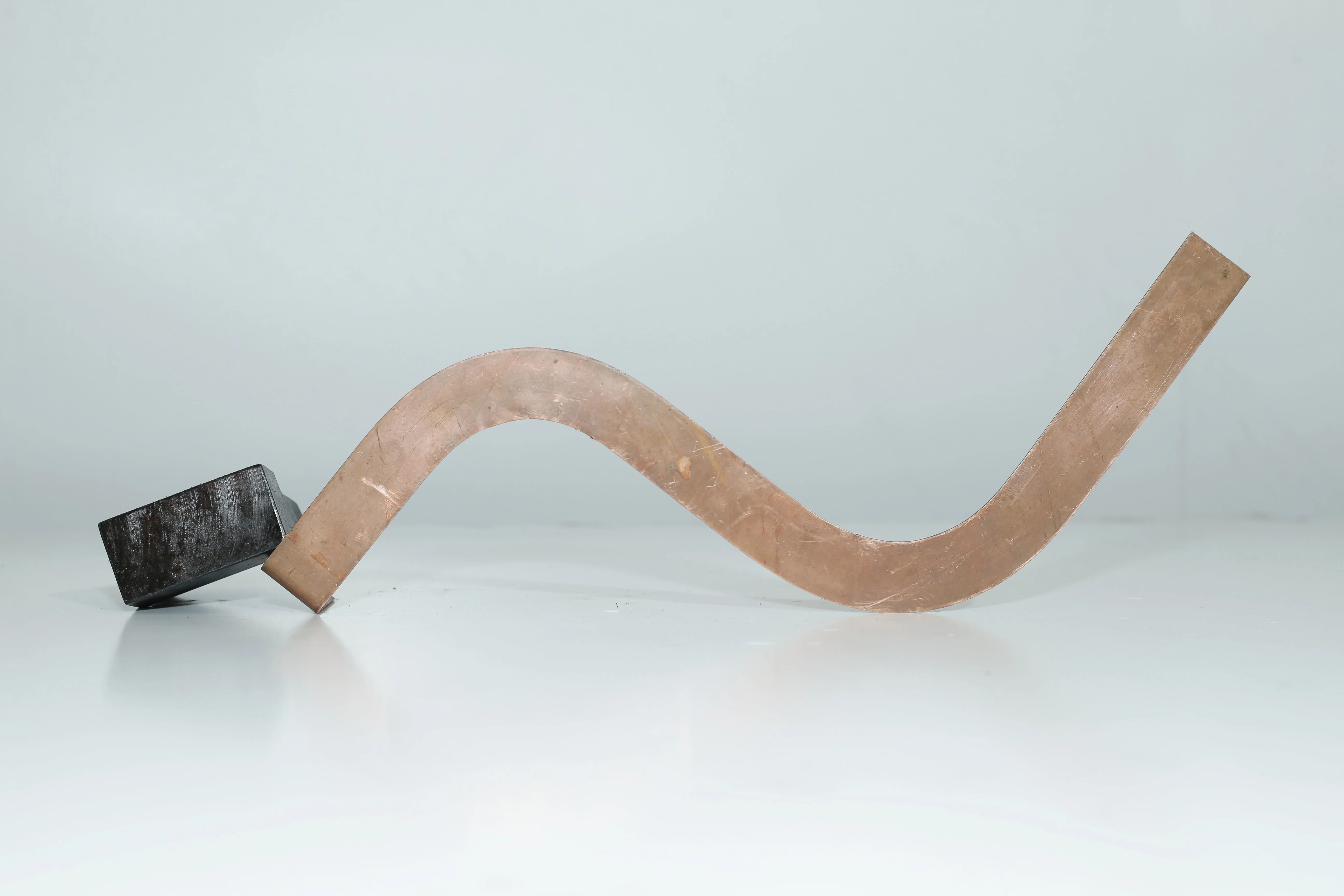

We use simens PLC control which you can just enter the angle. The bending precision is ±1°and repeat bending precision ±0.5°.Three stations can be work at the same time. You also can only enter item's height ad width to produce the item you need.(as Z type blending)

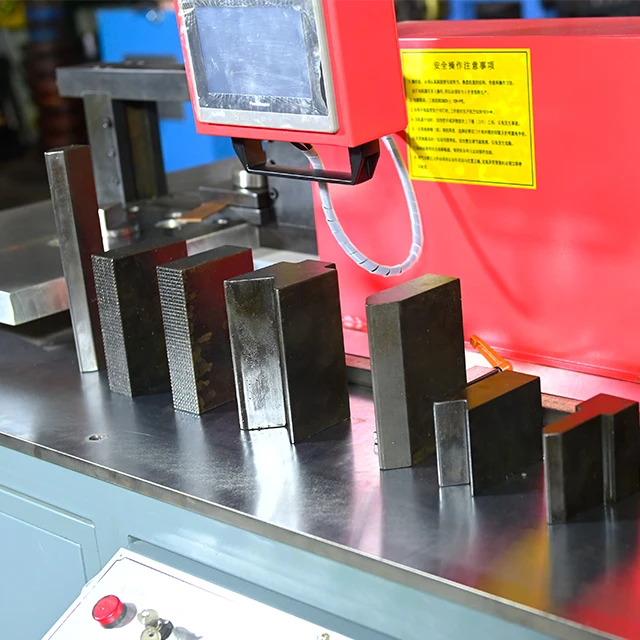

Sample Room
Product Recommendation
No. | Item | Quantity |
1 | Punching Dies | 8 sets |
2 | Vertical Bending Dies | 2 sets |
3 | Horizontal Bending Dies | 2 sets |
4 | U Type Bending Die | 1 set |
5 | Oil Filler | 1 set |

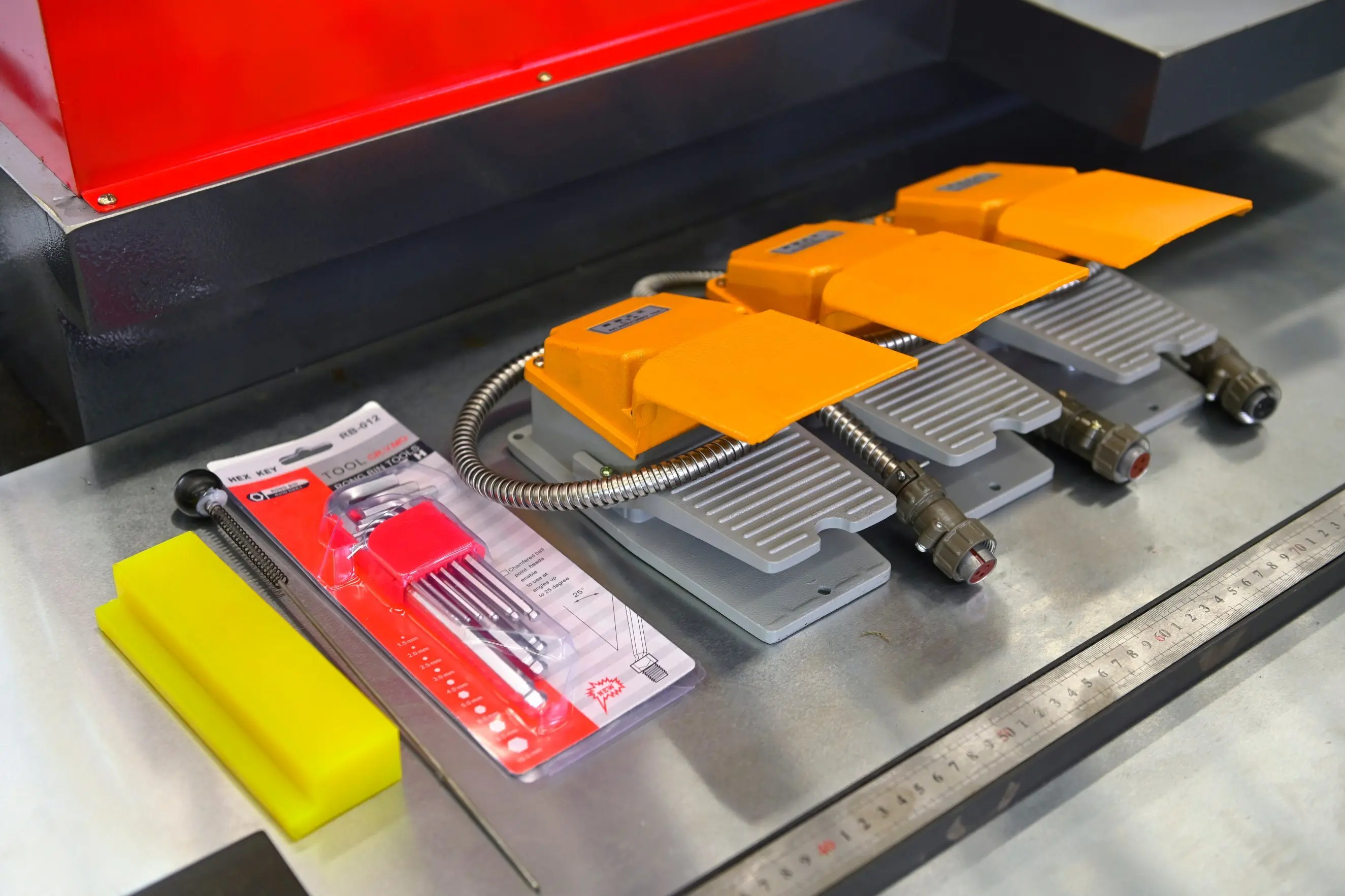

6 | Inner Hexagon Spanner | 1 set |
7 | Hydraulic System Sealing Ring | 1 set |
8 | Foot Switches | 3 sets |
9 | Limit Switches | 2 pieces |
10 | Punching Location Needle | 1 piece |
11 | Magnetic Location Block | 1 piece |
12 | Fuse Core | 4 pieces |
Packing & Delivery

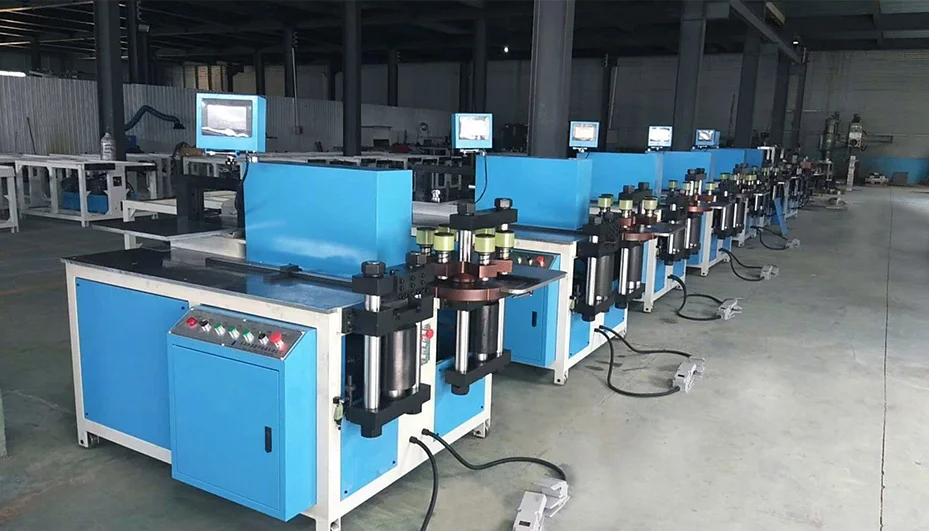

Company Profile
Jinan Deshang CNC Equipment Co., Ltd. is a technology-based enterprise dedicated to the development and production of electrical equipment and CNC sheet metal equipment. The company’s main products include standard bus processing machines, economical copper bus processing machines, CNC bus processing machines, CNC bus bending machines, CNC turret bus processing machines, CNC copper bus processing machines, combined bus processing machines, and portable Production and sales of bus processing machines and other products. Products are widely used in high and low voltage switch cabinets, substations, transformers, electrical switches, shipbuilding, elevator manufacturing, chassis and cabinet manufacturing and other industries. The products are sold to all provinces, cities, autonomous regions and municipalities across the country and exported to Russia, the Philippines, India, Myanmar, Vietnam and other countries.
The company adheres to the market concept of "respect for customers, think more for customers, so as to have more business opportunities.", establish a win-win concept for the company, and forge the company into a "ethical and responsible company", high-quality products, and equal prices , A good reputation is your best choice! Everyone is welcome to visit the factory at any time.
The company adheres to the market concept of "respect for customers, think more for customers, so as to have more business opportunities.", establish a win-win concept for the company, and forge the company into a "ethical and responsible company", high-quality products, and equal prices , A good reputation is your best choice! Everyone is welcome to visit the factory at any time.

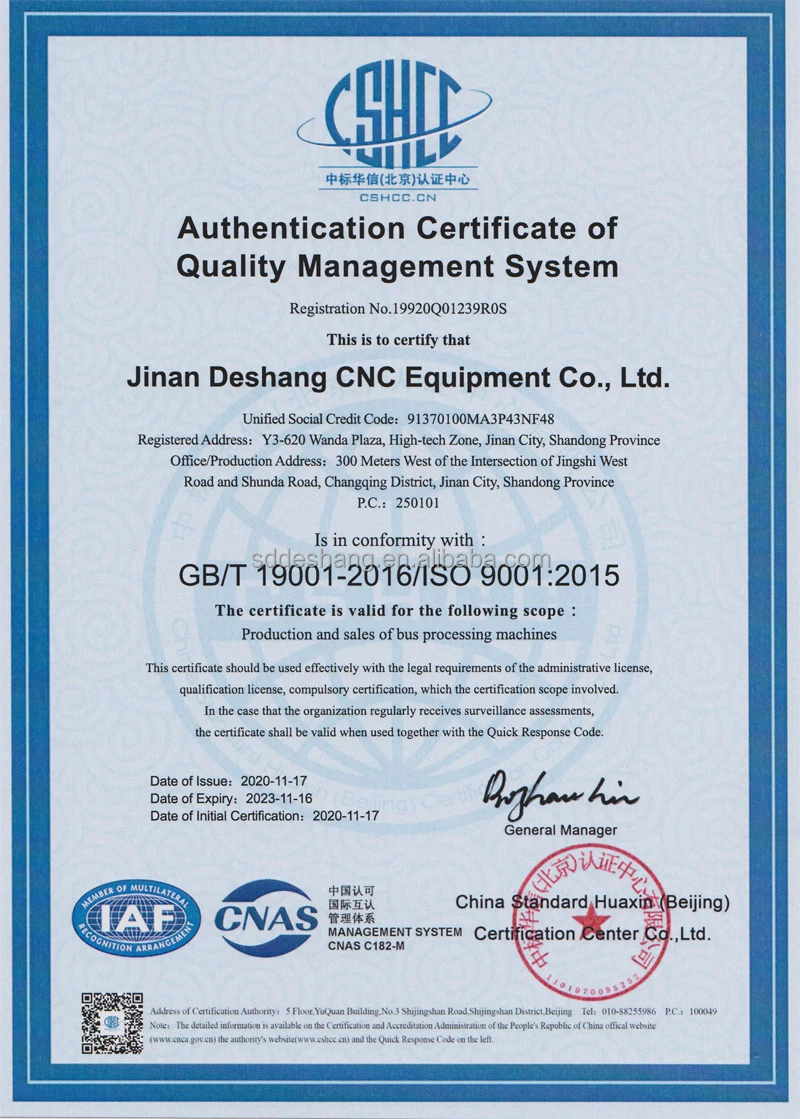

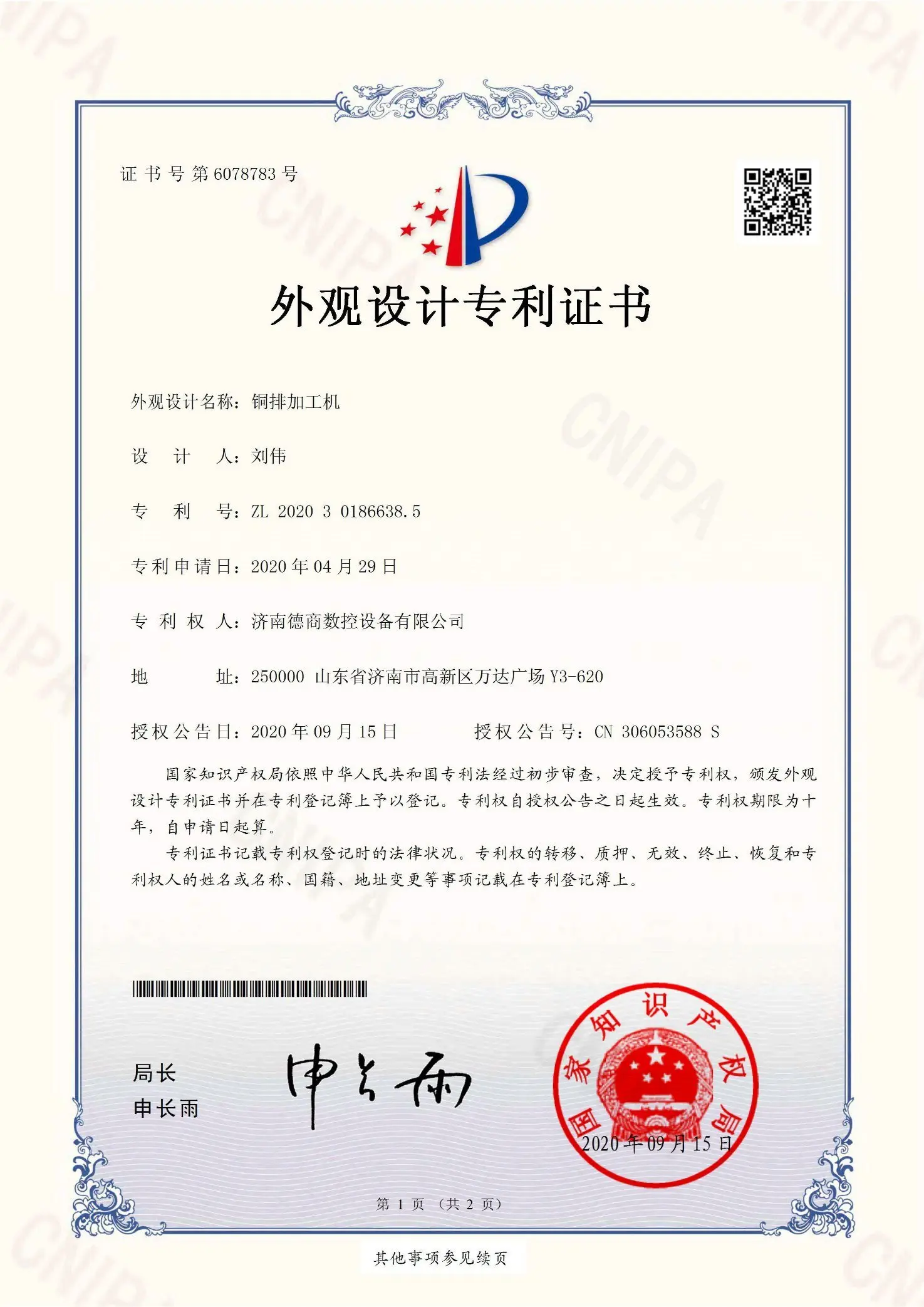

Certifications
This machine is equipped with three processing stations of punching, cutting, and bending. It is controlled by PLC. The main function is to process copper and aluminum bus bars of different specifications. When working, you only need to select the corresponding processing station to cut and punch copper and aluminum bars conveniently and quickly (round hole, long round hole, chamfered R angle, chamfered right angle, chamfered 45 degree angle, square hole) , Horizontal bending, vertical bending, U-typed bending, embossing, twisting and other different processing.
This machine is equipped with three processing stations of punching, cutting, and bending. It is controlled by PLC. The main function is to process copper and aluminum bus bars of different specifications. When working, you only need to select the corresponding processing station to cut and punch copper and aluminum bars conveniently and quickly (round hole, long round hole, chamfered R angle, chamfered right angle, chamfered 45 degree angle, square hole) , Horizontal bending, vertical bending, U-typed bending, embossing, twisting and other different processing.
