Q235 Carbon Steel Aluminum and Other Metals Automatic Laser Welding with Robot Arm
- Category: >>>
- Supplier: Shenzhen Herolaser Equipment Co. Ltd.
Share on (1600464814872):
Product Overview
Description
Video Description
Parameter
Technical Parameters | ||
Power(Laser Source) | 1000W，1500W，2000W | |
Wavelength | 1080nm | |
Working Mode | Continuous / Modulation | |
Material Thickness | SS、Aluminum Alloy≤3mm | |
Control System | ML Laser Control System | |
Aiming & Positioning | CCD、Red Light Indicator | |
Cooling | Water Cooling | |
Power(Machine) | 5KW ~10KW | |
Power Demand | 380V±10%，50Hz/60Hz AC | |
Equipment Configuration List | ||||||
Name | Specification | Quantity | Remark | |||
Six-axis Manipulator | Repeat Positioning Accuracy 0.05mm | 1 Set | QX1600 （With base) | |||
Fiber Laser Source | 1 Set | |||||
WOBBLE Welding Head | Made by Herolaser | 1 Set | Domestic | |||

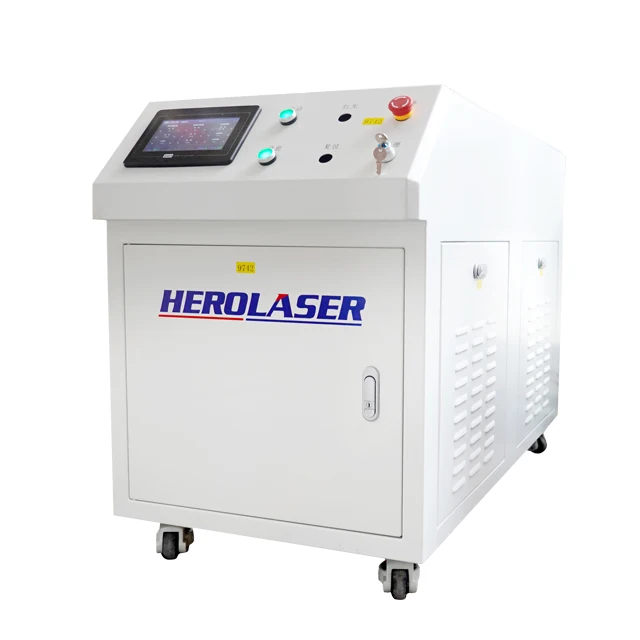

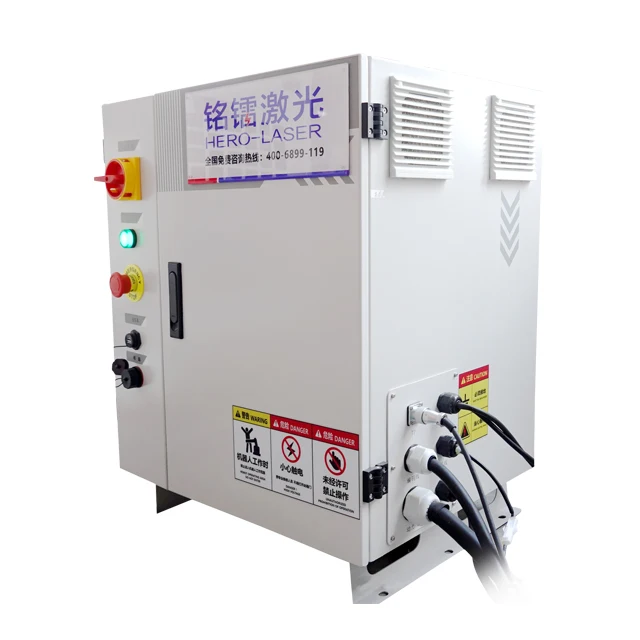

Host Cabinet | Herolaser Customized | 1 Set | Domestic | |||
CCD Observation System | Dedicated for Welding | 1 Set | Domestic | |||
Wire Feeding Device | Herolaser Customized | 1 Set | ||||
Products Description

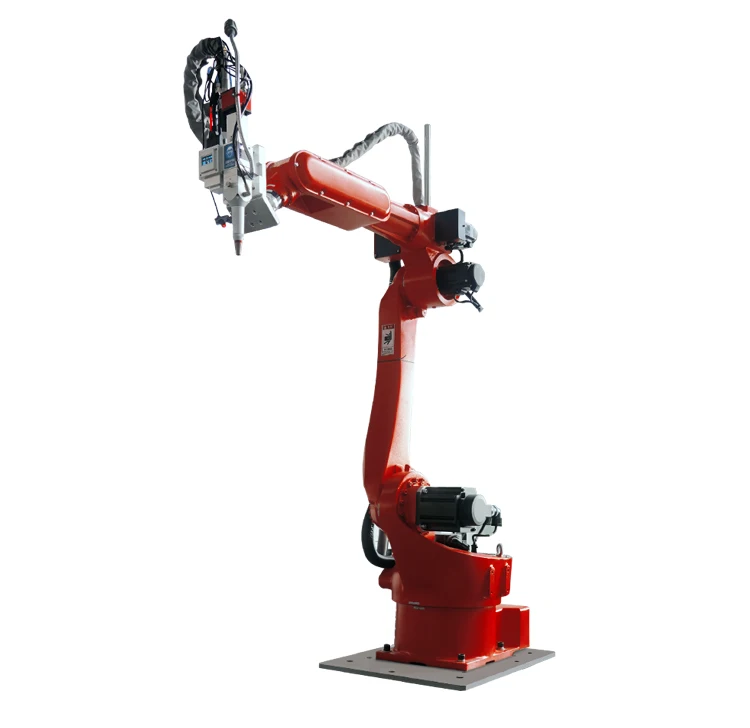

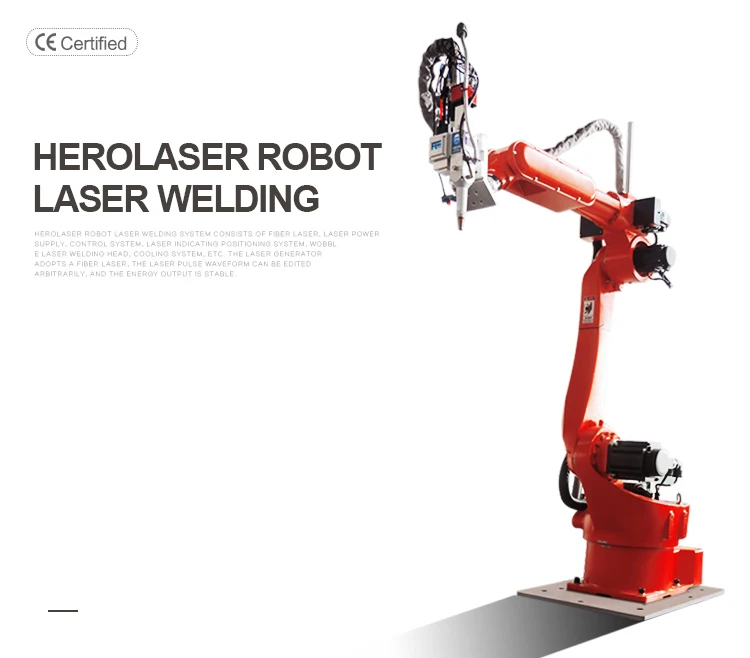

Herolaser robot laser welding
Herolaser robot laser welding system consists of fiber laser, laser power supply, control system, laser indicating positioning system, WOBBLE laser welding head, cooling system, etc.
The laser generator adopts a fiber laser, the laser pulse waveform can be edited arbitrarily, and the energy output is stable.
The laser welding head adopts the laser welding head independently developed by Herolaser, which has very high welding stability and flexibility, and can be rotated 360 degrees.

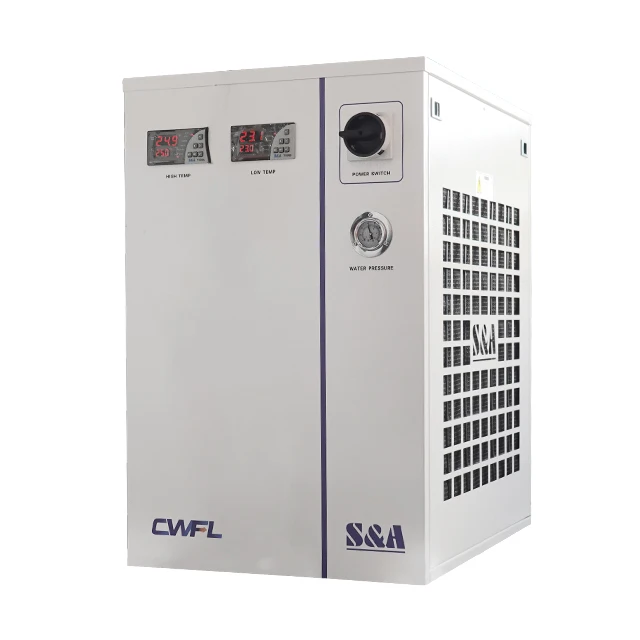

The cooling system of the fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin.
The temperature measuring device detects the water temperature in the water tank in real time and judges whether the water temperature is too high.
If the temperature exceeds the upper limit, the system will automatically turn off the laser to avoid damage to the laser.
After the machine is turned on, the water circulation and the radiator form heat exchange with the outside world, which quickly removes the heat generated when the laser is working, ensuring that the laser is working properly.
The cooling system and the whole machine adopt an integrated design to make the system more concise and occupy a smaller area.
The cooling system and the whole machine adopt an integrated design to make the system more concise and occupy a smaller area.

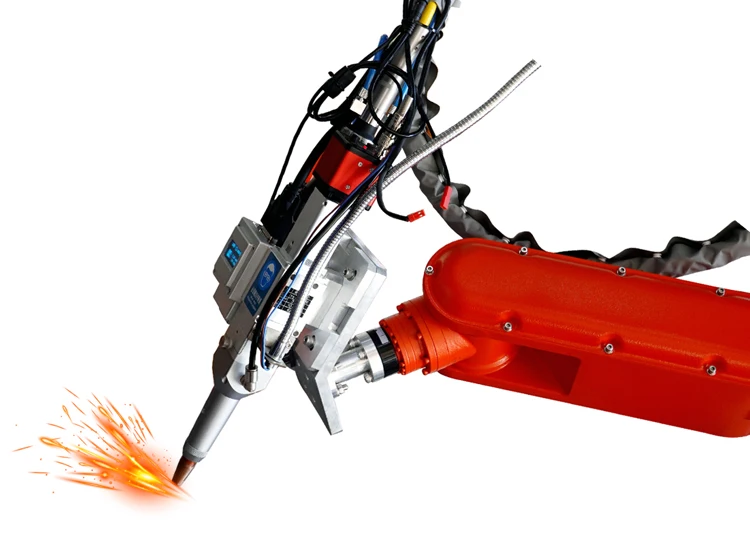

Wobble Welding Head
Wider applications, large workpieces, workpieces with wider welding seams can be welded
Advantages of wobble welding machine technology
1. High quality spot welding 2. The allowable range of weld width is expanded 3.Beautiful weld
4. Can weld a variety of metals 5. Low laser power requirement 6. Process stability

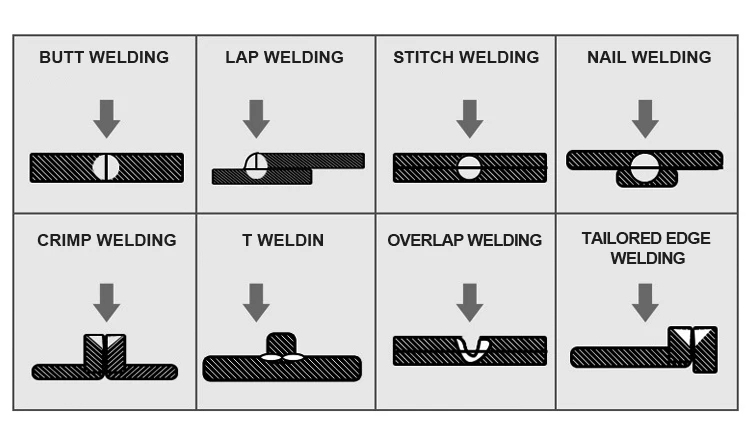

Angle welding of various complex products
It can carry out flexible transmission and non-contact welding for difficult-to-access precision parts, which has great flexibility Adapt to the welding seam, tailor welding, butt welding and stitch welding of various complex products

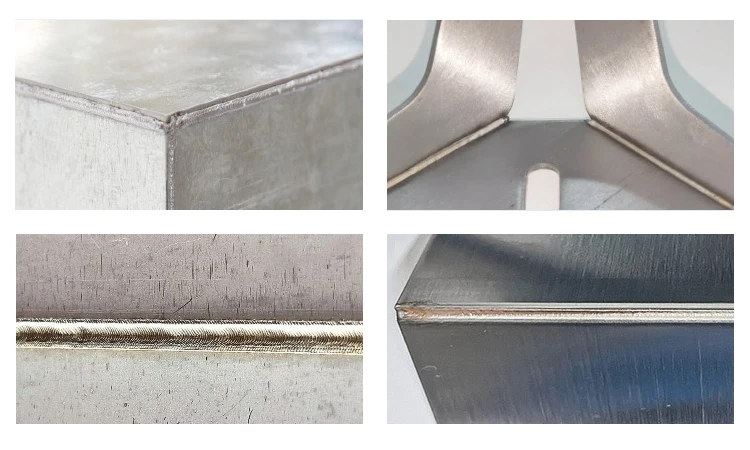

Sample Show
Applicable Industry
Car Manufacturer
Shipbuilding Industry
Metal Processing
Fitness Equipment
Aerospace
Construction Machinery
Installation Instructions
