Product Overview

Description



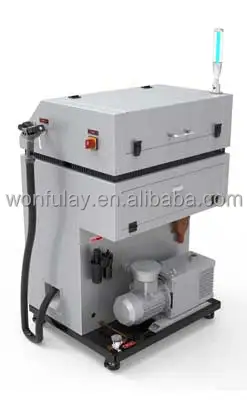

Product Description

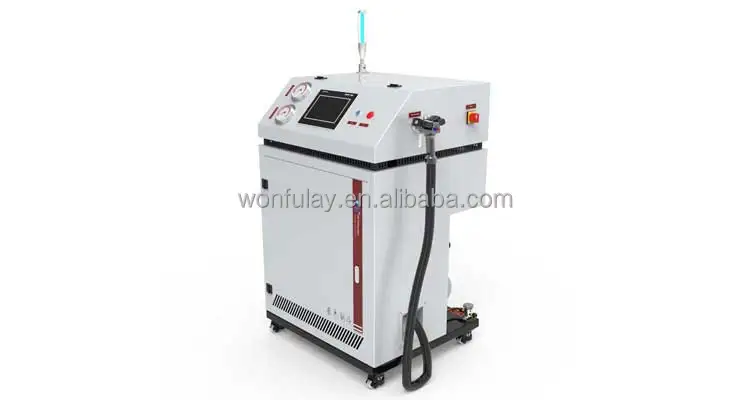

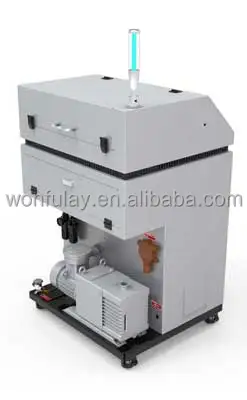

CM8600 series Refrigerant Charging Machine is specially designed for charging refrigerant to refrigeration unit, it's featured by high charging accuracy, easy operation and fast charging speed. The System adopts smart Siemens PLC&touch screen, Inficon vacuum sensor and Schneider electrical instrument, the charging accuracy utilize advanced compensation algorithm technology which make the machine very durable and high precision.

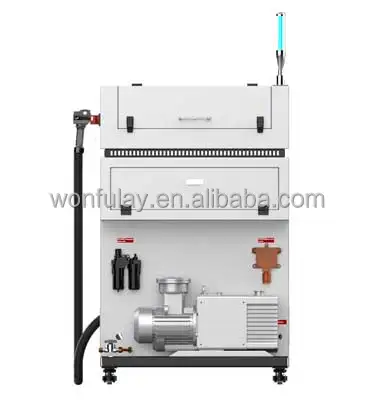

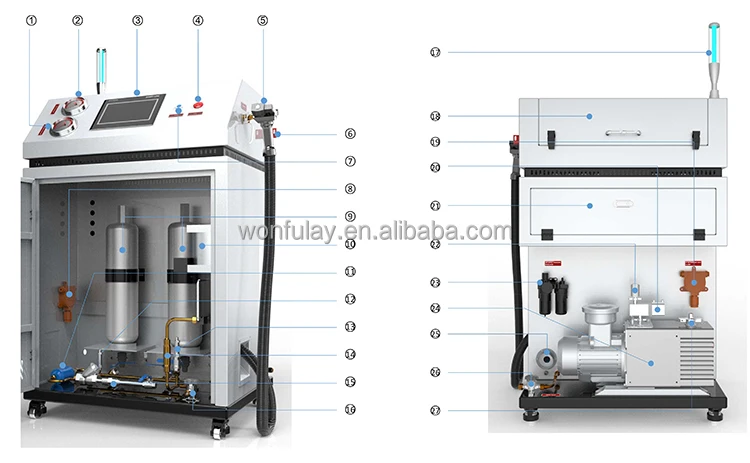

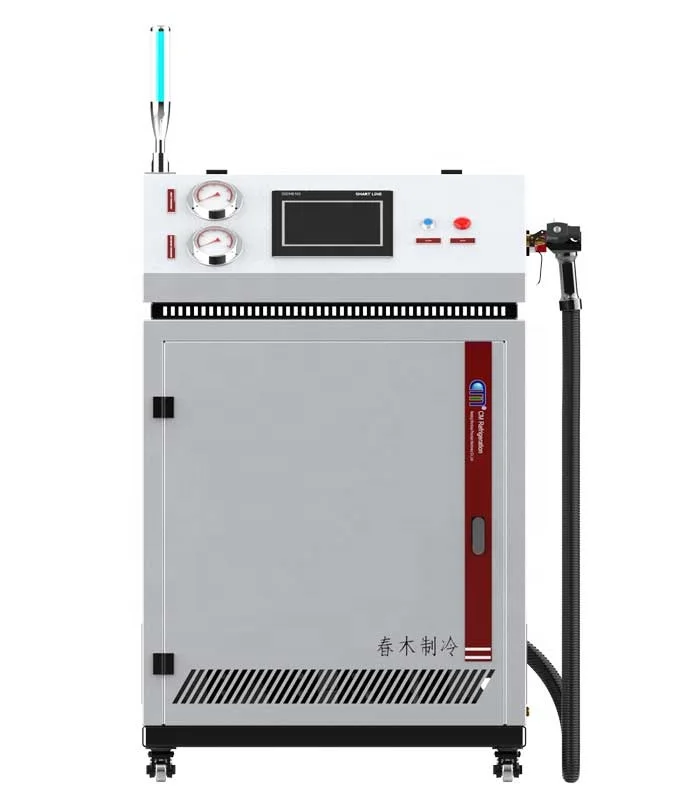

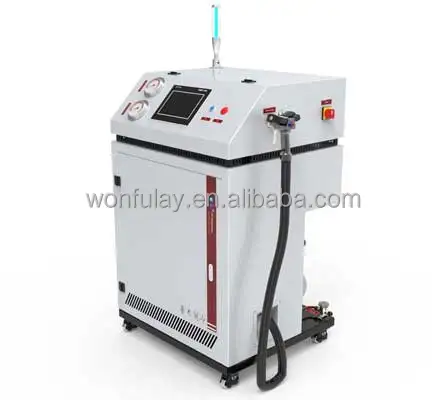

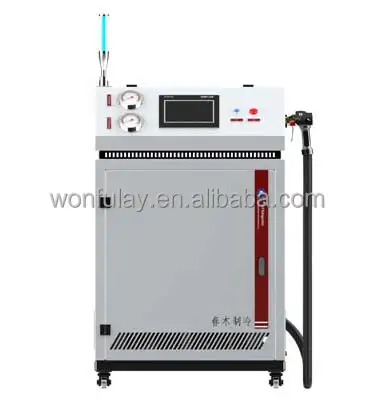

1.
Inlet Pressure Gauge
15.
Flow Sensor
2.
Charging Pressure Gauge
16.
Drainage Valve
3.
PLC Display Screen
17.
Alarm Light
4.
Stop Button
18.
Electric Control Box
5.
Charging Gun
19.
Outer Flammable-gas Leakage Alarm
6.
Power Switch
20.
Pneumatic Vacuum Valve
7.
Start Button
21.
Solenoid Valve Box
8.
Inner Flammable-gas Leakage Alarm
22.
Vacuum Meter
9.
Pressure Stabilizer
23.
Air Pressure Regulating Valve
10.
Booster Pump
24.
Vacuum Pump
11.
Filter Drier
25.
Ventilation Hose Interface
12.
Pressure Sensor
26.
Refrigerant Inlet Valve
13.
Safety Valve
27.
Vacuum Pump Blow Vent
14.
Check Valve



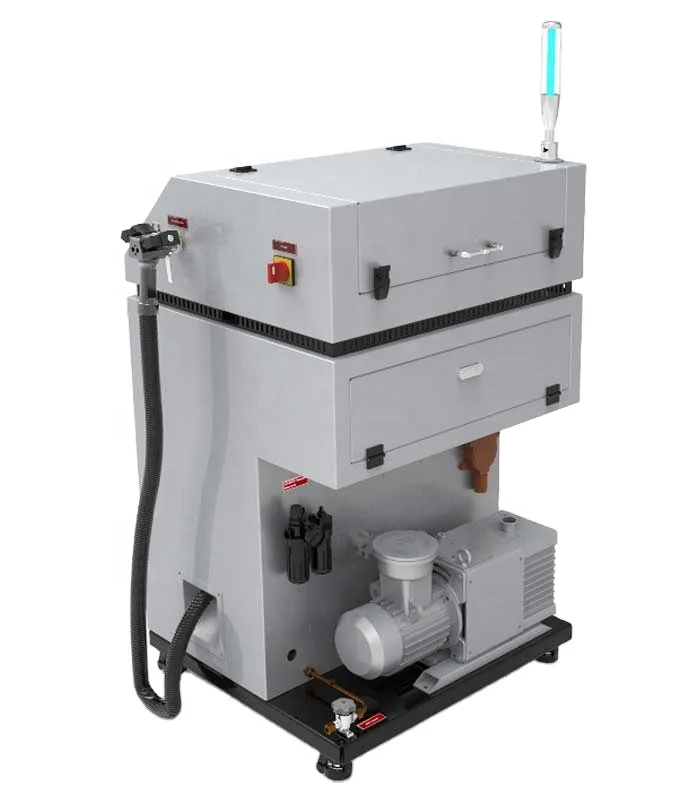

FEATURES


Advantages
1. Application for following refrigerants:
R22/R134A/R410/R290/R600/R448A/R513A/R32/R410A etc;

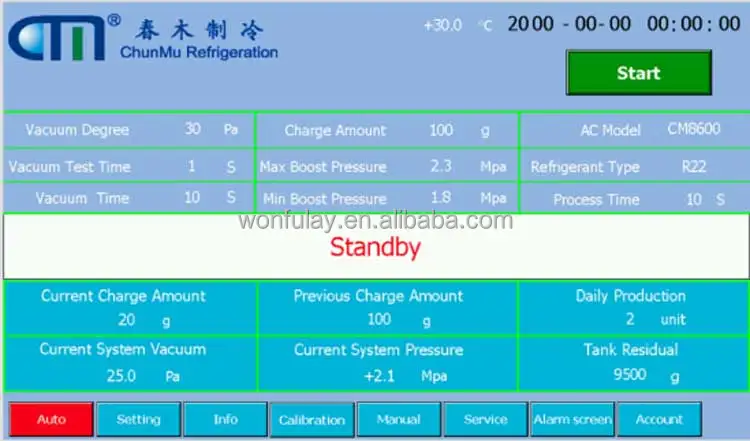

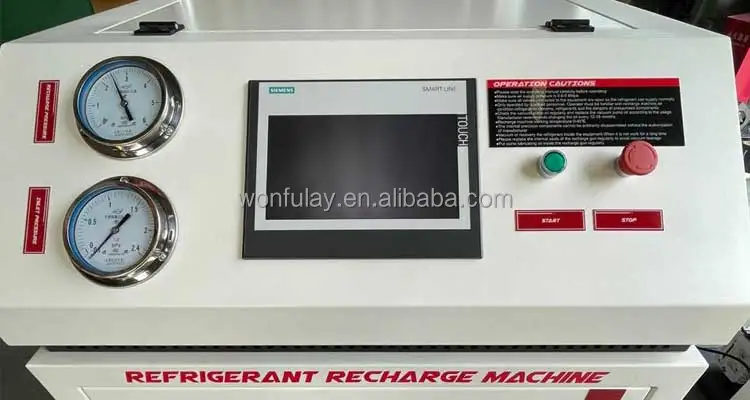

2. Use SIEMENS PLC and touch screen as human-machine dialogue interface;

3. Pneumatic pressurization to prevent refrigerant pollution, ensure stable pressure supply and reliable safety;

4. Using a high-precision flow sensor as a measuring device to ensure the accuracy of refrigerant perfusion;

5. The humanized design of the filling gun, the structure is small and exquisite, light weight, easy for workers to operate, low failure rate and convenient maintenance;


  • Safety Design

1. The electronic control system and the liquid path system adopt a partition isolation design;

2. The liquid storage room is closed and equipped with a ventilation system interface;

3. The booster system is driven by air pressure to prevent safety problems caused by electrical causes;

4. The vacuum system uses pneumatic valves to control the on/off, so as to prevent safety problems caused by electrical cabinet;

5. Equipped with internal&extrnal dual gas leakage detection alarm, high sensing sensitivity and alarm in time.


TECHNICAL SPECIFICATIONS


Model
CM8600
Refrigerant Type
R22/R134A/R410/R290/R600/R448A/R513A/R32/R410A etc;
Working Pressure
1.5~3.8Mpa
Horsepower
0.75kw
Voltage
AC220V~380V, 50HZ/60Hz 3PH
Charging Range
20-9999999g
Charging Speed
60g/s
Charging Accuracy
±0.5g(<100g)
±0.5%(>100g)
Vacuum Pump Flow Rate
8L/S
Required Air Source Pressure
0.5-0.8MPa
Required Air Source Flow
0.5 m3/Min
Working Temp.
-10°C ~ 40°C


WORKING PRINCIPLE


By using the PLC software to control each component, the recharge machine first recognizes whether or not the
refrigerant is stored in the product system, and the operator selects whether to raise according to the prompt content. At
the time of filling, the equipment mainly completes the vacuuming process and reaches the set vacuum degree. After
passing the vacuum leak test, the refrigerant is poured into the product through a certain filling pressure and filling speed.

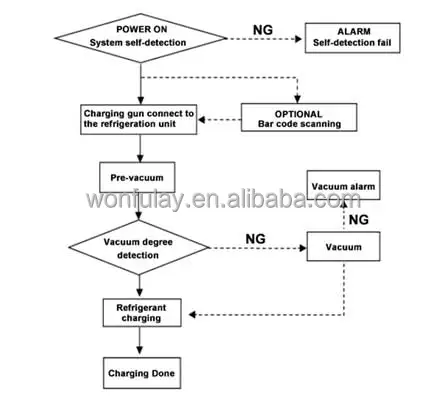

  • Filling Operation Process

1. Power on and the system will start the self-detection automatically, if self-detection failed, then system will alarm and has to check the system data setting

2. Connect charging gun with refrigeration unit

3. Press start button on the filling gun, system will automatically enters the vacuuming, vacuum degree detection and filling process, when the filling is completed, the system issues a work completion signal prompt; if the set evacuation and leak detection process In the process, the vacuum in the system does not reach the set value, the device stops the automatic working procedure (or the operator selects the forced filling), and the alarm sound and light prompt signal is issued.


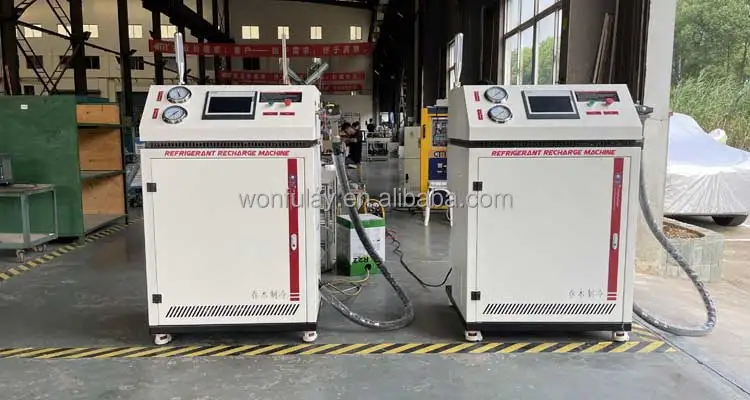

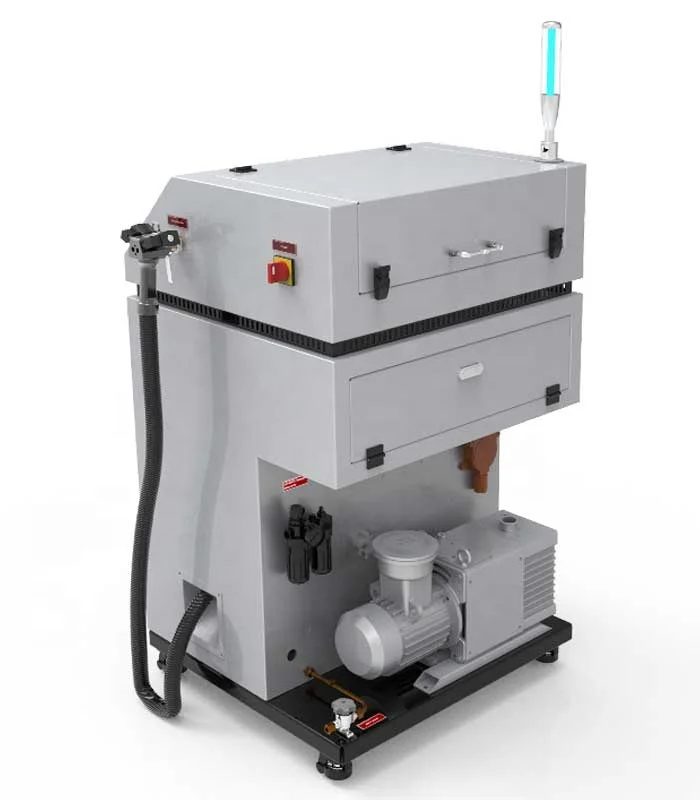

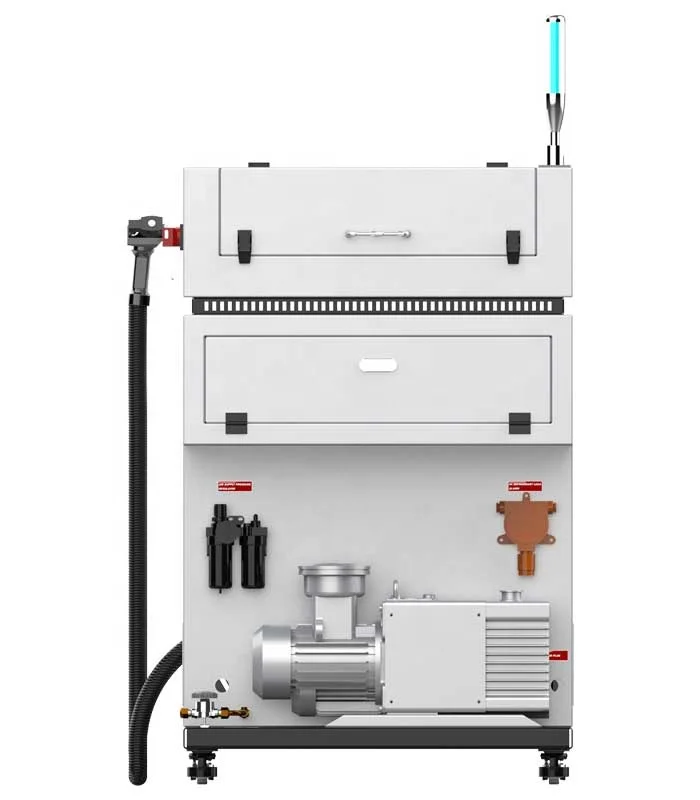

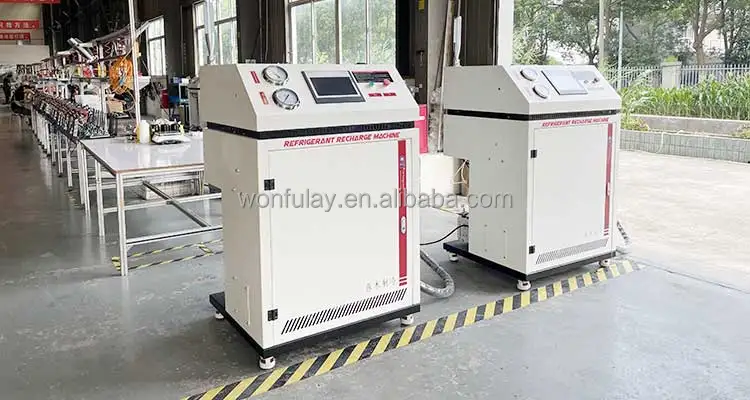

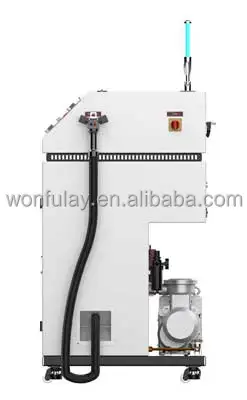

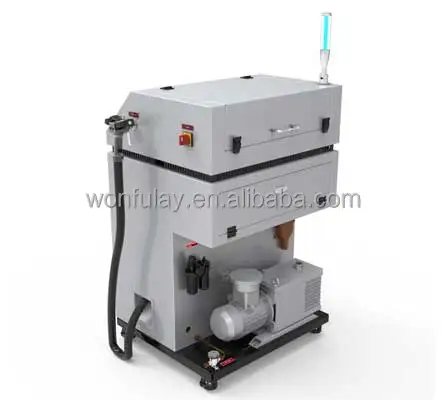

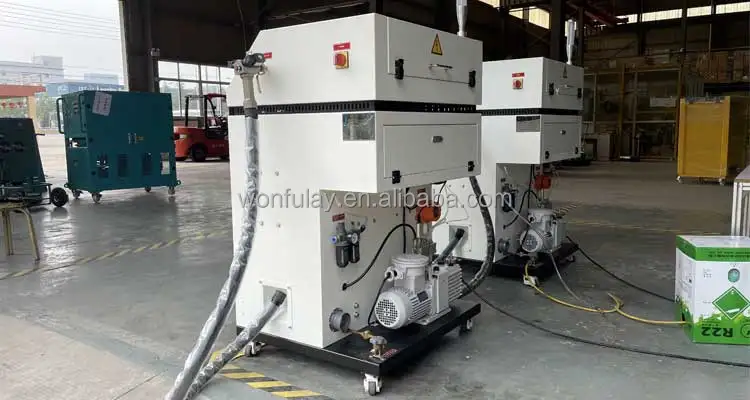

Details Images
