ETM8 M MCB Mini Miniature circuit breaker 6KA Kema 6a 10a 16a 20a overload short AC power safty home high quality Din Rail Mount
- Category: >>>
- Supplier: Wenzhou Etechin Electric Co. Ltd.
Share on (1600464818644):
Product Overview
Description
Products Description

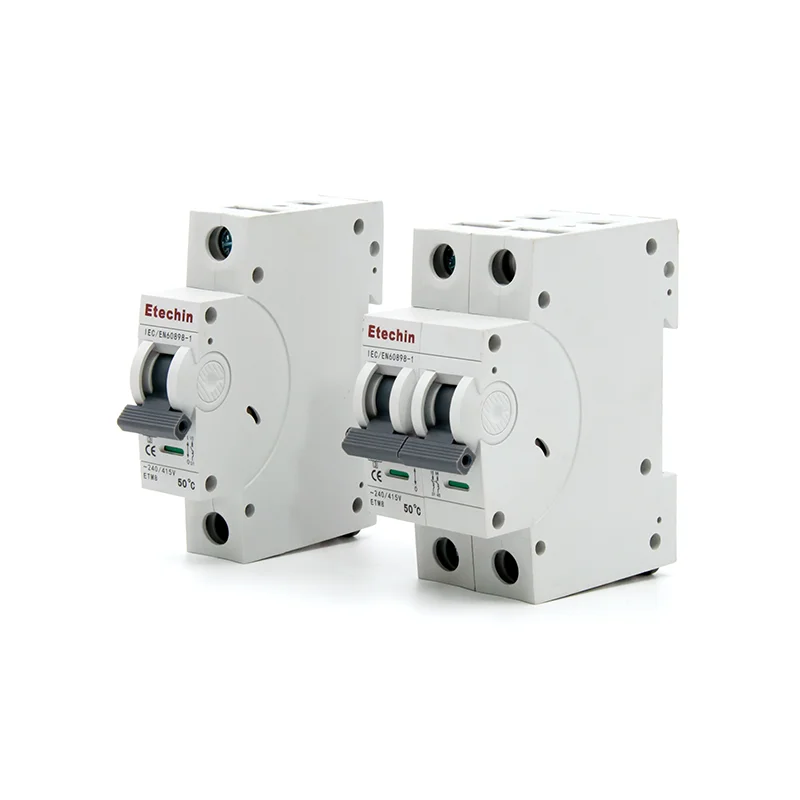

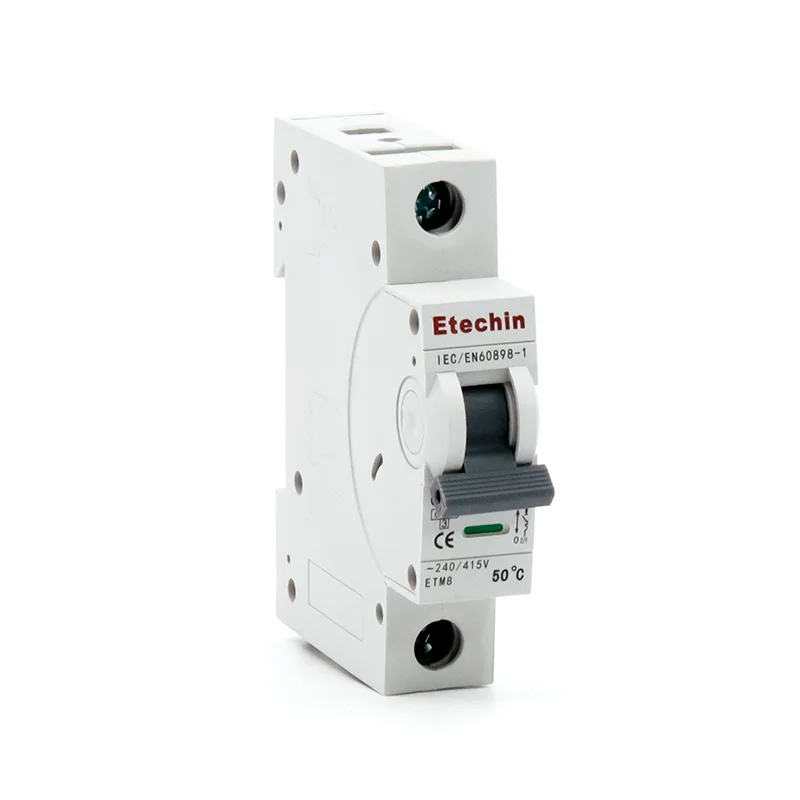

Miniature circuit breaker: ETM8
Miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, rated voltage
230V/400V, 240V/415V and rated current from 1A to 63A.
It also can be used for non-frequent on-and-off switch operation under normal circumstance.
1. In complicance with IEC/EN60898-1
2.With indicator function in the contact position.
3.Advanced structure , reliable performance , high breaking capacity, elegant appearance, and its case and components are made of material which is impact resistant and strong flame-retardant.
4.Bilateral busbar wiring capabilities to adapt to the wider use of premises.
5.Maximum connecting ability of 25mm2, wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger
It is mainly applied at office building, residence, for lighting , power distribution and overload and short circuit protection of equipment.
230V/400V, 240V/415V and rated current from 1A to 63A.
It also can be used for non-frequent on-and-off switch operation under normal circumstance.
1. In complicance with IEC/EN60898-1
2.With indicator function in the contact position.
3.Advanced structure , reliable performance , high breaking capacity, elegant appearance, and its case and components are made of material which is impact resistant and strong flame-retardant.
4.Bilateral busbar wiring capabilities to adapt to the wider use of premises.
5.Maximum connecting ability of 25mm2, wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger
It is mainly applied at office building, residence, for lighting , power distribution and overload and short circuit protection of equipment.
SPECIFICATION | ||||||
Standard | IEC/EN 60898-1 | |||||
Electrical features | Rated current in | A | ( 1 2 3 4) 6 10 16 20 25 32 40 50 63 | |||
Poles | 1P 2P 3P 4P | |||||
Rated voltage Ue | V | 230/400,240/415 | ||||
Insulation coltage Ui | V | 500 | ||||
Rated frequency | Hz | 50/60Hz | ||||
Rated breaking capacity | A | 6/10KA | ||||
Rated impulse withstand voltage (1.2/50)Uipm | V | 6000 | ||||
Dielectric test voltage at and ind.Freq.for 1min | KV | 2 | ||||
Pollution degree | 2 | |||||
Themo-magnetic release characteristic | B C D | |||||
Mechanical features | Electrical life | above 4000 | ||||
Machanical life | above 10000 | |||||
Contact position indicator | Yes | |||||
Protection degree | IP 20 | |||||
Reference temperature of setting of thermal element | °C | 30 or 50 | ||||
Ambient temperature(with daily average≤35°C) | °C | -5~+40 | ||||
Storage temperature | °C | -25...+70 | ||||
Installation | Terminal connection type | Cable/U-type busbar/Pin-type busbar | ||||
Terminal size top/bottom for cable | mm² | 25 | ||||
AWG | 18-3 | |||||
Terminal size top/bottom for busbar | mm² | 25 | ||||
AWG | 18-3 | |||||
Tightening torque | N*m | 3.0 | ||||
In-lbs. | 22 | |||||
Mounting | On DIN rail FN 60715(35mm) | |||||
by means of fast clip device | ||||||
Connection | From top and bottom | |||||
