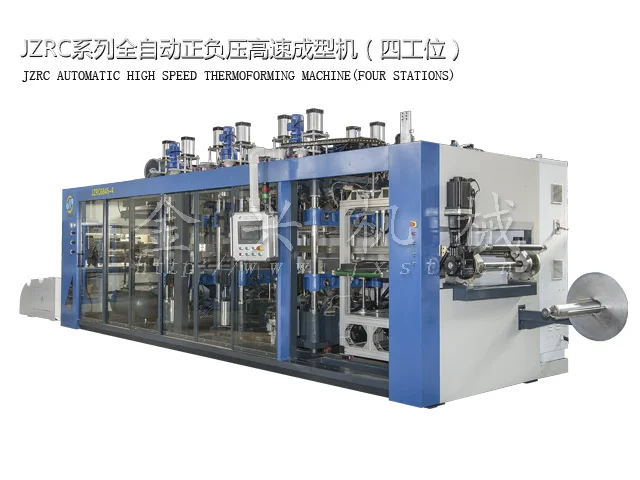

JinXin brand automatic high speed four station fast food box making machine

Product Overview

Description

JinXin brand automatic high speed four station fast food box making machine



Parameters

Mode/Parameter	720/650
Available Material	PS/PP/PVC/PET/ABS
Forming Area(mm)	720*650
Forming Depth(mm)	120
Production Rate(Cycles/Minute)	15-30
Max. Sheet Width(mm)	720
Sheet Thickness(mm)	0.2-1.5
Total Power(kw)	≤ 140
Air Pressure(Mpa)	0.7
Dimension(m)	13.2*2.2*3.5
Total Weight(T)	45

Function

1.This machine adopts the latest international plastic sheet molding technology and crafts.

2.The whole set adopts Yaskawa servo motion controller, including motion, temperature control, the mold guide head, temperature sensing detection, man-machine interface operation, and tunnel type heating.

3.It is suitable for the concave and the convex mold forming, which adopts the integration of positive and negative air pressure, laser blade cutting, heat forming and mould cutting.

4.There is three processing parts: forming, cutting, stacking. Each part adopts the advanced technology and operates simultaneously. With modular design conception, adds more technology and crafts to the products as the request of customers.

5.It is available for PS, PP, PVC, PET,ABS different kinds of plastic sheet which with the positive and negative air pressure forming and processing high transparency, high stretching, shallow stretching, various geometrical rotation products.It also produces different kinds of pots, dishes, trays, bowls and lids, etc.

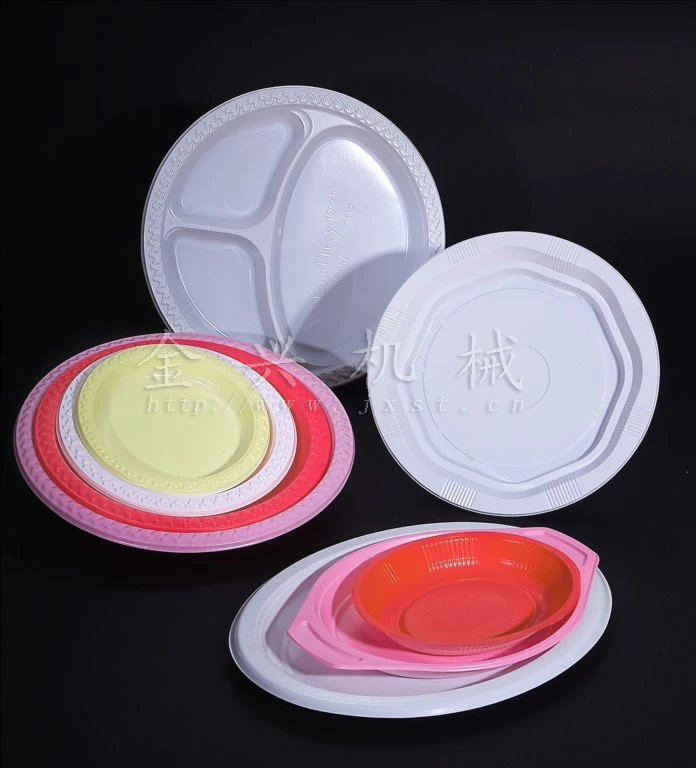

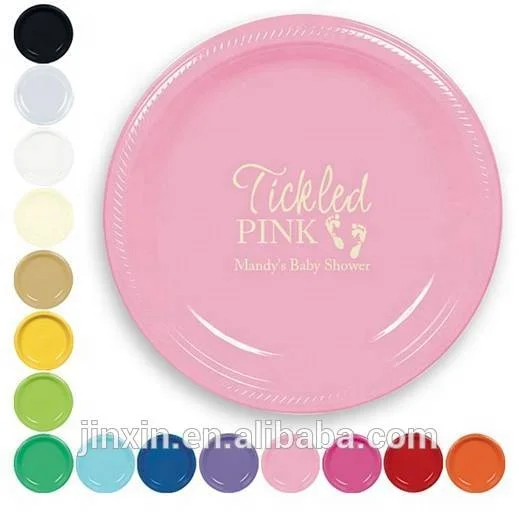

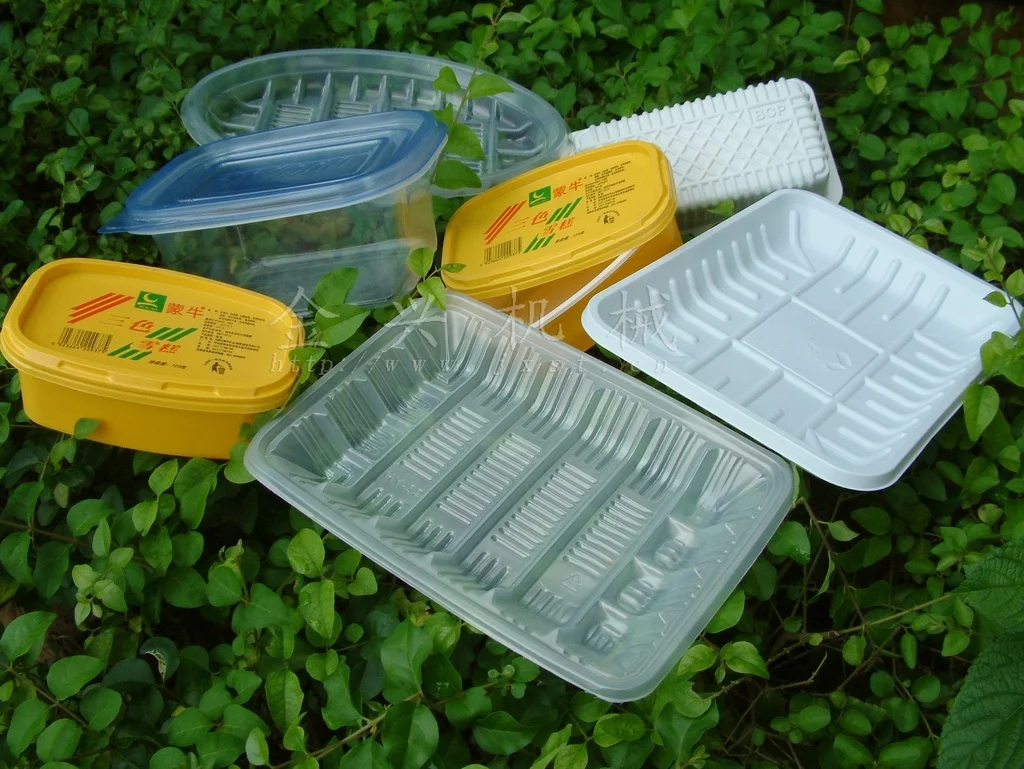

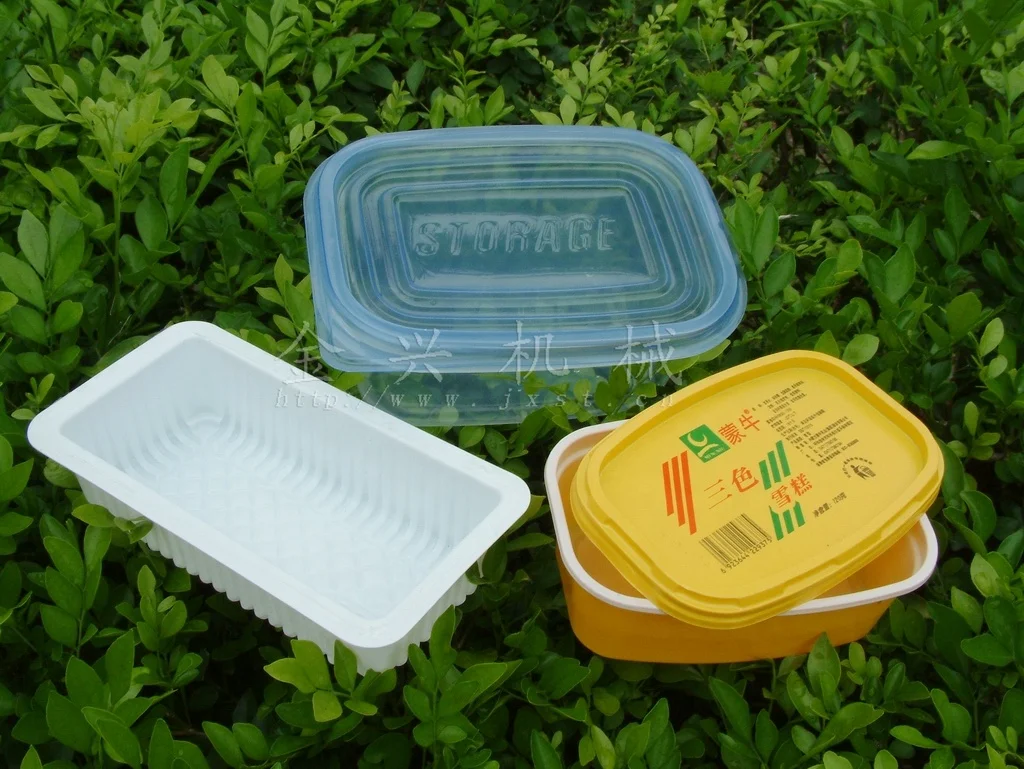

Some samples
