Bioreactors 10000l 100000l 50l 100l fermentor bioreactor 2000l 100l 300l 1000l 10000 100000 l 500 l 500l 20000l 200l 10l 20l
- Category: Chemical & Pharmaceutical Machinery >>>
- Supplier: Labfirst,Scientific,Instruments,(shanghai),Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Lab1st offers you not only with scalable range of glass and stainless steel bioreactors, but also with multi-parallel and multistep bioreactors. Based on our thorough understanding of bioreactors, rich experience for scaling up benchtop fermentors to processing system, and excellent control system for temperature, rpm, PH, DO, antifoam, feeding, aeration and pressure, you will benefit from our turnkey solution service.
Technical Data
Controller Technical Data
Control Unit | BR100-M1 | BR100-M2 | BR100-C1 | BR100-C2 | BR500-M1 | BR500-M2 | BR500-C1 | BR500-C2 | |||||||
Digital controller, colored touch screen | ● | ||||||||||||||
Temperature, DO, agitation speed | ● | ||||||||||||||
Adding acid/alkali/CO2 to control PH | ● | ||||||||||||||
Rotameter | ● | ||||||||||||||
Low noise stirring motor | ● | ||||||||||||||

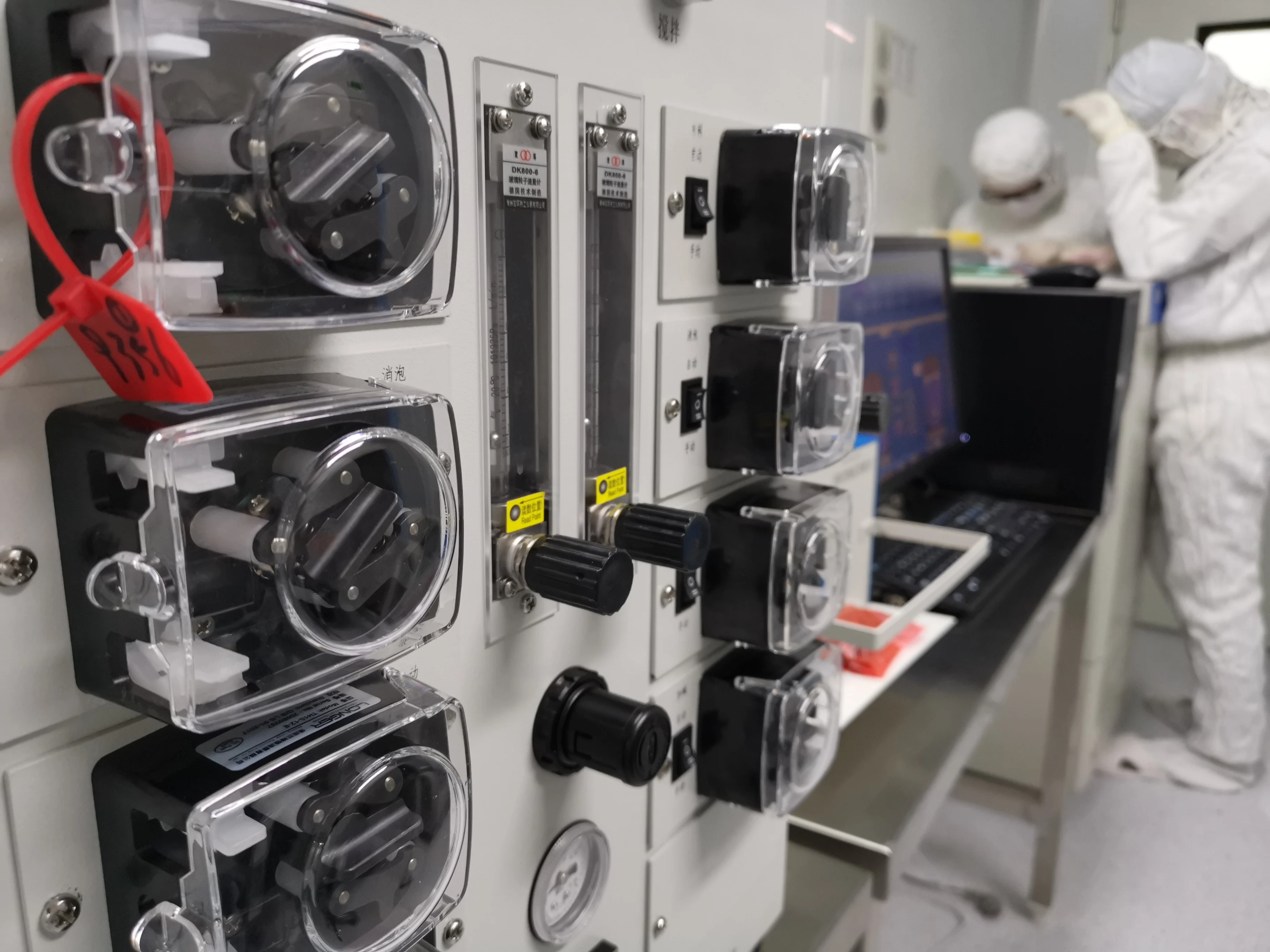

Peristaltic pump | 4pcs | 8pcs | 4pcs | 8pcs | 4pcs | 8pcs | 4pcs | 8pcs | |||||||
Adjusting PH (acid/alkali), deform, feeding | |||||||||||||||
Culture Vessel | 1L | 2L | 3L | 5L | 7L | 10L | |||||
H:D ratio | ≈1:2 | ||||||||||
Total volume | 1.1L | 2.7L | 3.5L | 5.8L | 7.9L | 11.2L | |||||
Working volume | 0.8L | 2.0L | 2.6L | 4.4L | 6.0L | 8.4L | |||||
Minimal working volume | 0.3L | 0.7L | 0.9L | 1.5L | 2.0L | 2.8L | |||||
Agitation speed range | 5~1000rpm | 5~1000rpm | 5~1000rpm | 5~1000rpm | 5~1000rpm | 5~1000rpm | |||||
Motorpower | 0.18Kw | 0.4Kw | 0.4Kw | 0.4Kw | 0.4Kw | 0.75Kw | |||||
Impeller to vessel diameter ratio | 1:02 | ||||||||||
Surface treatment | Inner vessel Ra ≤ 0.4 um，Outer surface Ra＜0.6 um | ||||||||||
Material | Pressure | SUS316L, Borosilicat glass| | 0.10Mpa（Max 0.15Mpa） | ||||||||||
Culture Vessel | 10L | 15L | 20L | 30L | 50L | 100L | |||||
H:D ratio | 1:2.2~2.8 | ||||||||||
Total volume | 13 | 18 | 27 | 34 | 58 | 132 | |||||
Working volume | 9.8L | 13.5L | 20.3L | 25.5L | 43.5L | 99L | |||||
Minimal working volume | 3.3L | 4.5L | 6.8L | 8.5L | 14.5L | 33L | |||||
Agitation speed range | 5~1000rpm | 5~1000rpm | 5~1000rpm | 5~1000rpm | 5~800rpm | 5~700rpm | |||||
Motorpower | 0.75 | 1 | 1 | 1 | 0.75 | 1.5 | |||||
Impeller to vessel diameter ratio | ≈1:2.2~2.8 | ||||||||||
Our Advantages
Recommend Products
About Us
Labfirst Scientific (Lab1st) was founded and based in Shanghai, committed to providing first-class equipment for customers in the chemical and pharmaceutical industry. Our product lines range from laboratory & pilot scale to industrial scale and mainly focus on the fine chemicals, biological fermentation, plant extraction and other related fields, to provide all kinds of equipment and turnkey solutions.
Our core products mainly include molecular distillation equipment, falling film evaporator, bioreactor, plant extractors, various reactors, temperature control equipment and other supporting equipment.
Our core products mainly include molecular distillation equipment, falling film evaporator, bioreactor, plant extractors, various reactors, temperature control equipment and other supporting equipment.

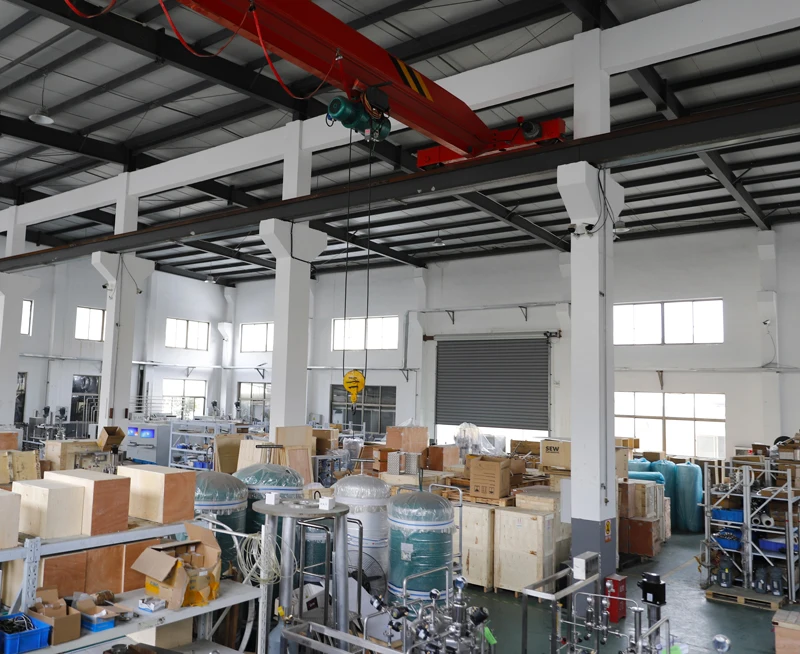

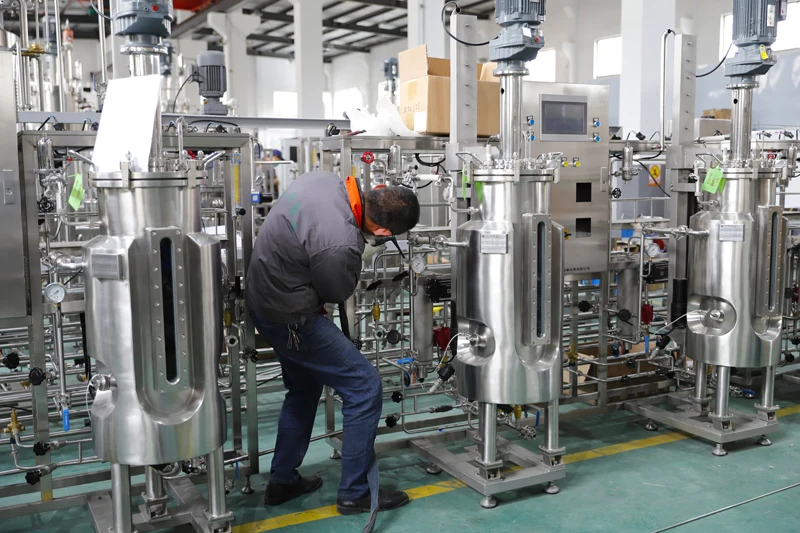

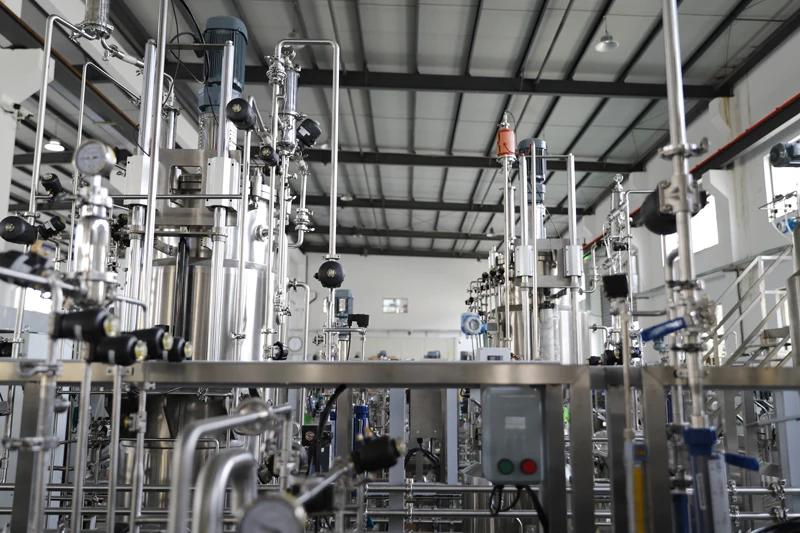

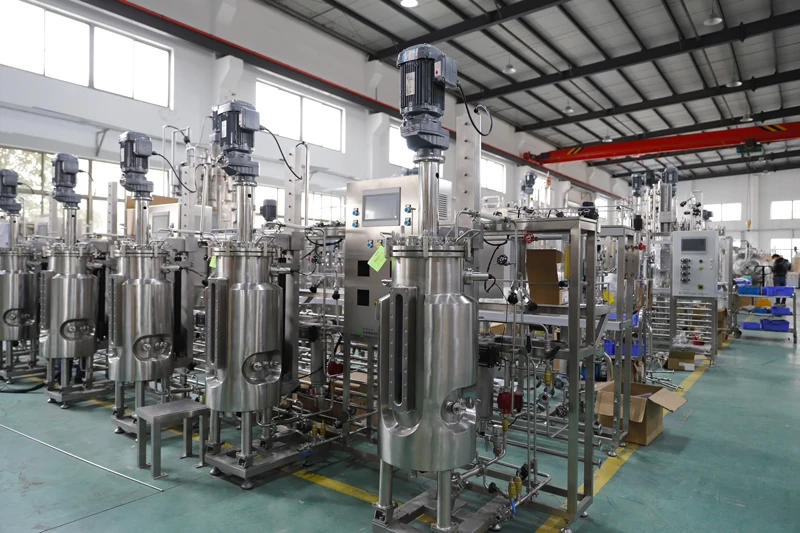

Factory Display

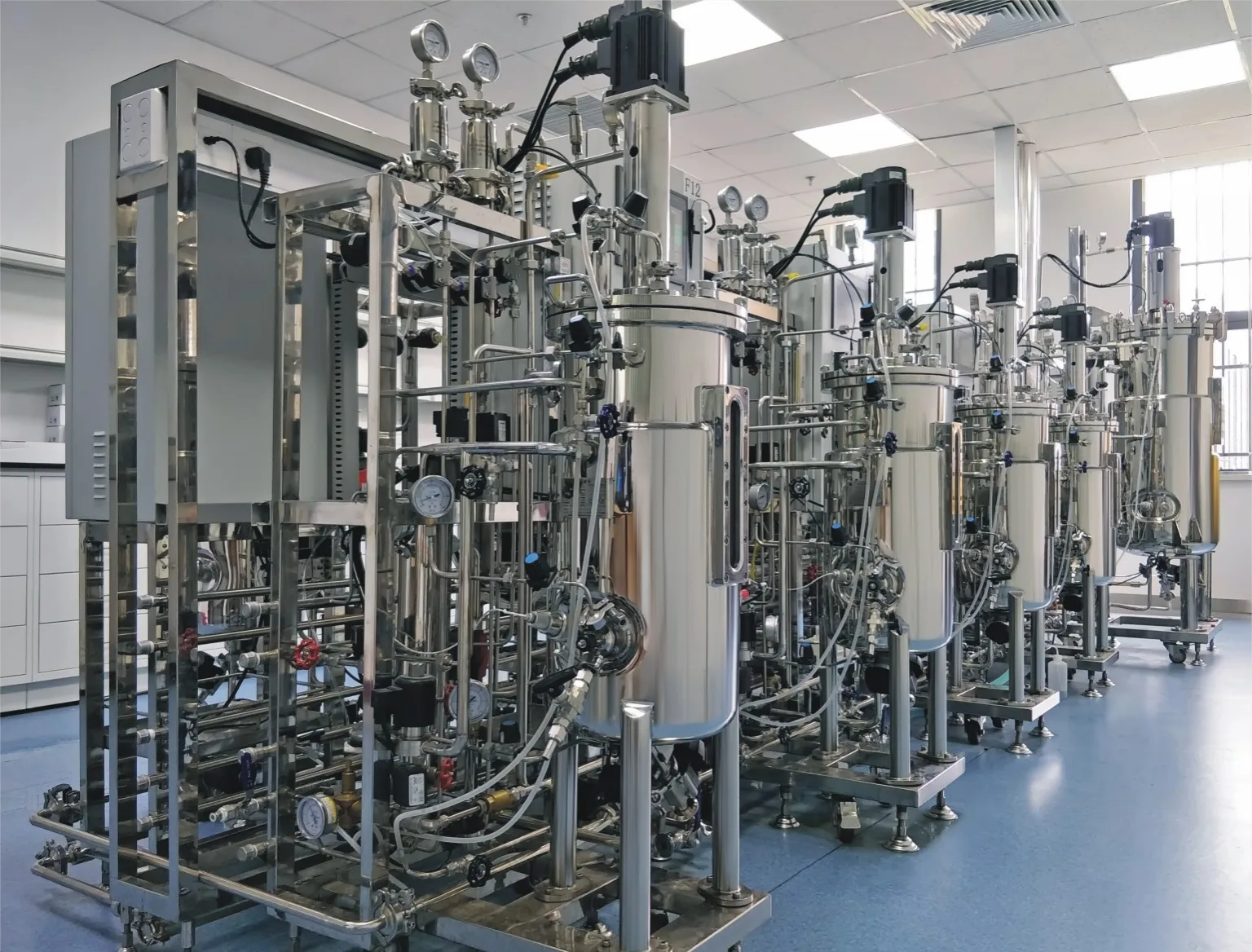

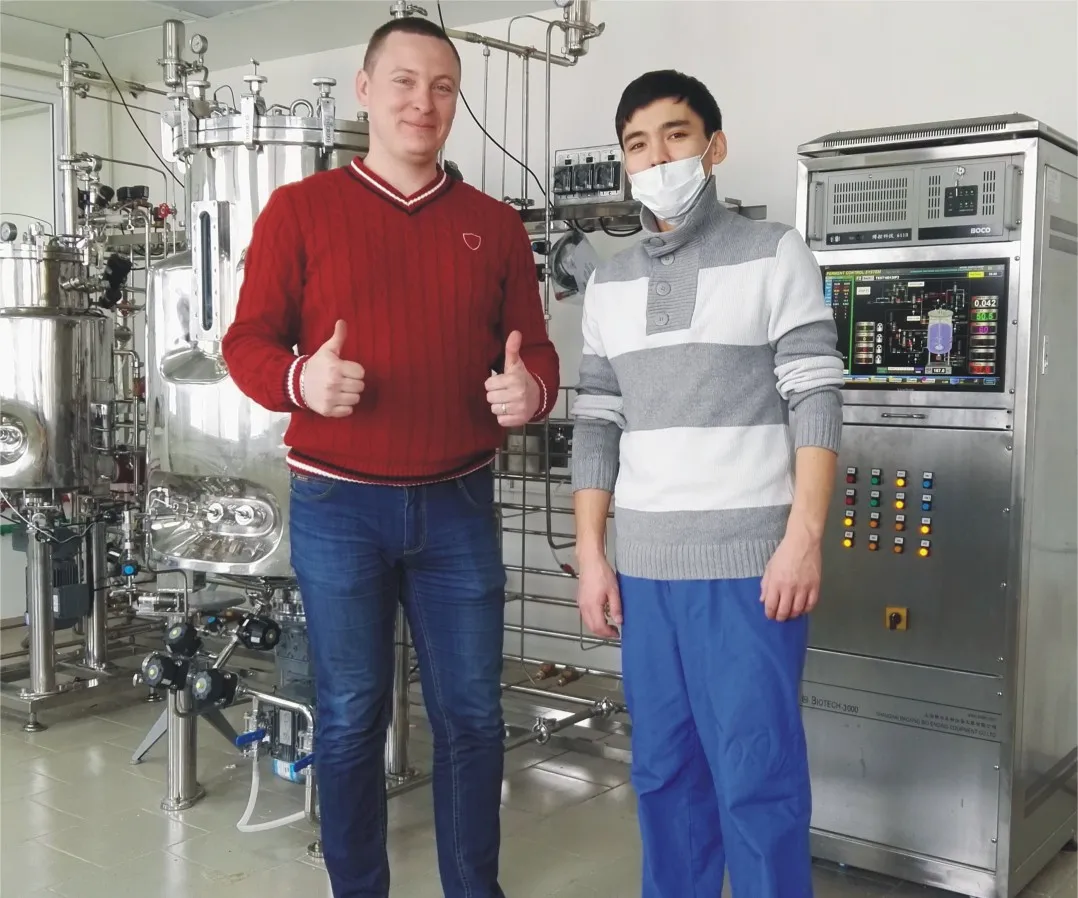

Cooperation Cases
