Product Overview

Description


Vertical Agitator






Vertical Agitator For Liquid Mixing



Product Description


Vertical Agitator





Vertical Agitator Features:


•The motor output power 0.1~2.2kw power strong, high efficiency





Technical data & External dimensions Of Vertical Agitator:





































































MODEL



Power



Length of Shaft



Axial Diameter



Diameter of Blade



Rarefied Liquid



Medium Viscosity



QL9001



0.1



600



16



100



600



200



QL9002



0.2



800



19



120



1200



400



QL9003



0.4



1000



22



130



2500



600



QL9004



0.75



1200



28



150



5000



1300



QL9005



1.5



1200



32



170



10000



3000



QL9006



2.2



1400



40



180



15000



5000






Vertical Agitator Accessories:


Vertical Agitator











FAQ

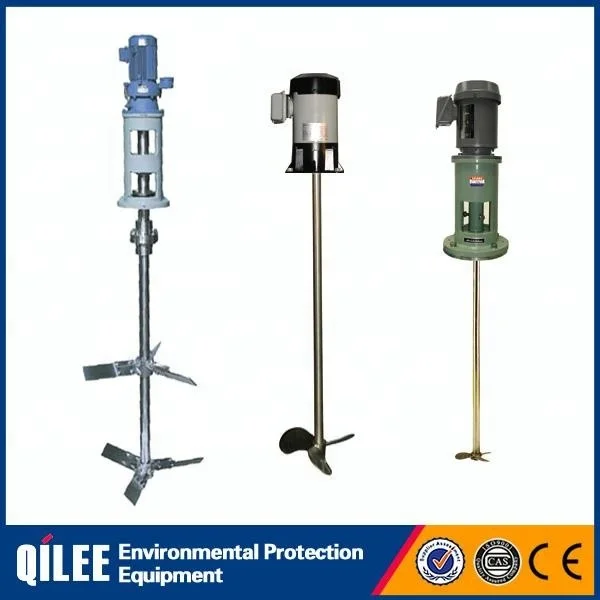

The normal agitator types?


Vertical type, portable type, side entry type.




Could you make pneumatic agitator?


Yes, we could make electric agitator and pneumatic agitator.




What’s the material of agitator?


Our standard material for agitator is SUS304, according to the media and requirements of customer, we would suggest if it needs to be made by SUS316 or needs rubber coating.




What’s the motor of agitator?


We would choose the motor brand according to customer advice, and suggest if it needs ex-proof motor according to media and application site.




How to choose the model?


Advise the mixing media, dimension of tank, type and other special technical data, then we will design and choose the suitable model for you.






FAQs


←











Related Products





Vertical Agitator

Vertical Agitator

Vertical Agitator

Vertical Agitator









Packaging & Shipping




PACKAGE:


Standard export carton packing.


DELIVERY TIME:


3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
