Automatic Capsule Open And Taking Machine for Recycle Medicine Powder
- Category: >>>
- Supplier: Sinoped Technology (shenyang) Co. Ltd.
Share on (1600464859610):
Product Overview
Description
Products Description

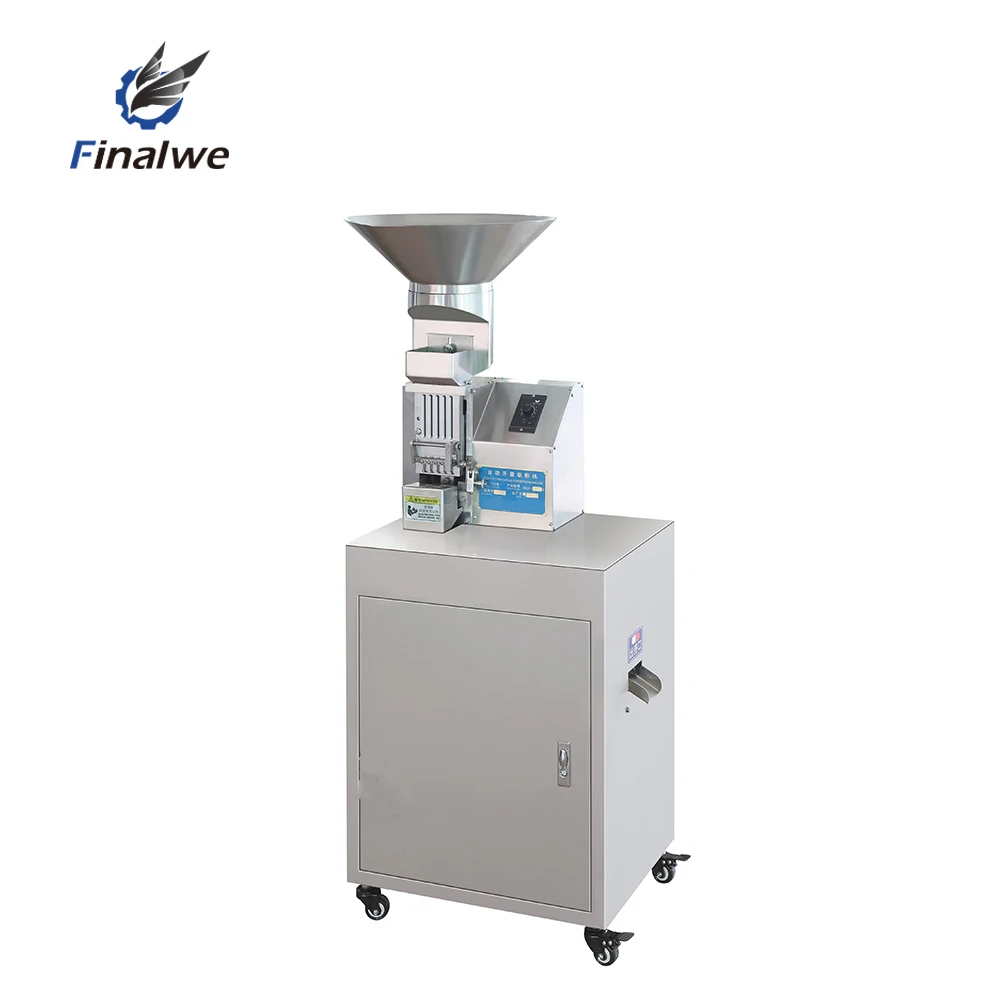

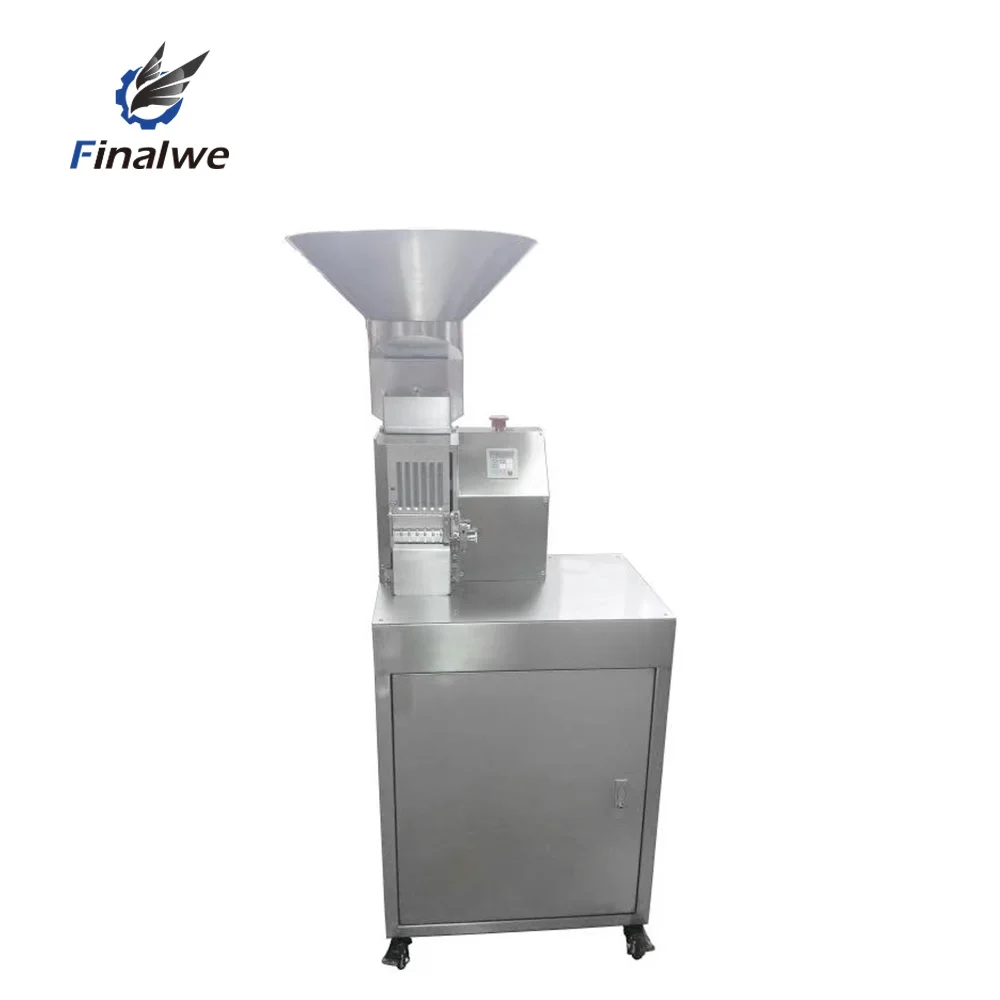

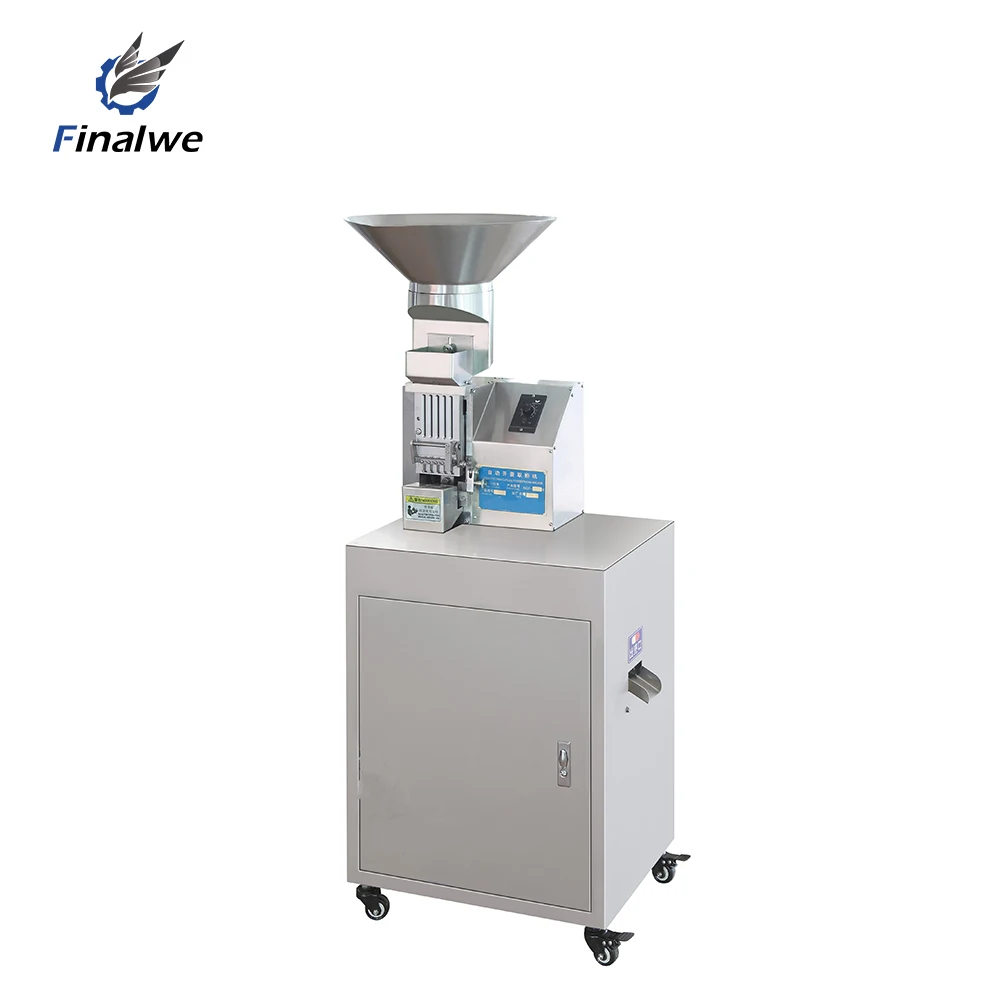

FW-QF Automatic Capsule Separating Machine
Which is built to replace the traditional way of milling, sieving and retrieving powder.
Our machine is first of its kind to separate and retrieve round pellets and micro-tablets.
⑴ This machine conforms to GMP norm and has high work efficiency;
(2)This machine applies the simulative artificial pulling principle for design to avoid the malpractice that other similar devices use the cutting principle to generate capsule fragments;
(3)This machine replaces the traditional processing mode and conforms to the ergonomic design. It is suitable for manufacturers with high yield, expensive powders, and strict requirements;
(4)With the small volume, this machine is easy to clean and maintain.
(2)This machine applies the simulative artificial pulling principle for design to avoid the malpractice that other similar devices use the cutting principle to generate capsule fragments;
(3)This machine replaces the traditional processing mode and conforms to the ergonomic design. It is suitable for manufacturers with high yield, expensive powders, and strict requirements;
(4)With the small volume, this machine is easy to clean and maintain.
Before
After
After

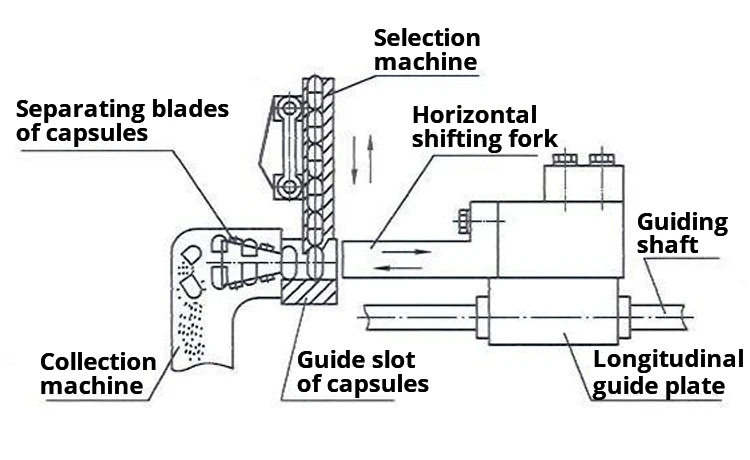

Work Principle of Machine
Entering the capsule from the filling capsule guide groove, is pushed into the fork by horizontal separating means and gradually move forward as the capsule, the separating means separating the blades are stuck on the capsule body, the cap both ends of the capsule the blade is formed along the outer sheets type track forward, until the capsule body, cap completely separated.
Specification

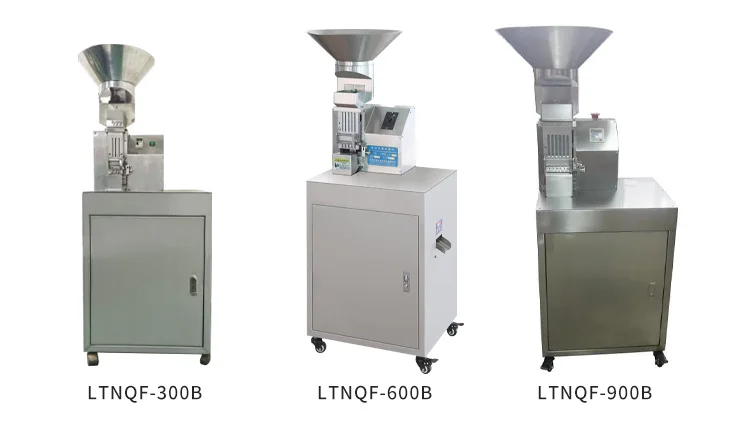

Model | FW-QF300B | FW-QF600B | FW-QF800B |
Scope of capsule numbers | 00#-4# | 00#-4# | 00#-4# |
Work efficiency | 100-300particles/min | 400-600particles/min | 600-800particles/min |
Power requirement | 220V，50HZ,1A | 220V，50HZ,1A | 220V，50HZ,1A |
Power rating | 180W | 180W | 180W |
Outline dimension | 500×600×1200mm | 500×600×1200mm | 500*700*1200mm |
Weight of equipment | 45kg | 45kg | 55kg |
Equipment material | SS304 | SS304 | SS304 |
Warranty | 5 year | 5 year | 5 year |
Product Details
Capsule hopper
Control panel
Machine inside
Empty capsule outlet
Powder hopper & storage bucket
Capsule Separating part
