SEETEC ATEM173S 17.3 inch Multi camera Broadcast Monitor 3G SDI HDM Full HD 1920x1080 Desktop LCD Monitors
- Category: >>>
- Supplier: Fuzhou Weishijie Camera And Equipment Co. Ltd.
Share on (1600464876533):
Product Overview
Description
Recommend Products
Products Description
17.3”3G-SDI/HDM Broadcast Director Monitor
Complete solution for multi-camera on set shooting, monitoring and post production
SEETEC ATEM173S is a full HD broadcast monitor, equipped with 4x3G-SDI inputs and outputs, 1 x HDMI input interface and RS485, GPI control interface. Adopts Rec.709 color standard, display vivid images and professional effects. Rugged and durable aluminium housing; With 3D-LUT, waveform, vectorscope, histogram, peaking focus and other wonderful functions, all of functions can be easily operated and controlled via the front panel buttons. It supports VESA standard, and can be bracket-mounted or wall-mounted installation. It is an ideal monitor for live production, broadcast and post-production!

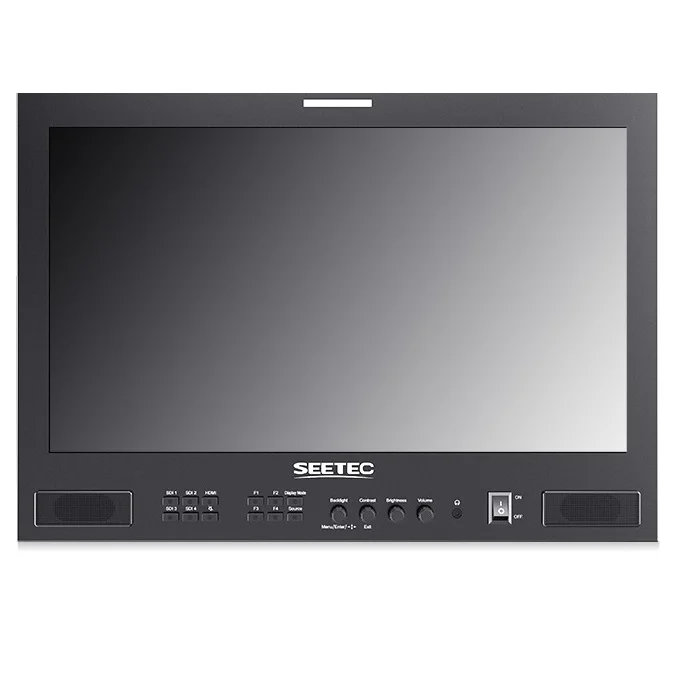

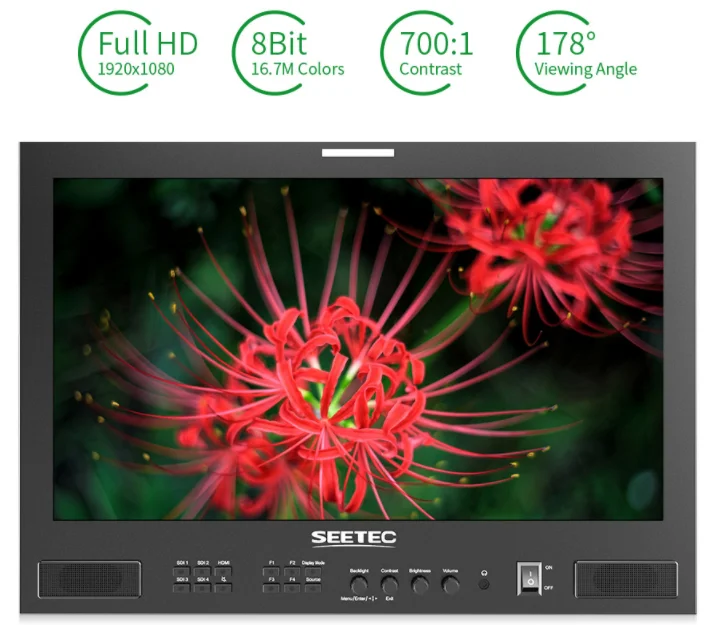

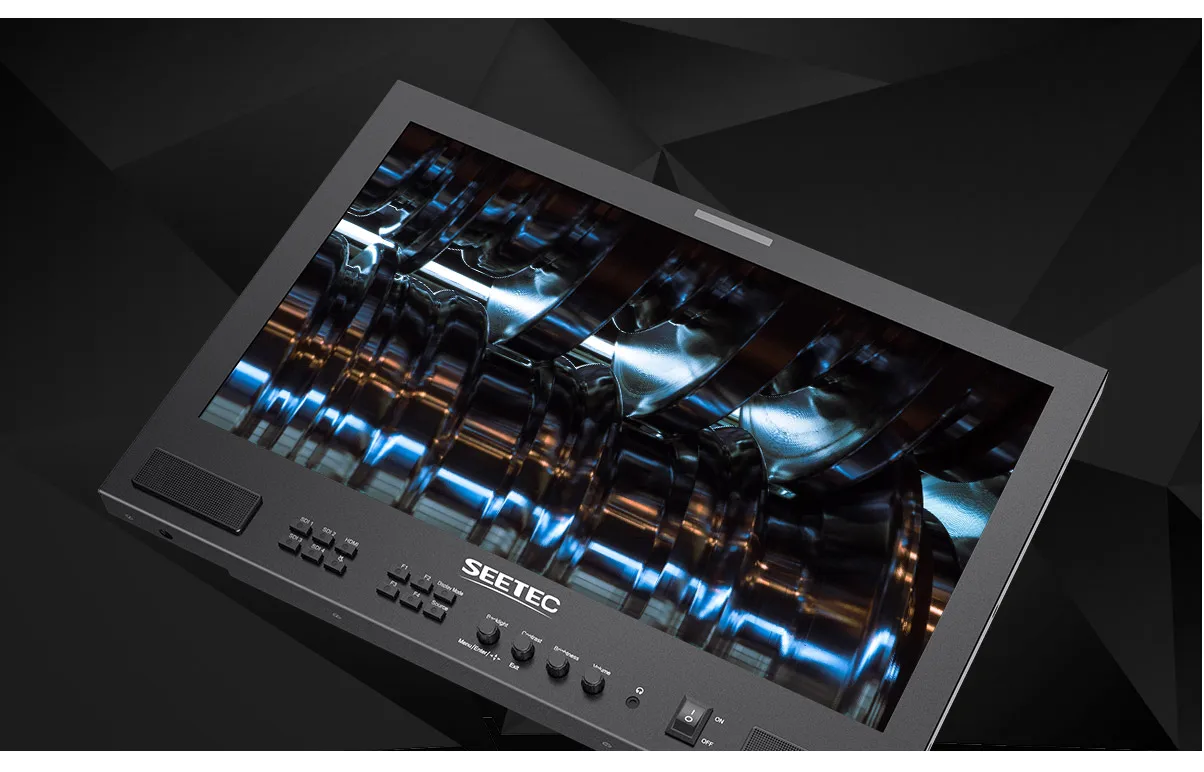

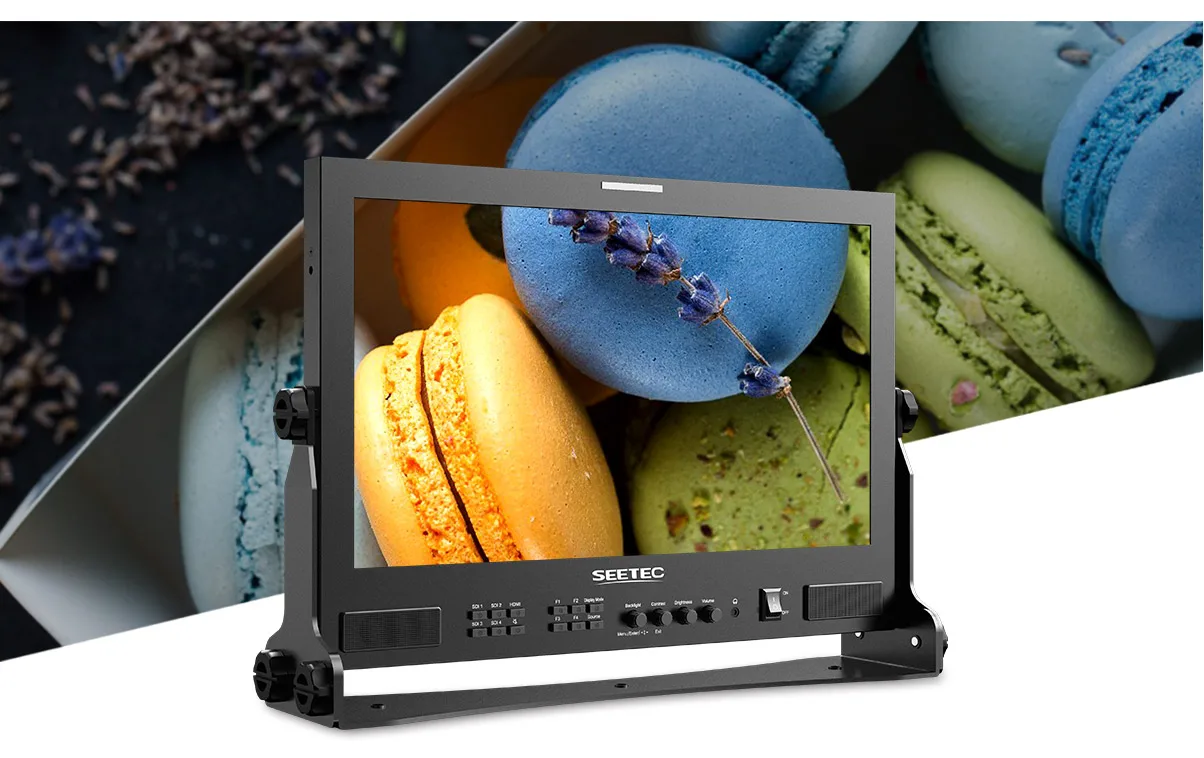

17.3-inch Full HD LCD
The ATEM173S adopts a 17.3-inch LCD panel, with high resolution 1920x1080, accurate color reproduction, provides you natural and clear image; 300cd/㎡ brightness, 700:1 contrast ratio, 178° wide viewing angle, allows you to see clearly no matter you monitor from which angle.
Rugged and durable, easy to dissipate heat
The full aluminum alloy frame not only make the device more solid and durable, but also solve the problem of heat dissipation.

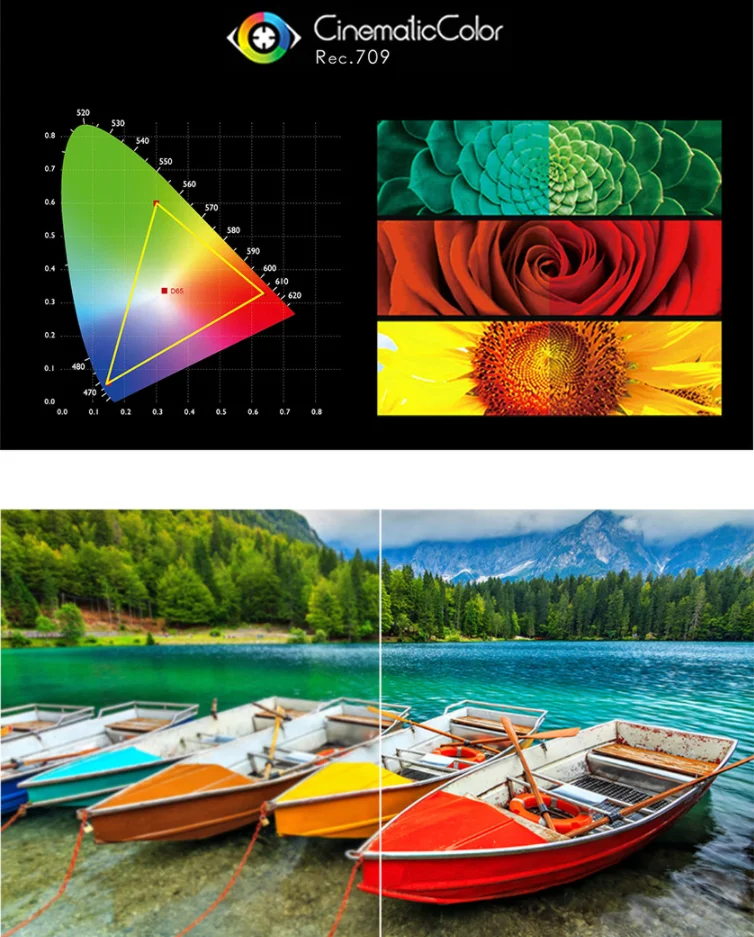

Accurate Color Reproduction
Use Rec.709 color standard
Accurate color reproduction is one of the important indicators for measuring professional monitors. ATEM173S built-in 3D-LUT,adopts the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory to ensure the consistency of color reproduction of each monitor.

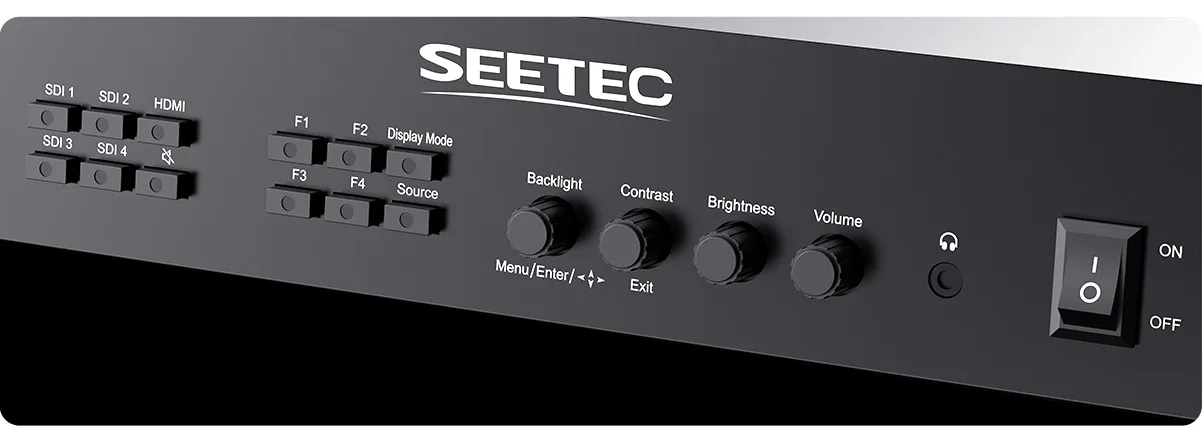

Flexible and Intuitive Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment, and the ATEM173S can meet your needs. It can switch between one-button sources, custom shortcuts, and quickly adjust brightness, contrast, volume, etc. to make shooting easier. The backlight button design makes it easier for you to distinguish the current input signal and the shortcut keys used, easy to use even in dimly lit studio or outdoor environments.

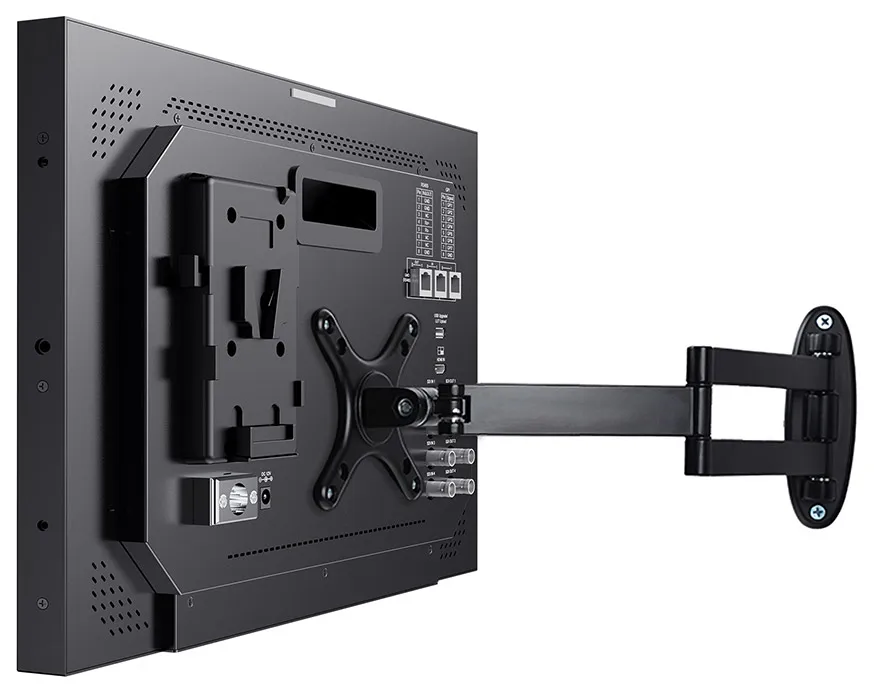

Standard VESA Mounting Points
The ATEM173S is equipped with 4 standard VESA mounting points,you can mount it in a rack or hang it on a wall. Flexible mounting for a busy newsroom.
Note: The bracket not included, please purchase separately
Note: The bracket not included, please purchase separately

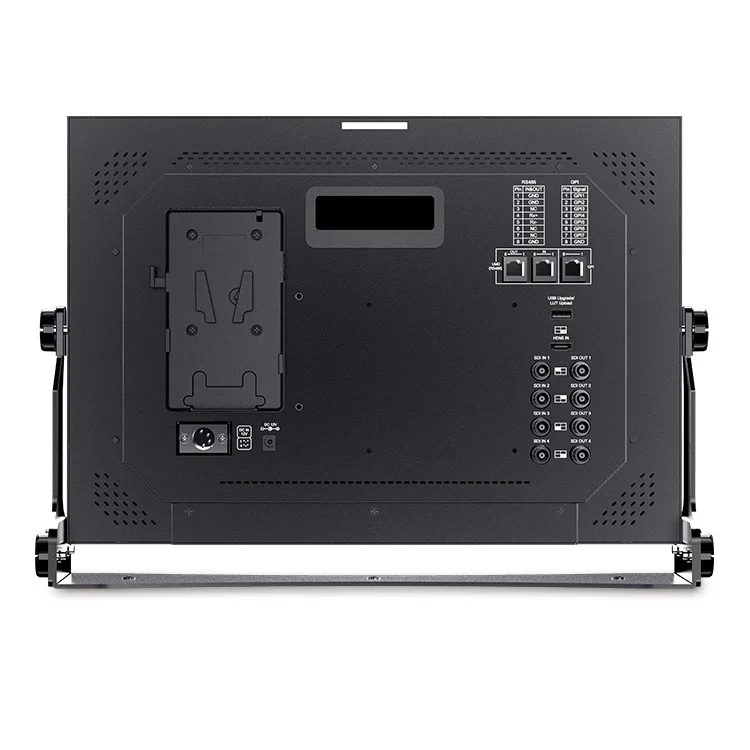

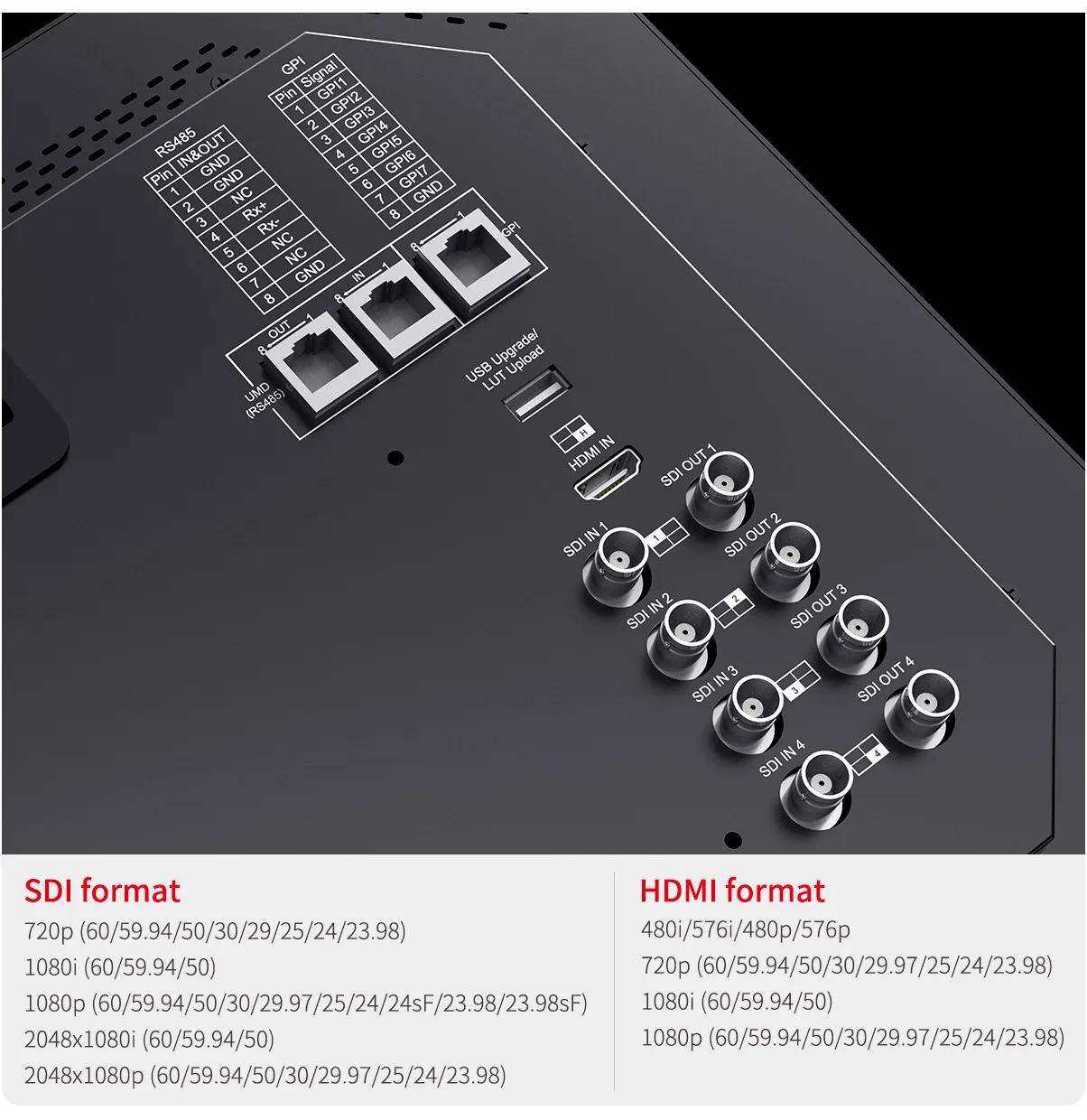

4X3G-SDI Inputs and Output
Perfect SDI monitoring
ATEM173S monitors are the perfect choices to add SDI monitoring anywhere you need it. It comes with 4x3G-SDI signal inputs and outputs, suitable for multicamera shooting in crew, and simultaneous monitoring by multiple persons. In addition, it also with a HDMI input, RS485, GPI control interface, meet different needs.

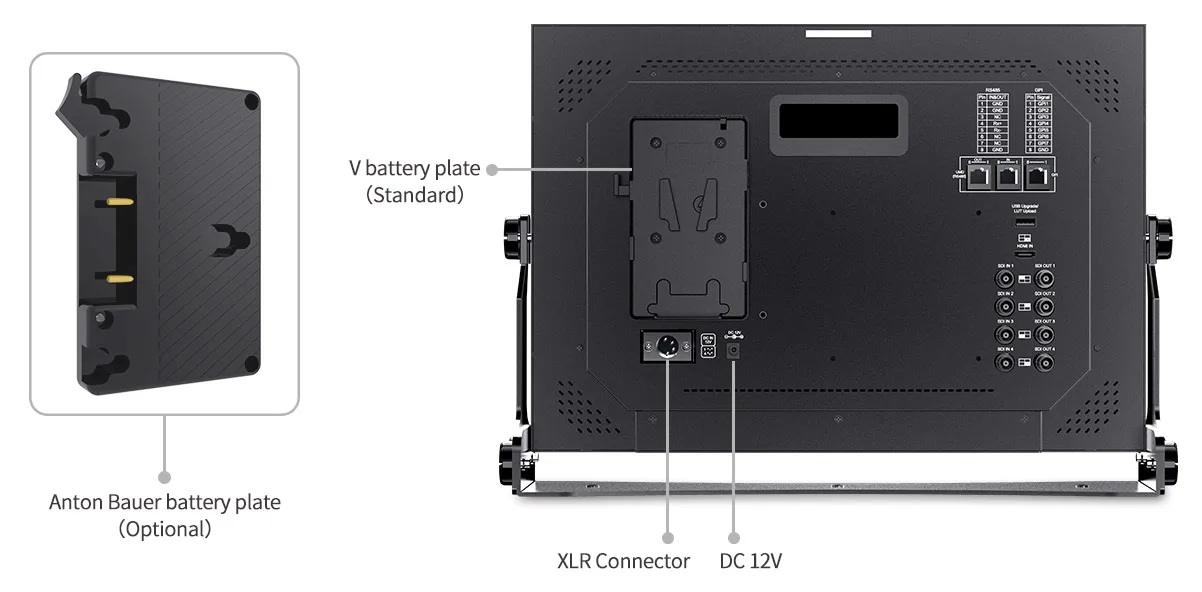

Multiple Power Options
Long-lasting Power Shooting
The monitor provides DC 12V/2A~3A power, XLR connector and Sony V-mount battery plate for options.
Note: The battery plate default is V-mount Plate, the client can choose Panasonic Anton Plate for optional.

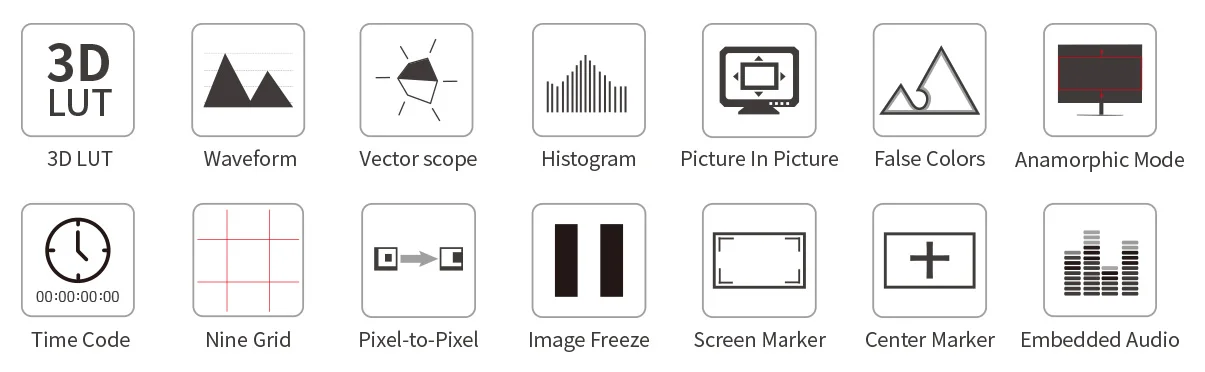

Professional On Set Monitoring Tools
Accurately focus and efficient monitoring
The monitor provides a series professional auxiliary monitoring tools, such as waveform, 3D-LUT, peaking filter, histogram,vectorscope, audio meter, time code, anamorphic mode, etc. All of functions can easy to select and operate from menu, also can set shortcut button or via GPI control. Effectively improve the efficiency of on-site shooting and post-production.
3D LUT, Recreate Film Looks
Supports up to load 36 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 36).
HDR Monitoring
What you see is what you get
Supports HDR (high dynamic range) monitoring, for incredible clarity and details, effectively enhancing the overall picture quality. When HDR is activated, you can select Gamma and Gamut corresponding to the company Sony, Canon, Panasonic, Fujifilm,Bolex, RED, ARRI.
Supports HDR (high dynamic range) monitoring, for incredible clarity and details, effectively enhancing the overall picture quality. When HDR is activated, you can select Gamma and Gamut corresponding to the company Sony, Canon, Panasonic, Fujifilm,Bolex, RED, ARRI.

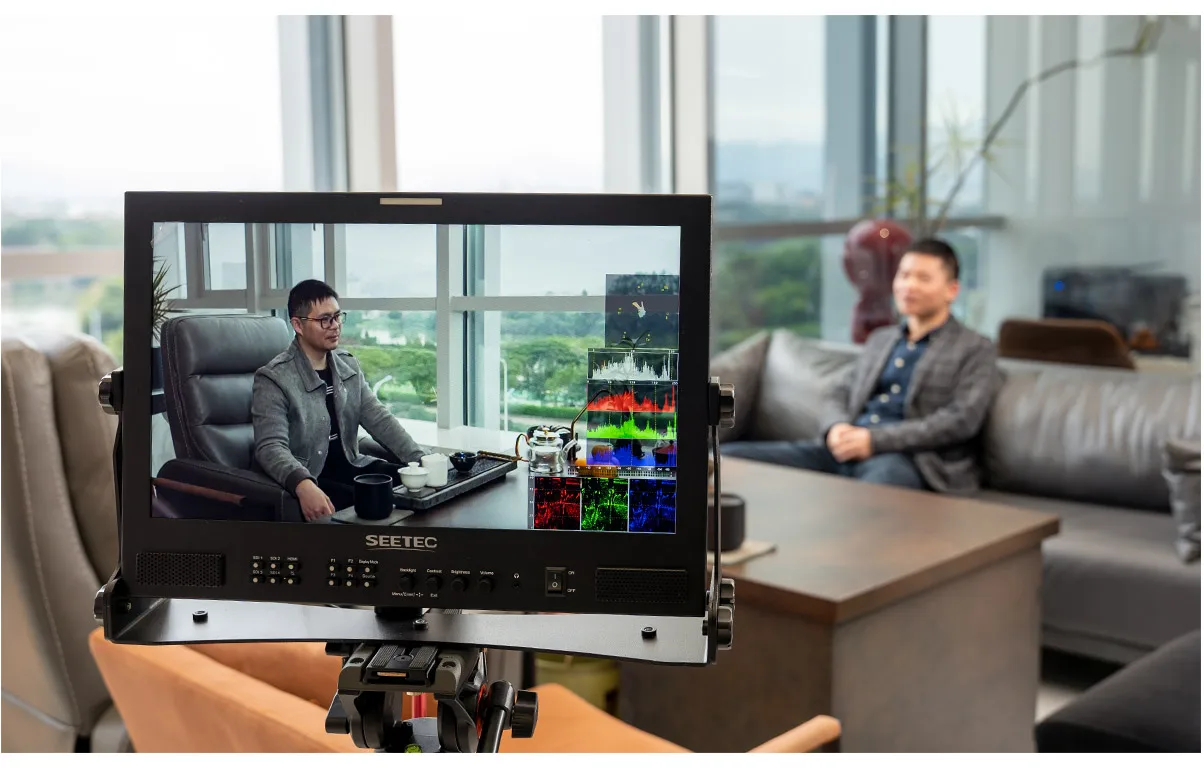

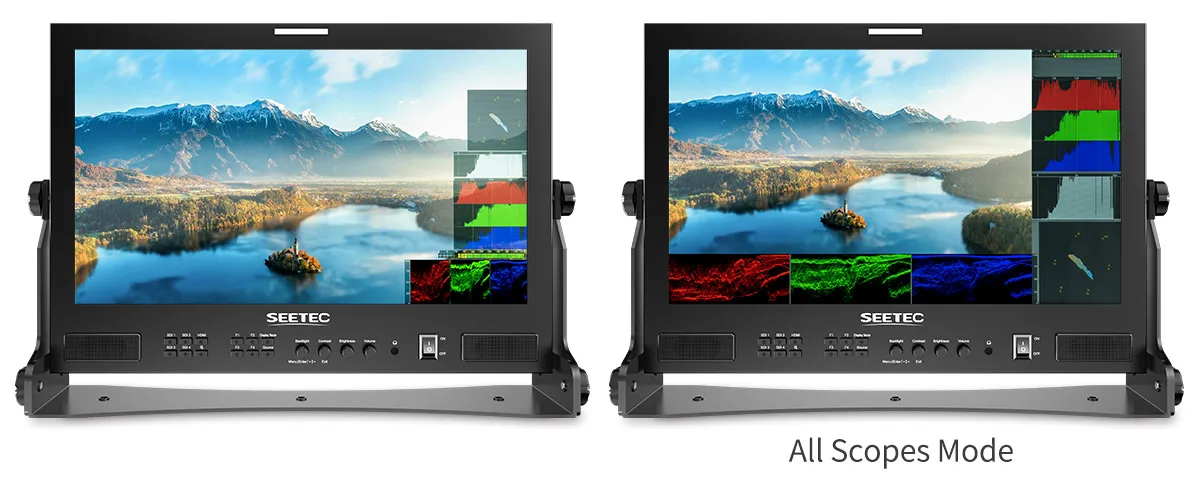

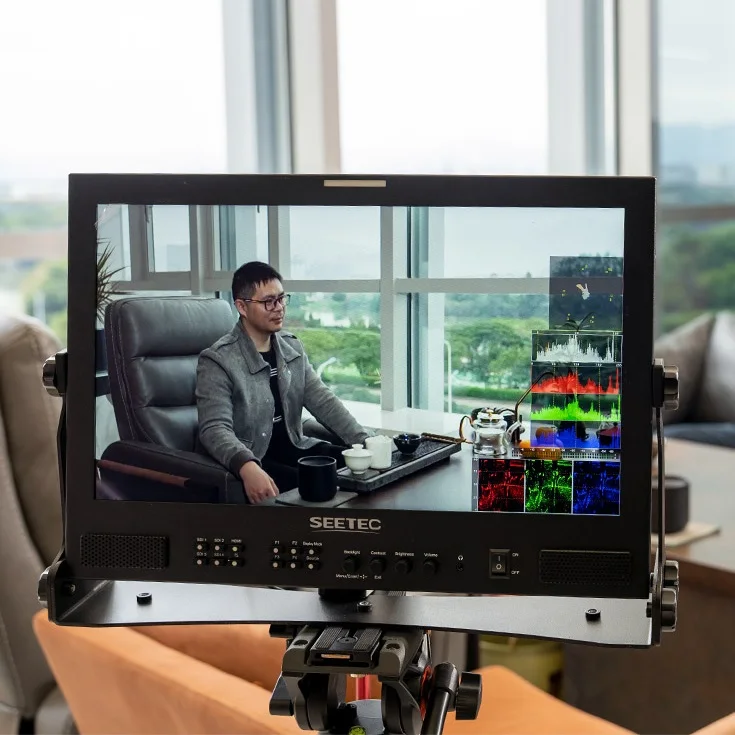

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode （can be right/left adjustment）. ATEM173S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

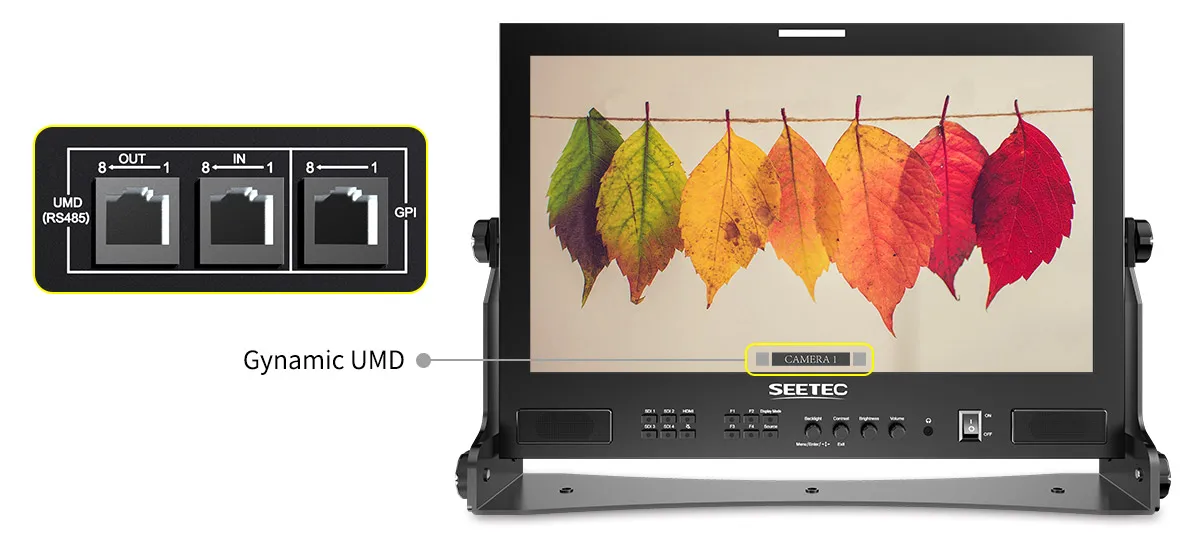

Gynamic UMD
TSL3.1/4.0 Protocol
ATEM173S supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port.

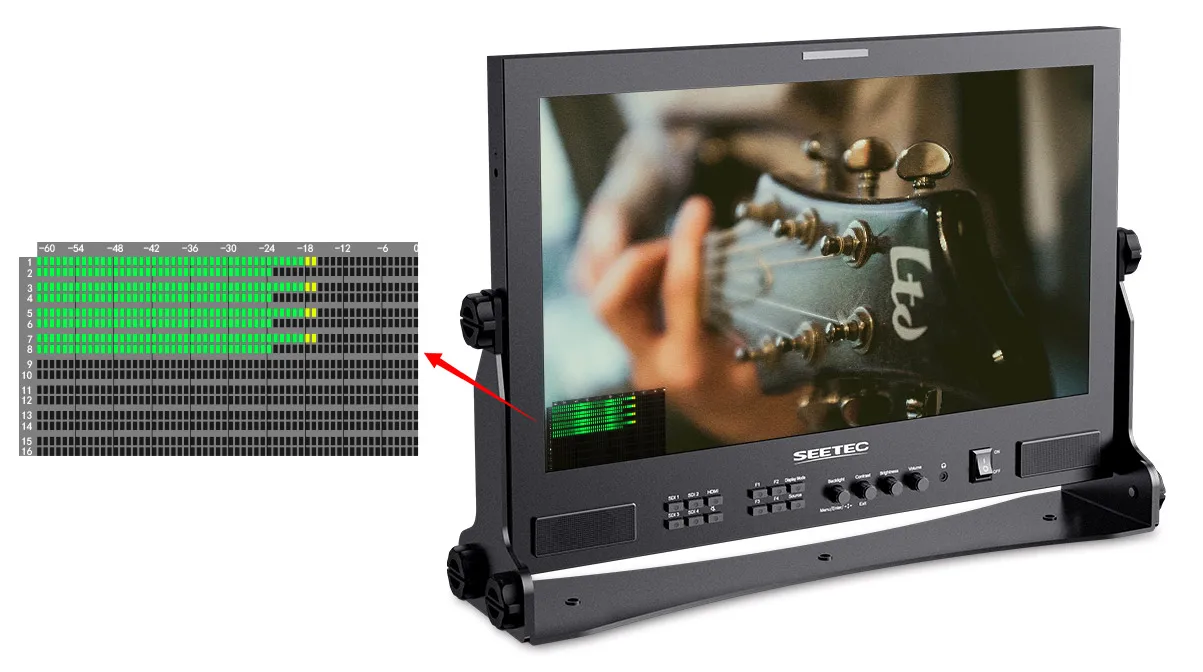

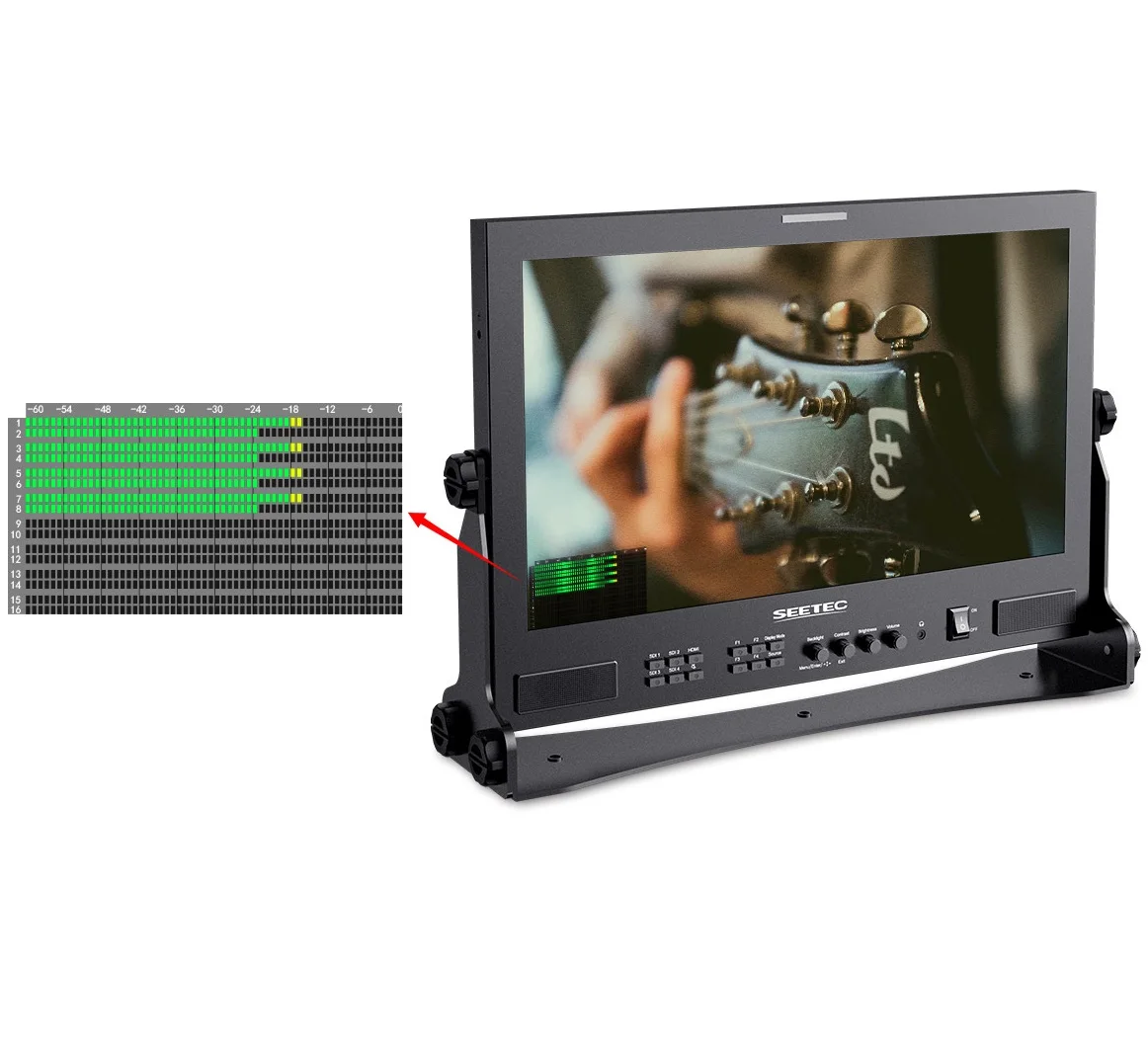

16-Channel Audio Level Meters
The monitor can de-embedded audio from SDI and HDMI. Support select any 2 channels audio to output via 3.5mm headphone jack. Under SDI audio, it supports max 16-ch embedded audio meters display. Under HDMI audio, only 2 channels audio displays are supported.

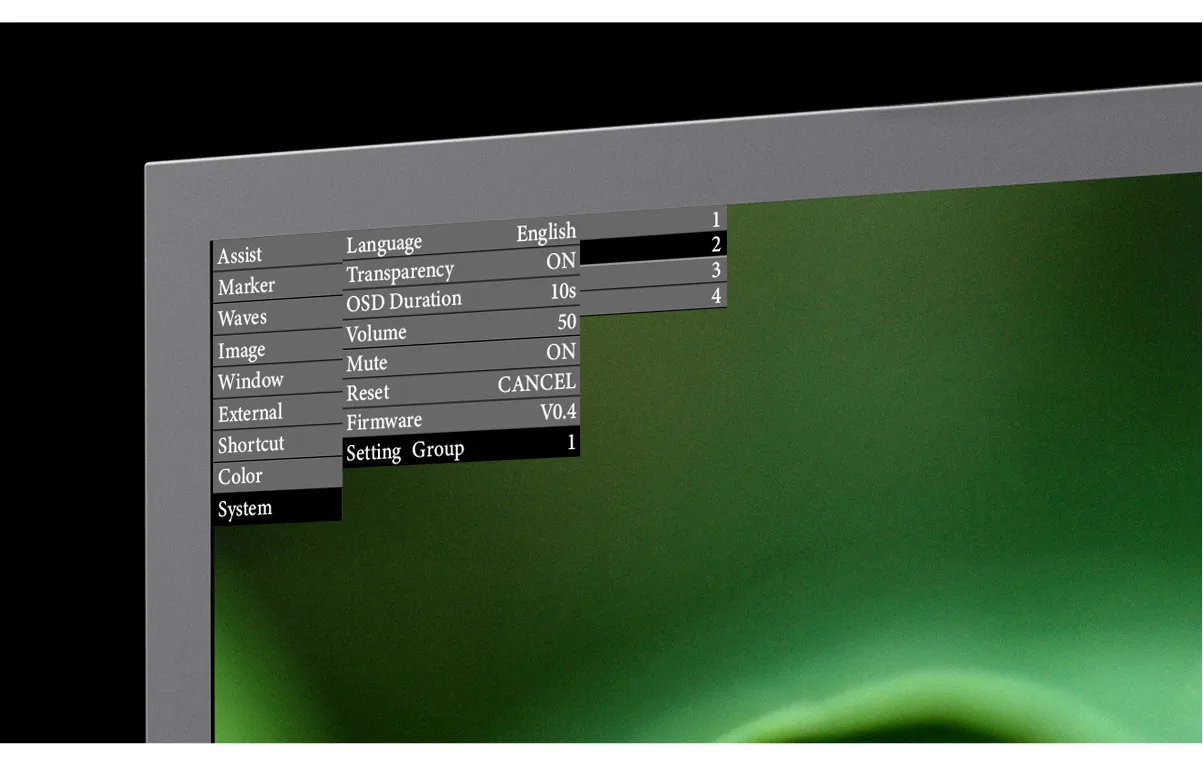

Custom Menu Setting
ATEM 173S provides 4 groups custom menu setting, which will be automatically saved after setting, and there is no need to reset when you turn on next time, saving time cost.

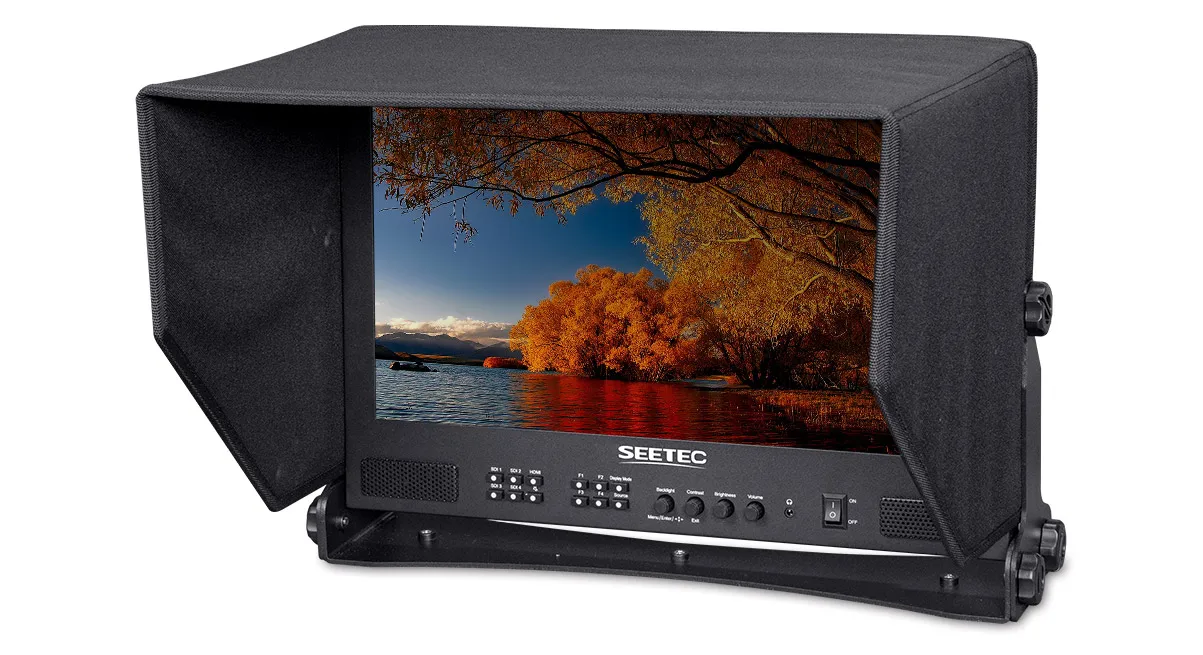

Portable Sunshade
New extended screen sun hood, to acquire the ideal visual effect in almost all environments.

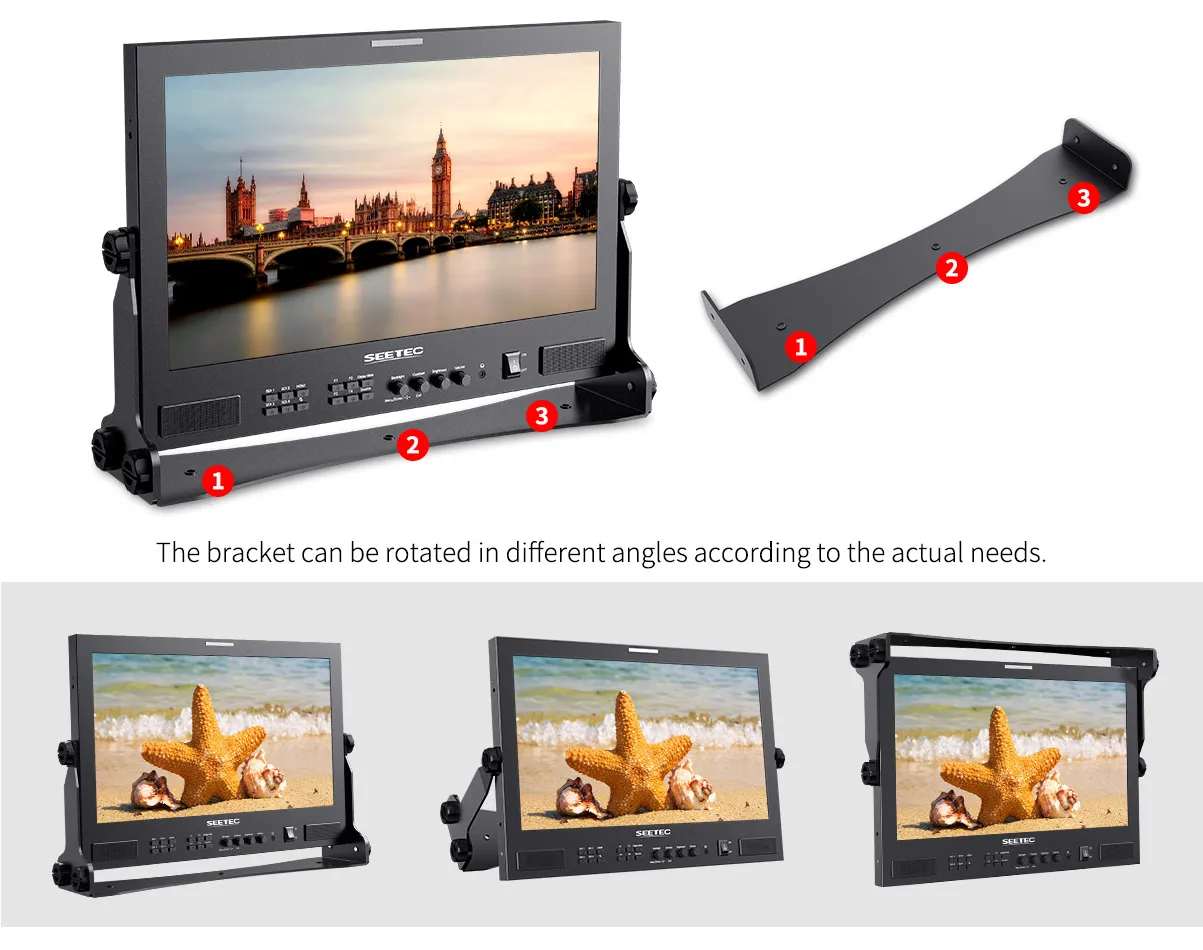

Flexible and Useful Bracket
The monitor attached a U-shape bracket, it featured 3 standard 1/4-inch mounting points to help you easily complete installation and compatible with the third party rigging equipment. You can connect to magic arm to hang it on the other equipment or install it on the camera stand for the entire crew to monitor . You also can place it on the workbench for monitoring.

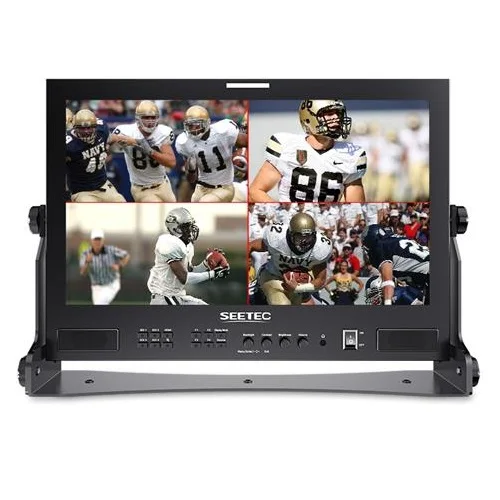

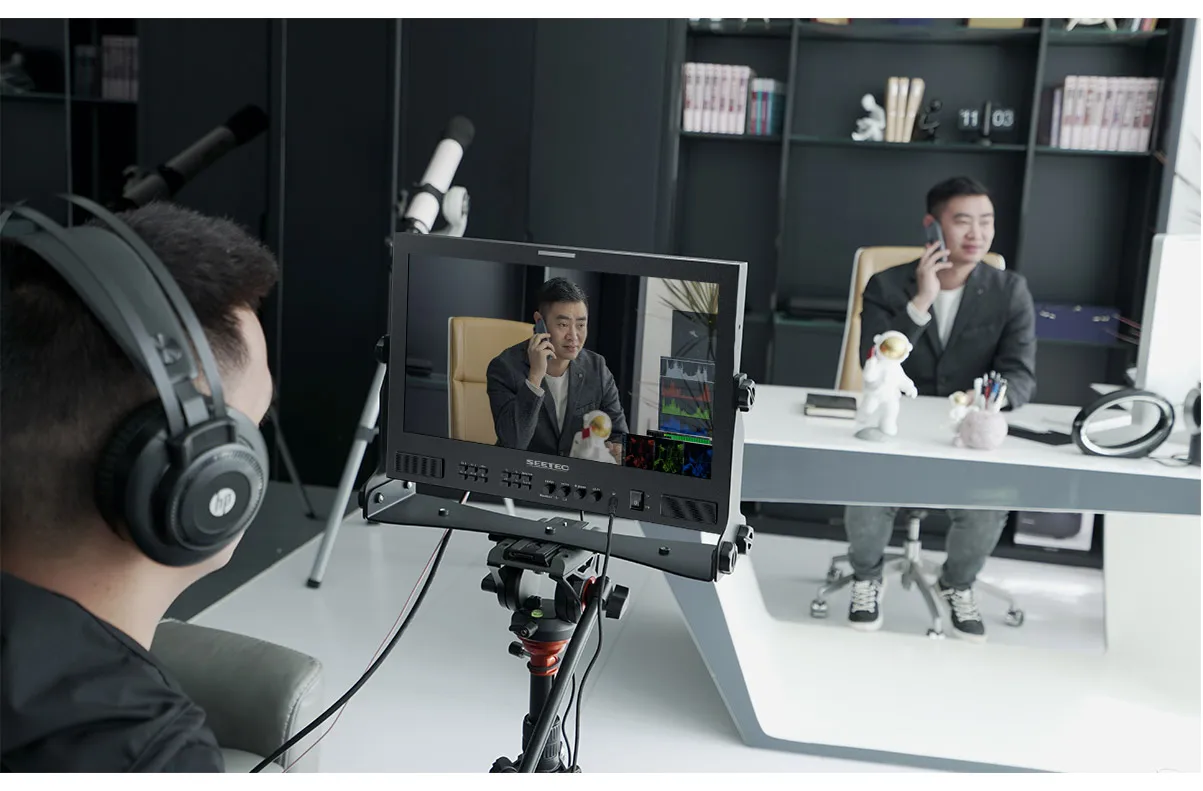

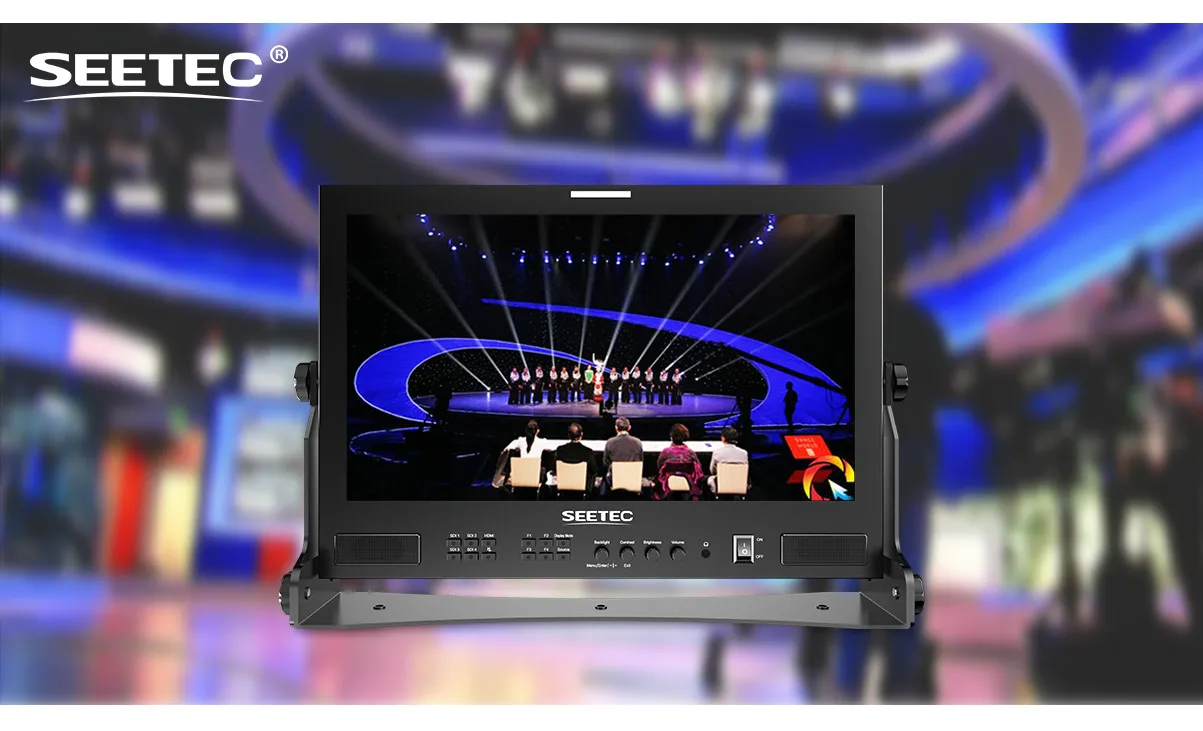

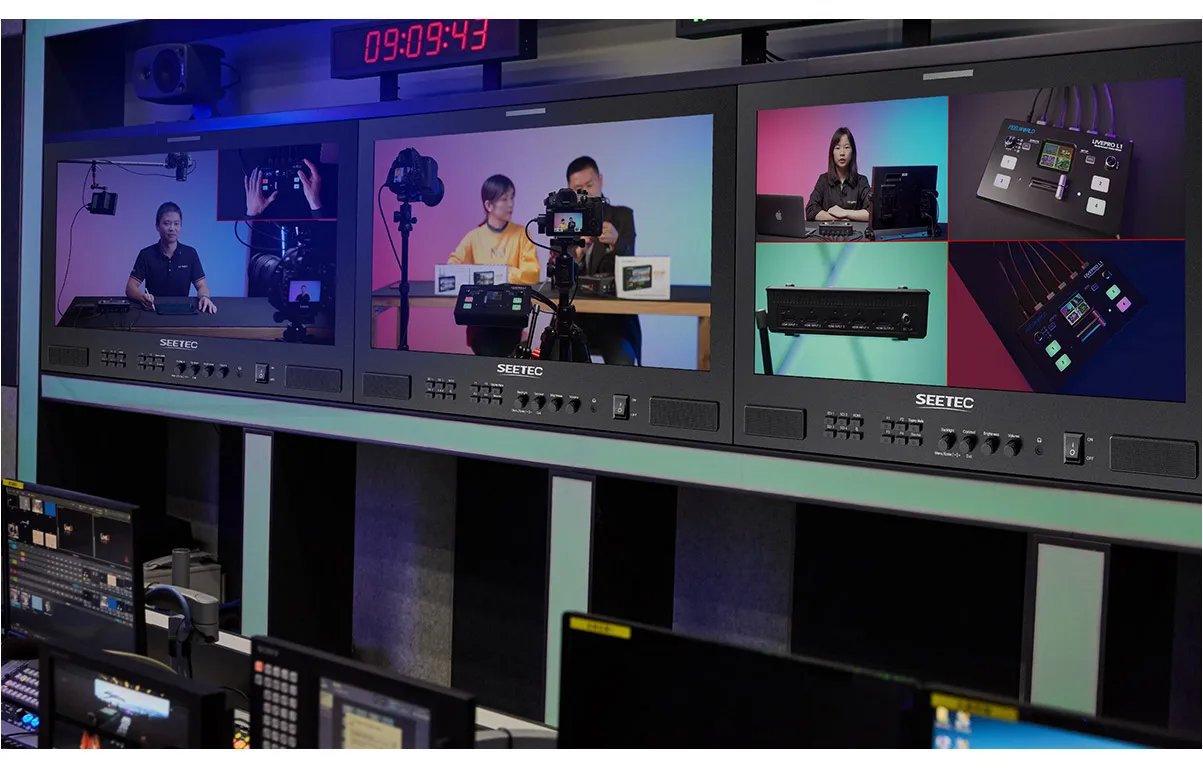

Live Broadcast
The perfect monitoring for multi-camera production of studio
When you are working on a multi-camera studio production, you need to see all of your sources, graphics and program displays at the same time. The multiview monitoring mode of ATEM173S lets you see everything. Tally is included in monitors so you get red or green indicate light for on air and preview status indication on the monitor itself. The amazing clarity of the HD resolution screen means you can easily check focus and watch for color consistency across all of your cameras.
When you are working on a multi-camera studio production, you need to see all of your sources, graphics and program displays at the same time. The multiview monitoring mode of ATEM173S lets you see everything. Tally is included in monitors so you get red or green indicate light for on air and preview status indication on the monitor itself. The amazing clarity of the HD resolution screen means you can easily check focus and watch for color consistency across all of your cameras.

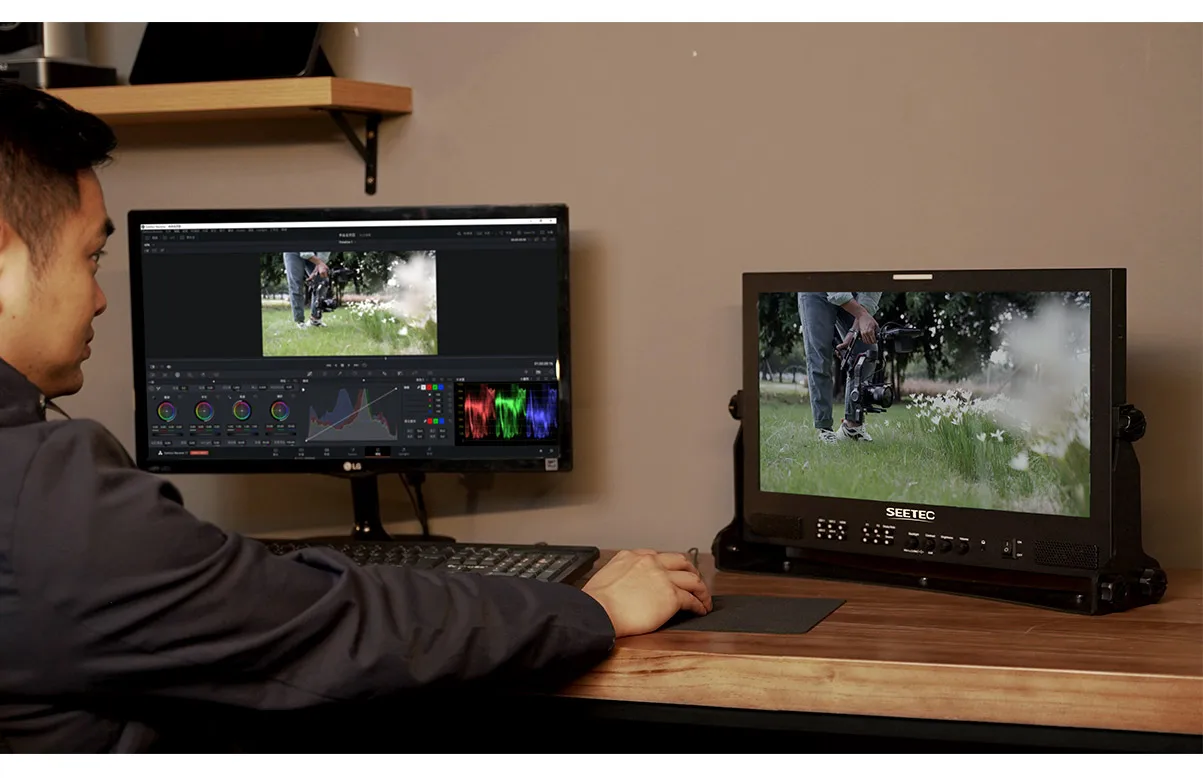

Post Production
Get a full overview of your monitor
ATEM173S is the perfect solution for seeing all of the video. All of SDI video inputs are with loop out, and supports 2K video format. Allows you get a real time overview of your all screens.
ATEM173S is the perfect solution for seeing all of the video. All of SDI video inputs are with loop out, and supports 2K video format. Allows you get a real time overview of your all screens.
Broadcast News
Flexible mounting for a busy newsroom
The ATEM173S is equipped with standard VESA mounting points mean you don’t have to rack mount, but also mount hang it on a wall or any where you need! ATEM173S can be mounted on articulated arms over news desks, editing and graphic workstations. Simply connect SDI video signal and DC power cable.
The ATEM173S is equipped with standard VESA mounting points mean you don’t have to rack mount, but also mount hang it on a wall or any where you need! ATEM173S can be mounted on articulated arms over news desks, editing and graphic workstations. Simply connect SDI video signal and DC power cable.
Complete Monitoring Solution
With full HD large screen, supports 3D LUTs to adjust and calibrate color, HDR, histogram, vectorscope, peaking focus, etc.functions, collocate with the attached sun hood, yo can also clearly seeing the screen even outdoor. ATEM173S is the perfect monitor for on-set shooting and post production. The important is you can also make one-key all waves monitoring, so you know real time the true quality of incoming video feeds. ATEM173S is your complete monitoring solution of program production.
Specifications
Display Spec. | Model | ATEM173S | |
Screen Size | 17.3" IPS | ||
Color Depth | 16.7M | ||
Resolution | 1920×1080 pixels | ||
Pixel pitch | 0.1989(W) x 0.1989(H) mm | ||
Aspect Ratio | 16:9 | ||
Brightness | 300cd/m² | ||
Contrast Ratio | 700:1 | ||
Backlight | LED | ||
Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) | ||
Input | 4 X 3G-SDI | 3G-SDI (support 2K) | |
1 X HDM | HDM (support 1080P) | ||
1 X RS485 | RS485 | ||
1 X GPI | GPI | ||
1 X USB | USB (upgrade and LUT import) | ||
Output | 4 X 3G-SDI | 3G-SDI (support 2K) | |
1 X RS485 | RS485 | ||
Input | Audio | Stereo Headphone, Speaker | |
SDI Support Format | 720p (60/59.94/50/30/29/25/24/23.98) 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) 2048x1080i (60/59.94/50) 2048x1080p (60/59.94/50/30/29.97/25/24/23.98) | ||
HDM Support Format | 480i/576i/480p/576p 720p (60/59.94/50/30/29.97/25/24/23.98) 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98) | ||
General | Input Voltage | DC 12V | |
Power Consumption | ≤22W | ||
Working Temperature | 0°C~50°C | ||
Storage Temperature | -20°C~60°C | ||
Unit Size | 425L×296H×23D (mm) (W/O bracket) | ||
Unit Weight | 2.84kg | ||
Outer Carton Qty | 2 | ||
Outer Carton Size | 535*350*425 (mm) | ||
Gross Weight | 10.735kgs | ||
Product packaging
Packing List:
1× ATEM173S-CO
1× Power Adapter
1× SDI Cable
1× Mini HDM Cable
1× V-mount Battery Plate (default to mount on device)
1× Sunshade
1× U-shape Bracket
1× User Manual Manual
