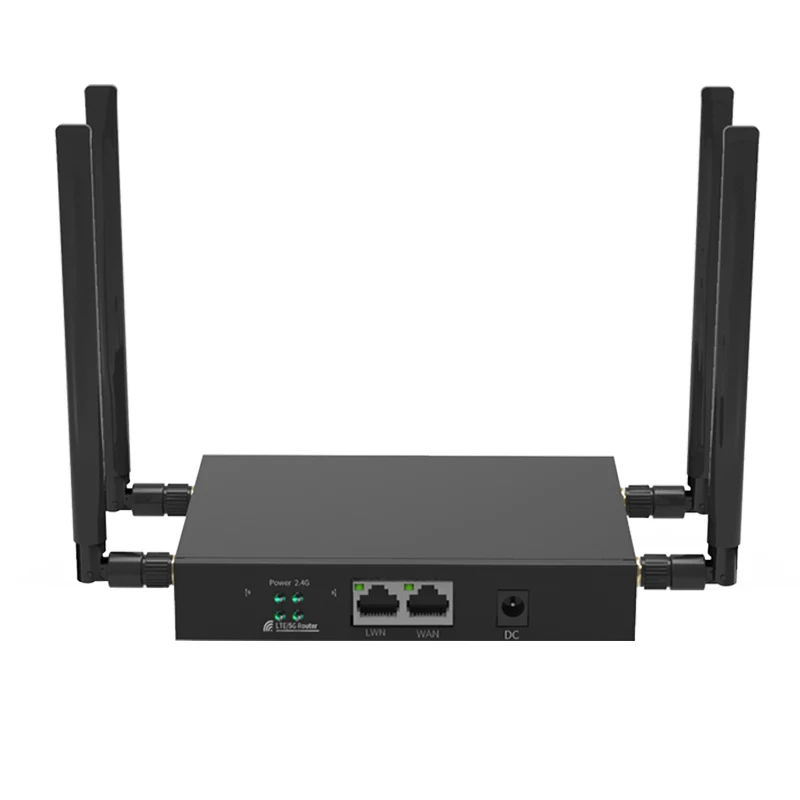

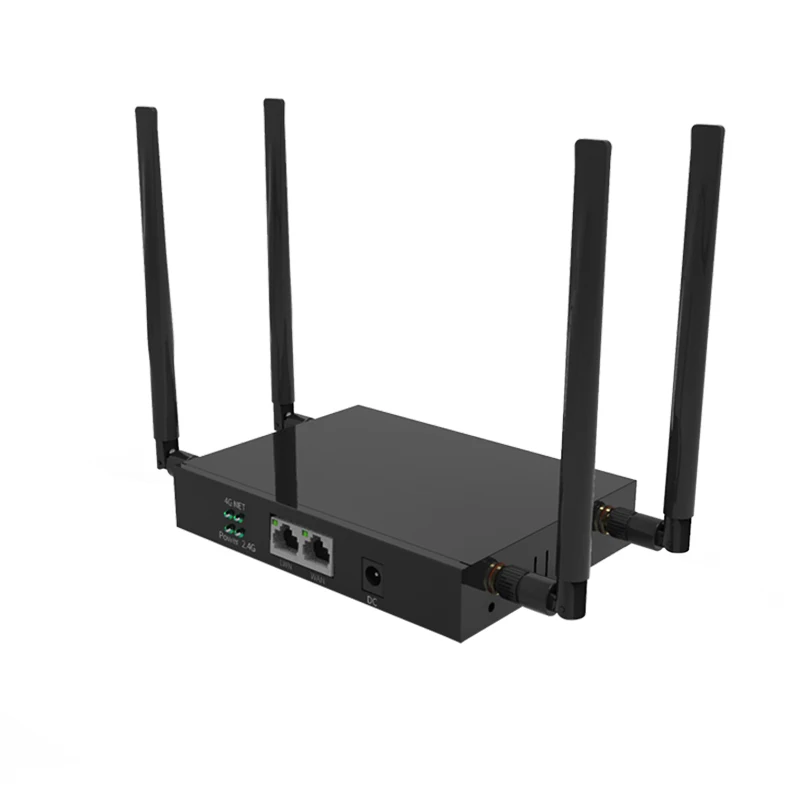

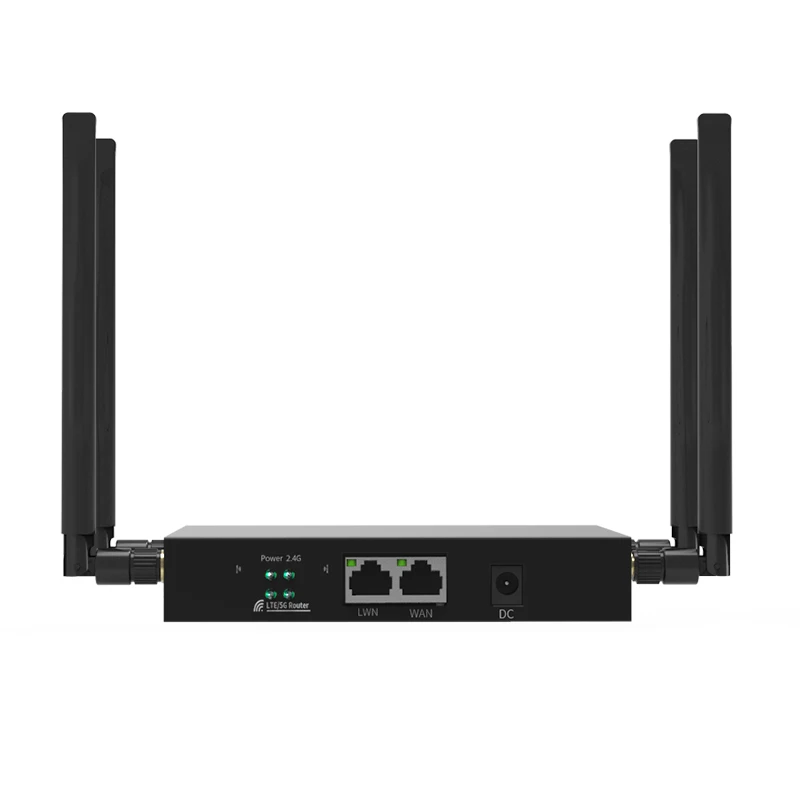

ZBT WD523 Manufacturer 2.4Ghz 300Mbps Outdoor 4G Modem Wifi Wireless Router
- Category: >>>
- Supplier: Shenzhen Zhibotong Electronic Co. Ltd.
Share on (1600464877296):
Product Overview
Description
Specification
item | value |
Max. LAN Data Rate | 300Mbps |
Standards And Protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n |
Wi-Fi Supported Frequency | 2.4G |
2.4G Wi-Fi Transmission Rate | 300 Mbps |
LAN Ports | 1 |
WAN Ports | 1 x10/100Mbps |
Brand Name | ZBT & OEM |
Antenna | 4 Antennas |
SIM card slot | 1 SIM Card Slot |
Model | WD523 |
Warranty | 12 Months |
Brand | ZBT & OEM |
Product Description

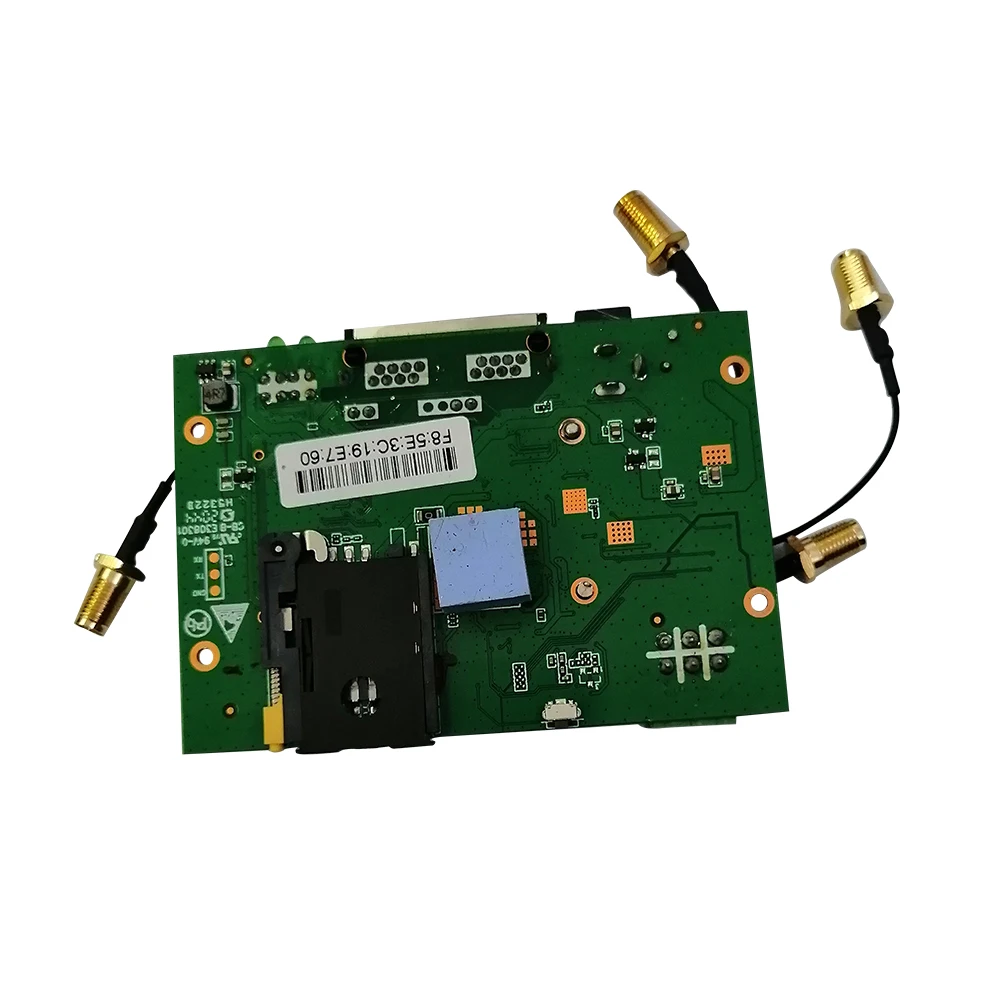

Using MT7628DA solution, MIPS24KEc architecture CPU, the main frequency is up to 580MHZ;
MT7628DA chip integrates 2.4G WIFI function, the rate is up to 300Mbps; MT7628DA chip integrates 64MB DDR2, with 8MB Nor Flash;
1WAN, 1LAN full 100M adaptive network ports,support auto flip (Auto MDI/MDIX); Support one RS232, one RS485 serial communication interface, support anti-static and anti-surge
design;
Support 9-32V power supply, meet industrial power requirements, support anti-static and anti-surge design; Support "one-key flashing mode", that is, long press the reset button to turn on the machine to enter the rescue flashing mode; Built-in mini-PCIE standard interface,
which can be used to connect 4G mobile communication module; External standard SIM card interface, support SIM/USIM card;
External high-gain omnidirectional antenna, wireless signal 360 degrees without dead angle;
This product supports the hardware watchdog function, and the device will automatically restart when the routing system or 4G module fails;
MT7628DA chip integrates 2.4G WIFI function, the rate is up to 300Mbps; MT7628DA chip integrates 64MB DDR2, with 8MB Nor Flash;
1WAN, 1LAN full 100M adaptive network ports,support auto flip (Auto MDI/MDIX); Support one RS232, one RS485 serial communication interface, support anti-static and anti-surge
design;
Support 9-32V power supply, meet industrial power requirements, support anti-static and anti-surge design; Support "one-key flashing mode", that is, long press the reset button to turn on the machine to enter the rescue flashing mode; Built-in mini-PCIE standard interface,
which can be used to connect 4G mobile communication module; External standard SIM card interface, support SIM/USIM card;
External high-gain omnidirectional antenna, wireless signal 360 degrees without dead angle;
This product supports the hardware watchdog function, and the device will automatically restart when the routing system or 4G module fails;
This price is not including 4g module costs, if you need 4g function please let me know which country you will use the router, and then I'll choose the suitable module and quote you the whole price. Thanks a lot !
