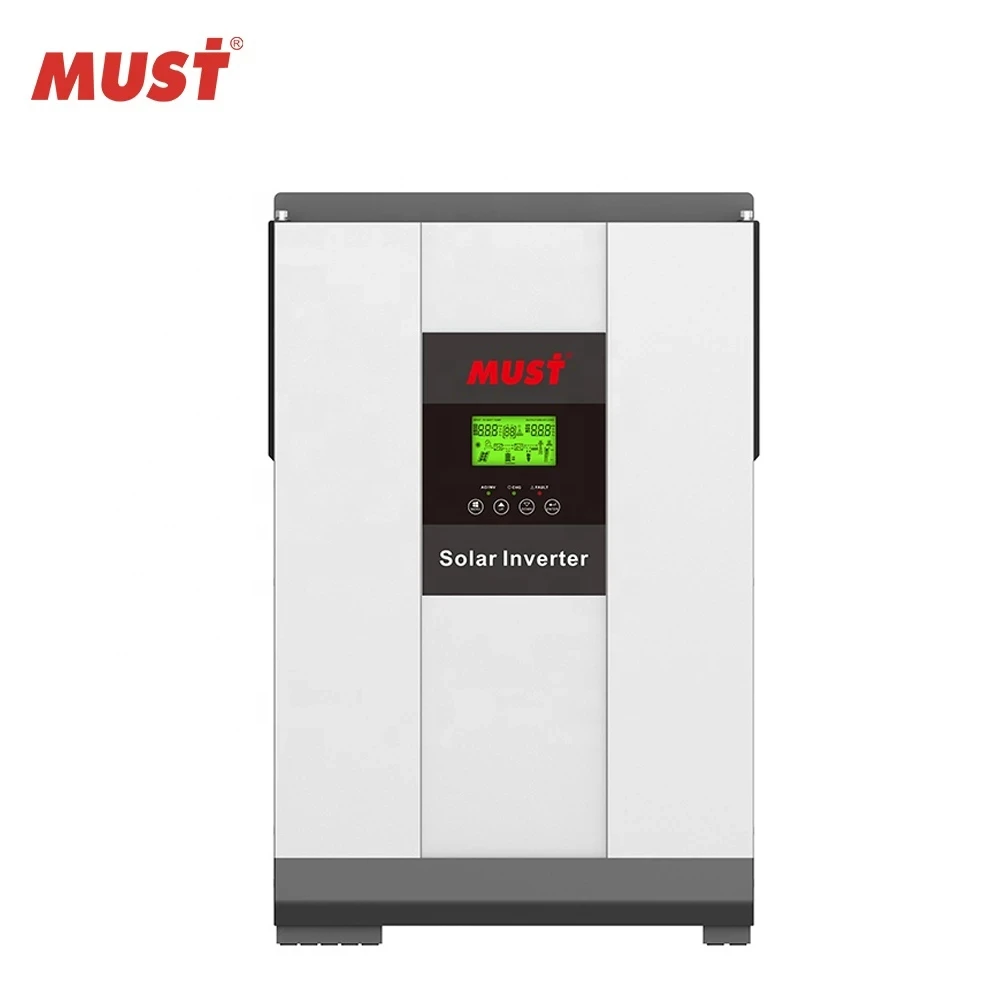

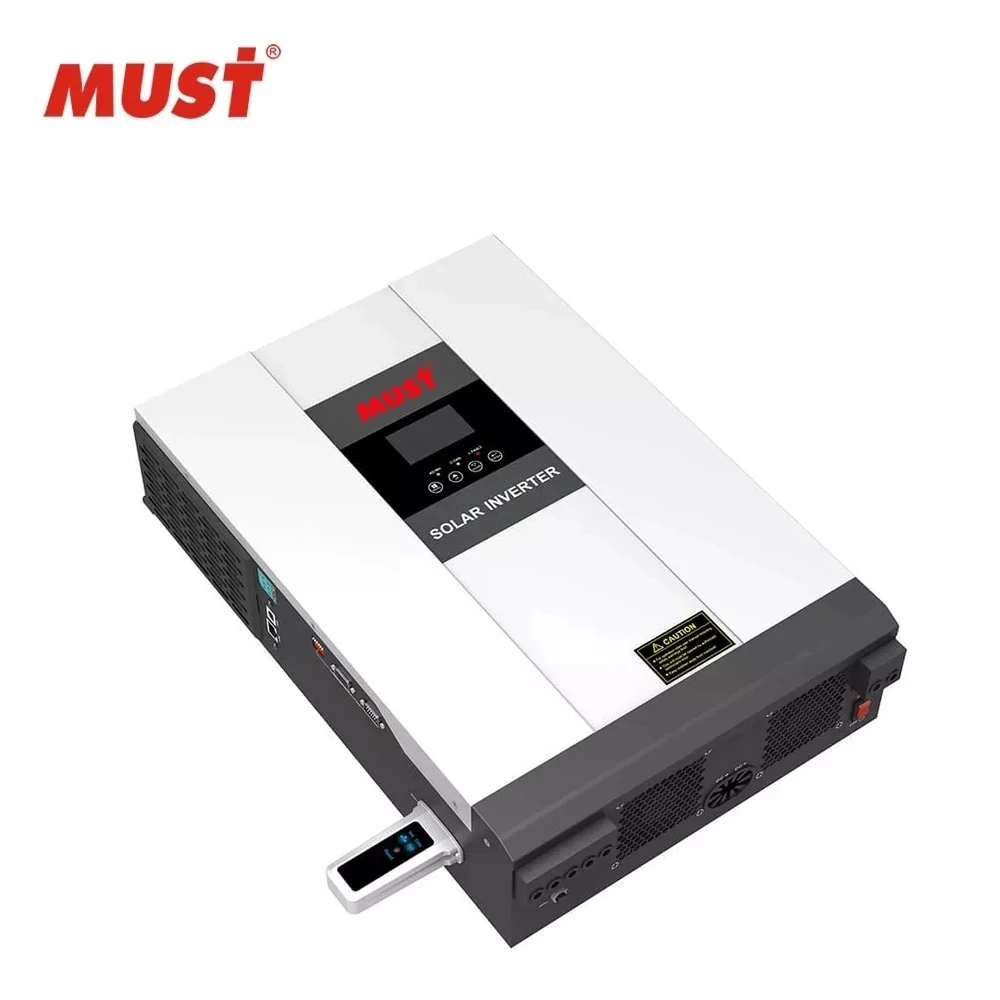

MUST PH1800 Plus Series 5KW 48V Home Hybrid Solar Inverter parallel Model 5000W Pure Sine Wave WIFI Hybrid Solar Inverter
- Category: >>>
- Supplier: Must Energy (guangdong) Tech Co. Ltd.
Share on (1600464905548):
Product Overview
Description
TIPS：
If you only need to buy one product for your own use, you can buy it directly from our AliExpress store
Click it: https://mustpower.aliexpress.com
Click it: https://mustpower.aliexpress.com
Specification
MODEL | PH18-2024 Plus | PH18-3024 Plus | PH18-3048 Plus | PH18-4048 Plus | PH18-5048 Plus | PH18-5548 Plus | ||||||
Nominal Battery System Voltage | 24VDC | 48VDC | ||||||||||
INVERTER OUTPUT | ||||||||||||
Rated Power | 2000W | 3000W | 3000W | 4000W | 5000W | 5500W | ||||||
Surge Power | 4000W | 6000W | 6000W | 8000W | 10000W | 11000W | ||||||
Waveform | Pure Sine Wave | |||||||||||
AC Voltage Regulation (Batt.Mode) | 220VAC-240VAC(setting) | |||||||||||
Electric Current | 8.7A | 13A | 17.4A | 21.7A | 23.9A | |||||||
Inverter Efficiency（Peak） | 93% | |||||||||||
Transfer Time | 10ms(For for Personal Computers)20ms( For Other Home Appliance) | |||||||||||
AC INPUT | ||||||||||||
Voltage | 230VAC | |||||||||||
Selectable Voltage Range | 170~280VAC(For Personal Computers)、90~280VAC(For Home Appliances)、184~253VAC(VDE4105) | |||||||||||
Frequency Range | 50Hz/60Hz (Auto Sensing) | |||||||||||
BATTERY | ||||||||||||
Normal Voltage | 24VDC | 48VDC | ||||||||||
Floating Charge Voltage | 27.4VDC | 54.8VDC | ||||||||||
Overcharge Protection | 31VDC | 60VDC | ||||||||||
SOLAR CHARGER & AC CHARGER | ||||||||||||
Maximum PV Array Open Circuit Voltage | 145VDC | |||||||||||
PV Array MPPT Voltage Range | 30∽130VDC | 64∽130VDC | ||||||||||
Standby Power Consumption | 2W | |||||||||||
PV Array MPPT Voltage Range | 2000W | 4000W | ||||||||||
Maximum PV Array | 80A | |||||||||||
Maximum Efficiency | 98% | |||||||||||
Maximum AC Charge Current | 60A | |||||||||||
Maximum Charge Current | 140A | |||||||||||
MECHANICAL SPECIFICATIONS | ||||||||||||
Machine Dimensions (W*H*D) | 272*355*100 mm | 297.5*468*125 mm | ||||||||||
Net Weight（Kg） | 7.4 | 14 | ||||||||||
Package Dimensions(W*H*D) | 485*393*251 | 638*395*241 | ||||||||||
Gross Weight（Kg） | 9.5 | 16.4 | ||||||||||
OTHER | ||||||||||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||||||||
Operating Temperature | 0°C ~55°C | |||||||||||
Storage Temperature | -15°C ~60°C | |||||||||||
*Products specifications are subject to change without further notice | ||||||||||||
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Must Energy (Guangdong) Tech CO.,LTD is a professional high-tech manufacturer in industrial automation, new energy, power electronics related products of research, development, production, sales and service.
And now the main product is uninterrupted power supply (UPS), lithium battery , inverter, photovoltaic controller, solar inverter, photovoltaic control inverter integrated machine, photovoltaic pumping inverter, PC room system, lead-acid maintenance-free battery.
And now the main product is uninterrupted power supply (UPS), lithium battery , inverter, photovoltaic controller, solar inverter, photovoltaic control inverter integrated machine, photovoltaic pumping inverter, PC room system, lead-acid maintenance-free battery.
FAQ
1. who are we?
We are based in Gunagdong, China, start from 2018,sell to Central America(12.00%),North America(11.00%),Eastern Europe(11.00%),Western Europe(11.00%),South America(9.00%),Oceania(9.00%),Northern Europe(8.00%),Southern Europe(8.00%),Mid East(6.00%),Southeast Asia(5.00%),Eastern Asia(5.00%),South Asia(2.00%),Domestic Market(2.00%),Africa(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Inverter,Uninterruptible Power Supply,Lithium Battery
4. why should you buy from us not from other suppliers?
Uninterruptible power supply , UPS, online UPS , offline UPS ,line interactive UPS Solar Inverter/solar charge controller/solar charge controller/solar battery /solar panels total solar system manufacturer since 1998
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:EUR,HKD,CNY;
Accepted Payment Type: L/C,D/P D/A,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Gunagdong, China, start from 2018,sell to Central America(12.00%),North America(11.00%),Eastern Europe(11.00%),Western Europe(11.00%),South America(9.00%),Oceania(9.00%),Northern Europe(8.00%),Southern Europe(8.00%),Mid East(6.00%),Southeast Asia(5.00%),Eastern Asia(5.00%),South Asia(2.00%),Domestic Market(2.00%),Africa(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Inverter,Uninterruptible Power Supply,Lithium Battery
4. why should you buy from us not from other suppliers?
Uninterruptible power supply , UPS, online UPS , offline UPS ,line interactive UPS Solar Inverter/solar charge controller/solar charge controller/solar battery /solar panels total solar system manufacturer since 1998
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:EUR,HKD,CNY;
Accepted Payment Type: L/C,D/P D/A,Cash,Escrow;
Language Spoken:English,Chinese
