Twitter New Aluminum Alloy 36V10A250W / 36V13A350W / 48V10A350W Lithium Battery Electric Road Bike
- Category: >>>
- Supplier: Shenzhen Hesicity Bike Technology Co. Ltd.
Share on (1600464907313):
Product Overview
Description
Products Description

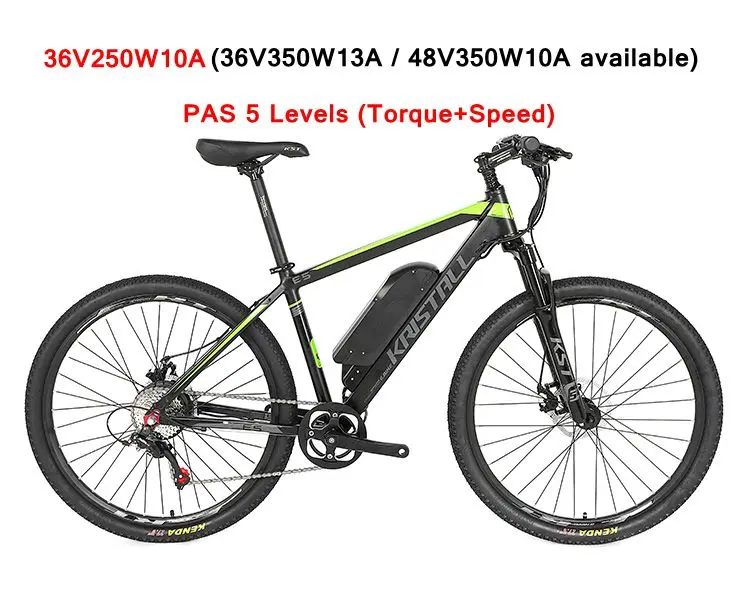

26inch 27.5inch 29inch suspension fork rear drive 36V250W10A 36V350W13A 48V350W10A bike electric bicycle
36V250W10A / 36V350W13A / 48V350W10A
Bike Model | E5-Torque | Electric Parameters | Specification |
ConfRev | 36V250W10A / 36V350W13A / 48V350W10A | Riding Mode | Electric Power Assist (5 Shifts) |
Wheel Size | 26" / 27.5" / 29" | Pure Electric (5 shifts) | |
Frame Height | 15.5" / 17" / 19" | Pure Human Riding (8 speeds) | |
Bike Color | BlackRed / BlackGreen / Gray | Endurance Mileage | Electric Power Assist,70~110KM |
Net Weight | ≈19.5 KG | Pure Electric,40~60KM | |
Frame | E5, alloy AL6061,Smooth welding&inner Cable,Matte,UV decals | Motor Assist speed | Max 35KMH, speed limit optional |
Handelbar Sets | Alu alloy with Matte,Hb31.8*680,St90,Sp31.6*350mm | Max Load | 120 KG |

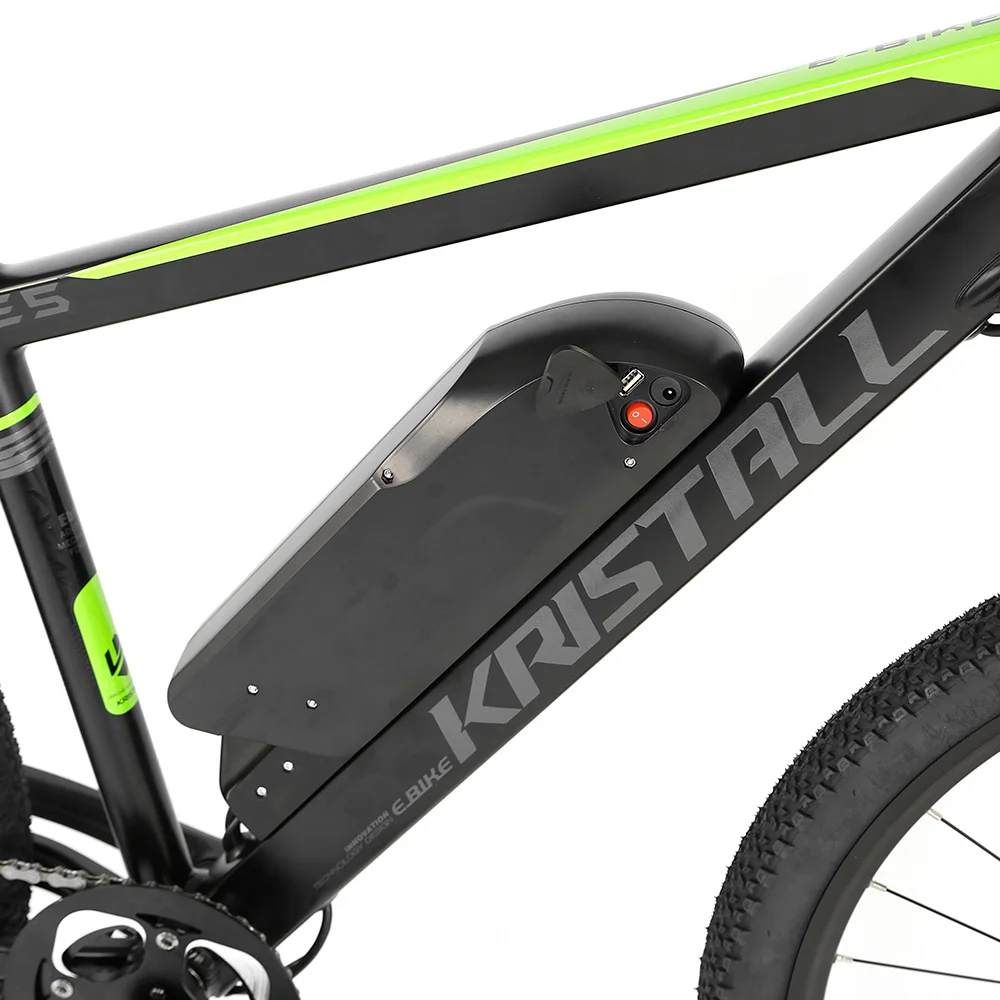

Clamps | Alu alloy,Quick Release 34.9mm | Battery | LH18650 Power Lithium, 36V10A / 36V13A / 48V10A |
Fork | KST Alu alloy, Coil suspension, Manual-lockout | with USB2.0 port 5V2A (For phones, etc.) | |
Head Sets | Alu alloy CNC,44mm | Full charging Time | 4-6 Hours |
Washer | Alu alloy 3×28.6×10mm | Charging Times | >1000 Times |
Derailleur Lever | SHIMANO M310-8 speeds | Charging Protect | Overvoltage,Overcurrent Protection,etc. |
Front Derailleur | None | ShortCircuit,ReversecConnection Protection,etc. | |

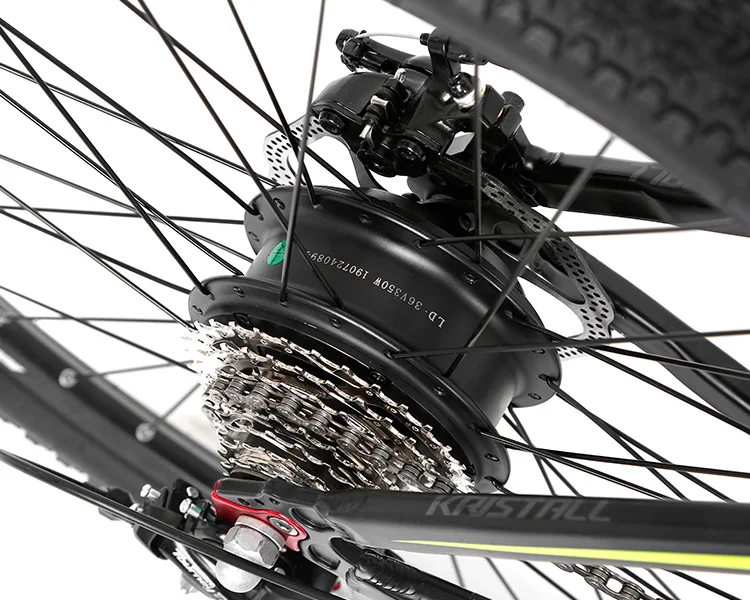

Rear Derailleur | SHIMANO TZ50 | Motor | Rear Drive, 36V250W / 36V350W / 48V350W |
Cranksets | RS, Alu alloy, Square hole, 38T with alloy cover | DC Brushless,Toothed,Low resistance&noise | |
Cassettes | DNP-8S, 13-32T | Max Torque | ≈60 N.M |
Chain | YBN-8S | Waterproof grade | IP54 |
BB | BB68mm,Bearing,with Torque+Speed(cadence) assist sensor | Controller | 5 Shifts intelligent IC control system |

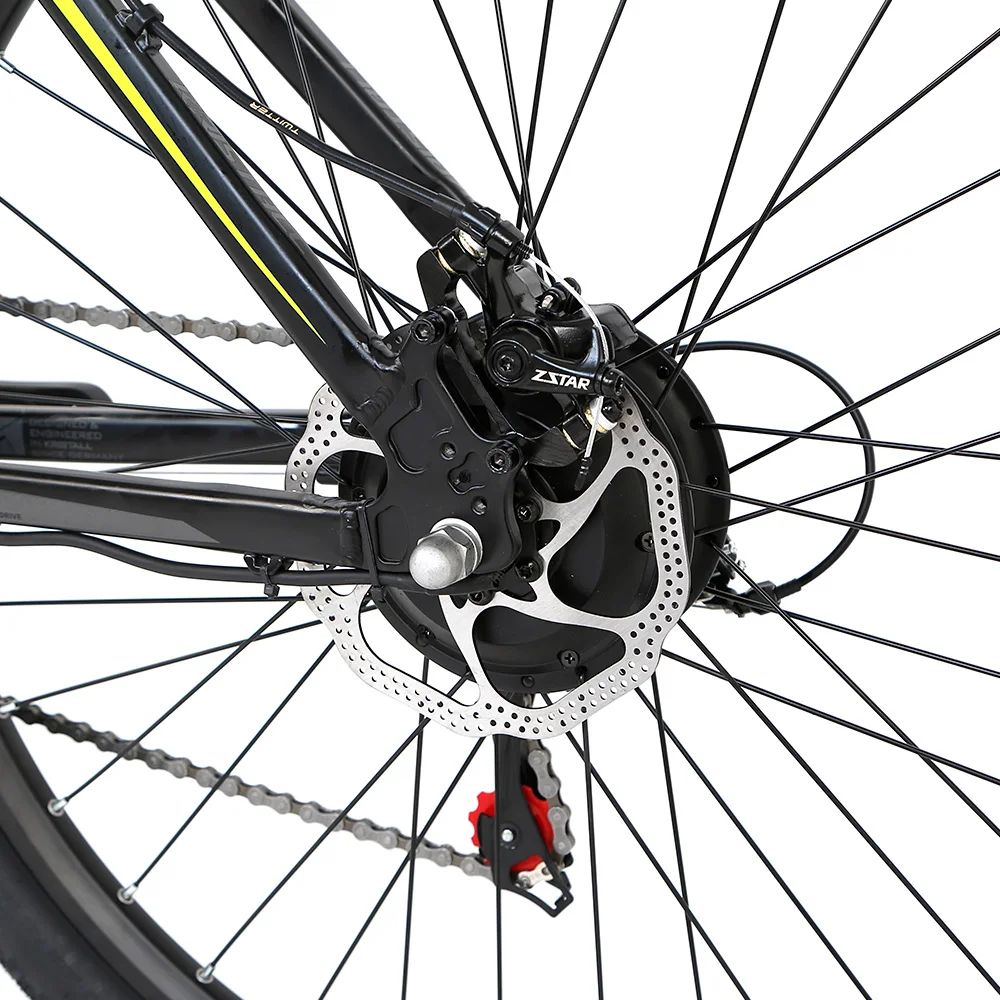

Brake | Z.STAR cable-pull Disc brake | Torque+Speed assist control | |

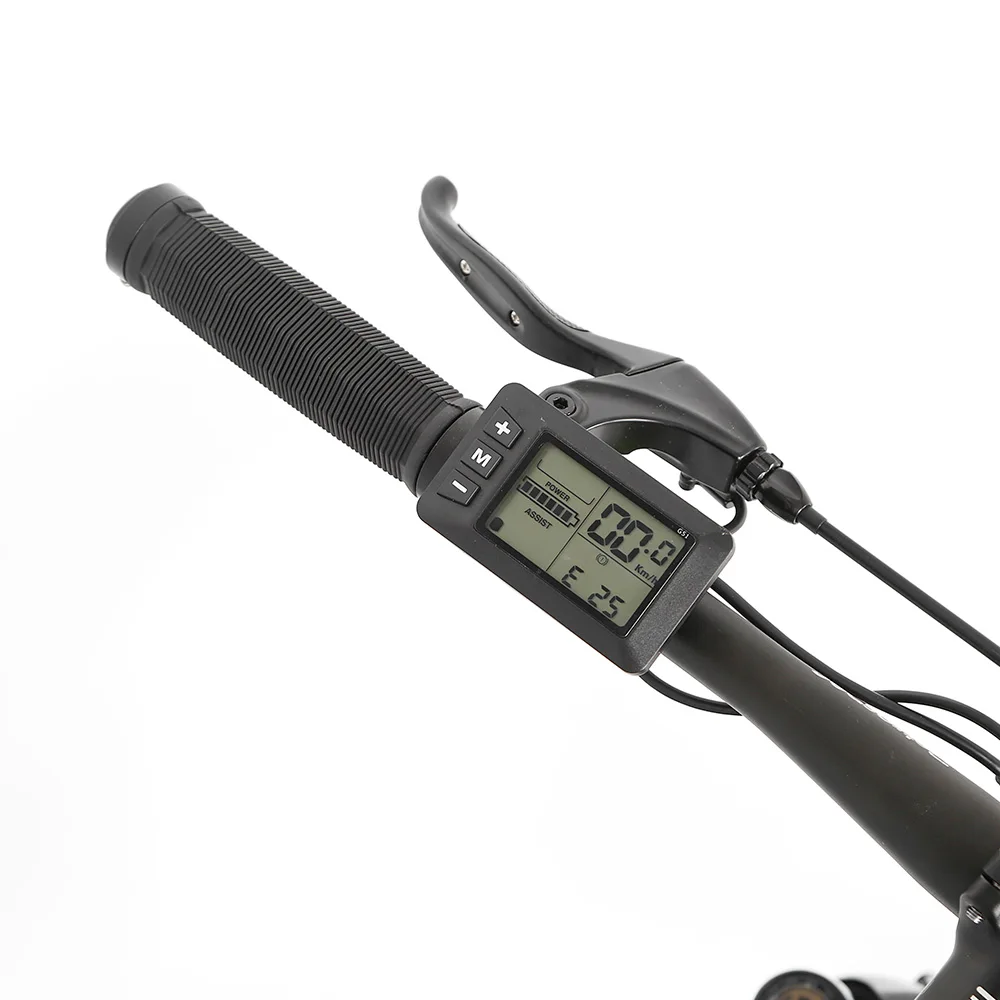

Hub | RS Alu alloy, 2-sealed Bearings, Disc brake | Monitor | LCD digital display control instrument |
Rim | Alu alloy with Double-wall&Rivets, W24×H19mm | Display Function | MPH,Miles,Electricity,Shift,Failure,etc. |
Spoke | SHUNJIU, Circular 13G, Bend head | Setting Function | Mileage cleared,Wheel size,etc. |
Tire | KENDA-K1187 or CST, 26"/27.5"/29"×1.95" | Waterproof Grade | IP6 |
Grips | Circular, 22.2×130mm&2-locking ring,Comfortable | Assist Sensor | BB integrated, Torque+Speed(cadence) assist sensor |
Saddle | Comfortable and Thickened for MTB | Shift Lever | Stepless speed regulation thumb-Lever |
Pedals | WP-625 Alu alloy with lubricating for MTB | Brake power off | Power off Brake lever or Pedal stop |
Cables | JAGWIRE,Internal cables,External cables | Speed sensing | Built-in Motor Holzer |
Accessories | Steel rear kickstand+Tools | Wire connector | All waterproof quick connector |
Details Images

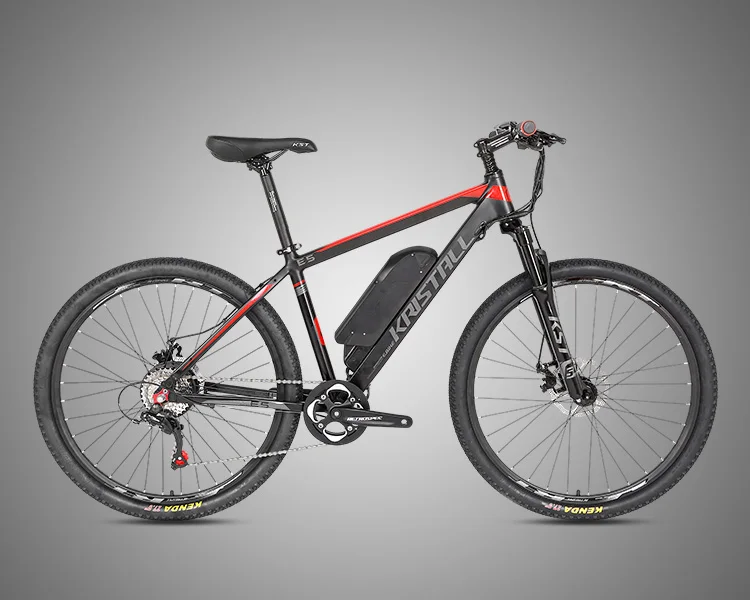

Different Colors
BlackRed / BlackGreen / BlackGray

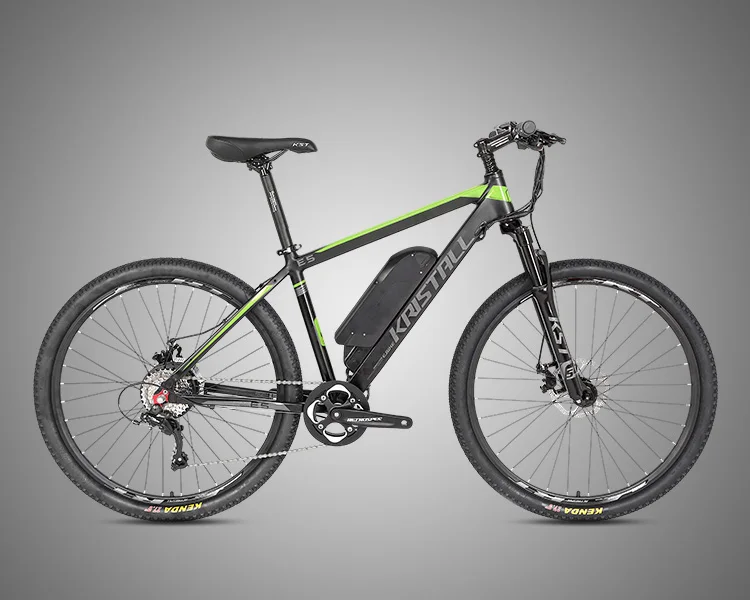

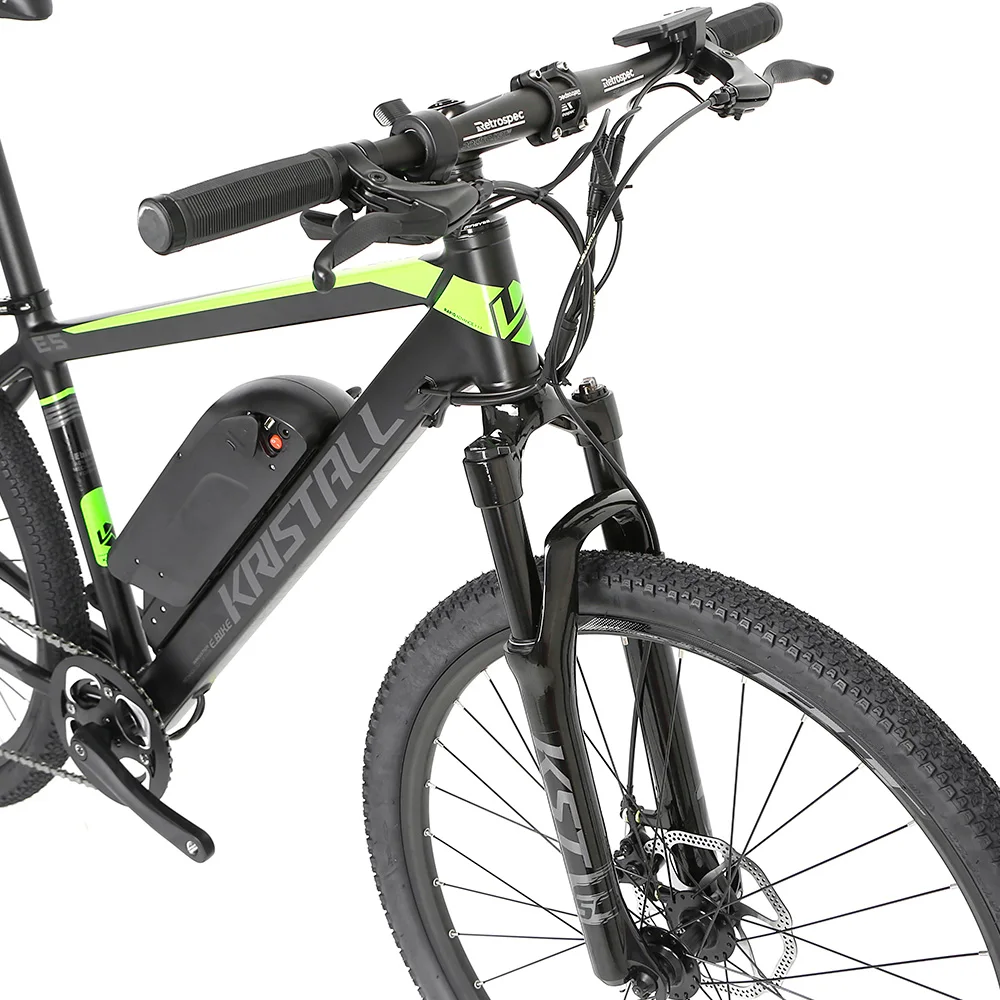

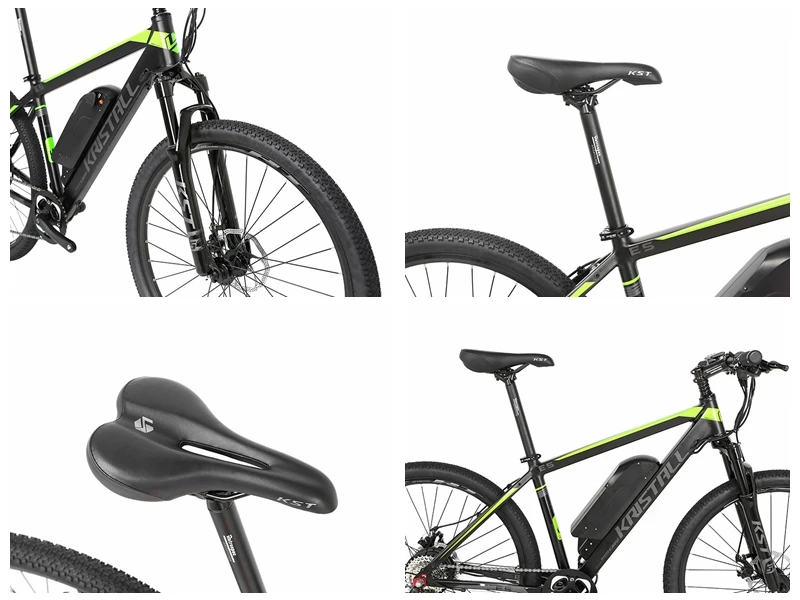

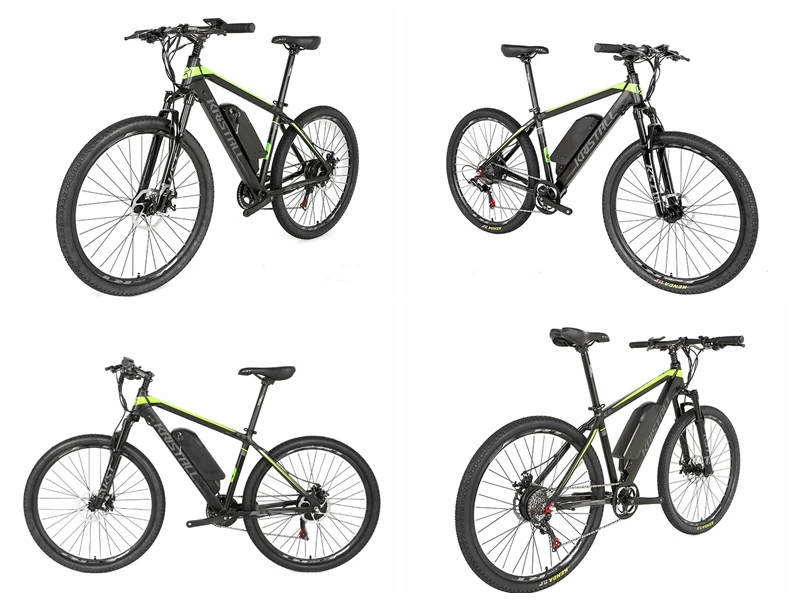

Different Angles

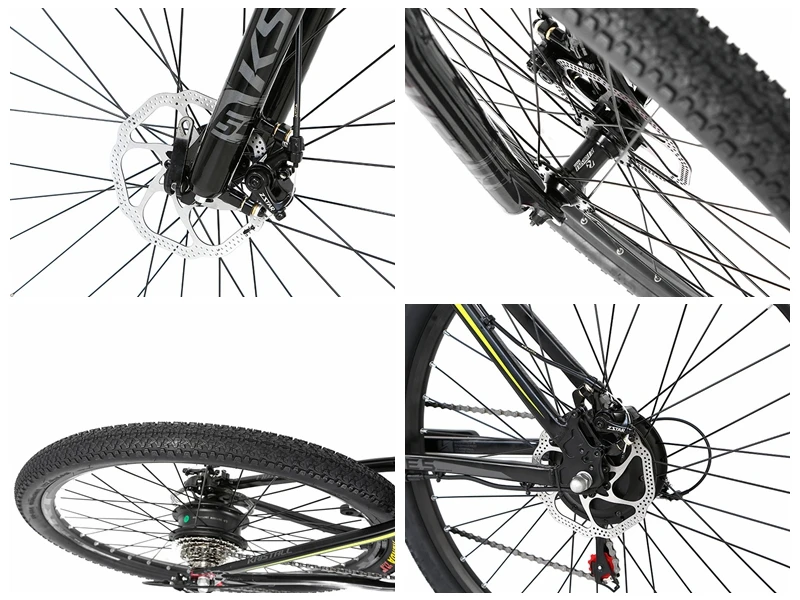

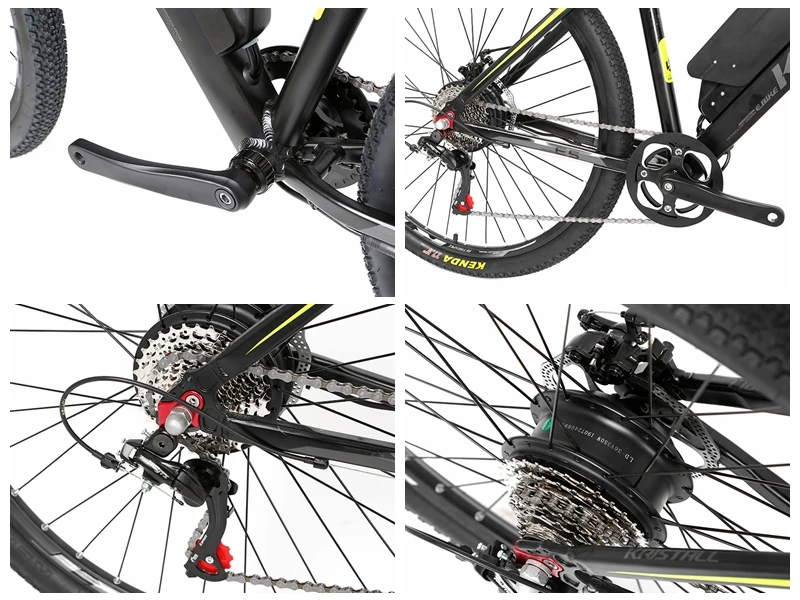

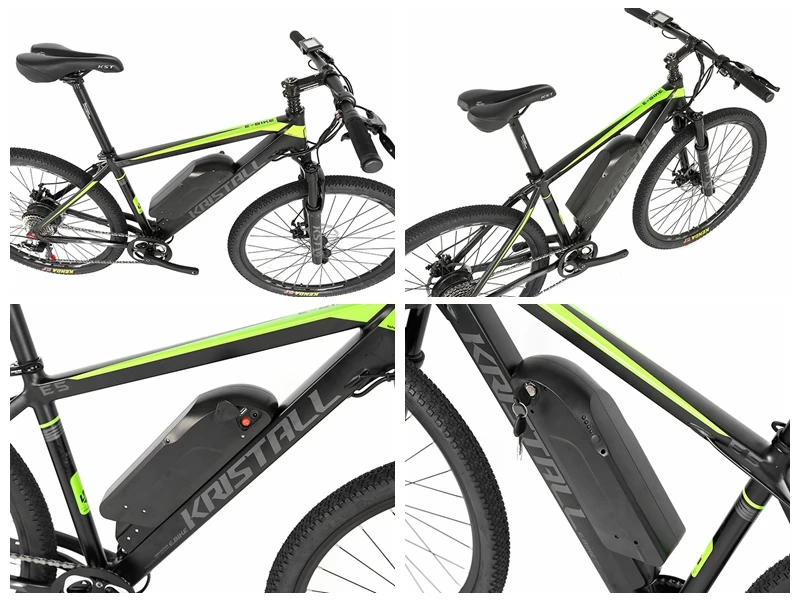

Components
>1.Frame:E5, alloy AL6061,Smooth welding&inner Cable,Matte,UV decals.

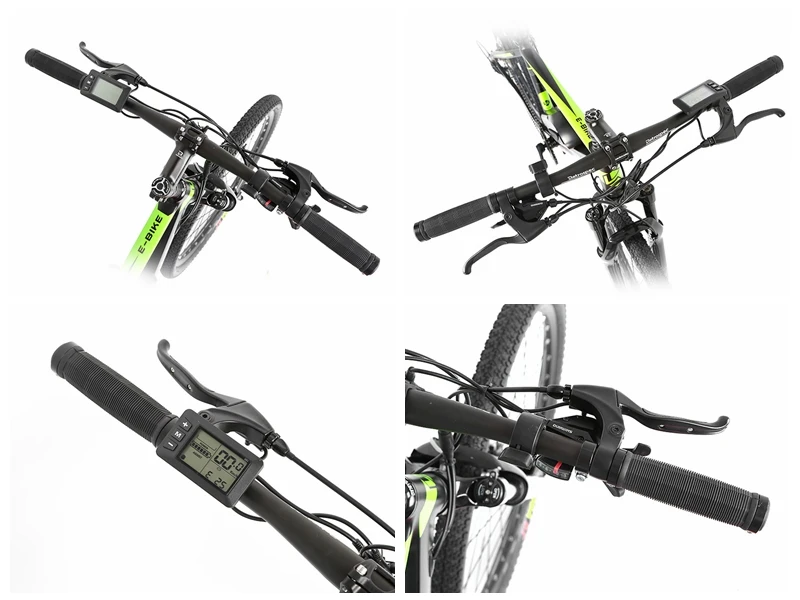

>2.Handelbar Sets:Alu alloy with Matte,Hb31.8*680,St90,Sp31.6*350mm.
>3.Fork:KST Alu alloy, Coil suspension, Manual-lockout.
>4.Gears:SHIMANO M310-8 speeds.
>3.Fork:KST Alu alloy, Coil suspension, Manual-lockout.
>4.Gears:SHIMANO M310-8 speeds.
>5BB:BB68mm,Bearing,with Torque+Speed(cadence) assist sensor
Product packaging

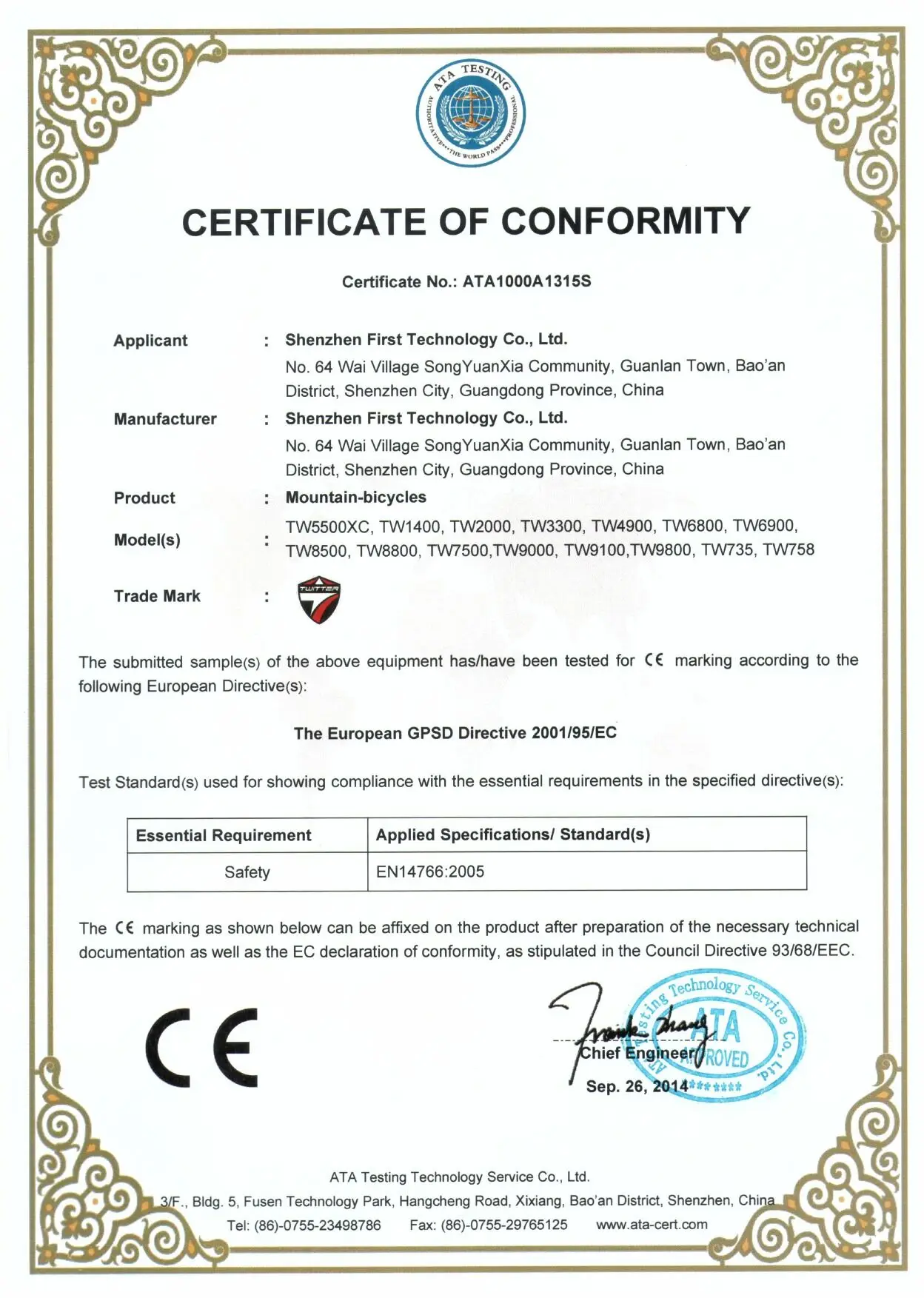

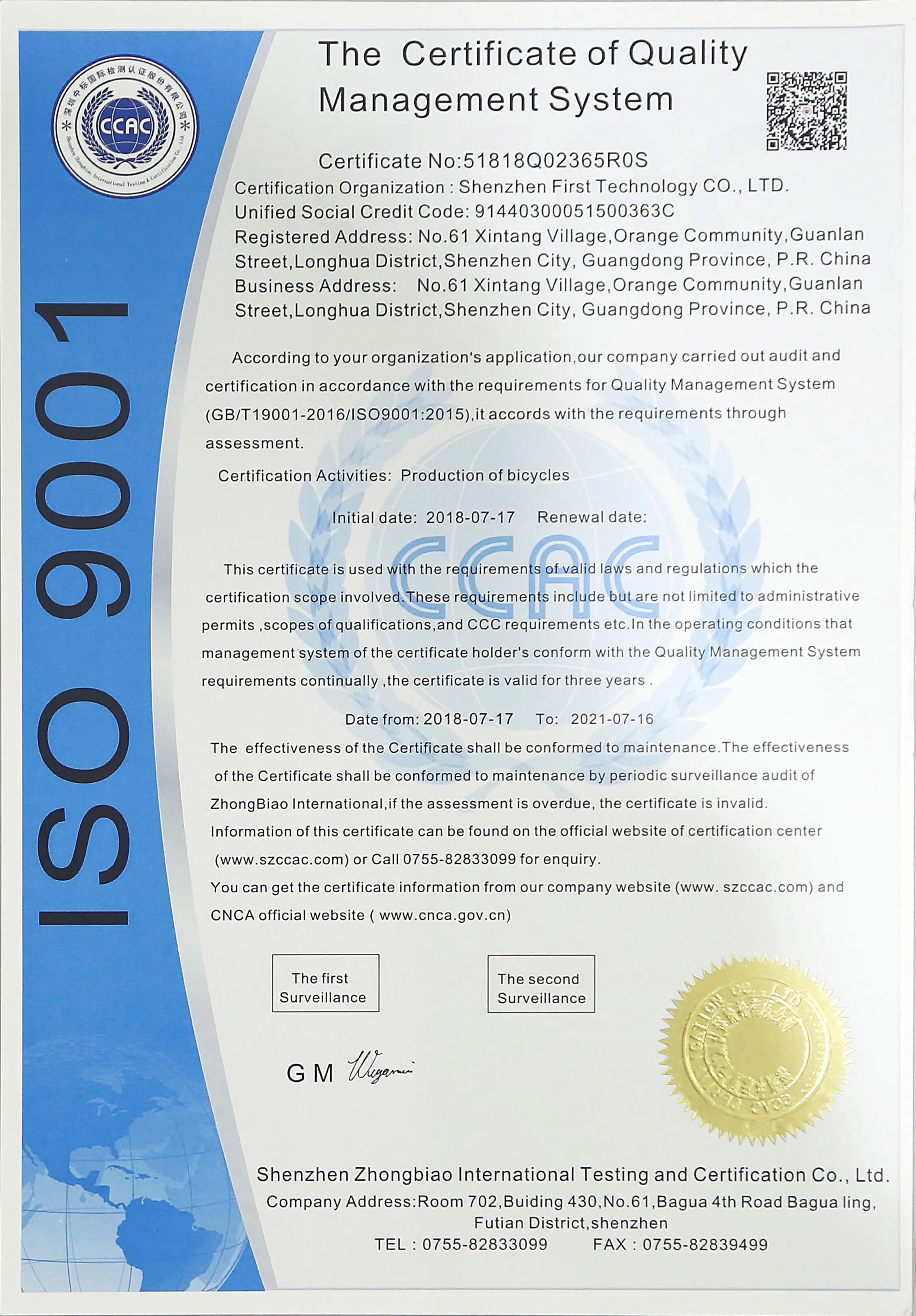

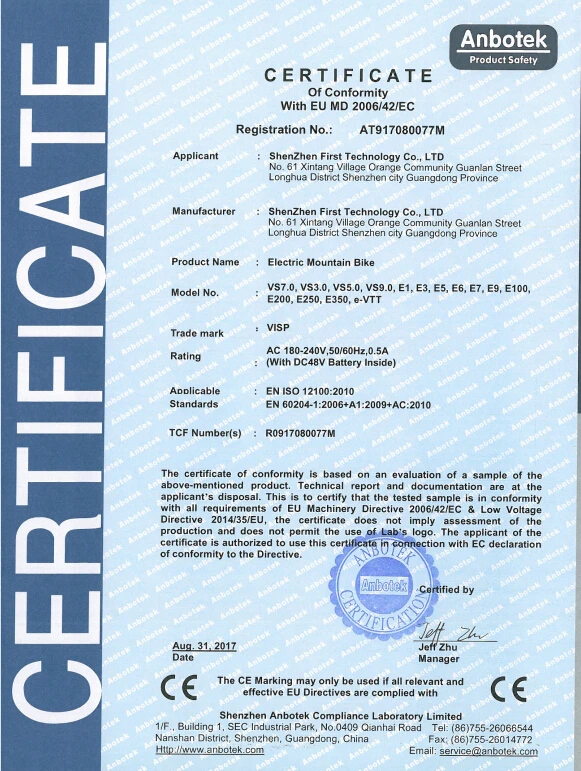

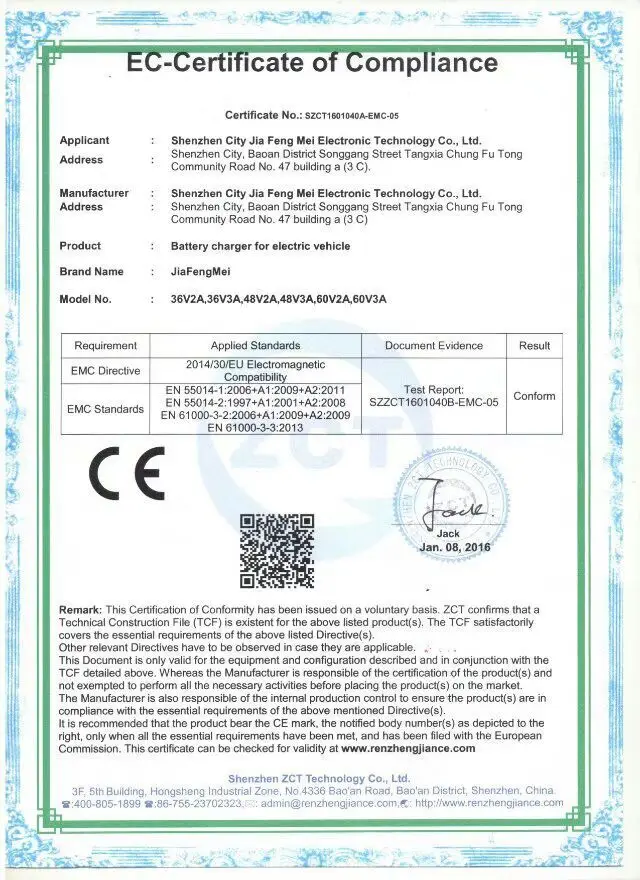

Certifications

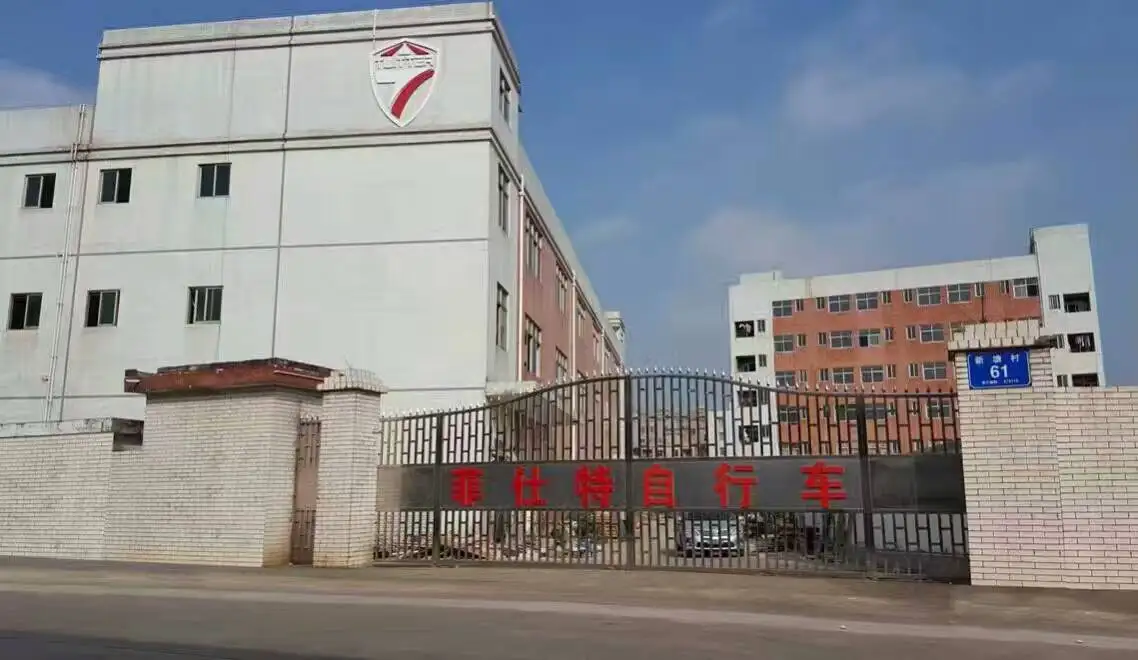

Company Profile
Exhibition
Our Advantages
>1. Competitive Factory Price !
>2.Strict quality assurance !
> 3.Timely & Professional after-sales service !
> 3.Timely & Professional after-sales service !
FAQ
>1. Q: Can I get some samples?
A: We are honored to offer you sample for quality check.
>2. Q: Can I mix different models?
A: Yes,different models can be mixed .
>3. Q: What payment do you accept?
A: In general, our payment is trade assurance order for retail
order and bulk order accept T/T ,Deposit and etc.
>4.Q: If you want to know more about us psl contact me directly.^_^Welcome to add my WhatAapp to talk more:+86 13825459410
A: Yes,different models can be mixed .
>3. Q: What payment do you accept?
A: In general, our payment is trade assurance order for retail
order and bulk order accept T/T ,Deposit and etc.
>4.Q: If you want to know more about us psl contact me directly.^_^Welcome to add my WhatAapp to talk more:+86 13825459410
