2 Ton 5 Ton 10 Ton Circular Electric Lifting Magnet for Steel Scraps
- Category: >>>
- Supplier: Henan Sinoko Cranes Co. Ltd.
Share on (1600464921293):
Product Overview
Description
Product Description
Round magnetic lifter for lifting steel scrap on crane is a kind of electromagnetism principle. By energizing the inner coil to generate magnetic force, the workpiece touching the surface of the panel is absorbed by the magnetic conductive panel. The principle of demagnetization and the removal of the workpiece is achieved by the power loss of the coil. The production of a machine tool accessory product.
Specification
Model | Diameter (mm) | Current (A) | Power (kW) | Lifting capacity (cold/hot state) (kgs) | ||||
Steel ball | Steel ingot | Steel scrap | ||||||
MW5-70L/1 | 700 | 15 | 3.3 | 2500 | 380/200 | 120/100 | ||
MW5-80L/1 | 800 | 18 | 3.96 | 3000 | 480/250 | 150/130 | ||
MW5-90L/1 | 900 | 26.6 | 5.85 | 4500 | 600/400 | 250/200 | ||
MW5-110L/1 | 1100 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | ||
MW5-120L/1 | 1200 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | ||
MW5-130L/1 | 1300 | 54 | 11.9 | 8500 | 1400/1100 | 700/600 | ||
MW5-150L/1 | 1500 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | ||
MW5-165L/1 | 1650 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | ||
MW5-180L/1 | 1800 | 102.4 | 22.5 | 14500 | 2750/2100 | 1600/1350 | ||
MW5-210L/1 | 2100 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | ||
MW5-240L/1 | 2400 | 154 | 33.9 | 26000 | 4800/3800 | 2850/2250 | ||

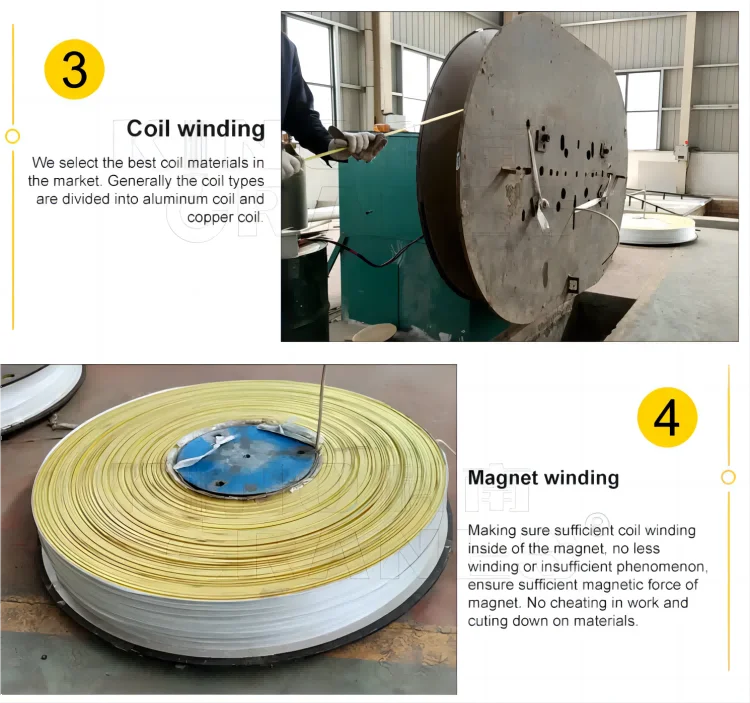

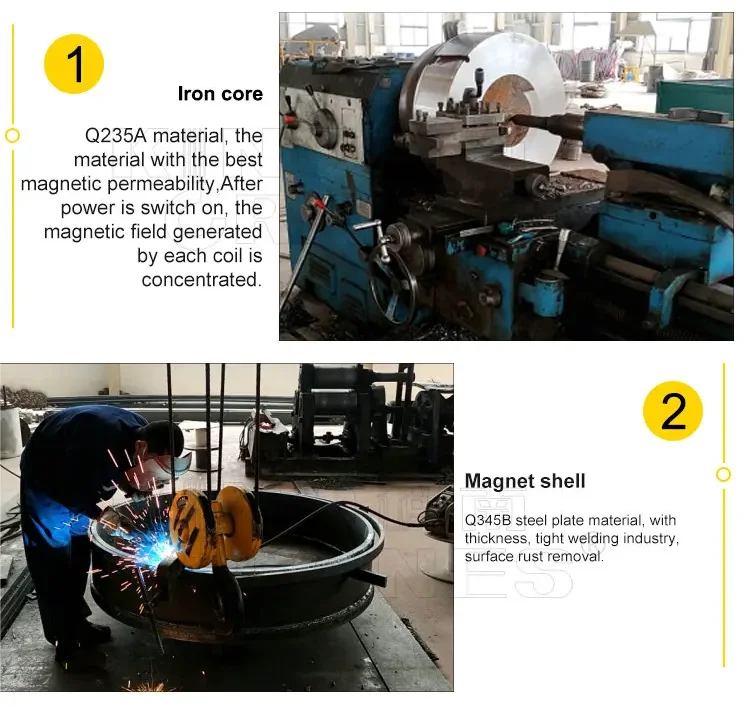

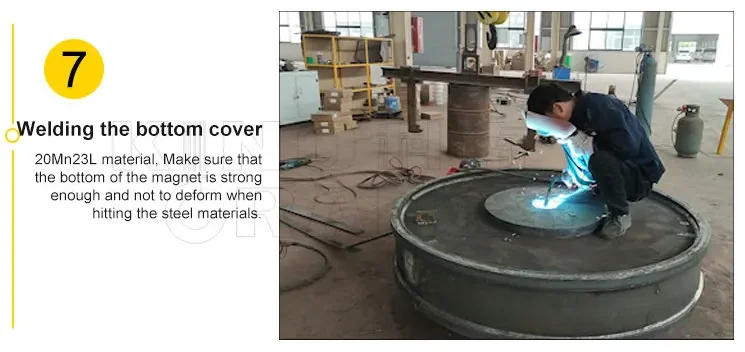

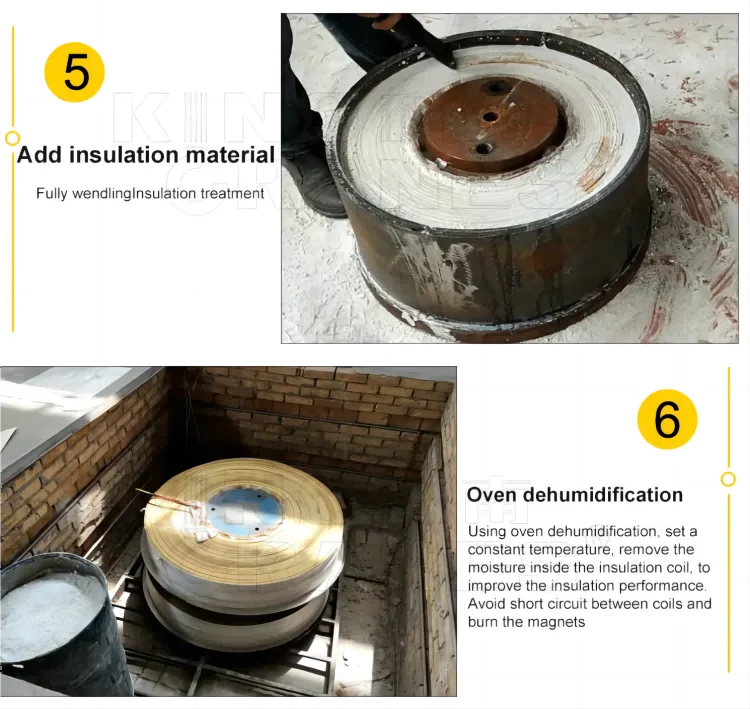

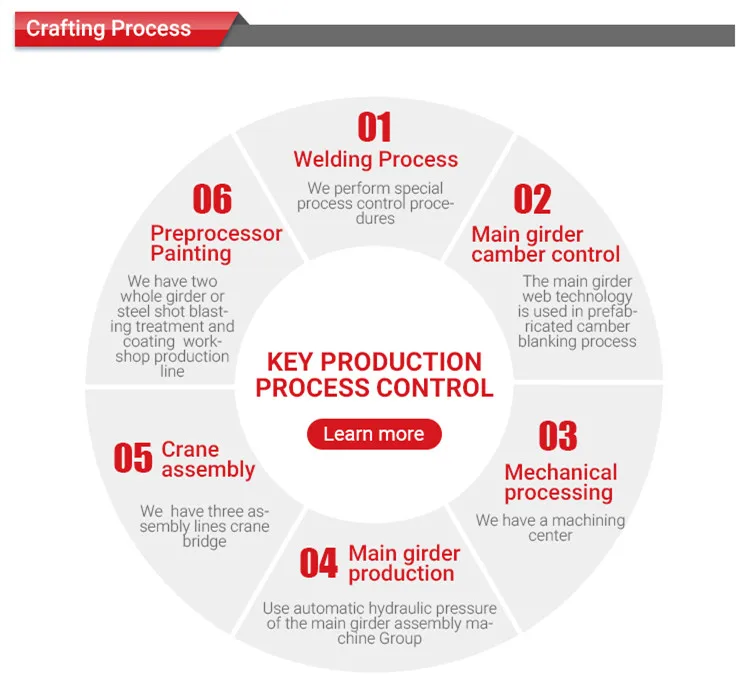

Production Process

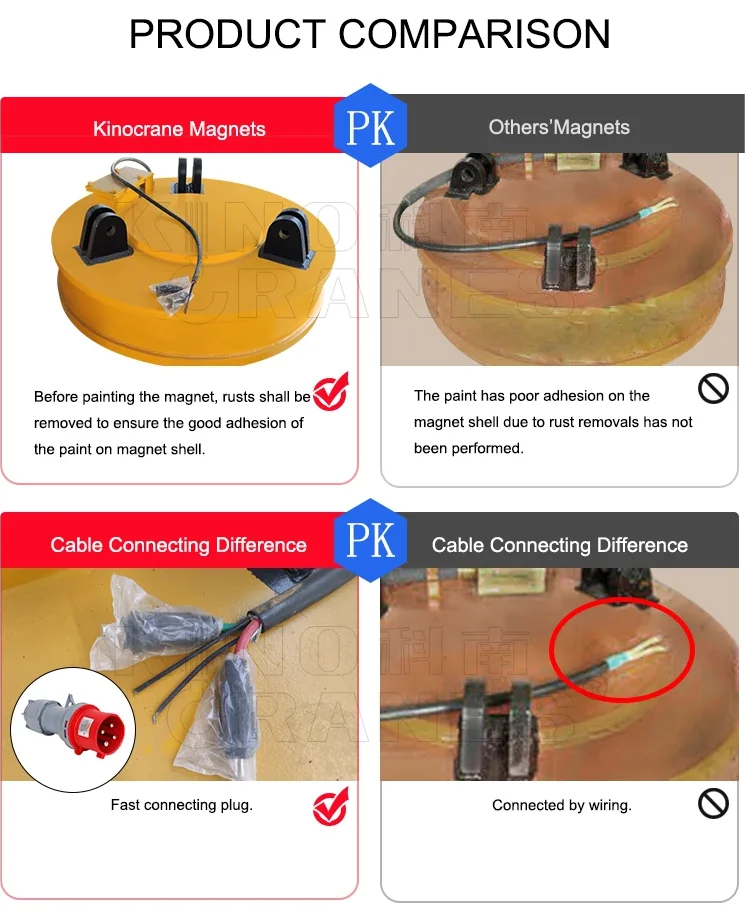

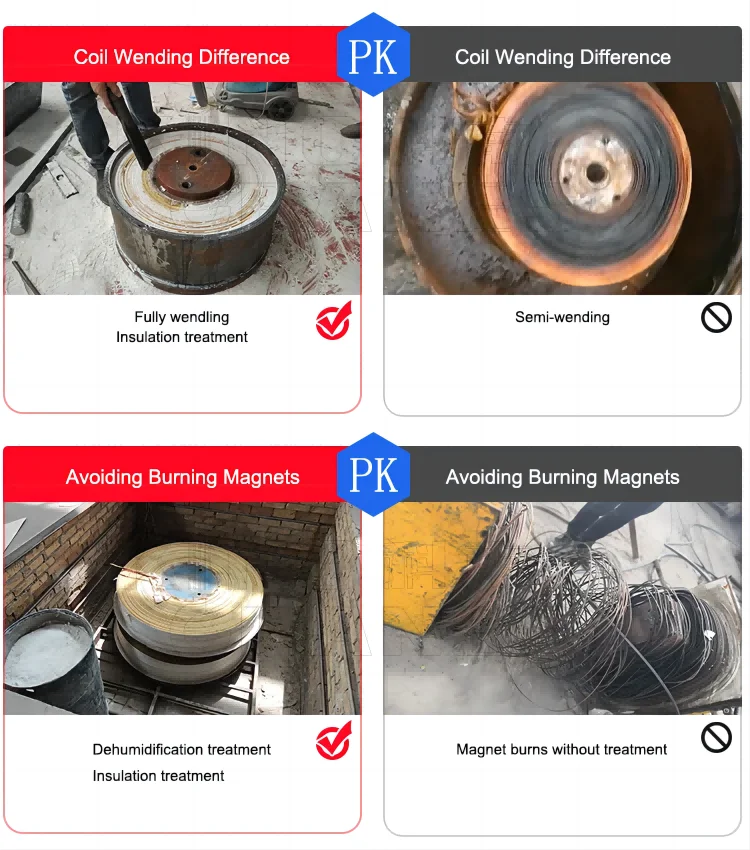

Advantages

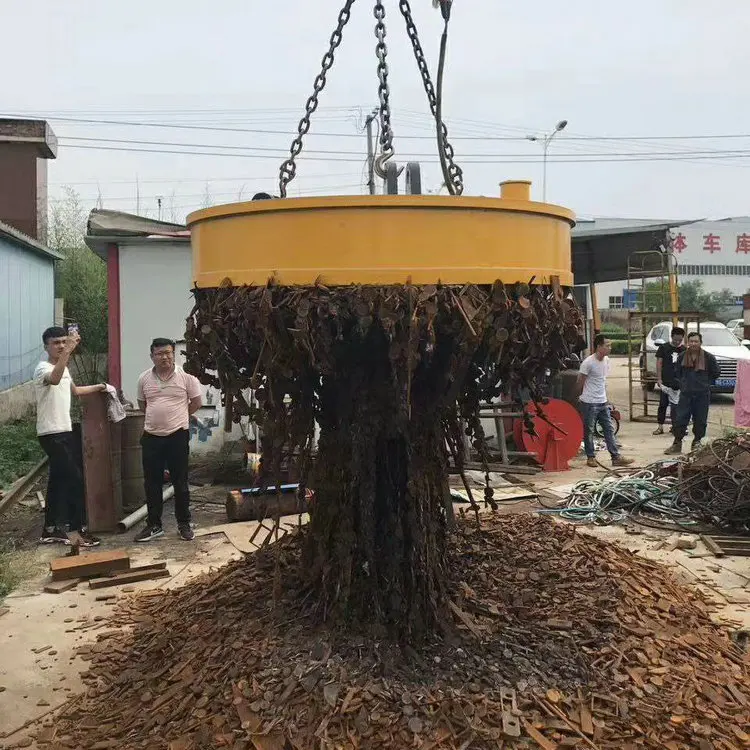

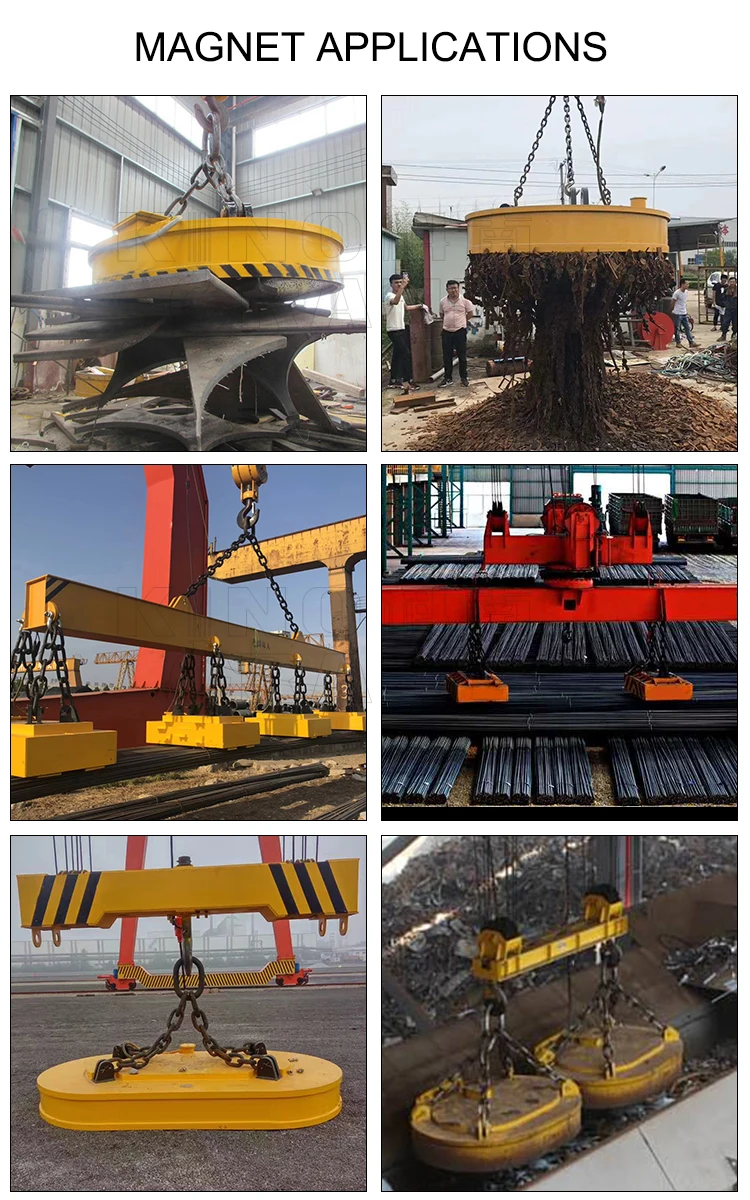

Product Display

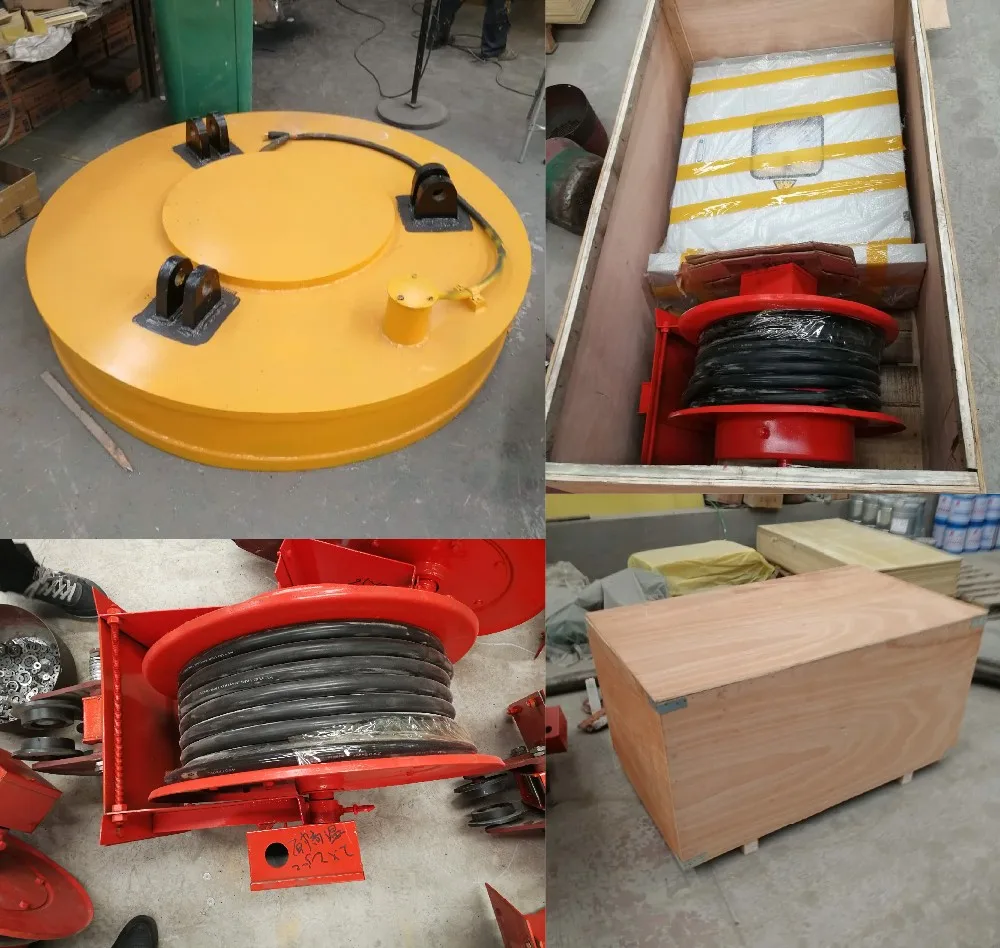

Packing & Delivery
Factory Introduction
