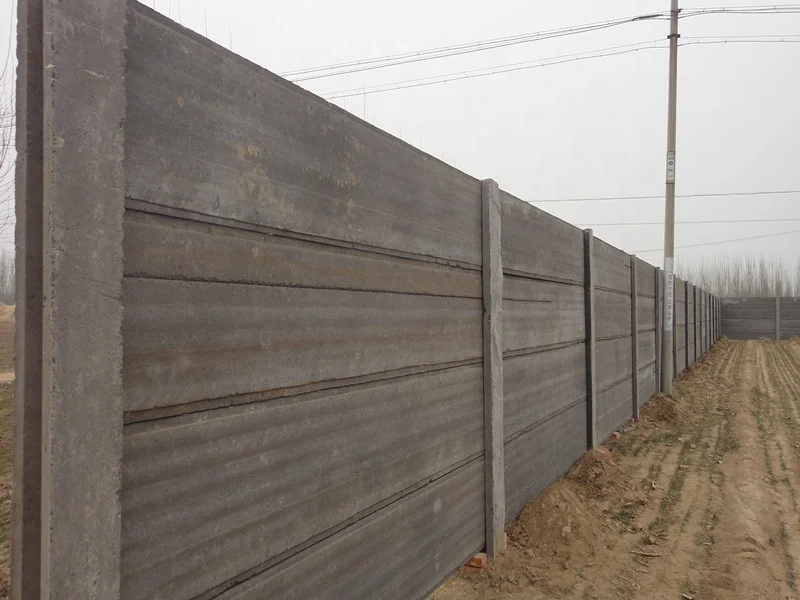

precast concrete wall panel machine for boundary wall/ fence wall

Product Overview

Description

Concrete wall compound rcc wall precast concrete wall panel machine for boundary wall/ fence wall   008613280007837





Hollow core slab features

1) Good bearing capacity, large span, good overall, superior seismic performance

2) Flame retardent, thermal insulation, sound insulation

3) Client customization and energy-efficiency

4) Professional design and reduce production cost



Concrete wall panel machine, Hollow core slab machine

This kind of slab is the best and economical choice for the factory to produce high strength hollow core slab for workshop, school, hospital, shopping mall, office building, warehouse and residence.



Machine specifications (Your slab sizes can be customized)

Model	Motor Power	Vibrator Power	Dimension (L*W*H)	Weight (kg)	Molding Speed(m/min)	Holes (pcs)	Hole Diameter(mm)
120*600	5.5kw	3kw	2100*850*750	1050	1.2-1.4	5	Ø76
50*500	3kw	0.8kw	1800*750*650	700	1.2-1.4	8	Ø25
50/80*500	4kw	1.5kw	2030*730*660	930	1.2-1.4	7	Ø25 (Ø42)
100*600	4kw	2.2kw	2100*850*730	975	1.2-1.4	6	Ø60
90*600	4kw	2.2kw	2100*840*730	955	1.2-1.4	6	Ø50
60/80*500	4kw	1.5kw	2030*830*660	910	1.2-1.4	7	Ø25 (Ø42)
120*900	7.5kw	3kw	2500*1300*900	1580	1.2-1.4	8	Ø76
120*1200	7.5kw	3kw	2500*1700*900	1650	1.2-1.4	11	Ø76
180*600	7.5kw	3kw	2300*1100*950	1290	1.2-1.4	3	Ø130

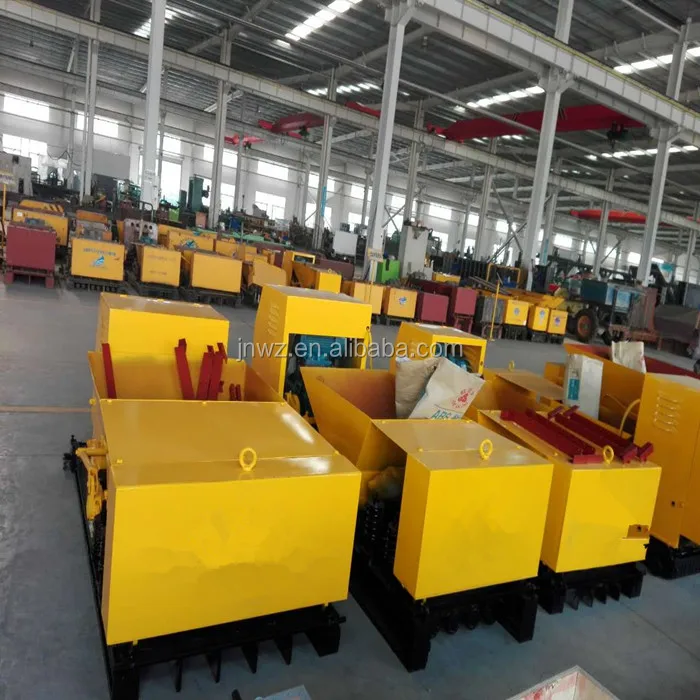

Our company workshop

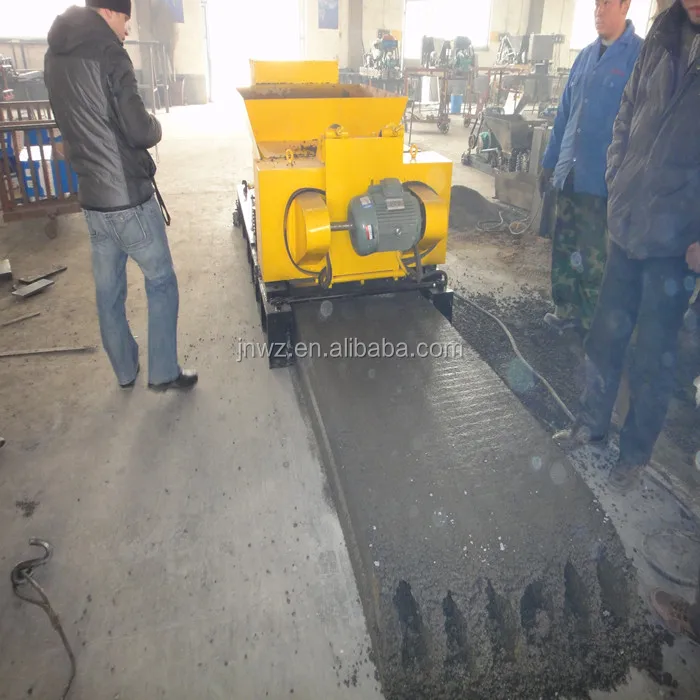

Machine test before shipment



Roof slab machine whole line as follows

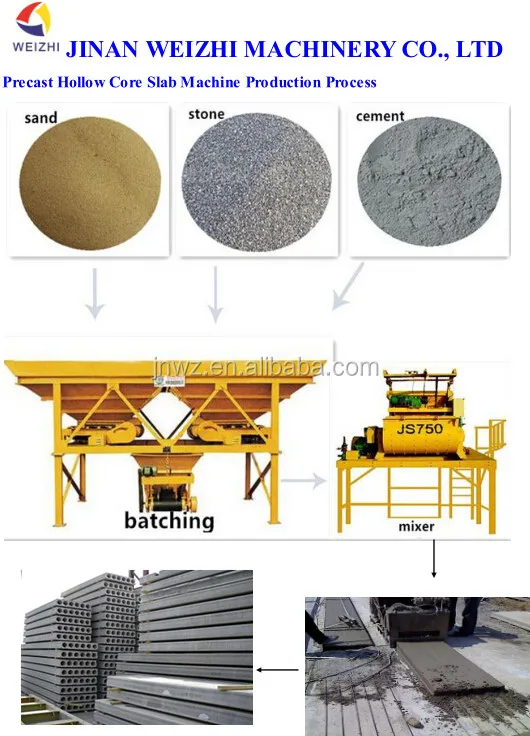

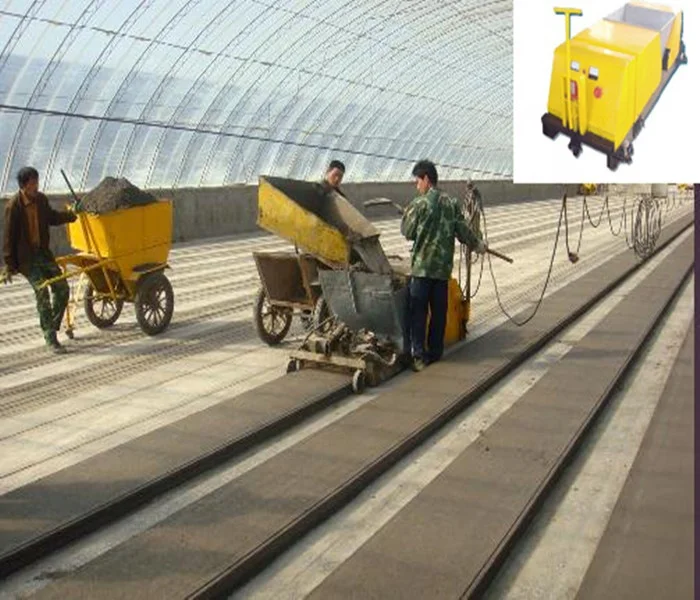

Floor slab production process



Hollow core slab production from clients

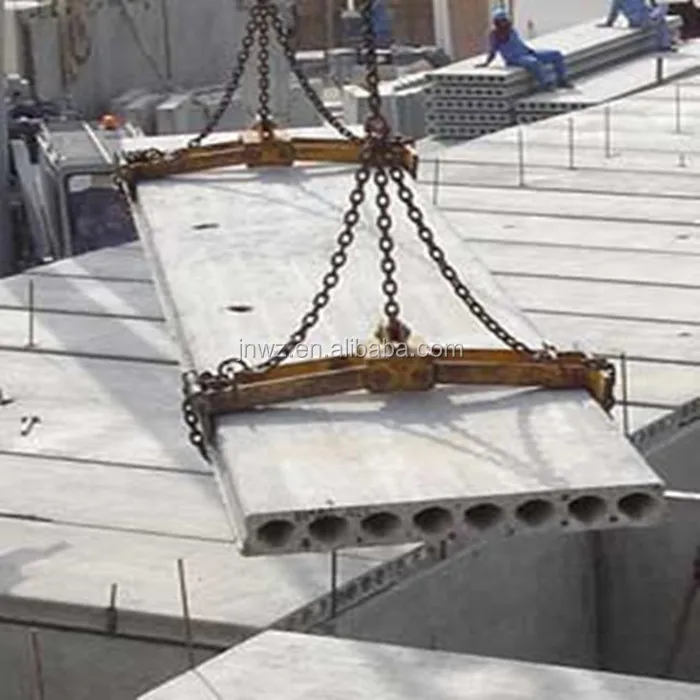

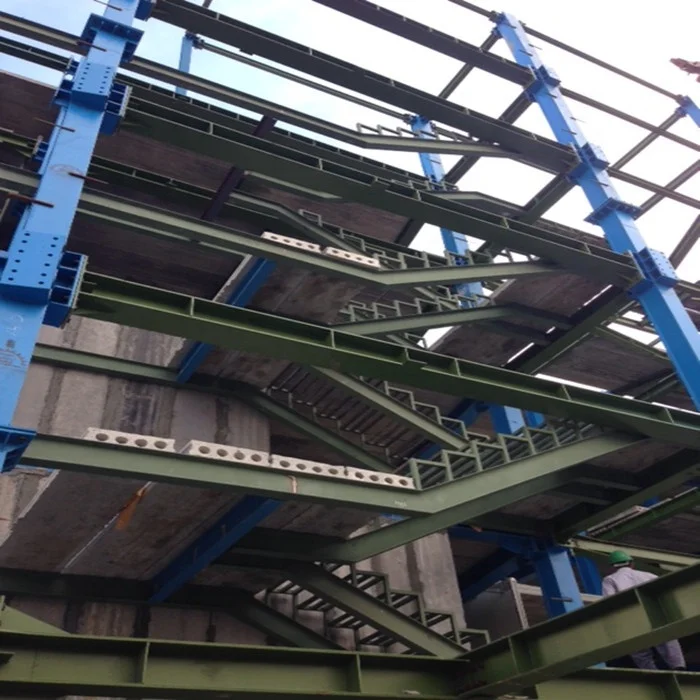

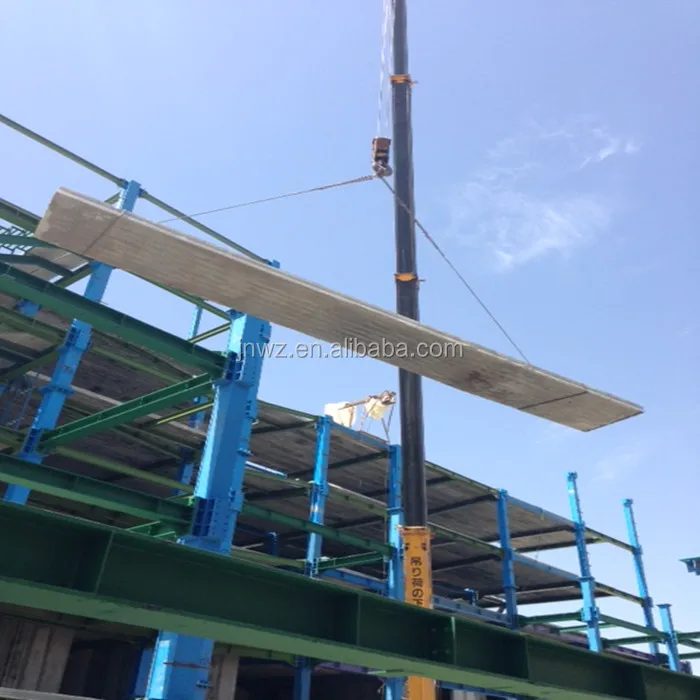

Concrete slabs used for floor and roof





Packaging & Shipping





Clients visit our factory



Our Services

1. We supply technical support and can send technician to help clients install machines.

2. We supply one year warranty for the whole machine.

3. We supply free quick wear parts and free training to end-users.

4. We supply low cost continual maintenance when warranty is expired.
