Hook And Loop Tape Fatigue Fastening TapeTester
Application
It is applicable for repeatedly open and close motion for touch and close fasteners.

Principle
Install the hook and annular respectively on two rollers of this device. Stick them together under certain load and to generate repeated opening and closing motion through a certain times of forward and reversal rotating. After that, remove the sample and determine its peeling and shear strength testing on tensile tester.


PRODUCT SPECIFICATIONS


Model
GT-K19
Control method
LCD Touch screen controlled
Sample dimension
Length 540±10mm, width: 20~50mm
Upper idling drum
Diameter 162.5±0.5mm
Under driven drum
Diameter 160±0.5mm
Drum width
70mm
Clamp slot
Width 4mm, length 55±2mm
Test speed
60±5r/min
Reversal intervals
30±5 s
Test load
1±0.1N/mm
Test times
5000 cycles
Power supply
1∮AC 220V 50/60HZ
Dimensions( L x W x H )
55 cm ×45 cm ×65 cm
Weight
55kg
Standards
DIN 3415, BS EN ISO 22776, BS EN ISO 22777
SATRA TM123, GB/T3903.20, GB/T3903.21,GB/T 23315
Standard Accessories
10N Weights
1 pc
To exert load on rotating wheel
20N Weights
1 pc
To exert load on rotating wheel
Power Line
1 pc
Current transport
Optional Accessories
Press Roller
Optional
Diameter 100 mm
(With with 25N, 35N, 50N pressure wheel)
Universal Tensile Tester
Optional
Peeling and shear strength test
>>> Send inquiry to us ! ! !

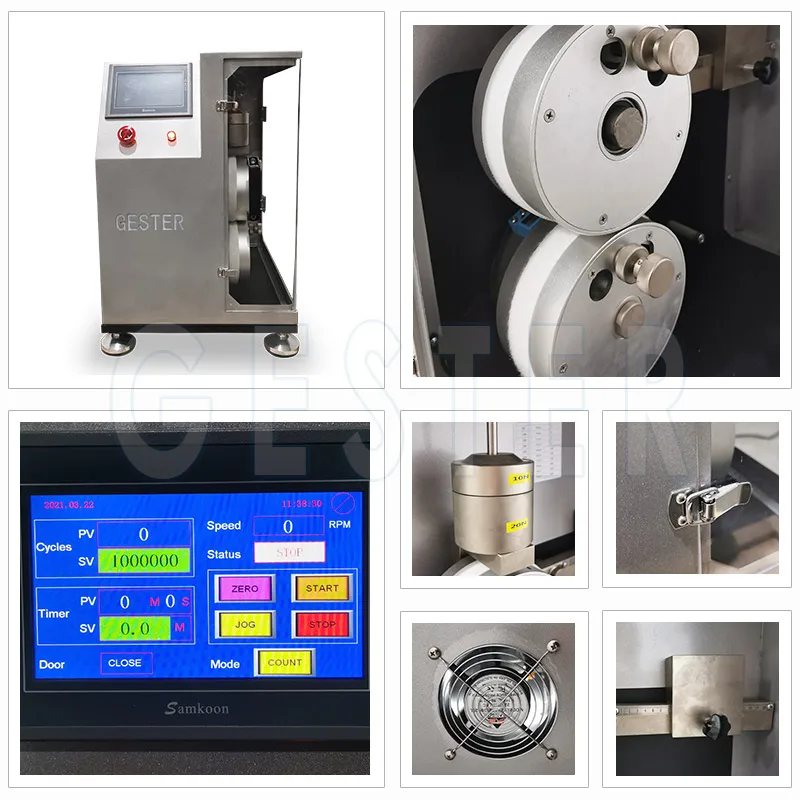

PRODUCT DETAILS IMAGE


10/20N Weights
To exert load on rotating wheel

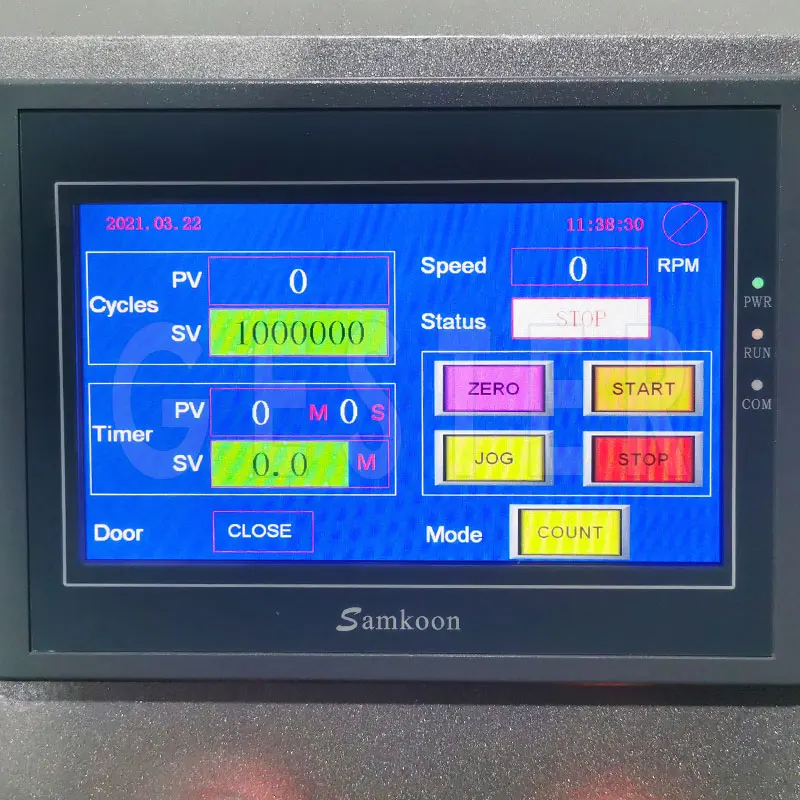

Speed regulator
To adjust speed of rotating wheel

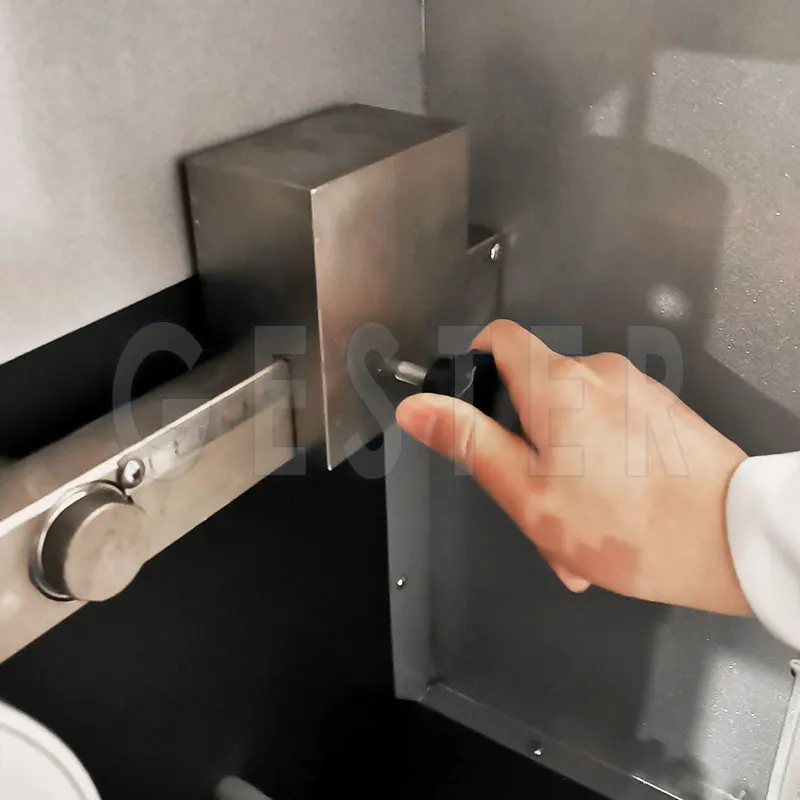

Adjusting Block
To use with weights and scale to adjust load.


Put sample
To place hook and loop fastener sample

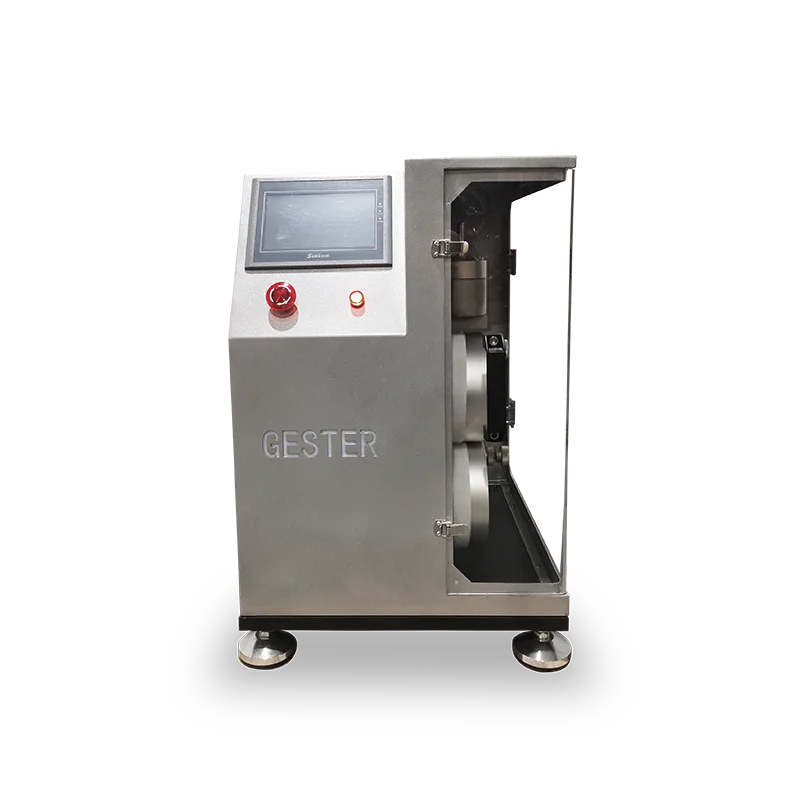

Front view
Front view for whole machine

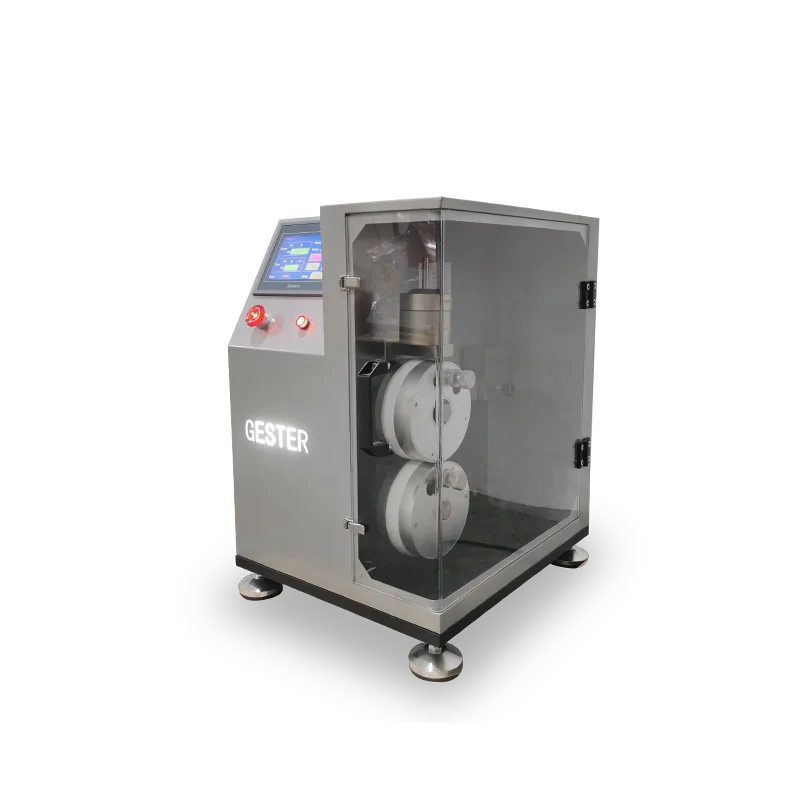

Side view
Left-side view for whole machine
