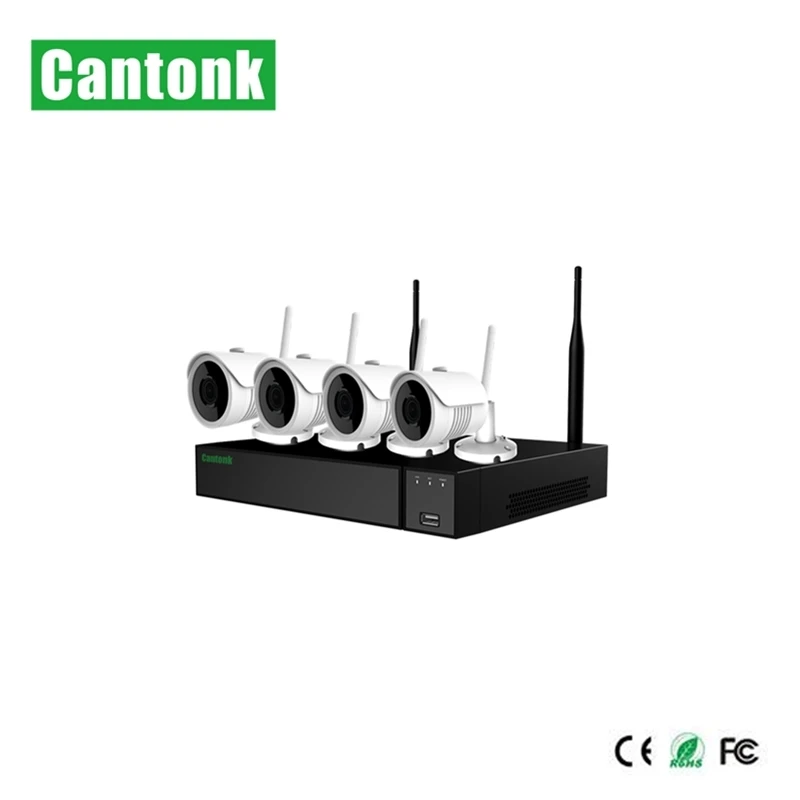

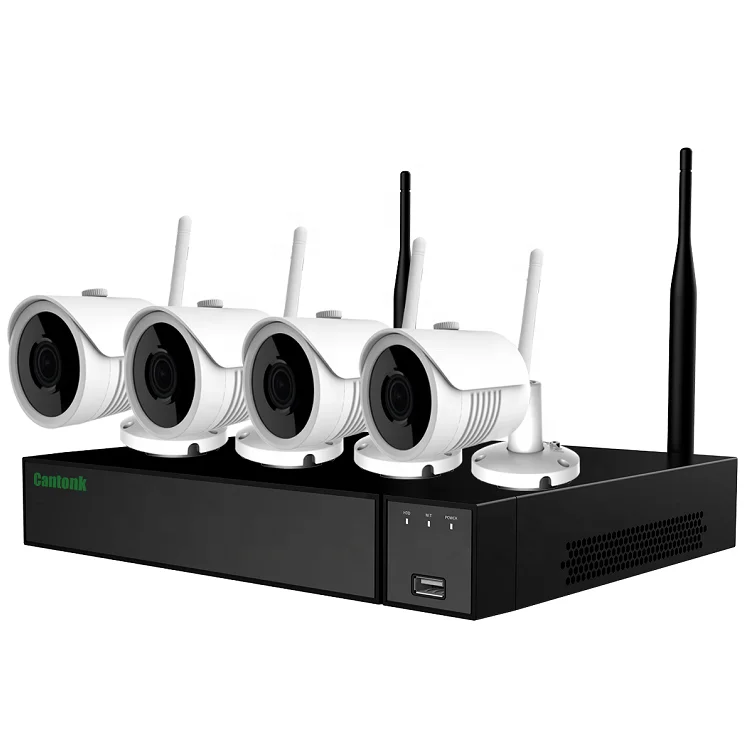

Cantonk wifi kit NVR cctv camera system wifi IPC bullet 2mp DVR System set
- Category: >>>
- Supplier: Cantonk (guangzhou) Corporation Limited
Share on (1600464950260):
Product Overview
Description
Product Description
Product Model | WIFICEB8214KE200 |
Material | Metal Bullet |
Function | Plug & Play |
Package | Color Box Packaging |
Model NO. | WIFICEB8214KE200 | |

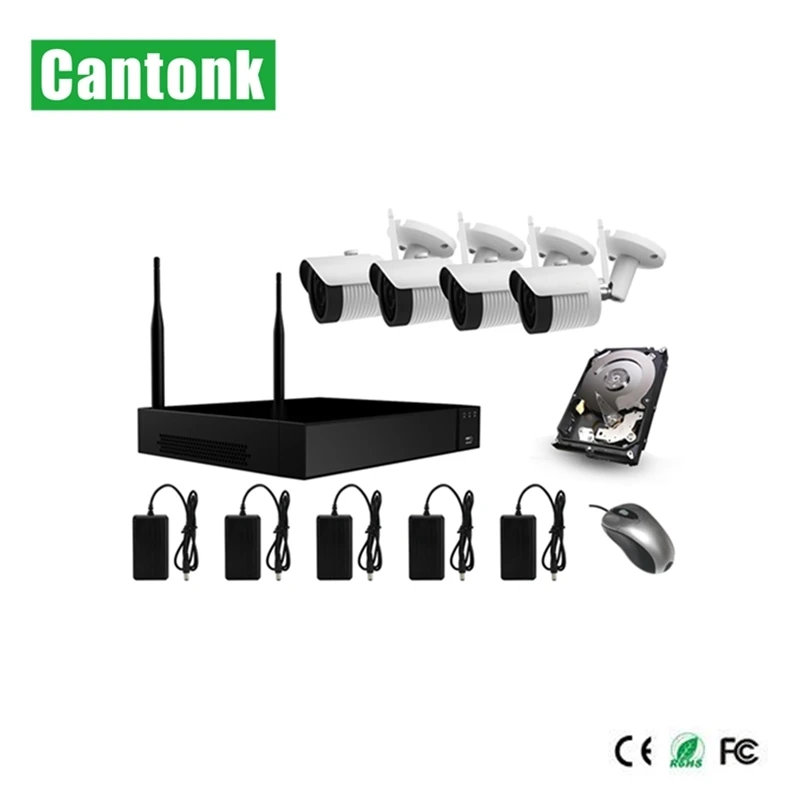

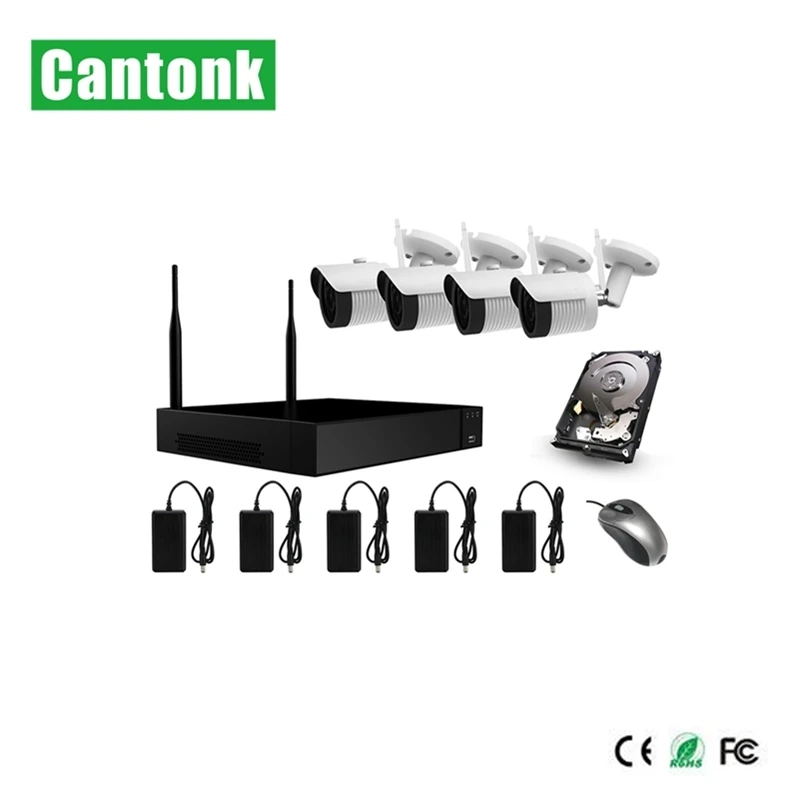

Package | ||
NVR | 1x NVRCE8214KTW | |
Camera | 4 x IPR25KE200W | |
WIFI Range | No Obstacles 300m Max | |
Cable | 1 x 1m Net Cable | |
Mouse | 1xUSB 2.0 Mouse | |
Adaptor | 1xDC 12V 2A for WIFI NVR, 4xDC 12V 0.5A for WIFI IP Camera | |
Weight | 5.3kg/SET | |
Camera Model | IPR25KE200W | |
Camera | ||
Image Sensor | 1/2.9" Full HD CMOS Sensor | |
Resolution | 2MP 1080P | |
Effective Pixels | 1920(H)*1080(V) | |
Compression | H.264/H.264+/H.265/H.265+ | |
TV System | PAL(default） | |
Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec | |
S/N Ratio | ≥52dB | |
Scanning System | Progressive | |
Video Output | Wireless network | |
Reset Button | Yes | |
LENS Type | ||
Focus Length | 3.6mm | |
Focus Control | Fixed | |
Lens Type | Fixed | |
Pixels | 2M Pixels | |
Night Vision | ||
Infrared LED | 14µ x 20PCS | |
Infrared Distance | 25M | |
IR Status | Auto Control | |
IR Power On | Auto Control | |
Network | ||
Ethernet | / | |
Protocol | TCP/IP,ICMP,RTP,RTSP,RTCP | |
ONVIF | / | |
P2P | / | |
POE | / | |
Main Stream 1 | 1920*1080@1-15fps(default resolution:1920*1080/frame rate:15fps/bit rate:1Mbps) | |
Main Stream 2 | / | |
Main Stream 3 | / | |
Sub Stream 1 | 720*480@1-15fps(default frame rate:15fps/bit rate:0.5Mbps) | |
Sub Stream 2 | / | |
Sub Stream 3 | / | |
Tri Stream | / | |
IE Brower | / | |
Smart Phone | / | |
Wireless | ||
Antena | 3dbi | |
Hotspot | NO | |
Wi-Fi | Wi-Fi(IEEE802.11b/g/n) | |
WIFI Range | No obstacles 300m Max. | |
Camera Features | ||
Day/Night | Color/ B&W (IR-CUT ) | |
Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, White Balance, FLK(Flicker Control) | |
Corridor Pattern | / | |
ROI | / | |
Defog Mode | / | |
BLC | / | |
HDR | / | |
WDR | / | |
Motion Detection | Support | |
Privacy Masking | 3 Rectangular Zone | |
Recording Mode | NVR | |
Language | / | |
Interface | ||
Audio | / | |
Alarm | / | |
SD Card Slot | / | |
RS485 | / | |
General | ||
Housing | Metal , IP67 | |
Anti-cut Bracket | YES | |
IR Cut Filter | YES | |
Operation Temperature | -10℃ ~ +50℃ RH95% Max | |
Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
Power Source | DC12V±10%, 500mA | |
Dimension | 157(W) x 70(H) x 66(D)mm | |
Weight | 650g | |

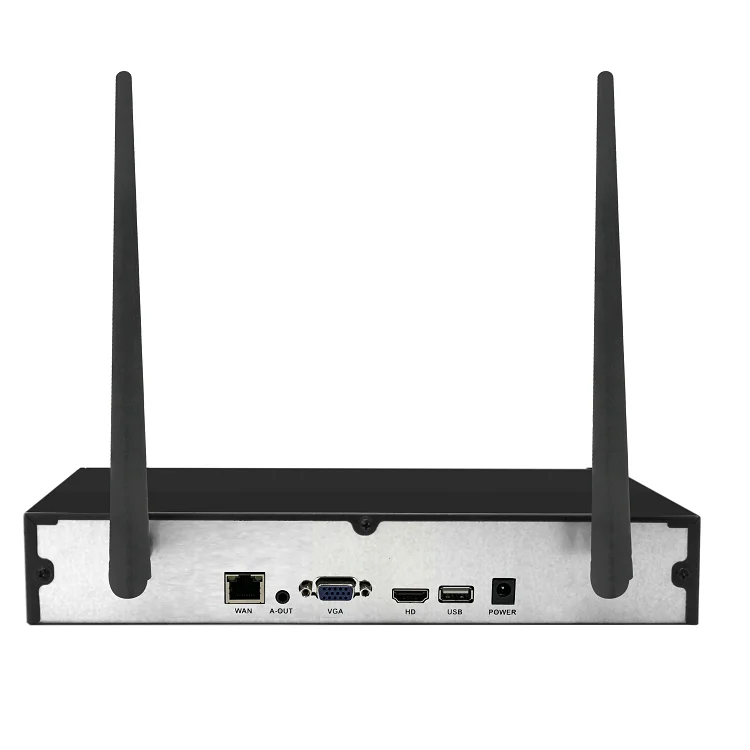

Model | NVRCE821W | |
System | ||
Main Processor | ARM Cortex A7 Quad-core Processor | |
Operating System | Embedded LINUX | |
Video | ||
Input | 9CH (3840x2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) | |
Output | 1 VGA, 1 HD | |
Audio | ||
Input | / | |
Output | 1*3.5mm audio interface | |
Audio Bit Rate | 64kbps | |
Audio Compression standard | G711u, G711a | |
Alarm | ||
Sensor Input | NO | |
Output | NO | |
Motion Detection | 9 Channel, MD Zones: 396 (22 × 18) | |
Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips | |
Display | ||
HD1 | Resolution: 4K(3840x2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
HD2 | / | |
VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
Display Split | 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4K | |
Digital Zoom | YES | |
OSD | Camera Title, Time, Recording, Motion Detection, Alarm | |
Recording | ||
Video Compression | H.264/H.265/H.264+/H.265+ | |
Resolution | 4K(3840x2160),25MP(2592×1944),4MP(2688×1520),3MP(2048×1536), 1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) | |
Record Rate | PAL :4K@8x25fps,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp NTSC: 4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp | |
Record Mode | Manual\\Timer\\Motion Detection | |
Playback & Backup | ||
Local Sync Playback | 1CH 4K@30fps,1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps | |
Decode Capability | 4CH 1080P@30fps | |
Remote Sync Playback | YES | |
Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | |
Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom | |
Backup Mode | Network/USB2.0 | |
Network | ||
Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface | |
Incoming Bandwidth | Wired 80Mbps; wireless 28Mbps | |
Network Functions | TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p | |
Onvif Version | Support Onvif 2.4 | |
Web Browser | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53) | |
CMS Software | Support Windows 7/ Windows 8/Windows 10 | |
Cloud Support(P2P) | Yes | |
Smart Phone | iPhone, iPad, Android, Android Pad | |
POE | / | |
WIFI | Support, WIFI Range: No Obstacles 300m Max. | |
Storage | ||
Interface Type | 1 SATA Hard Disk Interface (2.5"/3.5" SATA) | |
Capacity | Up to 8TB capacity | |
eSATA | / | |
General | ||
Language | Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Japanese | |
USB Interface | 2 USB 2.0 Interfaces | |
RS485 | / | |
Power Supply | DC12V/2A | |
Working Environment | -10~55℃/10~90% | |
Dimension(W×D×H) | 219*217*40(mm) | |
Weight | 2.0KG (without HDD) | |
Product Usage
Online Demo
APP is Bitvision
NVR User:Demo_NVR@126.com Password:12345678
XVR User:Demo_XVR@126.com Password:12345678
IPC User：Demo_IPC@126.com Password:12345678
IP-PTZ User:Demo_PTZ@126.com Password:12345678
Fisheye User：Demo_Fisheye@126.com Password:12345678
