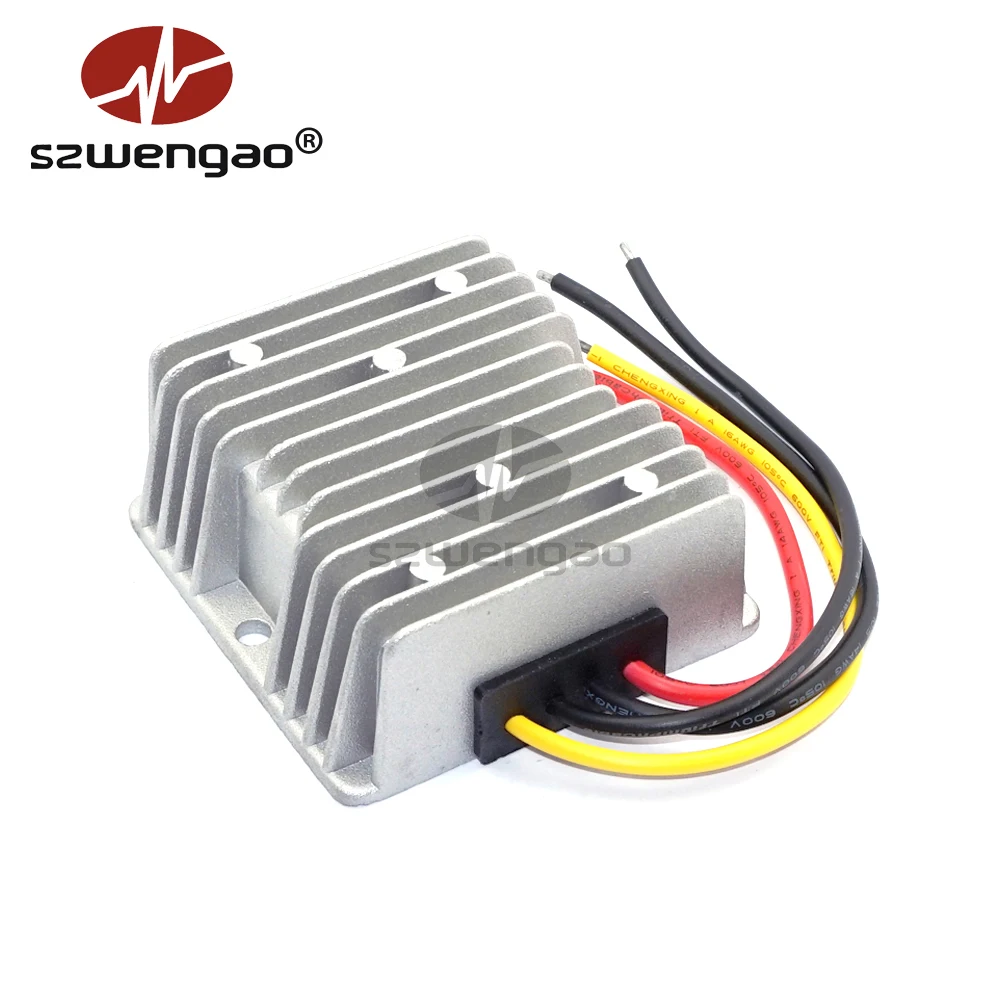

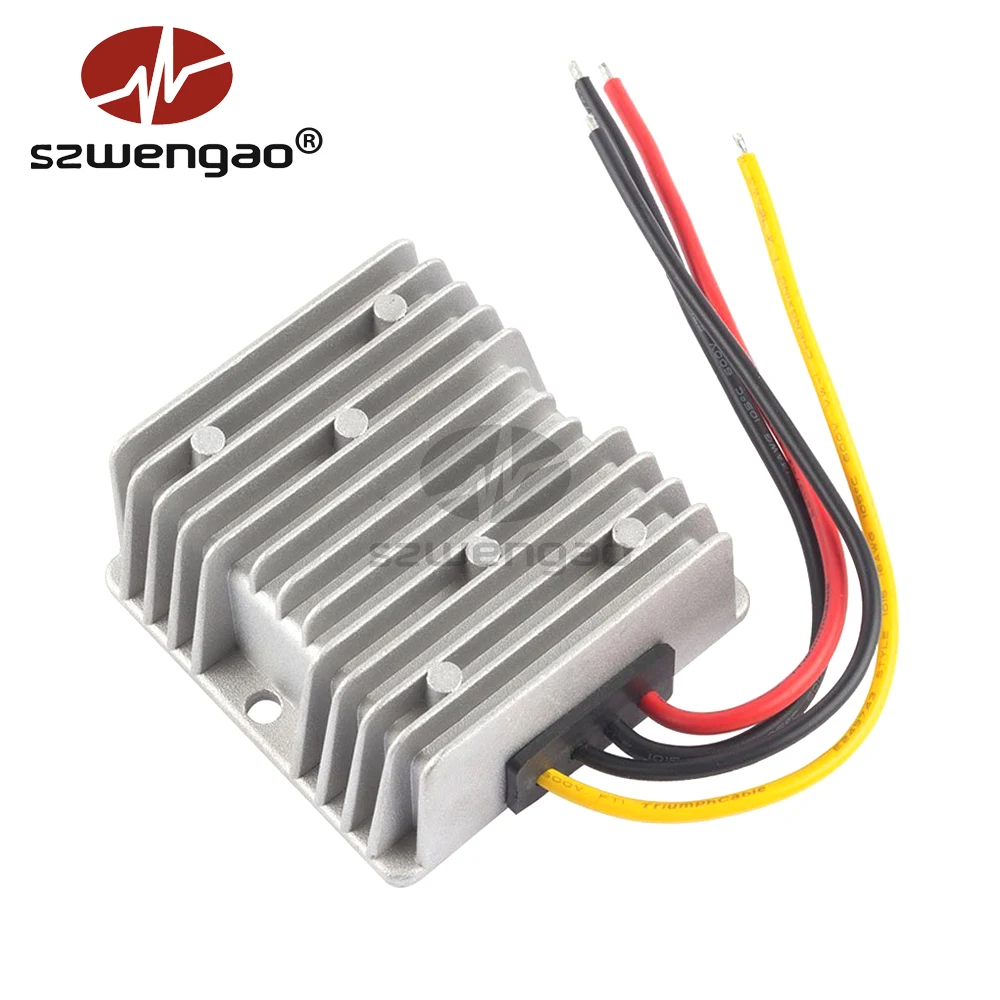

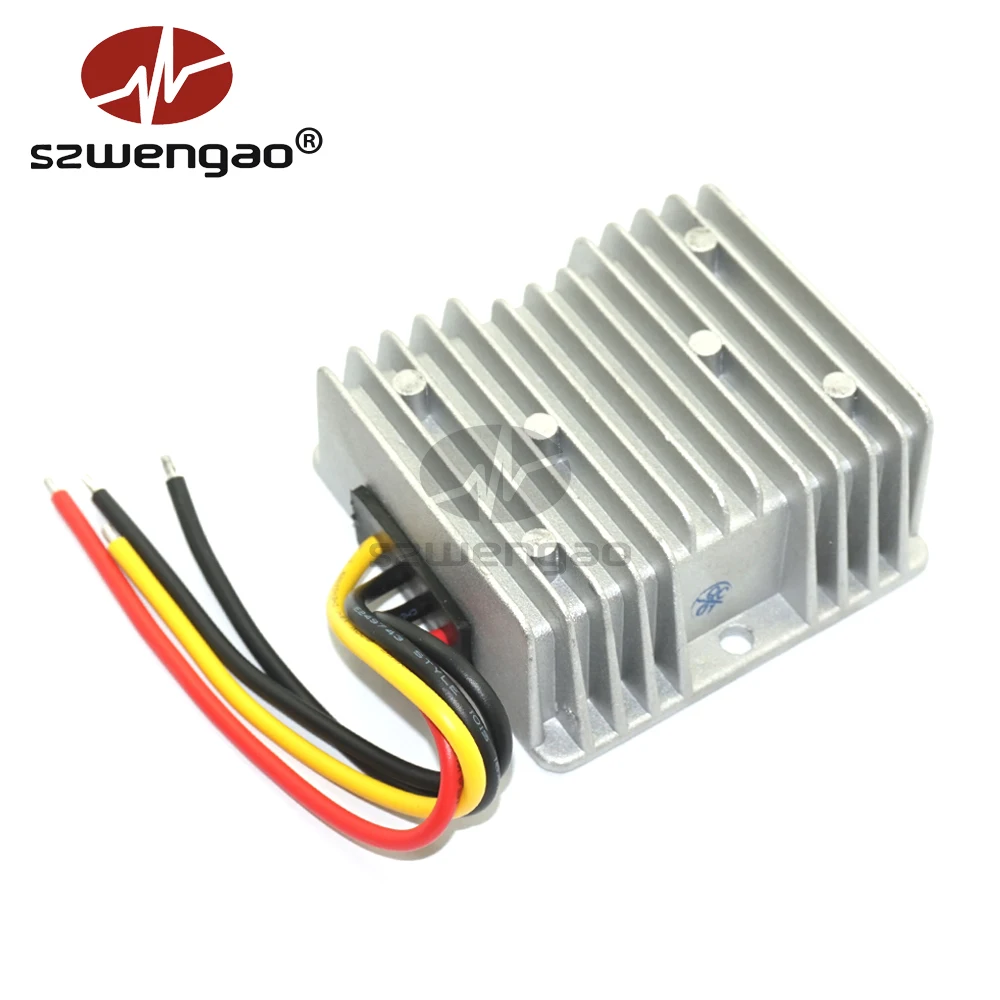

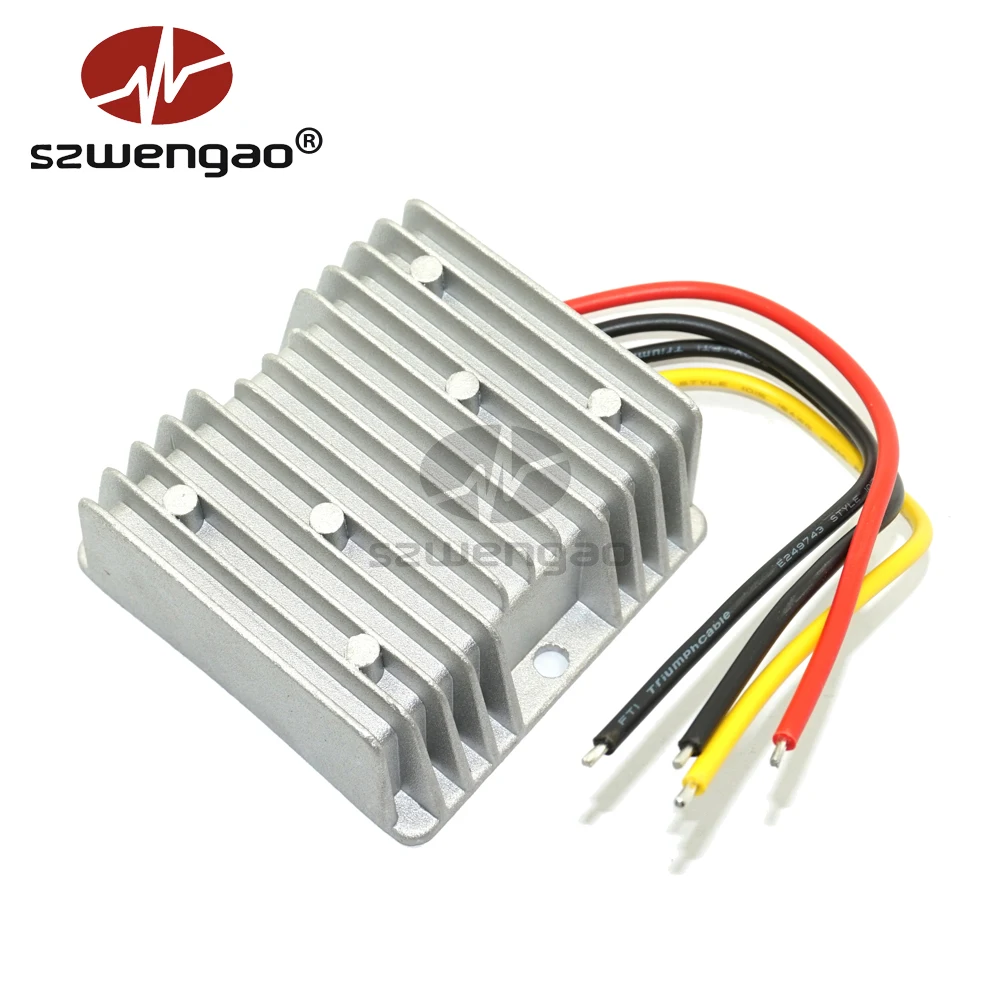

High quality car bus truck boat step up voltage regulator 12 volt to 48 volt 5a dc dc converter
- Category: >>>
- Supplier: Shenzhen Wengao Electronic Co. Ltd.
Share on (1600464950337):
Product Overview
Description
Product Paramenters
Product Features
● Design meeting RoHS/CE
● High efficiency: 95.3% ( @ 12V input )
● Non-isolated between input and output
● Imported capacitors, high reliability
● 100% full load burn-in test
● Advanced switch mode design
● Mount in almost any location
● Over temperature protection
● Over-current protection
● Low-voltage protection
● Epoxy potting, waterproof protection
● Aluminum shell, surface mountable
● Cooling by free air convection
● 2 years limited warranty
Product name | 12V/24V to 48V 5A Booster DC DC Power Converter | |
Brand | szwengao | |
Model no. | WG-12S4805 | |
Input rated voltage | 12V DC | |
Input voltage range | 10-36V DC | |
Efficiency | 95.3% ( @ Vin=12V, Iout=5A ) | |
Output voltage | 48V DC | |
Output max. rated current | 5A | |
Output max. rated power | 240W | |
Voltage regulation | ± 1% | |
Load regulation | ± 1% | |
No load less | 120mA ( @ Vin=12V ) | |
Ripple & noise | 220mVp-p ( @ Vin=10-36V, Iout=5A ) | |
Working temperature | -40 ~ +80°c | |
Working humidity | 10% ~ 90%RH | |
Storage temperature | -40 ~ +100°c | |
Weight | ≤ 300g | |

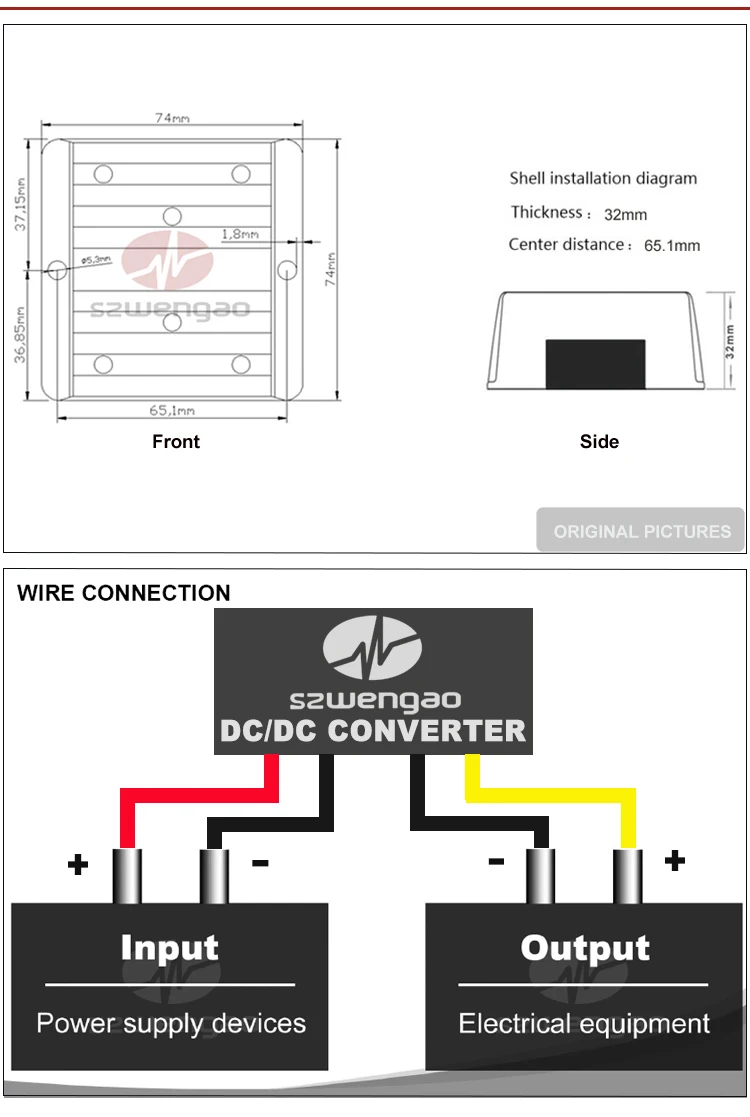

Dimension | 74*74*32mm ( 2.93*2.93*1.26 inch ) | |
Input connect type | 14AWG ( R+, B- ) / cables @ 16-17cm length | |
Output connect type | 16AWG ( Y+, B- ) / cables @ 16-17cm length | |
Packing type | Box | |
Cooling | Cooling by free air convection | |
Note: specifications typical @ Ta=25 °C(77°F), Vin =12V, Vout =48V, unless otherwise specified. | ||
Product Pictures
NOTICE
A. Be sure to make the correct connection according to the product nameplate and the wire marking. The wrong connection will cause the damage of the product, and even result in the danger of fire and so on.
B. To ensure safety, a fuse should be connected to the input terminal to prevent the permanent damage caused by wrong connection of positive and negative pole and over-voltage. Some products have been installed the fuse before leaving the factory, and due to the current reason, you’d better match fuse for those products with no fuse.

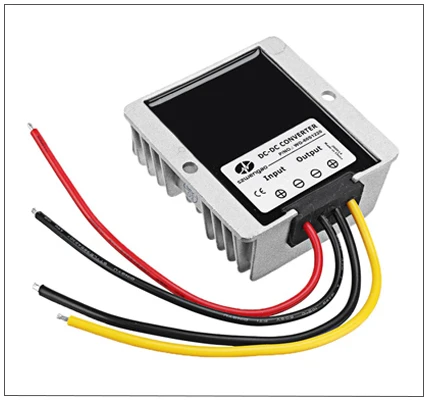

Details Images
ALUMINUM SHELL
Three-sided heat sinks, better heat conduction effect.
ORGANIC SILICA GEL POTTING
IP68 protection grade, waterproof, dustproof and anti-seismic.
SMT PROCESS
Products is smaller and lighter. High reliability and strong anti-vibration ability. Low solder joint defect rate.
IMPORTED COMPONENTS
Import of original industrial chips & capacitances ( such as TI, NCC, NICHICON and so on).

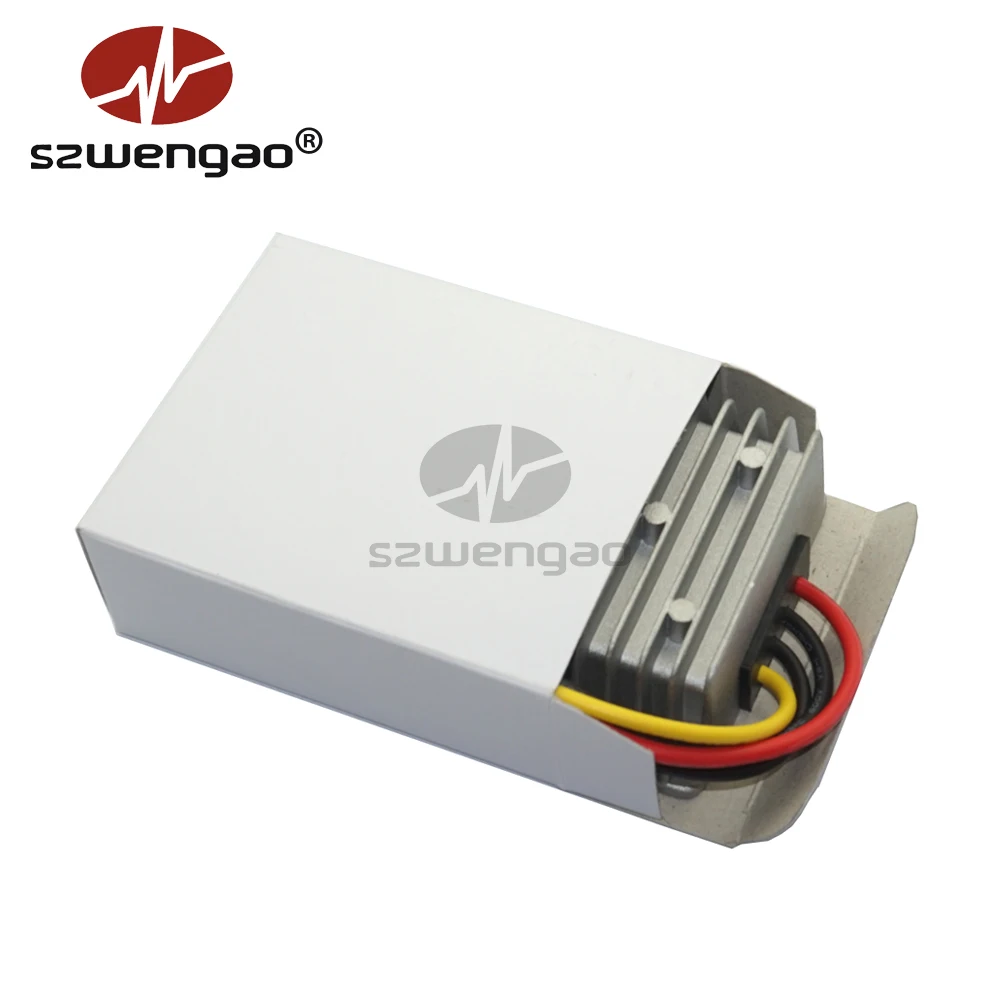

GIFT BOX
50PCS/CTN, Outer carton size 40*25*21CM
Total weight 14.5KGS/CTN
APPLICATIONS
Rail transit, communications, electrical equipment, ships, renewable energy, LED Marketplaces and so on..
