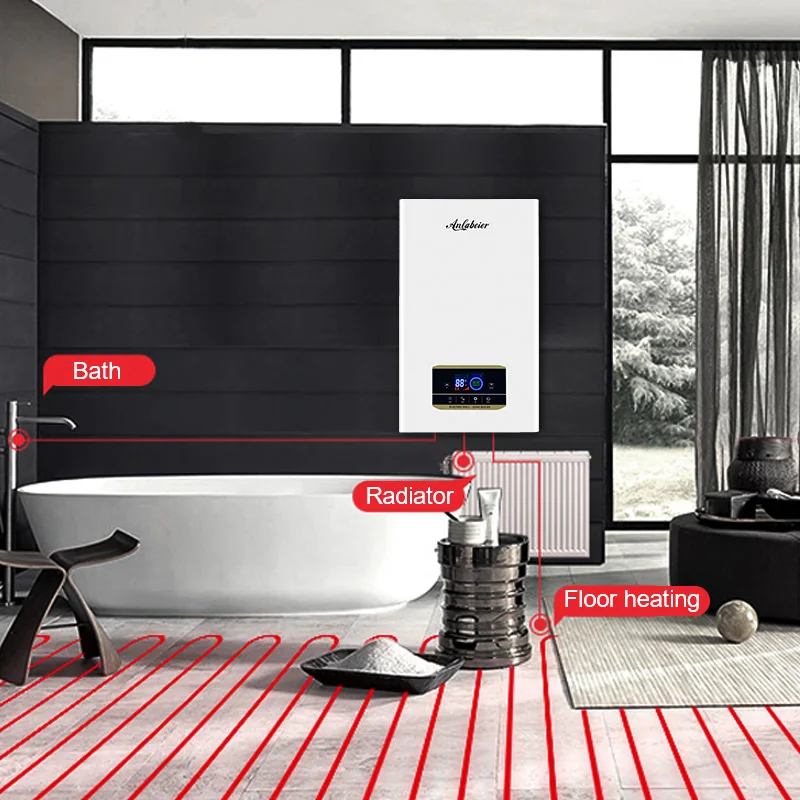

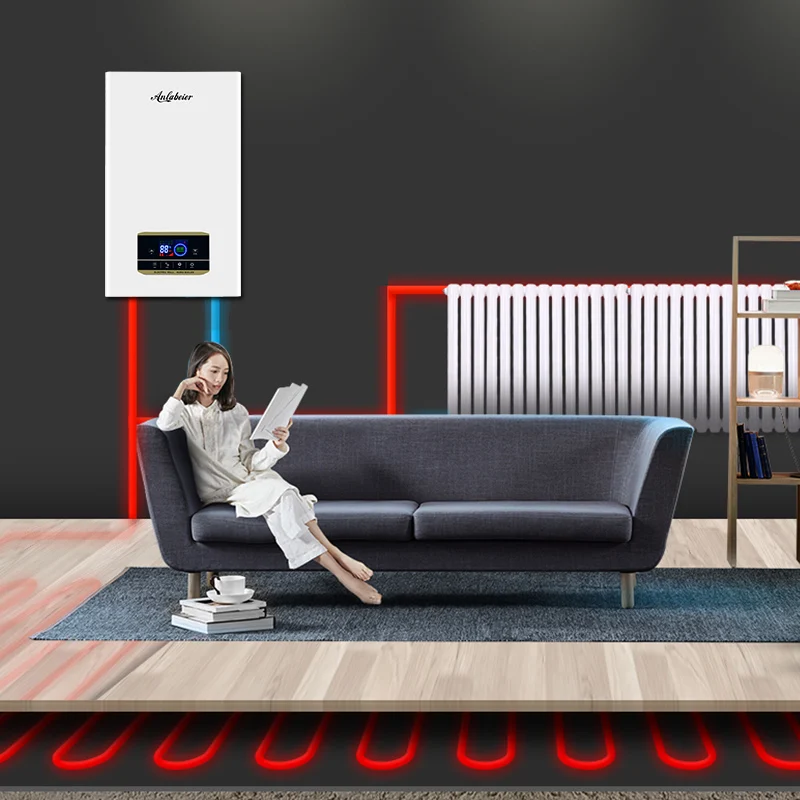

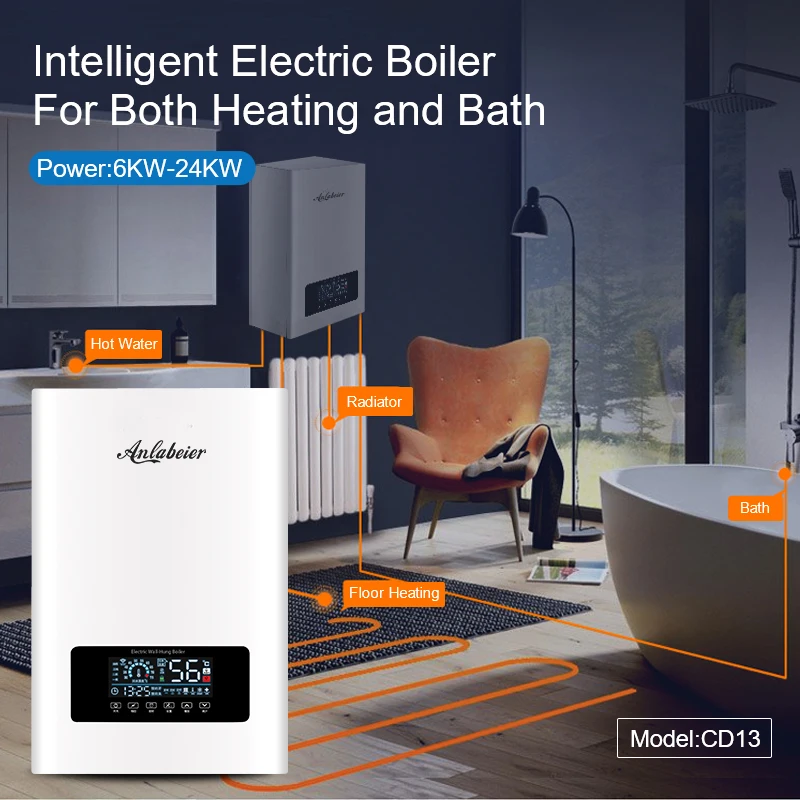

boiler central heating system 2 circuit boiler. (heating hot water)
- Category: Boilers >>>
- Supplier: Zhongshan Chongde Electric Co. Ltd.
Share on (1600464967044):
Product Overview
Description
220v 14kw electric boiler central heating system electric heater boiler smart
Model | B12- 6KW | B12-8kW | B12-10kW | B12-12kW | B12-12kW | B12-16kW | B12-20kW |
Power | 6KW 220V | 8KW 220V | 10KW 220V | 12KW 220V | 12KW 380V | 16KW 380V | 20KW 380V |
Rated Current | 27.27A | 36.36A | 45.45A. | 54.54A | 18.18A | 24.24A | 30.30A |
Power cable | 3x4mm² | 3x6mm² | 3x10mm² | 3x10mm² | 5x2.5mm² | 5x4mm² | 5x4mm² |
Heating Area( m²) | 60m² | 80m² | 100m² | 120m² | 120m² | 160m² | 200m² |
Size | 60x40x26cm | ||||||

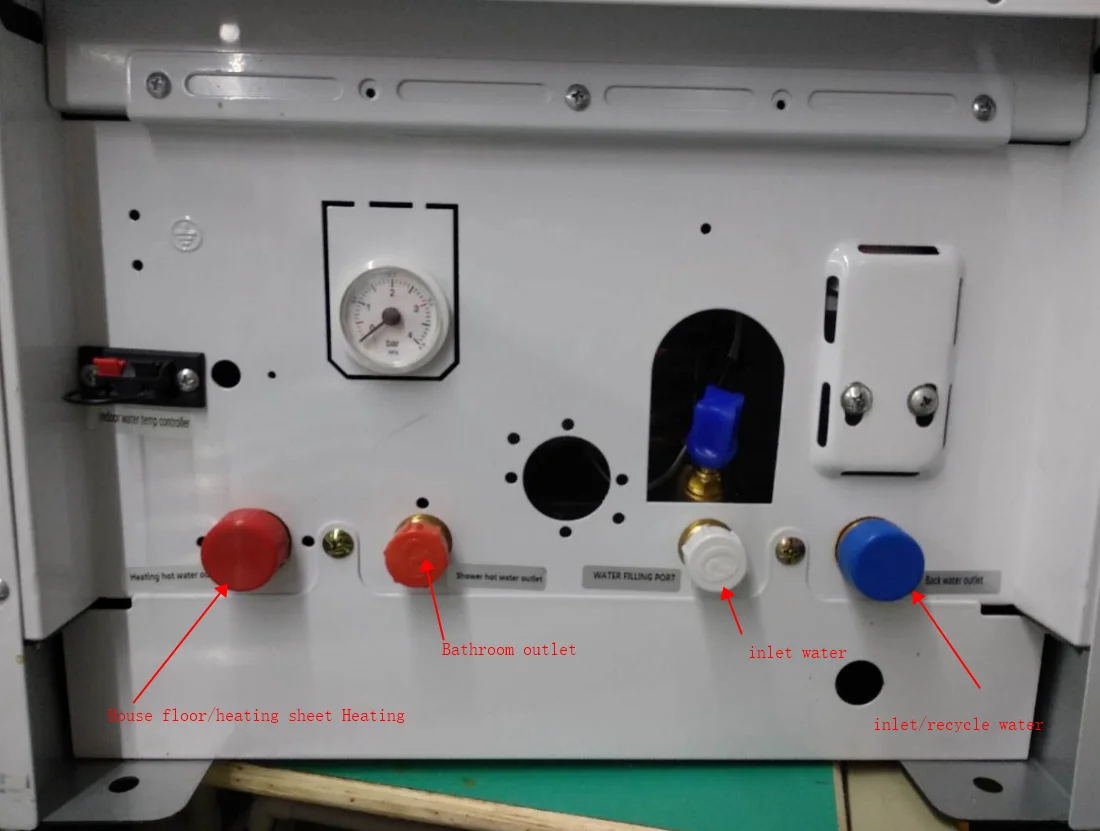

Inlet/Outlet | G3/4 | ||||||
Heater element | Die-cast aluminum heating elelment | ||||||
Applicable water pressure | Closed installation; 0.05-0.3Mpa | ||||||
Heating temp. setting | 25℃-75℃ | ||||||
Packaging | Yellow carton,1PCS/Master,Carton Size:80*45*50cm,G.W:45KG | ||||||

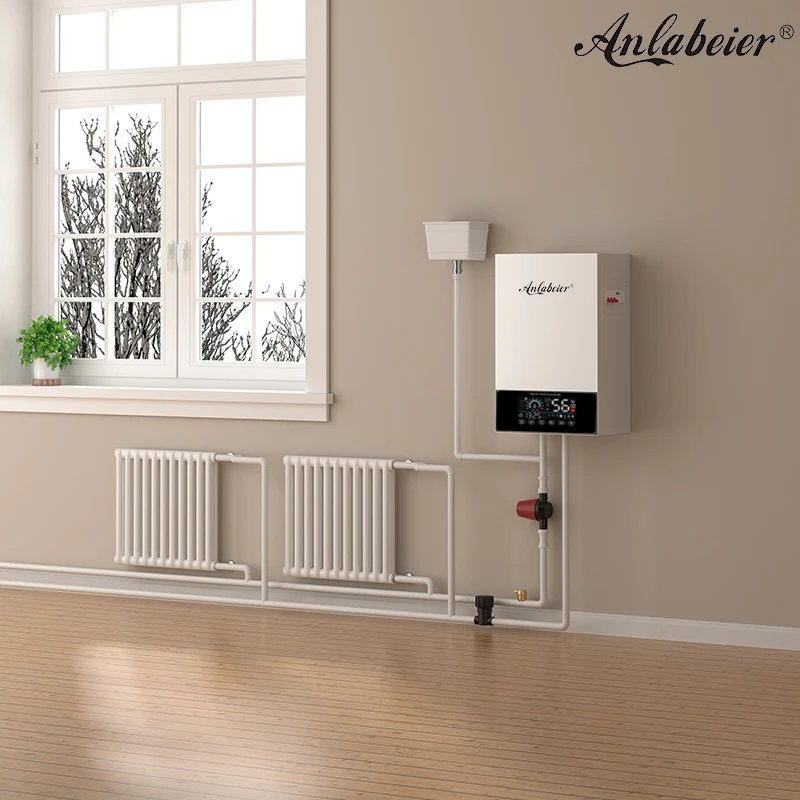

Build-in pump and expansion tank | |||||||
Product Features

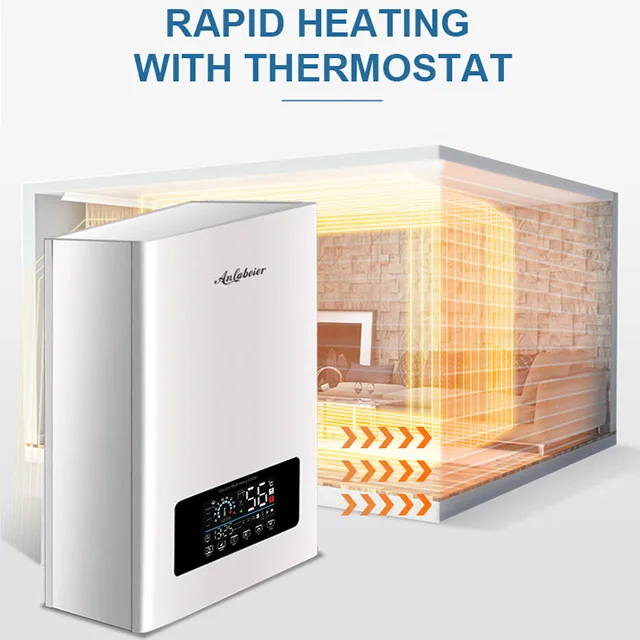

- Automatic Water temperature modulation;
- Stainless steel inner tank;
- High performance heating element;
- Pressure and temperature relief valve;
- It can provider multi-point water outlets;
Product Details
Packaging & Shipping
Our Products: | Heating element; Water heater spare parts |
MOQ: | 1.100pcs; 2.Small orders can be acceptable if we have stocks of this product; |
Packing: | Standard Export Carton packing; 2pcs/CTN; |
Delivery Time: | Shipped in 30 days after payment; |
Supply Ability: | 30000 sets per year; |
Payment Terms: | LC,TT,DP,DA, etc; |
Shipping way: | Shipping by sea; Port of Loading:Shanghai, Ningbo, Guangdong |
Company Information
FAQ
Q 1. How long can i get the feedback after we sent the enquiry?
A. We will reply to you within one hours in working days.
Q 2. How can i get some samples?
A. We are pleased to offer you samples, the delivery time is about 7-10 days.
Q 3. Are you a factory?
A. Yes,we are factory, located in Zhongshan city Guangdong province,China.
Q 4. What is the delivery time?
A. The delivery time normally 35 days,detail delivery date should depend on the production season and order quantity.
Q 5. Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A. There is no extra charges,please offer us the LOGO flies,we will make it well on your product.
Other water boiler
1. Built-with pump and expansion tank CD12
Heating function

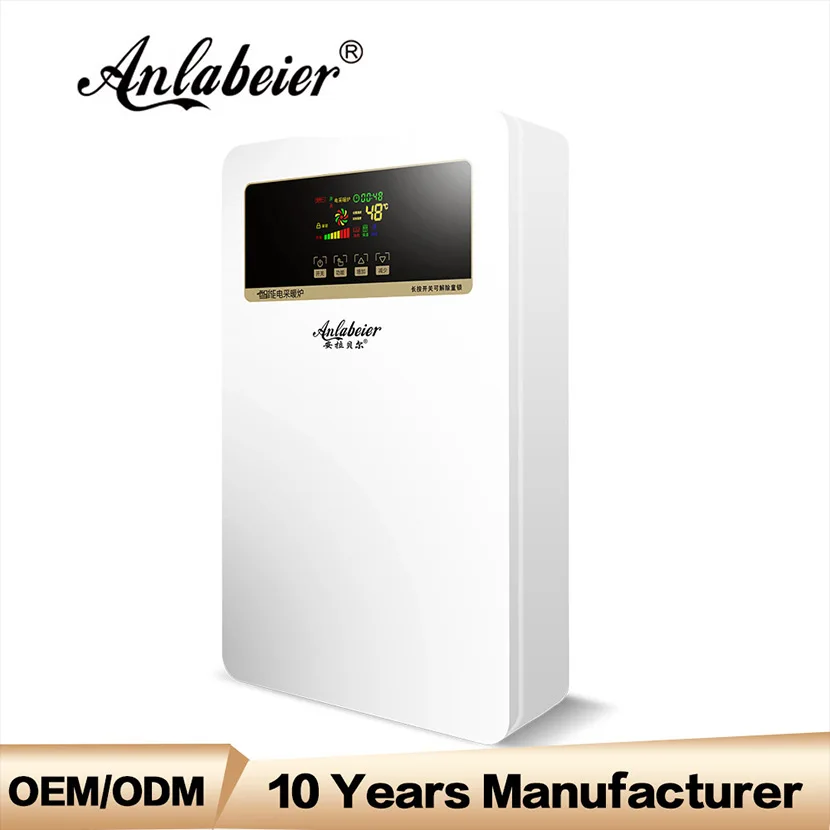

2. Cheaper price electric water boiler KR12
