Product Overview
Description
Mica Sheet

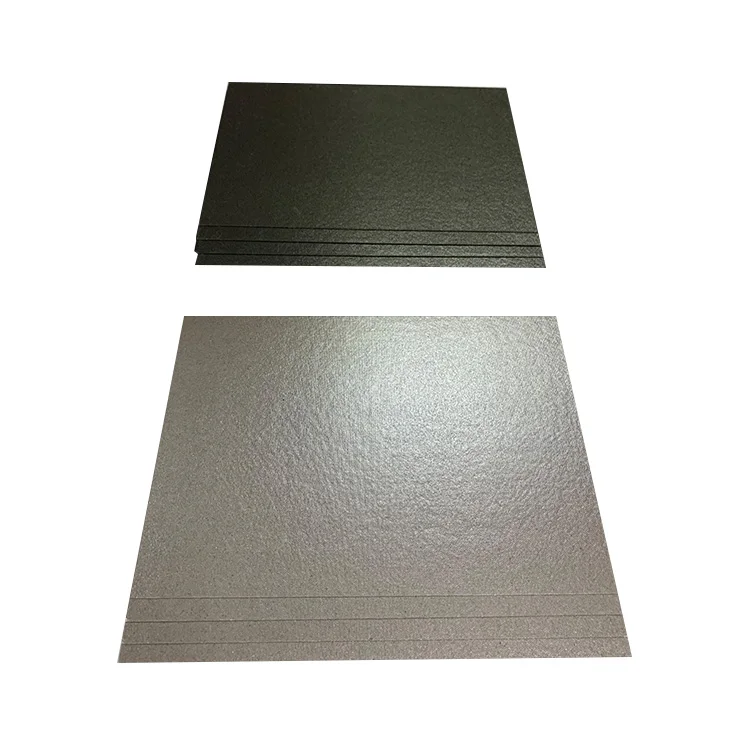

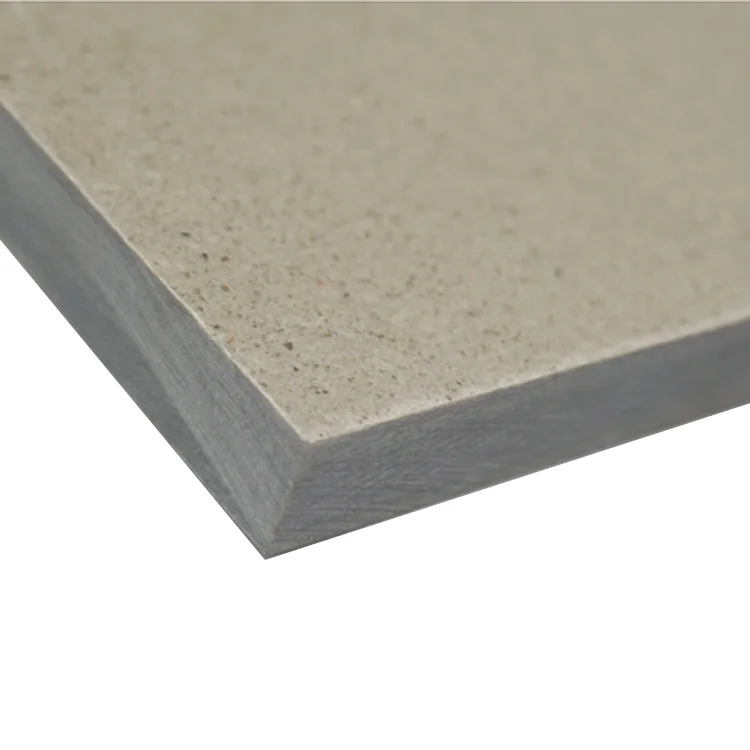

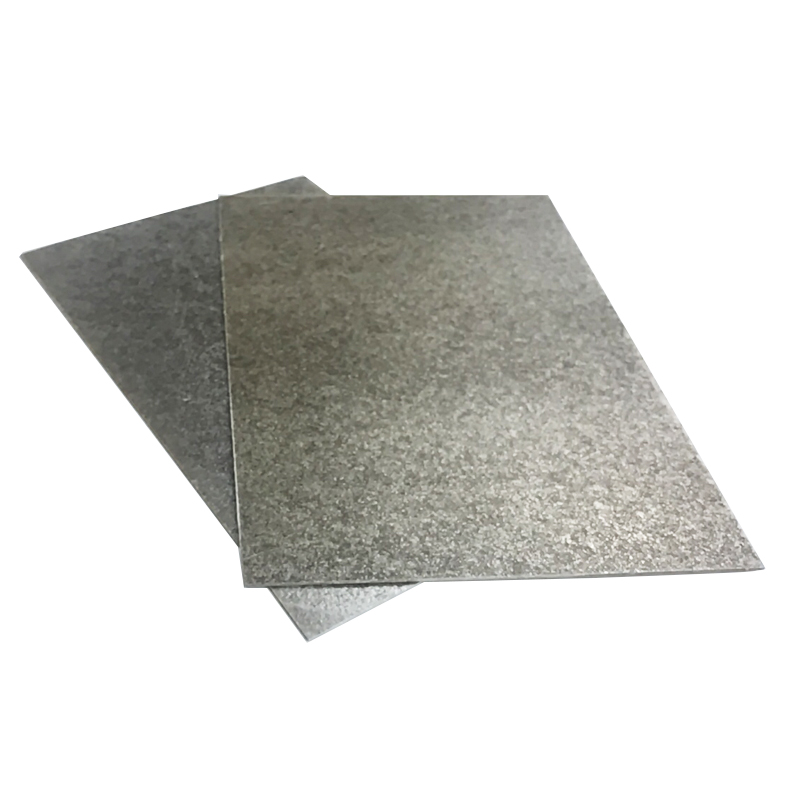

 | Mica Sheets: Rigid Rigid mica Sheets are based on either muscovite or phlogopite mica paper bonded with a high quality heat resisting silicone resin. These plates or punched parts are widely used in heating elements for industrial and household appliances which require at least one of the following properties: 1. Excellent resistance to heat up to 1000 °C 2. Excellent electrical insulation 3. Excellent microwave permeability 4. Excellent punch ability 5. High edge strength 6. Environmentally safe and non-toxic. |

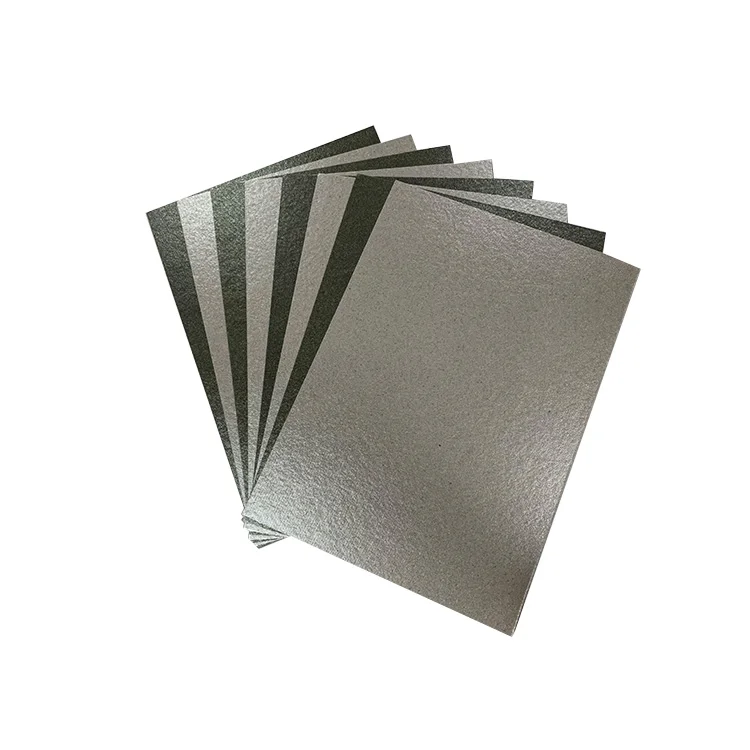

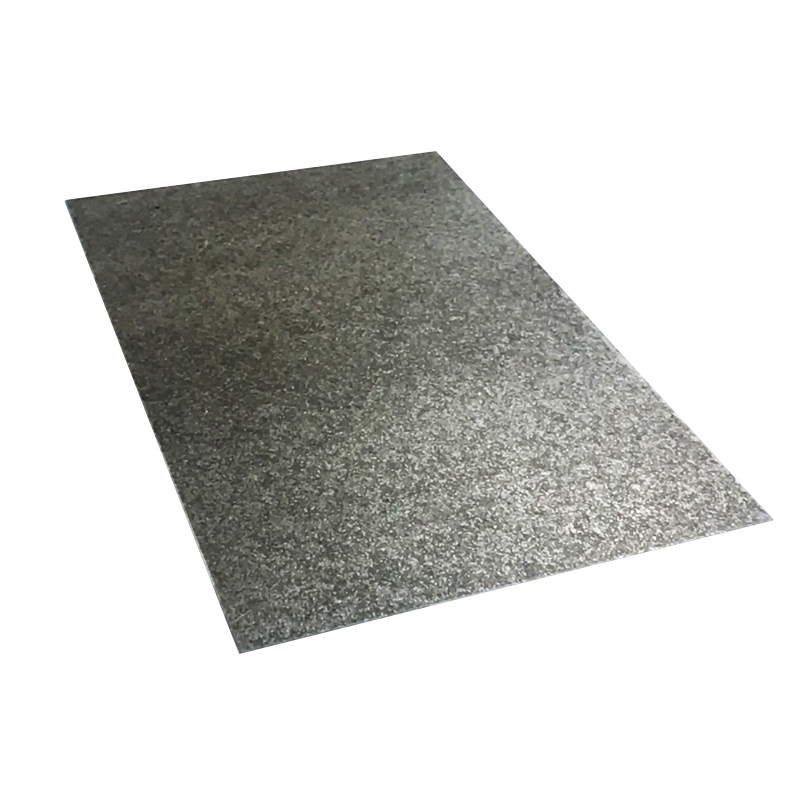

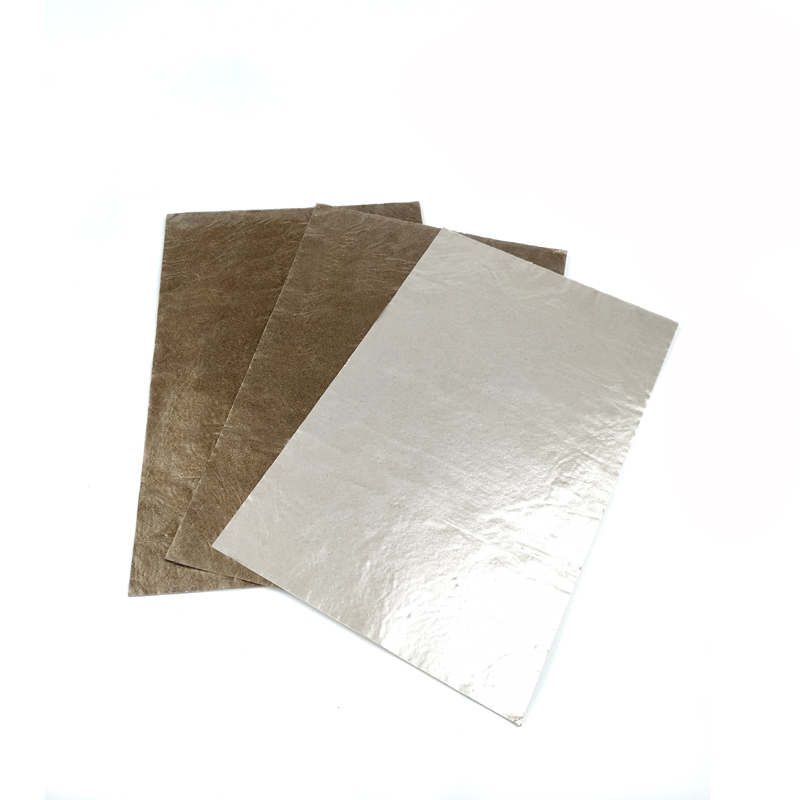

| Mica Sheets: Flexible Several layers of resin impregnated mica paper are pressed under heat high pressure to form flexible sheet. It is widely used in hairdryers, space heaters, circuit breakers, and transformers. It is used as sheathing or covering, and also as a separator or insulation foil. Its spring power is used in some applications. Flexible Mica sheets can be formed at room temperature and are entirely free of asbestos. The material can be cut to any size, either by shearing or die-stamping.These sheets can withstand temperatures ranging up to 1000°C. |  |
 | Mica Sheets: Epoxy-Bonded Epoxy mica sheets consist of muscovite or phlogopite mica paper, impregnated with a specially selected epoxy resin. This product is a hard, dense mica sheet for use in segments, separators, and spacers. It exhibits good electrical properties, mechanical strength, excellent moisture resistance, and can be sawed, sheared and punched into intricate shapes using good commercial practice. Because of its superior uniformity, automatic feeding and stacking are possible for cost savings in high-speed assembly operations. |
| Unit | Muscovite | Phlogopite | Muscovite | Phlogopite | |
| Type | Rigid | Flexible | |||
| Binder | Silicon or Epoxy | ||||
| Thickness | mm | 0.15~4.00 | 0.15~4.00 | 0.25~4.00 | 0.25~4.00 |
| Tolerance | mm | ±0.03 | ±0.03 | ±0.02 | ±0.02 |
| Density | g/cm3 | 2.05~2.15 | 2.05~2.15 | 1.90~2.00 | 1.90~2.00 |
| Heating Loss | % | ≤1.00 | ≤0.60 | ≤2.00 | ≤2.00 |
| Heating Grade | ℃ | ≥550 | ≥950 | ≥550 | ≥950 |
| Flexural Modulus | kgf/mm2 | ≥23 | ≥20 | — | — |
| Dielectric Strength | kv/mm2 | >25 | >20 | >15 | >15 |
| Resistance | m·Ω | 200~600 | 100~600 | — | — |
 |  |  |

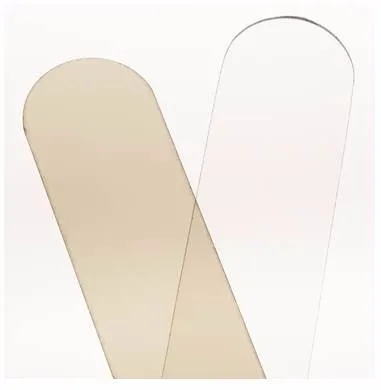

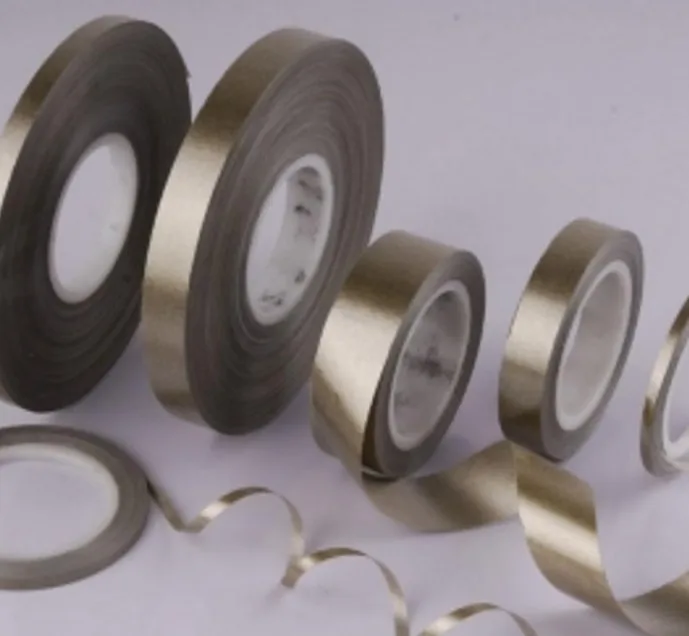

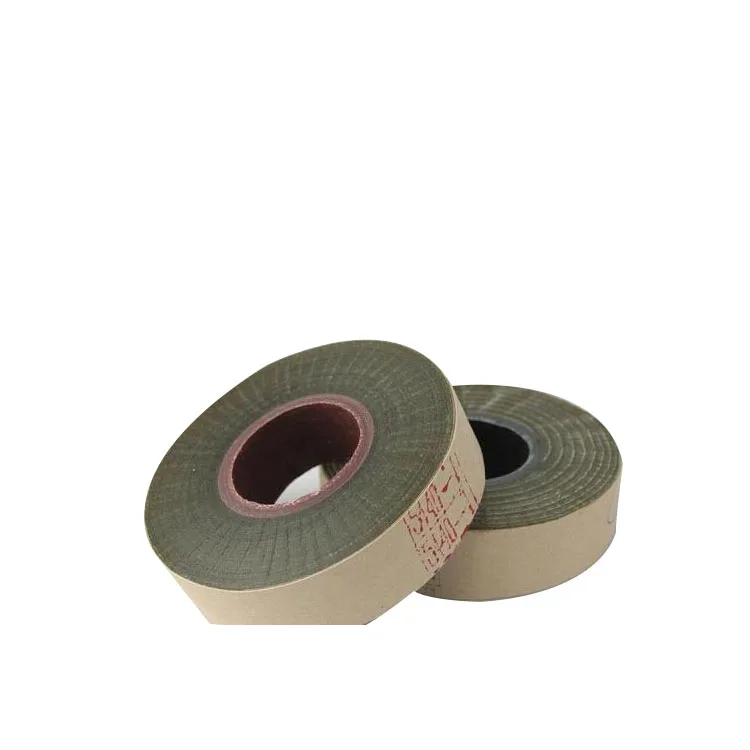

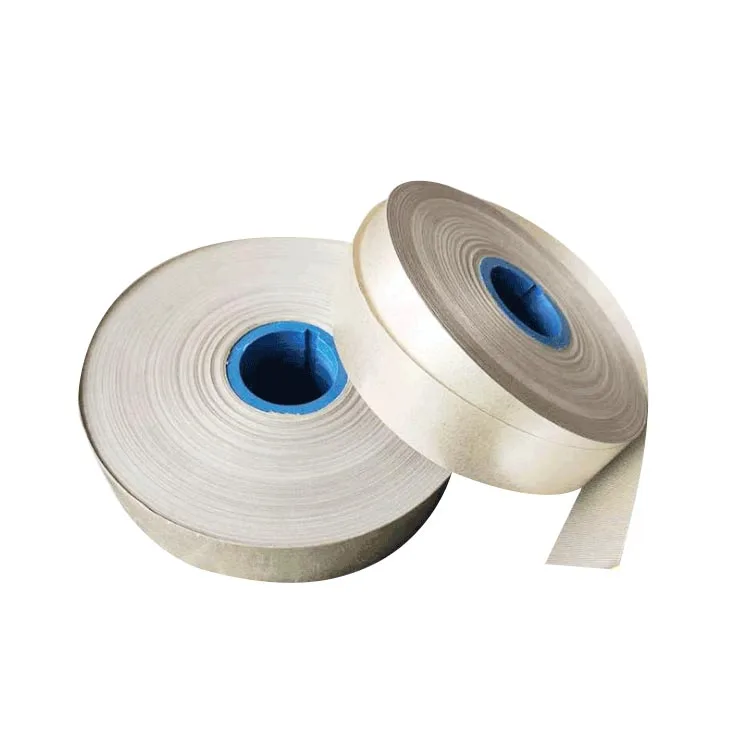

Mica Tape | Mica Tube | Mica Gauge Glass |

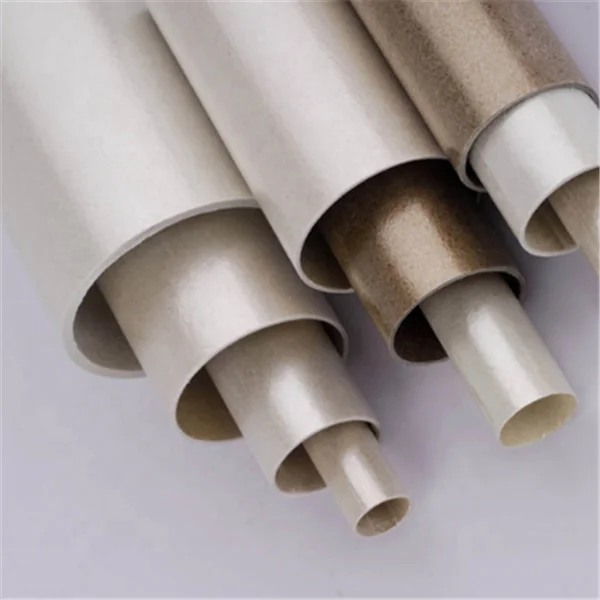

| Used for power & control cables, instrumentation & signaling cables. Mica Tale continue to operate during a fire or in high temperature environments | mica tubes can withstand temperatures ranging from 130°C to 1000°C for different applications. We manufacture mica tubing in square, round, oval or rectangular shapes. | The shields retain basic strength and increase the service life of sight glasses when used at increased steam pressures and high working temperatures. |
FAQ
1. What about the MOQ?
Usually 100kg, but we can do less to meet various needs if we have it in stock.
2. Can you provide sample?
Sample is available, the freight collect.
3. What about the raw material you use?
We usually use imported material from Japan, Korea, Germany and America.
4. Do you have enough stock and accept customized?
Yes, we have enough stock for our best-seller, we have a warehouse which most hot sale product are prepared. Customized is available.
5. What about the production and delivery time?
Usually 7 days, it depends on the order quantity and processing requirement. The goods will be deliverd once they were inspected.
6. Can we place mixed thickness for one order?
Yes, We could match your ordering request even mixed different thickness and colors .
7. Can you provide discount?
Yes, it depends on the order quantity, the larger the order is, the more discount will be enjoyed.
