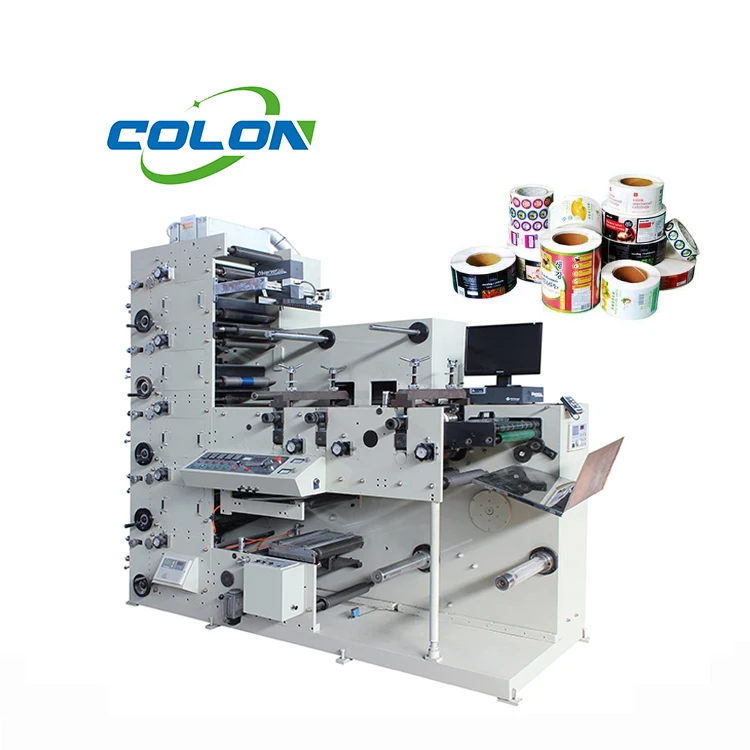

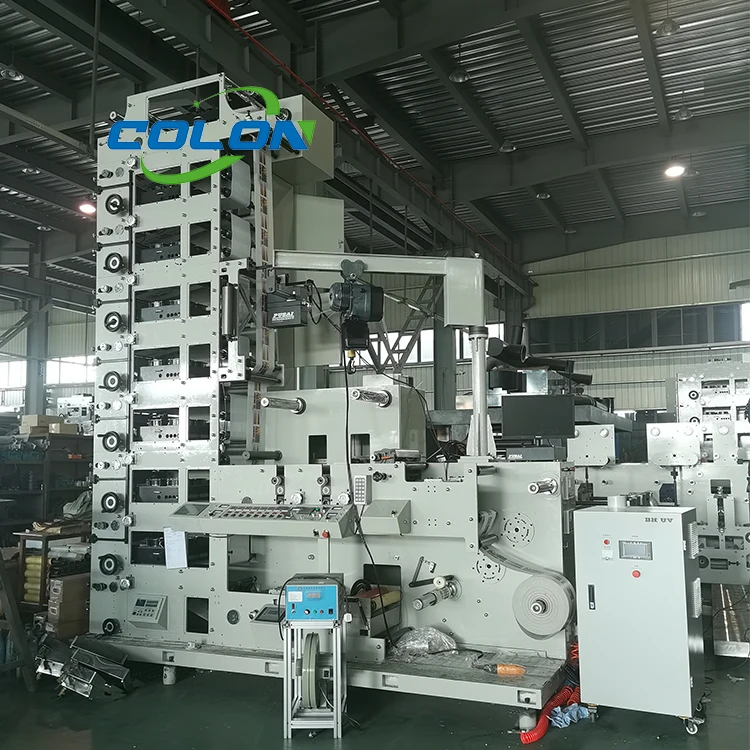

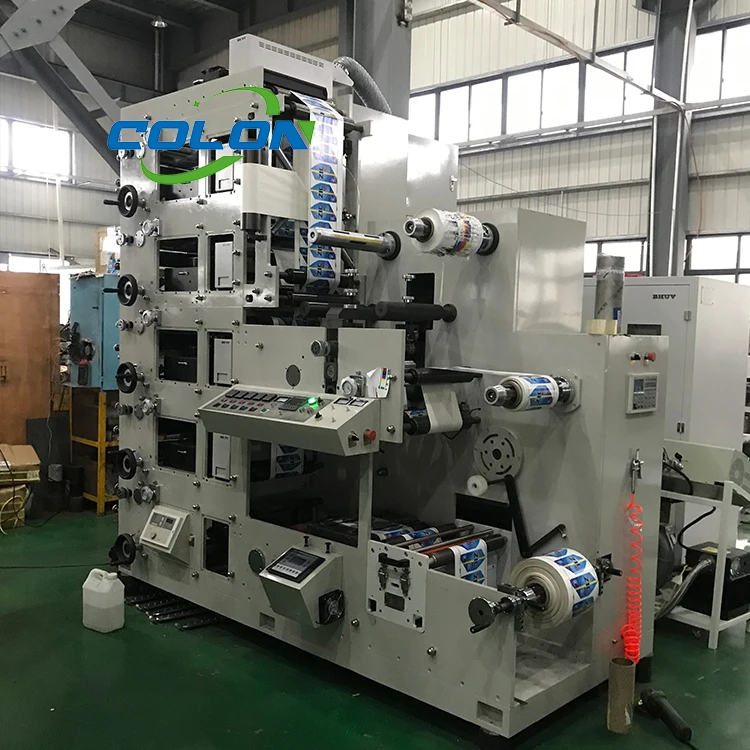

Paper Cup 4 Color Flexo Die Cutting Printer Slotter Die cutter Stacker And Printing machine
- Category: >>>
- Supplier: Hangzhou Colon Digital Technology Co. Ltd.
Share on (1600465019865):
Product Overview
Description
Product Description

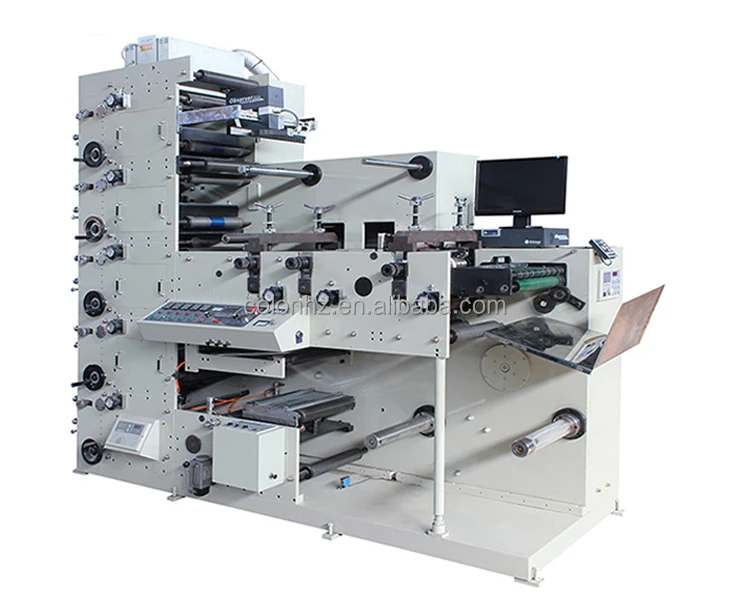

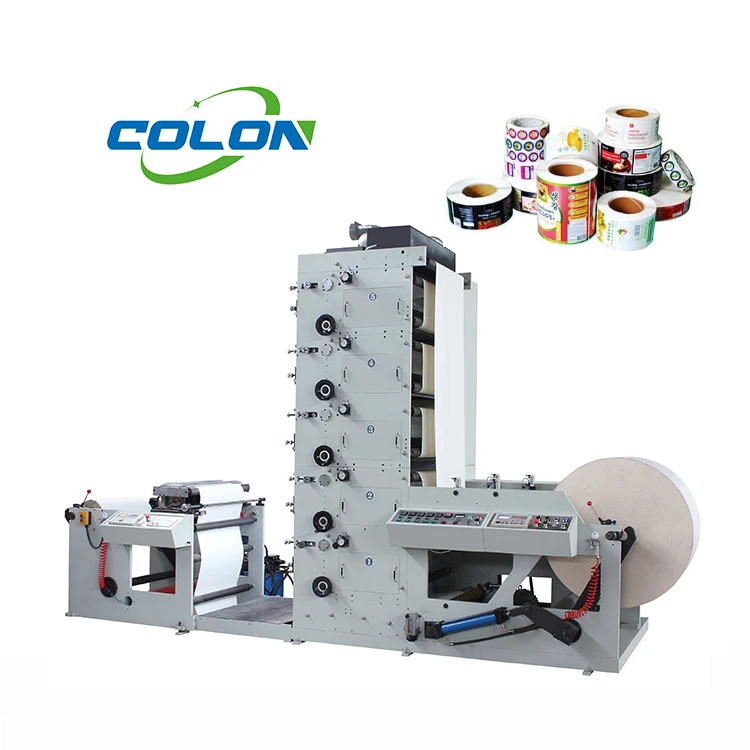

Automatic bopp film paper roll to roll flexo printing machine
Description
The machine can finish material-feeding,printing, varnish, drying, laminating, rewinding and die-cutting in one process is an
ideal machine for printing note and top-grade adhesive label.
The machine can finish material-feeding,printing, varnish, drying, laminating, rewinding and die-cutting in one process is an
ideal machine for printing note and top-grade adhesive label.
Suitable Material
1.10 Micron Film To 400 Micron Board
2.Plastic Film
3.Aluminium Foil
4.Tissue paper
5.Self adhesive paper
6.Vinyls/PVC
6.Vinyls/PVC
7.Carton weight board
Feature
1. The flexo printing machine adopts the anilox rollers to spread ink.
2. Unwinding and rewinding of the flexo printing
machine is controlled by magnetism power brake, clutch. (for by the automatic tension controller of mitsubishi, made in Japan).
machine is controlled by magnetism power brake, clutch. (for by the automatic tension controller of mitsubishi, made in Japan).
3.Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
Specification
Model | CFPM-T-320 | CFPM-T-450 |
Printing speed | 60m/min | 60m/min |
Printing colour | 1-8 colors | 1-8 colors |
Max.Web width | 320mm | 450mm |
Max.Printing width | 320mm | 450mm |
Max.Unwinding diameter | 800mm | 800mm |
Max.Rewinding diameter | 600mm | 600mm |
Printing girth | 175-380mm | 175-380mm |
Precision of overprint | ±0.10mm | ±0.10mm |
Total power | 10.5KW | 15KW |
Machines Details

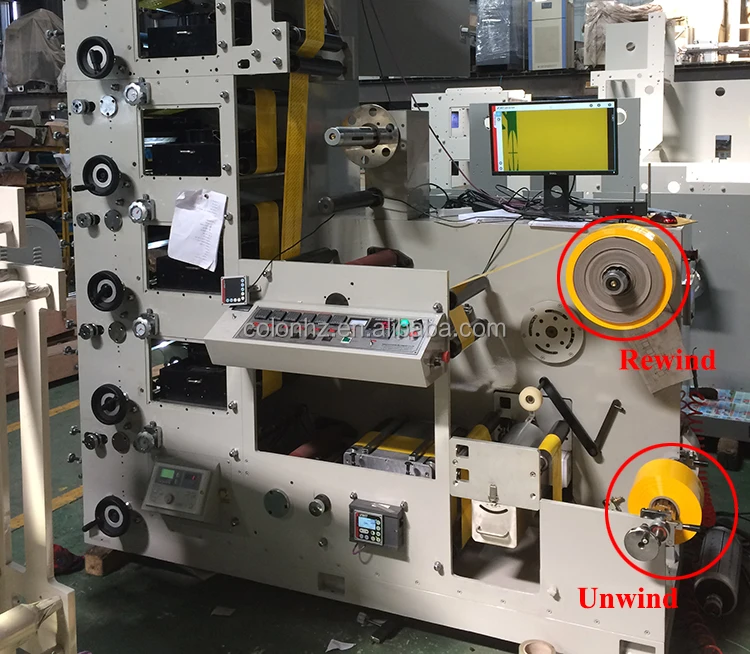

Unwinding
With 1 pc 3" air expanding shaft, can accept max diameter 600mm material jumbo roll. (can be customized)

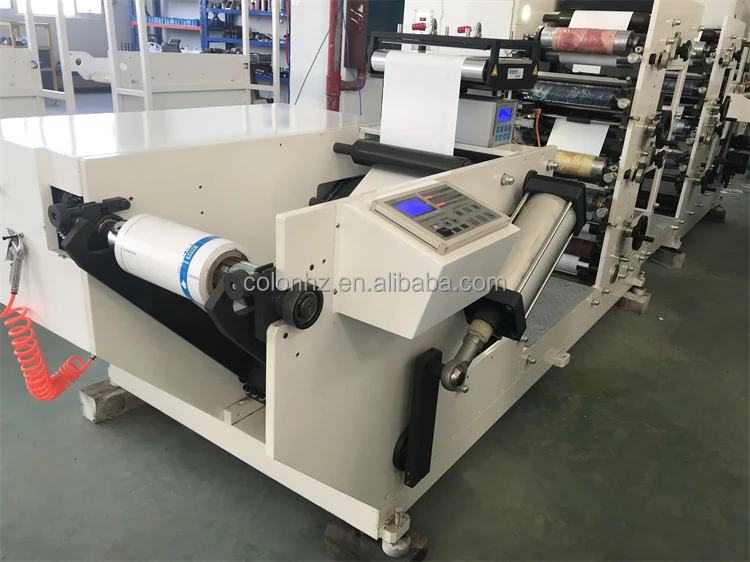

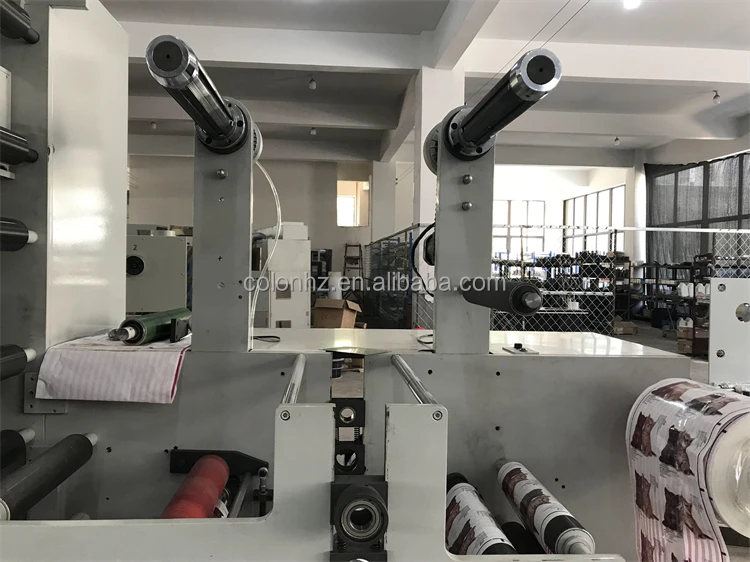

Rewinding
With 1 or 2 pc 3" Air expanding shaft, can accept max diameter 600mm material jumbo roll. (can be customized)

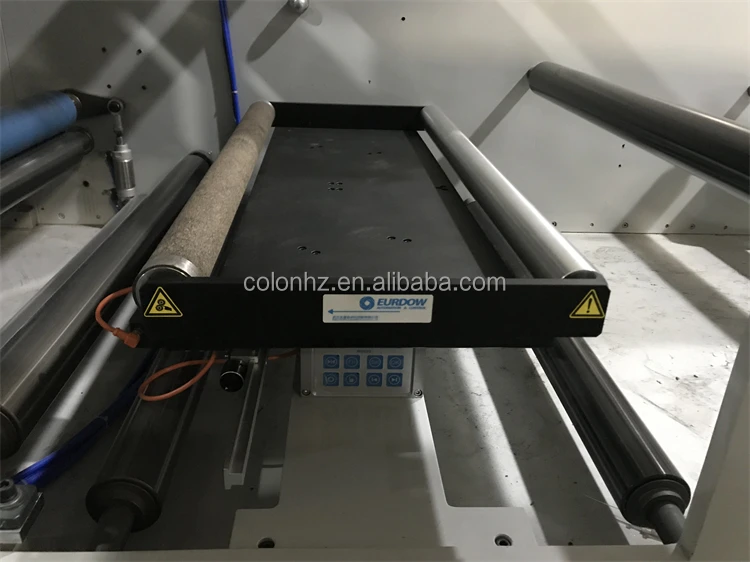

Web Guide System
Detection mode: Edge checking
Control paper move straightly.
Control paper move straightly.

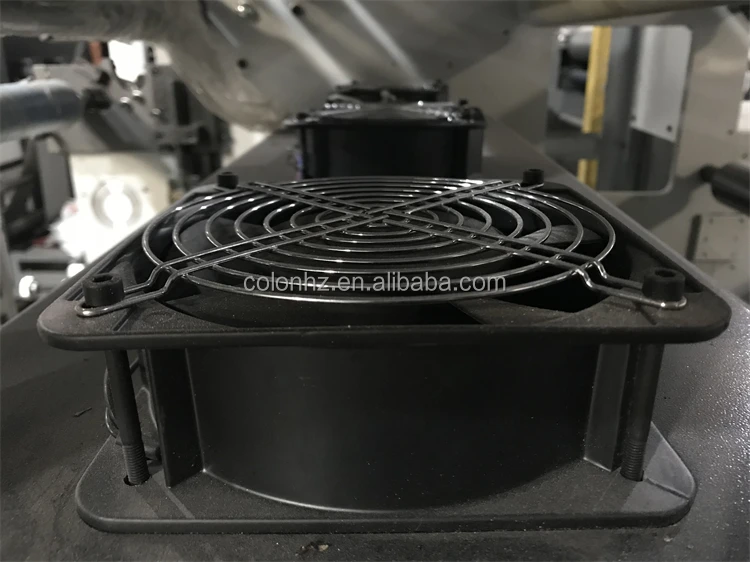

IR Dry Unit
a.Each Printing Unit comes with 1 unit infrared heating drying oven
b.Infrared heating drying oven is placed on material and after each printing station.

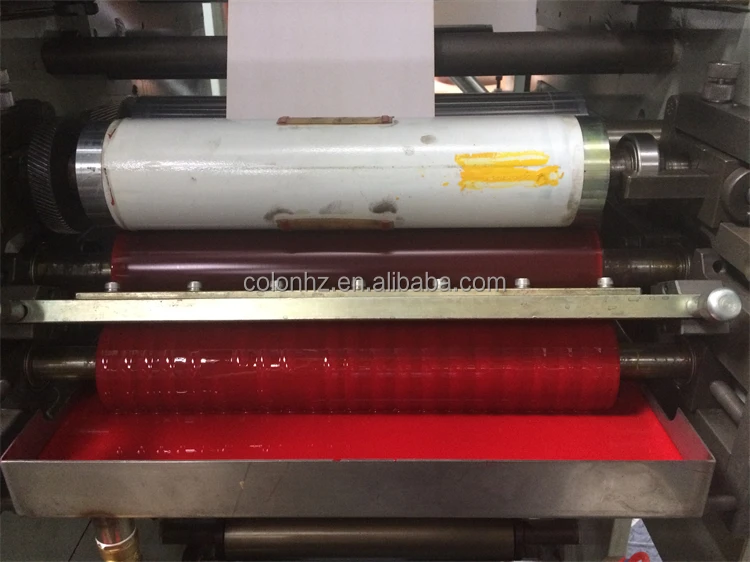

Printing color unit
Anilox cylinder pneumatic clutch
Ceramic anilox roller---one set (1 pcs) or as your require
Printing cylinder---one set (1 pcs) or as your require
Single side doctor blade
Manual vertical and horizontal roller controllers(details is in the following main part, printing device)
Ceramic anilox roller---one set (1 pcs) or as your require
Printing cylinder---one set (1 pcs) or as your require
Single side doctor blade
Manual vertical and horizontal roller controllers(details is in the following main part, printing device)

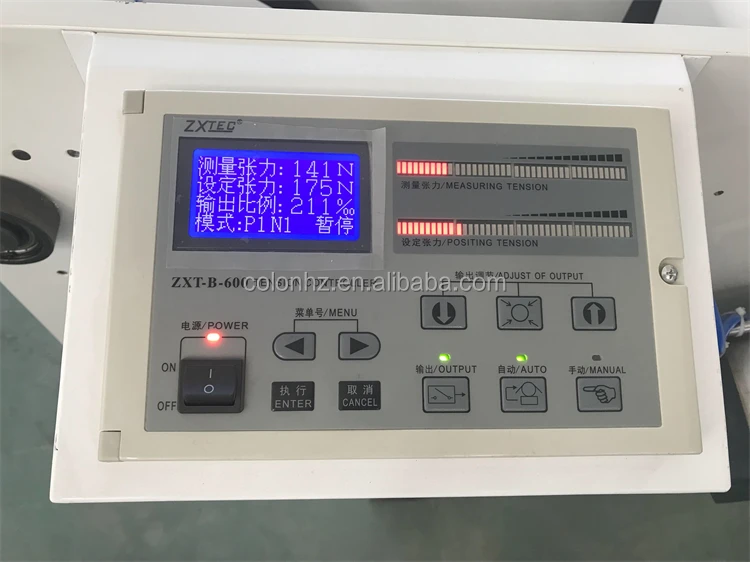

Auto Constant Tension Controller
With 2 set ZXT-600 auto constant tension controller for All famous brand unwind and rewind

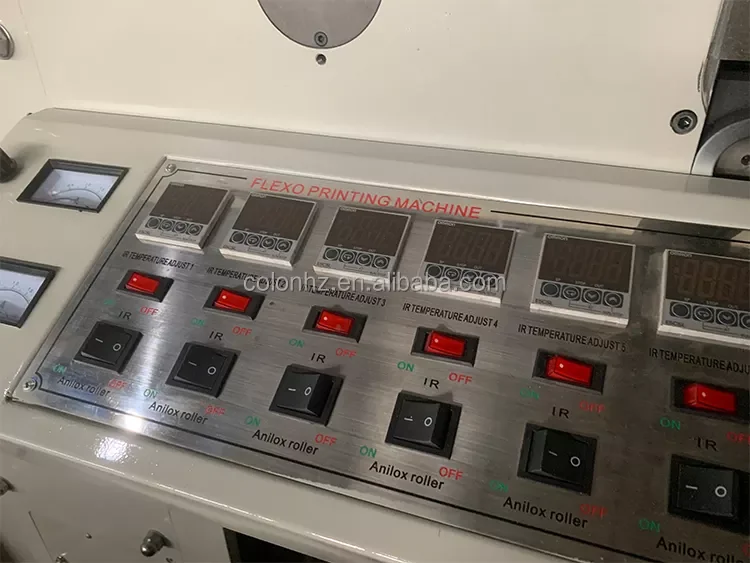

Control panel
Optional Parts
Independent unwinding track
For loading jumbo rolls with large diameter size and weight.

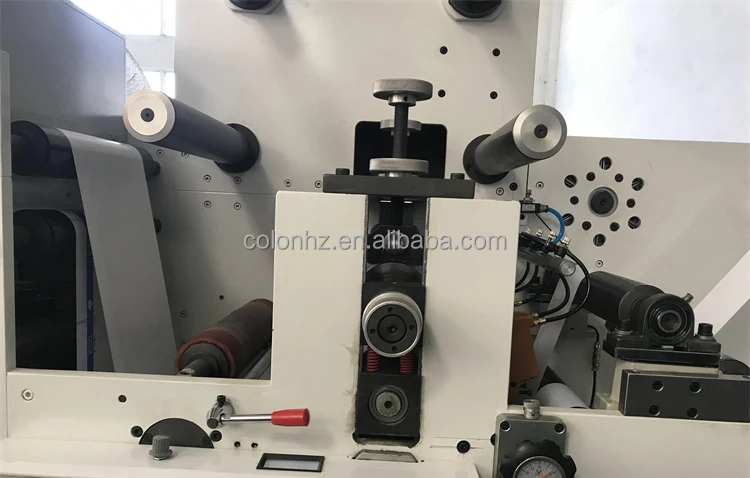

Die Cutting Unit
Rotary die cutting. Magnetic cylinder need to be customized according to your label size Flexible dies can be customized according to your demand

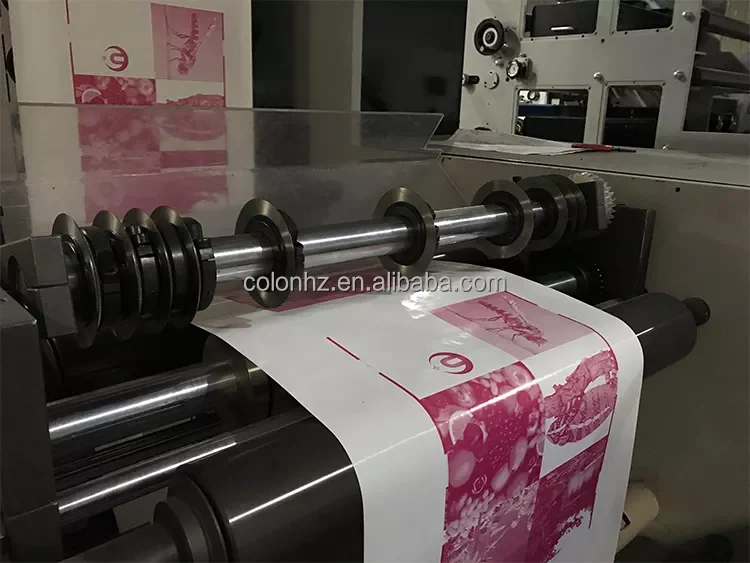

Slitting Unit
Cutting the large jumbo rolls into small width rolls.

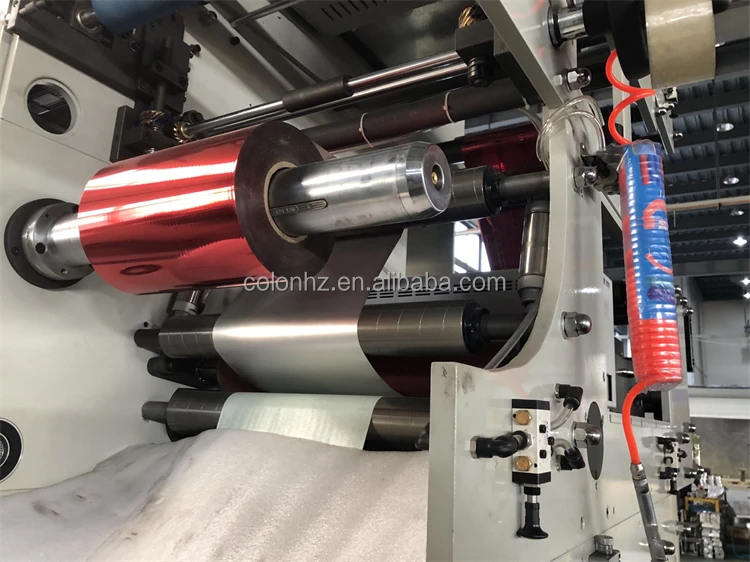

Cold Stamping
Lamination
Through pressure, the film and the printing materials are bonded directly by the adhesive. It makes the surface of the printing material smoother and brighter, the graphics and text more vivid, the pattern stereoscopical and resistant to chemical corrosion etc.

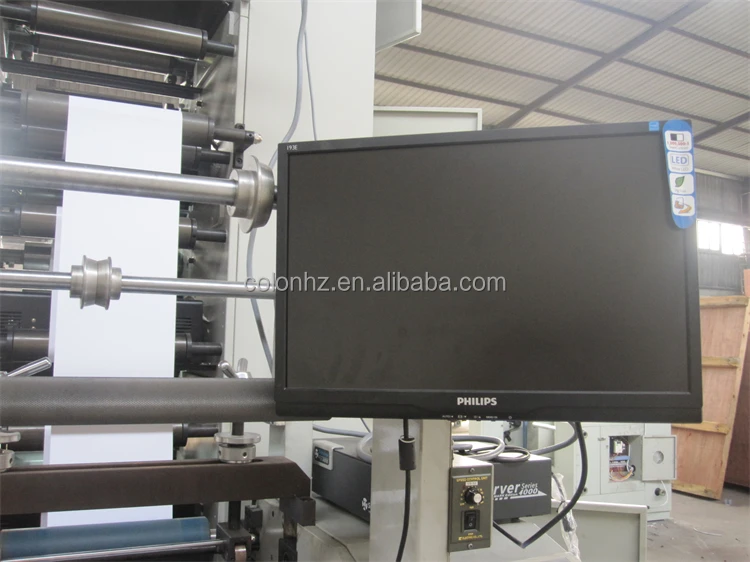

Video Inspecting System
By video inspecting system, the machine can regulate and horizontal register without stopping, it improves the printing quality and increases the producing capacity.

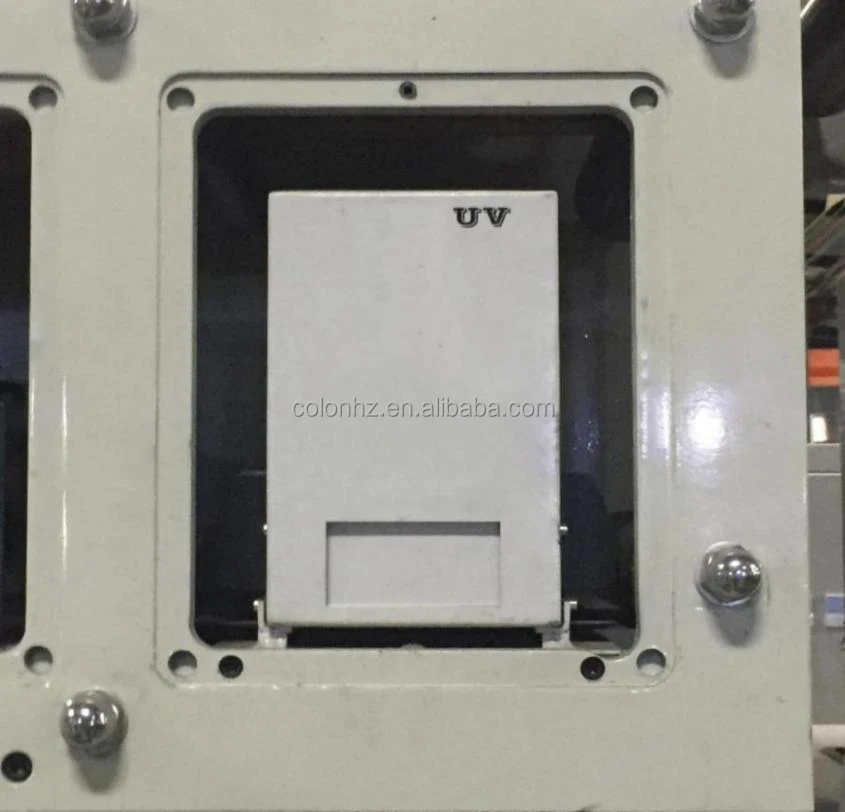

UV Dryer
During printing, the printing ink temperature becomes very high due to UV curing, so it is equipped with a water-cooled roller to reduce the surface temperature of the material, eliminate the deformation of the printing material,reduce the friction between the layout and the surface of the printing material, and increase the number of flexographic printing.
Sample
Packing & Delivery
Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Company Profile
HANGZHOU COLON is professional manufacturer of flexographic printing machine for more than 20 years. The company is located in HANGZHOU, capital of Zhejiang province, with excellent geographical location and convenient transportation. Furthermore, the company owns a professional after-sales service team who can provide customers with comprehensive solutions and technical support.
FAQ
1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is
one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is
one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
