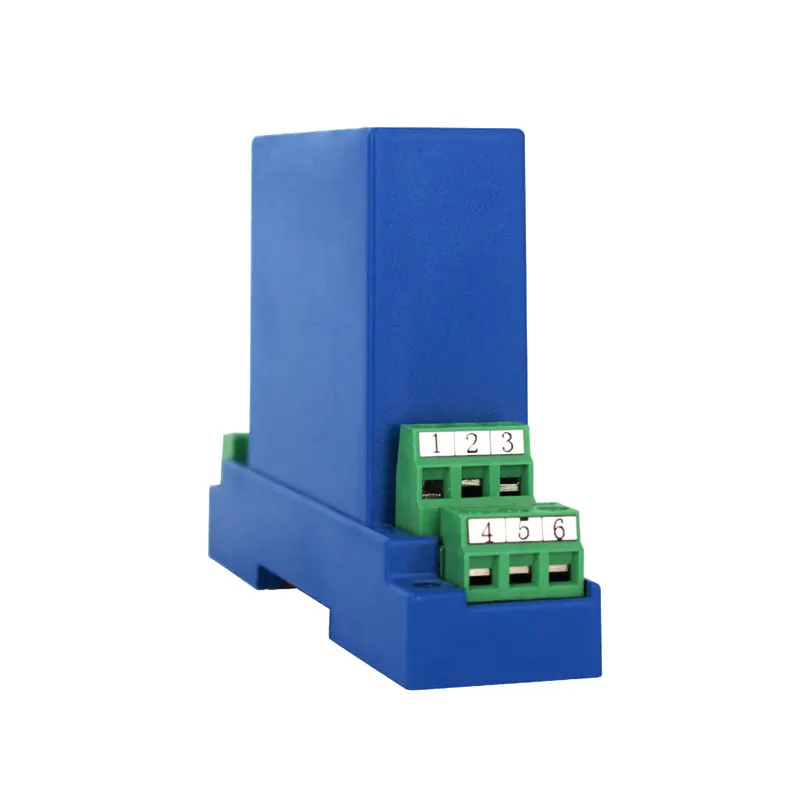

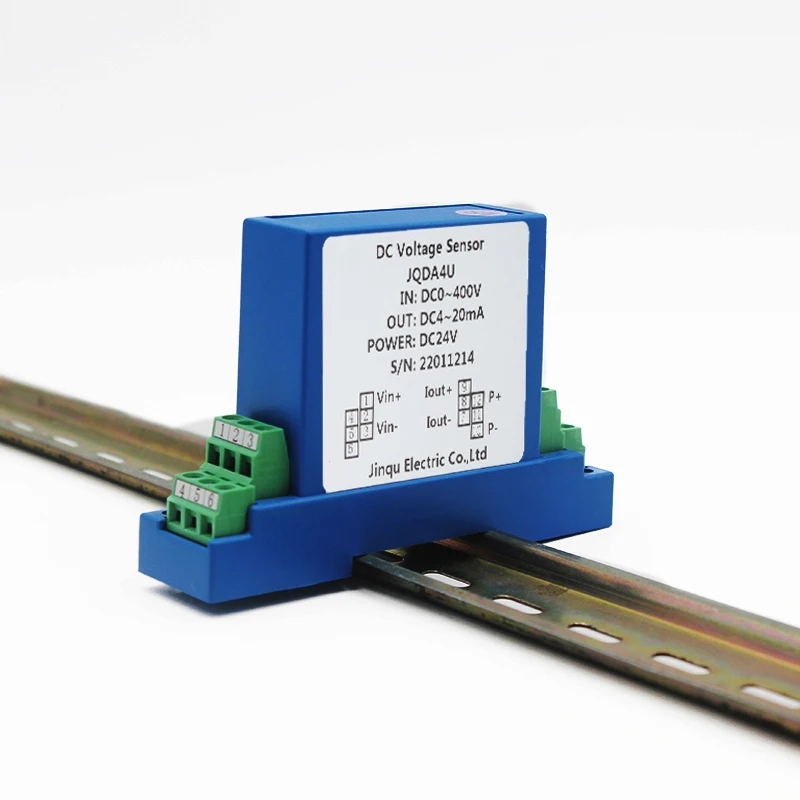

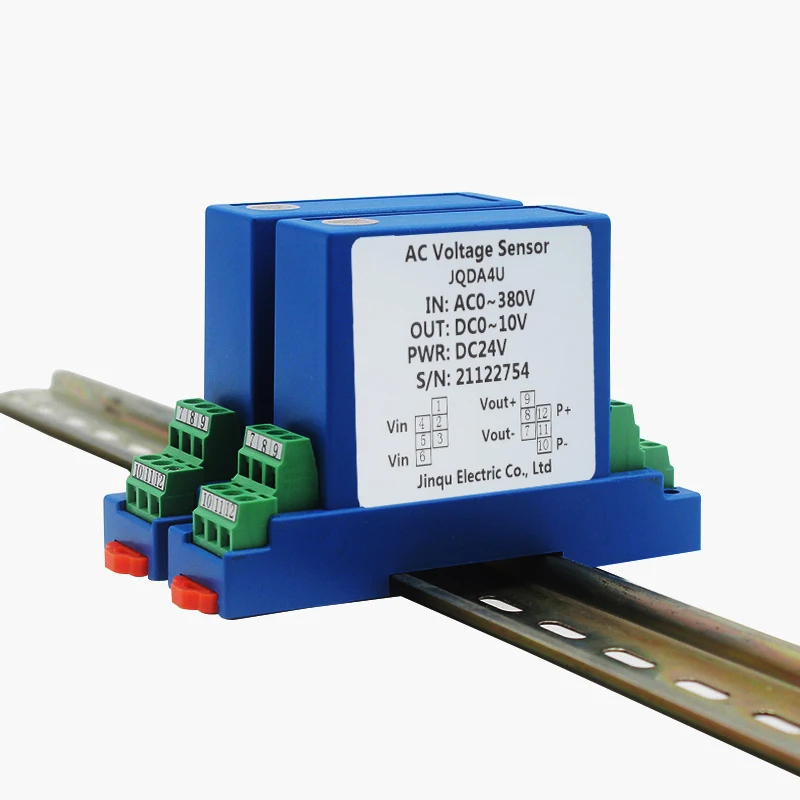

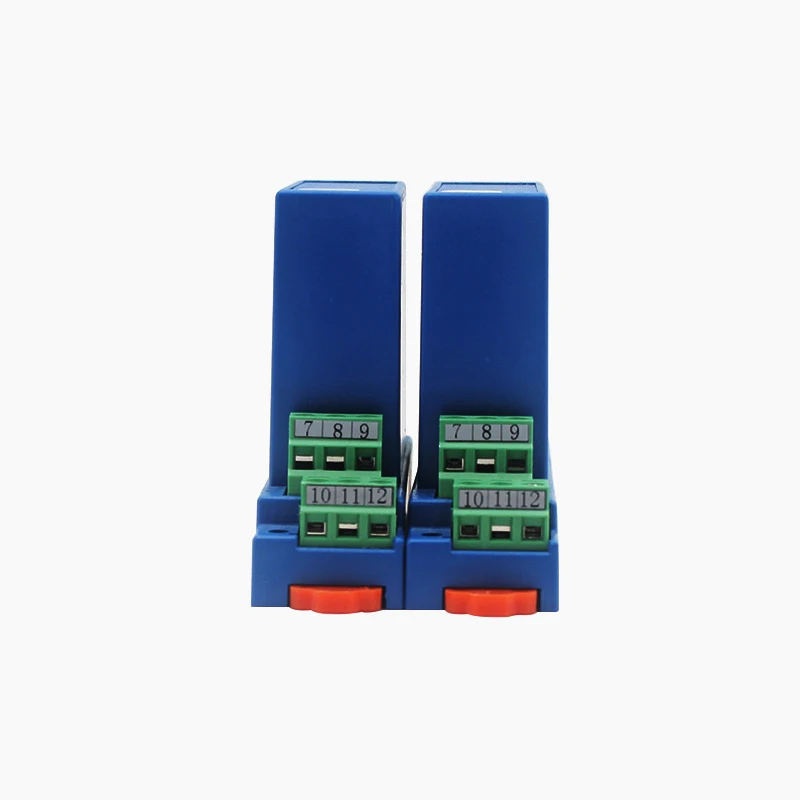

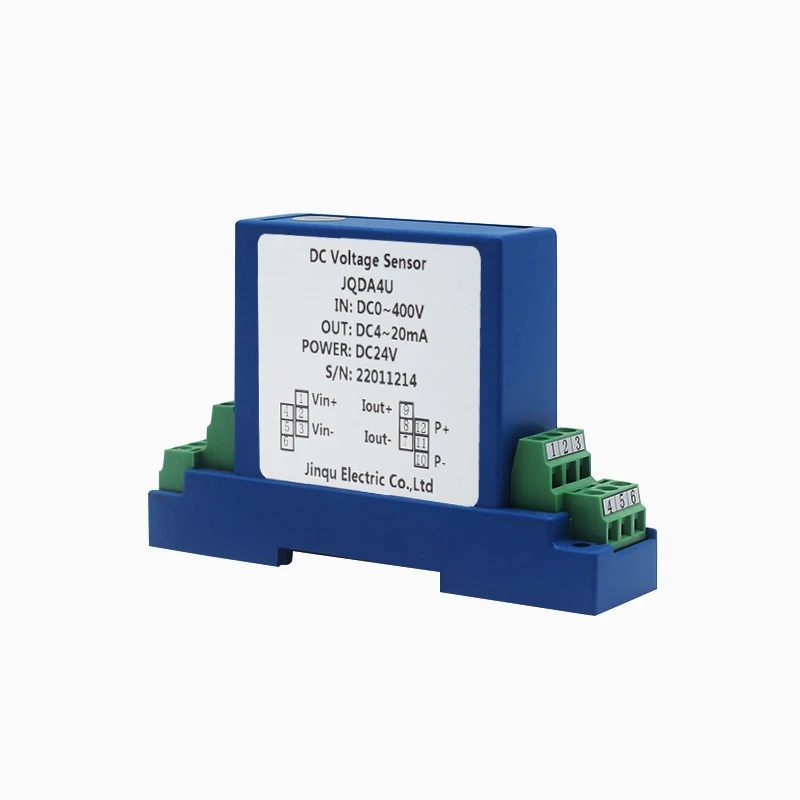

SWK 12 1000V 1500V DC Voltage Transducer AC Voltage Isolator Converter Transmitter
- Category: >>>
- Supplier: Anhui Jinqu Electric Co. Ltd.
Share on (1600465039729):
Product Overview
Description
Specification
SWK-12 AC/DC Voltage Transmitter | ||||||||
Input Range | AC0-1500V ; DC0-1000V | |||||||
Output Signal | 4-20mA, 0-20mA ,0-5V, 0-10V,etc | |||||||
Power Supply | DC12V, DC24V,AC220V | |||||||

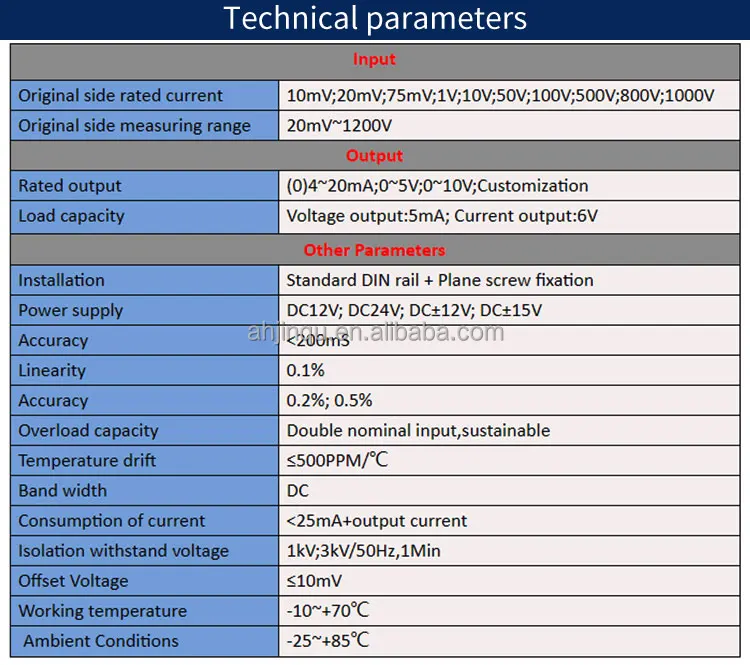

Technical Index and Specification:
1>. Working Principle: Linear photoelectric isolation.
2>. Usage: Used for measuring input signal frequency variation and input waveform.AC DC universal.
3>. Advantages: Better cost performance, fast response, high precision, good stability, small size, light weight, easy
installation.
4>. Application: Measurement of distortion waveforms such as triangular wave, trapezoidal wave and thyristor adjustable (true RMS output).
5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability. Full
channel configuration,Parameter customizable.
2>. Usage: Used for measuring input signal frequency variation and input waveform.AC DC universal.
3>. Advantages: Better cost performance, fast response, high precision, good stability, small size, light weight, easy
installation.
4>. Application: Measurement of distortion waveforms such as triangular wave, trapezoidal wave and thyristor adjustable (true RMS output).
5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability. Full
channel configuration,Parameter customizable.
Products Description

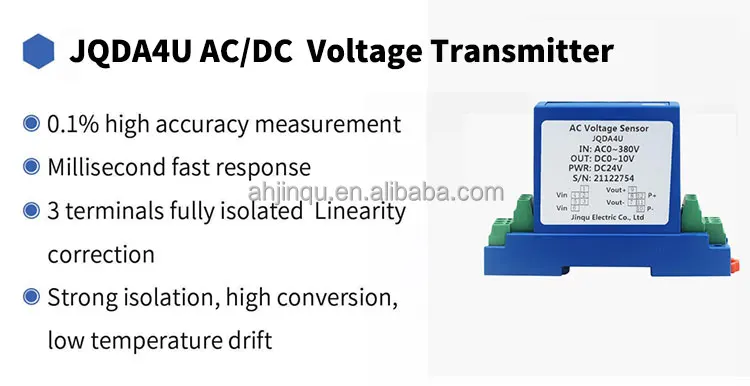

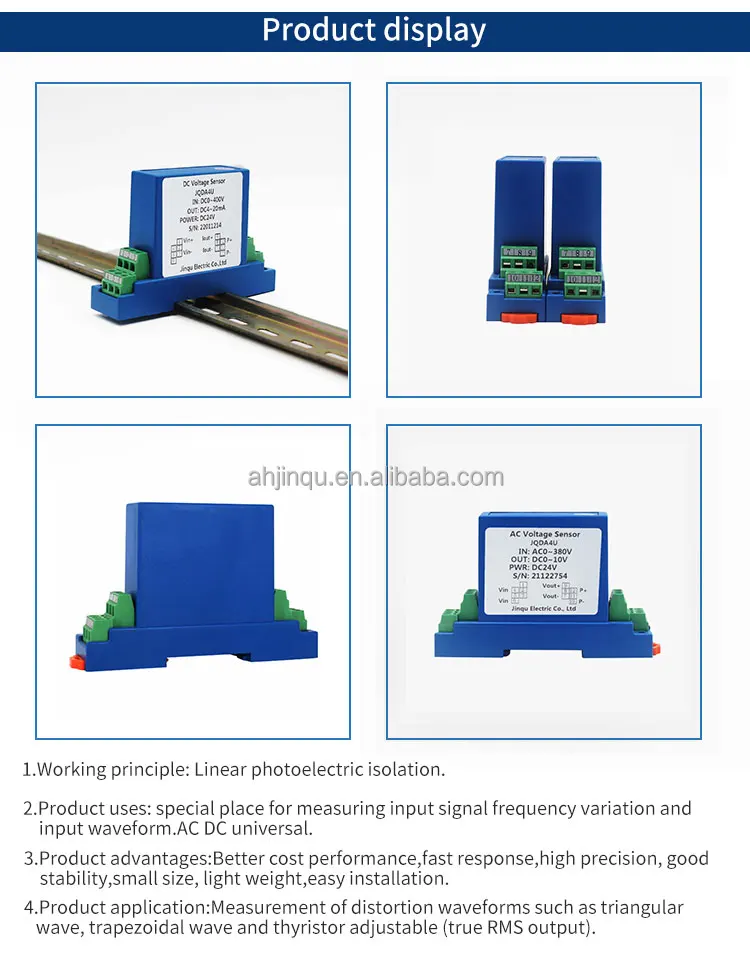

Details Images

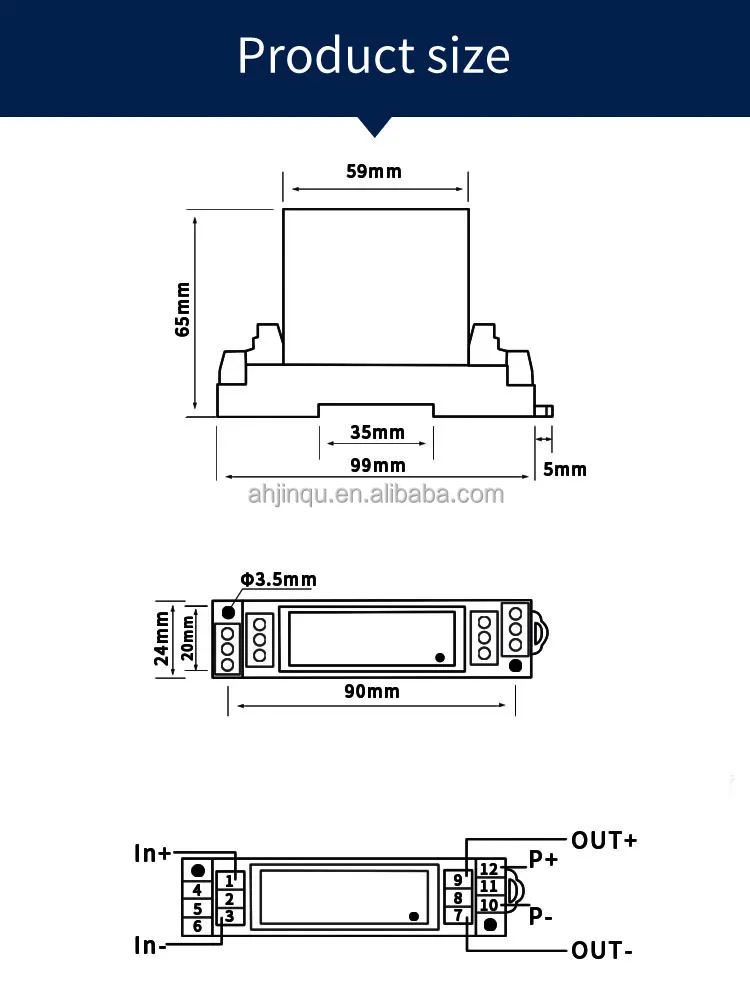

Product Size

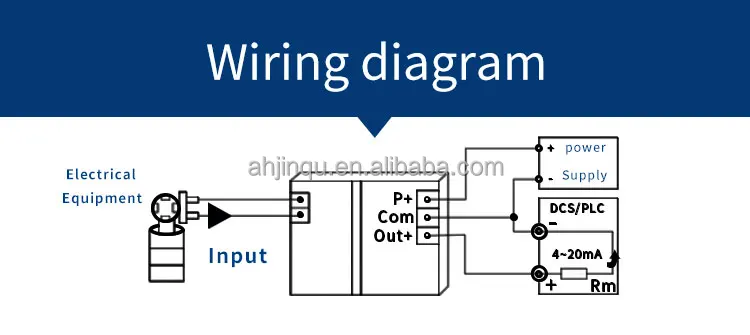

Wiring Diagram

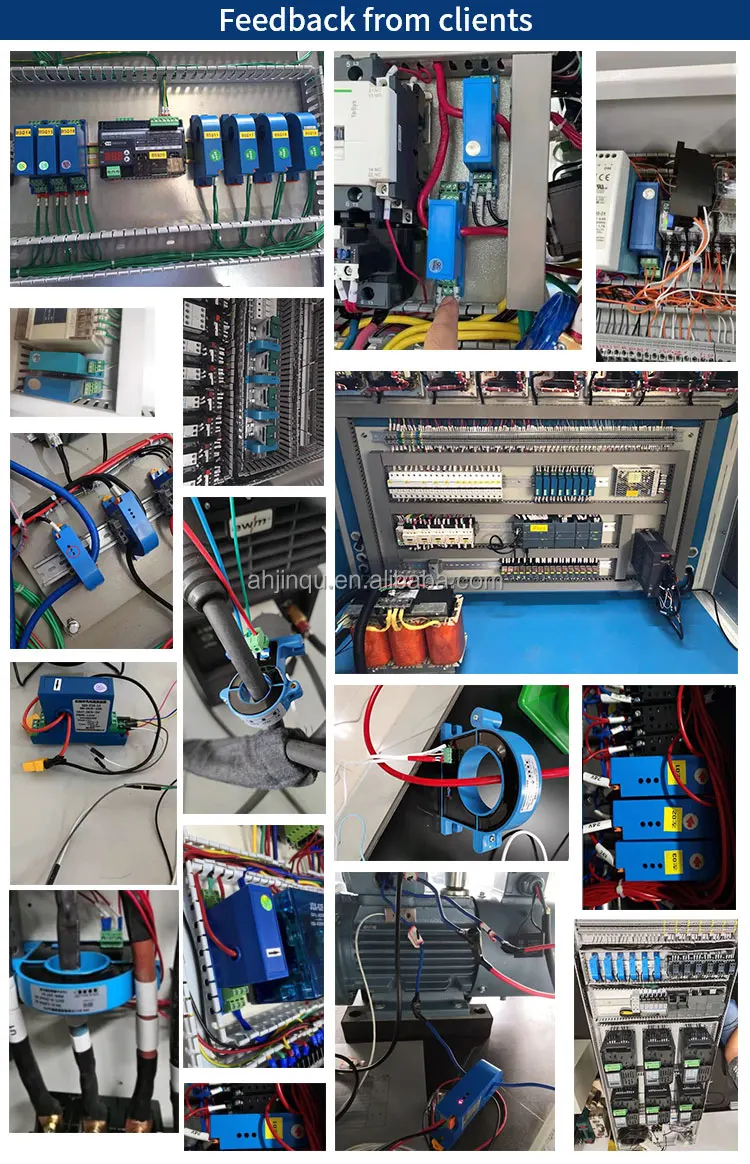

Customer Photos
