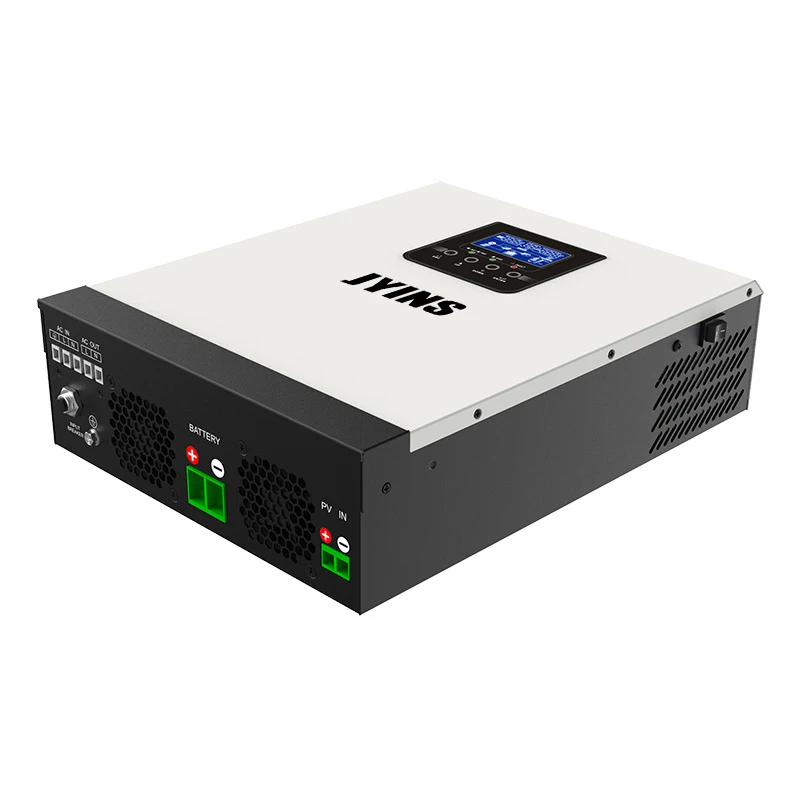

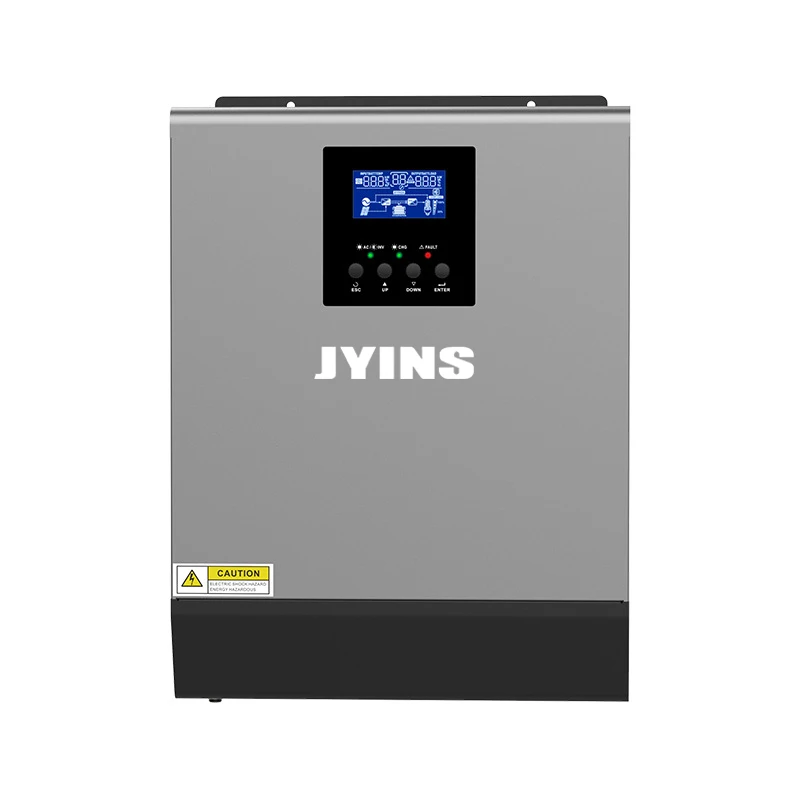

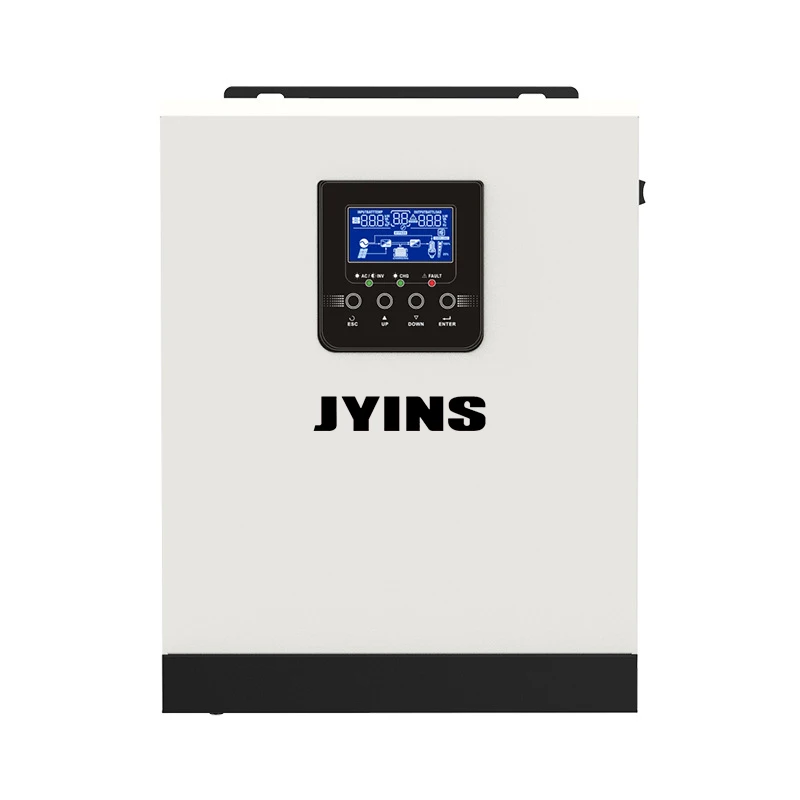

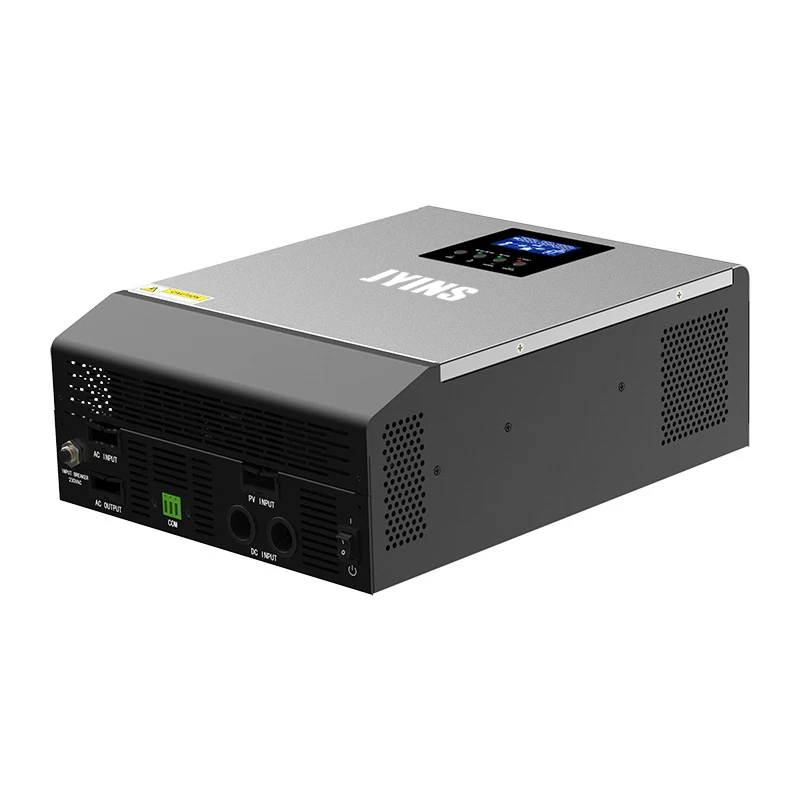

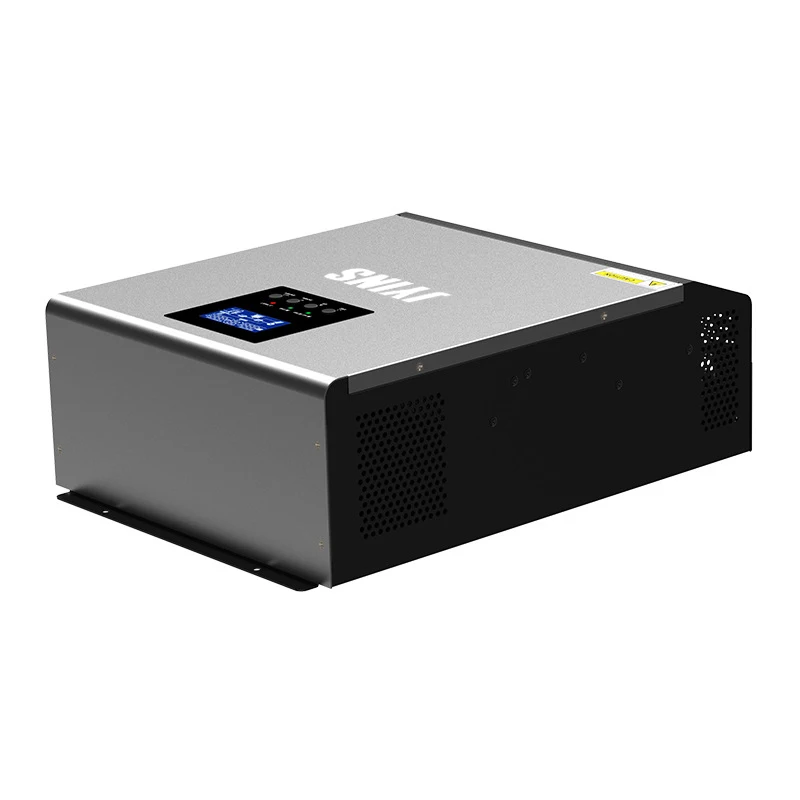

1Kw 1.5Kw 3Kw 5Kw Pure Sine Wave Off Grid Hybrid Solar Inverter,Mppt Solar Power Inverter With Charger For Solar Panel System
- Category: >>>
- Supplier: Yueqing Jyins Electric Technology Co. Ltd.
Share on (1600465138782):
Product Overview
Description
1Kw 1.5Kw 3Kw 5Kw Pure Sine Wave Off Grid Hybrid Solar Inverter,Mppt Solar Power Inverter With Charger For Solar Panel System
Product Description
Product Paramenters
MODEL | JME1K-24 | JME1.5K-12 | JME3K-24 | JME5K-48 (JME5KP) | JM5K-48 (JM5KP) | |||||
Rated Power | 1000VA/800W | 1500VA/1200W | 3000VA/2400W | 5000VA/4000W | 5000VA/5000W | |||||
INPUT | ||||||||||
Voltage | 230VAC | |||||||||
Selectable Voltage Range | 170-280VAC (for personal computers) | |||||||||
90-280VAC (for home appliances) | ||||||||||
Frequency Range | 50Hz/60Hz (Autosensing) | |||||||||
OUTPUT | ||||||||||
AC Voltage Regulation (Batt. Mode) | 230VAC±5% | |||||||||
Surge power. | 2000VA | 3000VA | 10000VA | 10000VA | ||||||
Efficiency (Peak) | 90%-93% | 90%-93% | 93% | |||||||
Transfer Time | 10ms (for personal computers) | |||||||||
20ms (for home appliances) | ||||||||||
Waveform | Pure Sine Wave | |||||||||
BATTERY & AC CHARGER | ||||||||||
Battery Voltage | 24VDC | 12VDC | 24VDC | 48VDC | ||||||
Floating Charge Voltage | 27VDC | 13.5VDC | 27VDC | 54VDC | ||||||
Overcharge Protection | 31VDC | 15.5VDC | 31VDC | 60VDC | ||||||
Maximum charge current | 10A/20A | 20A/30A | 20A/30A | 10A/20A/30A/40A/50A/60A | ||||||
SOLAR CHARGER | ||||||||||
Maximum Charging Current | 40A | 40A | 40A | 60A/80A | ||||||
Maximum PV Array Open Circuit Voltage | 75VDC | 102VDC | 102VDC | 145VDC | ||||||
MPPT Range @ Operating Voltage | 30-66VDC | 15-80VDC | 30-80VDC | 60-115VDC | ||||||
Standby Power Consumption | 2W | |||||||||
Maximum PV Array Power | 1000W | 500W | 1000W | 3000W/4000W | ||||||
Maximum Efficiency | 98% | |||||||||
PHYSICAL | ||||||||||
Dimension. D*W*H(mm) | 368*272*128mm | 305*300*110mm | 305*272*100mm | 540*295*140mm | 468*295*136mm | |||||
Net Weight（kg） | 7.4kg | 4.5kg | 6.9kg | 11.5kg | 13.5kg | |||||
OPERATING ENVIRONMENT | ||||||||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||||||
Operating Temperature | 0℃ to 55℃ | |||||||||
Storage Temperature | -15℃ to 60°C | |||||||||
Certifications
Time-honored quality, Security guarantee.
We gain more and more recognition from users by high quality.
meanwhile our products have passed several testing Certifications and
have relevant certifications.
meanwhile our products have passed several testing Certifications and
have relevant certifications.
Company Introduction
Factory direct sales Support OEM/ODM
Our company have research and development center for new product, management department for strict quality control.we continuously launch new products which occupying the international and domestic markets. we deeply favored by customers because of the satisfied products and service. Our products are exported to Southeast Asia, Europe, North America, Australia, and countries from Middle East and other regions and gain a high reputation in international market.
For more information,Welcome to the field trip.
For more information,Welcome to the field trip.
Our Team and Philosophy Always Work with Passion
Welcome to contact us anytime!
