Product Overview

Description



Product Description


The product is a non-cleaning solder paste using a high reliability flux, which is a scientific complex of film forming agent, modified resin, organic active agent and polymer alcohol-ether solvent. Mixed with high sphericity, uniformly distributed, low oxygen content Sn55/Pb45 alloy powder particles, with excellent rheological properties, good printing and mold resistance to collapse, moderate flux activity, good solderability performance, ideally for lead soldering process.


Product Name
JF-333A Sn55Pb45 solder paste
Application
Lead soldering
Alloys
Sn55Pb45
Powder particle size
T3 ,  25-45um
Max. Temperature
225-235℃

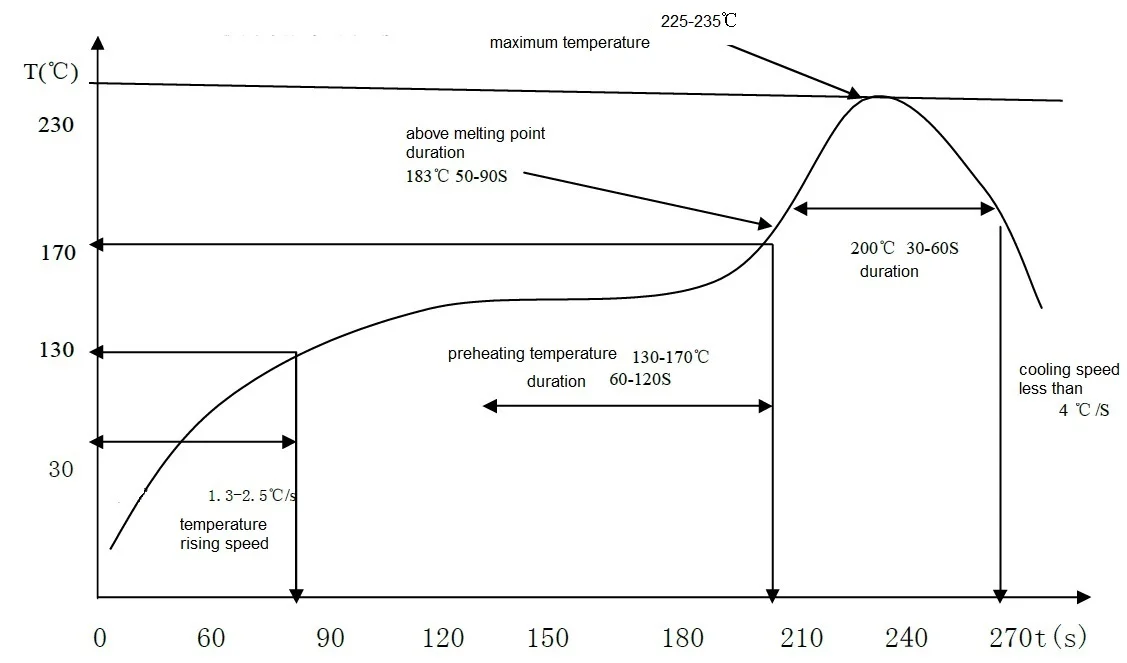

Recommend temperature profile




Packing & Delivery






FAQ


Q1: Can you provide COA for each batch?
A1: Sure, we can provide
Q2: Since the solder paste need to be stored in low temperature(0--10° C), what is your measures to minimize exposure to normal temperature .
A2: We maintain all stocks in fridge. Each package filled with Ice bricks during delivery. Also we suggest customer to adopt express shipment to minimize exposure time to ambient temperature.
