Good Price 3kw 3 kw 5kw 5 kw Off Grid Solar Inverter Solar Air Conditioner Inverter
- Category: >>>
- Supplier: Foshan Sinonteam New Energy Co. Ltd
Share on (1600465213174):
Product Overview
Description
INVERTER PARAMETERS Green environmental protection and low carbon life |
| Model: MPPT | 0.3-1KW | 1.5-6KW | ||||
| power rating(w) | 300 | 700 | 1500 | 3000 | 5000 | |
| 500 | 1000 | 2000 | 4000 | 6000 | ||
| Battery | rated voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | |
| Charge Current | 10A MAX | 30A MAX | ||||
| Battery Type | Can be set | |||||
| Input | Voltage Range | 85-138VAC/170-275VAC | ||||
| frequency | 45-65Hz | |||||
| Output | Voltage Range | 110VAC/220VAC; ±5%( Inverter mode) | ||||
| frequency | 50/60Hz±1%( Inverter mode) | |||||
| Output wave | Pure Sine Wave | |||||
| Change time | <10ms(Typical load) | |||||
| Efficiency | >85%(80% Resistive load) | |||||
| overload | 110-120%/30S;>160%/300ms; | |||||
| Protection function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection | |||||
| Solar Controller | MPPT Voltage Range | 12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V~150VDC | ||||
| PV Power | 12VDC-30A(400W); 24VDC-30A(800W) | 12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W) | ||||
| Rated charge current | 30A(Max) | 60A(Max) | ||||
| MPPT efficiency | ≥99% | |||||
| Average charging voltage(lead acid battery | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | |||||
| Floating charge voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | |||||
| Operating ambient temperature | -15-+50℃ | |||||
| Storage ambient temperature | -20 - +50℃ | |||||
| Operating / storage environment | 0-90% No Condensation | |||||
| Dimensions:W * D * H (mm) | 420*320*122 | 520*420*222 | ||||
| Packing size: W * D * H (mm) | 535*435*172 | 635*535*252 | ||||

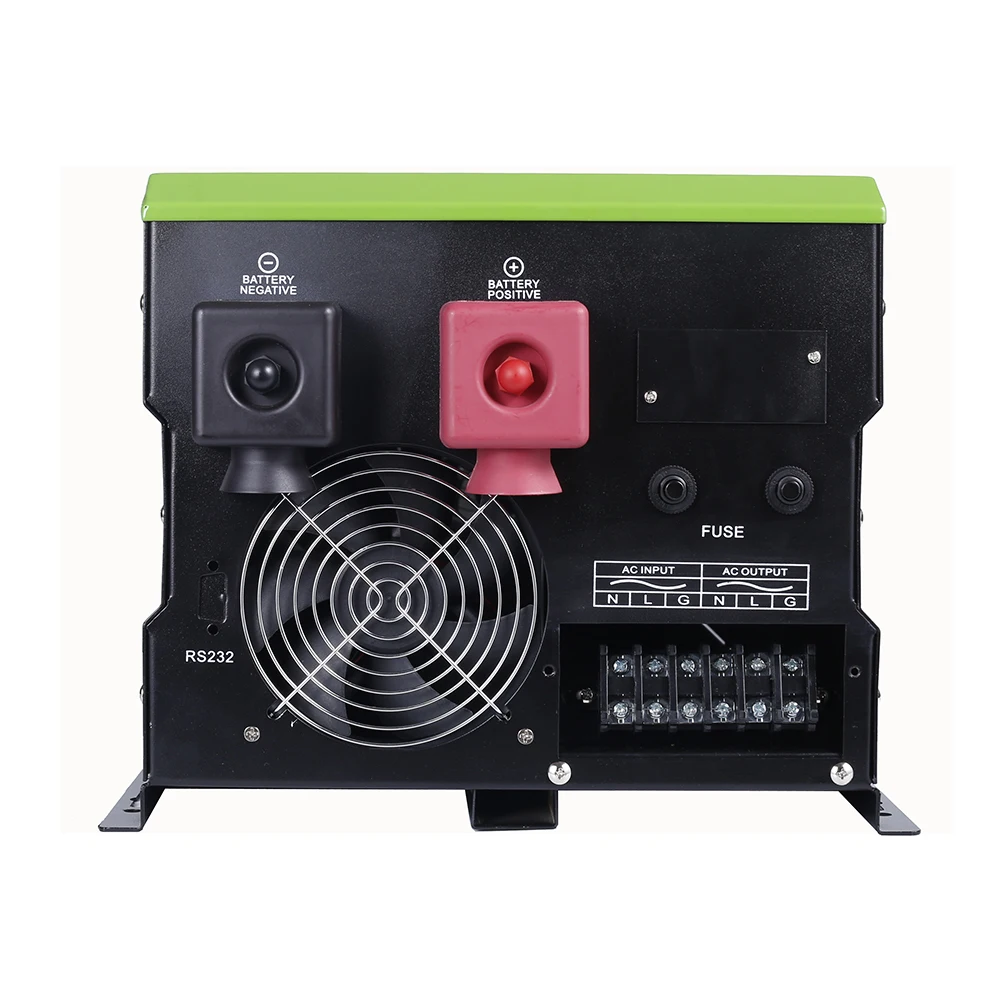

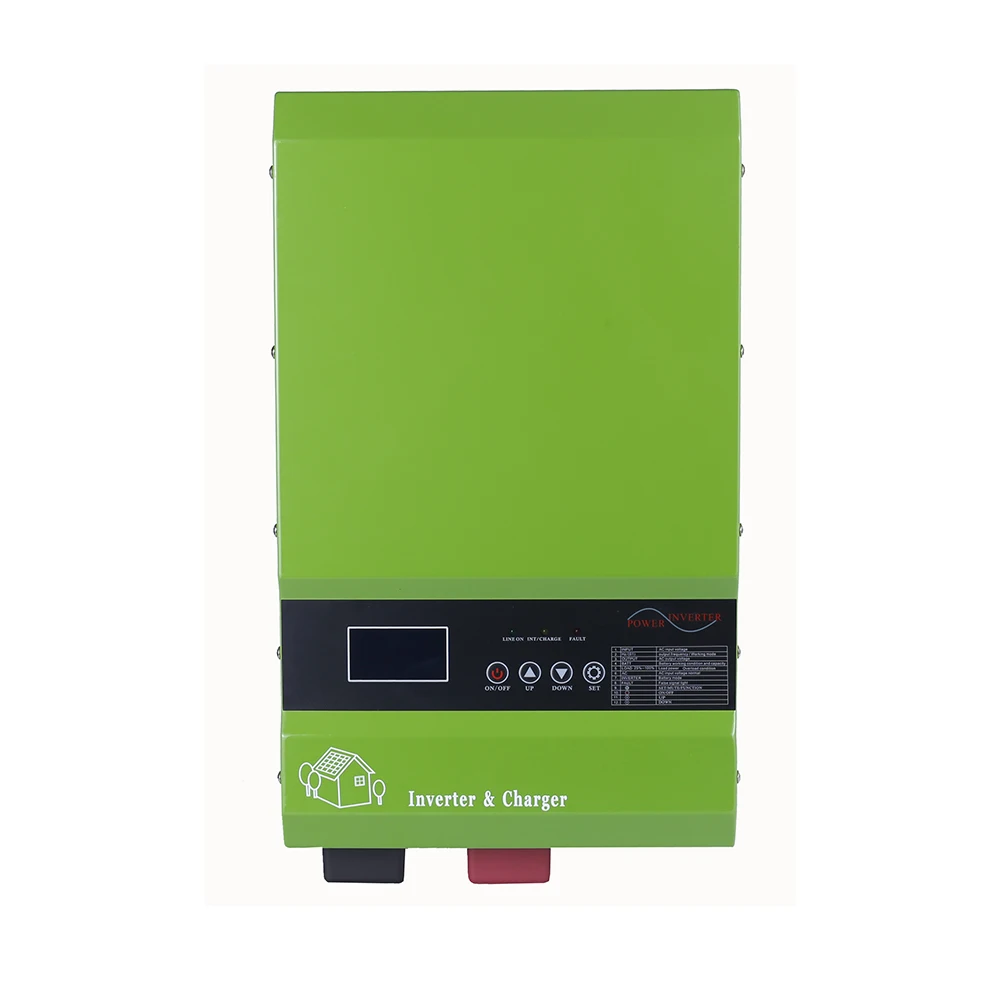

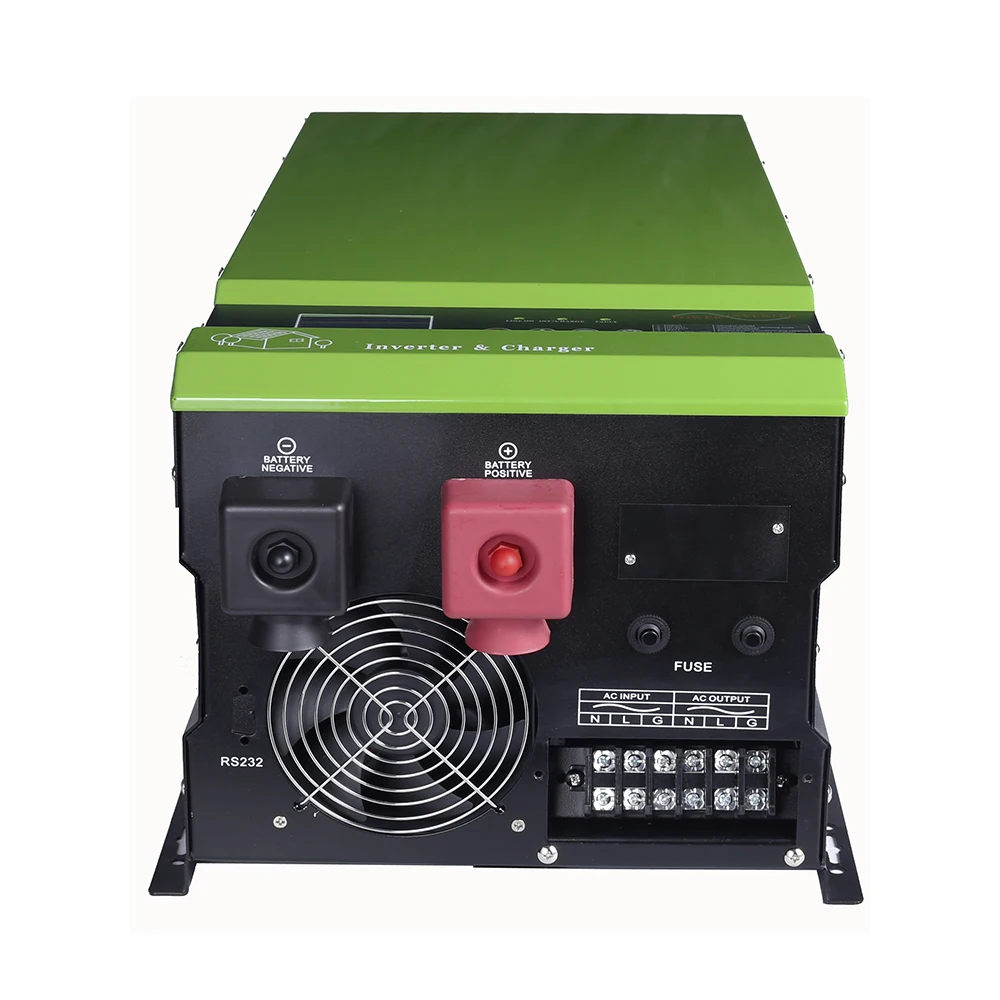

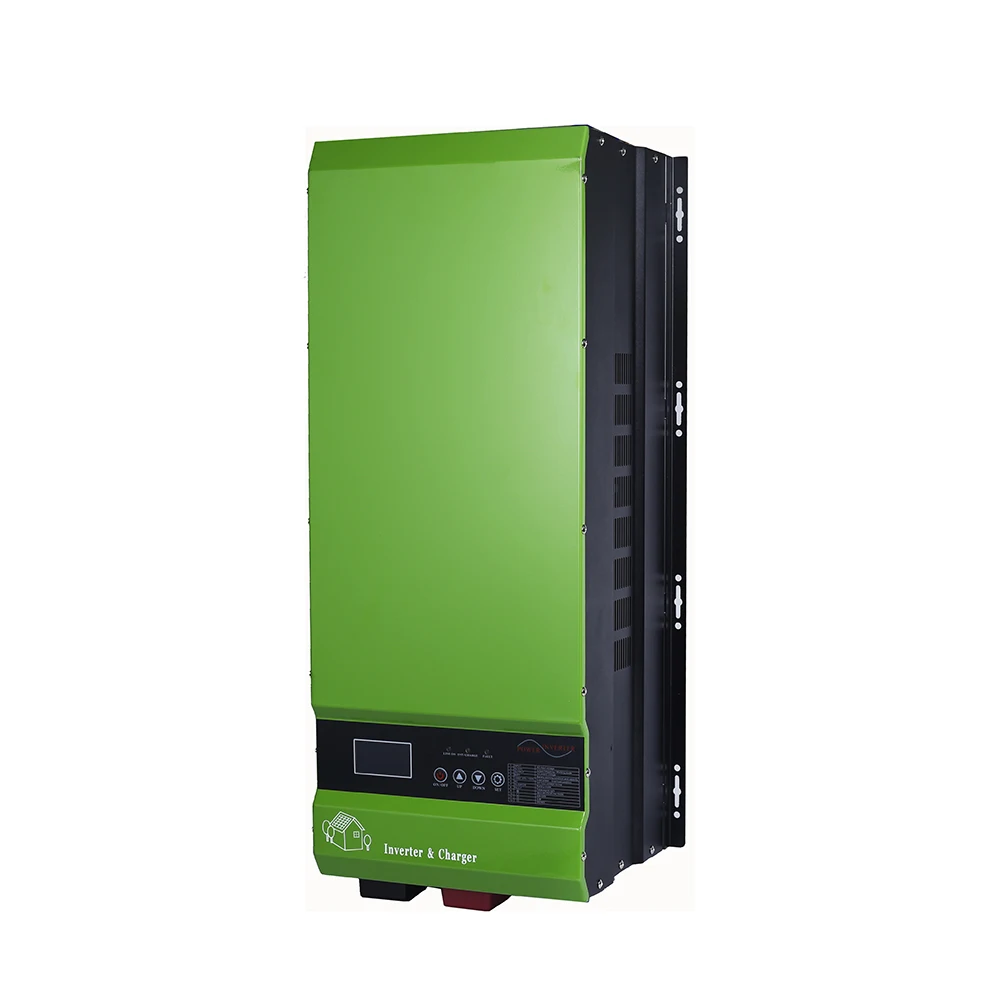

Product display

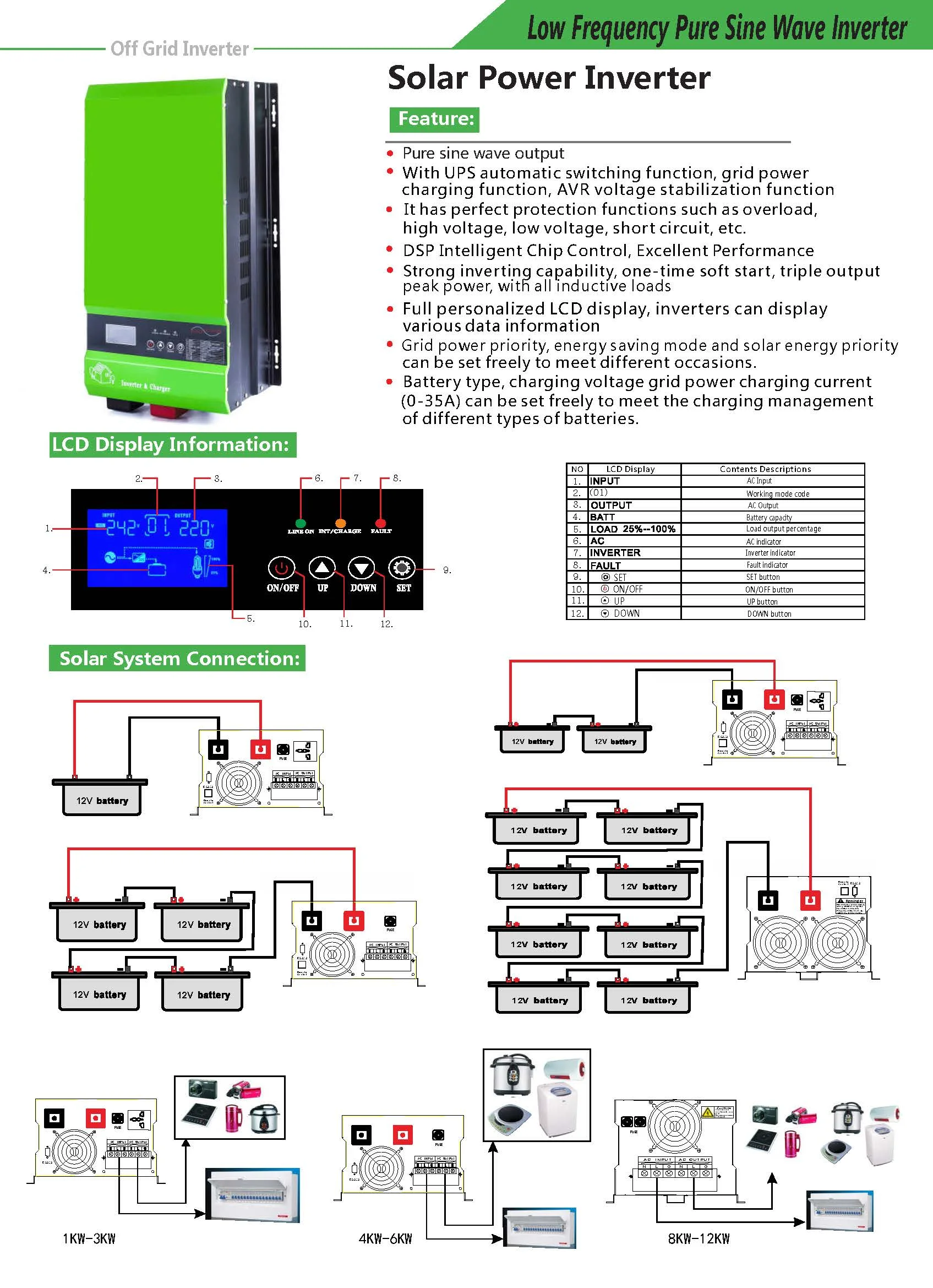

INVERTER DETAILS Green environmental protection and low carbon life |
FEATURES 1. Double CPU intelligent control technology, performance excellence; |
Product category

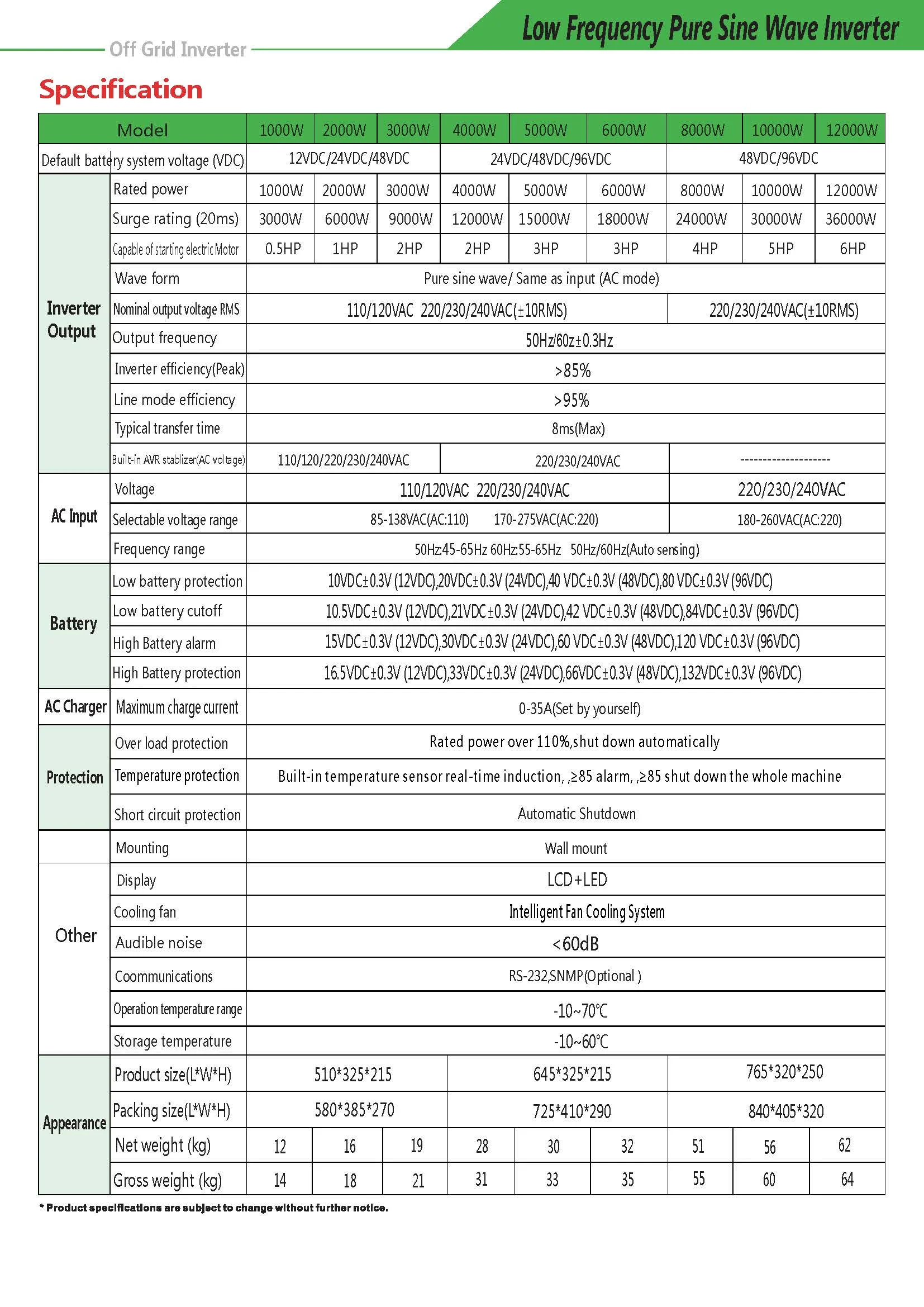

INVERTER PARAMETERS
Green environmental protection and low carbon
PRODUCT CATEGORY Green environmental protection and low carbon life |
Company Information
GLOBAL CUSTOMER Our products are hot sold all over the world! |
FAQ
FAQ Our products are hot sold all over the world! |
Q1:What products do you marjor in? GEL battery, AGM bettery. Q2:What is function? The power storage capacity is strong, the flame-retardant is small, the number of cycles is large, the size is large, various systems are convenient to be installed,etc Q3:What certification do you have? ROSH,CE,ISO,MSDS,TLC,etc Q4:What price is it? Different type,different price,please contact us directly. Q5:What devices can these batteries be used in? UPS,EPS,solar or wind system,telecom system,computer,emergency lamp,street light,expressway devices.etc. Q6:When will you arrive at the port? The port time is accounted for according to the actual situation. Q7:Are there any other products available? |
