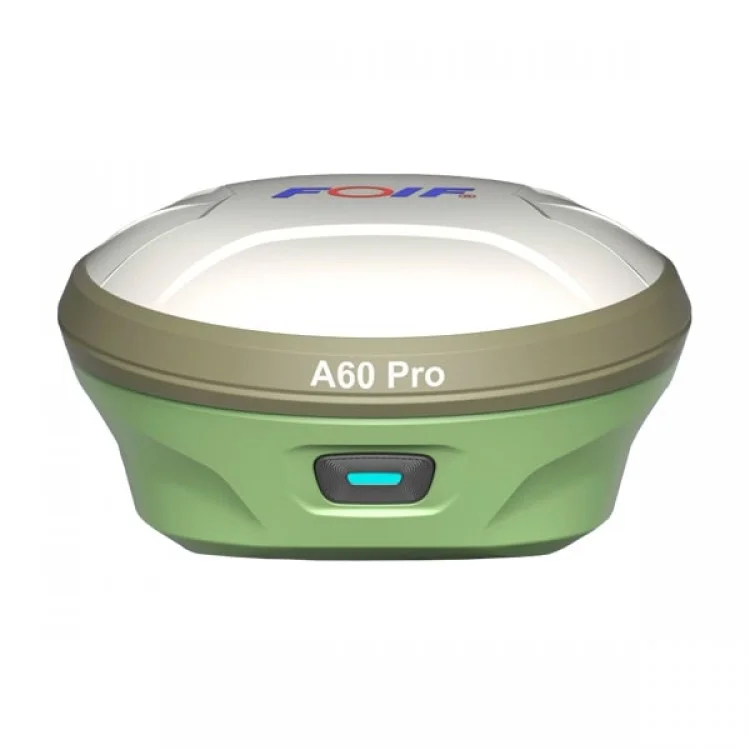

Foif A60 pro 800 channels GPS RTK receiver gps survey equipment FOIF A60 Pro GNSS RTK
- Category: >>>
- Supplier: Jiangsu Conwy Optoelectronic Technology Co. Ltd.
Share on (1600465217911):
Product Overview
Description
Product Description
Factory price Foif 800 channels GPS RTK receiver gps survey equipment FOIF A60 Pro GNSS RTK
Key Features
Multi-constellation satellite tracked
The world's fifth-generation GNSS baseband chip TIANQIN, integrating 800 super
channels, supporting multi-satellite system full-band satellite signal reception.
channels, supporting multi-satellite system full-band satellite signal reception.
Athena core GNSS engine
Running Athena core GNSS engine offering improved initialization times, robustness in difficult environments, performance over long baselines and under scintillation.
Atlas
The receiver can receive our new GNSS global corrections service delivered via L-band satellite and internet to abtain centimeter-level positioning accuracy.
aRTK technology
Using aRTK technology to maintain positioning accuracy at a certain time when loss of GNSS has occurred.
Combined antenna
Using a new combined antenna, GNSS, WiFi, Bluetooth and 4G are
integrated into one, and the wireless signal is better.
integrated into one, and the wireless signal is better.
Intelligent base station
After the base station is started, if a positional offset occurs, the mobile station is notified of the alarm.

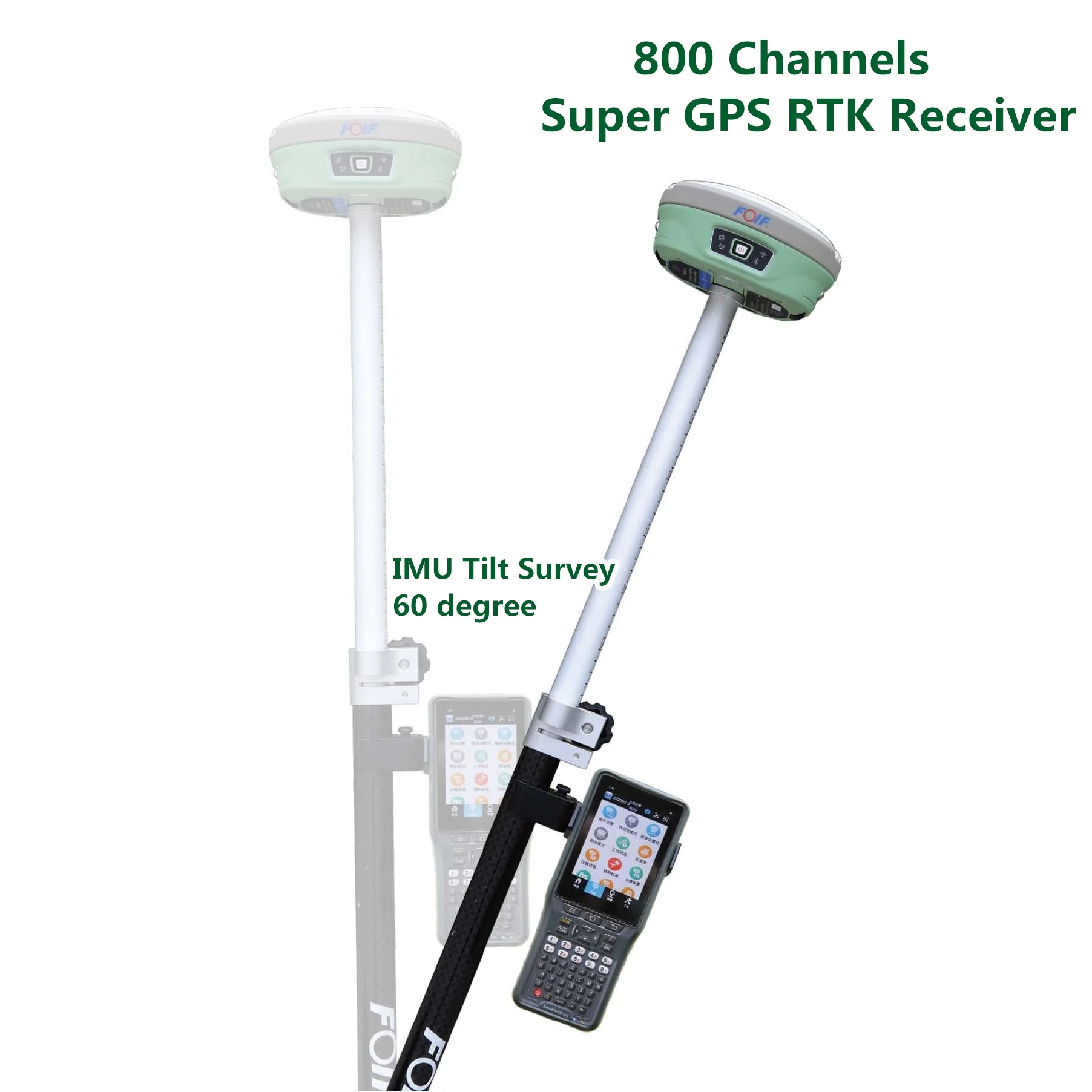

IMU Tilt measurement
New IMU tilt measurement algorithm for increased productivity. A60 Pro support 60 degree IMU Tilt surveying. 400Hz dynamic output real-time correction, no need calibration.
Large batteries capacity
4.2V, 13600mAH battery, charging and external charging configurations. long working time.
Static Survey: 28 hours, Rover RTK survey: 22h
Bulit-in international 4G network module: EG25-G
More stable network communication.
Main Features:
Main Features:
1) 800 channels(Hemisphere board P40),
2) Tracking All constellations:
GPS: L1C/A,L1C,L1P,L2C,L2P,L5;
GLONASS:G1,G2,G3
BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC;
Galileo: E1, E5a, E5b, ALTBOC, E6
QZSS: L1C/A, L1C, L2C, L5, LEX;
SBAS: L-Band
3)Static: H: 2.5mm±1ppm, V: 5mm±1ppm RTK: H: 8mm±1ppm, V:15mm±1ppm
4) Internal TX/RX UHF radio, the work range is 3-4KM.
5) 35W External radio: the work range is 20-30KM.
6) With IMU Tilt survey function 60 degree, Electronic Bubble
7) 4G network, WebUI,Wi-FI, iVoice intelligent, Bluetooth,
8) Strong software "Surpad4.2", SurvCE, Field Genius, Fast Survey are supported too.
9)Large batteries capacitydesign,
4.2V, 13600mAH battery, charging and external charging configurations. long working time.
Static Survey: 28 hours, Rover RTK survey: 22h
10) Protocol: Support GeoTalk, GEOMARK, PCC GMSK, SATEL, PCC-EOT, TrimTalk 450S, TrimMark
III,TrimTalk(4800), South, Hi-Target,HZSZ and etc.
III,TrimTalk(4800), South, Hi-Target,HZSZ and etc.
11) Data format: RTCM2.3, RTCM3.2, RTCM3.X, CMR,CMR+ and etc. Can work with all the famous brand (Trimble, Leica, Topcon) all over the world
Specification
Product model | A60 Pro | ||
GNSS | Channels | 800 channels | |
Satellite Signals | GPS: L1C/A,L1C,L1P,L2C,L2P,L5; GLONASS:G1, G2,G3 BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC; Galileo: E1, E5a, E5b, ALTBOC, E6 QZSS: L1C/A, L1C, L2C, L5, LEX; SBAS: L-Band | ||
Accuracy | Static | H: ± (2.5mm+0.5 x10-6. D) RMS,V: ± (5mm+0.5 x10-6. D) RMS | |
RTK | H: ± (8mm+0.5 x10-6. D) RMS,V: ± (15mm+0.5 x10-6. D) RMS | ||
DGNSS | <0.5m | ||
SBAS | 0.5m | ||
ATLAS H10 | 8cm | ||
Initialization Time | <10s | ||
Initialization Reliable | 99.9% | ||
System | OS | Linux | |
Memory | 8GB | ||
Wi-Fi | The controller could connect with receiver by WIFI, support WebUI management: update, data download, operation setting and etc. | ||
Bluetooth | V2.1+EDR/V4.1Dual, Class2. Automatically search for Bluetooth and connect within 5 seconds. | ||
E-Bubble | Support | ||
IMU Tilt Survey | Fusion positioning, 400Hz refresh rate, 2cm (@60°Tilt degree) | ||
Audio | support TTS audio broadcast | ||
Datalink | UHF radio | Tx/Rx Internal Radio, 0.5W/2W adjustable, 410-470MHz | |
Radio protocol | Support GeoTalk, GEOMARK, PCC GMSK, SATEL, PCC-EOT, TrimTalk 450S, TrimMark III,TrimTalk(4800), South, Hi-Target,HZSZ and etc. | ||
Network | 4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS) EG25-G network module, international Network mode | ||
Reference outputs | RTCM2.3, RTCM3.2, RTCM3.X, CMR,CMR+ | ||

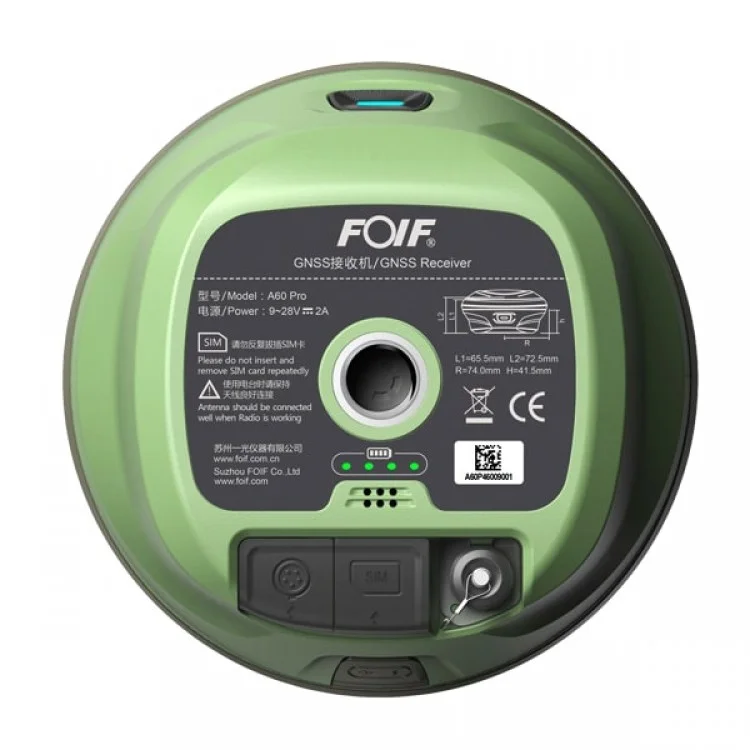

Physical | Interface | 1*TNC Radio Antenna, 1*5Pin(Power & RS232),Type-c port, 1 button | |
Button | 1 Power Button | ||

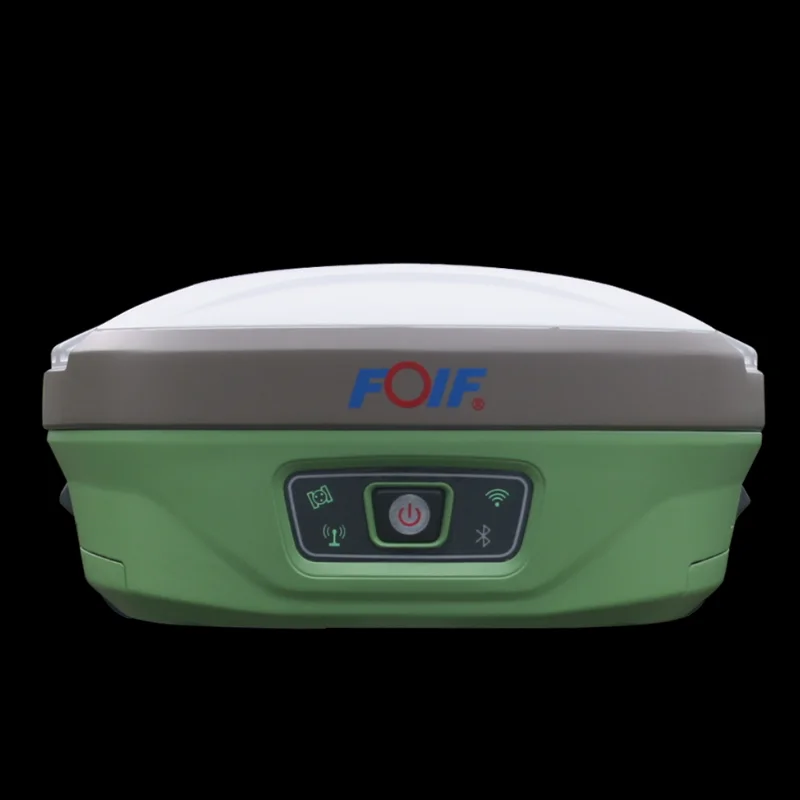

Indication Light | 4 Indication Lights | ||
Size | Φ148mm×H74.5mm | ||
Weight | 1.0kg | ||
Power supply | Battery capacity | 4.2V, 13600mAH battery | |
Life Timer | Static Survey: 28 hours, Rover RTK survey: 22h | ||
External power source | DC 9-18V, with overvoltage protection | ||
Environment | Work Temperature | -30℃~+65℃ | |
Storage Temperature | -40℃~+80℃ | ||

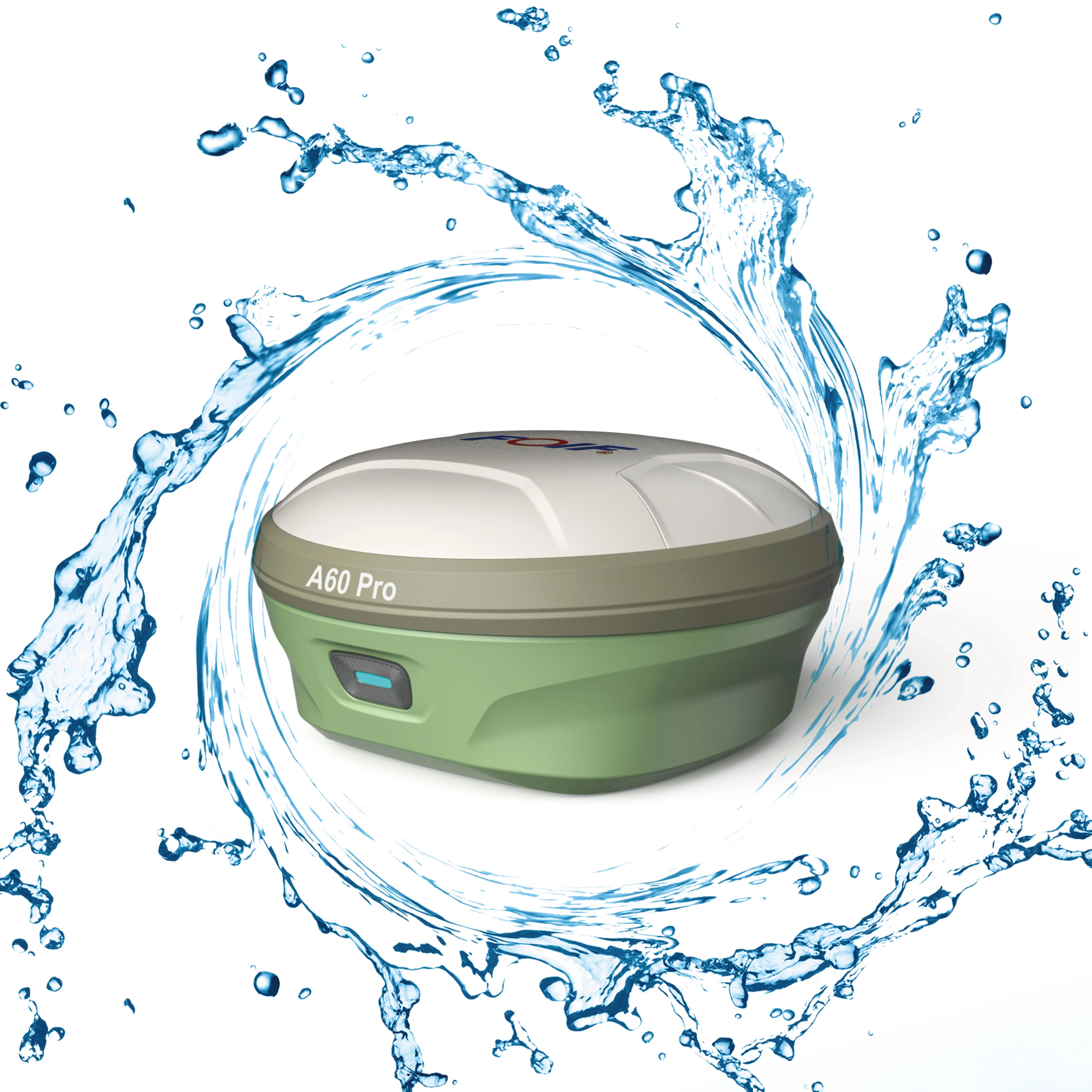

Waterproof & dustproof | IP68 | ||
Humidity | 100% anti-condensation | ||
